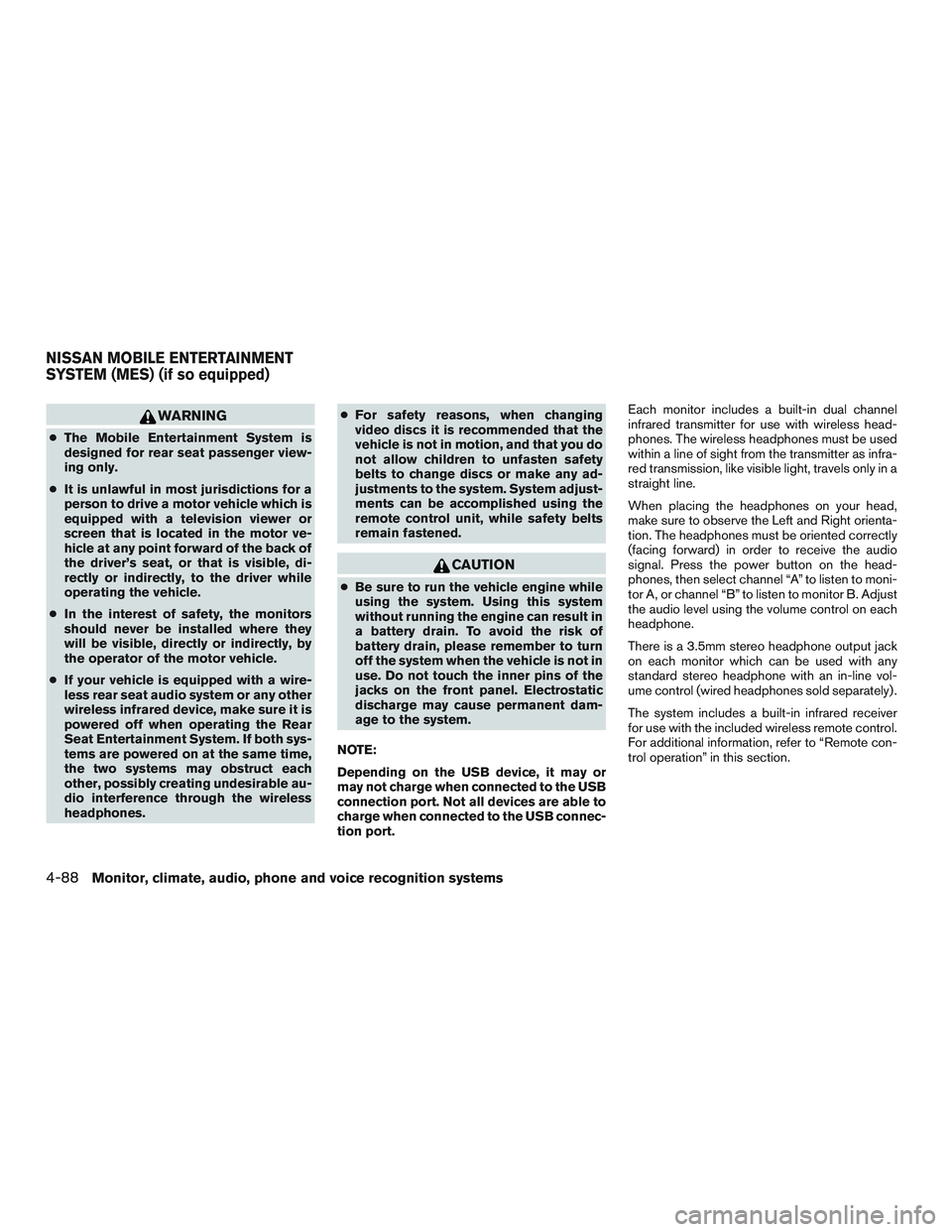

WARNING
●The Mobile Entertainment System is
designed for rear seat passenger view-
ing only.
● It is unlawful in most jurisdictions for a
person to drive a motor vehicle which is
equipped with a television viewer or
screen that is located in the motor ve-
hicle at any point forward of the back of
the driver’s seat, or that is visible, di-
rectly or indirectly, to the driver while
operating the vehicle.
● In the interest of safety, the monitors
should never be installed where they
will be visible, directly or indirectly, by
the operator of the motor vehicle.
● If your vehicle is equipped with a wire-
less rear seat audio system or any other
wireless infrared device, make sure it is
powered off when operating the Rear
Seat Entertainment System. If both sys-
tems are powered on at the same time,
the two systems may obstruct each
other, possibly creating undesirable au-
dio interference through the wireless
headphones. ●
For safety reasons, when changing
video discs it is recommended that the
vehicle is not in motion, and that you do
not allow children to unfasten safety
belts to change discs or make any ad-
justments to the system. System adjust-
ments can be accomplished using the
remote control unit, while safety belts
remain fastened.

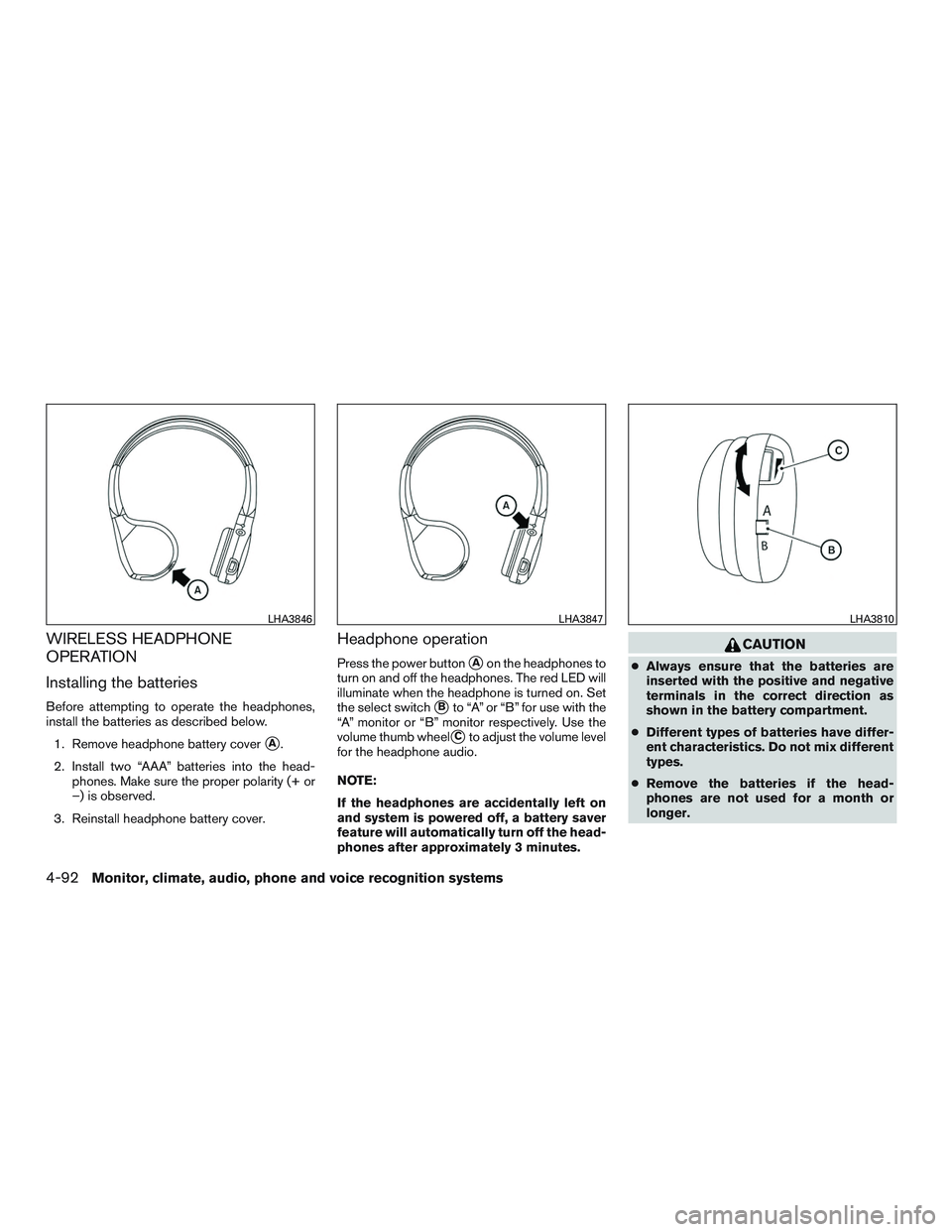

WIRELESS HEADPHONE
OPERATION
Installing the batteries
Before attempting to operate the headphones,
install the batteries as described below.1. Remove headphone battery cover
A.
2. Install two “AAA” batteries into the head- phones. Make sure the proper polarity (+ or
–) is observed.
3. Reinstall headphone battery cover.
Headphone operation
Press the power buttonAon the headphones to
turn on and off the headphones. The red LED will
illuminate when the headphone is turned on. Set
the select switch
Bto “A” or “B” for use with the
“A” monitor or “B” monitor respectively. Use the
volume thumb wheel
Cto adjust the volume level
for the headphone audio.
NOTE:
If the headphones are accidentally left on
and system is powered off, a battery saver
feature will automatically turn off the head-
phones after approximately 3 minutes.

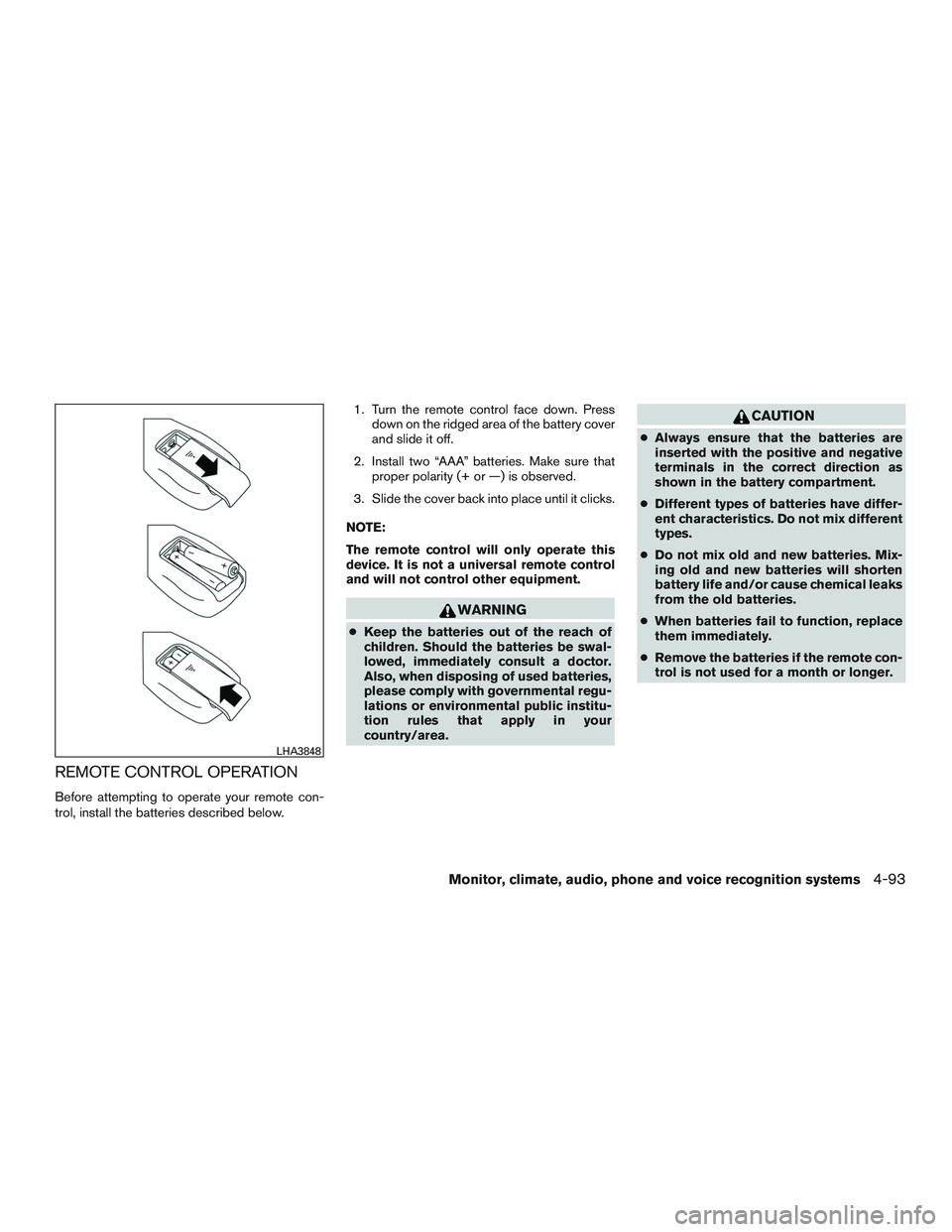

REMOTE CONTROL OPERATION
Before attempting to operate your remote con-
trol, install the batteries described below.1. Turn the remote control face down. Press
down on the ridged area of the battery cover
and slide it off.
2. Install two “AAA” batteries. Make sure that proper polarity (+ or —) is observed.
3. Slide the cover back into place until it clicks.
NOTE:
The remote control will only operate this
device. It is not a universal remote control
and will not control other equipment.
