NISSAN TITAN XD 2017 Owners Manual

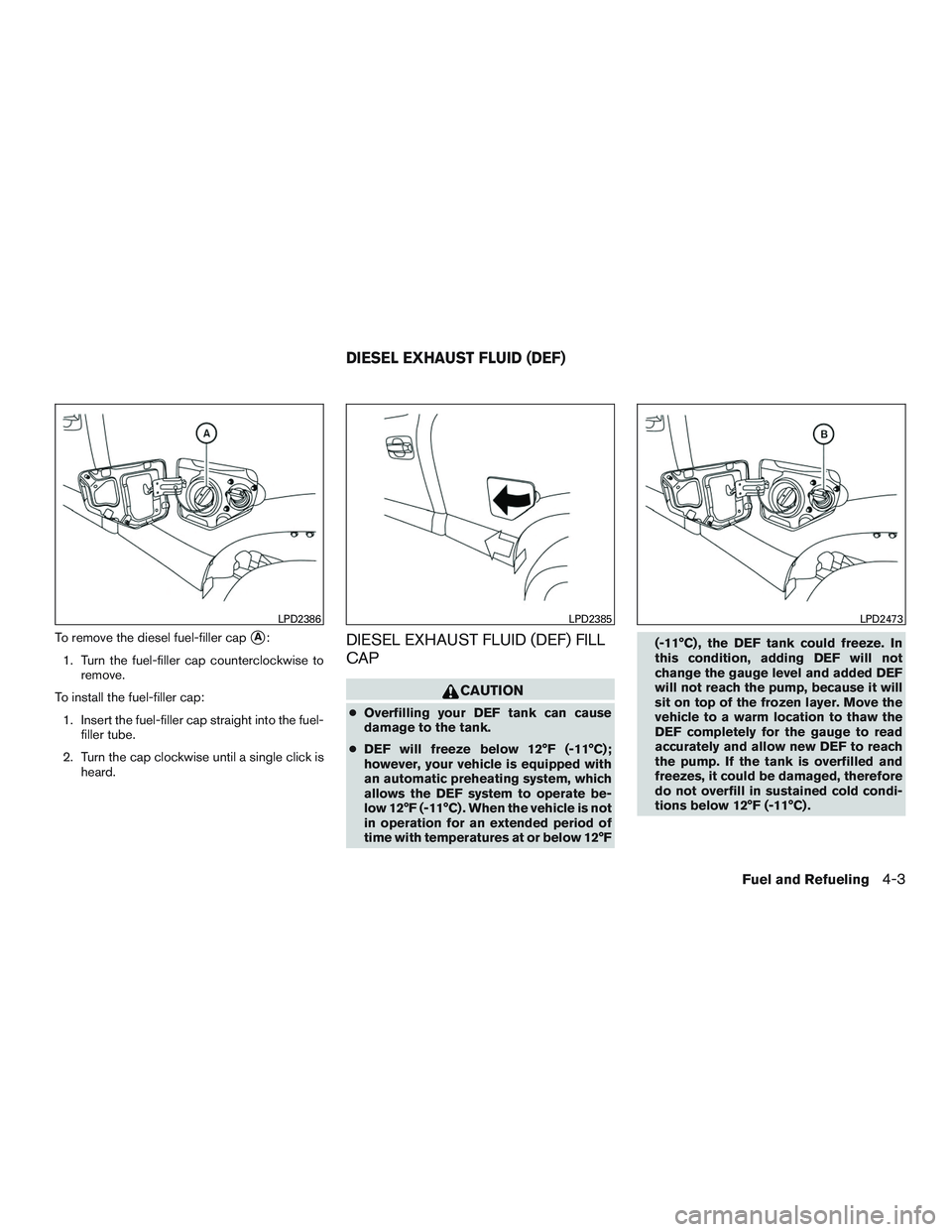

To remove the diesel fuel-filler capA:
1. Turn the fuel-filler cap counterclockwise to remove.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel- filler tube.
2. Turn the cap clockwise until a single click is heard.DIESEL EXHAUST FLUID (DEF) FILL
CAP

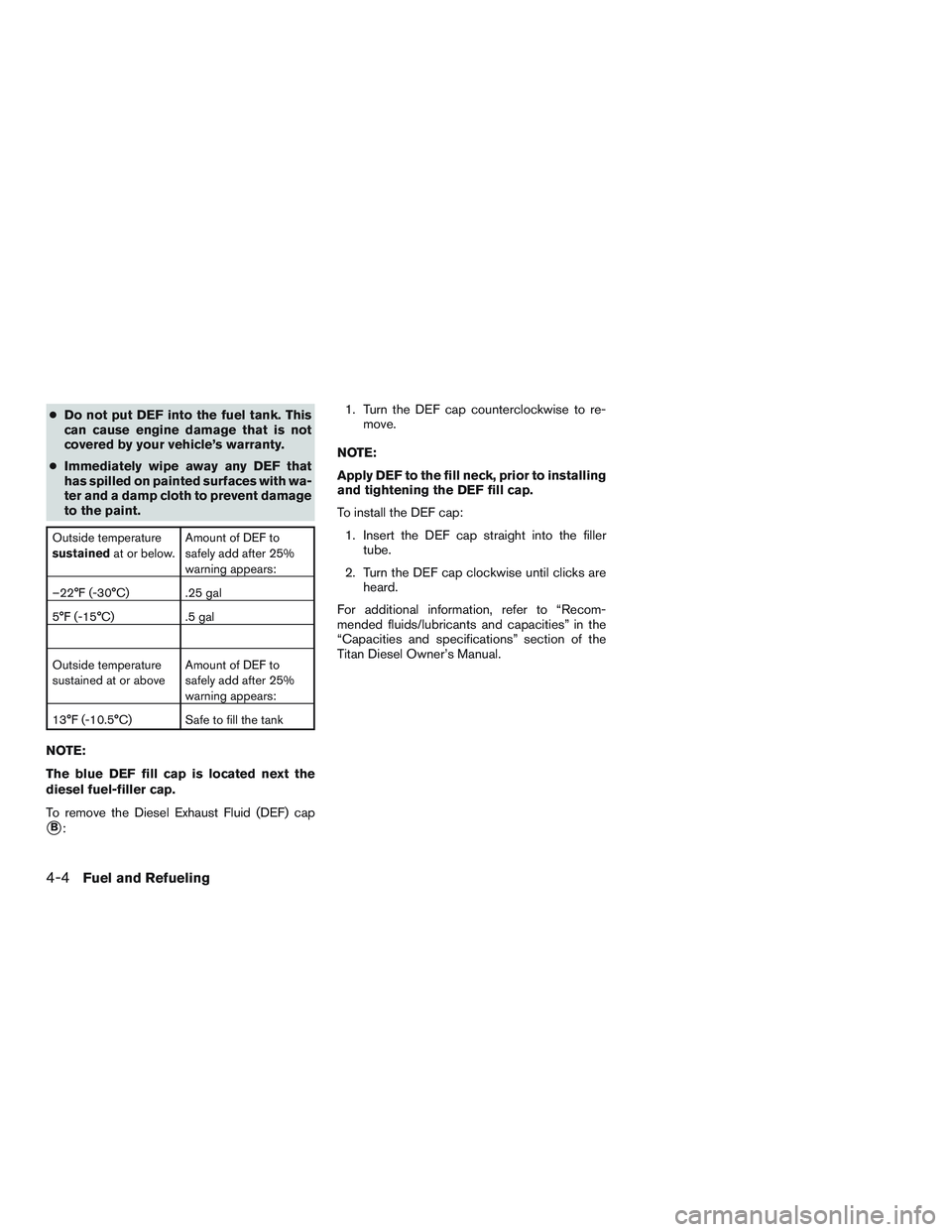

●Do not put DEF into the fuel tank. This
can cause engine damage that is not
covered by your vehicle’s warranty.
● Immediately wipe away any DEF that
has spilled on painted surfaces with wa-
ter and a damp cloth to prevent damage
to the paint.

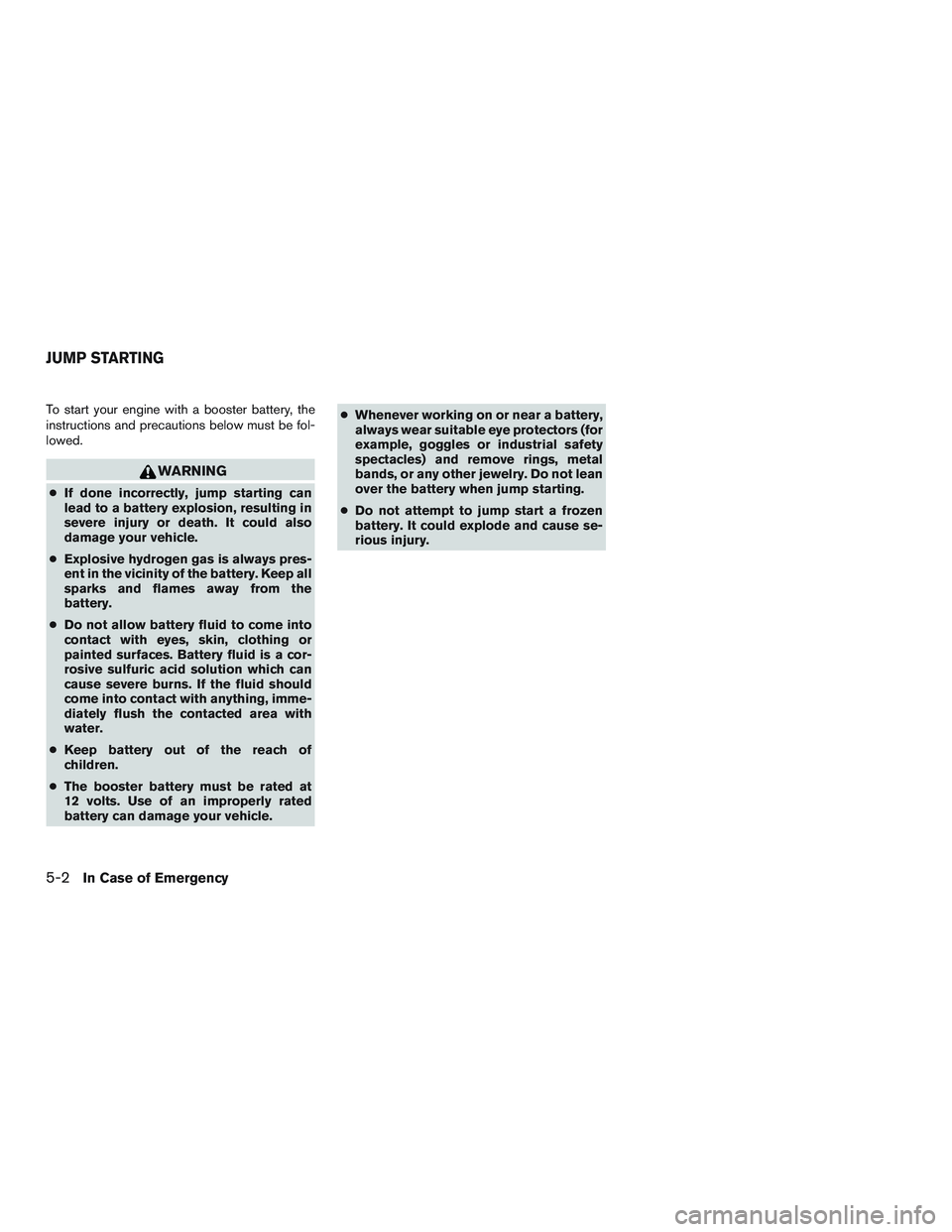

To start your engine with a booster battery, the
instructions and precautions below must be fol-
lowed.

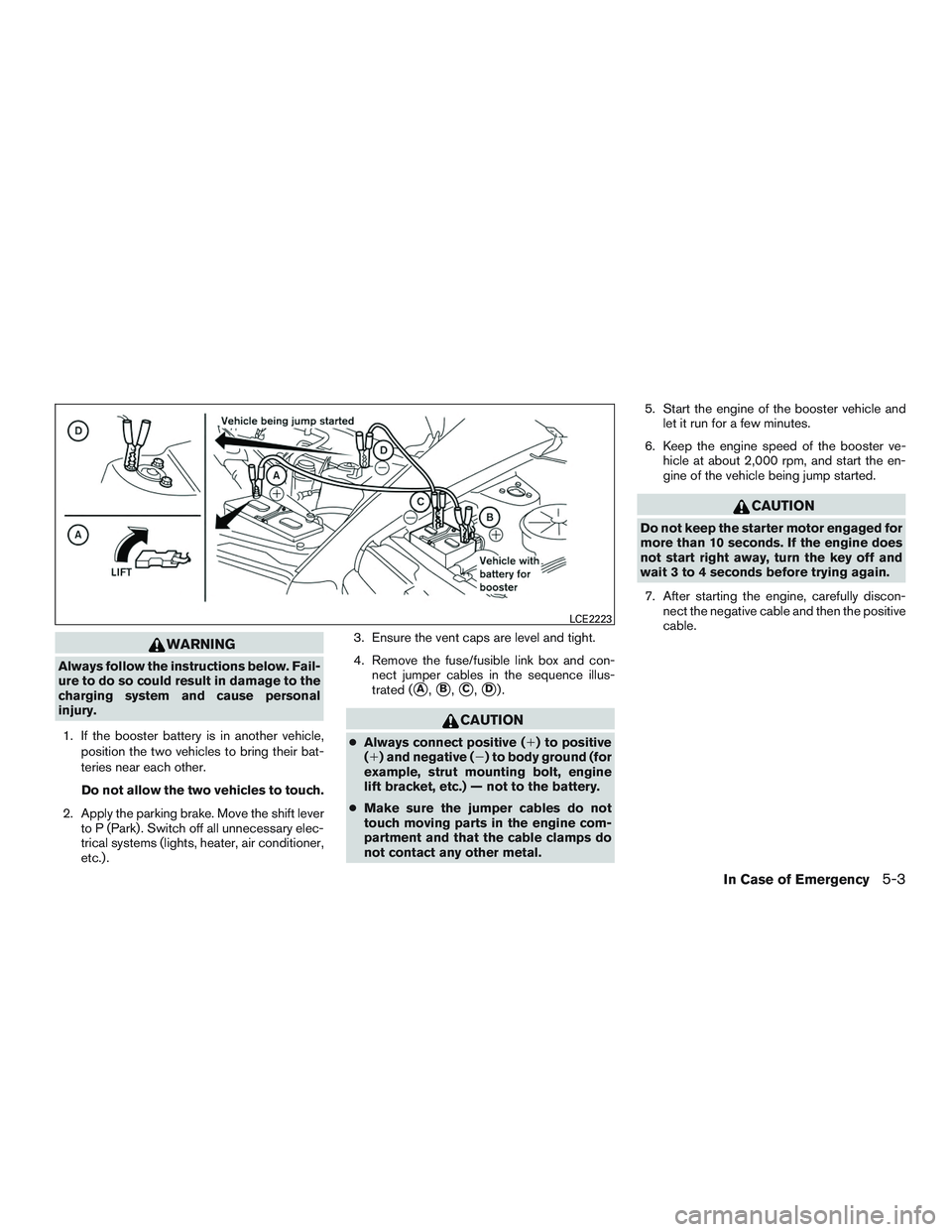

WARNING
Always follow the instructions below. Fail-
ure to do so could result in damage to the
charging system and cause personal
injury.1. If the booster battery is in another vehicle, position the two vehicles to bring their bat-
teries near each other.
Do not allow the two vehicles to touch.
2. Apply the parking brake. Move the shift lever to P (Park) . Switch off all unnecessary elec-
trical systems (lights, heater, air conditioner,
etc.) . 3. Ensure the vent caps are level and tight.
4. Remove the fuse/fusible link box and con-
nect jumper cables in the sequence illus-
trated (
A,B,C,D).

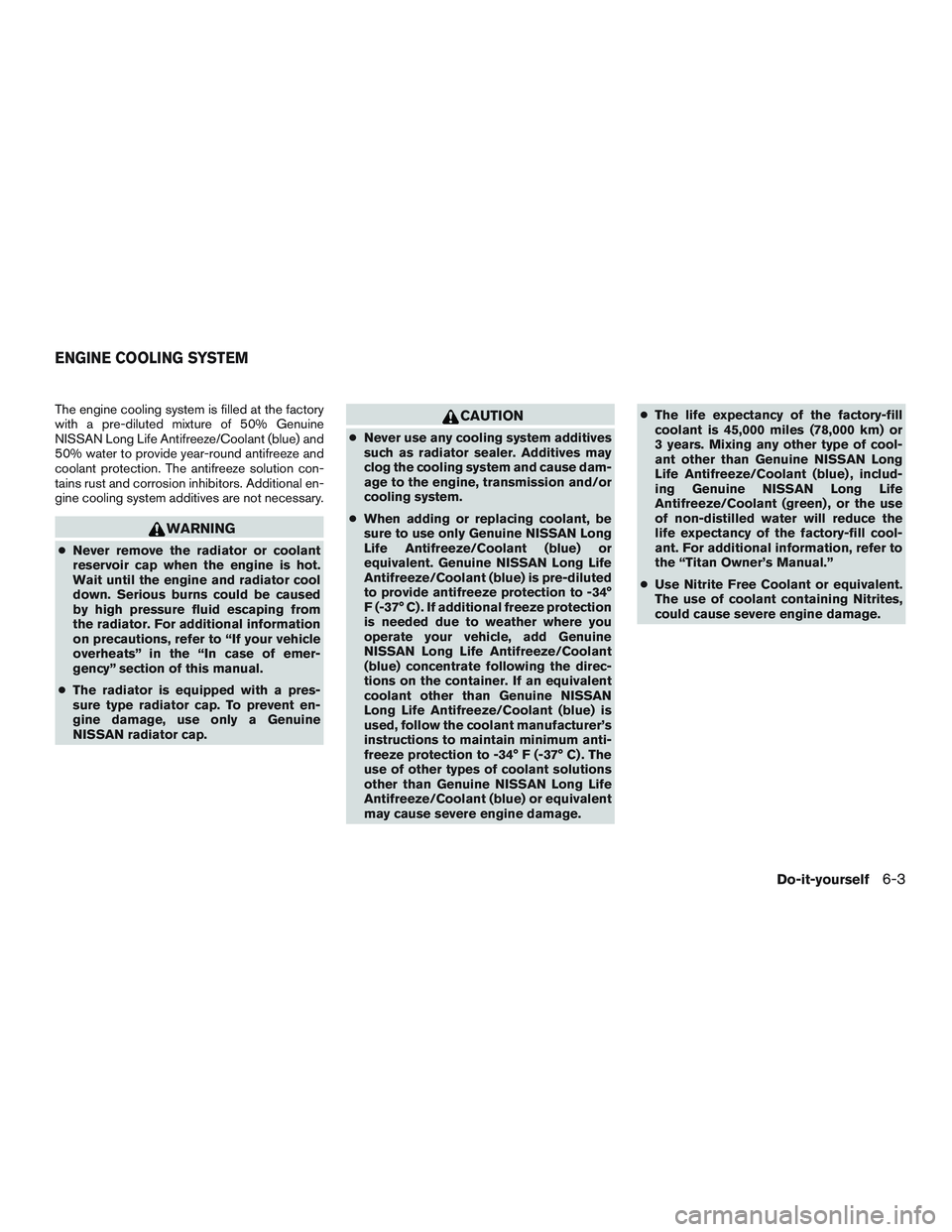

The engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round antifreeze and
coolant protection. The antifreeze solution con-
tains rust and corrosion inhibitors. Additional en-
gine cooling system additives are not necessary.

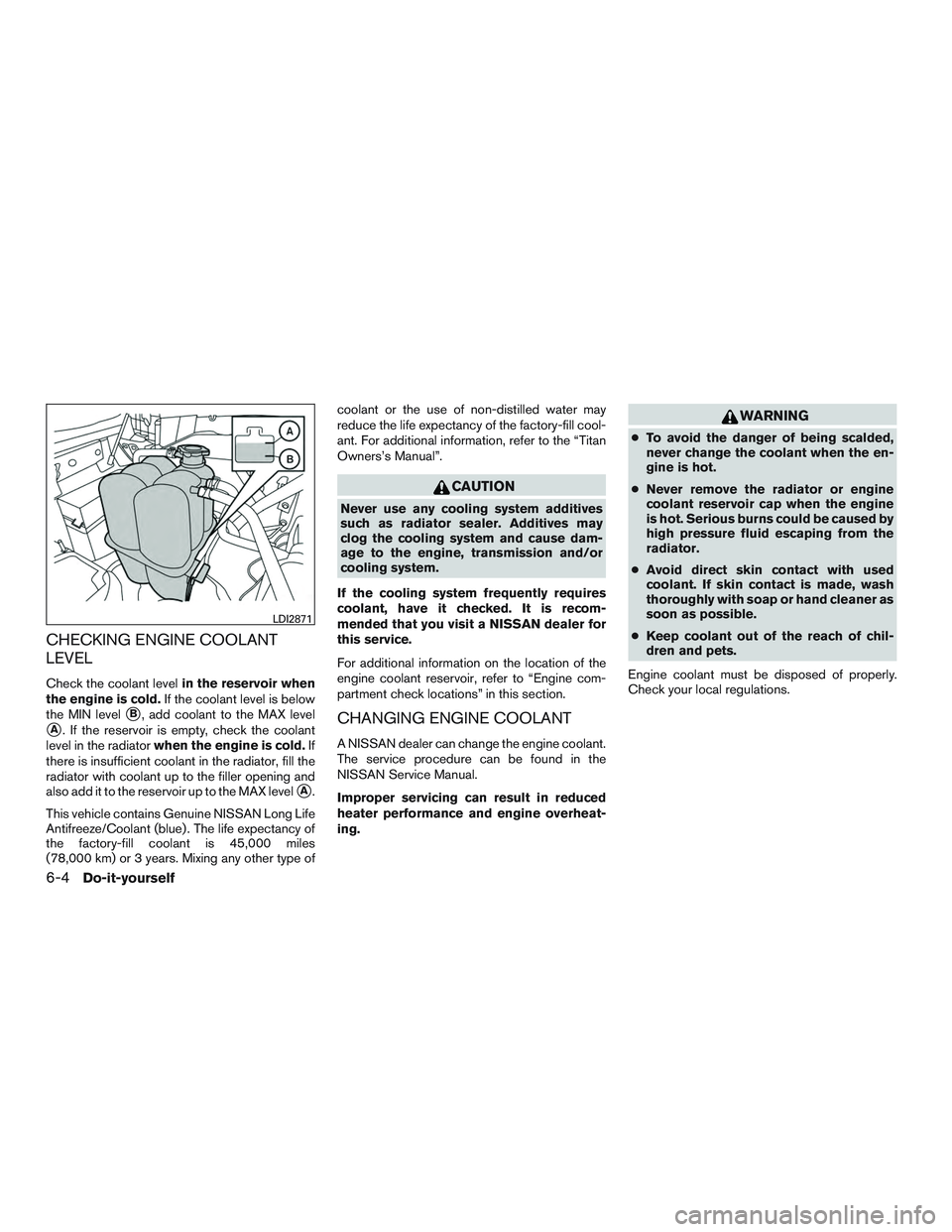

CHECKING ENGINE COOLANT
LEVEL
Check the coolant levelin the reservoir when
the engine is cold. If the coolant level is below
the MIN level
B, add coolant to the MAX level
A. If the reservoir is empty, check the coolant
level in the radiator when the engine is cold. If
there is insufficient coolant in the radiator, fill the
radiator with coolant up to the filler opening and
also add it to the reservoir up to the MAX level
A.
This vehicle contains Genuine NISSAN Long Life
Antifreeze/Coolant (blue) . The life expectancy of
the factory-fill coolant is 45,000 miles
(78,000 km) or 3 years. Mixing any other type of coolant or the use of non-distilled water may
reduce the life expectancy of the factory-fill cool-
ant. For additional information, refer to the “Titan
Owners’s Manual”.
