HEADLAMP (FOR USA)
LT-23
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
3. CHECKING CAN COMMUNICATIONS BETWEEN BCM AND IPDM E/R
Select “BCM” on CONSULT-II, and perform self-diagnosis for
“BCM”.
Display of self
-diagnosis results
NO DTC>> Replace IPDM E/R. Refer to PG-29, "Removal and
Installation of IPDM E/R" .
CAN COMM CIRCUIT>> Refer to LAN-44, "
TROUBLE DIAGNO-
SIS" .
Aiming AdjustmentEKS00IMG
PREPARATION BEFORE ADJUSTING
Before performing aiming adjustment, check the following.
1. Keep all tires inflated to correct pressures.
2. Place vehicle on level surface.
3. Set that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.
LOW BEAM AND HIGH BEAM
1. Turn headlamp low beam ON.
2. Use adjusting screw to perform aiming adjustment.
PKIA7627E
1. Headlamp A. Inner and outer adjustment B. Adjusting screw
WKIA5417E

LT-24
HEADLAMP (FOR USA)
Revision: June 20062007 Versa
ADJUSTMENT USING AN ADJUSTMENT SCREEN (LIGHT/DARK BORDERLINE)

Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.
–For horizontal headlamp aiming, adjust headlamp until beam pattern is at horizontal center point.
–For vertical headlamp aiming, adjust headlamp until beam pattern is positioned per specified dimensions.
A. Right B. Vertical center line of headlamp C. Horizontal aiming center line of
headlamp
D. Left E. Vertical aiming cutoff point F. Cutoff line for vertical aiming evalua-
tion
G. Acceptable vertical cutoff setting at
horizontal aiming pointH. Horizontal center line of headlamp J. Maximum acceptable vertical aiming
point
K. Minimum acceptable vertical aiming
pointL. Aiming distance from center of
headlamp to aiming screen
WKIA4287E
Description Halogen Headlamp
Vertical aiming cutoff point (E)53.2 mm (2.094 in.)
Minimum acceptable vertical aiming point (K) 4 mm (0.157 in.)
Maximum acceptable vertical aiming point (J) 30 mm (1.181 in.)
Aiming distance from center of headlamp to aiming screen (L) 10,000 mm (393.70 in.)

HEADLAMP (FOR USA)
LT-25
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
Bulb ReplacementEKS00IMH
CAUTION:
After installing bulb, be sure to install plastic cap and bulb socket securely to ensure watertightness.
HEADLAMP (HIGH/LOW)
1. Turn lighting switch OFF.
2. Remove the headlamp. Refer to LT- 2 5 , "
Removal and Installation" .
3. Remove back cover.
4. Unlock retaining spring and remove bulb from headlamp.
PARKING (CLEARANCE) LAMP
1. Turn lighting switch OFF.
2. Remove the headlamp. Refer to LT- 2 5 , "
Removal and Installation" .
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb from its socket.
FRONT TURN SIGNAL LAMP
1. Turn lighting switch OFF.
2. Remove the headlamp. Refer to LT- 2 5 , "
Removal and Installation" .
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb from its socket.
Removal and InstallationEKS00IMI
REMOVAL
1. Disconnect the negative battery terminal.
2. Remove front bumper fascia. Refer to EI-14, "
FRONT BUMPER" .
3. Remove headlamp bolts (A).
4. Pull headlamp (1) toward the vehicle front, disconnect connec-
tor, and remove headlamp.
INSTALLATION
Installation is in the reverse order of removal.

After installation, perform aiming adjustment. Refer to LT-23, "Aiming Adjustment" .
PKIC1223E

LT-26
HEADLAMP (FOR USA)
Revision: June 20062007 Versa
Disassembly and AssemblyEKS00IMJ
DISASSEMBLY
1. Remove back cover.
2. Unlock retaining spring and remove bulb (High/Low).
3. Turn parking (clearance) lamp bulb socket counterclockwise and unlock it.
4. Remove parking (clearance) lamp bulb from its socket.
5. Turn front turn signal lamp bulb socket counterclockwise and unlock it.
6. Remove front turn signal lamp bulb from its socket.
7. Remove the bumper stay.
ASSEMBLY
Assembly is in the reverse order of disassembly.
CAUTION:

After installing bulb, be sure to install plastic cap securely to insure water tight seal.
1. Retaining spring 2. Parking (clearance) lamp bulb 3. Parking (clearance) lamp bulb socket
4. Halogen bulb (High/Low) 5. Back cover 6. Front turn signal lamp bulb socket
7. Front turn signal lamp bulb 8. Headlamp housing assembly 9. Bumper stay
A. Screw
WKIA5418E

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-27
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -PFP:26010
Component Parts and Harness Connector LocationEKS00ICD
System DescriptionEKS00ICE
Headlamp operation is controlled by the BCM (body control module) based on inputs from the combination
switch (lighting switch). When the lighting switch is placed in the 2ND position, the BCM receives an input sig-
nal requesting the headlamps (and tail lamps) illuminate. The request is then communicated to the IPDM E/R
(intelligent power distribution module engine room) via the CAN communication lines. The CPU (central pro-
cessing unit) located in the IPDM E/R controls ground for the headlamp high and headlamp low relay coils.
These relays direct power to the respective headlamps, which then illuminate. When the headlamp switch is
OFF or in the 1ST position (parking lamps ON), the parking brake is released and the engine is running, the
IPDM E/R de-energizes the headlamp relays and supplies ground to the daytime light relay 1 to actuate the
daytime light function.
OUTLINE
Power is supplied at all times

to headlamp high relay RH and LH (located in IPDM E/R)

to headlamp low relay (located in IPDM E/R) and

to ignition relay (located in IPDM E/R)

through 15A fuse (No. 52, located in IPDM E/R) and

through 20A fuse (No. 53, located in IPDM E/R)

to CPU located in IPDM E/R,

through 40A fusible link (letter g , located in fuse and fusible link box)

to BCM terminal 70,

through 10A fuse [No. 8, located in fuse block (J/B)]

to BCM terminal 57,

through 10A fuse [No. 13, located in fuse block (J/B)]

to combination meter terminal 27,

through 10A fuse (No. 26, located in fuse and fusible link box)

to the daytime light relay 1.
With the ignition switch in the ON or START position, power is supplied
1. IPDM E/R E43, E46, E47 and E48 2. BCM M18 and M20 (view with glove
box removed)3. Combination switch (lighting switch)
M28
4. Combination meter M24 5. Daytime light relay 1 E37 and day-
time light relay 2 E386. Parking brake switch M17
WKIA5555E

LT-28
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: June 20062007 Versa

to the ignition relay (located in IPDM E/R),

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 3, located in fuse block (J/B)]

to combination meter terminal 28.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 20, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 67 and

to combination meter terminals 21, 22 and 23

through grounds M57 and M61,

to IPDM E/R terminals 39 and 59

through grounds E15 and E24,
HEADLAMP OPERATION
Low Beam Operation
With the lighting switch in 2ND position, the BCM receives an input signal requesting the headlamps to illumi-
nate. This input signal is communicated to the IPDM E/R via the CAN communication lines. The CPU located
in the IPDM E/R controls the headlamp low relay coil, which when energized, directs power

through 15A fuse (No. 41, located in IPDM E/R)

through IPDM E/R terminal 54

to daytime light relay 2 terminals 1 and 5 (energizing the relay),

through daytime light relay 2 terminal 3

to front combination lamp RH terminal 3, and

through 15A fuse (No. 40, located in IPDM E/R)

through IPDM E/R terminal 52

to front combination lamp LH terminal 3.
Ground is supplied

to front combination lamp LH terminal 2

through grounds E15 and E24,

to headlamp RH terminal 2 via

daytime light relay 1 terminals 3 and 4

through grounds E15 and E24.
With power and ground supplied, low beam headlamps illuminate.
High Beam/Flash-to-Pass Operation
With the lighting switch in 2ND position and high beam switch in the HIGH position, the BCM receives input
signal requesting the headlamp high beams to illuminate. The flash-to-pass feature can be used any time and
also sends a signal to the BCM. This input signal is communicated to the IPDM E/R and the combination
meter via the CAN communication lines. The CPU located in the IPDM E/R controls the headlamp high relay
coil, which when energized, directs power

through 10A fuse (No. 34, located in IPDM E/R)

through IPDM E/R terminal 56

to front combination lamp RH terminal 1, and

through 10A fuse (No. 35, located in IPDM E/R)

through IPDM E/R terminal 55

to front combination lamp LH terminal 1.
Ground is supplied

to front combination lamp LH terminal 2

through grounds E15 and E24, and

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-29
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

to front combination lamp RH terminal 2 via

daytime light relay 1 terminals 3 and 4

through grounds E15 and E24.
With power and ground supplied, the high beam headlamps illuminate.
The BCM sends a signal to the combination meter requesting the high beam indicator lamp to turn ON.
Daytime Light System Operation
With the lighting switch in the OFF or 1ST position (parking lamps ON), the BCM receives inputs requesting
the headlights off. If the parking brake is released and the engine is running, the BCM then sends a signal, via
the CAN communication lines, requesting the IPDM E/R to activate the daytime light system. The CPU located
in the IPDM E/R controls the daytime light relay 1 coil, which when energized, directs power

from daytime light relay 1 terminal 3

to front combination lamp RH terminal 2,

through front combination lamp RH high beam terminal 1

to IPDM E/R terminal 56,

through 10A fuse (No. 34, located in IPDM E/R) and

through both de-energized headlamp high relays

to 10A fuse (No. 35, located in IPDM E/R),

through IPDM E/R terminal 55

to front combination lamp LH terminal high beam 1.
Ground is supplied

to front combination lamp LH terminal 2

through grounds E15 and E24,

to daytime light relay 1 terminal 1

through IPDM E/R terminal 6.
With power and ground supplied, high beam headlamps illuminate at reduced intensity.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
Refer to LT- 7 6 , "EXTERIOR LAMP BATTERY SAVER CONTROL" .
CAN Communication System DescriptionEKS00ICF
Refer to LAN-4, "CAN Communication System" .

LT-30
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: June 20062007 Versa

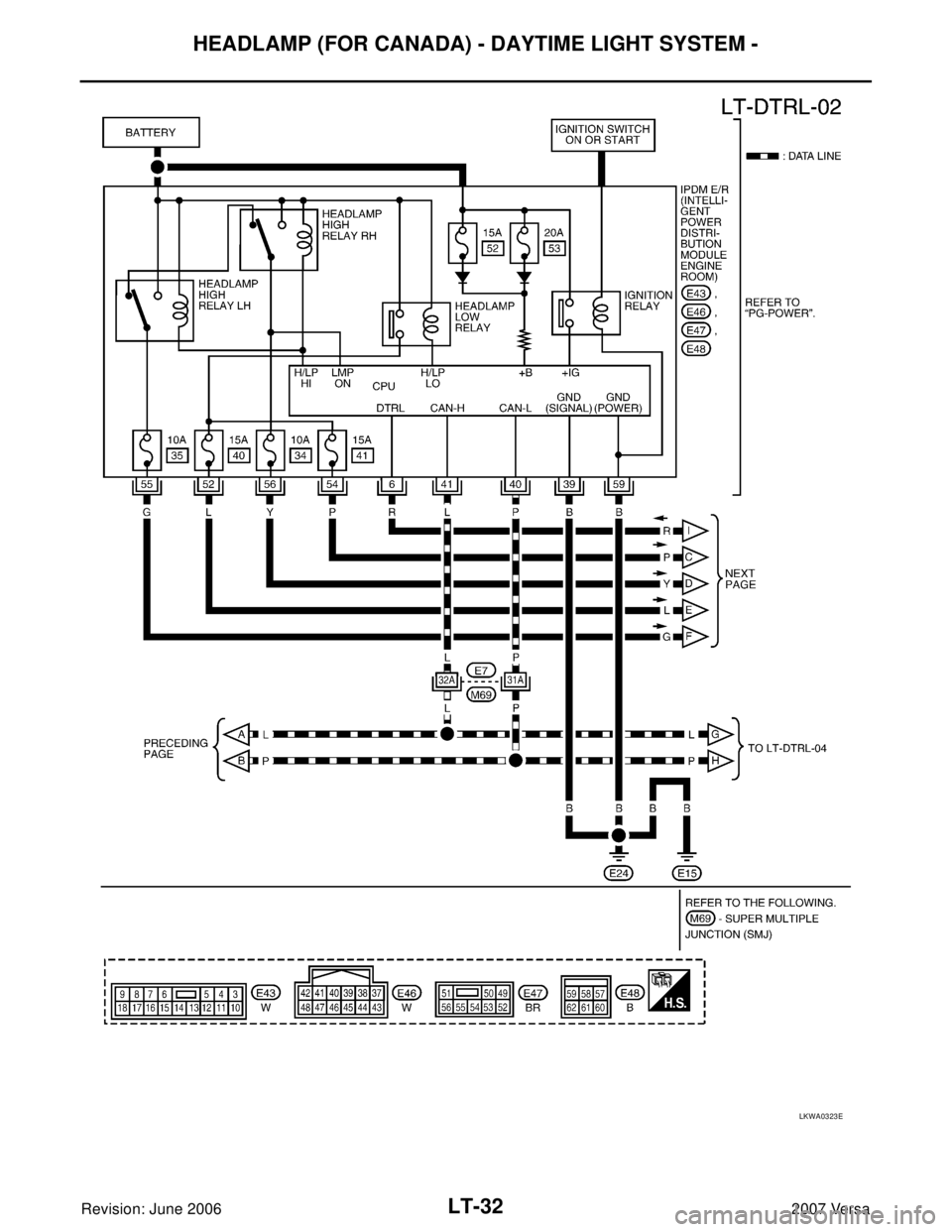

SchematicEKS00ICH
