BL-242
BODY REPAIR
Revision: June 20062007 Versa
LIIA2547E

BODY REPAIR
BL-243
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Body ConstructionEIS009AK

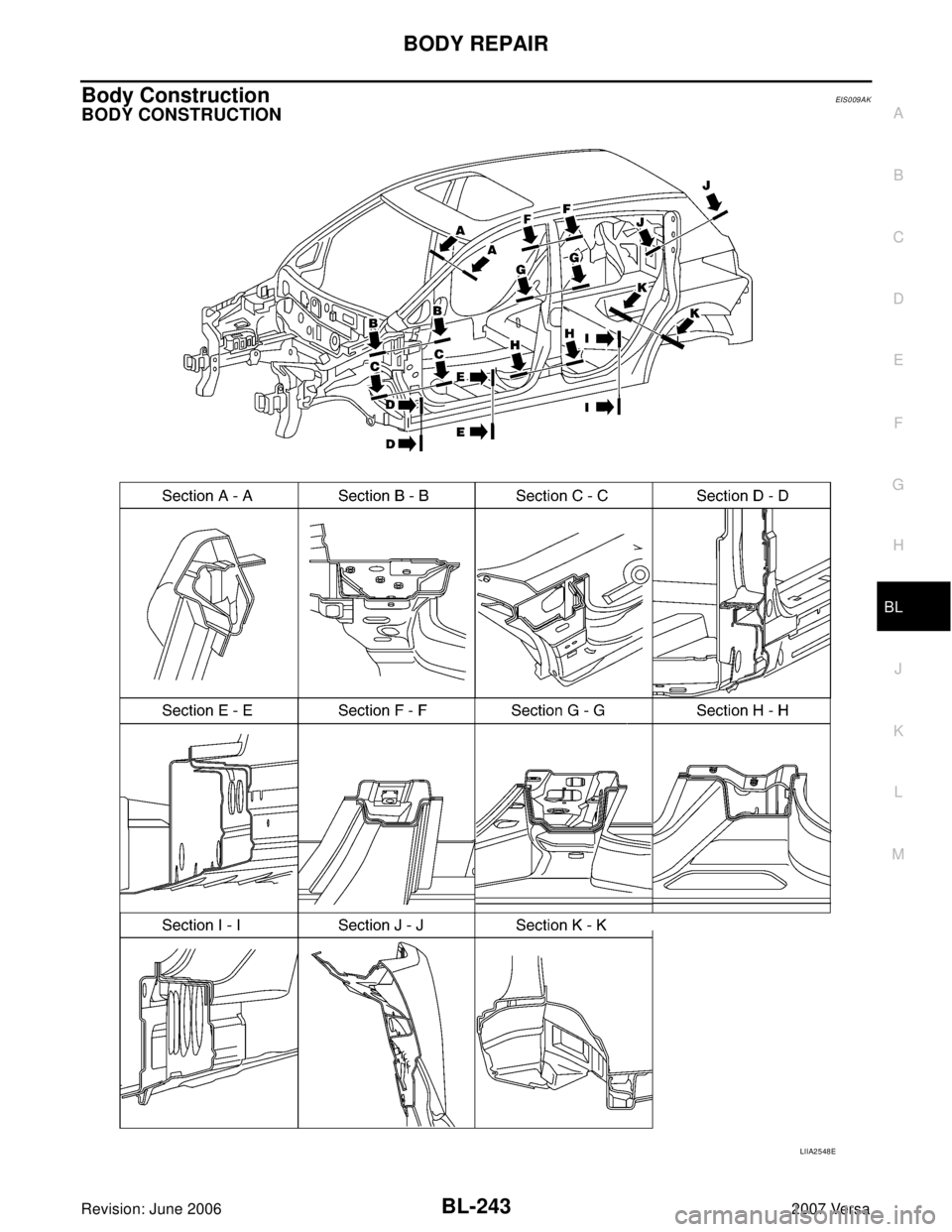

BODY CONSTRUCTION
LIIA2548E

BL-244
BODY REPAIR
Revision: June 20062007 Versa
Body AlignmentEIS00944

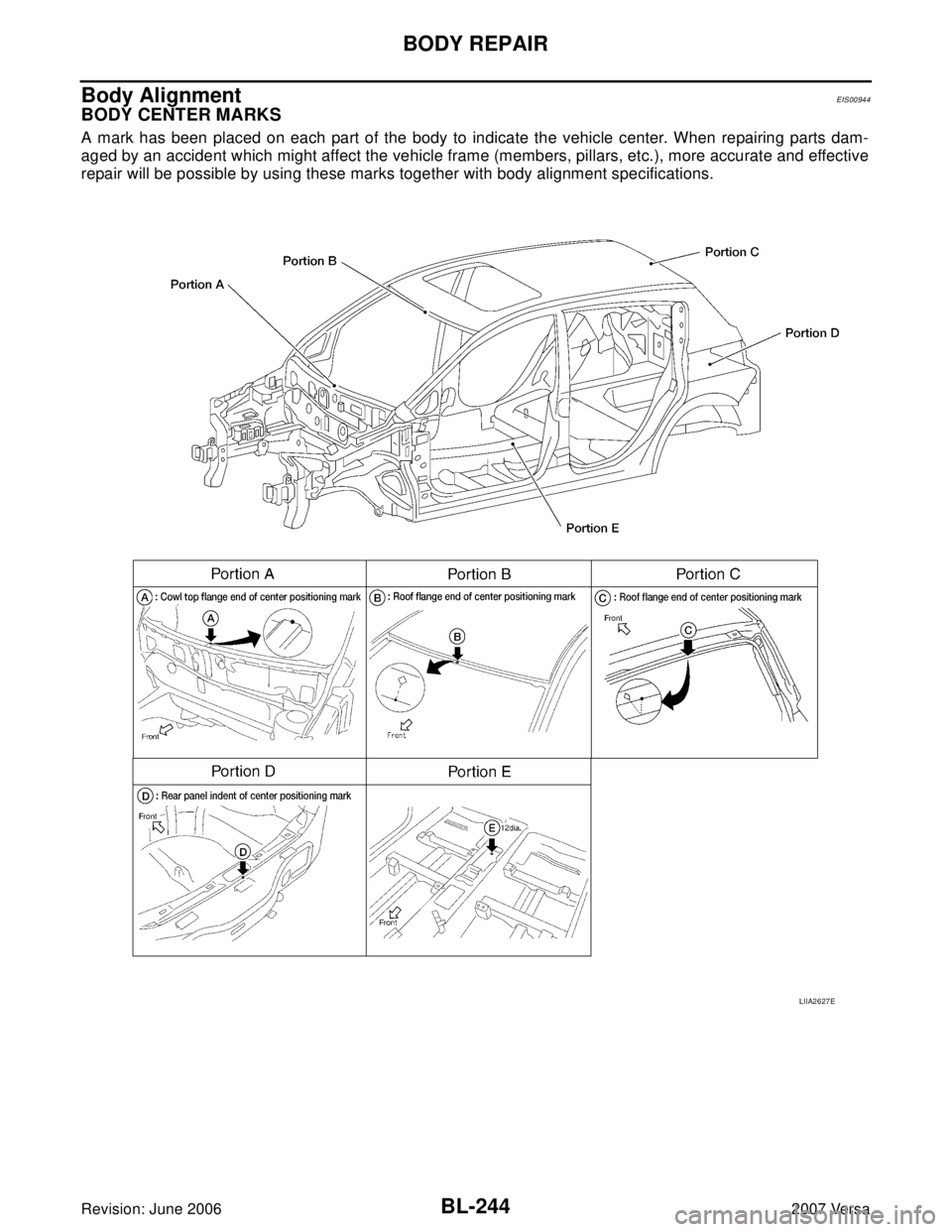

BODY CENTER MARKS
A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.
LIIA2627E

BODY REPAIR
BL-245
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
PANEL PARTS MATCHING MARKS
A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.
DESCRIPTION

All dimensions indicated in the figures are actual.
LIIA2628E

BL-246
BODY REPAIR
Revision: June 20062007 Versa

When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.

When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

Measurements should be taken at the center of the mounting holes.

An asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.

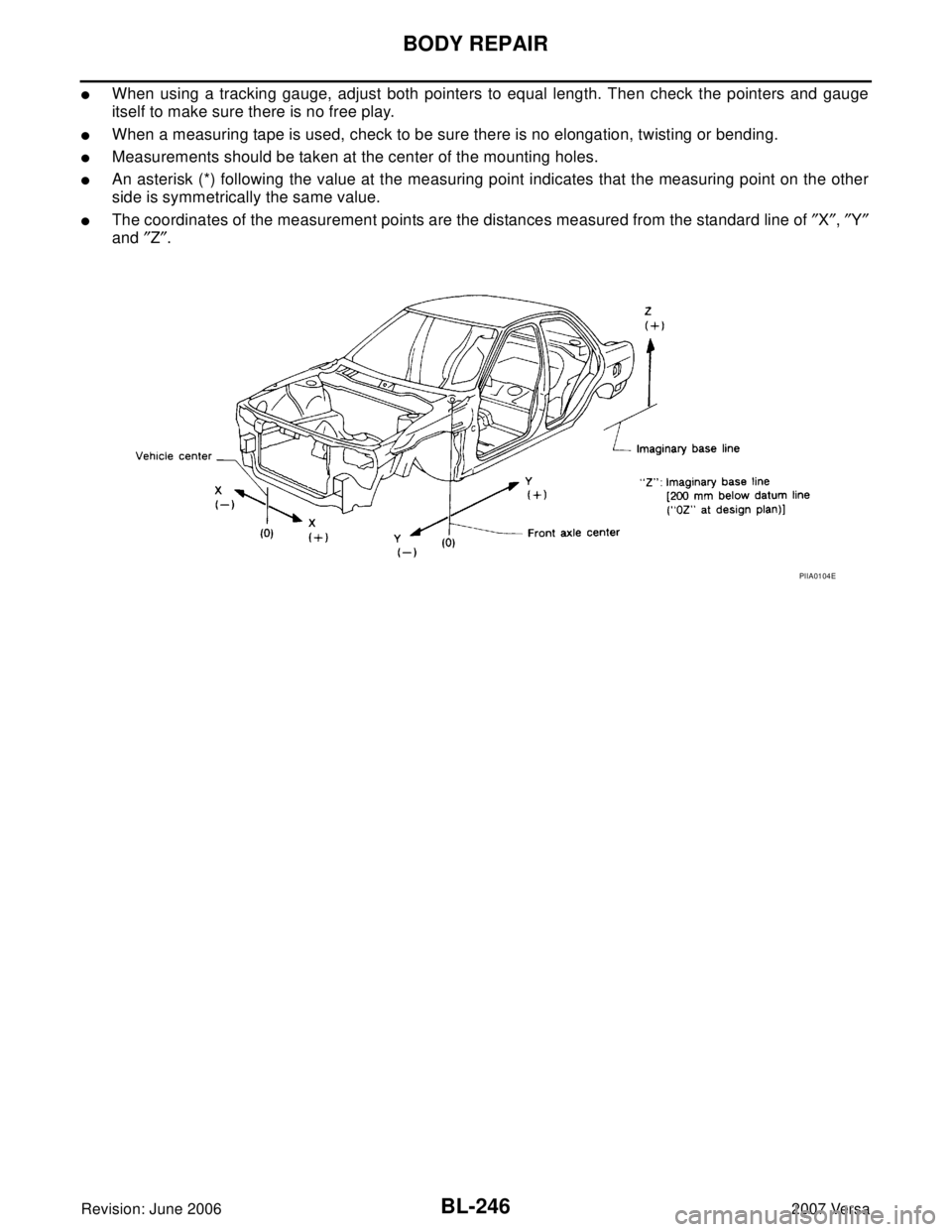

The coordinates of the measurement points are the distances measured from the standard line of ″X″, ″Y″
and ″Z″.
PIIA0104E

BODY REPAIR
BL-247
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

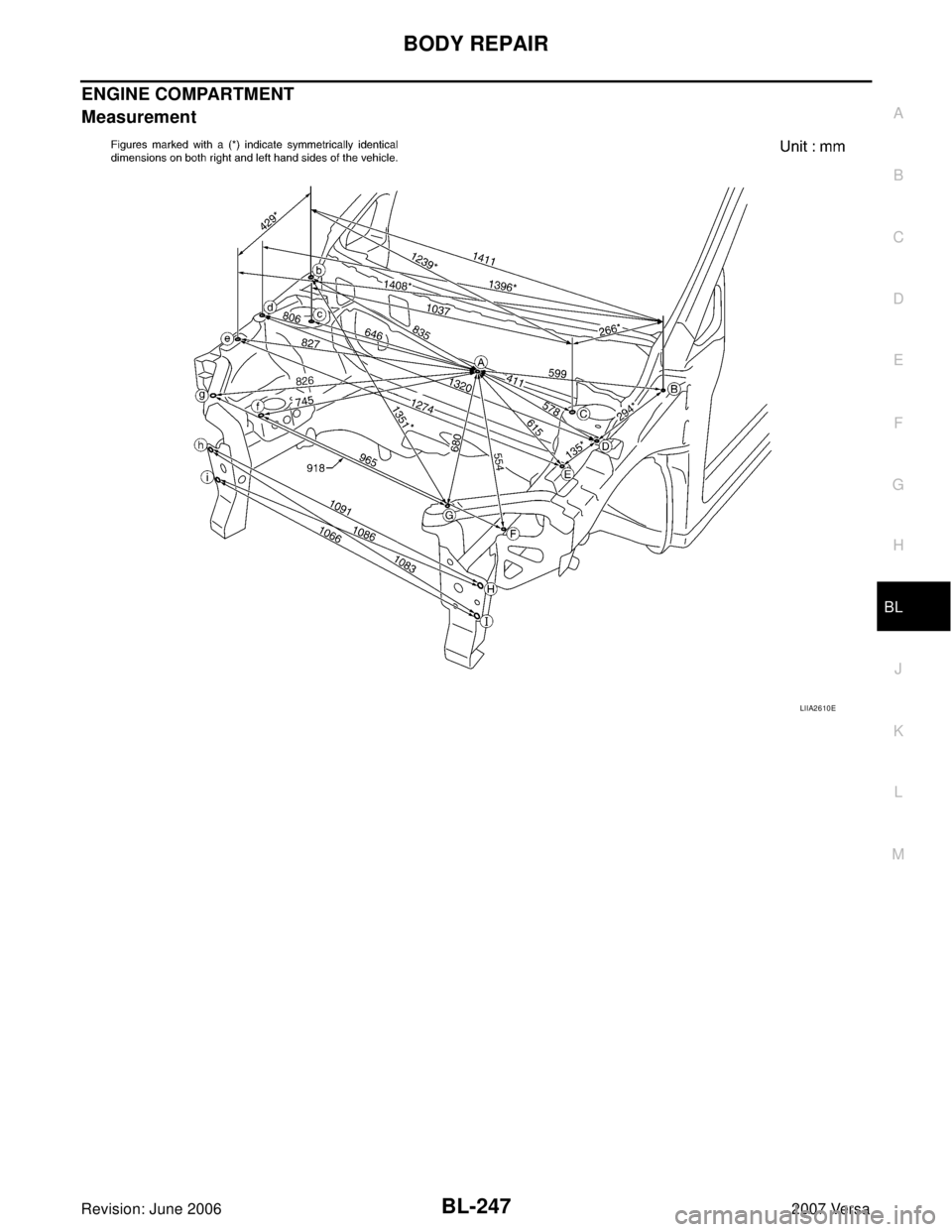

ENGINE COMPARTMENT
Measurement
LIIA2610E

BL-248
BODY REPAIR
Revision: June 20062007 Versa

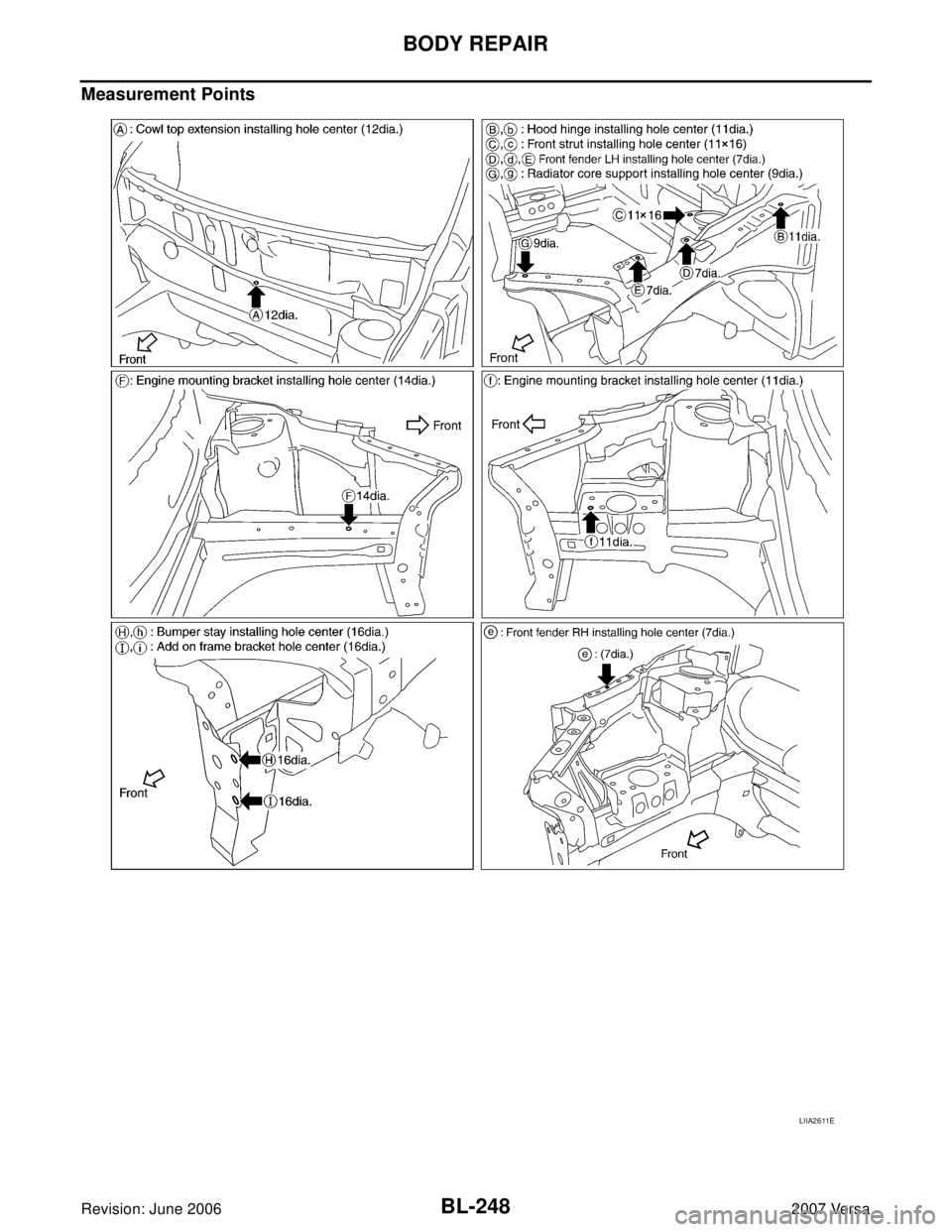

Measurement Points
LIIA2611E

BODY REPAIR
BL-249
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

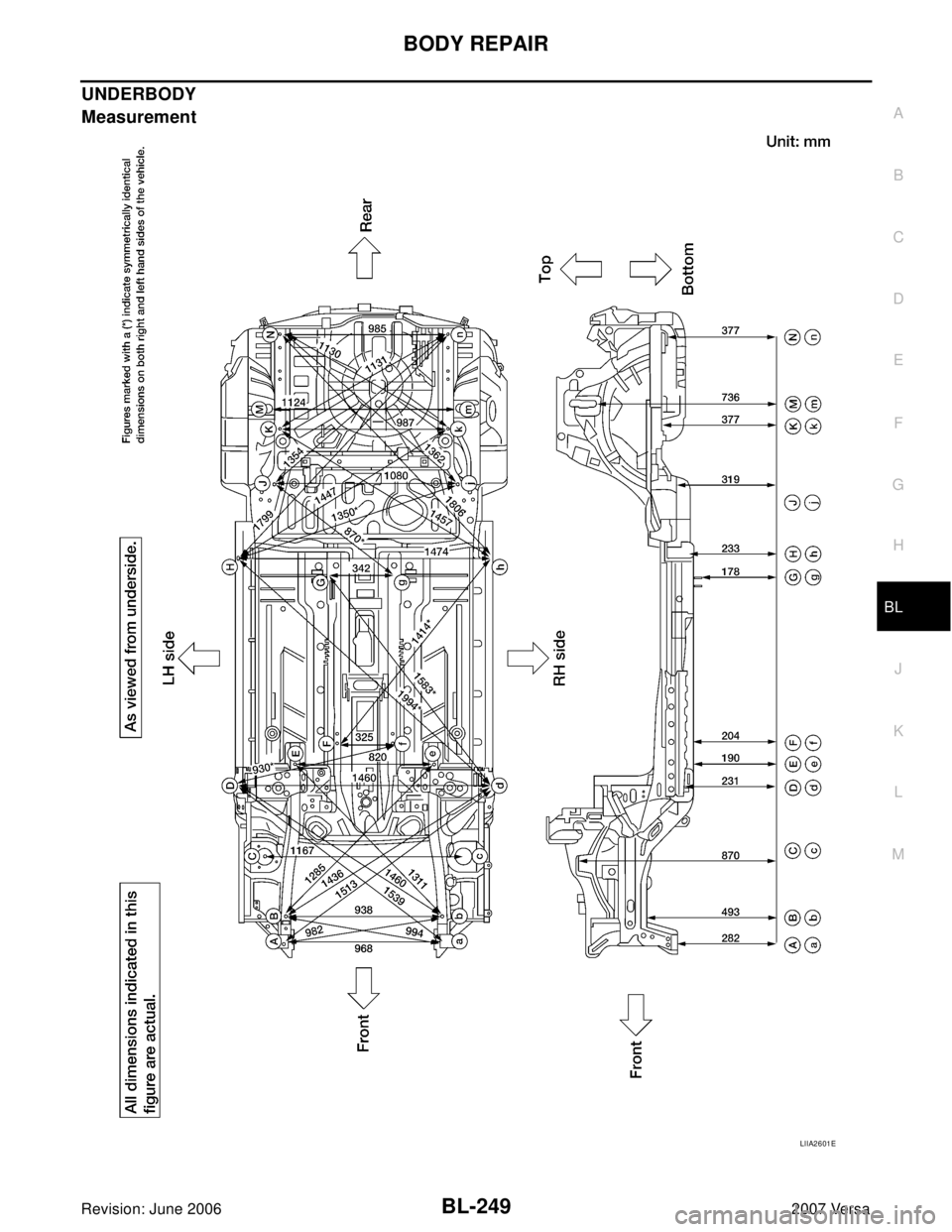

UNDERBODY
Measurement
LIIA2601E

BL-250
BODY REPAIR
Revision: June 20062007 Versa

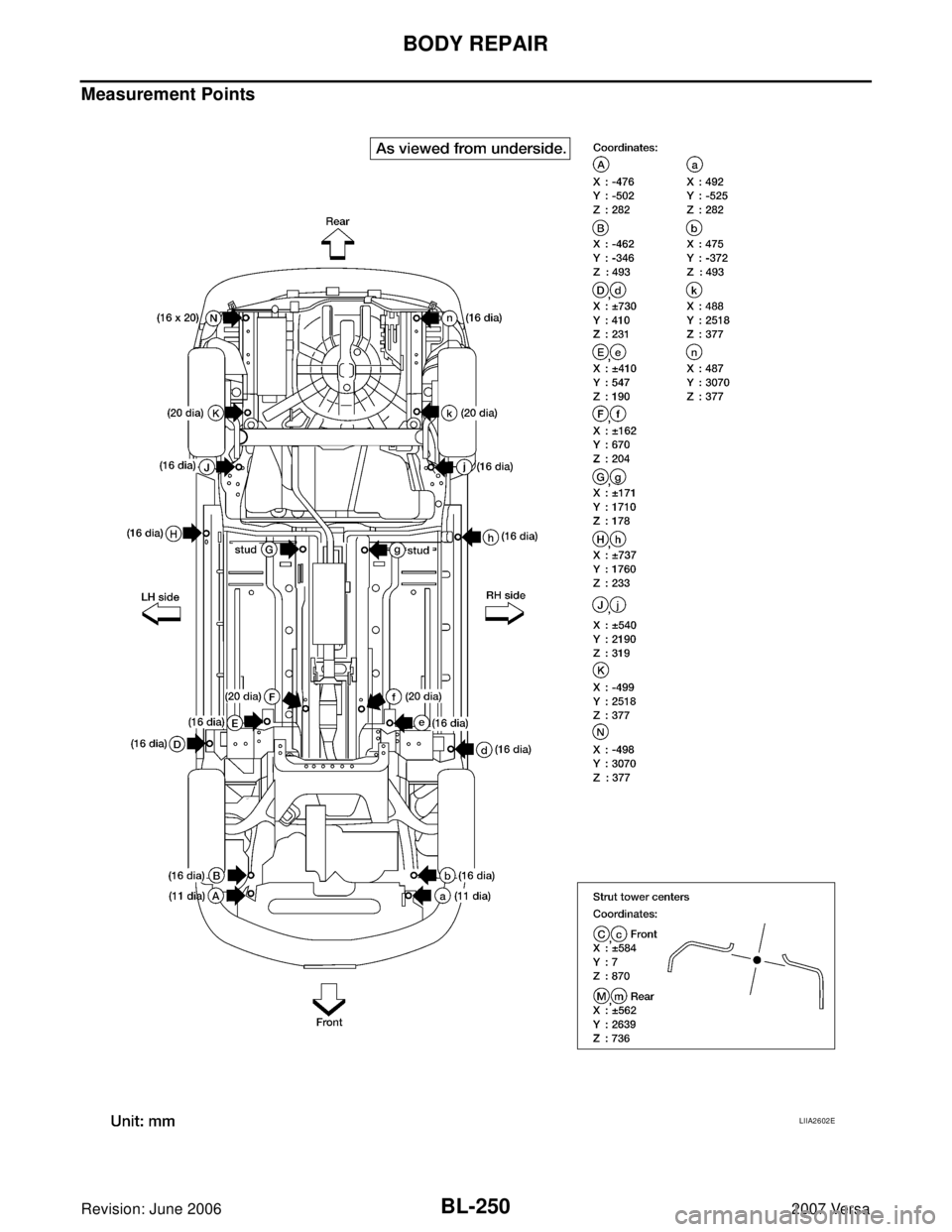

Measurement Points
LIIA2602E

BODY REPAIR
BL-251
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

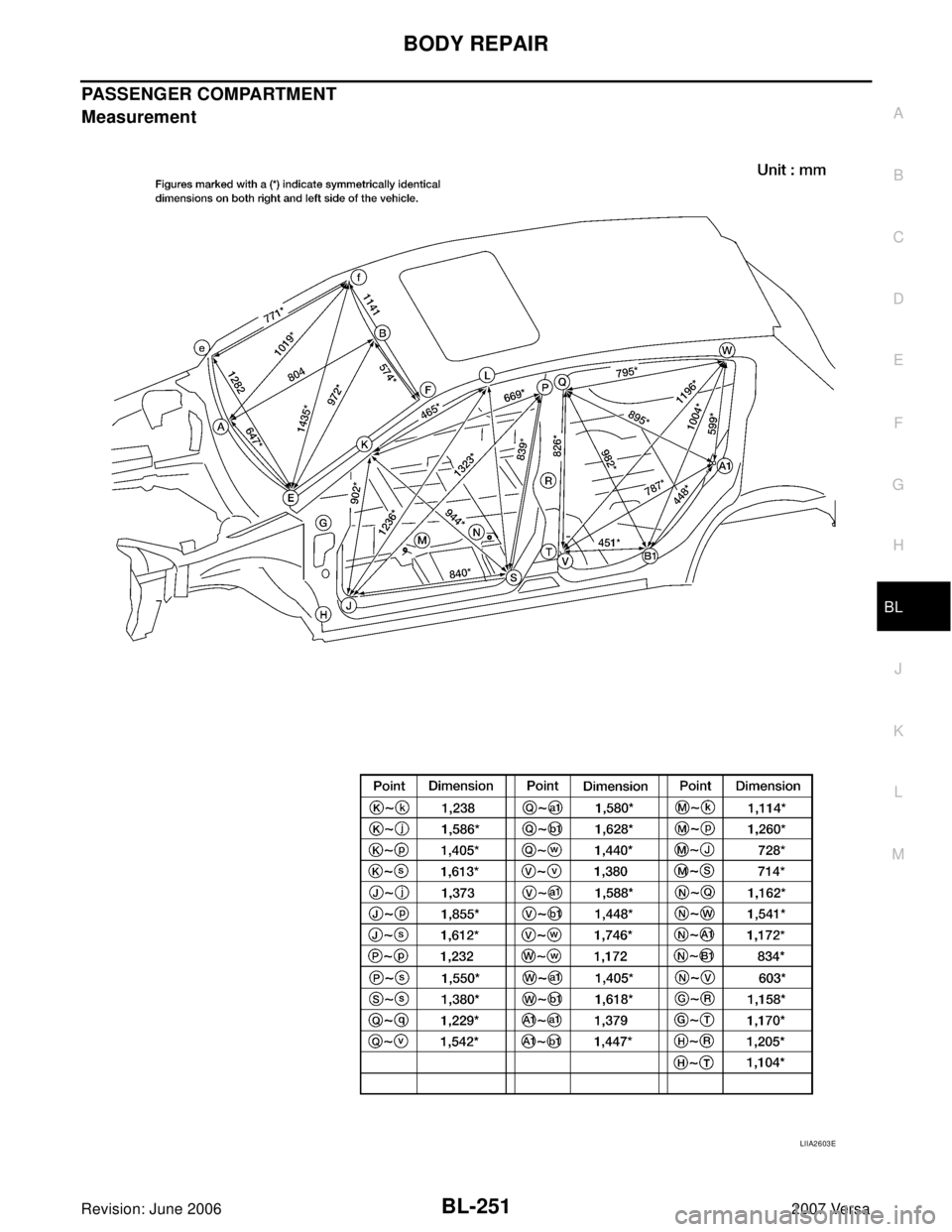

PASSENGER COMPARTMENT
Measurement
LIIA2603E
