NISSAN VERSA 2006 Workshop Service Repair Manual

BRC-12
[ABS]
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa

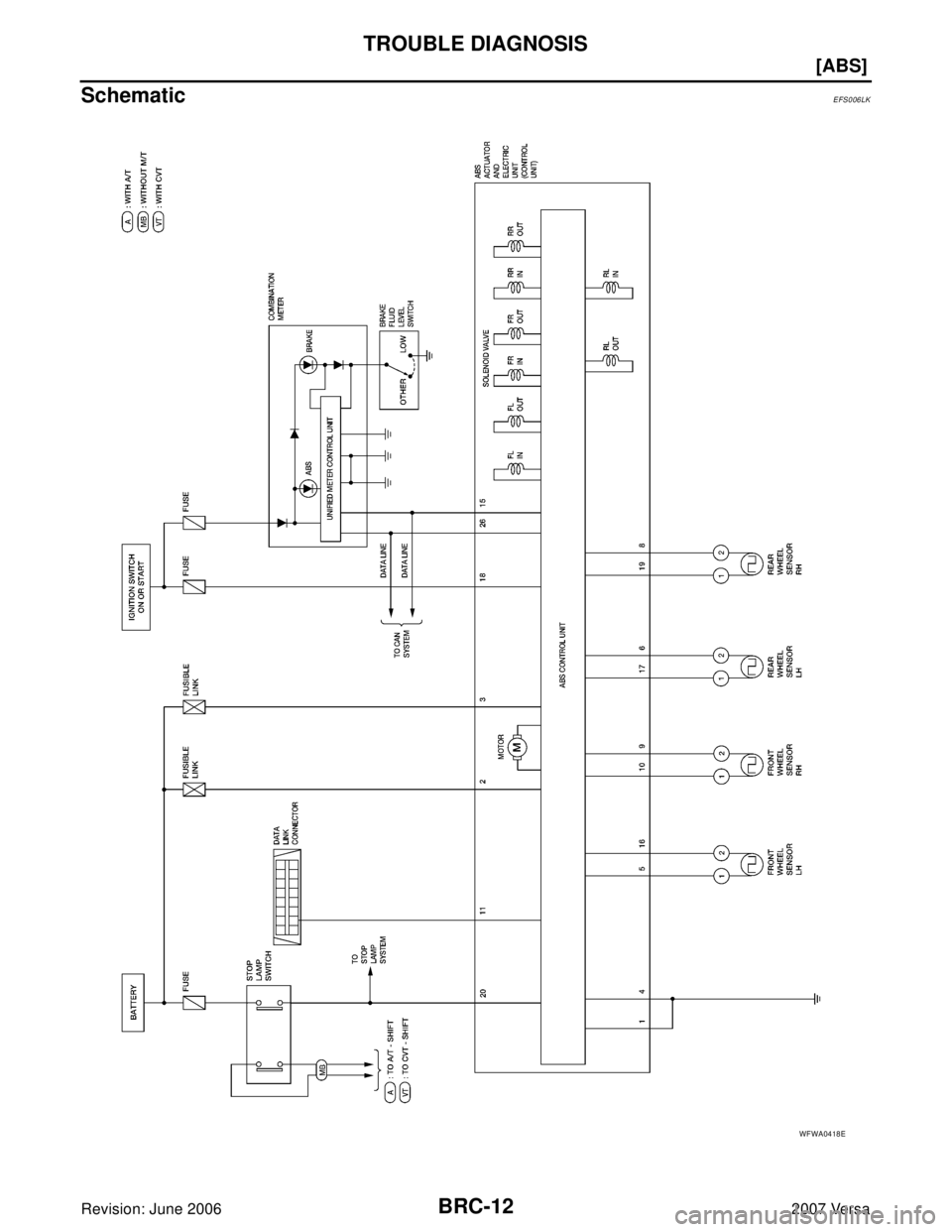

SchematicEFS006LK
WFWA0418E

TROUBLE DIAGNOSIS
BRC-13
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: June 20062007 Versa

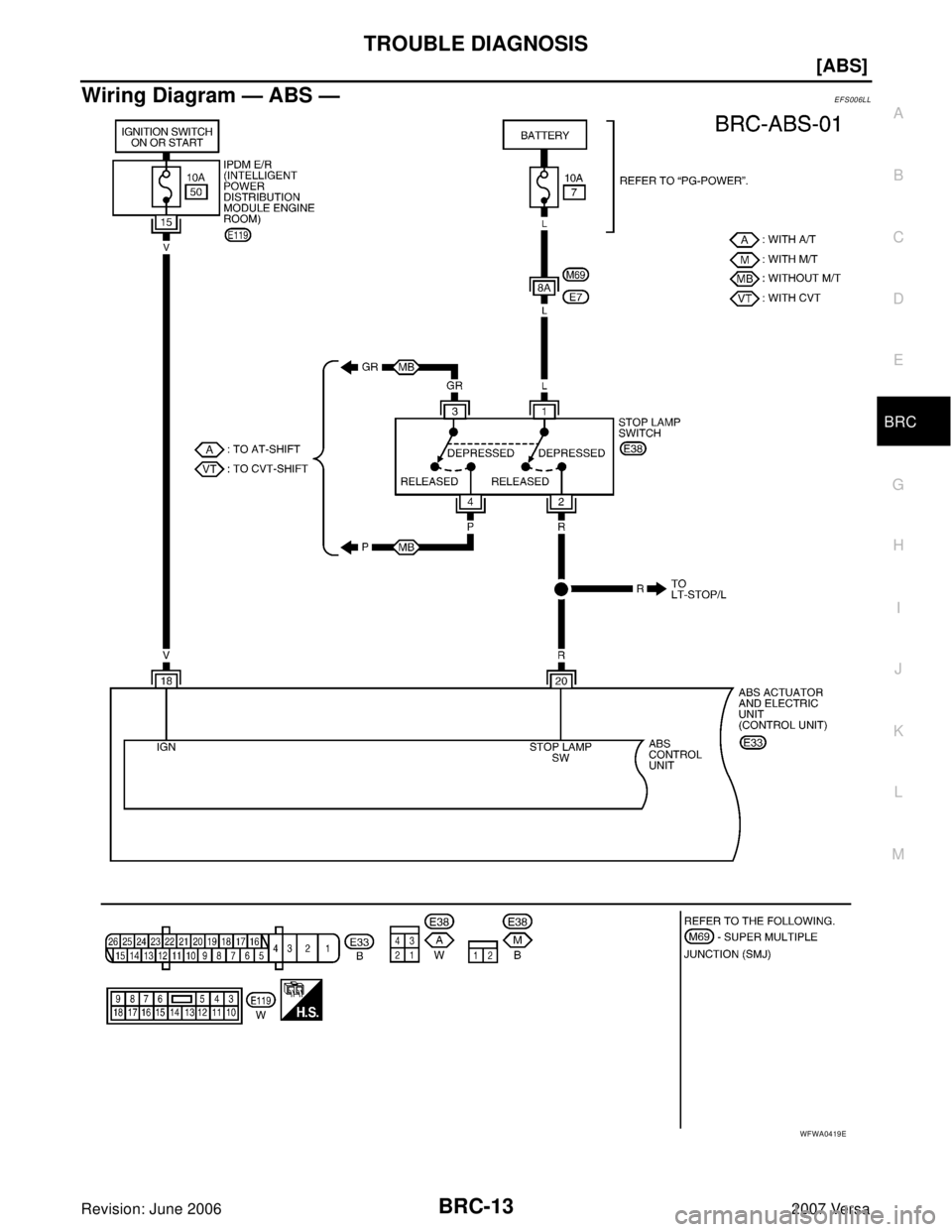

Wiring Diagram — ABS —EFS006LL
WFWA0419E

BRC-14
[ABS]
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa

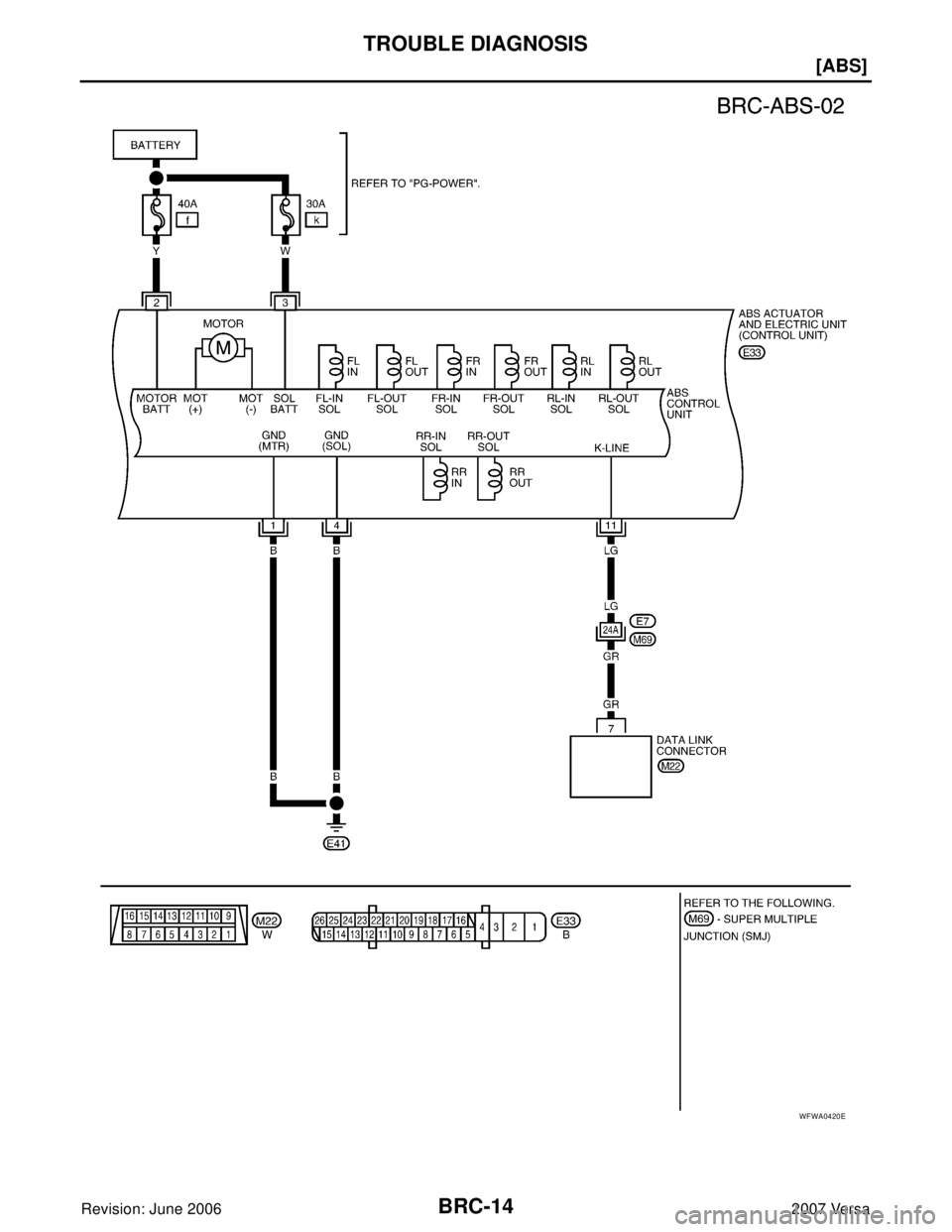

WFWA0420E

TROUBLE DIAGNOSIS
BRC-15
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: June 20062007 Versa

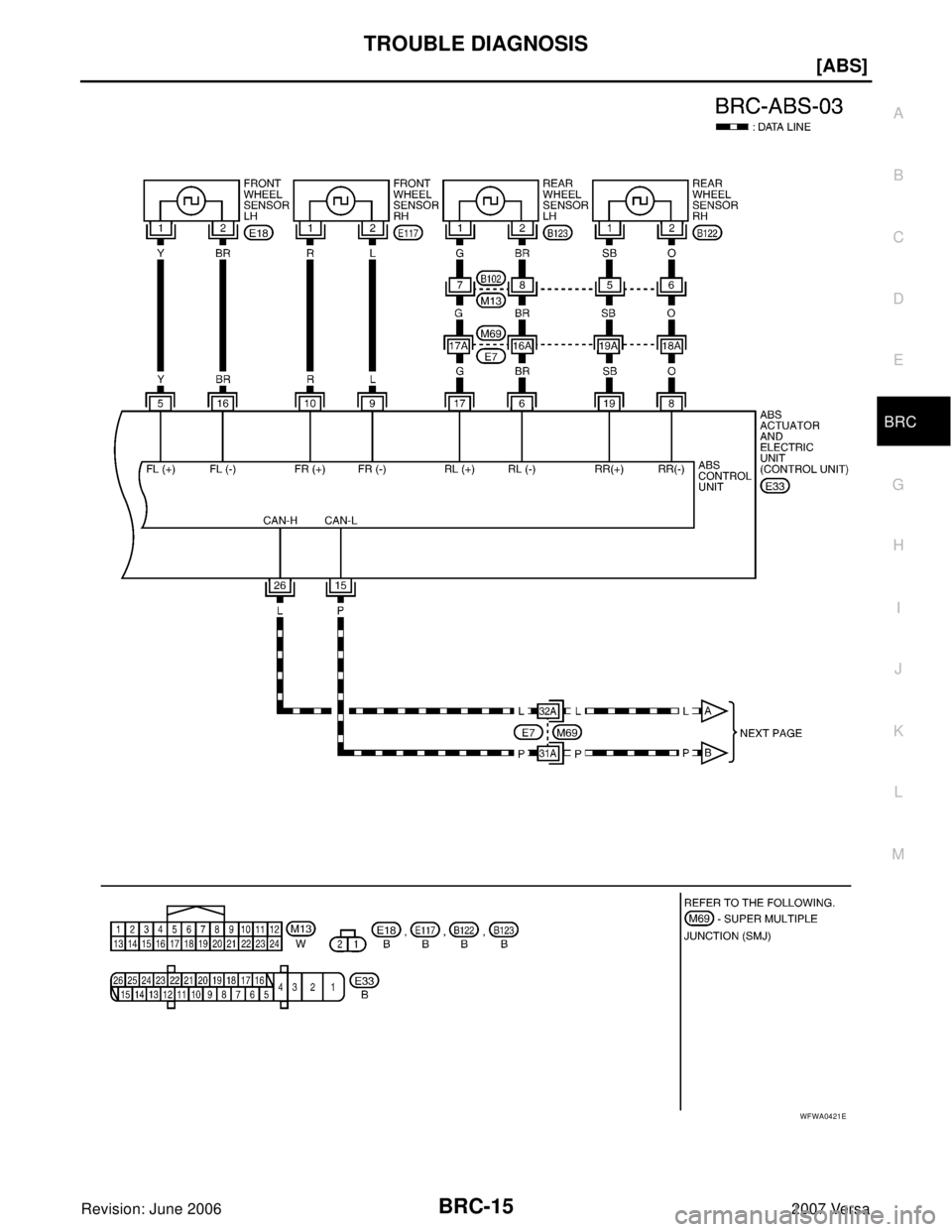

WFWA0421E

BRC-16
[ABS]
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa

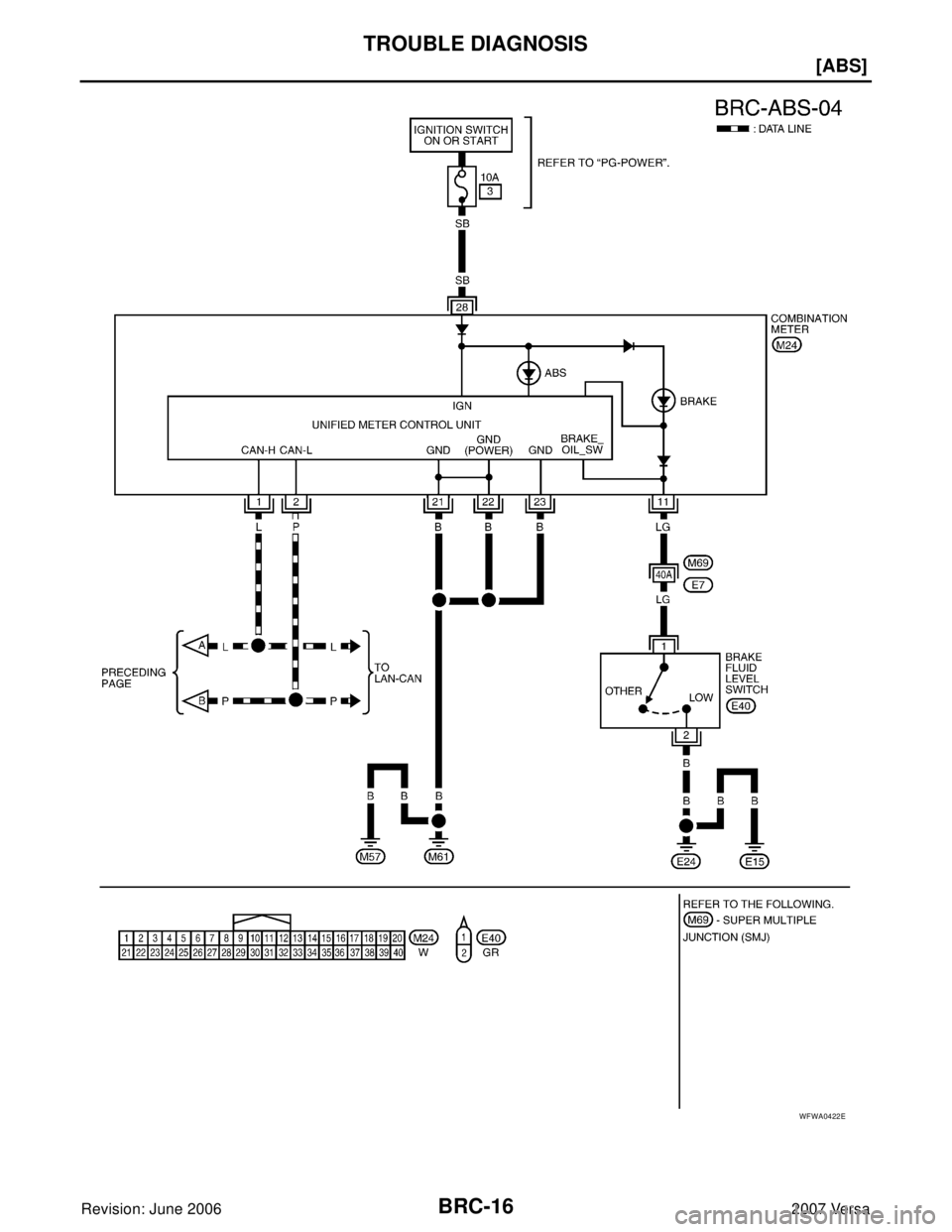

WFWA0422E

TROUBLE DIAGNOSIS
BRC-17
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: June 20062007 Versa
Basic InspectionEFS006LM
BRAKE FLUID LEVEL, FLUID LEAK, AND BRAKE PAD INSPECTION
1. Check fluid level in the brake fluid reservoir. If fluid level is low, add fluid.
2. Check the brake piping and around the ABS actuator and electric unit (control unit) for leaks. If there is
leaking or seeping fluid, check the following items.

If ABS actuator and electric unit (control unit) connection is loose, tighten the piping to the specified
torque and recheck for leaks.

If there is damage to the connection flare nut or ABS actuator and electric unit (control unit) threads,
replace the damaged part and recheck for leaks.

When there is fluid leaking or seeping from a fluid connection, use a clean cloth to wipe off the fluid and
recheck for leaks. If fluid is still seeping out, replace the damaged part. If the fluid is leaking at the ABS
actuator and electric unit (control unit), replace the ABS actuator and electric unit (control unit) assem-
bly.
CAUTION:
The ABS actuator and electric unit (control unit) cannot be disassembled and must be replaced
as an assembly.
3. Check the brake pads for excessive wear.
POWER SYSTEM TERMINAL LOOSENESS AND BATTERY INSPECTION
Make sure the battery positive cable, negative cable and ground connection are not loose. In addition, make
sure the battery is sufficiently charged.
ABS WARNING LAMP INSPECTION
1. Make sure ABS warning lamp turns on for approximately 2 seconds when the ignition switch is turned ON.
If it does not, check CAN communications. If there are no errors with the CAN communication system,
replace the combination meter. Refer to IP-19, "
COMBINATION METER" .
2. Make sure the lamp turns off approximately 2 seconds after the ignition switch is turned ON. If the lamp
does not turn off, conduct self-diagnosis of ABS actuator and electric unit (control unit). If no malfunctions
are detected in self-diagnosis, replace combination meter. Refer to IP-19, "
COMBINATION METER" .
3. After conducting the self-diagnosis, be sure to erase the error memory. Refer to BRC-20, "
CONSULT-II
Function (ABS)" .

BRC-18
[ABS]
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa
Warning Lamp and Indicator TimingEFS006LN
Note 1: Brake warning lamp will turn on when the parking brake is applied or when the brake fluid level is low.
x: ON
–: OFF
Control Unit Input/Output Signal StandardEFS006LO
REFERENCE VALUE FROM CONSULT-II
CAUTION:
The display shows the control unit calculation data, so a normal value might be displayed even in the
event the output circuit (harness) is open or short circuited.
ConditionABS
warning lampBRAKE
warning lamp
[Note 1]Remarks
When the ignition switch is OFF – – –
After the ignition switch is turned ON for approx. 1
second××–
After the ignition switch is turned ON for approx. 2
seconds––Lamp goes off approx. 2 seconds after the
engine is started.
ABS malfunction×––
EBD malfunction××–
Monitor item Display contentData monitor
Note: Error inspection
checklist
ConditionReference value in
normal operation
FR RH SENSOR
FR LH SENSOR
RR RH SENSOR
RR LH SENSORWheel speedVehicle stopped 0 [km/h (MPH)]
BRC-25, "
Wheel Sensor
System"Vehicle running (Note 1)Almost in accor-
dance with speed-
ometer display
(within ±10%)
BATTERY VOLTBattery voltage sup-
plied to ABS actuator
and electric unit (con-
trol unit)Ignition switch ON 10 to 16VBRC-29, "
ABS Control
Unit Power and Ground
Systems Inspection"
STOP LAMP SWStop lamp switch oper-
ationBrake pedal depressed ON
—
Brake pedal not depressed OFF
ABS WARN LAMPABS warning lamp ON
condition (Note 2)ABS warning lamp ON ONBRC-17, "
ABS WARN-
ING LAMP INSPEC-
TION"ABS warning lamp OFF OFF
MOTOR RELAYOperation status of
motor and motor relayIgnition switch ON or running
(ABS not activated)OFF
BRC-28, "
Actuator Motor,
Motor Relay, and Circuit
Inspection"Ignition switch ON or engine
running (ABS activated)ON
ACTUATOR RLYActuator relay opera-
tion statusVehicle stopped (Ignition
switch ON)OFF
BRC-28, "
Actuator Motor,
Motor Relay, and Circuit
Inspection"Vehicle stopped (Engine run-
ning)ON
FR LH IN SOL
FR LH OUT SOL
FR RH IN SOL
FR RH OUT SOL
RR RH IN SOL
RR RH OUT SOL
RR LH IN SOL
RR LH OUT SOLSolenoid valve opera-
tionActuator (solenoid) is active
(“ACTIVE TEST” with CON-
SULT-II) or actuator relay is
inactive (in fail-safe mode).ON
BRC-27, "
Solenoid Valve
System Inspection"When actuator (solenoid) is
not active and actuator relay is
active (ignition switch ON).OFF

TROUBLE DIAGNOSIS
BRC-19
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: June 20062007 Versa
Note 1: Confirm tire pressure is normal.
Note 2: ON/OFF timing of ABS warning lamp
ON: For approximately 2 seconds after ignition switch is turned ON, or when a malfunction is detected.
OFF: Approximately 2 seconds after ignition switch is turned ON (when system is in normal operation).ABS SIGNAL
EBD SIGNALSignal statusABS active
EBD activeON
ABS system
EBD system
ABS not active
EBD not activeOFF
ABS FAIL SIG
EBD FAIL SIGFail signal statusABS fail
EBD failON
ABS system
EBD system
ABS normal
EBD normalOFF Monitor item Display contentData monitor
Note: Error inspection
checklist
ConditionReference value in
normal operation

BRC-20
[ABS]
TROUBLE DIAGNOSIS
Revision: June 20062007 Versa
CONSULT-II Function (ABS)EFS006LP
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II START PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
SELF-DIAGNOSIS
Description
If an error is detected in the system, the ABS warning lamp will turn on. In this case, perform self-diagnosis as
follows:
Operation Procedure
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.
3. Turn ignition switch ON.
4. Start engine and drive at approximately 30 km/h (19 MPH) or more for approximately 1 minute.
5. After stopping the vehicle, with the engine running, touch “START (NISSAN BASED VHCL)”, “ABS”,
“SELF-DIAG RESULTS” in order on the CONSULT-II screen.
CAUTION:
If “START (NISSAN BASED VHCL)” is touched immediately after starting the engine or turning on
the ignition switch, “ABS” might not be displayed in the SELECT SYSTEM screen. In this case,
repeat the operation from step 1.
6. The self-diagnostic results are displayed. (If necessary, the self-diagnostic results can be printed out by
touching “PRINT”.)

When “NO DTC IS DETECTED” is displayed, check the ABS warning lamp.
7. Conduct the appropriate inspection from the display item list, and repair or replace the malfunctioning
component.
8. Start engine and drive at approximately 30 km/h (19 MPH) or more for approximately 1 minute.
CAUTION:

When a wheel sensor “short-circuit” is detected, if the vehicle is not driven at 30 km/h (19 MPH)
for at least 1 minute, the ABS warning lamp will not turn off even if the malfunction is repaired.
9. Turn ignition switch OFF to prepare for erasing the memory.
10. Start the engine and touch “START (NISSAN BASED VHCL)”, “ABS”, “SELF-DIAG RESULTS”, “ERASE”
in order on the CONSULT-II screen to erase the error memory.
If “ABS” is not indicated, go to GI-40, "
CONSULT-II Data Link Connector (DLC) Circuit" .
CAUTION:
If the error memory is not erased, re-conduct the operation from step 5.
11. For the final inspection, drive at approximately 30 km/h (19 MPH) or more for approximately 1 minute and
confirm that the ABS warning lamp is off.
ABS diagnostic mode Description
SELF-DIAG RESULTS Displays ABS actuator and electric unit (control unit) self-diagnosis results.
DATA MONITOR Displays ABS actuator and electric unit (control unit) input/output data in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
FUNCTION TESTConducted by CONSULT-II instead of a technician to determine whether each system is "OK" or
"NG".
ECU PART NUMBER ABS actuator and electric unit (control unit) part number can be read.

TROUBLE DIAGNOSIS
BRC-21
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: June 20062007 Versa
Display Item List
Self-diagnostic item Malfunction detecting condition Check system
RR RH SENSOR-1
[C1101]Circuit of rear RH wheel sensor is open.
BRC-25, "
Wheel Sensor
System" (Note 1) RR LH SENSOR-1
[C1102]Circuit of rear LH wheel sensor is open.
FR RH SENSOR-1
[C1103]Circuit of front RH wheel sensor is open.
FR LH SENSOR-1
[C1104]Circuit of front LH wheel sensor is open.
RR RH SENSOR-2
[C1105]When the circuit in the rear RH wheel sensor is short-circuited or
when the sensor power voltage is outside the standard. When
the distance between the wheel sensor and sensor rotor is too
large and the sensor pulse cannot be recognized by the control
unit.
RR LH SENSOR-2
[C1106]When the circuit in the rear LH wheel sensor is short-circuited or
when the sensor power voltage is outside the standard. When
the distance between the wheel sensor and sensor rotor is too
large and the sensor pulse cannot be recognized by the control
unit.
FR RH SENSOR-2
[C1107]When the circuit in the front RH wheel sensor is short-circuited or
when the sensor power voltage is outside the standard. When
the distance between the wheel sensor and sensor rotor is too
large and the sensor pulse cannot be recognized by the control
unit.
FR LH SENSOR-2
[C1108]When the circuit in the front LH wheel sensor is short-circuited or
when the sensor power voltage is outside the standard. When
the distance between the wheel sensor and sensor rotor is too
large and the sensor pulse cannot be recognized by the control
unit.
ABS SENSOR
[ABNORMAL SIGNAL]
[ C 111 5 ]Wheel sensor input is abnormal.
BATTERY VOLTAGE
[ABNORMAL]
[C1109]ABS actuator and electric unit (control unit) power voltage is too
low.BRC-29, "
ABS Control
Unit Power and Ground
Systems Inspection"
CONTROLLER FAILURE
[ C 111 0 ]Internal malfunction of ABS actuator and electric unit (control
unit)BRC-26, "ABS Control
Unit Inspection"
PUMP MOTOR
[ C 1111 ]During actuator motor operation with ON, when actuator motor
turns OFF or when control line for actuator motor relay is open.BRC-28, "Actuator
Motor, Motor Relay, and
Circuit Inspection"During actuator motor operation with OFF, when actuator motor
turns ON or when control line for relay is shorted to ground.
