radio controls NISSAN VERSA 2014 Owners Manual

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen with
Navigation System (if so equipped)..................4-2
How to use the touch screen ....................4-3
How to use the BACK button ....................4-5
How to use the MENU button ....................4-5
button...................................4-9
RearView Monitor (if so equipped) ...................4-9
How to read the displayed lines .................4-10
Difference between predicted and actual
distances ..................................... 4-10
Adjusting the screen ........................... 4-13
Operating tips ................................. 4-14
Vents . .......................................... 4-14
Heater and Air Conditioner (manual)
(if so equipped) .................................. 4-15
Controls ...................................... 4-16
Heater operation .............................. 4-17
Air conditioner operation (if so equipped) ........4-18
Air flow charts ................................. 4-19
Servicing air conditioner (if so equipped) ............4-23
Audio system .................................... 4-23
Radio ........................................ 4-23
FM radio reception ............................ 4-23AM radio reception
............................ 4-24
Satellite radio reception (if so equipped) . . . ......4-24
Audio operation precautions ....................4-24
FM/AM radio with compact disc (CD) player
(Type A) (if so equipped) .......................4-31
FM/AM radio with compact disc (CD) player
(Type B) (if so equipped) .......................4-34
FM/AM/SAT radio with compact disc (CD)
player (Type A) (if so equipped) .................4-39
FM/AM/SAT radio with compact disc (CD)
player (Type B) (if so equipped) .................4-44
USB interface (models without Navigation
System) (if so equipped) .......................4-51
USB interface (models with Navigation
System) ...................................... 4-52
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-54
iPod®* player operation with Navigation
System (if so equipped) ........................ 4-57
Bluetooth® streaming audio without
Navigation System (if so equipped) ..............4-60
Bluetooth® streaming audio with Navigation
System (if so equipped) ........................ 4-62
Pandora® audio (if so equipped) ................4-63

FM/AM/SAT RADIO WITH
COMPACT DISC (CD) PLAYER (Type
A) (if so equipped)
For all operation precautions, see “Audio opera-
tion precautions” in this section.
Audio main operation
VOL (volume) knob / ON-OFF button:
Place the ignition switch in the ACC or ON
position and press the VOL (volume) knob /
ON-OFF button while the system is off to call up
the mode that was playing immediately before the
system was turned off.
To turn the system off, press the VOL (volume)
knob / ON-OFF button.
Turn the VOL (volume) knob / ON-OFF button to
adjust the volume.SETTING button:
Press the SETTING button to show the Settings
screen on the display. Turn the TUNE/SCROLL
knob to navigate the options and then press the
ENTER button to make a selection.
Bass, Treble, Balance and Fade
Increase or decrease the level of bass, treble,
balance or fade. Balance controls the level of
sound between the left and right speakers. Fade
controls the level of sound between the front and
rear speakers.Speed Sens Vol. (Speed Sensitive Volume)
Speed Sensitive Volume adjusts the volume of
the audio system as the vehicle’s driving speed
changes. The feature can be turned off or set to a
level of 1 to 5. Level 5 represents the highest
degree of volume adjustment.
AUX Vol.
Choose a setting from 0 to +3 to control the
boost of the incoming auxiliary device volume. A
setting of 0 provides no additional boost in vol-
ume. A setting of +3 provides the greatest boost
in volume.
LHA2257LHA2258
Monitor, climate, audio, phone and voice recognition systems4-39

●Send Text
Sends a text message. For more information
about text messaging with the Bluetooth®
Hands-Free Phone System, see
“Bluetooth® Hands-Free Phone System
with Navigation System” in this section.
● Select Phone
The system replies “Please use manual con-
trols to continue”. Use manual controls to
change the active phone from among the
listed phones connected to the vehicle.
For more information about the Bluetooth®
Hands-Free Phone System, see “Bluetooth®
Hands-Free Phone System with Navigation Sys-
tem” in this section.
NAVIGATION SYSTEM VOICE
COMMANDS
The following voice commands are available for
the Navigation System: ● Places
● Street Address
● Address Book
● Home
● Previous Destination For more information about these commands,
see the separate Navigation System Owner’s
Manual.
AUDIO SYSTEM VOICE
COMMANDS
To access the audio system voice commands:
1. Press the button.
2. Say “Audio”
3. Speak a command from the following avail- able commands:
● FM
Switches the audio system to the FM mode.
● AM
Switches the audio system to the AM mode.
● XM (satellite radio, if so equipped)
Switches the audio system to the SiriusXM
Satellite Radio mode.
● CD
Switches the audio system to the CD mode.
A CD must be inserted for this command to
be functional. ●
iPod®
Switches the audio system to the iPod®
mode. An iPod® must be connected for this
command to be available and functional.
The following sub-commands are available
for iPod®:
– Now Playing
– Menu
– Playlists
– Artists
– Albums
– Genres
– Songs
– Shuffle Songs*
– Composers*
– Audiobooks*
– Podcasts*
* Say “Next Page” to access these com-
mands. Say “Previous Page” to return to the
first page of commands.
Monitor, climate, audio, phone and voice recognition systems4-95

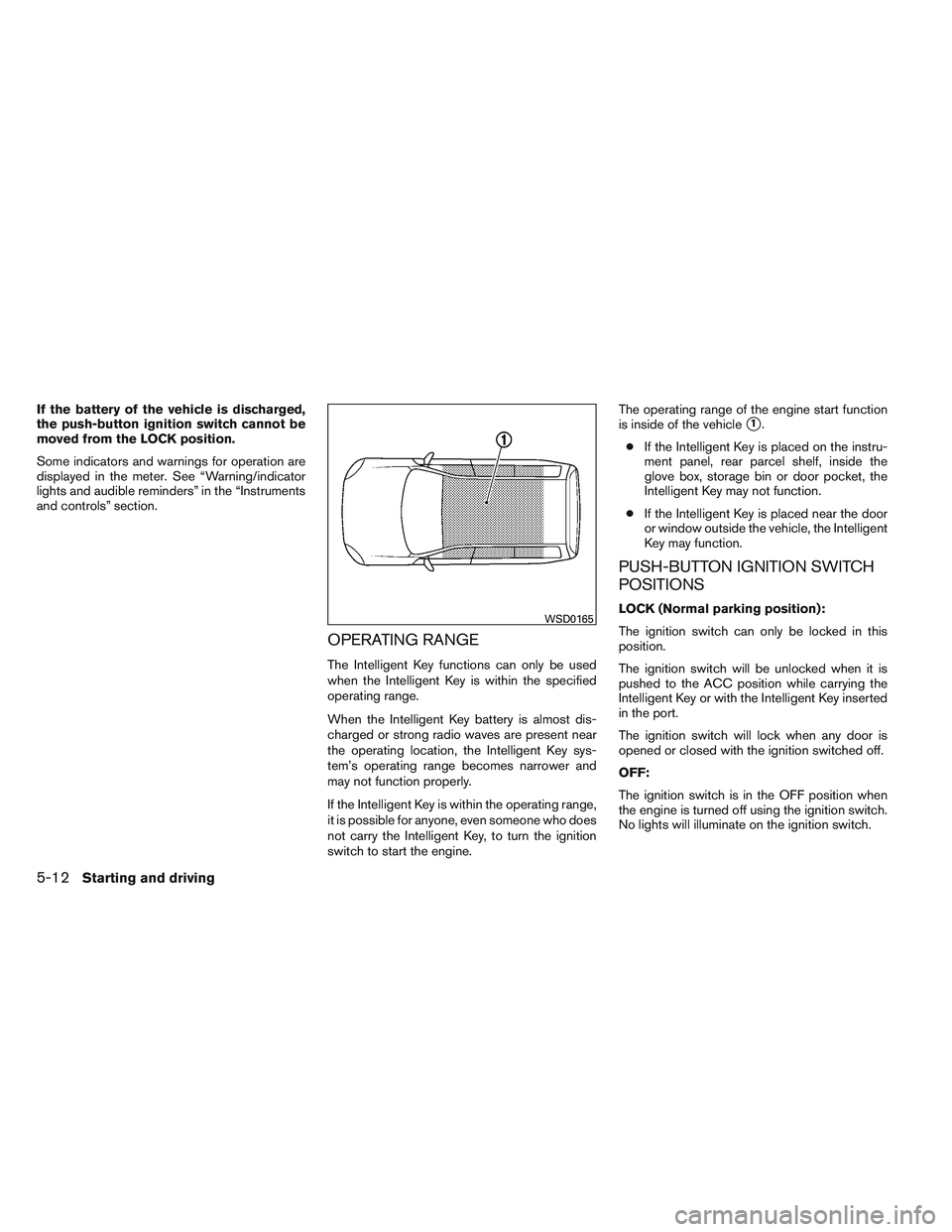

If the battery of the vehicle is discharged,
the push-button ignition switch cannot be
moved from the LOCK position.
Some indicators and warnings for operation are
displayed in the meter. See “Warning/indicator
lights and audible reminders” in the “Instruments
and controls” section.
OPERATING RANGE
The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range.
When the Intelligent Key battery is almost dis-
charged or strong radio waves are present near
the operating location, the Intelligent Key sys-
tem’s operating range becomes narrower and
may not function properly.
If the Intelligent Key is within the operating range,
it is possible for anyone, even someone who does
not carry the Intelligent Key, to turn the ignition
switch to start the engine.The operating range of the engine start function
is inside of the vehicle
1.
● If the Intelligent Key is placed on the instru-
ment panel, rear parcel shelf, inside the
glove box, storage bin or door pocket, the
Intelligent Key may not function.
● If the Intelligent Key is placed near the door
or window outside the vehicle, the Intelligent
Key may function.
PUSH-BUTTON IGNITION SWITCH
POSITIONS
LOCK (Normal parking position):
The ignition switch can only be locked in this
position.
The ignition switch will be unlocked when it is
pushed to the ACC position while carrying the
Intelligent Key or with the Intelligent Key inserted
in the port.
The ignition switch will lock when any door is
opened or closed with the ignition switched off.
OFF:
The ignition switch is in the OFF position when
the engine is turned off using the ignition switch.
No lights will illuminate on the ignition switch.WSD0165
5-12Starting and driving

10 Index
A
ABS (Anti-lock Braking System) ........5-33
Air bag (See supplemental restraint system). .1-36
Air bag system Front (See supplemental front impact
air bag system) ...............1-43
Side and curtain (See supplemental
side air bag and curtain side-impact
air bag system) ...............1-48
Airbagwarninglabels.............1-50
Airbagwarninglight...........1-51,2-17
Air cleaner housing filter ............8-17
Air conditioner Air conditioner operation ..........4-18
Air conditioner service ...........4-23
Air conditioner specification label .....9-11
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner controls ....4-15
Servicing air conditioner ..........4-23
Airflowcharts..................4-19
Anchor point locations .............1-22
Antenna.....................4-66
Anti-lock brake warning light ..........2-13
Anti-lock Braking System (ABS) ........5-33
Armrests .....................1-5
Audible reminders ...............2-20
Audio system ..................4-23
Bluetooth®audio..........4-60,4-62
Compact disc
(CD)player.......4-33,4-36,4-41,4-48 FM/AM radio with compact disc
(CD) player
.................4-31
FM-AM radio with compact disc
(CD) player .................4-34
FM/AM/SAT radio with compact disc
(CD) player ..............4-39,4-44
Audio System iPod®Player.............4-54,4-57
Audio system Radio ....................4-23
Steering wheel audio control switch . . .4-65
USB interface ............4-51,4-52
Automatic Automatic power window switch .....2-32
Automatic transmission fluid (ATF) ....8-11
Driving with automatic transmission ....5-20
Transmission shift selector lock release . .5-23
Automatic door locks ..............3-7
AUXjack..........4-33,4-37,4-42,4-50
B
Battery ......................8-13
Charge warning light ............2-14
Before starting the engine ...........5-14
Belt (See drive belt) ..............8-16
Block heater Engine ....................5-37
Bluetooth®audio............4-60,4-62
Bluetooth® hands-free phone
system ..................4-68,4-82
Boosterseats..................1-33 Brake
Anti-lock Braking System (ABS) ......5-33
Brakefluid..................8-12
Brakelight(Seestoplight).........8-28
Brake system ................5-32
Brake warning light .............2-13
Brake wear indicators ........2-20,8-20
Parking brake operation ..........5-26
Self-adjusting brakes ............8-20
Brakes ......................8-20
Break-inschedule ...............5-29
Brightness/contrast button ...........4-9
Brightness control Instrument panel ..............2-24
Bulb check/instrument panel ..........2-13
Bulbreplacement................8-28
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargo (See vehicle loading information) . . .9-12
Car phone or CB radio .............4-67
CD care and cleaning .............4-65
CD

player
(See audio system) ....4-33,4-36,4-41,4-48
Child restraints .......1-17,1-17,1-18,1-20
Precautions on child
restraints ........1-18,1-24,1-29,1-33
Top tether strap anchor point locations . .1-22
Child safety rear door lock ............3-7
Chimes,audiblereminders...........2-20
