NISSAN VERSA 2018 Owners Manual

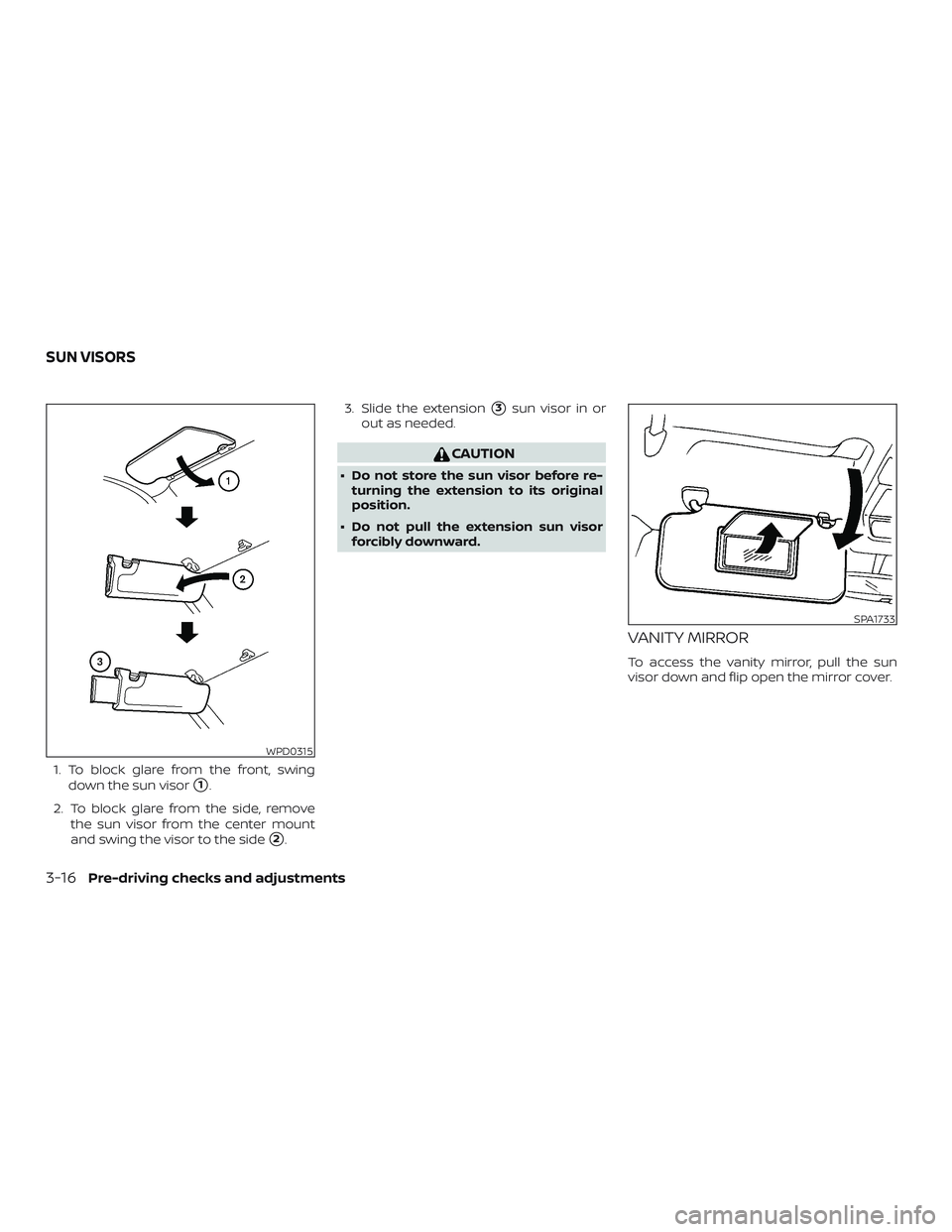

1. To block glare from the front, swing
down the sun visor
1.
2. To block glare from the side, remove
the sun visor from the center mount
and swing the visor to the side
2.3. Slide the extension
3sun visor in or
out as needed.
CAUTION
∙ Do not store the sun visor before re-
turning the extension to its original
position.
∙ Do not pull the extension sun visor
forcibly downward.
VANITY MIRROR
To access the vanity mirror, pull the sun
visor down and flip open the mirror cover.
WPD0315
SPA1733
SUN VISORS
3-16Pre-driving checks and adjustments

REARVIEW MIRROR
The night position1reduces glare from
the headlights of vehicles behind you at
night.
Use the day position
2when driving in
daylight hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view
clarity.
OUTSIDE MIRRORS
WARNING
∙ Objects viewed in the outside mirror
on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.
∙ Do not adjust the mirrors while driv-
ing. You could lose control of your ve-
hicle and cause an accident.
Electric control type
The outside mirror remote control will op-
erate only when the ignition switch is in the
ACC or ON position.
Move the small switch
1to select the right
or lef t mirror. Adjust each mirror to the de-
sired position using the large switch
2.
Move the small switch
1to the center
(neutral) position to prevent accidentally
moving the mirror.
WPD0126LPD0237
MIRRORS
Pre-driving checks and adjustments3-17

Manual folding outside mirrors
Pull the outside mirror toward the door to
fold it.
LPD2216
3-18Pre-driving checks and adjustments

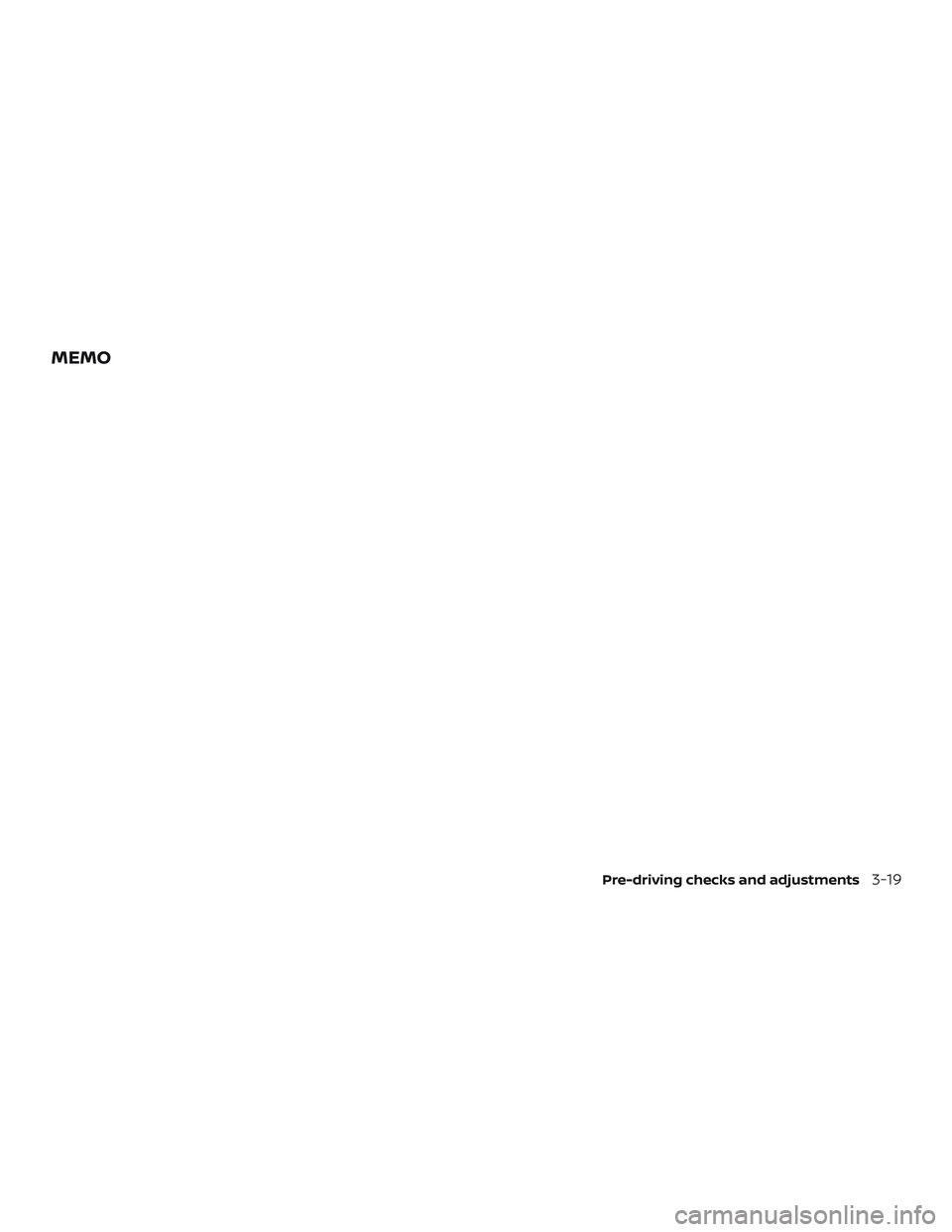

MEMO
Pre-driving checks and adjustments3-19

4 Display screen, heater, air conditioner,
audio and phone systems
RearView Monitor (if so equipped)...............4-2
RearView Monitor system operation..........4-3
How to read the displayed lines...............4-3
Difference between predicted and
actual distances..............................4-4
Adjusting the screen.........................4-6
RearView Monitor system limitations.........4-7
System maintenance.........................4-8
Vents............................................4-9
Heater and air conditioner (manual).............4-9
Controls.....................................4-10
Heater operation.............................4-11
Air conditioner operation....................4-13
Air flow charts...............................4-14
Servicing air conditioner........................4-17
Audio system...................................4-17
Radio........................................4-17
FM radio reception..........................4-17
AM radio reception..........................4-18
Satellite radio reception (if so equipped).....4-18
Audio operation precautions................4-19
FM/AM radio with compact disc (CD)
player (Type A) (if so equipped)...............4-27FM/AM radio with compact disc (CD)
player (Type B) (if so equipped)...............4-31
FM/AM/SAT radio with compact disc
(CD) player (if so equipped)..................4-36
USB (Universal Serial Bus) connection
port (if so equipped).........................4-42
iPod®* player operation (if so equipped)......4-44
Bluetooth® streaming audio
(if so equipped)..............................4-46
CD care and cleaning........................4-47
Steering wheel switch for audio control......4-48
Antenna.....................................4-49
Car phone or CB radio..........................4-49
Bluetooth® Hands-Free Phone System
(Type A) (if so equipped)........................4-50
Regulatory Information......................4-52
Using the system............................4-52
Control buttons.............................4-55
Getting started..............................
4-55
List of voice commands.....................4-57
Voice Adaptation (VA) mode.................4-62
Manual control..............................4-63
Troubleshooting guide......................4-64

Bluetooth® Hands-Free Phone System
(Type B) (if so equipped)........................4-65
Regulatory Information......................4-66
Using the system............................4-67
Control buttons.............................4-68
Connecting procedure......................4-69
Voice commands...........................4-70Making a call................................4-71
Receiving a call..............................4-72
During a call.................................4-72
Ending a call.................................4-73
Text messaging (if so equipped).............4-73
Bluetooth® settings.........................4-74
Manual control..............................4-75

WARNING
∙ Failure to follow the warnings and in-
structions for proper use of the Rear-
View Monitor system could result in
serious injury or death.∙
RearView Monitor is a convenience fea-
ture and is not a substitute for proper
backing. Always turn and look out the
windows and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly.∙ The system is designed as an aid to
the driver in showing large stationary
objects directly behind the vehicle, to
help avoid damaging the vehicle.
LHA4456

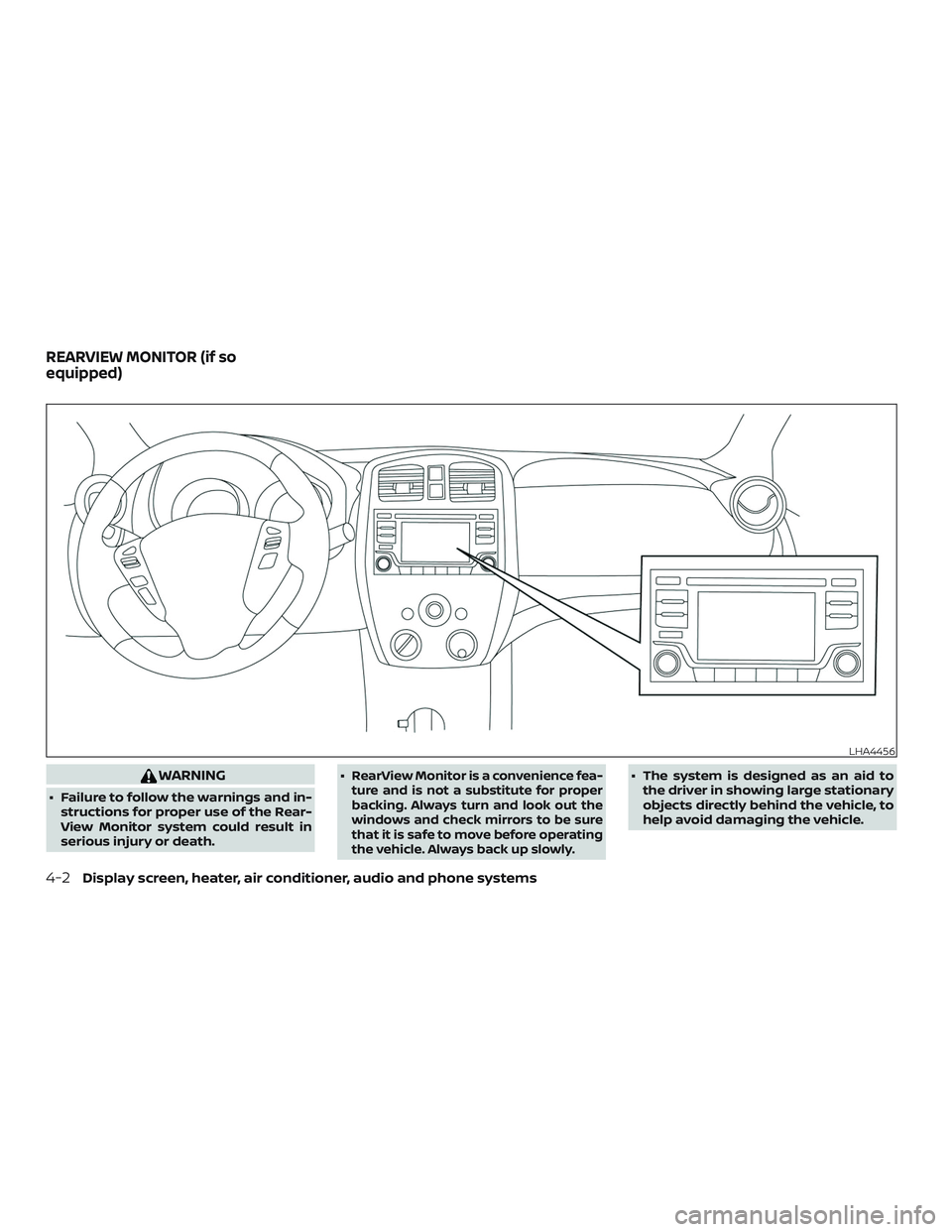

REARVIEW MONITOR (if so
equipped)
4-2Display screen, heater, air conditioner, audio and phone systems

∙ The distance guide line and the ve-
hicle width line should be used as a
reference only when the vehicle is on a
level paved surface. The distance
viewed on the monitor is for reference
only and may be different than the
actual distance between the vehicle
and displayed objects.

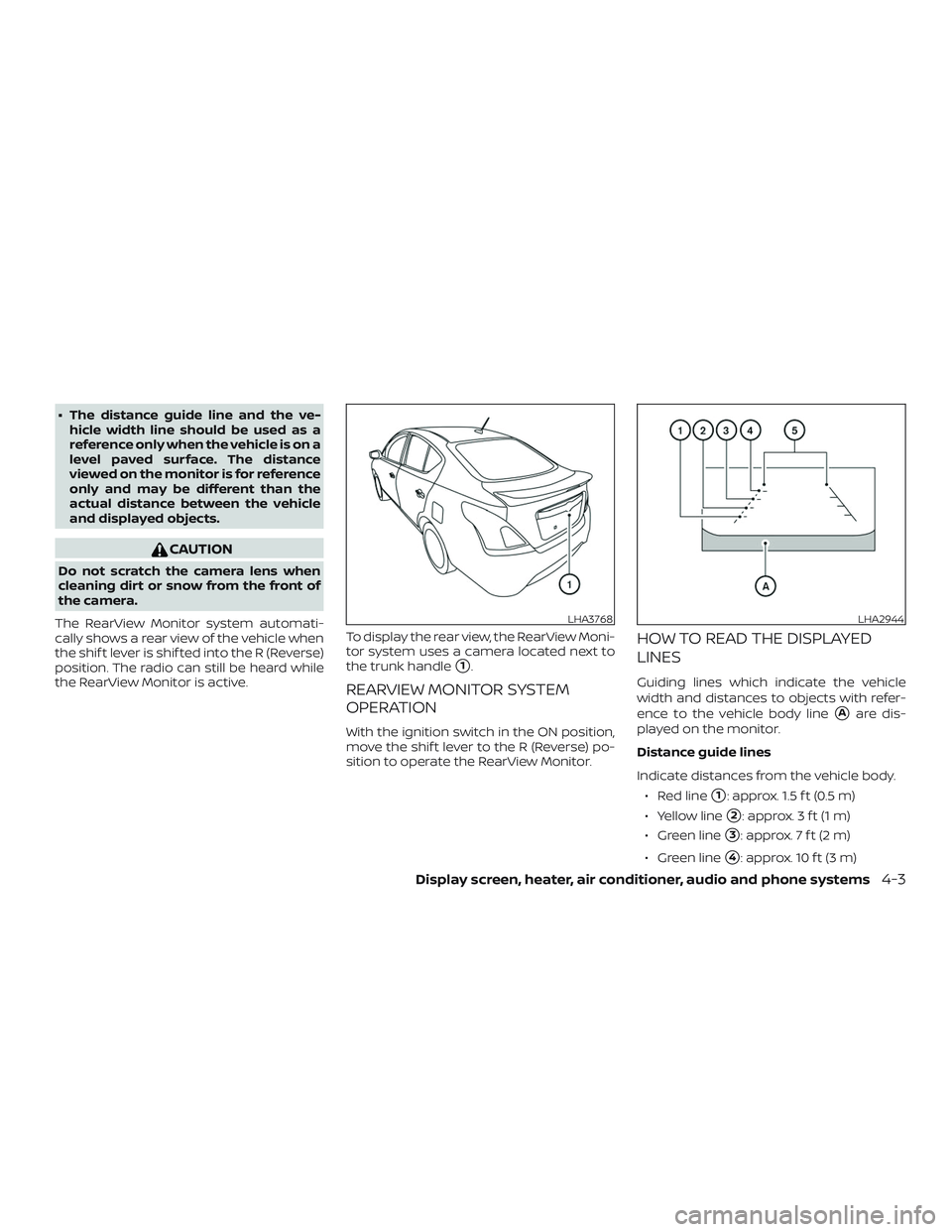

CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.
The RearView Monitor system automati-
cally shows a rear view of the vehicle when
the shif t lever is shif ted into the R (Reverse)
position. The radio can still be heard while
the RearView Monitor is active.To display the rear view, the RearView Moni-
tor system uses a camera located next to
the trunk handle
1.
REARVIEW MONITOR SYSTEM
OPERATION
With the ignition switch in the ON position,
move the shif t lever to the R (Reverse) po-
sition to operate the RearView Monitor.
HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle
width and distances to objects with refer-
ence to the vehicle body line
Aare dis-
played on the monitor.
Distance guide lines
Indicate distances from the vehicle body.
∙ Red line
1: approx. 1.5 f t (0.5 m)
∙ Yellow line
2: approx. 3 f t (1 m)
∙ Green line
3: approx. 7 f t (2 m)
∙ Green line
4: approx. 10 f t (3 m)
LHA3768LHA2944
Display screen, heater, air conditioner, audio and phone systems4-3

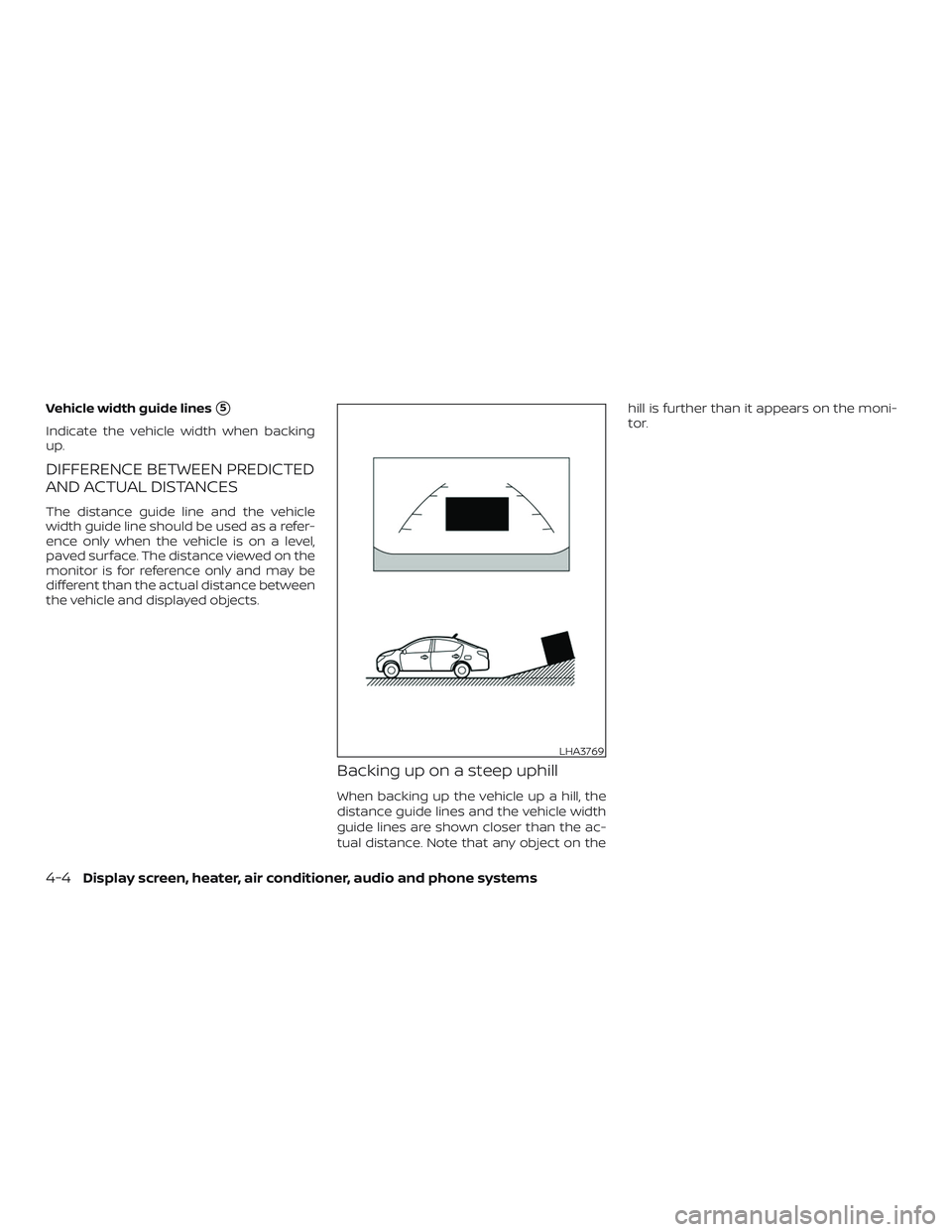

Vehicle width guide lines5
Indicate the vehicle width when backing
up.
DIFFERENCE BETWEEN PREDICTED
AND ACTUAL DISTANCES
The distance guide line and the vehicle
width guide line should be used as a refer-
ence only when the vehicle is on a level,
paved surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance between
the vehicle and displayed objects.
Backing up on a steep uphill
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the ac-
tual distance. Note that any object on thehill is further than it appears on the moni-
tor.
LHA3769
4-4Display screen, heater, air conditioner, audio and phone systems

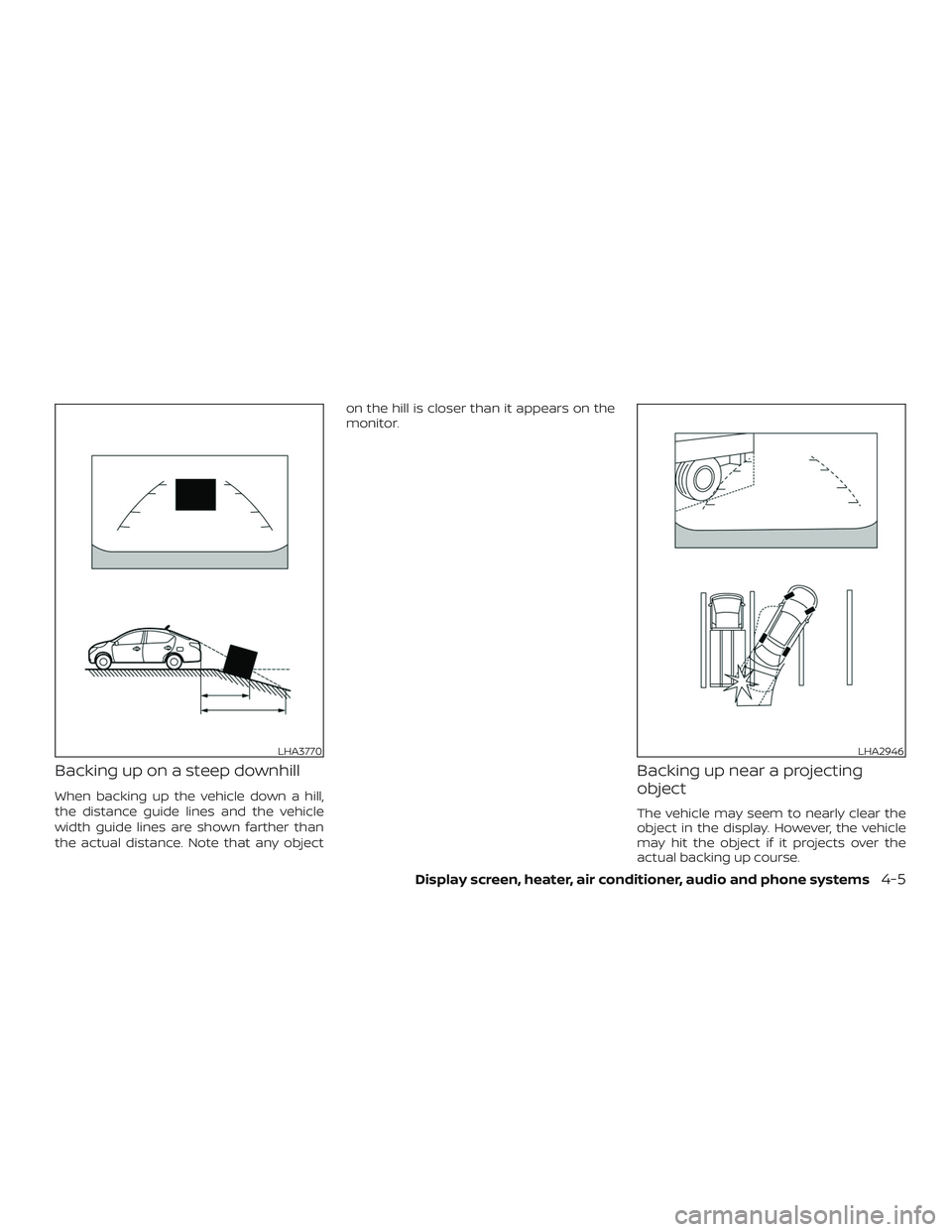

Backing up on a steep downhill
When backing up the vehicle down a hill,
the distance guide lines and the vehicle
width guide lines are shown farther than
the actual distance. Note that any objecton the hill is closer than it appears on the
monitor.
Backing up near a projecting
object
The vehicle may seem to nearly clear the
object in the display. However, the vehicle
may hit the object if it projects over the
actual backing up course.
LHA3770LHA2946
Display screen, heater, air conditioner, audio and phone systems4-5
