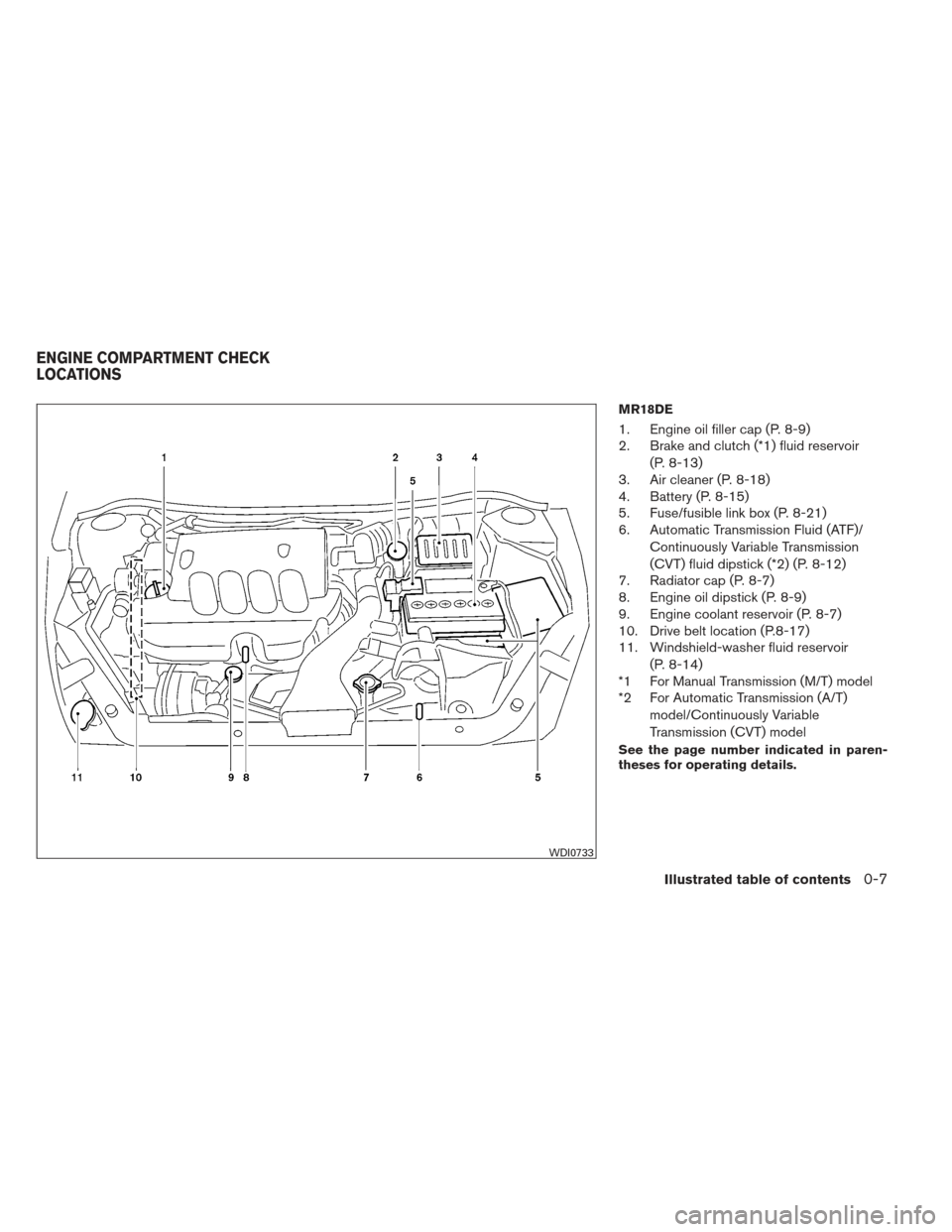

MR18DE
1. Engine oil filler cap (P. 8-9)
2. Brake and clutch (*1) fluid reservoir(P. 8-13)
3. Air cleaner (P. 8-18)
4. Battery (P. 8-15)
5. Fuse/fusible link box (P. 8-21)
6. Automatic Transmission Fluid (ATF)/
Continuously Variable Transmission
(CVT) fluid dipstick (*2) (P. 8-12)
7. Radiator cap (P. 8-7)
8. Engine oil dipstick (P. 8-9)
9. Engine coolant reservoir (P. 8-7)
10. Drive belt location (P.8-17)
11. Windshield-washer fluid reservoir
(P. 8-14)
*1 For Manual Transmission (M/T) model
*2 For Automatic Transmission (A/T)
model/Continuously Variable
Transmission (CVT) model
See the page number indicated in paren-
theses for operating details.
WDI0733
ENGINE COMPARTMENT CHECK
LOCATIONS
Illustrated table of contents0-7

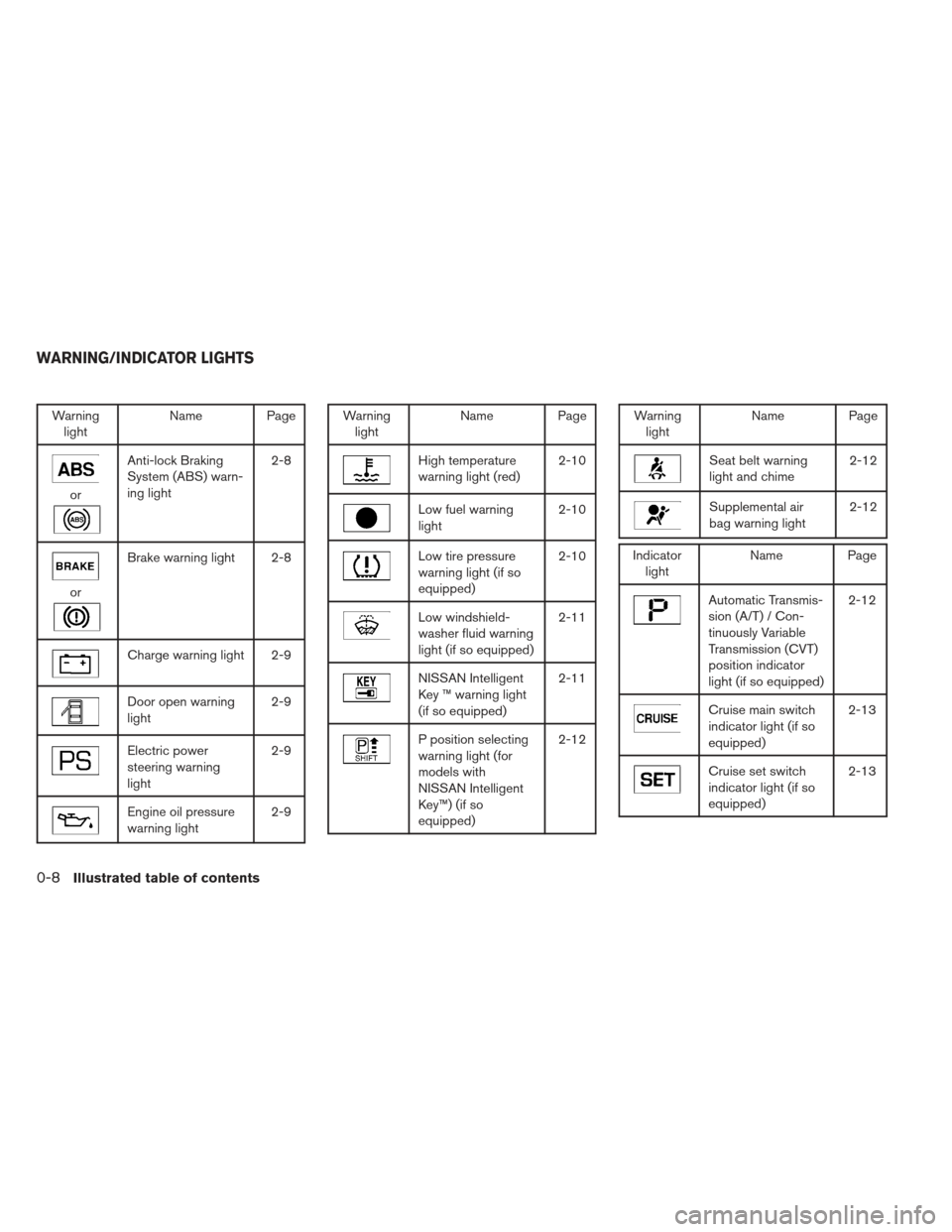

Page 15 of 320
Warninglight Name Page
or
Anti-lock Braking
System (ABS) warn-
ing light 2-8
or
Brake warning light 2-8
Charge warning light 2-9
Door open warning
light
2-9
Electric power
steering warning
light2-9
Engine oil pressure
warning light
2-9
Warning
light Name Page
High temperature
warning light (red) 2-10
Low fuel warning
light2-10
Low tire pressure
warning light (if so
equipped)2-10
Low windshield-
washer fluid warning
light (if so equipped)2-11
NISSAN Intelligent
Key ™ warning light
(if so equipped)2-11
P position selecting
warning light (for
models with
NISSAN Intelligent
Key™) (if so
equipped)2-12
Warning
light Name Page
Seat belt warning
light and chime 2-12
Supplemental air
bag warning light2-12
Indicator
light Name Page
Automatic Transmis-
sion (A/T) / Con-
tinuously Variable
Transmission (CVT)
position indicator
light (if so equipped) 2-12
Cruise main switch
indicator light (if so
equipped)
2-13
Cruise set switch
indicator light (if so
equipped)2-13
WARNING/INDICATOR LIGHTS
0-8Illustrated table of contents
Page 74 of 320
orAnti-lock Braking System (ABS)
warning lightLow windshield-washer fluid warning light
(if so equipped)High beam indicator light (blue)
orBrake warning lightNISSAN Intelligent Key™ warning light
(if so equipped)Low temperature indicator light (blue)
(if so equipped)
Charge warning lightP position selecting warning light (for models
with NISSAN Intelligent Key™) (if so equipped)Malfunction Indicator Light (MIL)
Door open warning lightSeat belt warning light and chimeOverdrive off indicator light (A/T / CVT models)
Electric power steering warning lightSupplemental air bag warning lightSecurity indicator light
Engine oil pressure warning lightAutomatic Transmission (A/T)/Continuously
Variable Transmission (CVT) position indicator
light (if so equipped)Slip indicator light
High temperature warning light (red)Cruise main switch indicator light
(if so equipped)Turn signal/hazard indicator lights
Low fuel warning lightCruise set switch indicator light
(if so equipped)Vehicle Dynamic Control (VDC) off indicator
light
Low tire pressure warning light
(if so equipped)Front passenger air bag status light

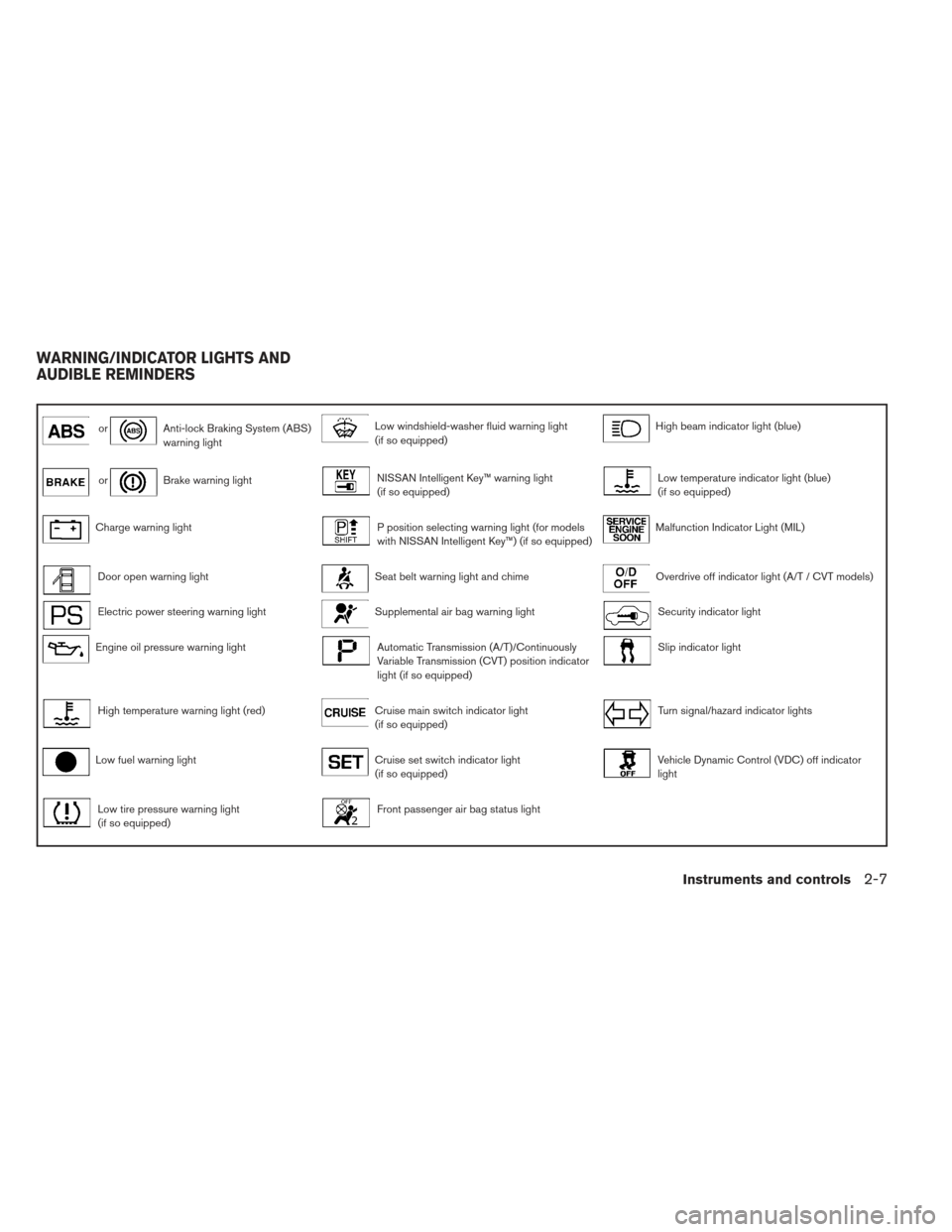

WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls2-7
Page 250 of 320
8 Maintenance and do-it-yourself
Maintenance requirements..........................8-2
General maintenance ..............................8-2
Explanation of general maintenance items .........8-2
Maintenance precautions ...........................8-5
Engine compartment check locations ................8-6
Engine cooling system .............................8-7
Checking engine coolant level ...................8-8
Changing engine coolant ........................8-8
Engine oil .........................................8-9
Checking engine oil level ........................8-9
Changing engine oil ........................... 8-10
Changing engine oil filter .......................8-11
Continuously Variable Transmission (CVT) fluid
(if so equipped) .................................. 8-11
4-speed automatic transmission fluid
(if so equipped) .................................. 8-12
Temperature conditions for checking . ............8-12
Brake and clutch (if so equipped) fluid ..............8-13
Brake fluid .................................... 8-14
Clutch fluid (if so equipped) ....................8-14
Windshield-washer fluid ........................... 8-14
Windshield-washer fluid reservoir ...............8-14
Battery .......................................... 8-15Jump starting
................................. 8-16
Drive belt ........................................ 8-17
Spark plugs ...................................... 8-17
Replacing spark plugs ......................... 8-17
Air cleaner ....................................... 8-18
Windshield wiper blades .......................... 8-19
Cleaning ..................................... 8-19
Replacing .................................... 8-19
Brakes .......................................... 8-20
Fuses ........................................... 8-21
Engine compartment ........................... 8-22
Passenger compartment .......................8-23
Battery replacement .............................. 8-25
Keyfob (if so equipped) ........................ 8-26
NISSAN Intelligent Key™ (if so equipped) ........8-27
Lights ........................................... 8-28
Headlights .................................... 8-28
Exterior
and interior lights ....................... 8-29
Wheels and tires ................................. 8-32
Tire pressure . . . ............................... 8-32
Tire labeling ................................... 8-35
Types of tires .................................. 8-38
Tire chains .................................... 8-39
Changing wheels and tires .....................8-39
Page 254 of 320
When performing any inspection or maintenance
work on your vehicle, always take care to prevent
serious accidental injury to yourself or damage to
the vehicle. The following are general precau-
tions which should be closely observed.
WARNING
●Park the vehicle on a level surface, ap-
ply the parking brake securely and
block the wheels to prevent the vehicle
from moving. For manual transmission
models, move the shift selector to N
(Neutral) . For Automatic Transmission
(A/T) or CVT models, move the shift
selector to P (Park) .
●
Be sure the ignition switch is placed in
the OFF or LOCK position when perform-
ing any parts replacement or repairs.
●Your vehicle is equipped with an automatic
engine cooling fan. It may come on at any
time without warning, even if the ignition
switch is placed in the OFF position and
the engine is not running. To avoid injury,
always disconnect the negative battery
cable before working near the fan.
● If you must work with the engine run-
ning, keep your hands, clothing, hair
and tools away from moving fans, belts
and any other moving parts. ●
It is advisable to secure or remove any
loose clothing and remove any jewelry,
such as rings, watches, etc. before
working on your vehicle.
● Always wear eye protection whenever
you work on your vehicle.
● If you must run the engine in an en-
closed space such as a garage, be sure
there is proper ventilation for exhaust
gases to escape.
● Never get under the vehicle while it is
supported only by a jack. If it is neces-
sary to work under the vehicle, support
it with safety stands.
● Keep smoking materials, flame and
sparks away from the fuel tank and
battery.
● On gasoline engine models, the fuel
filter or fuel lines should be serviced by
a NISSAN dealer because the fuel lines
are under high pressure even when the
engine is off.CAUTION
● Do not work under the hood while the
engine is hot. Turn the engine off and
wait until it cools down. ●
Avoid contact with used engine oil and
coolant. Improperly disposed engine
oil, engine coolant and/or other vehicle
fluids can damage the environment. Al-
ways conform to local regulations for
disposal of vehicle fluid.
● Never leave the engine or the transmis-
sion related component harness con-
nector disconnected while the ignition
switch is in the ON position.
● Never connect or disconnect the battery
or any transistorized component while
the ignition switch is in the ON position.
This “Maintenance and do-it-yourself” section
gives instructions regarding only those items
which are relatively easy for an owner to perform.
A genuine NISSAN service manual is also avail-
able. See “Owner’s Manual/Service Manual or-
der information” in the “Technical and consumer
information” section of this manual.
You should be aware that incomplete or improper
servicing may result in operating difficulties or
excessive emissions, and could affect warranty
coverage. If in doubt about any servicing,
have it done by a NISSAN dealer.

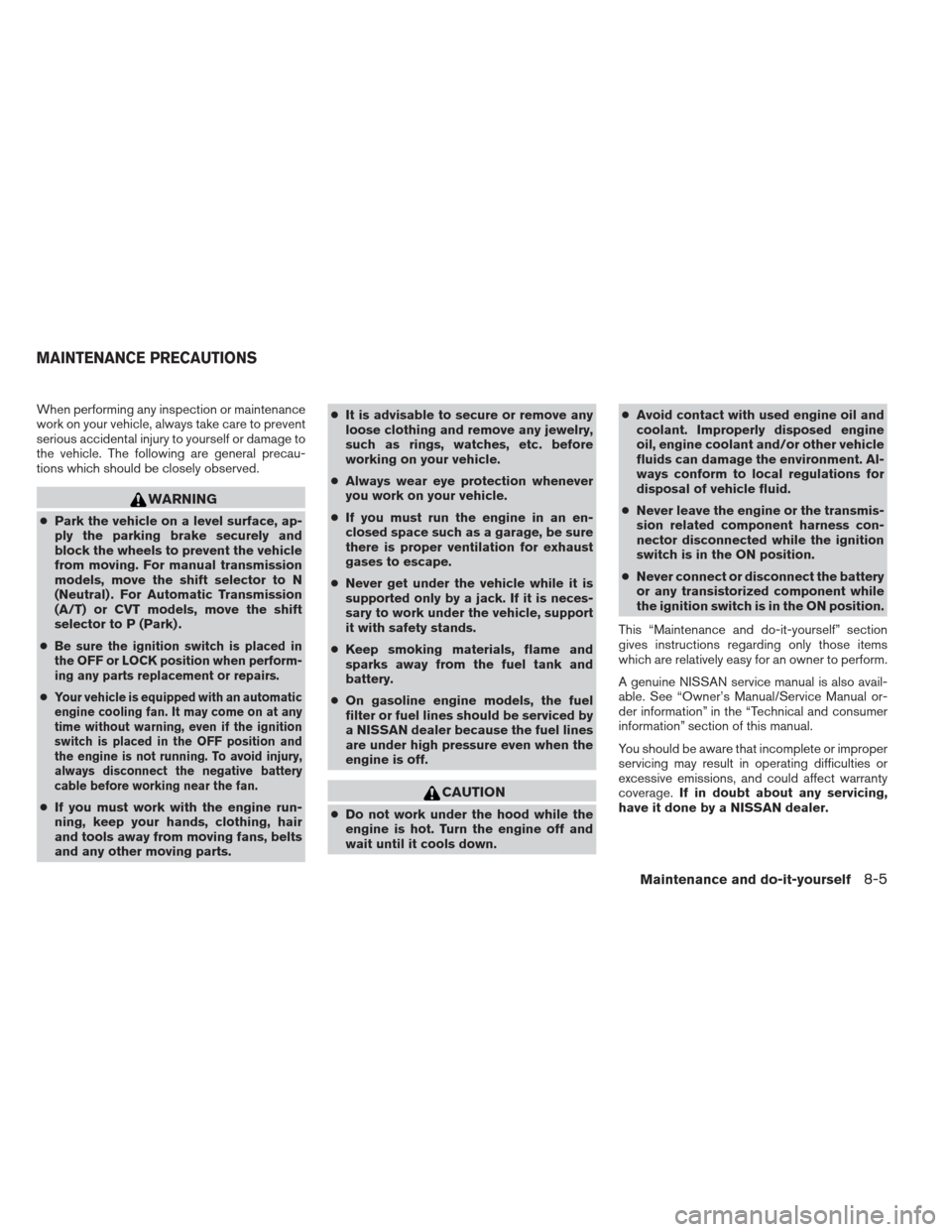

MAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself8-5
Page 255 of 320

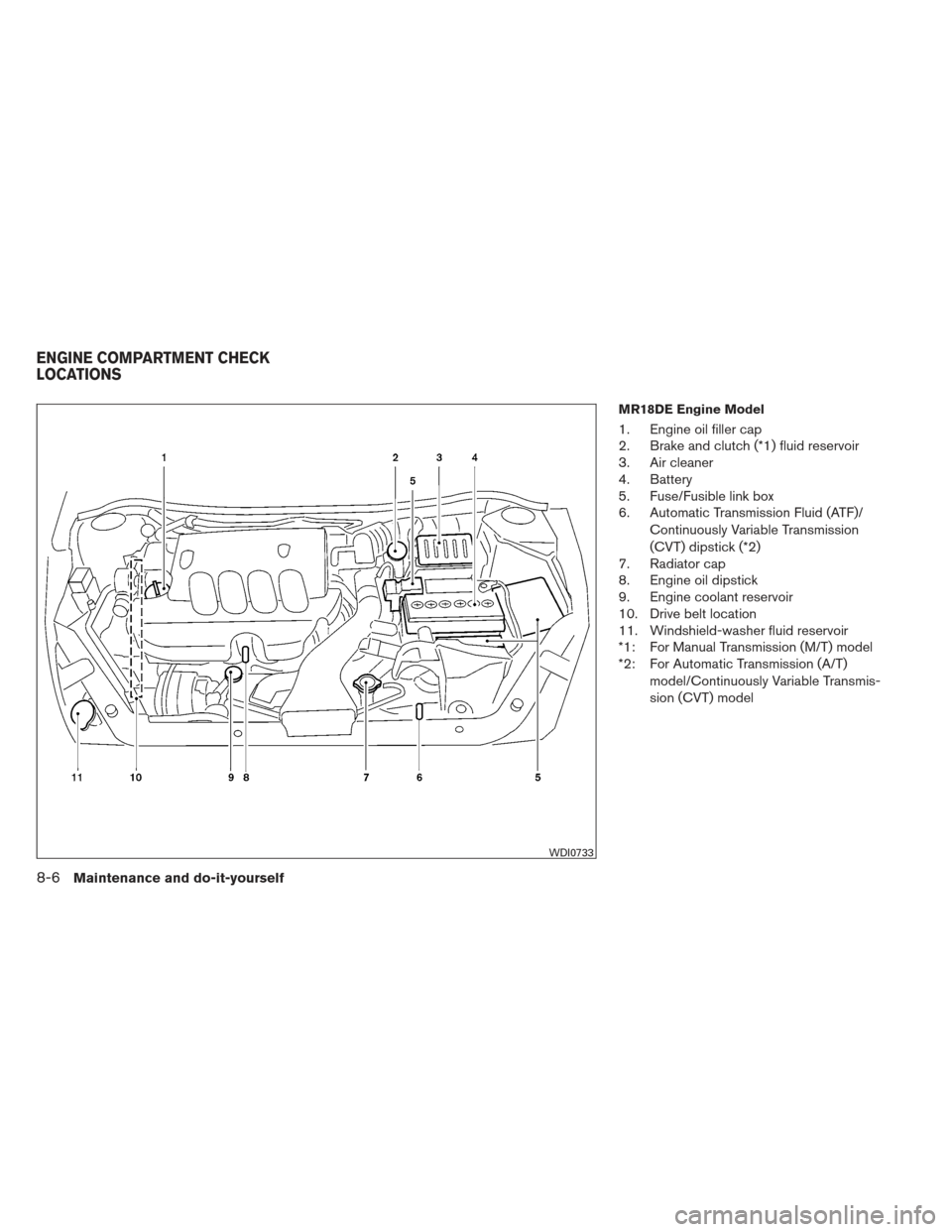

MR18DE Engine Model
1. Engine oil filler cap
2. Brake and clutch (*1) fluid reservoir
3. Air cleaner
4. Battery
5. Fuse/Fusible link box
6. Automatic Transmission Fluid (ATF)/Continuously Variable Transmission
(CVT) dipstick (*2)
7. Radiator cap
8. Engine oil dipstick
9. Engine coolant reservoir
10. Drive belt location
11. Windshield-washer fluid reservoir
*1: For Manual Transmission (M/T) model
*2: For Automatic Transmission (A/T)
model/Continuously Variable Transmis-
sion (CVT) model
WDI0733
ENGINE COMPARTMENT CHECK
LOCATIONS
8-6Maintenance and do-it-yourself
Page 260 of 320

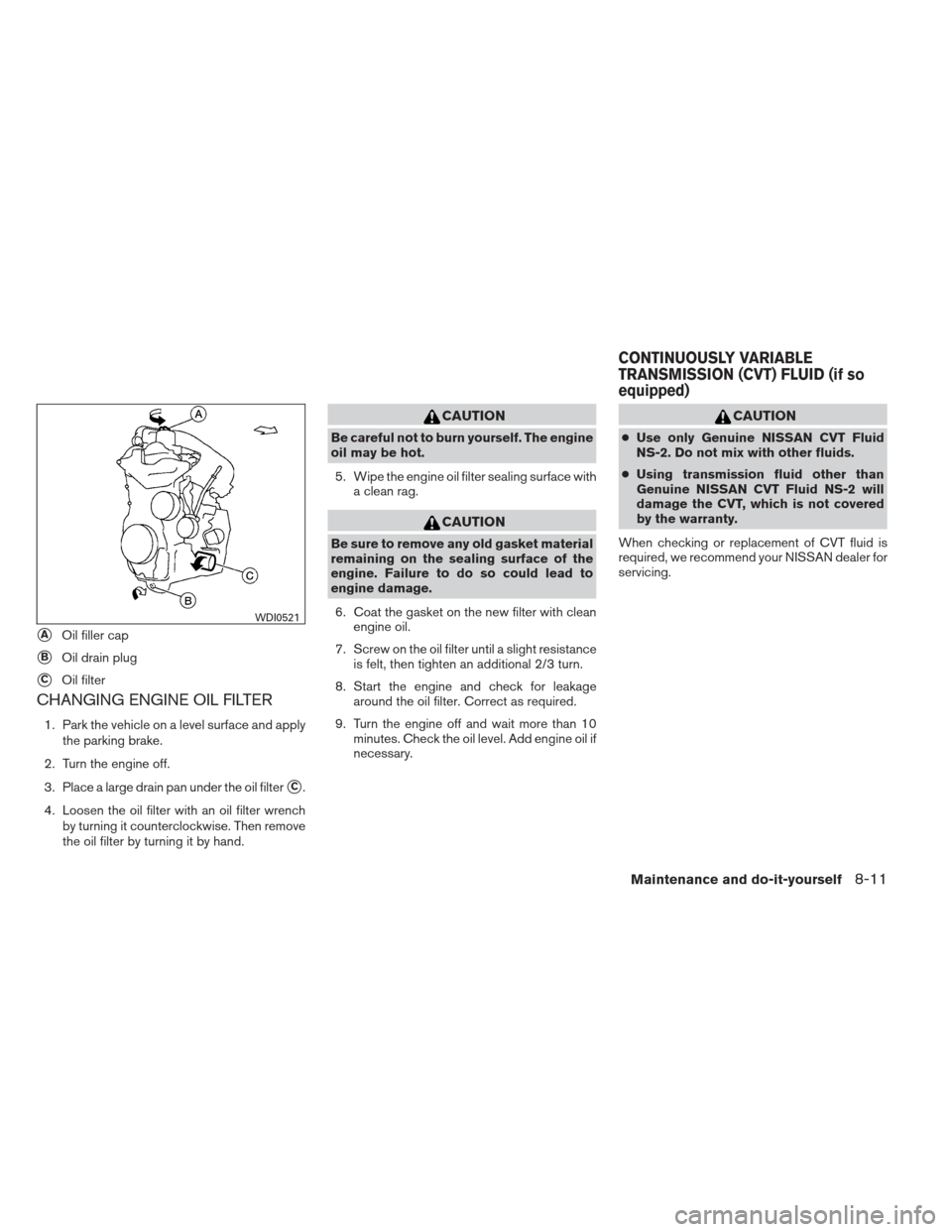

CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface and applythe parking brake.
2. Turn the engine off.
3. Place a large drain pan under the oil filter
C.
4. Loosen the oil filter with an oil filter wrench by turning it counterclockwise. Then remove
the oil filter by turning it by hand.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
5. Wipe the engine oil filter sealing surface with a clean rag.
CAUTION
Be sure to remove any old gasket material
remaining on the sealing surface of the
engine. Failure to do so could lead to
engine damage.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw on the oil filter until a slight resistance is felt, then tighten an additional 2/3 turn.
8. Start the engine and check for leakage around the oil filter. Correct as required.
9. Turn the engine off and wait more than 10 minutes. Check the oil level. Add engine oil if
necessary.
CAUTION
●Use only Genuine NISSAN CVT Fluid
NS-2. Do not mix with other fluids.
● Using transmission fluid other than
Genuine NISSAN CVT Fluid NS-2 will
damage the CVT, which is not covered
by the warranty.
When checking or replacement of CVT fluid is
required, we recommend your NISSAN dealer for
servicing.
AOil filler cap
BOil drain plug
COil filter
WDI0521
CONTINUOUSLY VARIABLE
TRANSMISSION (CVT) FLUID (if so
equipped)
Maintenance and do-it-yourself8-11
Page 293 of 320

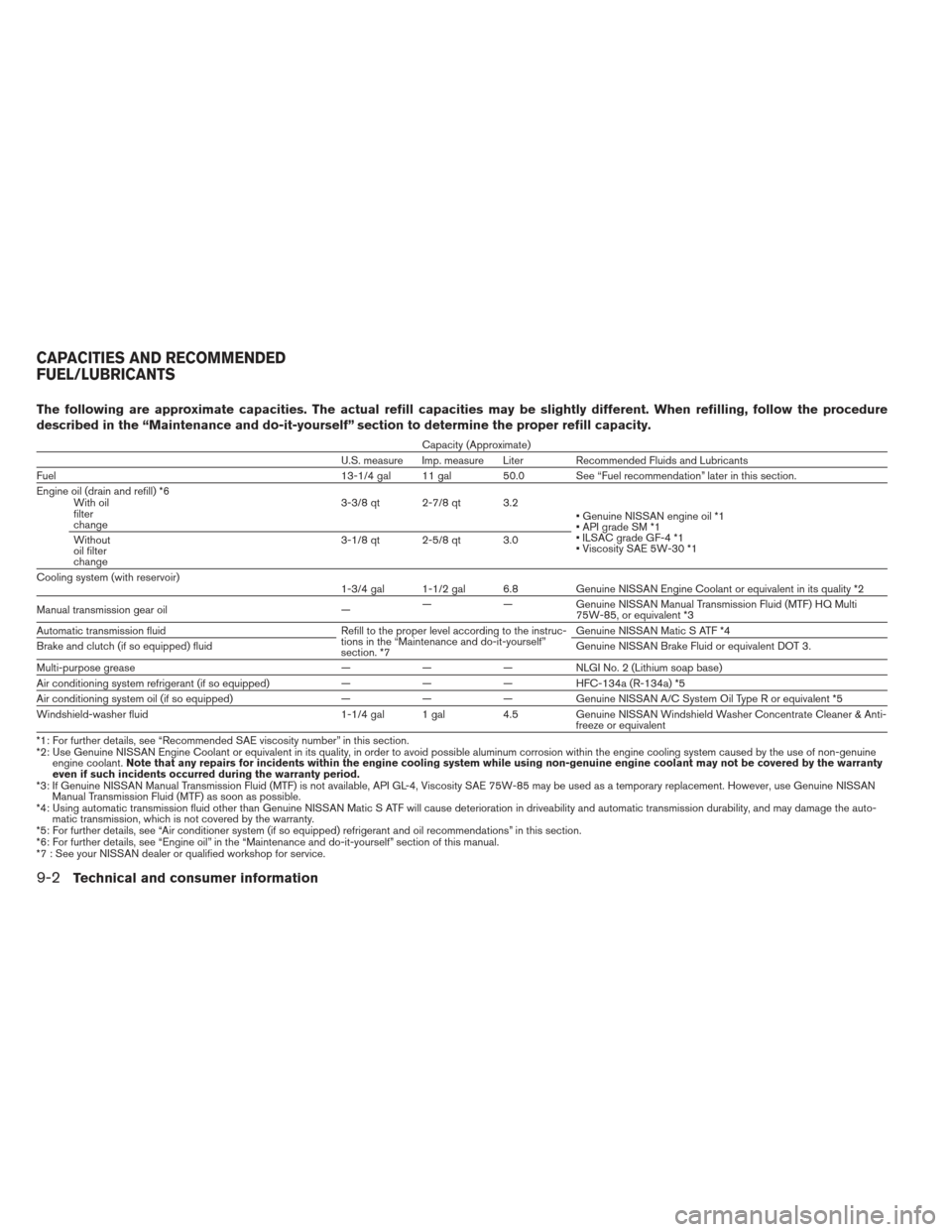

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
described in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)
U.S. measure Imp. measure Liter Recommended Fluids and Lubricants
Fuel 13-1/4 gal 11 gal 50.0 See “Fuel recommendation” later in this section.
Engine oil (drain and refill) *6 With oil
filter
change 3-3/8 qt 2-7/8 qt 3.2
Genuine NISSAN engine oil *1
API grade SM *1
ILSAC grade GF-4 *1
Viscosity SAE 5W-30 *1
Without
oil filter
change 3-1/8 qt 2-5/8 qt 3.0
Cooling system (with reservoir) 1-3/4 gal 1-1/2 gal 6.8 Genuine NISSAN Engine Coolant or equivalent in its quality *2
Manual transmission gear oil — —
—Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi
75W-85, or equivalent *3
Automatic transmission fluid Refill to the proper level according to the instruc-
tions in the “Maintenance and do-it-yourself”
section. *7 Genuine NISSAN Matic S ATF *4
Brake and clutch (if so equipped) fluid Genuine NISSAN Brake Fluid or equivalent DOT 3.
Multi-purpose grease ———NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant (if so equipped) ———HFC-134a (R-134a) *5
Air conditioning system oil (if so equipped) ———Genuine NISSAN A/C System Oil Type R or equivalent *5
Windshield-washer fluid 1-1/4 gal 1 gal4.5Genuine NISSAN Windshield Washer Concentrate Cleaner & Anti-
freeze or equivalent
*1: For further details, see “Recommended SAE viscosity number” in this section.
*2: Use Genuine NISSAN Engine Coolant or equivalent in its quality, in order to avoid possible aluminum corrosion within the engine cooling system caused by the use of non-genuine engine coolant. Note that any repairs for incidents within the engine cooling system while using non-genuine engine coolant may not be covered by the warranty
even if such incidents occurred during the warranty period.
*3: If Genuine NISSAN Manual Transmission Fluid (MTF) is not available, API GL-4, Viscosity SAE 75W-85 may be used as a temporary replacement. However, use Genuine NISSAN Manual Transmission Fluid (MTF) as soon as possible.
*4: Using automatic transmission fluid other than Genuine NISSAN Matic S ATF will cause deterioration in driveability and automatic transmission durability, and may damage the auto- matic transmission, which is not covered by the warranty.
*5: For further details, see “Air conditioner system (if so equipped) refrigerant and oil recommendations” in this section.
*6: For further details, see “Engine oil” in the “Maintenance and do-it-yourself” section of this manual.
*7 : See your NISSAN dealer or qualified workshop for service.
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information
Page 297 of 320

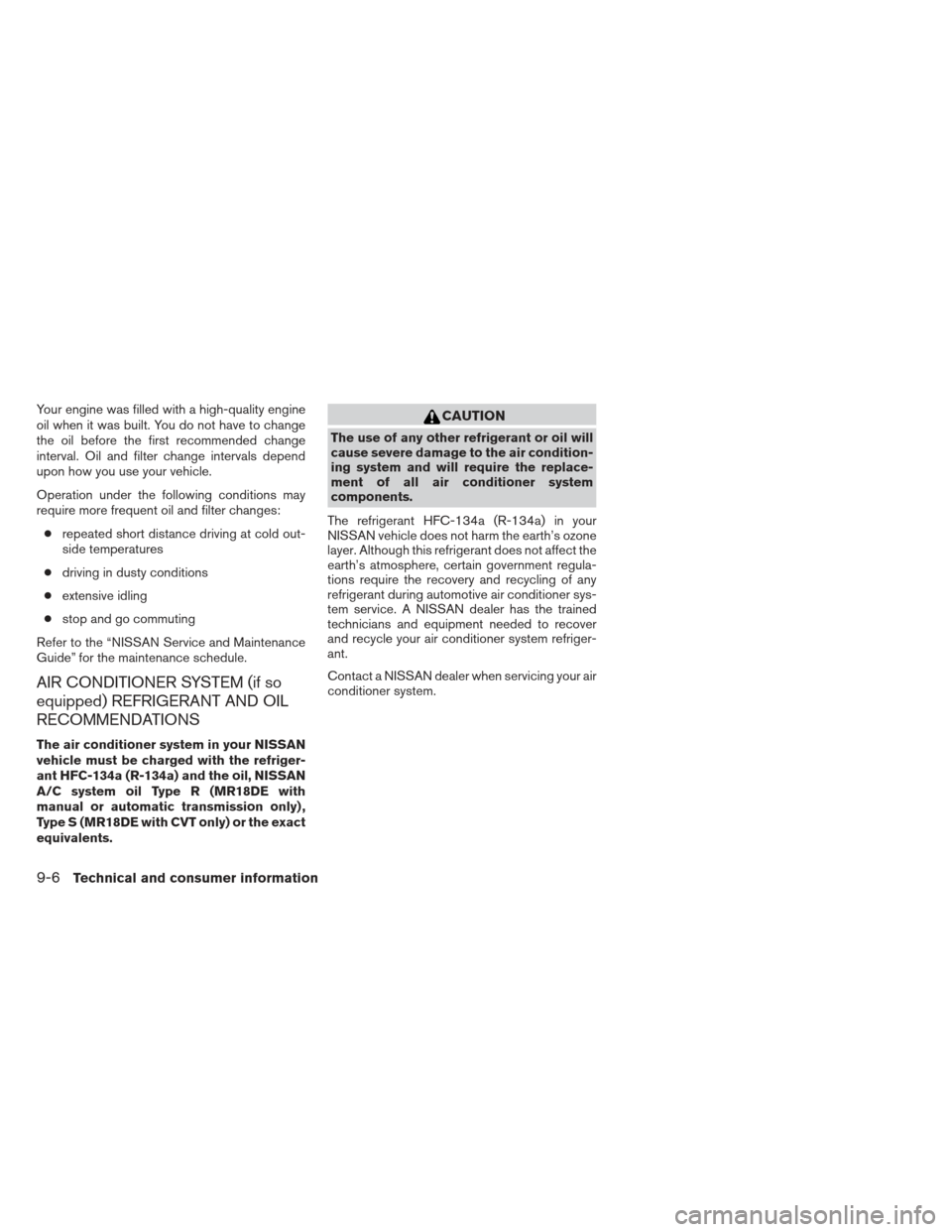

Your engine was filled with a high-quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle.
Operation under the following conditions may
require more frequent oil and filter changes:● repeated short distance driving at cold out-
side temperatures
● driving in dusty conditions
● extensive idling
● stop and go commuting
Refer to the “NISSAN Service and Maintenance
Guide” for the maintenance schedule.
AIR CONDITIONER SYSTEM (if so
equipped) REFRIGERANT AND OIL
RECOMMENDATIONS
The air conditioner system in your NISSAN
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and the oil, NISSAN
A/C system oil Type R (MR18DE with
manual or automatic transmission only) ,
Type S (MR18DE with CVT only) or the exact
equivalents.
CAUTION
The use of any other refrigerant or oil will
cause severe damage to the air condition-
ing system and will require the replace-
ment of all air conditioner system
components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle does not harm the earth’s ozone
layer. Although this refrigerant does not affect the
earth’s atmosphere, certain government regula-
tions require the recovery and recycling of any
refrigerant during automotive air conditioner sys-
tem service. A NISSAN dealer has the trained
technicians and equipment needed to recover
and recycle your air conditioner system refriger-
ant.
Contact a NISSAN dealer when servicing your air
conditioner system.
9-6Technical and consumer information
Page 312 of 320
10 Index
A
ABS (Anti-lock Braking System) ........5-28
Air bag (See supplemental restraint
system) .....................1-34
Air bag system Front (See supplemental front impact air bag
system) ...................1-41
Side and curtain (See supplemental
side air bag and curtain side-impact
air bag system) ...............1-45
Airbagwarninglabels.............1-48
Airbagwarninglight...........1-48,2-12
Air cleaner housing filter ............8-18
Air conditioner Air conditioner operation ..........4-12
Air conditioner service ...........4-17
Air conditioner specification label .....9-11
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner controls .....4-9
Servicing air conditioner ..........4-17
Airflowcharts..................4-13
Alarm system
(See vehicle security system) .........2-16
Anchor point locations .............1-20
Antenna.....................4-48
Anti-lock brake warning light ..........2-8
Anti-lock Braking System (ABS) ........5-28
Armrests .....................1-4
Audible reminders ...............2-15
Audio system ..................4-17 Compact disc (CD) player . .4-28, 4-32, 4-38
FM/AM radio with compact disc
(CD) player
.................4-30
FM-AM radio with compact disc
(CD)
player ....................4-26
FM/AM/SAT radio with compact disc
(CD) player .................4-35
Audio System iPod Player .............4-42,4-44
Audio system Radio ....................4-17
Steering wheel audio control switch . . .4-47
USB interface ................4-41
Automatic Automatic power window switch .....2-32
Automatic transmission fluid (ATF) ....8-12
Driving with automatic transmission ....5-17
Automatic anti-glare inside mirror .......3-29
Automatic door locks ..............3-6
AUXjack.................4-34,4-40
B
Battery ......................8-15
Chargewarninglight.............2-9
Before starting the engine ...........5-11
Belt (See drive belt) ..............8-17
Block heater Engine ....................5-32
Bluetooth hands-free phone system .....4-49
Boosterseats..................1-31 Brake
Anti-lock Braking System (ABS) ......5-28
Brakefluid..................8-13
Brakelight(Seestoplight).........8-29
Brake system ................5-27
Brake warning light ..............2-8
Brake wear indicators ........2-15,8-20
Parking brake operation ..........5-22
Self-adjusting brakes ............8-20
Brakes ......................8-20
Break-inschedule ...............5-25
Brightness/contrast button ...........4-8
Brightness control Instrument panel ..............2-22
Bulb check/instrument panel ..........2-8
Bulbreplacement................8-29
C
Capacities and recommended
fuel/lubricants ...................
9-2
Cargocover...................2-29
Cargo (See vehicle loading information) . . .9-12
CarphoneorCBradio.............4-48
CDcareandcleaning .............4-46
CD player (See audio system) . .4-28, 4-32, 4-38
Child restraints .......1-15,1-15,1-16,1-18
Precautions on child
restraints ........1-16,1-23,1-27,1-31
Top tether strap anchor point locations . .1-20
Child restraint with top tether strap ......1-20
Child safety rear door lock ............3-7
