1. Rear window wiper and washer switch(P. 2-20)
2. Rear window washer nozzle (P. 2-20)
3. Rear window and rear window defroster
(P. 2-20)
4. Mirrors and outside mirror defroster
(if so equipped) (P. 3-30)
5. Child safety rear door lock (P. 3-7)
6. Replacing bulbs (P. 8-24)
7. Rear hatch opener (P. 3-25)
8. Interior hatch release (P. 3-26)
9. Rear hatch opener switch, NISSAN
Intelligent Key,™ rearview camera
(if so equipped) (P. 3-25, 3-14, 4-15)
See the page number indicated in paren-
theses for operating details.
LII2134
EXTERIOR REAR
0-4Illustrated table of contents
Page 12 of 372
1. Cargo cover (if so equipped) (P. 2-30)
2. Rear seat (P. 1-4)
3. Interior lights (P. 2-36)
4. Front seat (P. 1-2)
5. Sun visors (P. 3-29)
6. Map lights (P. 2-37)
7. Glove box (P. 2-29)
8. Parking brake (P. 5-20)
9. Rear armrest (if so equipped) (P. 1-5)
See the page number indicated in paren-
theses for operating details.
LII2074
PASSENGER COMPARTMENT
Illustrated table of contents0-5
Page 13 of 372
1. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-21)
2. Driver’s supplemental air bag/horn
(P. 1-39, 2-23)
3. Meters and gauges (P. 2-3) 4. Windshield wiper/washer switch
(P. 2-19, 2-20)
5. Center ventilator (P. 4-20)
6. Defroster switch (P. 2-20)
7. Hazard warning flasher switch (P. 6-2)
8. Climate control (P. 4-21) 9. Audio system (if so equipped) (P. 4-29)
10. Upper glove box (P. 2-29)
11. Passenger’s supplemental air bag
(P. 1-39)
12. Side ventilator (P. 4-20)
13. Outside mirror control switch (P. 3-30)
14. Vehicle Dynamic Control (VDC) off
switch (P. 2-25)
15. Fuel-filler lid release lever (P. 3-26)
16. Hood release lever (P. 3-24)
17. Tilt steering (P. 3-29)
18. Ignition switch (P. 5-8)
19. Cup holders (P. 2-28)
20. Shift lever (P. 5-15)
21. Upper glove box release handle
(P. 2-29)
22. Lower glove box (P. 2-30)
*:Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
LIC2533
INSTRUMENT PANEL
0-6Illustrated table of contents
Page 14 of 372
HR16DE engine
1. Drive belt location (P.8-15)
2. Engine oil filler cap (P. 8-8)
3. Air cleaner (P. 8-17)
4. Brake and clutch (*1) fluid reservoir(P. 8-11)
5. Fusible link (P. 8-20)
6. Battery (P. 8-13)
7. Engine coolant reservoir (P. 8-7)
8. Radiator cap (P. 8-7)
9. Engine oil dipstick (P. 8-8)
10. Windshield-washer fluid reservoir
(P. 8-12)
*1 For Manual Transmission (M/T) model
See the page number indicated in paren-
theses for operating details.
LDI2377
ENGINE COMPARTMENT CHECK
LOCATIONS
Illustrated table of contents0-7
Page 15 of 372

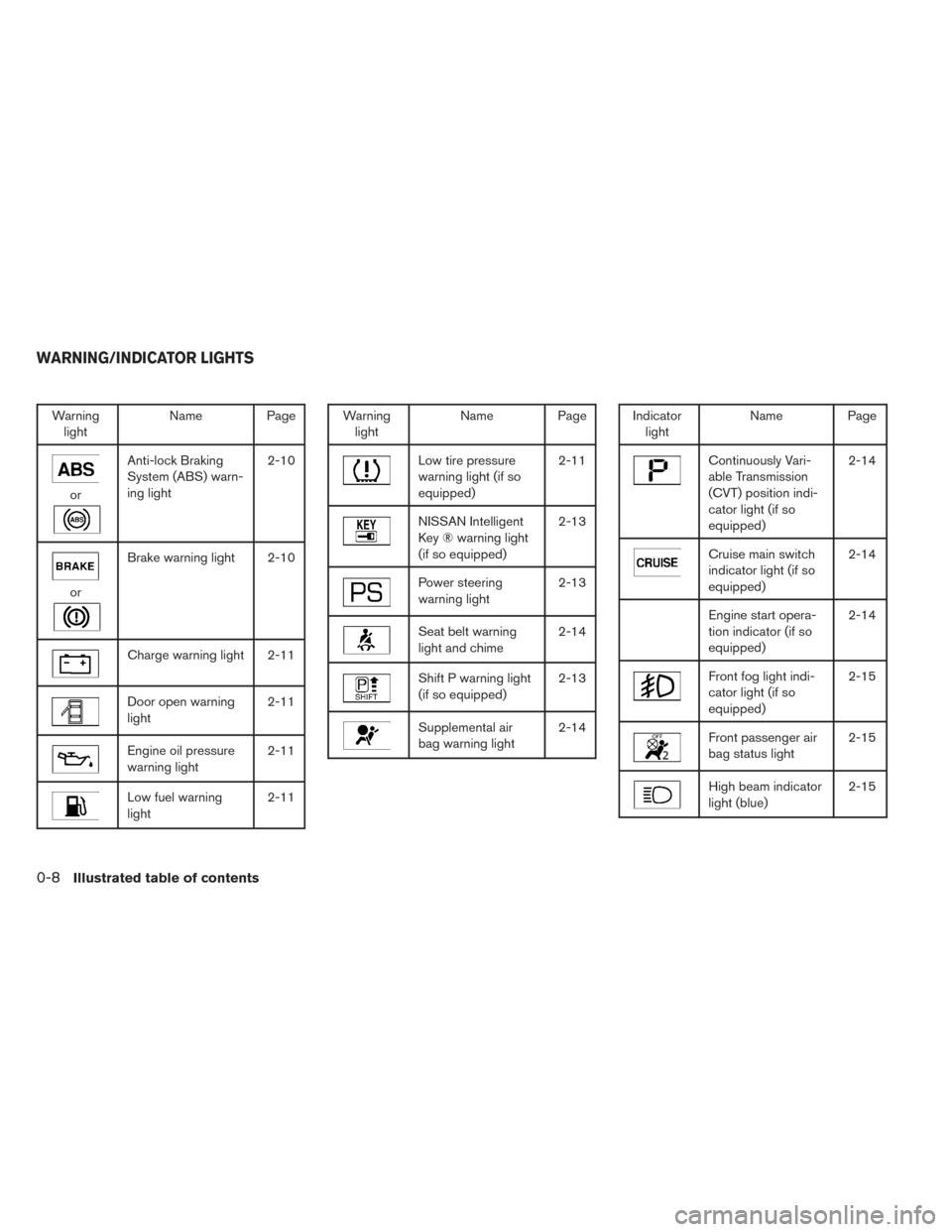

Warninglight Name Page
or
Anti-lock Braking
System (ABS) warn-
ing light 2-10
or
Brake warning light 2-10
Charge warning light 2-11
Door open warning
light
2-11
Engine oil pressure
warning light2-11
Low fuel warning
light2-11
Warning
light Name Page
Low tire pressure
warning light (if so
equipped) 2-11
NISSAN Intelligent
Key ® warning light
(if so equipped)2-13
Power steering
warning light
2-13
Seat belt warning
light and chime2-14
Shift P warning light
(if so equipped)2-13
Supplemental air
bag warning light2-14
Indicator
light Name Page
Continuously Vari-
able Transmission
(CVT) position indi-
cator light (if so
equipped) 2-14
Cruise main switch
indicator light (if so
equipped)
2-14
Engine start opera-
tion indicator (if so
equipped)2-14
Front fog light indi-
cator light (if so
equipped)2-15
Front passenger air
bag status light
2-15
High beam indicator
light (blue)2-15
WARNING/INDICATOR LIGHTS
0-8Illustrated table of contents
Page 16 of 372
Indicatorlight Name Page
Malfunction Indica-
tor Light (MIL) 2-15
Overdrive off indica-
tor light (if so
equipped)2-16
Security indicator
light (if so equipped)
2-16
Side and headlight
indicator light
(green) (if so
equipped)2-16
Slip indicator light 2-16
Turn signal/hazard
indicator lights
2-16
Vehicle Dynamic
Control (VDC) off
indicator light2-16
Illustrated table of contents0-9
Page 17 of 372

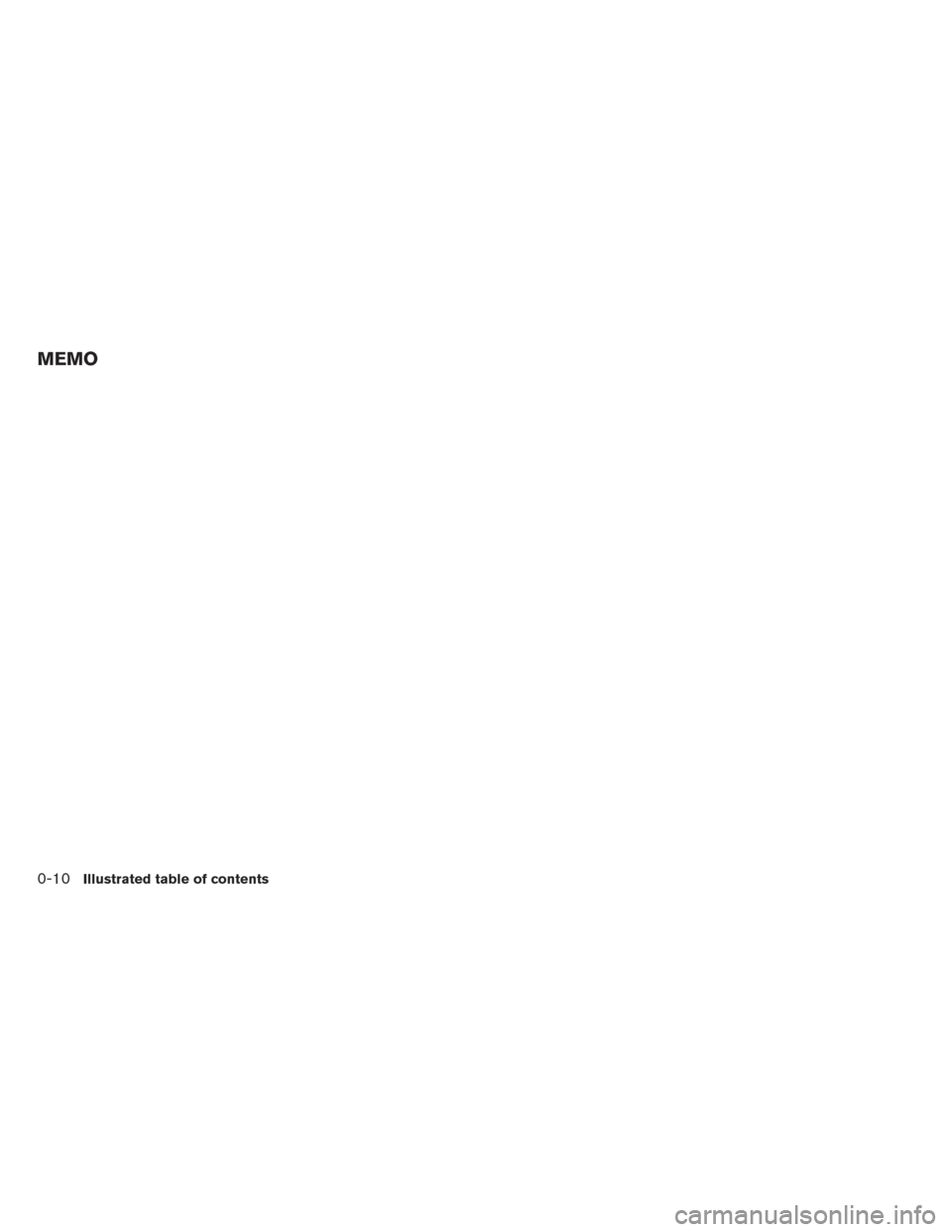

MEMO
0-10Illustrated table of contents
Page 18 of 372

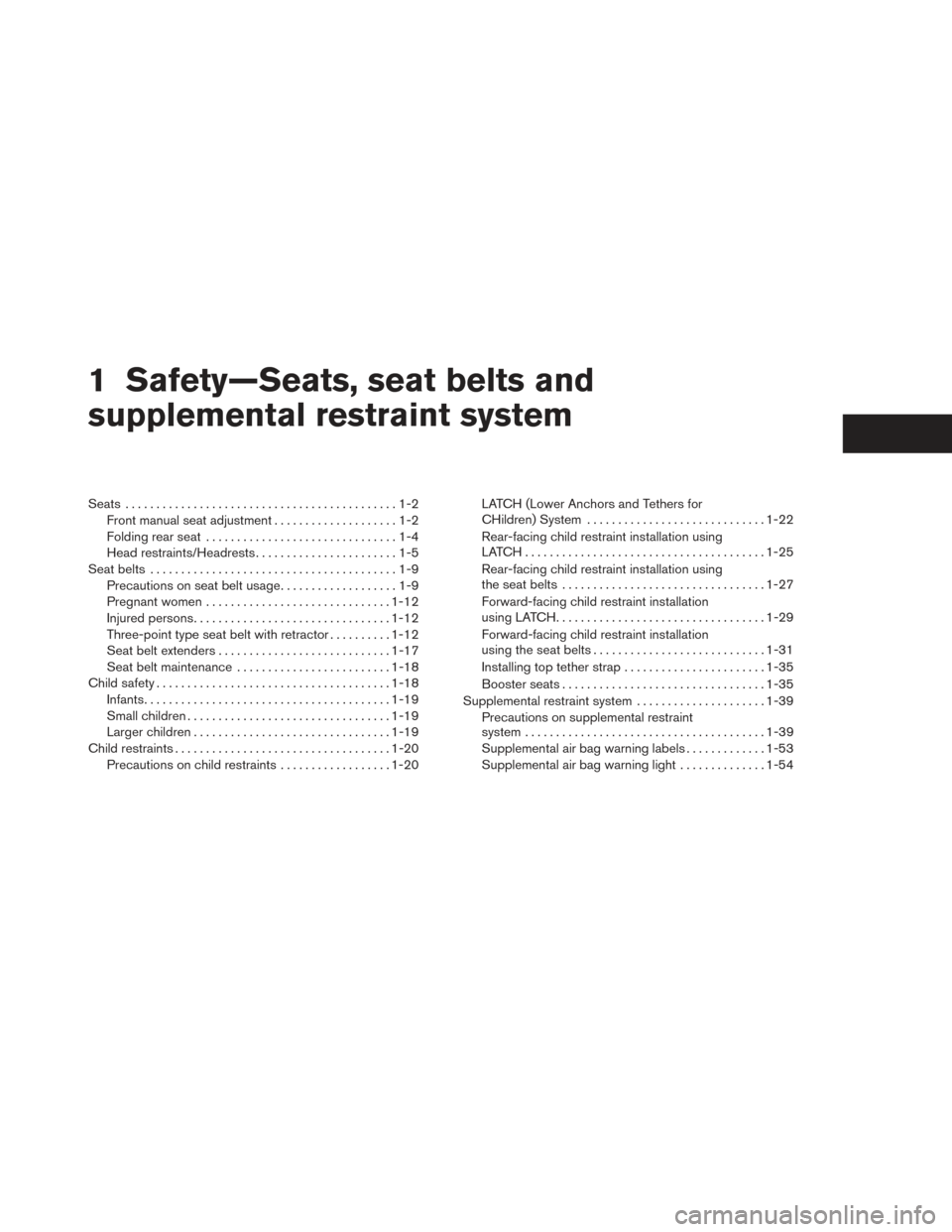

1 Safety—Seats, seat belts and
supplemental restraint system
Seats ............................................1-2
Front manual seat adjustment ....................1-2
Folding rear seat ...............................1-4
Head restraints/Headrests .......................1-5
Seat belts ........................................1-9
Precautions on seat belt usage ...................1-9
Pregnant women .............................. 1-12
Injured persons ................................ 1-12
Three-point type seat belt with retractor ..........1-12
Seat belt extenders ............................ 1-17
Seat belt maintenance ......................... 1-18
Child safety ...................................... 1-18
Infants ........................................ 1-19
Small children ................................. 1-19
Larger children ................................ 1-19
Child restraints ................................... 1-20
Precautions on child restraints ..................1-20LATCH (Lower Anchors and Tethers for
CHildren) System
............................. 1-22
Rear-facing child restraint installation using
LATCH....................................... 1-25
Rear-facing child restraint installation using
the seat belts . . ............................... 1-27
Forward-facing child restraint installation
using LATCH. . . ............................... 1-29
Forward-facing child restraint installation
using the seat belts ............................ 1-31
Installing top tether strap .......................1-35
Booster seats ................................. 1-35
Supplemental restraint system .....................1-39
Precautions on supplemental restraint
system ....................................... 1-39
Supplemental air bag warning labels .............1-53
Supplemental air bag warning light ..............1-54
Page 19 of 372

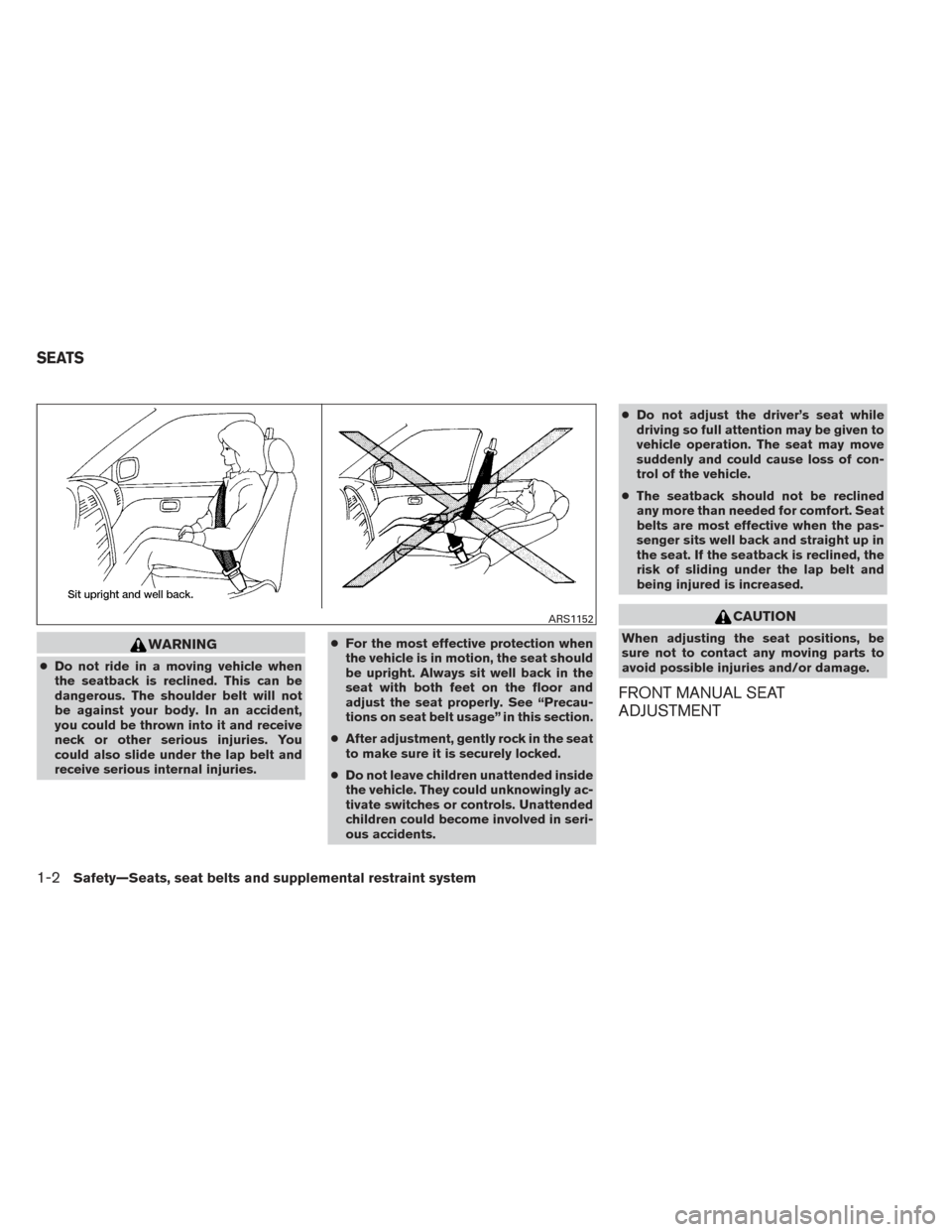

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” in this section.
● After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents. ●
Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of con-
trol of the vehicle.
● The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system
Page 20 of 372

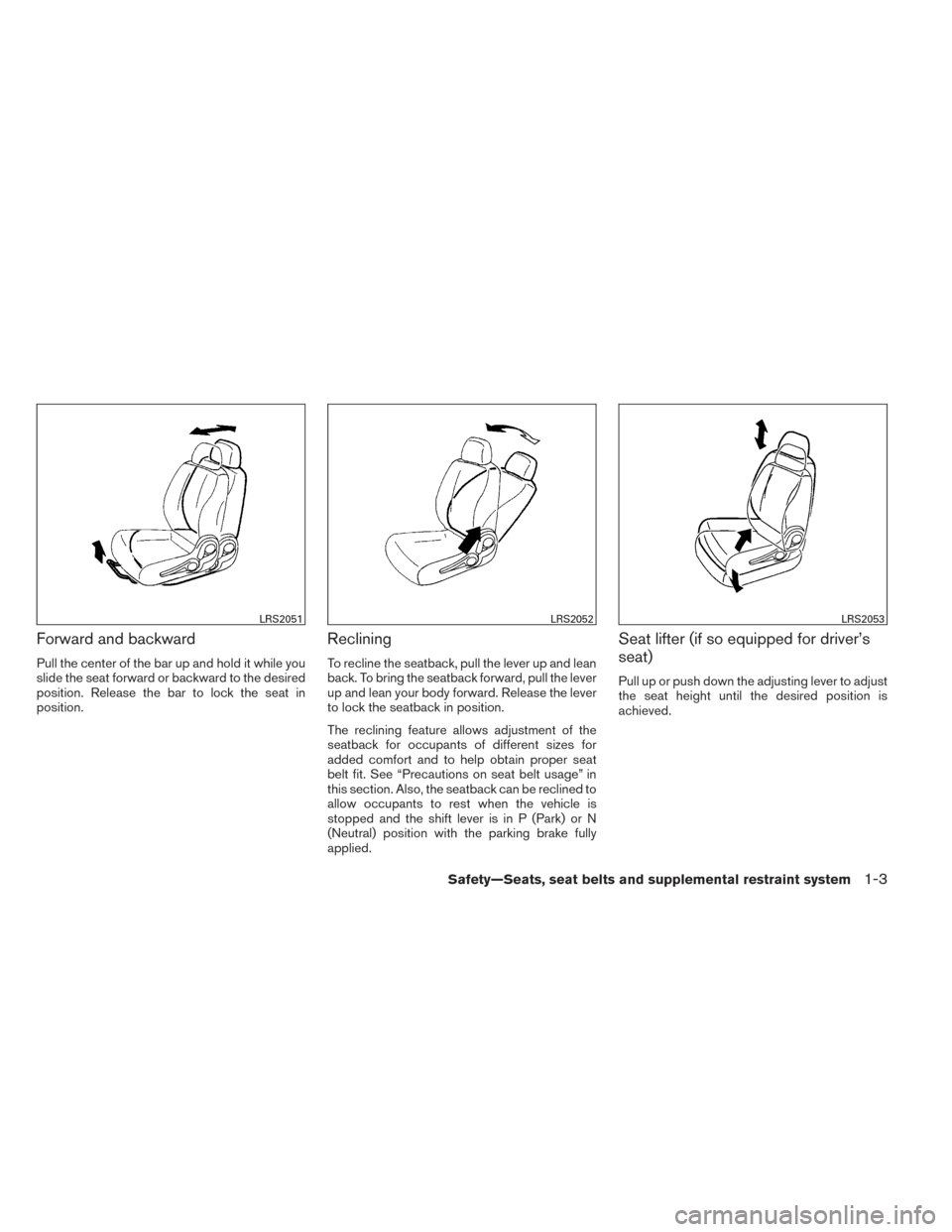

Forward and backward
Pull the center of the bar up and hold it while you
slide the seat forward or backward to the desired
position. Release the bar to lock the seat in
position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” in
this section. Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift lever is in P (Park) or N
(Neutral) position with the parking brake fully
applied.
Seat lifter (if so equipped for driver’s
seat)
Pull up or push down the adjusting lever to adjust
the seat height until the desired position is
achieved.
LRS2051LRS2052LRS2053
Safety—Seats, seat belts and supplemental restraint system1-3
