service interval NISSAN VERSA NOTE 2014 2.G Owners Manual

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer . . ...................2-3
Tachometer ....................................2-5
Engine coolant temperature gauge ...............2-6
Fuel gauge ....................................2-6
Trip computer ..................................2-7
Service interval reminder (if so equipped) .........2-8
Warning/indicator lights and audible reminders .......2-9
Checking bulbs ............................... 2-10
Warning lights ................................ 2-10
Indicator lights ................................ 2-14
Audible reminders ............................. 2-17
Security systems ................................. 2-17
NISSAN vehicle immobilizer system
(if so equipped) ............................... 2-17
Windshield wiper and washer switch ...............2-19
Switch operation .............................. 2-19
Rear window wiper and washer switch ..............2-20
Rear window and outside mirror defroster switch .....2-20
Headlight and turn signal switch. . ..................2-21
Headlight control switch ........................ 2-21
Daytime running light system (Canada only) . . ....2-22 Instrument brightness control
...................2-22
Turn signal switch ............................. 2-23
Fog light switch (if so equipped) ................2-23
Horn ............................................ 2-23
Heated seats (if so equipped) ......................2-24
Vehicle Dynamic Control (VDC) off switch ...........2-25
Power outlet ..................................... 2-26
Storage ......................................... 2-27
Map pockets .................................. 2-27
Seatback pockets ............................. 2-27
Storage trays ................................. 2-28
Cup holders . . . ............................... 2-28
Glove box .................................... 2-29
Cargo cover (if so equipped) ....................2-30
Divide-n-hide adjustable floor
(if so equipped) ............................... 2-31
Grocery
hooks................................ 2-32
Windows ........................................ 2-33
Power windows (if so equipped) ................2-33
Manual windows (if so equipped) ................2-35
Interior light ...................................... 2-36
Map light (if so equipped) ......................... 2-37
Luggage compartment light ........................2-37

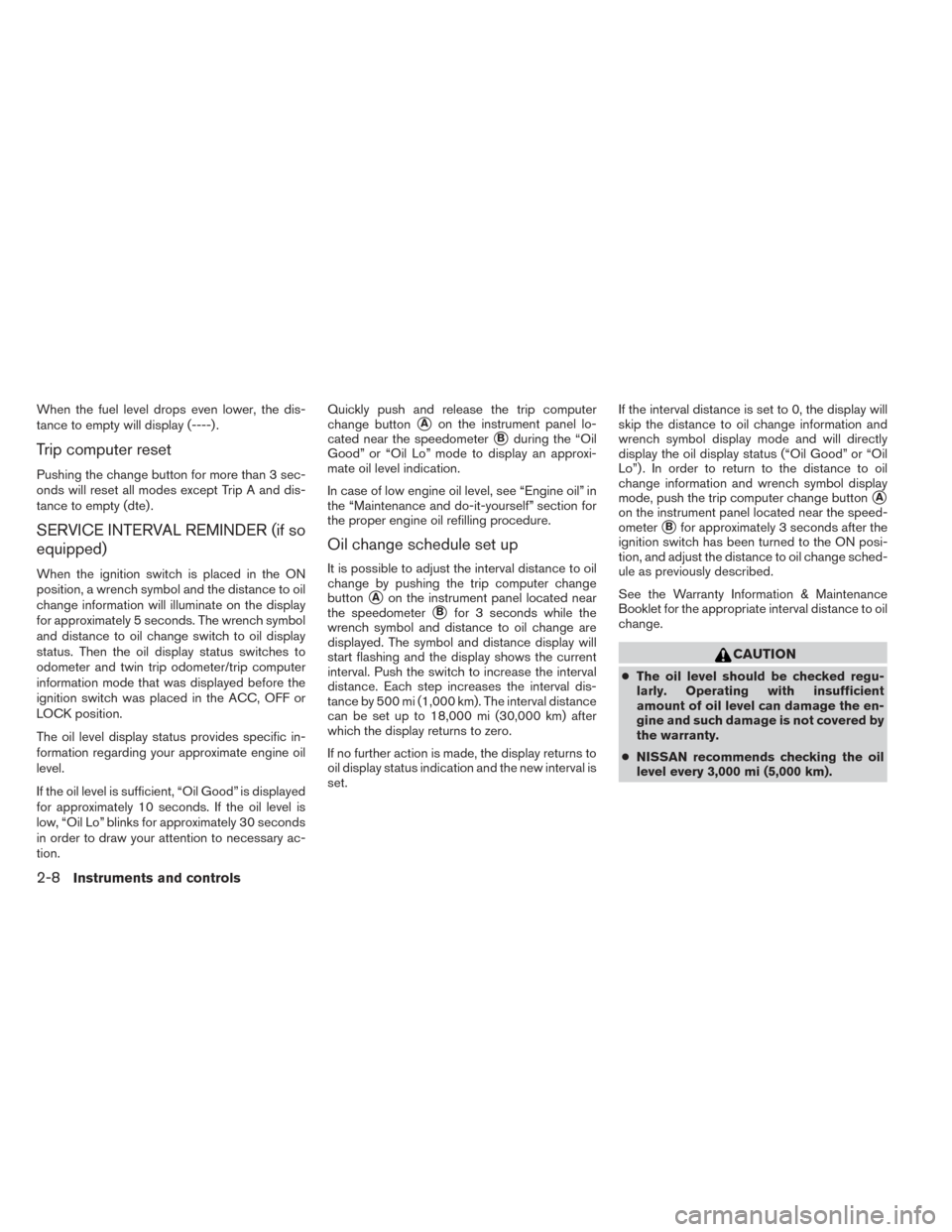

When the fuel level drops even lower, the dis-
tance to empty will display (----) .
Trip computer reset
Pushing the change button for more than 3 sec-
onds will reset all modes except Trip A and dis-
tance to empty (dte) .
SERVICE INTERVAL REMINDER (if so
equipped)
When the ignition switch is placed in the ON
position, a wrench symbol and the distance to oil
change information will illuminate on the display
for approximately 5 seconds. The wrench symbol
and distance to oil change switch to oil display
status. Then the oil display status switches to
odometer and twin trip odometer/trip computer
information mode that was displayed before the
ignition switch was placed in the ACC, OFF or
LOCK position.
The oil level display status provides specific in-
formation regarding your approximate engine oil
level.
If the oil level is sufficient, “Oil Good” is displayed
for approximately 10 seconds. If the oil level is
low, “Oil Lo” blinks for approximately 30 seconds
in order to draw your attention to necessary ac-
tion.Quickly push and release the trip computer
change button
Aon the instrument panel lo-
cated near the speedometer
Bduring the “Oil
Good” or “Oil Lo” mode to display an approxi-
mate oil level indication.
In case of low engine oil level, see “Engine oil” in
the “Maintenance and do-it-yourself” section for
the proper engine oil refilling procedure.
Oil change schedule set up
It is possible to adjust the interval distance to oil
change by pushing the trip computer change
button
Aon the instrument panel located near
the speedometer
Bfor 3 seconds while the
wrench symbol and distance to oil change are
displayed. The symbol and distance display will
start flashing and the display shows the current
interval. Push the switch to increase the interval
distance. Each step increases the interval dis-
tance by 500 mi (1,000 km). The interval distance
can be set up to 18,000 mi (30,000 km) after
which the display returns to zero.
If no further action is made, the display returns to
oil display status indication and the new interval is
set. If the interval distance is set to 0, the display will
skip the distance to oil change information and
wrench symbol display mode and will directly
display the oil display status (“Oil Good” or “Oil
Lo”) . In order to return to the distance to oil
change information and wrench symbol display
mode, push the trip computer change button
A
on the instrument panel located near the speed-
ometer
Bfor approximately 3 seconds after the
ignition switch has been turned to the ON posi-
tion, and adjust the distance to oil change sched-
ule as previously described.
See the Warranty Information & Maintenance
Booklet for the appropriate interval distance to oil
change.
CAUTION
● The oil level should be checked regu-
larly. Operating with insufficient
amount of oil level can damage the en-
gine and such damage is not covered by
the warranty.
● NISSAN recommends checking the oil
level every 3,000 mi (5,000 km).
2-8Instruments and controls

Your NISSAN has been designed to have mini-
mum maintenance requirements with long ser-
vice intervals to save you both time and money;
however, some day-to-day and regular mainte-
nance is essential to maintain your NISSAN’s
good mechanical condition as well as its emis-
sions and engine performance.
It is the owner’s responsibility to make sure that
the scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives proper
maintenance. You are a vital link in the mainte-
nance chain.
Scheduled maintenance
For your convenience, both required and optional
scheduled maintenance items are described and
listed in your “NISSAN Service and Maintenance
Guide”. You must refer to that guide to ensure
that necessary maintenance is performed on your
NISSAN at regular intervals.
General maintenance
General maintenance includes those items which
should be checked during normal day-to-day op-
eration. They are essential for proper vehicle op-
eration. It is your responsibility to perform these
maintenance procedures regularly as prescribed.Performing general maintenance checks requires
minimal mechanical skill and only a few general
automotive tools.
These checks or inspections can be done by you,
a qualified technician or, if you prefer, a NISSAN
dealer.
Where to go for service
If maintenance service is required or your vehicle
appears to malfunction, have the systems
checked and corrected by a NISSAN dealer.
NISSAN technicians are well-trained specialists
who are kept up-to-date with the latest service
information through technical bulletins, service
tips and in-dealership training programs. They
are completely qualified to work on NISSAN ve-
hicles
before they work on your vehicle rather
than after they have worked on it.
You can be confident that a NISSAN dealer’s
service department performs the best job to meet
the maintenance requirements on your vehicle —
in a reliable and economical way. During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smells, be sure to check for the cause or have a
NISSAN dealer do it promptly. In addition, you
should notify a NISSAN dealer if you think that
repairs are required.
When performing any checks or maintenance
work, closely observe the “Maintenance precau-
tions” in this section.
EXPLANATION OF GENERAL
MAINTENANCE ITEMS
Additional information on the following
items with“*”isfound in this section.
Outside the vehicle
The maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood
Check that the doors
and engine hood operate properly. Also ensure
that all latches lock securely. Lubricate hinges,
latches, latch pins, rollers and links as necessary.
Make sure that the secondary latch keeps the
hood from opening when the primary latch is
released.
MAINTENANCE REQUIREMENTS GENERAL MAINTENANCE
8-2Maintenance and do-it-yourself

Wheel nut tightening torque:83 ft-lb (113 N·m)
The wheel nuts must be kept tight-
ened to specifications at all times. It
is recommended that wheel nuts be
tightened to specification at each
tire rotation interval.
WARNING
● After rotating the tires, check and
adjust the tire pressure.
● Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.) .
● Do not include the spare tire in
the tire rotation.
● For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.
1. Wear indicator
2. Location mark
Tire wear and damage
WARNING
● Tires should be periodically in-
spected for wear, cracking, bulg-
ing or objects caught in the tread.
If excessive wear, cracks, bulging
or deep cuts are found, the tire(s)
should be replaced. ●
The original tires have built-in
tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.
● Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician because
some tire damage may not be ob-
vious. Replace the tires as neces-
sary to prevent tire failure and
possible personal injury.
● Improper service of the spare tire
may result in serious personal in-
jury. If it is necessary to repair the
spare tire, contact a NISSAN
dealer.
● For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.
WDI0259
Maintenance and do-it-yourself8-37

Your engine was filled with a high-quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle.
Operation under the following conditions may
require more frequent oil and filter changes:● repeated short distance driving at cold out-
side temperatures
● driving in dusty conditions
● extensive idling
● stop and go commuting
Refer to the “NISSAN Service and Maintenance
Guide” for the maintenance schedule.
AIR CONDITIONER SYSTEM
REFRIGERANT AND OIL
RECOMMENDATIONS
The air conditioner system in your NISSAN
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and NISSAN A/C
system oil Type S or the exact equivalents.
CAUTION
The use of any other refrigerant or oil will
cause severe damage to the air condition-
ing system and will require the replace-
ment of all air conditioner system
components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle does not harm the earth’s ozone
layer. Although this refrigerant does not affect the
earth’s atmosphere, certain government regula-
tions require the recovery and recycling of any
refrigerant during automotive air conditioner sys-
tem service. A NISSAN dealer has the trained
technicians and equipment needed to recover
and recycle your air conditioner system refriger-
ant.
Contact a NISSAN dealer when servicing your air
conditioner system.
Technical and consumer information9-7
