Page 361 of 384

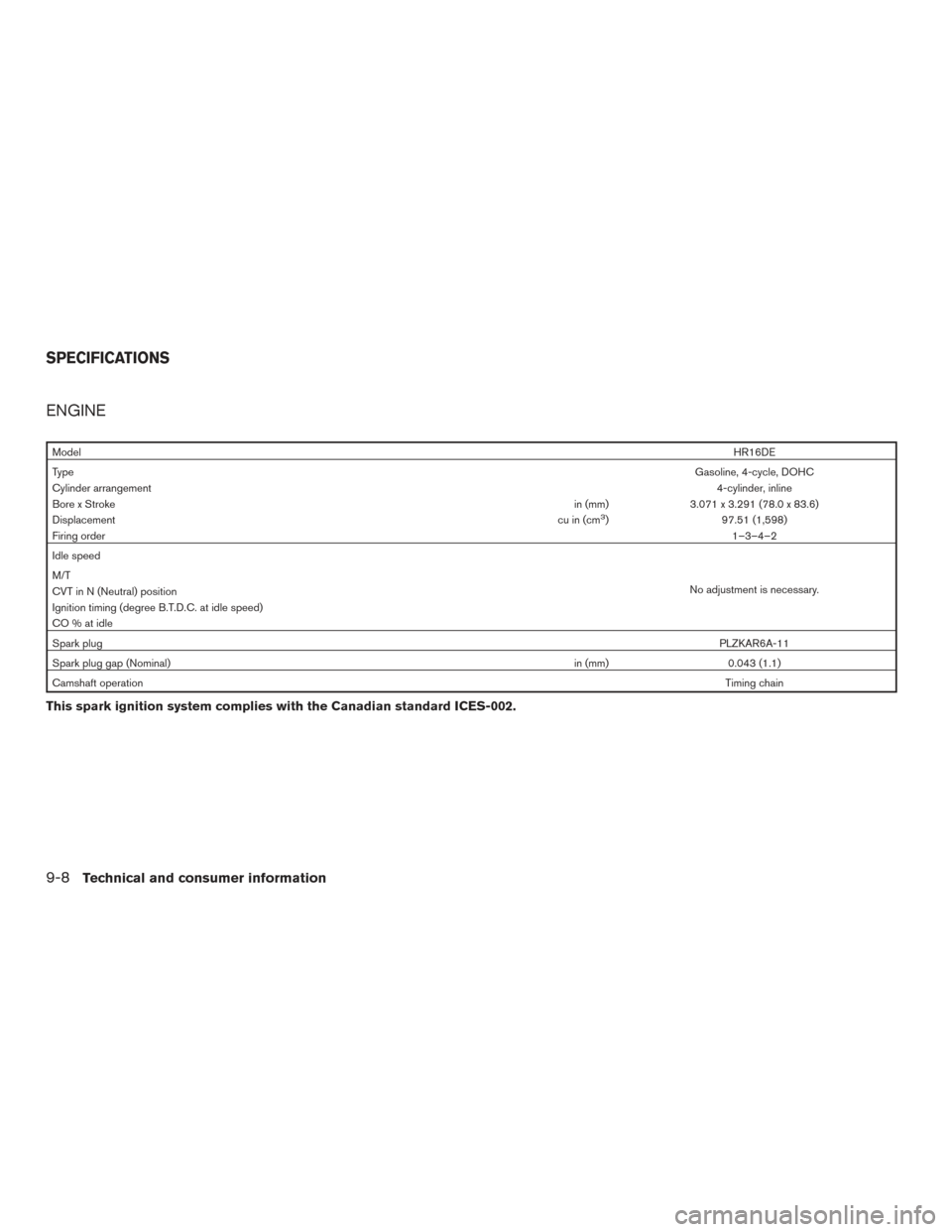

NISSAN VERSA NOTE 2015 2.G Owners Manual ENGINE
ModelHR16DE
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 4-cylinder, inline
Bore x Stroke in (mm)3.071 x 3.291 (78.0 x 83.6)
Displacement cu in (cm
3)97.51 (1,598)
Firing order 1–3–4

Page 362 of 384

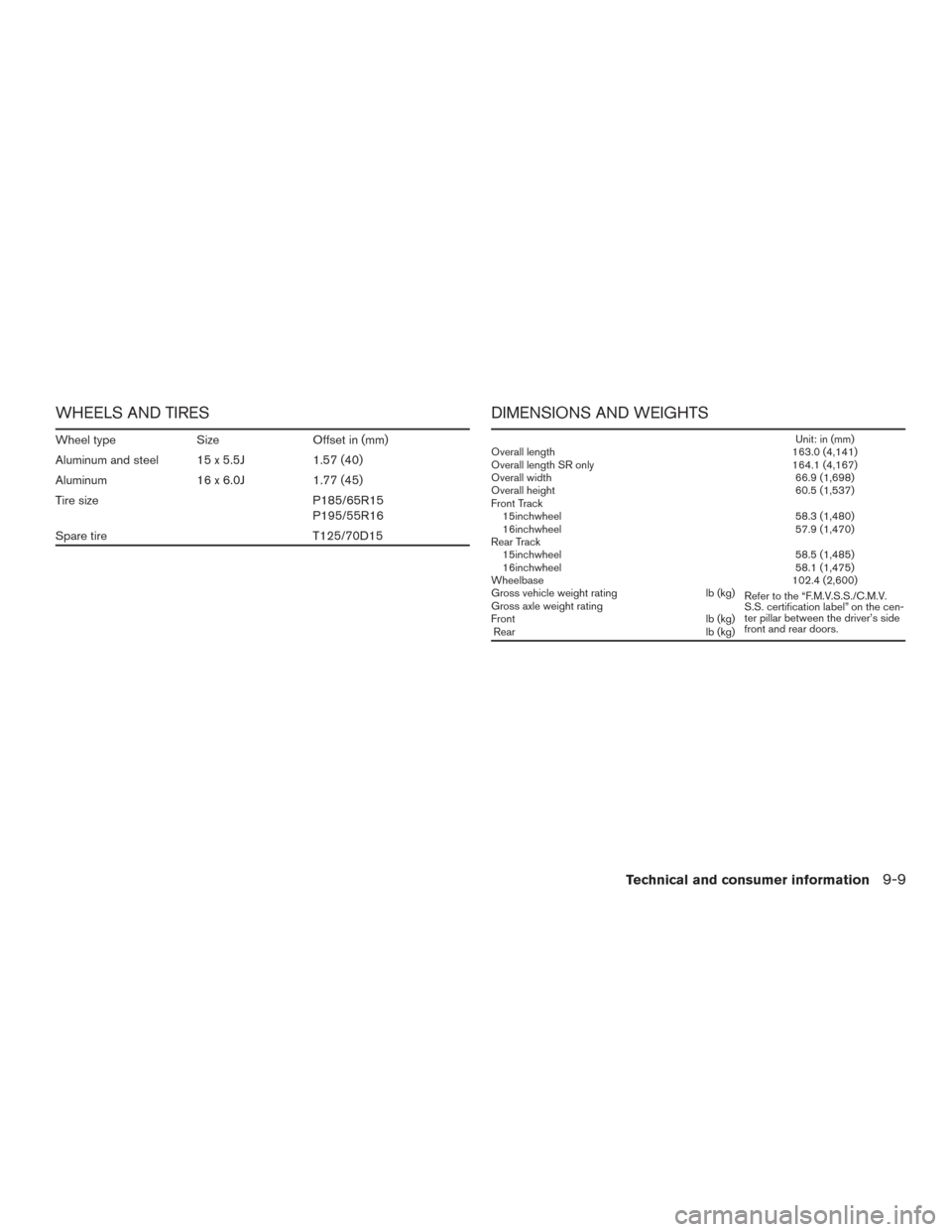

NISSAN VERSA NOTE 2015 2.G Owners Manual WHEELS AND TIRES
Wheel typeSizeOffset in (mm)
Aluminum and steel 15 x 5.5J 1.57 (40)
Aluminum 16 x 6.0J1.77 (45)
Tire size P185/65R15
P195/55R16
Spare tire T125/70D15
DIMENSIONS AND WEIGHTS
Unit: in (

Page 363 of 384

NISSAN VERSA NOTE 2015 2.G Owners Manual When planning to drive your NISSAN ve-
hicle in another country,you should first find
out if the fuel available is suitable for your vehi-
cle’s engine.
Using fuel with an octane rating that is too

Page 364 of 384

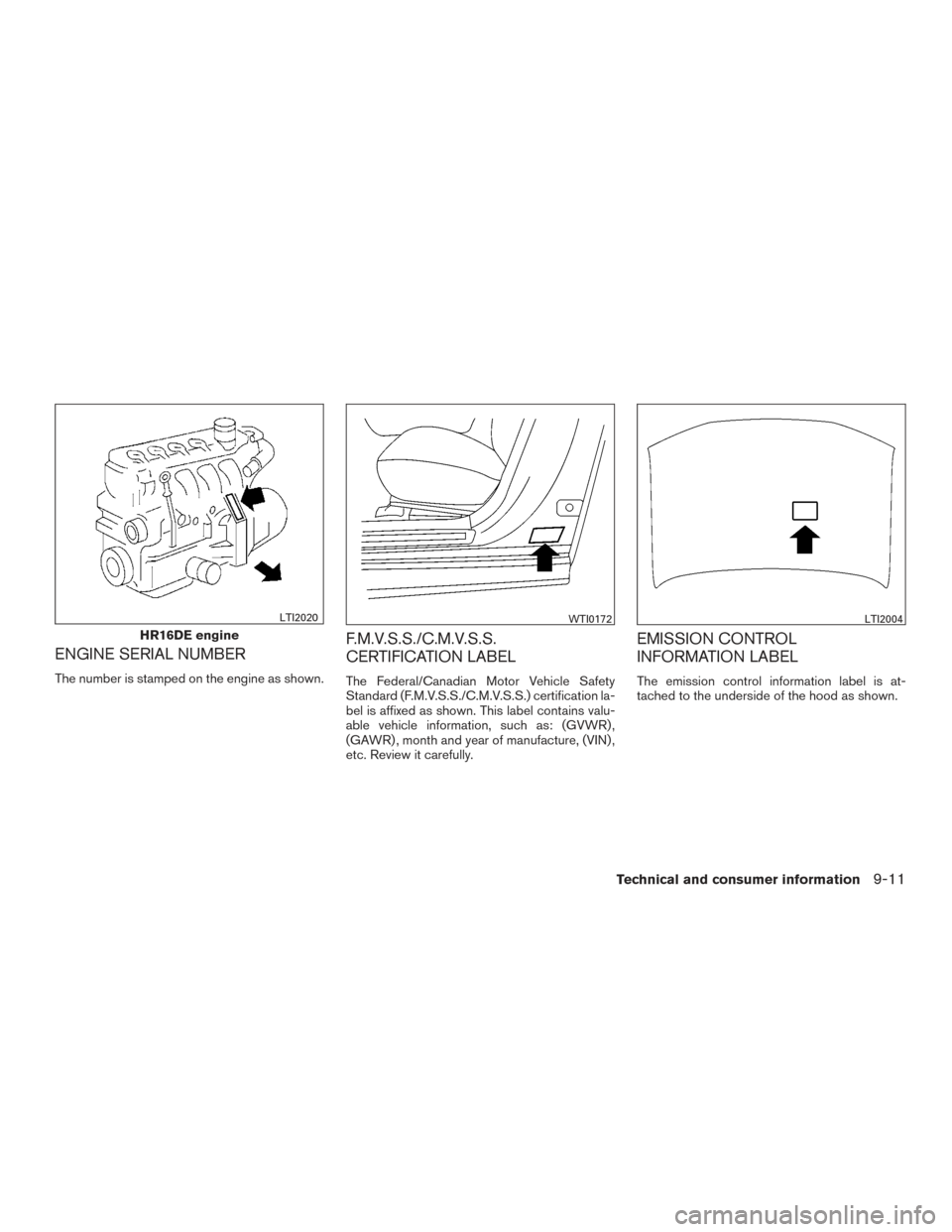

NISSAN VERSA NOTE 2015 2.G Owners Manual ENGINE SERIAL NUMBER
The number is stamped on the engine as shown.
F.M.V.S.S./C.M.V.S.S.
CERTIFICATION LABEL
The Federal/Canadian Motor Vehicle Safety
Standard (F.M.V.S.S./C.M.V.S.S.) certification la

Page 365 of 384

NISSAN VERSA NOTE 2015 2.G Owners Manual TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire and
Loading Information label. The label is located as
shown.
AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner spe

Page 366 of 384

NISSAN VERSA NOTE 2015 2.G Owners Manual Before mounting the license plate, confirm the
following parts are enclosed in the plastic bag:
– License plate bracket
– License plate bracket screws x2
Use the following steps to mount the front

Page 367 of 384

NISSAN VERSA NOTE 2015 2.G Owners Manual ●GVW (Gross Vehicle Weight) - curb
weight plus the combined weight of
passengers and cargo.
● GVWR (Gross Vehicle Weight Rat-
ing) - maximum total combined
weight of the unloaded vehicle, pas-
sen

Page 368 of 384

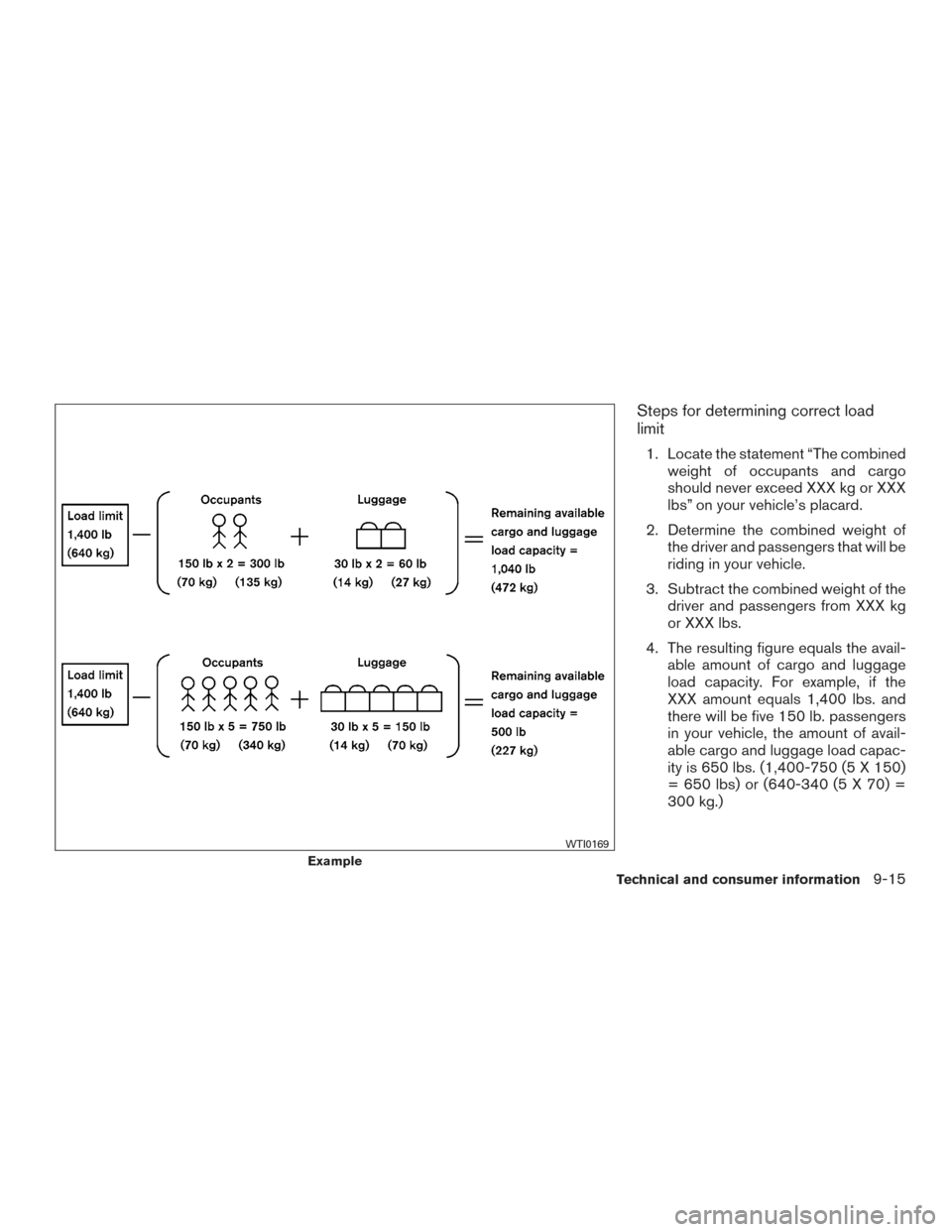

NISSAN VERSA NOTE 2015 2.G Owners Manual Steps for determining correct load
limit
1. Locate the statement “The combinedweight of occupants and cargo
should never exceed XXX kg or XXX
lbs” on your vehicle’s placard.
2. Determine the com

Page 369 of 384

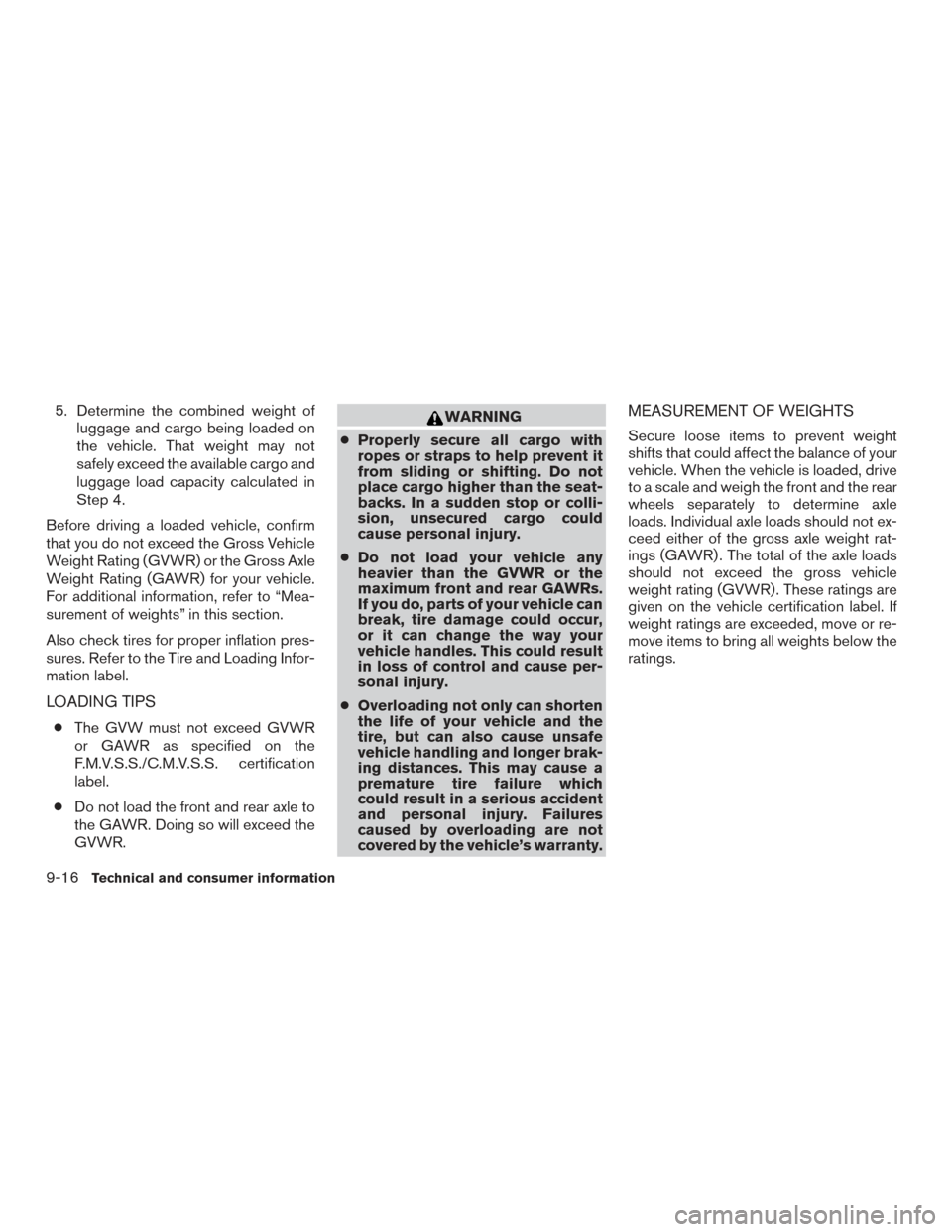

NISSAN VERSA NOTE 2015 2.G Owners Manual 5. Determine the combined weight ofluggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
Step 4.
Before driving a

Page 370 of 384

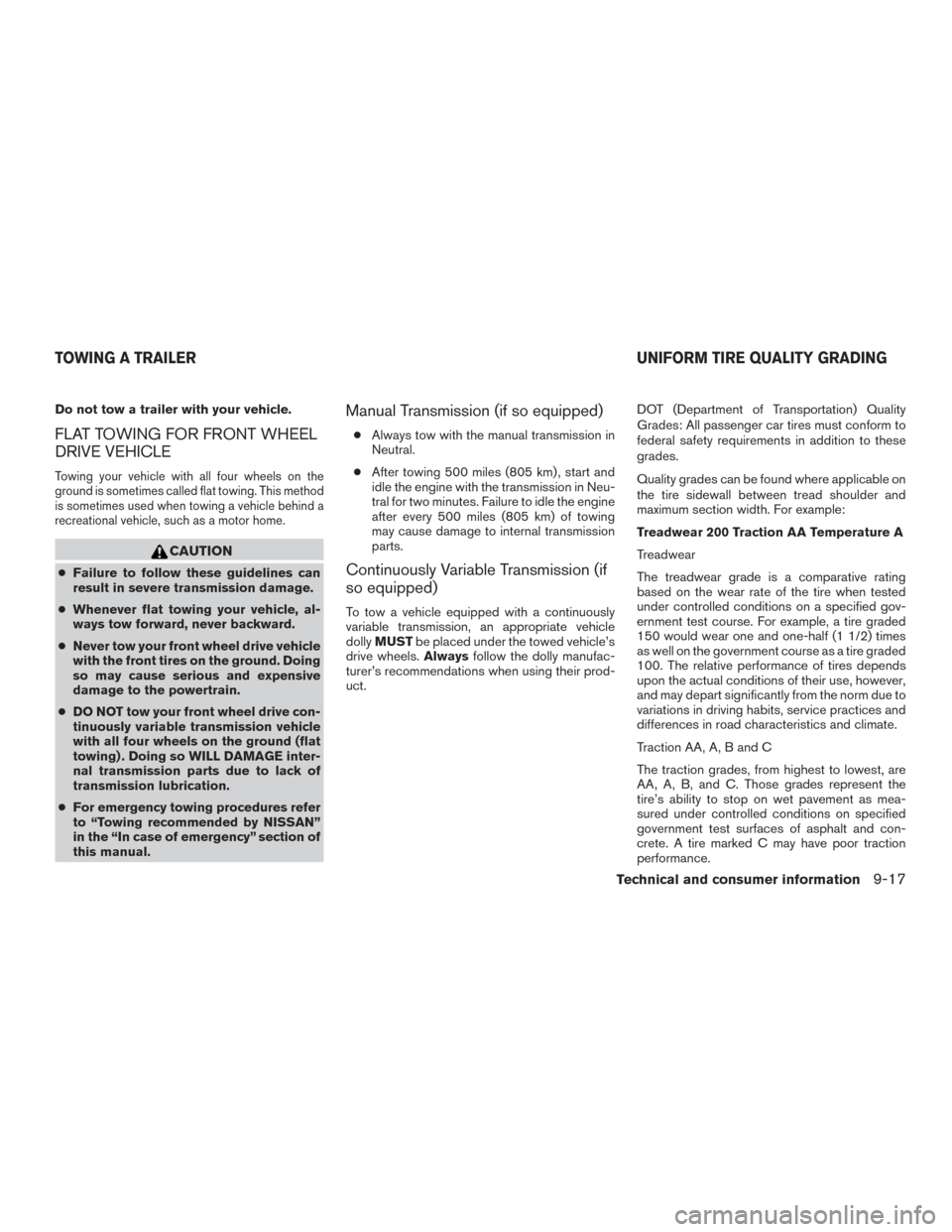

NISSAN VERSA NOTE 2015 2.G Owners Manual Do not tow a trailer with your vehicle.
FLAT TOWING FOR FRONT WHEEL
DRIVE VEHICLE
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This method
is sometimes used
