Page 171 of 878

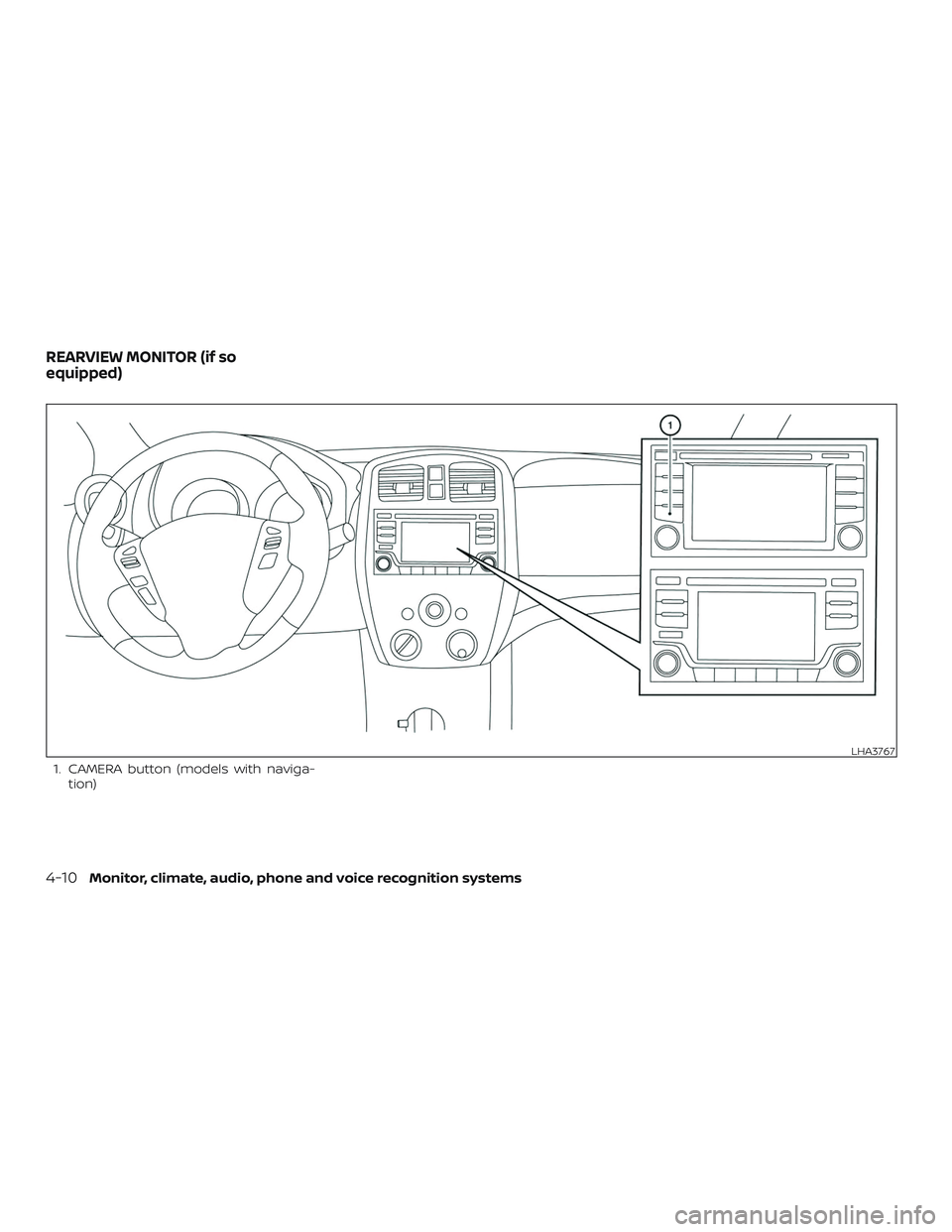

NISSAN VERSA NOTE 2018  Owner´s Manual 1. CAMERA button (models with naviga-tion)
LHA3767
REARVIEW MONITOR (if so
equipped)
4-10Monitor, climate, audio, phone and voice recognition systems

Page 172 of 878

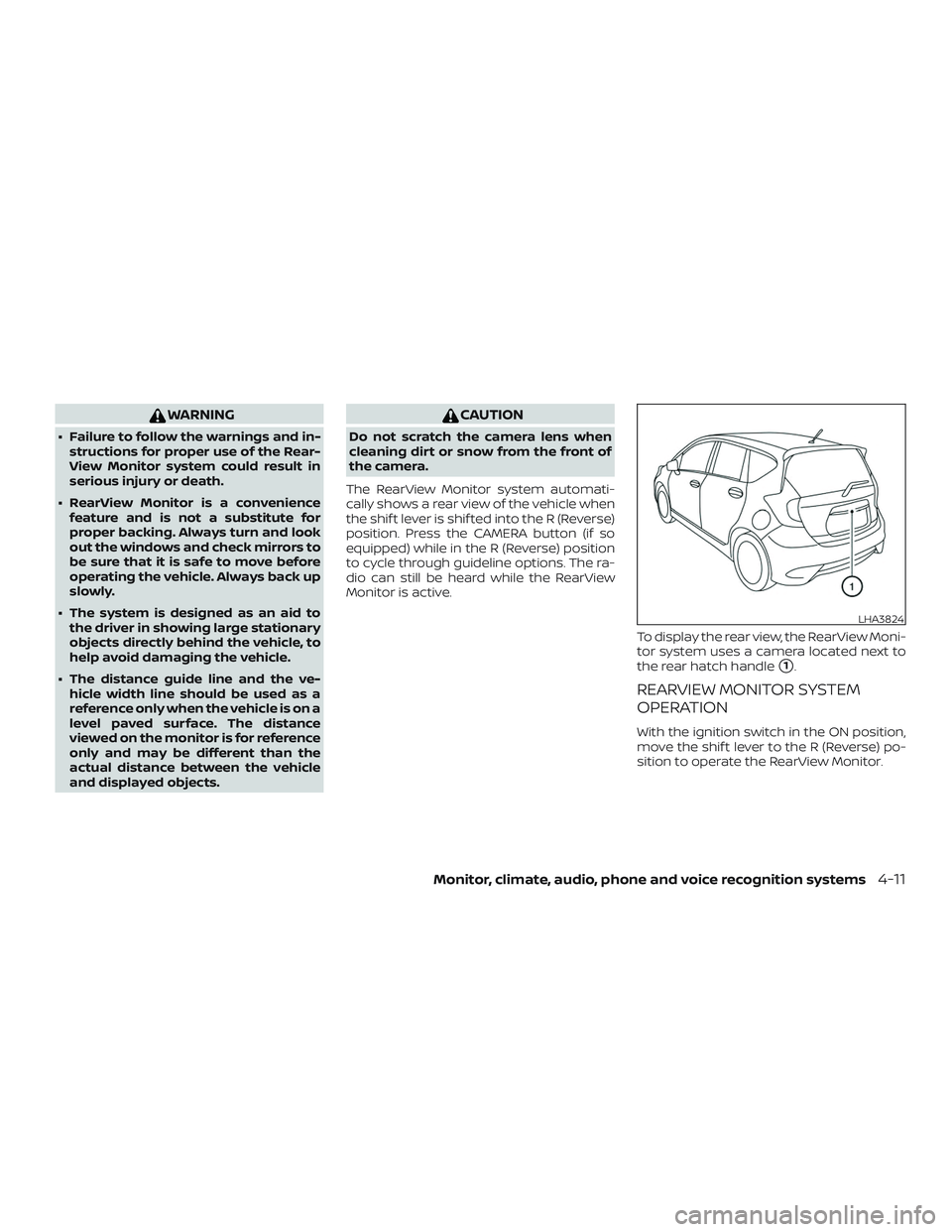

NISSAN VERSA NOTE 2018  Owner´s Manual WARNING
∙ Failure to follow the warnings and in-structions for proper use of the Rear-
View Monitor system could result in
serious injury or death.
∙ RearView Monitor is a convenience feature and

Page 173 of 878

NISSAN VERSA NOTE 2018  Owner´s Manual HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle
width and distances to objects with refer-
ence to the vehicle body line
Aare dis-
played on the monitor.
Distance guide lines

Page 174 of 878

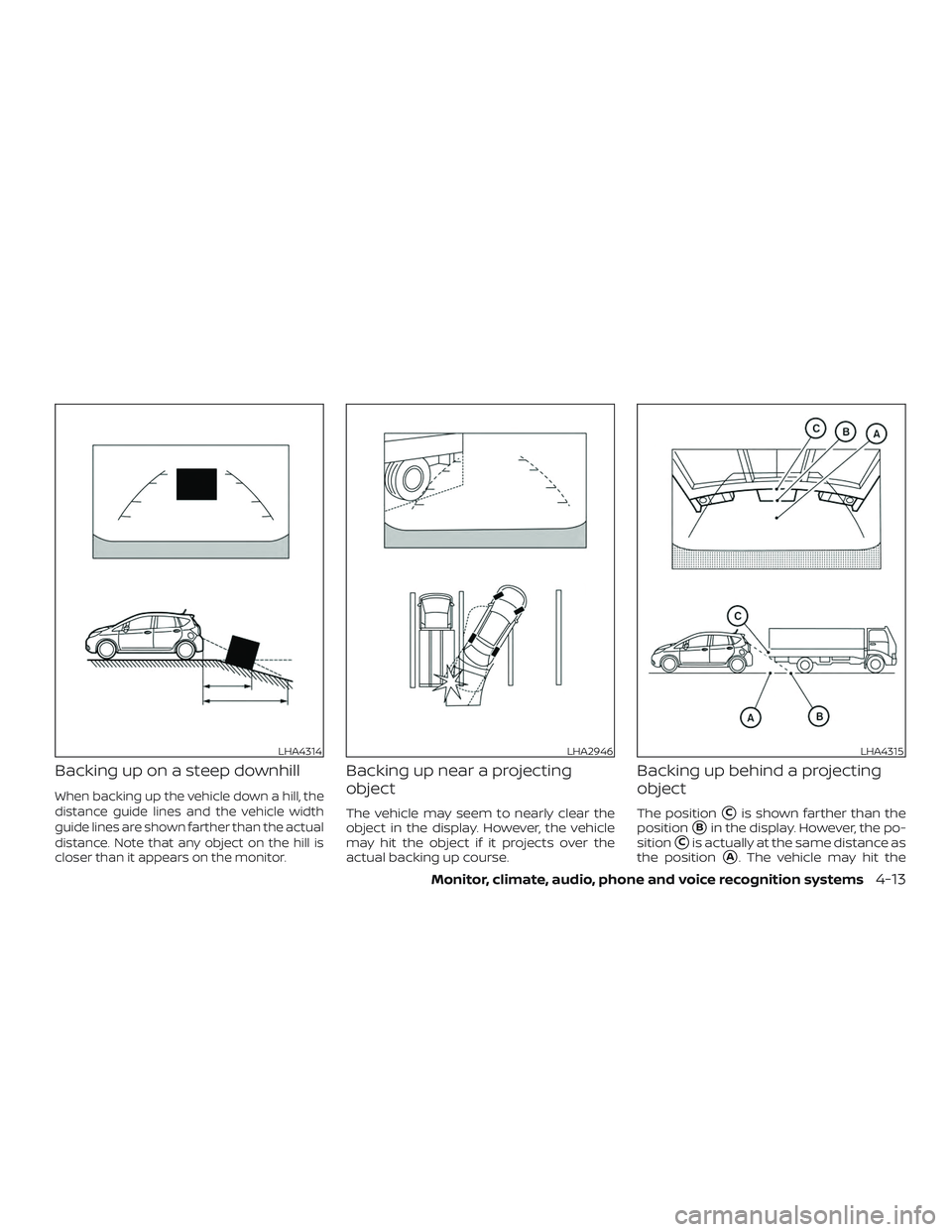

NISSAN VERSA NOTE 2018  Owner´s Manual Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on t

Page 175 of 878

NISSAN VERSA NOTE 2018  Owner´s Manual object when backing up to the positionA
if the object projects over the actual back-
ing up course.

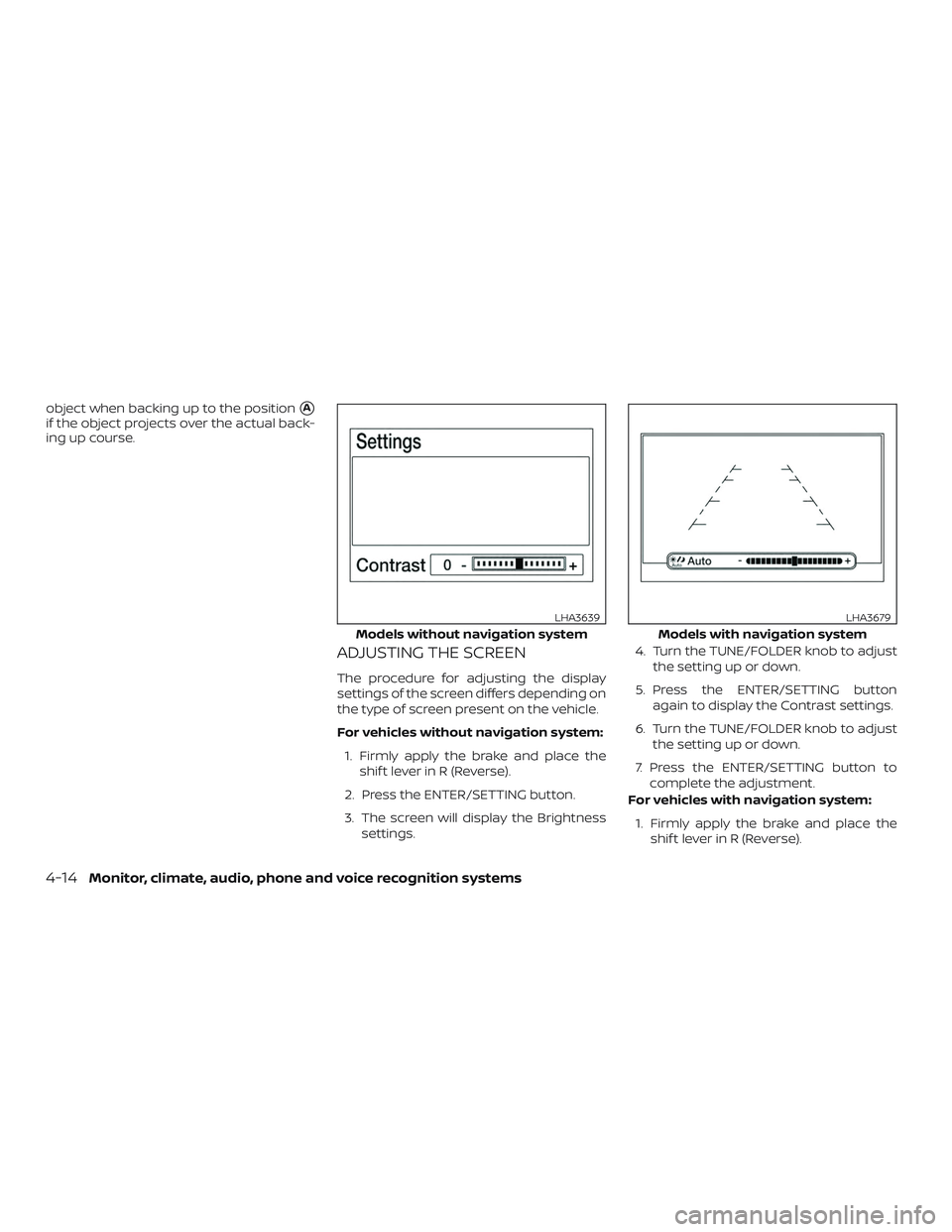

ADJUSTING THE SCREEN
The procedure for adjusting the display
settings of the screen differs dependi

Page 176 of 878

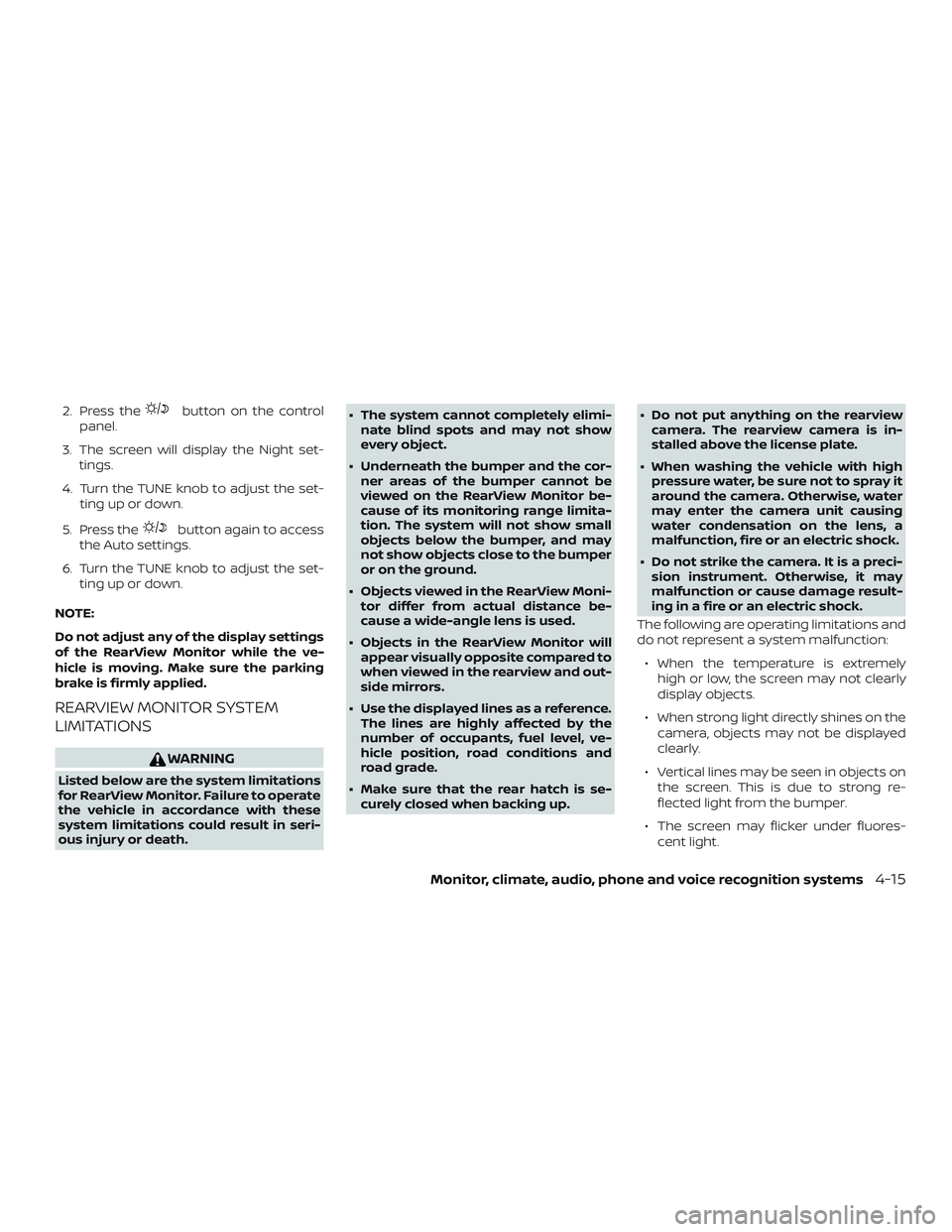

NISSAN VERSA NOTE 2018  Owner´s Manual 2. Press thebutton on the control
panel.
3. The screen will display the Night set- tings.
4. Turn the TUNE knob to adjust the set- ting up or down.
5. Press the
button again to access
the Auto setting

Page 177 of 878

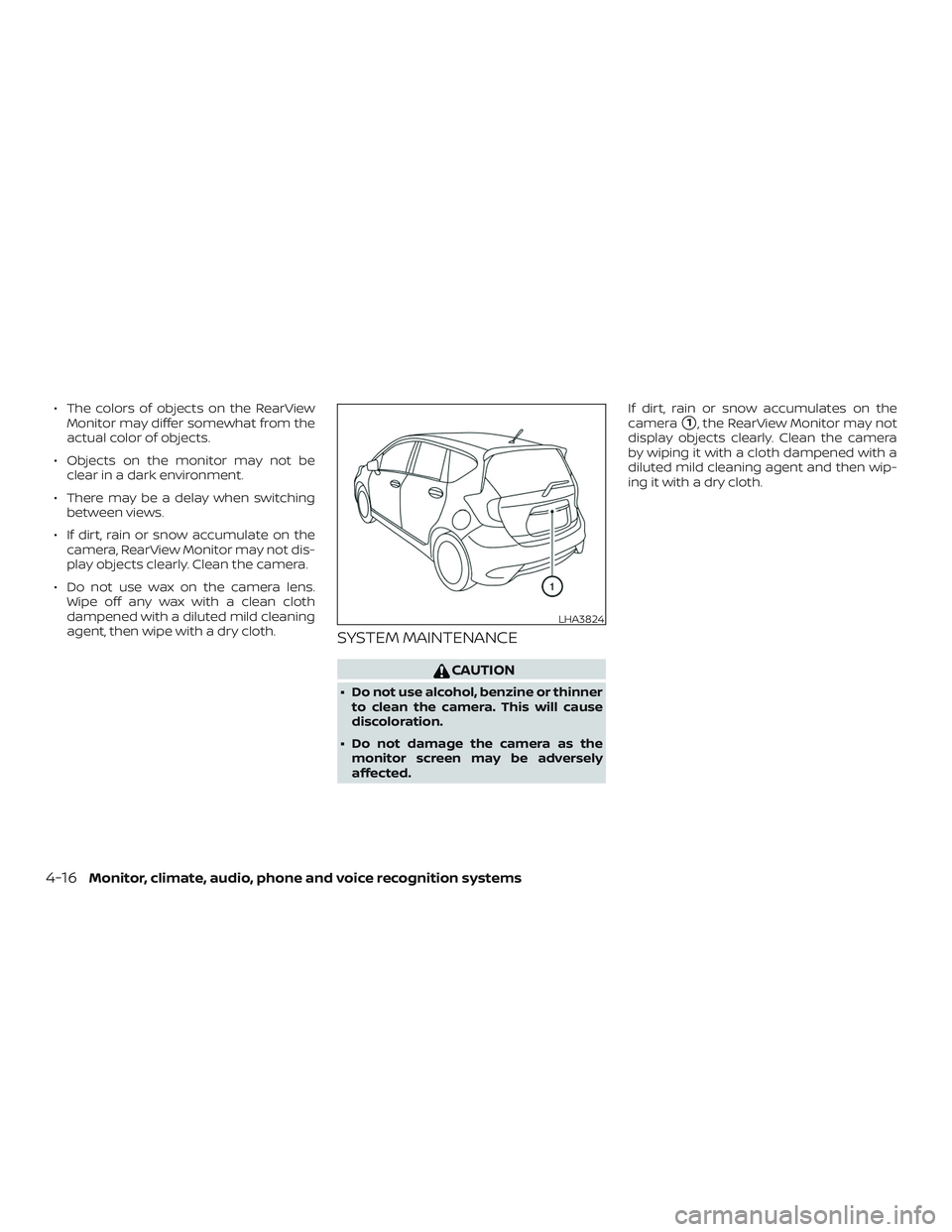

NISSAN VERSA NOTE 2018  Owner´s Manual ∙ The colors of objects on the RearViewMonitor may differ somewhat from the
actual color of objects.
∙ Objects on the monitor may not be clear in a dark environment.
∙ There may be a delay when

Page 178 of 878

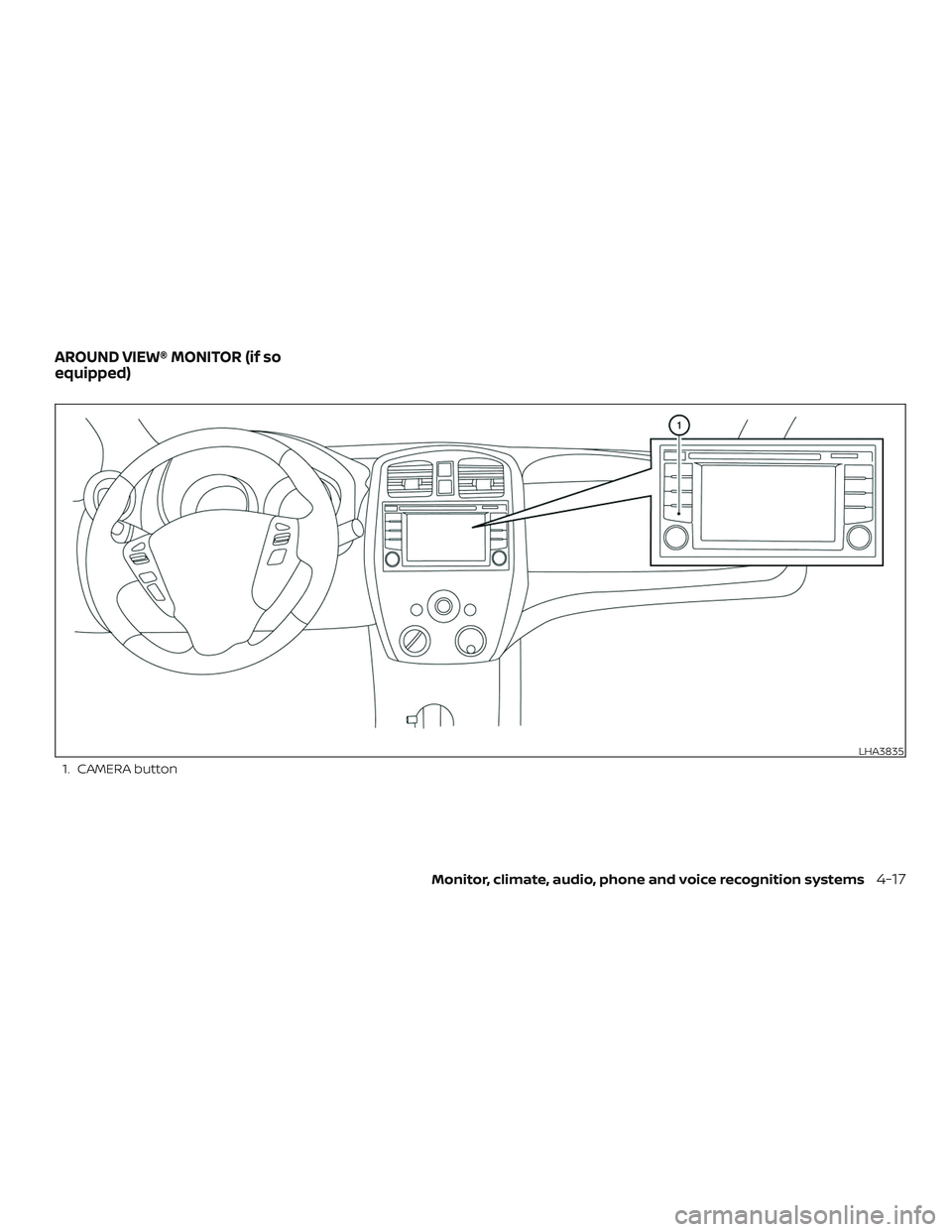

NISSAN VERSA NOTE 2018  Owner´s Manual 1. CAMERA button
LHA3835
AROUND VIEW® MONITOR (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-17

Page 179 of 878

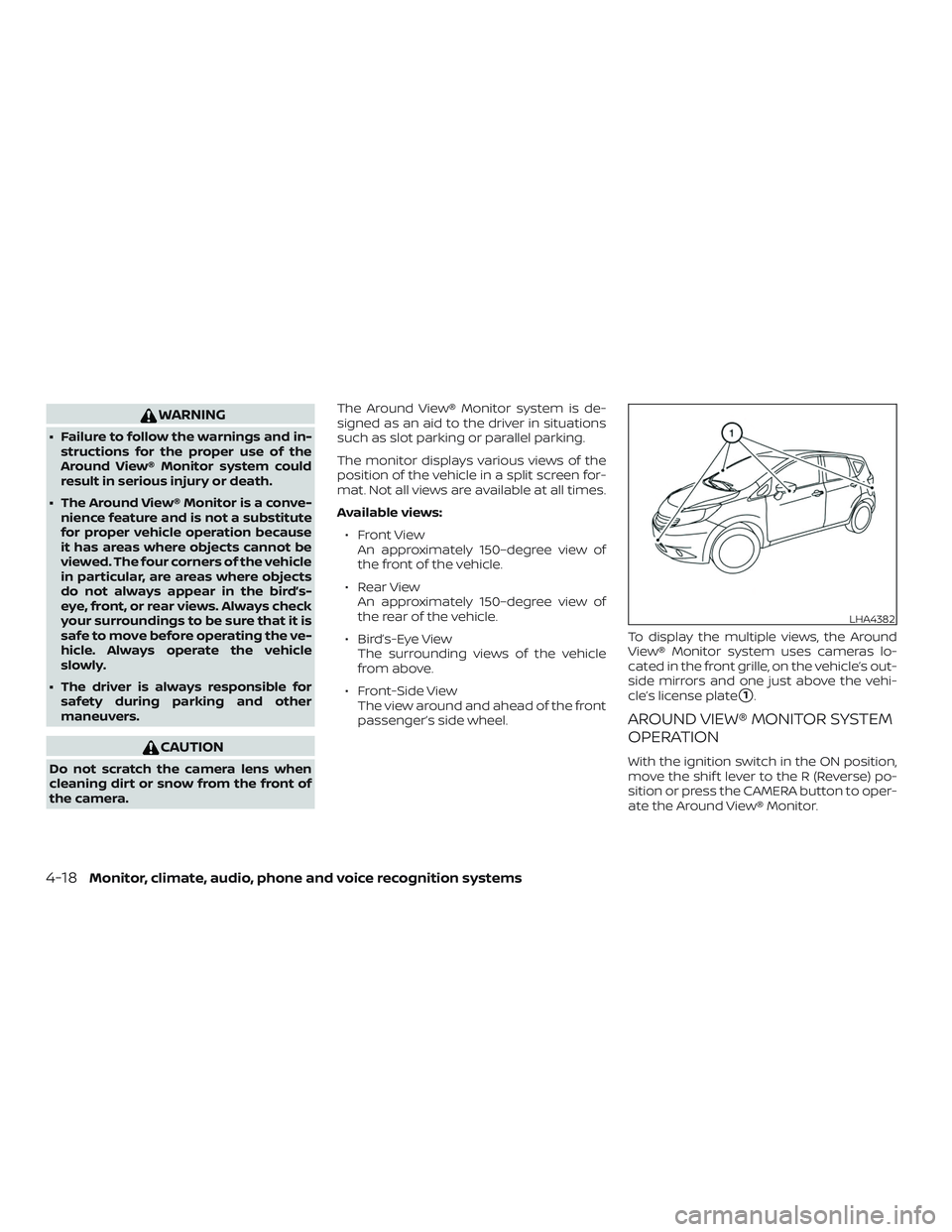

NISSAN VERSA NOTE 2018  Owner´s Manual WARNING
∙ Failure to follow the warnings and in-structions for the proper use of the
Around View® Monitor system could
result in serious injury or death.
∙ The Around View® Monitor is a conve- n

Page 180 of 878

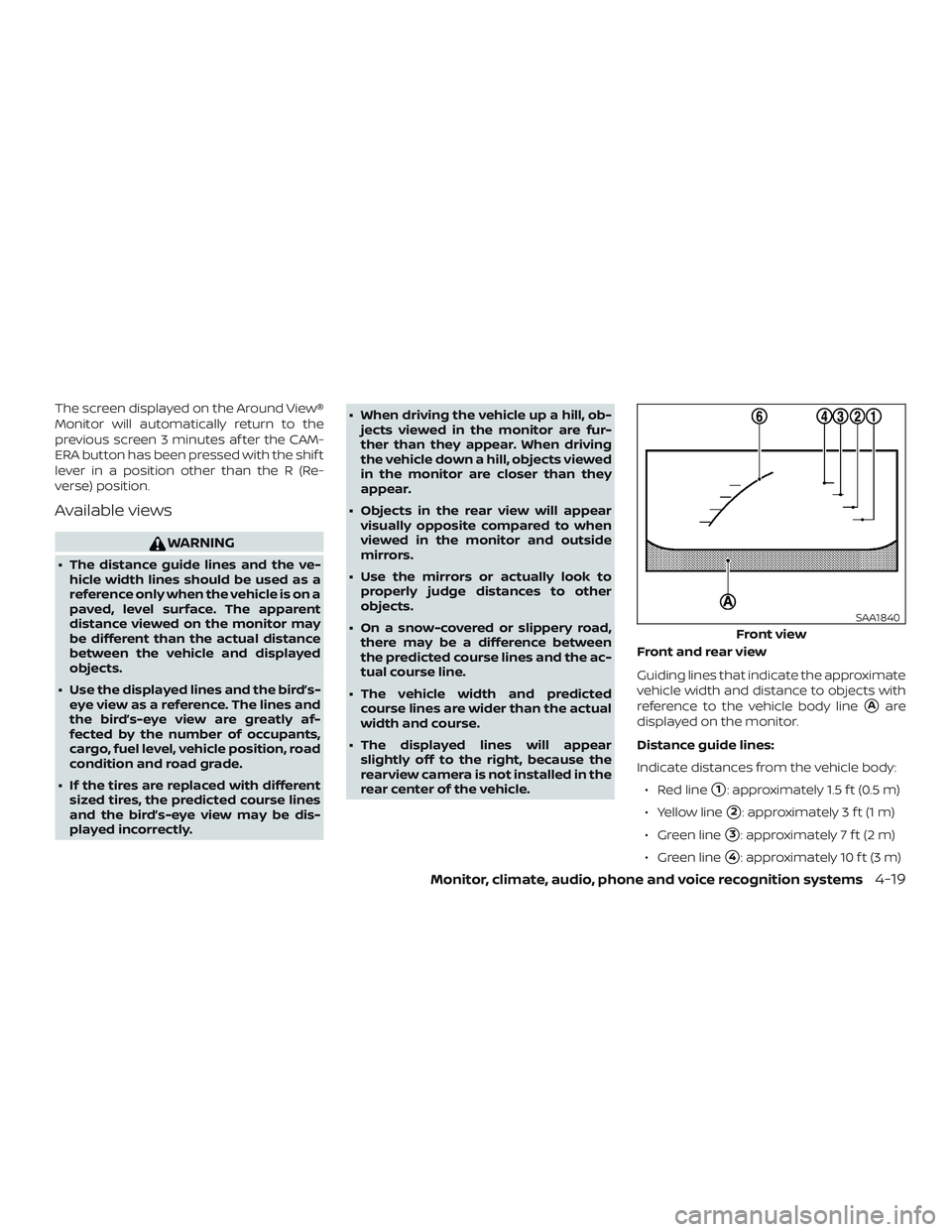

NISSAN VERSA NOTE 2018  Owner´s Manual The screen displayed on the Around View®
Monitor will automatically return to the
previous screen 3 minutes af ter the CAM-
ERA button has been pressed with the shif t
lever in a position other than
