diagnostic menu NISSAN X-TRAIL 2001 Service Repair Manual

AT-44
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
DATA MONITOR MODE (A/T)
Item DisplayMover to center Monitor items
Description Remarks TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu
Vehicle speed
sensor 1 (A/T)
(Revolution sen-
sor)VHCL/S SE·A/T
[km/h] or [mph]
X——
●Vehicle speed com-
puted from signal of
revolution sensor is
displayed.When racing engine in N
or P with vehicle station-
ary, CONSULT-II data
may not indicate 0 km/h
(0 mph).
Vehicle speed
sensor 2
(Meter)VHCL/S
SE·MTR
[km/h] or [mph]
X——
●Vehicle speed com-
puted from signal of
vehicle speed sensor is
displayed.Vehicle speed display
may not be accurate
under approx. 10 km/h
(6 mph). It may not indi-
cate 0 km/h (0 mph)
when vehicle is station-
ary.
Accelerator pedal
position sensorTHRTL POS
SEN
[V]X——
●Accelerator pedal posi-
tion sensor signal volt-
age is displayed.
A/T fluid tempera-
ture sensorFLUID TEMP SE
[V]
X——
●A/T fluid temperature
sensor signal voltage is
displayed.
●Signal voltage lowers
as fluid temperature
rises.
Battery voltage BATTERY VOLT
[V]X——
●Source voltage of TCM
is displayed.
Engine speed ENGINE SPEED
[rpm]
X—X
●Engine speed, com-
puted from engine
speed signal, is dis-
played.Engine speed display
may not be accurate
under approx. 800 rpm.
It may not indicate 0 rpm
even when engine is not
running.
Overdrive control
switchOVERDRIVE
SW
[ON/OFF]X——
●ON/OFF state com-
puted from signal of
overdrive control SW is
displayed.
PN position (PNP)
switchPN POSI SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of PN
position SW is dis-
played.
R position switch R POSITION SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of R
position SW is dis-
played.
D position switch D POSITION SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of D
position SW is dis-
played.
2 position switch 2 POSITION SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of 2
position SW, is dis-
played.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-45
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
1 position switch 1 POSITION SW
[ON/OFF]
X——●ON/OFF status, com-
puted from signal of 1
position SW, is dis-
played.
ASCD cruise sig-
nalASCD·CRUISE
[ON/OFF]
X——
●Status of ASCD cruise
signal is displayed.
ON... Cruising state
OFF... Normal running
state●This is displayed even
when no ASCD is
mounted.
ASCD OD cut sig-
nalASCD·OD CUT
[ON/OFF]
X——
●Status of ASCD OD
release signal is dis-
played.
ON... OD released
OFF... OD not released●This is displayed even
when no ASCD is
mounted.
Kickdown switch KICKDOWN SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of
kick down SW, is dis-
played.●This is displayed even
when no kick down
switch is equipped.
Closed throttle
position signalCLOSED THL/
SW
[ON/OFF]X——
●ON/OFF status, com-
puted from signal of
closed throttle position
signal, is displayed.●This means closed
throttle position signal
input via CAN com-
munication line.
Wide open throttle
position signalW/O THRL/P-
SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of
wide open throttle posi-
tion signal, is dis-
played.●This means wide
open throttle position
signal input via CAN
communication line.
Gear position GEAR
—— X
●Gear position data
used for computation
by TCM, is displayed.
Selector lever
positionSLCT LVR POSI
—— X
●Selector lever position
data, used for compu-
tation by TCM, is dis-
played.●A specific value used
for control is displayed
if fail-safe is activated
due to error.
Vehicle speed VEHICLE
SPEED
[km/h] or [mph]—— X
●Vehicle speed data,
used for computation
by TCM, is displayed.
Torque converter
slip ratioTC SLIP
RATIO
[0.000]———
●Ratio of engine revolu-
tion to input shaft revo-
lution of torque
converter
Torque converter
slip speedTC SLIP
SPEED
[rpm]———Difference in revolution
between input shaft revo-
lution and input shaft rev-
olution of torque
converterDisplay doesn't indicate
o rpm even if engine is
stopped.
But this isn't malfunc-
tion.
CAN communica-
tionCAN COMM
[OK/NG]—X—
CAN circuit 1CAN CIRC 1
[OK/UNKWN]—X—
CAN circuit 2CAN CIRC 2
[OK/UNKWN]—X— Item DisplayMover to center Monitor items
Description Remarks TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu

AT-46
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

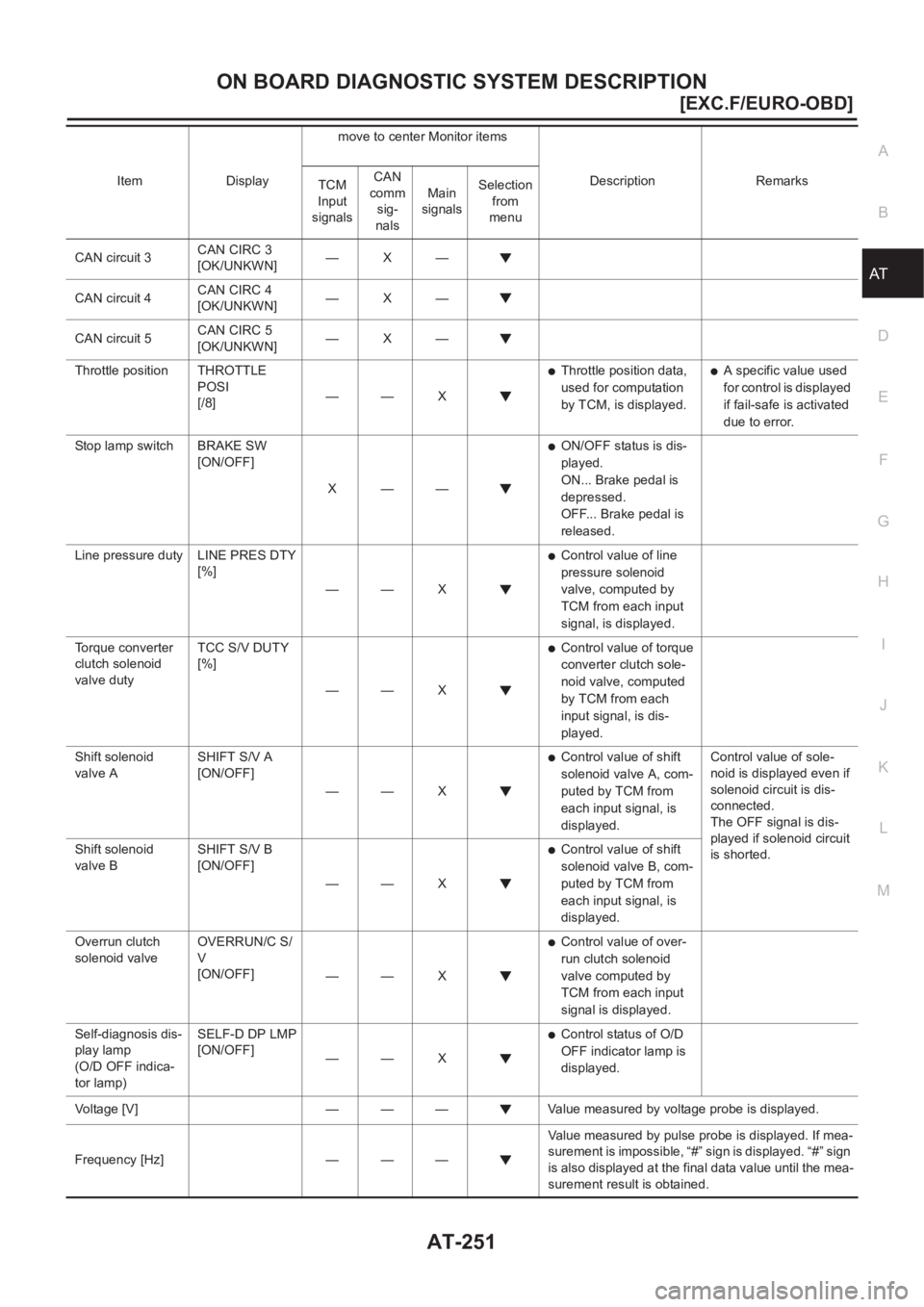

CAN circuit 3CAN CIRC 3
[OK/UNKWN]—X—
CAN circuit 4CAN CIRC 4
[OK/UNKWN]—X—
CAN circuit 5CAN CIRC 5
[OK/UNKWN]—X—
Throttle position THROTTLE
POSI
[/8]—— X
●Throttle position data,
used for computation
by TCM, is displayed.●A specific value used
for control is displayed
if fail-safe is activated
due to error.
Stop lamp switch BRAKE SW
[ON/OFF]
X——
●ON/OFF status is dis-
played.
ON... Brake pedal is
depressed.
OFF... Brake pedal is
released.
Line pressure duty LINE PRES DTY
[%]
—— X
●Control value of line
pressure solenoid
valve, computed by
TCM from each input
signal, is displayed.
Torque converter
clutch solenoid
valve dutyTCC S/V DUTY
[%]
—— X
●Control value of torque
converter clutch sole-
noid valve, computed
by TCM from each
input signal, is dis-
played.
Shift solenoid
valve ASHIFT S/V A
[ON/OFF]
—— X
●Control value of shift
solenoid valve A, com-
puted by TCM from
each input signal, is
displayed.Control value of sole-
noid is displayed even if
solenoid circuit is dis-
connected.
The OFF signal is dis-
played if solenoid circuit
is shorted. Shift solenoid
valve BSHIFT S/V B
[ON/OFF]
—— X
●Control value of shift
solenoid valve B, com-
puted by TCM from
each input signal, is
displayed.
Overrun clutch
solenoid valveOVERRUN/C S/
V
[ON/OFF]
—— X
●Control value of over-
run clutch solenoid
valve computed by
TCM from each input
signal is displayed.
Self-diagnosis dis-
play lamp
(O/D OFF indica-
tor lamp)SELF-D DP LMP
[ON/OFF]
—— X
●Control status of O/D
OFF indicator lamp is
displayed.
Voltage [V] — — — Value measured by voltage probe is displayed.
Frequency [Hz] — — —Value measured by pulse probe is displayed. If mea-
surement is impossible, “#” sign is displayed. “#” sign
is also displayed at the final data value until the mea-
surement result is obtained. Item DisplayMover to center Monitor items
Description Remarks TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-47
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

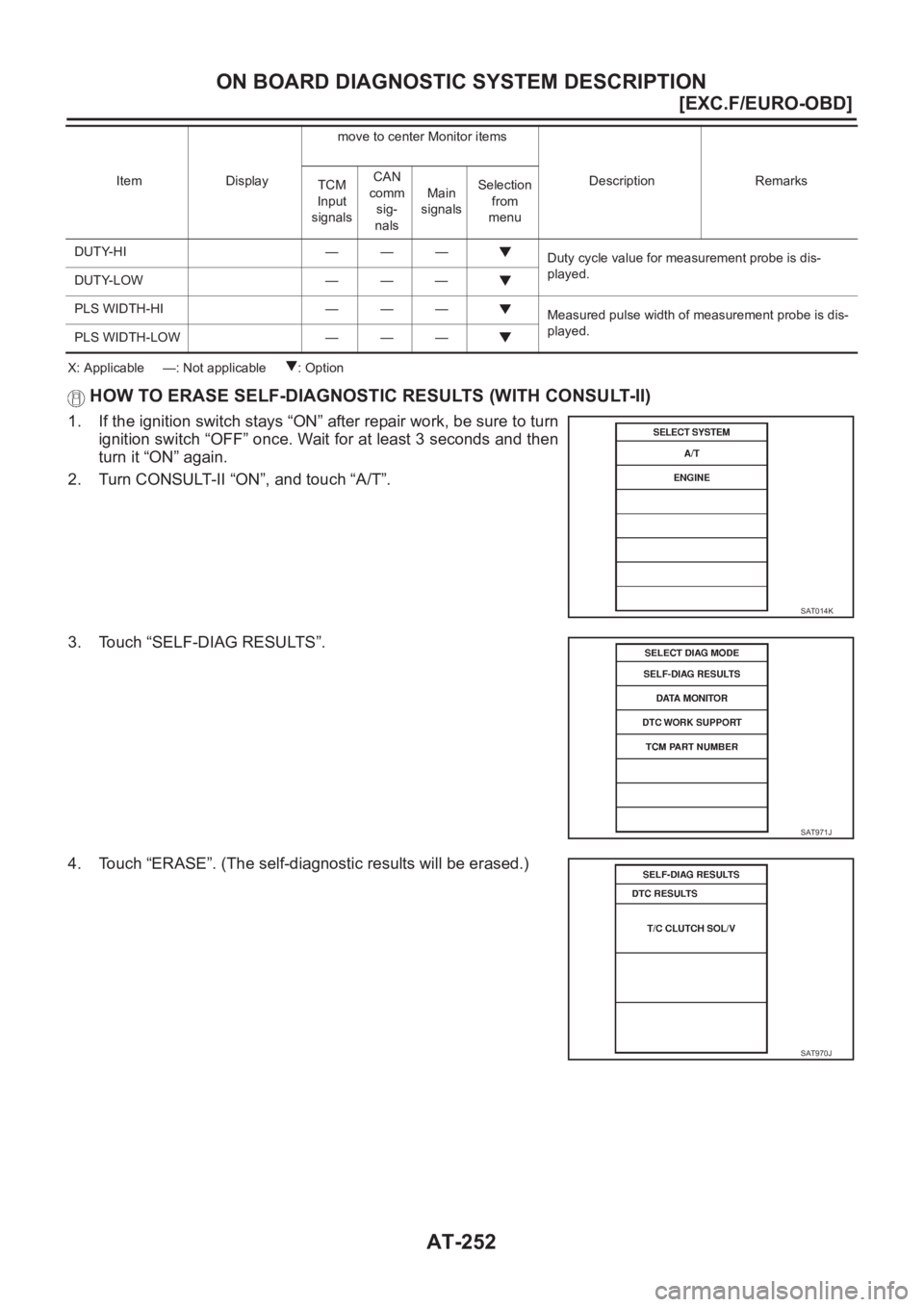

X: Applicable —: Not applicable : Option
DTC WORK SUPPORT MODE WITH CONSULT-II
CONSULT-II Setting Procedure
1. Turn ignition switch “OFF”.
2. Connect CONSULT-II to data link connector which is located in
left or right side lower dash panel.
3. Turn ignition switch “ON”.
4. Touch “START”.
DUTY-HI — — —
Duty cycle value for measurement probe is dis-
played.
DUTY-LOW — — —
PLS WIDTH-HI — — —
Measured pulse width of measurement probe is dis-
played.
PLS WIDTH-LOW — — —Item DisplayMover to center Monitor items
Description Remarks TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu
SCIA0691E
SCIA0692E
SAT586J

AT-48
[EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
5. Touch “A/T”.
If “A/T” is not indicated, go to GI-34, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
6. Touch “DTC WORK SUPPORT”.
7. Touch select item menu (1ST, 2ND, etc.).
8. Touch “START”.
9. Perform driving test according to “DTC CONFIRMATION PRO-
CEDURE” in “TROUBLE DIAGNOSIS FOR DTC”.
SAT014K
SAT971J
SAT018K
SAT589J
SAT019K

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-249
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

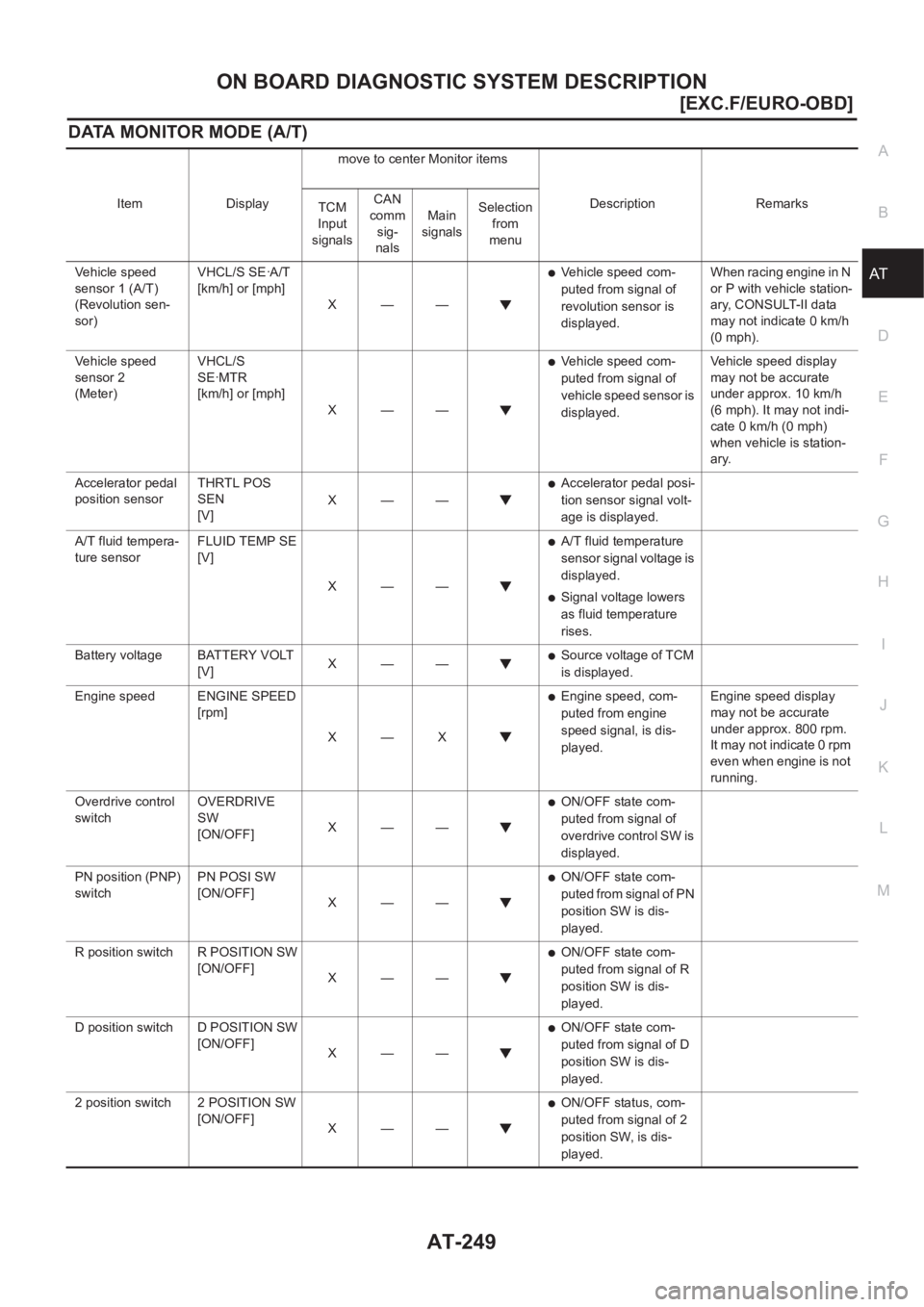

DATA MONITOR MODE (A/T)
Item Displaymove to center Monitor items
Description Remarks
TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu
Vehicle speed
sensor 1 (A/T)
(Revolution sen-
sor)VHCL/S SE·A/T
[km/h] or [mph]
X——
●Vehicle speed com-
puted from signal of
revolution sensor is
displayed.When racing engine in N
or P with vehicle station-
ary, CONSULT-II data
may not indicate 0 km/h
(0 mph).
Vehicle speed
sensor 2
(Meter)VHCL/S
SE·MTR
[km/h] or [mph]
X——
●Vehicle speed com-
puted from signal of
vehicle speed sensor is
displayed.Vehicle speed display
may not be accurate
under approx. 10 km/h
(6 mph). It may not indi-
cate 0 km/h (0 mph)
when vehicle is station-
ary.
Accelerator pedal
position sensorTHRTL POS
SEN
[V]X——
●Accelerator pedal posi-
tion sensor signal volt-
age is displayed.
A/T fluid tempera-
ture sensorFLUID TEMP SE
[V]
X——
●A/T fluid temperature
sensor signal voltage is
displayed.
●Signal voltage lowers
as fluid temperature
rises.
Battery voltage BATTERY VOLT
[V]X——
●So urce vo ltage of TCM
is displayed.
Engine speed ENGINE SPEED
[rpm]
X—X
●Engine speed, com-
puted from engine
speed signal, is dis-
played.Engine speed display
may not be accurate
under approx. 800 rpm.
It m a y no t i ndi cat e 0 r p m
even when engine is not
running.
Overdrive control
switchOVERDRIVE
SW
[ON/OFF]X——
●ON/OFF state com-
puted from signal of
overdrive control SW is
displayed.
PN position (PNP)
switchPN POSI SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of PN
position SW is dis-
played.
R position switch R POSITION SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of R
position SW is dis-
played.
D position switch D POSITION SW
[ON/OFF]
X——
●ON/OFF state com-
puted from signal of D
position SW is dis-
played.
2 position switch 2 POSITION SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of 2
position SW, is dis-
played.

AT-250
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

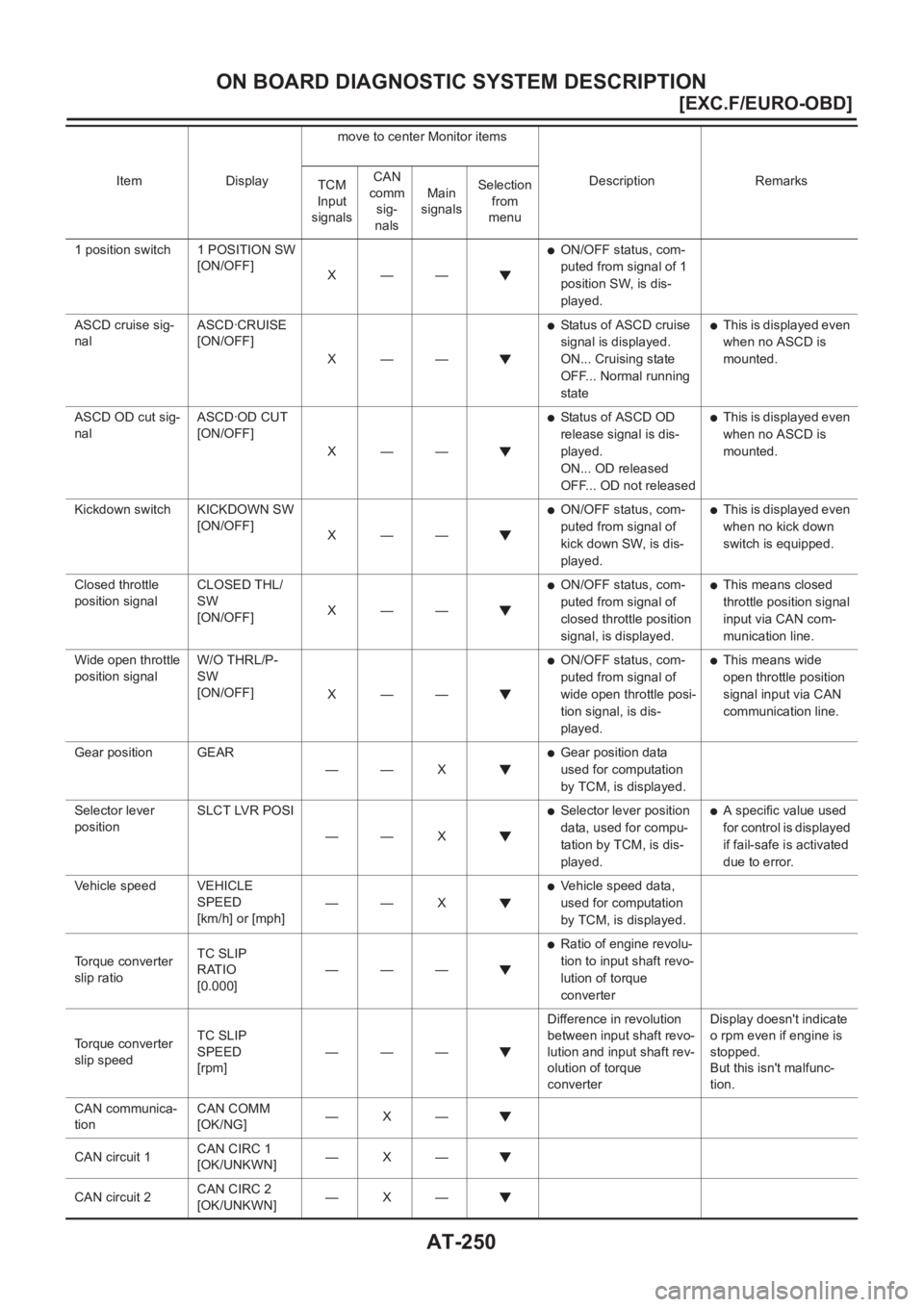

1 position switch 1 POSITION SW
[ON/OFF]
X——●ON/OFF status, com-
puted from signal of 1
position SW, is dis-
played.
ASCD cruise sig-
nalASCD·CRUISE
[ON/OFF]
X——
●Status of ASCD cruise
signal is displayed.
ON... Cruising state
OFF... Normal running
state●This is displayed even
when no ASCD is
mounted.
ASCD OD cut sig-
nalASCD·OD CUT
[ON/OFF]
X——
●Status of ASCD OD
release signal is dis-
played.
ON... OD released
OFF... OD not released●This is displayed even
when no ASCD is
mounted.
Kickdown switch KICKDOWN SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of
kick down SW, is dis-
played.●This is displayed even
when no kick down
switch is equipped.
Closed throttle
position signalCLOSED THL/
SW
[ON/OFF]X——
●ON/OFF status, com-
puted from signal of
closed throttle position
signal, is displayed.●This means closed
throttle position signal
input via CAN com-
munication line.
Wide open throttle
position signalW/O THRL/P-
SW
[ON/OFF]
X——
●ON/OFF status, com-
puted from signal of
wide open throttle posi-
tion signal, is dis-
played.●This means wide
open throttle position
signal input via CAN
communication line.
Gear position GEAR
—— X
●Gear position data
used for computation
by TCM, is displayed.
Selector lever
positionSLCT LVR POSI
—— X
●Selector lever position
data, used for compu-
tation by TCM, is dis-
played.●A specific value used
for control is displayed
if fail-safe is activated
due to error.
Vehicle speed VEHICLE
SPEED
[km/h] or [mph]—— X
●Vehicle speed data,
used for computation
by TCM, is displayed.
Torque converter
slip ratioTC SLIP
RATIO
[0.000]———
●Ratio of engine revolu-
tion to input shaft revo-
lution of torque
converter
Torque converter
slip speedTC SLIP
SPEED
[rpm]———Difference in revolution
between input shaft revo-
lution and input shaft rev-
olution of torque
converterDisplay doesn't indicate
o rpm even if engine is
stopped.
But this isn't malfunc-
tion.
CAN communica-
tionCAN COMM
[OK/NG]—X—
CAN circuit 1CAN CIRC 1
[OK/UNKWN]—X—
CAN circuit 2CAN CIRC 2
[OK/UNKWN]—X— Item Displaymove to center Monitor items
Description Remarks
TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
AT-251
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
CAN circuit 3CAN CIRC 3
[OK/UNKWN]—X—
CAN circuit 4CAN CIRC 4
[OK/UNKWN]—X—
CAN circuit 5CAN CIRC 5
[OK/UNKWN]—X—
Throttle position THROTTLE
POSI
[/8]—— X
●Throttle position data,
used for computation
by TCM, is displayed.●A specific value used
for control is displayed
if fail-safe is activated
due to error.
Stop lamp switch BRAKE SW
[ON/OFF]
X——
●ON/OFF status is dis-
played.
ON... Brake pedal is
depressed.
OFF... Brake pedal is
released.
Line pressure duty LINE PRES DTY
[%]
—— X
●Control value of line
pressure solenoid
valve, computed by
TCM from each input
signal, is displayed.
Torque converter
clutch solenoid
valve dutyTCC S/V DUTY
[%]
—— X
●Control value of torque
converter clutch sole-
noid valve, computed
by TCM from each
input signal, is dis-
played.
Shift solenoid
valve ASHIFT S/V A
[ON/OFF]
—— X
●Control value of shift
solenoid valve A, com-
puted by TCM from
each input signal, is
displayed.Control value of sole-
noid is displayed even if
solenoid circuit is dis-
connected.
The OFF signal is dis-
played if solenoid circuit
is shorted. Shift solenoid
valve BSHIFT S/V B
[ON/OFF]
—— X
●Control value of shift
solenoid valve B, com-
puted by TCM from
each input signal, is
displayed.
Overrun clutch
solenoid valveOVERRUN/C S/
V
[ON/OFF]
—— X
●Control value of over-
run clutch solenoid
valve computed by
TCM from each input
signal is displayed.
Self-diagnosis dis-
play lamp
(O/D OFF indica-
tor lamp)SELF-D DP LMP
[ON/OFF]
—— X
●Control status of O/D
OFF indicator lamp is
displayed.
Voltage [V] — — — Value measured by voltage probe is displayed.
Frequency [Hz] — — —Value measured by pulse probe is displayed. If mea-
s u re me nt is im pos si bl e, “# ” si gn i s di sp la y ed. “ # ” si gn
is also displayed at the final data value until the mea-
surement result is obtained. Item Displaymove to center Monitor items
Description Remarks
TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu

AT-252
[EXC.F/EURO-OBD]
ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION
X: Applicable —: Not applicable : Option
HOW TO ERASE SELF-DIAGNOSTIC RESULTS (WITH CONSULT-II)
1. If the ignition switch stays “ON” after repair work, be sure to turn
ignition switch “OFF” once. Wait for at least 3 seconds and then
turn it “ON” again.
2. Turn CONSULT-II “ON”, and touch “A/T”.
3. Touch “SELF-DIAG RESULTS”.
4. Touch “ERASE”. (The self-diagnostic results will be erased.)
DUTY-HI — — —
Duty cycle value for measurement probe is dis-
played.
DUTY-LOW — — —
PLS WIDTH-HI — — —
Measured pulse width of measurement probe is dis-
played.
PLS WIDTH-LOW — — —Item Displaymove to center Monitor items
Description Remarks
TCM
Input
signalsCAN
comm
sig-
nalsMain
signalsSelection
from
menu
SAT014K
SAT971J
SAT970J
