3. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to OFF.
2. Disconnect TCM harness connector.

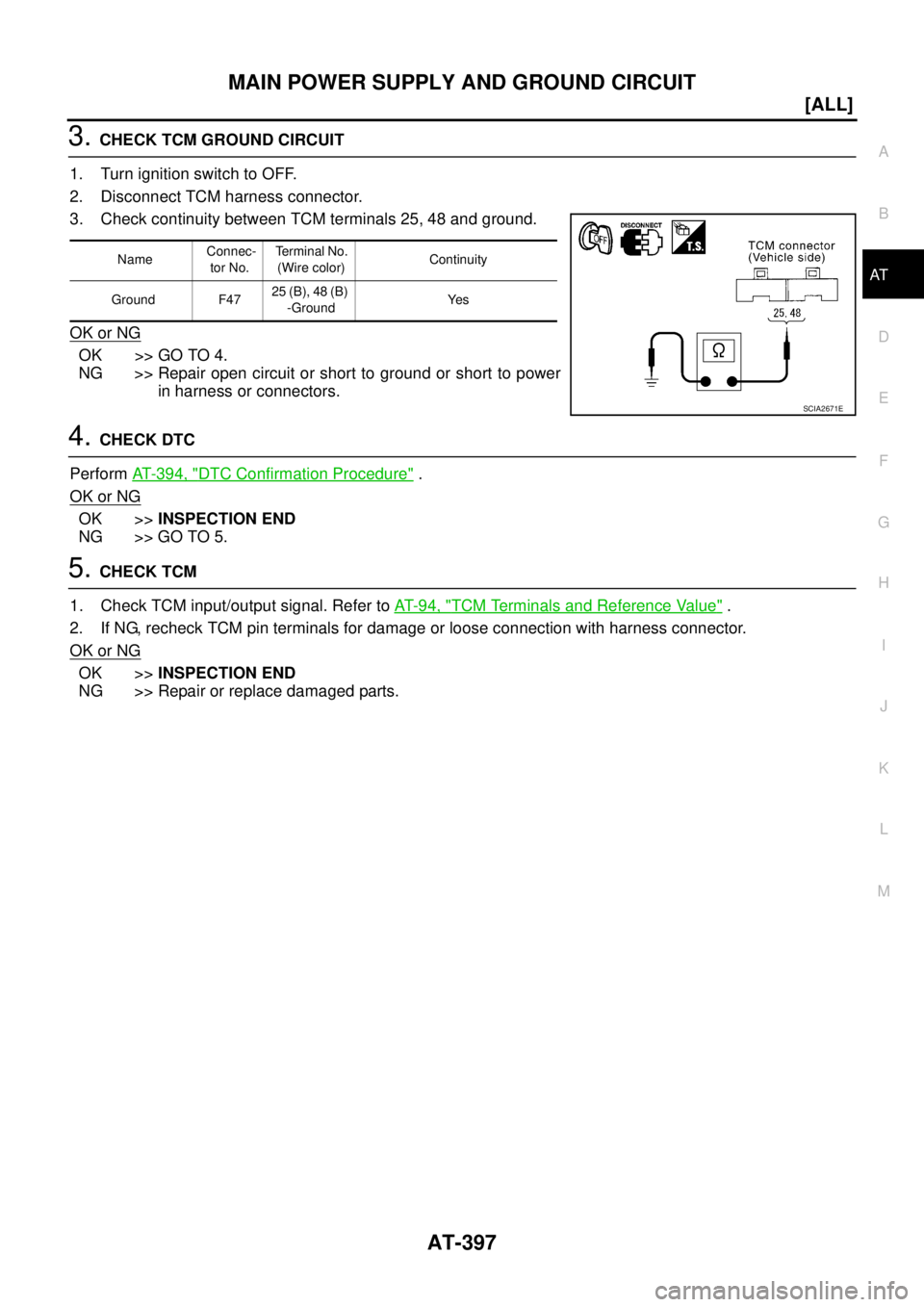

3. Check continuity between TCM terminals 25, 48 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
4. CHECK DTC
Perform AT- 3 9 4 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 5.
5. CHECK TCM
1. Check TCM input/output signal. Refer to AT- 9 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Name Connec-
tor No. Terminal No.
(Wire color)Continuity
Ground F4725 (B), 48 (B)
-GroundYe s
SCIA2671E

AT-398
[ALL]
A/T SHIFT LOCK SYSTEM

A/T SHIFT LOCK SYSTEMPFP:34950
DescriptionECS00405

The mechanical key interlock mechanism also operates as a shift lock:
With the ignition switch turned to ON, the selector lever cannot be shifted from “P” (parking) to any other
position unless the brake pedal is depressed.
With the key removed, the selector lever cannot be shifted from “P” to any other position.
The key cannot be removed unless the selector lever is placed in “P”.

The shift lock and key interlock mechanisms are controlled by the ON-OFF operation of the shift lock sole-
noid and by the operation of the rotator and slider located inside the key cylinder.
Shift Lock System Electrical Parts LocationECS00406
SCIA4597E

A/T SHIFT LOCK SYSTEM
AT-399
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

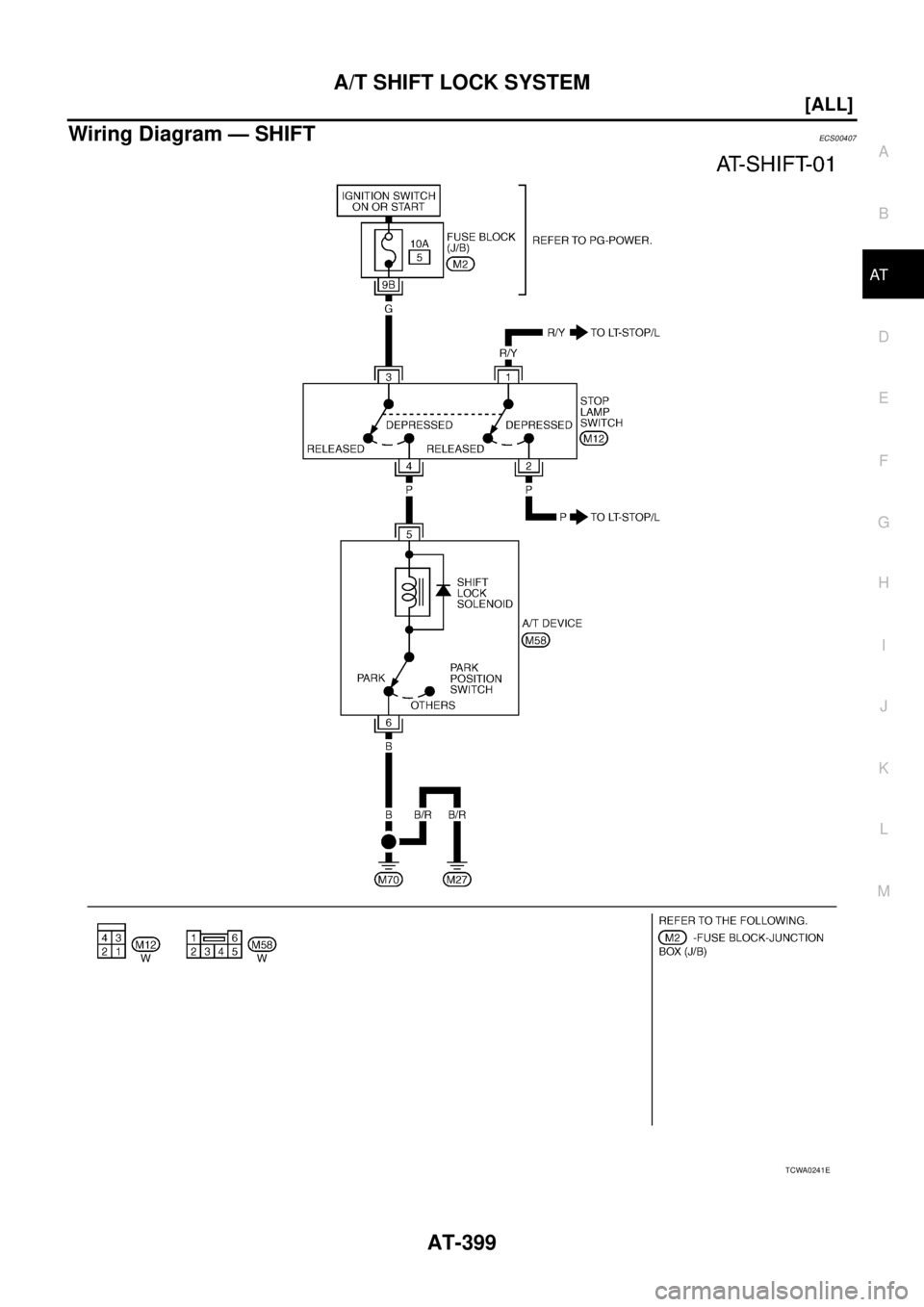

Wiring Diagram — SHIFTECS00407
TCWA0241E

AT-400
[ALL]
A/T SHIFT LOCK SYSTEM

Diagnostic ProcedureECS00408
SYMPTOM 1:

Selector lever cannot be moved from “P” position with key in ON position and brake pedal
applied.

Selector lever can be moved from “P” position with key in ON position and brake pedal released.

Selector lever can be moved from “P” position when key is removed from key cylinder.
SYMPTOM 2:

Ignition key cannot be removed when selector lever is set to “P” position.

Ignition key can be removed when selector lever is set to any position except “P”.
1. CHECK KEY INTERLOCK CABLE
Check key interlock cable for damage.
OK or NG
OK >> GO TO 2.
NG >> Repair key interlock cable. Refer to AT- 4 0 2 , "
KEY INTERLOCK CABLE" .
2. CHECK SELECTOR LEVER POSITION
Check selector lever position for damage.
OK or NG
OK >> GO TO 3.
NG >> Check selector lever. Refer to AT- 4 0 9 , "
PARK/NEUTRAL POSITION (PNP) SWITCH ADJUST-
MENT" .
3. CHECK SHIFT LOCK SOLENOID AND PARK POSITION SWITCH
1. Turn ignition switch to ON. (Do not start engine.)
2. Selector lever is set in P position.
3. Check operation sound.
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4. CHECK POWER SOURCE
1. Turn ignition switch to ON. (Do not start engine.)

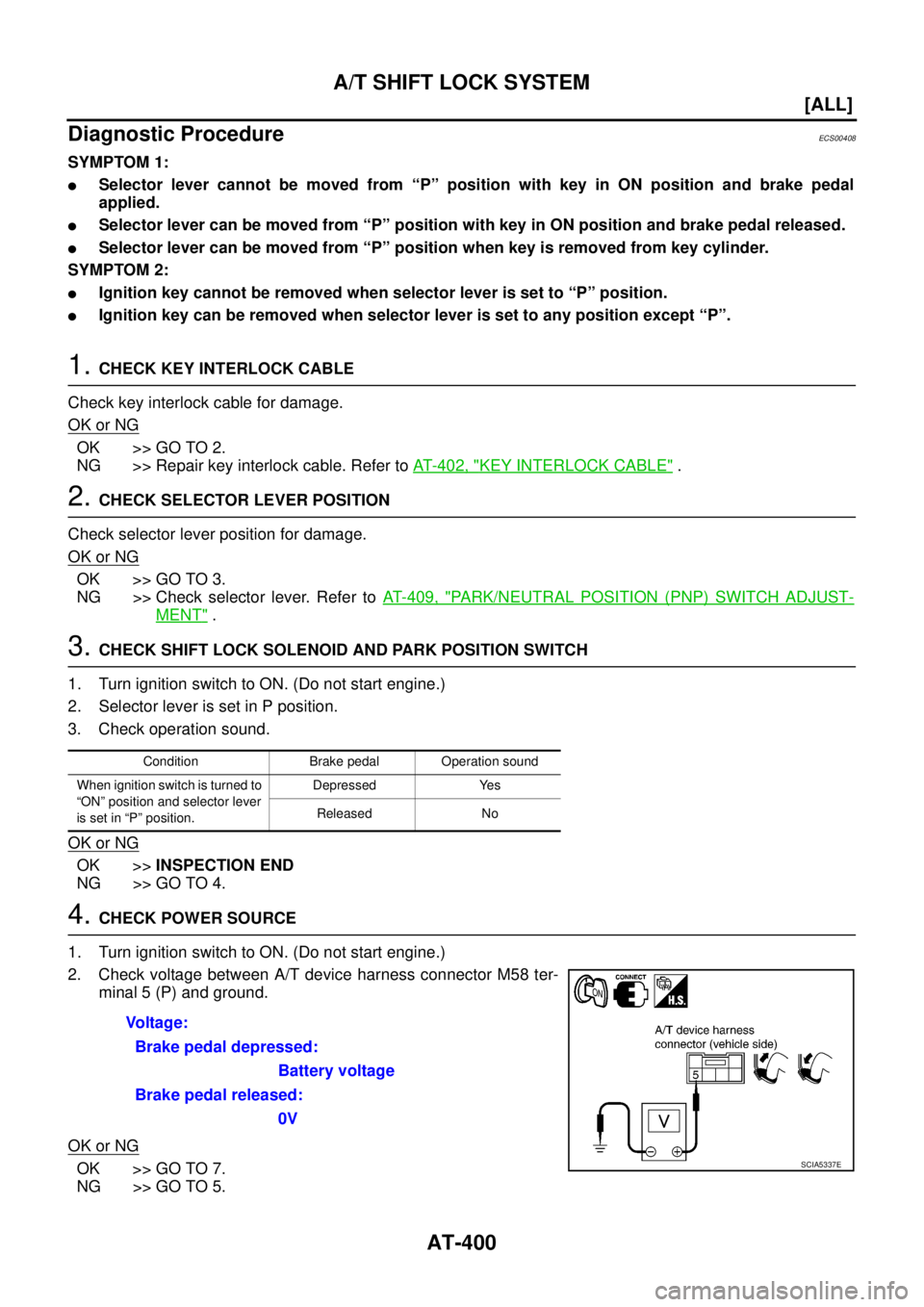

2. Check voltage between A/T device harness connector M58 ter-
minal 5 (P) and ground.
OK or NG
OK >> GO TO 7.
NG >> GO TO 5.
Condition Brake pedal Operation sound
When ignition switch is turned to
“ON” position and selector lever
is set in “P” position.Depressed Yes
Released No
Voltage:
Brake pedal depressed:
Battery voltage
Brake pedal released:
0V
SCIA5337E

A/T SHIFT LOCK SYSTEM
AT-401
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

5. CHECK STOP LAMP SWITCH
1. Turn ignition switch to OFF.
2. Disconnect stop lamp switch harness connector.

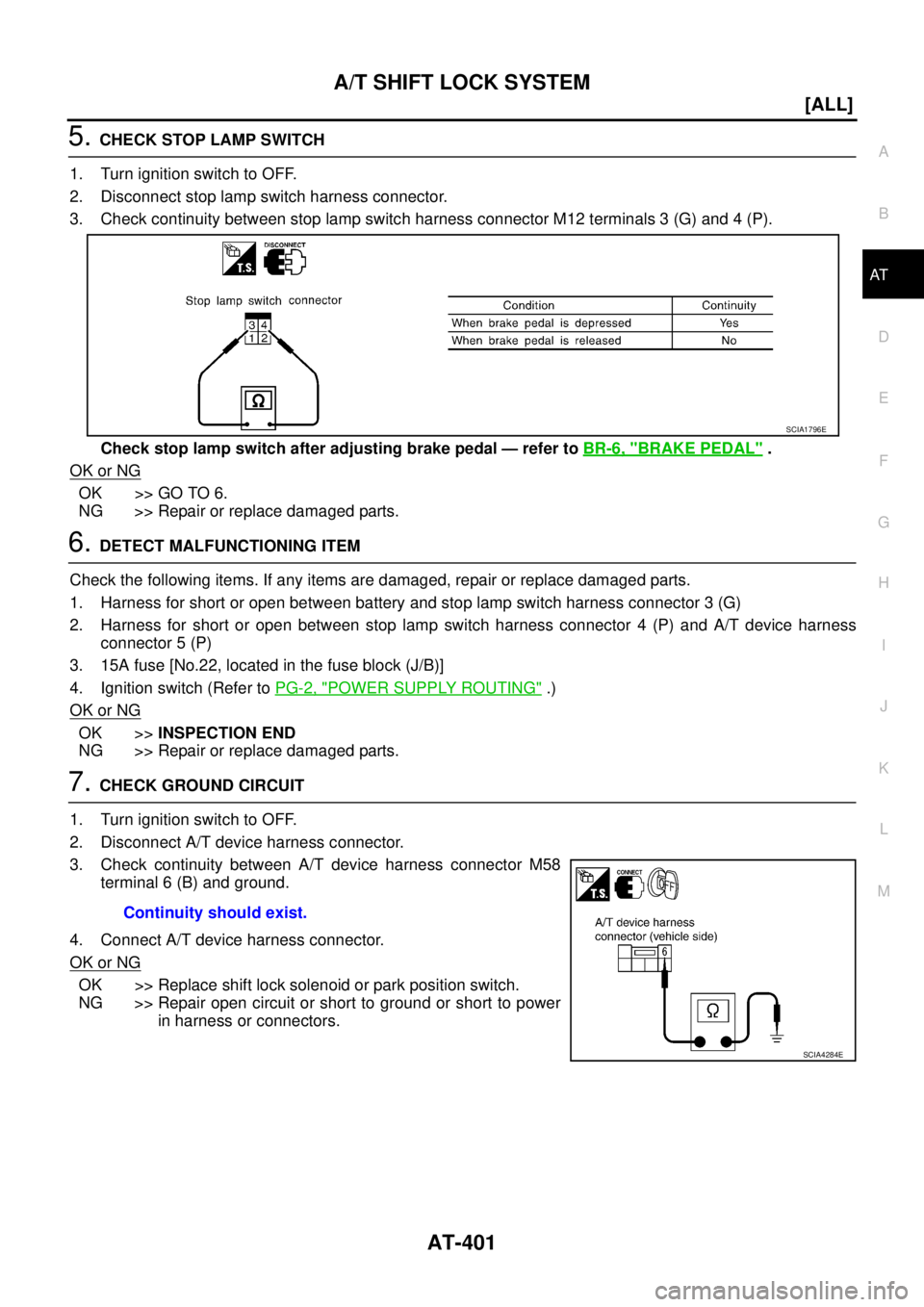

3. Check continuity between stop lamp switch harness connector M12 terminals 3 (G) and 4 (P).
Check stop lamp switch after adjusting brake pedal — refer to BR-6, "
BRAKE PEDAL" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. DETECT MALFUNCTIONING ITEM
Check the following items. If any items are damaged, repair or replace damaged parts.
1. Harness for short or open between battery and stop lamp switch harness connector 3 (G)
2. Harness for short or open between stop lamp switch harness connector 4 (P) and A/T device harness
connector 5 (P)
3. 15A fuse [No.22, located in the fuse block (J/B)]
4. Ignition switch (Refer to PG-2, "
POWER SUPPLY ROUTING" .)
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
7. CHECK GROUND CIRCUIT
1. Turn ignition switch to OFF.
2. Disconnect A/T device harness connector.
3. Check continuity between A/T device harness connector M58
terminal 6 (B) and ground.
4. Connect A/T device harness connector.
OK or NG
OK >> Replace shift lock solenoid or park position switch.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
SCIA1796E
Continuity should exist.
SCIA4284E

AT-402
[ALL]
KEY INTERLOCK CABLE

KEY INTERLOCK CABLEPFP:34908
ComponentsECS00409
CAUTION:

Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or inter-
ference with adjacent parts.

After installing key interlock cable to control device, make sure that casing cap and bracket are
firmly secured in their positions.
RemovalECS0040A

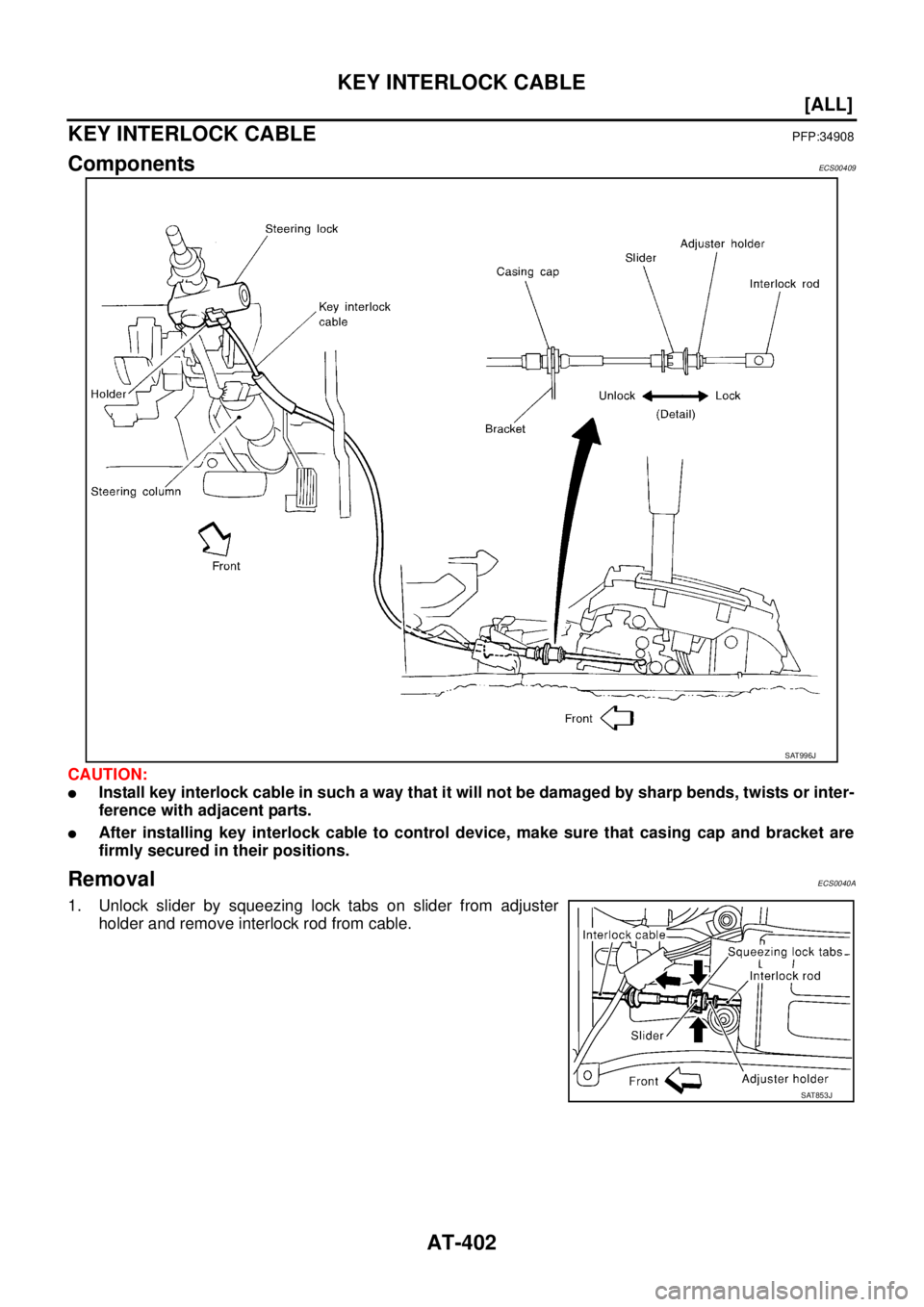

1. Unlock slider by squeezing lock tabs on slider from adjuster
holder and remove interlock rod from cable.
SAT996J
SAT853J

KEY INTERLOCK CABLE
AT-403
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

2. Remove lock plate from steering lock assembly and remove key
interlock cable.
InstallationECS0040B

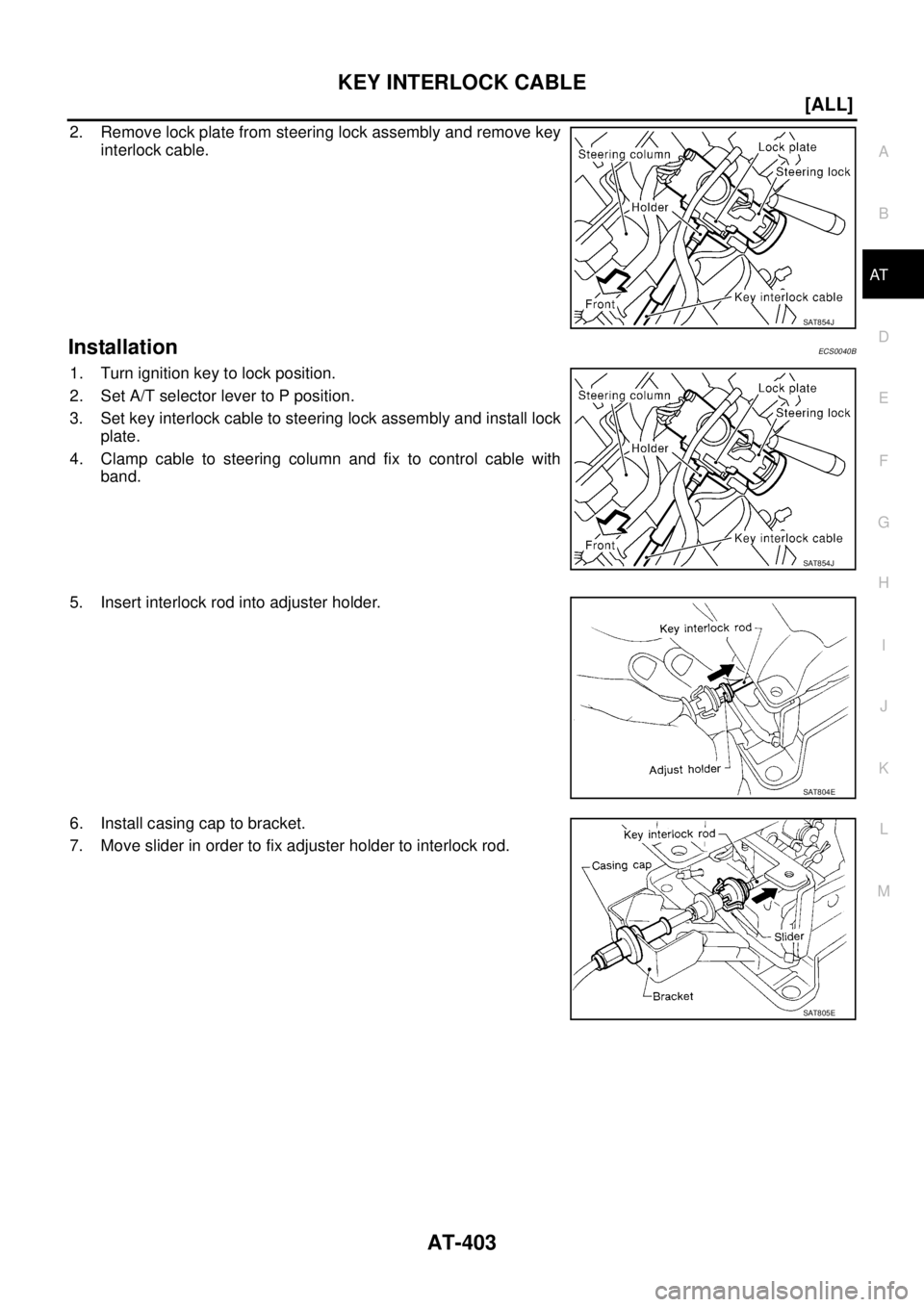

1. Turn ignition key to lock position.
2. Set A/T selector lever to P position.
3. Set key interlock cable to steering lock assembly and install lock
plate.
4. Clamp cable to steering column and fix to control cable with
band.
5. Insert interlock rod into adjuster holder.
6. Install casing cap to bracket.
7. Move slider in order to fix adjuster holder to interlock rod.
SAT854J
SAT854J
SAT804E
SAT805E

AT-404
[ALL]
ON-VEHICLE SERVICE

ON-VEHICLE SERVICEPFP:00000
Control Valve Assembly and AccumulatorsECS0040C
COMPONENTS

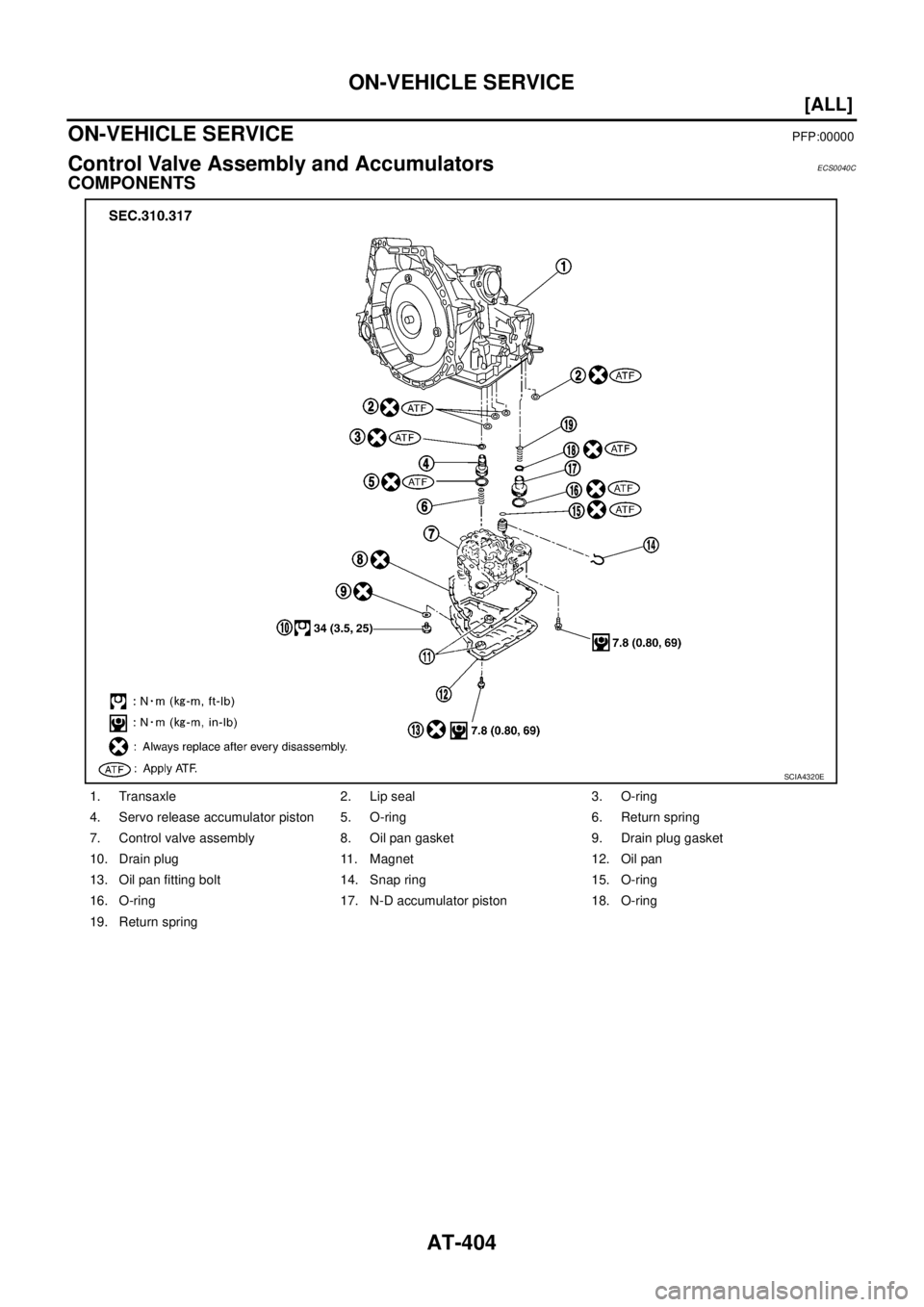

1. Transaxle 2. Lip seal 3. O-ring
4. Servo release accumulator piston 5. O-ring 6. Return spring
7. Control valve assembly 8. Oil pan gasket 9. Drain plug gasket
10. Drain plug 11. Magnet 12. Oil pan
13. Oil pan fitting bolt 14. Snap ring 15. O-ring
16. O-ring 17. N-D accumulator piston 18. O-ring
19. Return spring
SCIA4320E

ON-VEHICLE SERVICE
AT-405
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

REMOVAL AND INSTALLATION
Removal
1. Disconnect negative battery terminal.

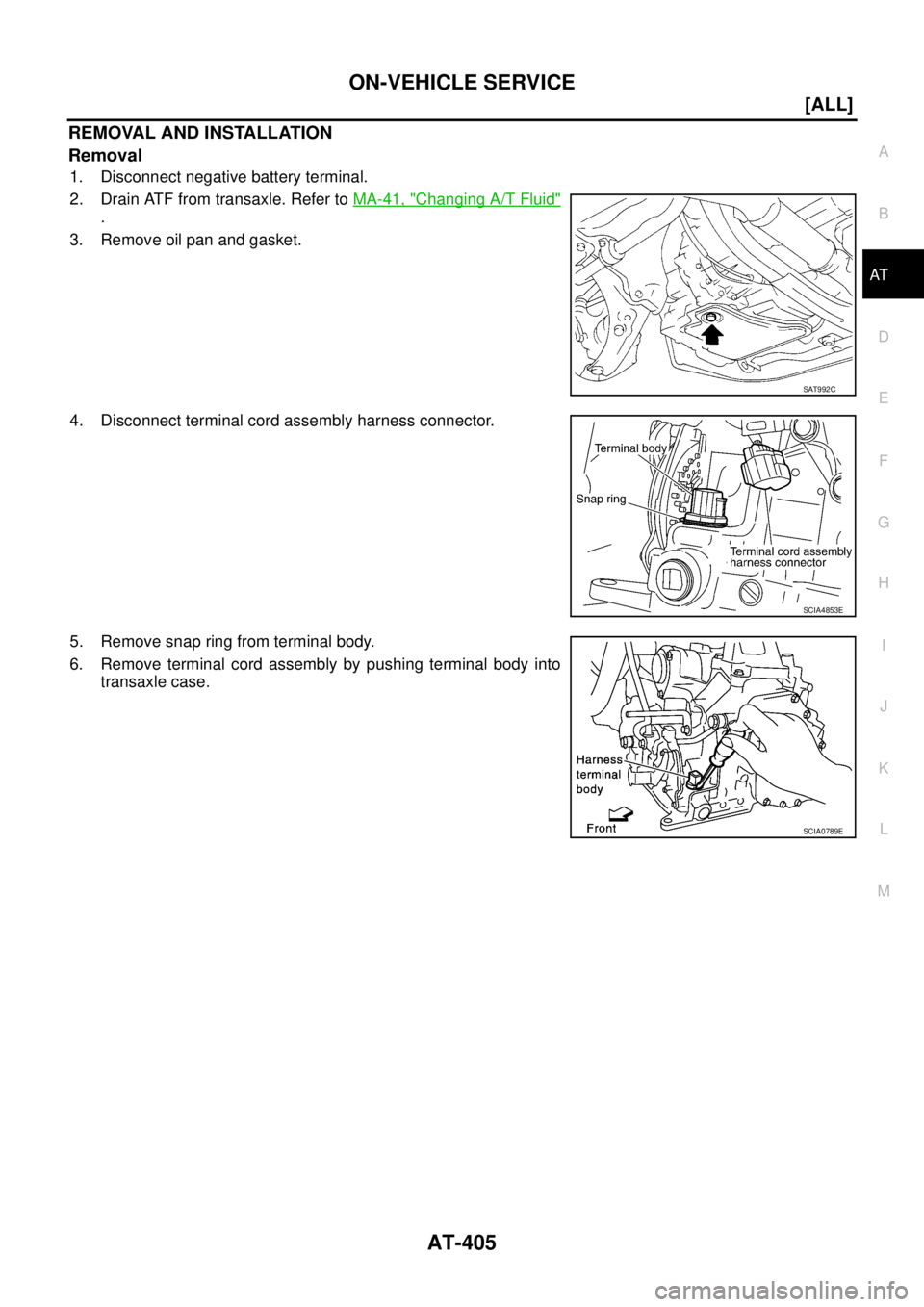

2. Drain ATF from transaxle. Refer to MA-41, "
Changing A/T Fluid"
.
3. Remove oil pan and gasket.
4. Disconnect terminal cord assembly harness connector.
5. Remove snap ring from terminal body.
6. Remove terminal cord assembly by pushing terminal body into
transaxle case.
SAT992C
SCIA4853E
SCIA0789E

AT-406
[ALL]
ON-VEHICLE SERVICE

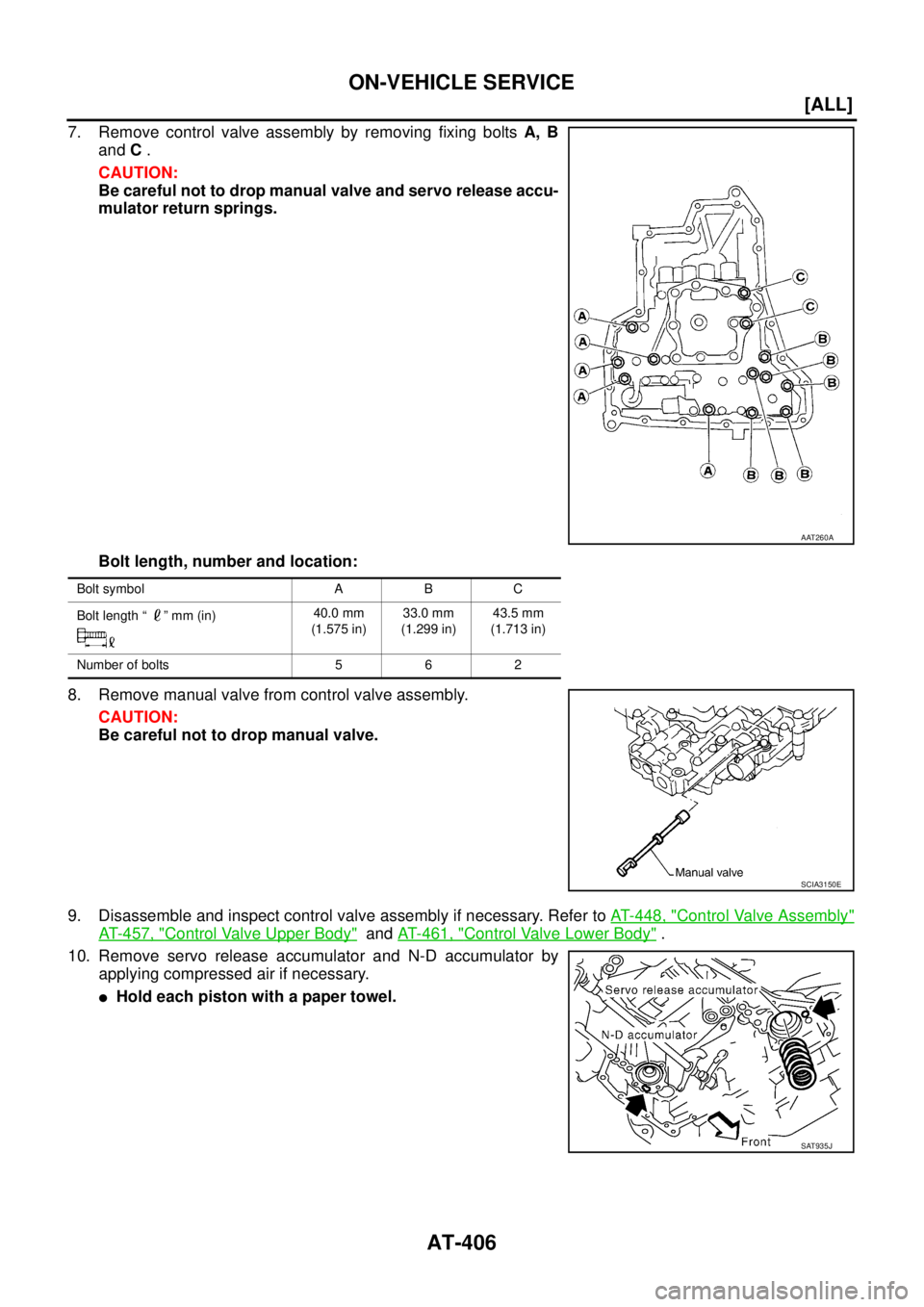

7. Remove control valve assembly by removing fixing bolts A, B
and C .
CAUTION:
Be careful not to drop manual valve and servo release accu-
mulator return springs.
Bolt length, number and location:
8. Remove manual valve from control valve assembly.
CAUTION:
Be careful not to drop manual valve.
9. Disassemble and inspect control valve assembly if necessary. Refer to AT- 4 4 8 , "
Control Valve Assembly"
AT- 4 5 7 , "Control Valve Upper Body" and AT- 4 6 1 , "Control Valve Lower Body" .
10. Remove servo release accumulator and N-D accumulator by
applying compressed air if necessary.

Hold each piston with a paper towel.
AAT260A
Bolt symbol A B C
Bolt length “ ” mm (in)40.0 mm
(1.575 in)33.0 mm
(1.299 in)43.5 mm
(1.713 in)
Number of bolts 5 6 2
SCIA3150E
SAT935J
