NISSAN X-TRAIL 2005 Service Repair Manual

SEAT BELTS
SB-3
C
D
E
F
G
I
J
K
L
MA
B
SB

SEAT BELTSPFP:86884
Removal and Installation of Front Seat BeltEHS0005W
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.
REMOVAL
1. Remove adjuster cover.
2. Remove shoulder anchor bolt.
3. Slide the floor anchor cover.
4. Remove floor anchor bolt.
5. Remove pre-tensioner seat belt retractor fixing screws to remove seat belt assembly.
6. Remove front seat. Refer to SE-26, "
Removal and Installation" .
7. Remove screw, and remove seat cushion inner finisher.
8. Remove anchor bolt to remove seat belt buckle.
INSTALLATION
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.
Install in the reverse order of removal.
SHIA0243E
SHIA0244E

SB-4
SEAT BELTS

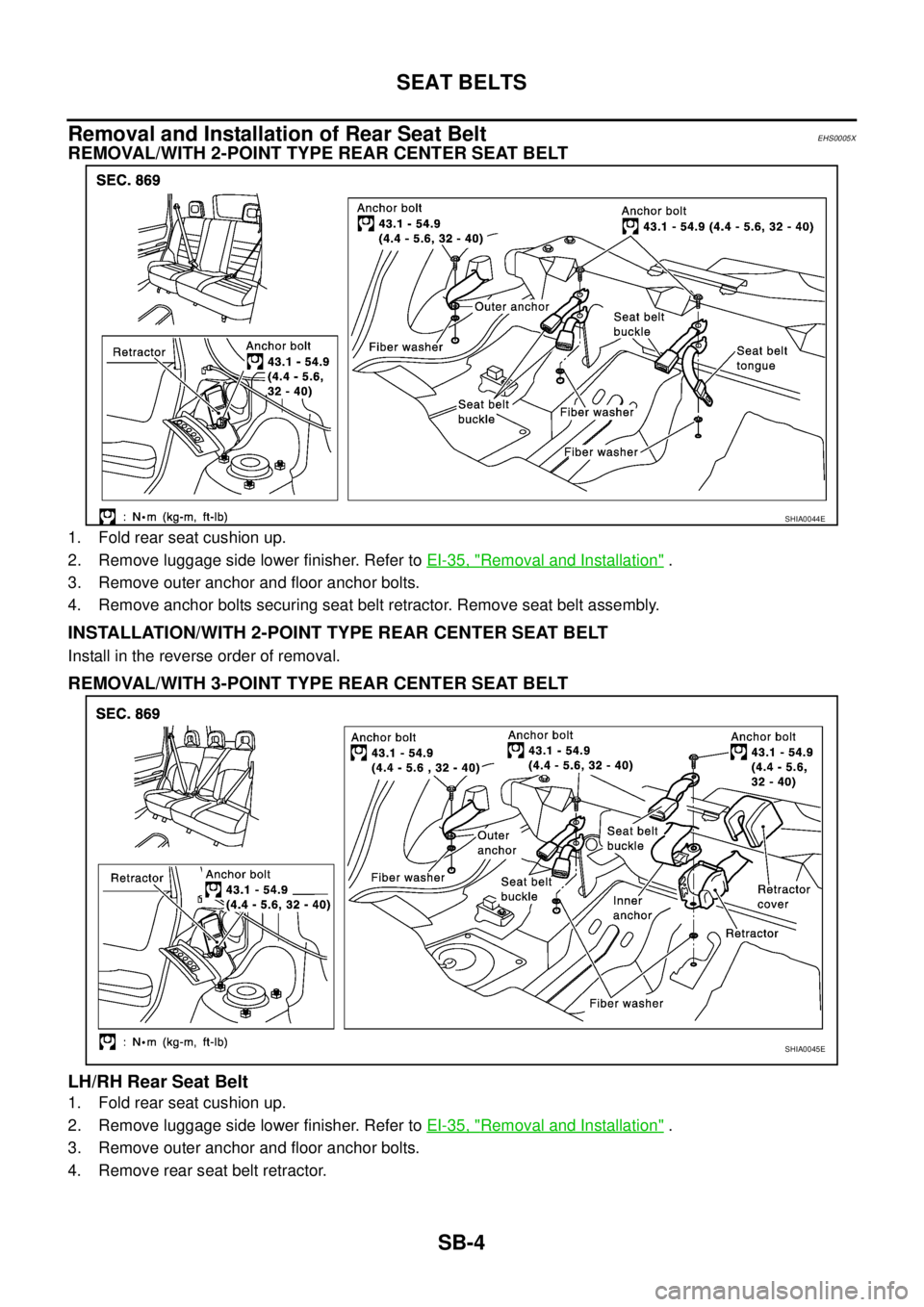

Removal and Installation of Rear Seat BeltEHS0005X
REMOVAL/WITH 2-POINT TYPE REAR CENTER SEAT BELT
1. Fold rear seat cushion up.
2. Remove luggage side lower finisher. Refer to EI-35, "
Removal and Installation" .
3. Remove outer anchor and floor anchor bolts.
4. Remove anchor bolts securing seat belt retractor. Remove seat belt assembly.
INSTALLATION/WITH 2-POINT TYPE REAR CENTER SEAT BELT
Install in the reverse order of removal.
REMOVAL/WITH 3-POINT TYPE REAR CENTER SEAT BELT
LH/RH Rear Seat Belt
1. Fold rear seat cushion up.
2. Remove luggage side lower finisher. Refer to EI-35, "
Removal and Installation" .
3. Remove outer anchor and floor anchor bolts.
4. Remove rear seat belt retractor.
SHIA0044E
SHIA0045E

SEAT BELTS
SB-5
C
D
E
F
G
I
J
K
L
MA
B
SB

Center Rear Seat Belt
1. Fold rear seat cushion up.
2. Remove seat belt retractor cover.
3. Remove anchor bolts securing center seat belt retractor.
4. Remove rear seatback. Refer to SE-34, "
SEATBACK" .
5. Remove rear seatback board.
6. Remove hog ring securing upper portion of rear seatback trim.
7. Remove rear seat belt guide.
8. Remove screws securing rear seat belt.
9. Remove rear center seat belt assembly from rear seatback.
INSTALLATION /WITH 3-POINT TYPE REAR CENTER SEAT BELT
Install in the reverse order of removal.
SHIA0050E
SHIA0049E

SB-6
SEAT BELT WARNING SYSTEM

SEAT BELT WARNING SYSTEMPFP:25045

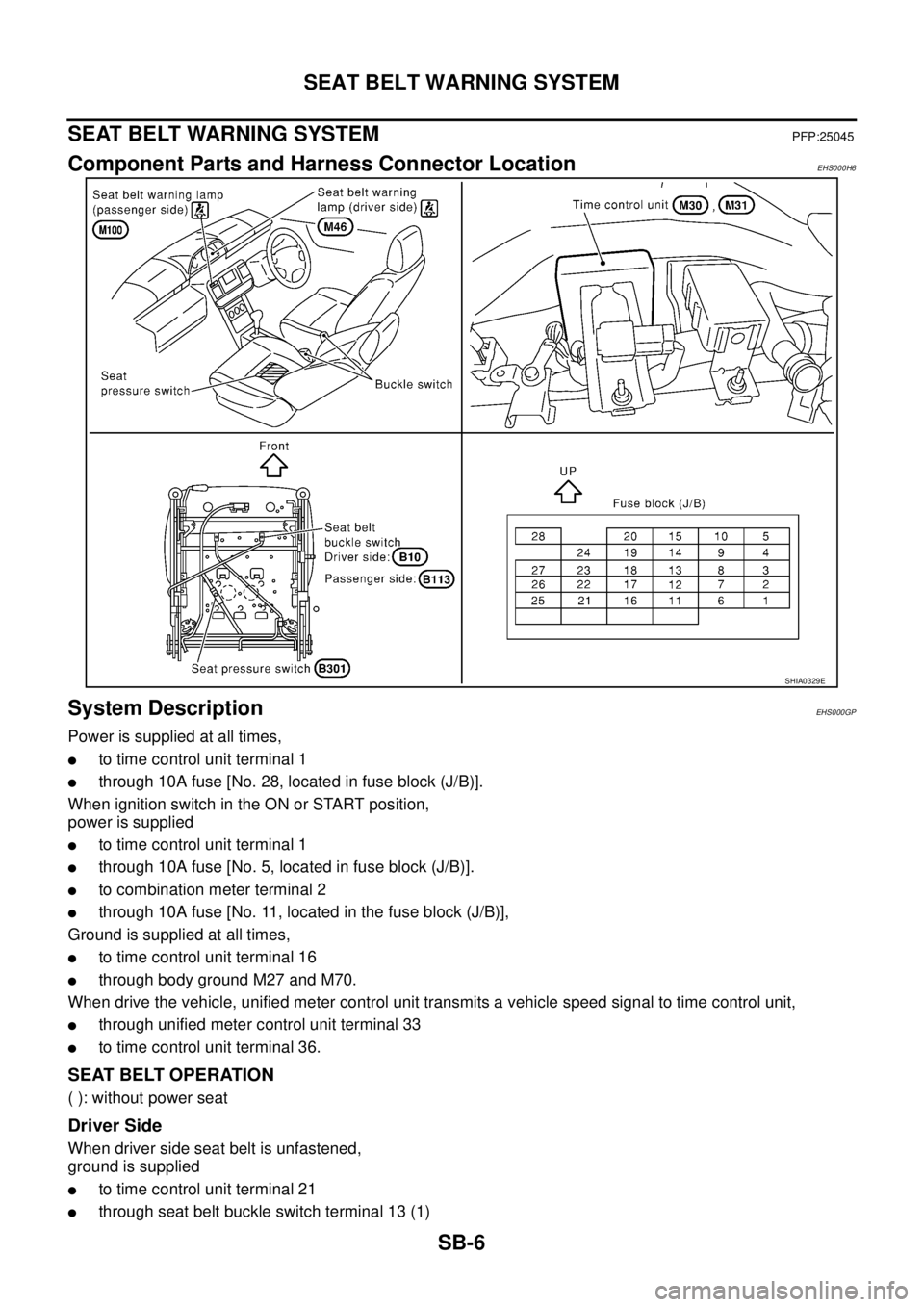

Component Parts and Harness Connector LocationEHS000H6
System DescriptionEHS000GP
Power is supplied at all times,

to time control unit terminal 1

through 10A fuse [No. 28, located in fuse block (J/B)].
When ignition switch in the ON or START position,
power is supplied

to time control unit terminal 1

through 10A fuse [No. 5, located in fuse block (J/B)].

to combination meter terminal 2

through 10A fuse [No. 11, located in the fuse block (J/B)],
Ground is supplied at all times,

to time control unit terminal 16

through body ground M27 and M70.
When drive the vehicle, unified meter control unit transmits a vehicle speed signal to time control unit,

through unified meter control unit terminal 33

to time control unit terminal 36.
SEAT BELT OPERATION
( ): without power seat
Driver Side
When driver side seat belt is unfastened,
ground is supplied

to time control unit terminal 21

through seat belt buckle switch terminal 13 (1)
SHIA0329E

SEAT BELT WARNING SYSTEM
SB-7
C
D
E
F
G
I
J
K
L
MA
B
SB


through seat belt buckle switch terminal 14 (2)

through body ground B8 and B18.
Then time control unit recognizes the driver seat belt buckle switch signal.
Passenger Side
When passenger side belt is unfastened and occupant is sitting,
ground is supplied

to time control unit terminal 22

through seat belt buckle switch terminal 13 (1)

through seat pressure switch terminal 3

through seat pressure switch terminal 4

through body ground B107 and B119.
Then time control unit recognizes the passenger seat belt buckle switch signal.
SEAT BELT WARNING CHIME AND SEAT BELT WARNING LAMP
Driver side
When the vehicle speed exceeds 25 km/h (16 MPH) with front driver side seat belt unfastened (seat belt
switch ON), warning chime will sound for approximately 90 seconds and seat belt warning lamp is flashed.
If the seat belt are fastened, then unfastened again, warning chime will sound and seat belt warning lamp is
flashed.
Passenger side
When the vehicle speed exceeds 25 km/h (16 MPH) with front passenger side seat belt unfastened (seat belt
switch ON) and occupant is sitting (seat pressure switch is ON), warning chime will sound for approximately
90 seconds and seat belt warning lamp is flashed.
If the seat belt are fastened, then unfastened again, warning chime will sound and warning lamp is flashed.
Time Chart for Seat Belt Warning Lamp and ChimeEHS000H5
PHIA0644E

SB-8
SEAT BELT WARNING SYSTEM

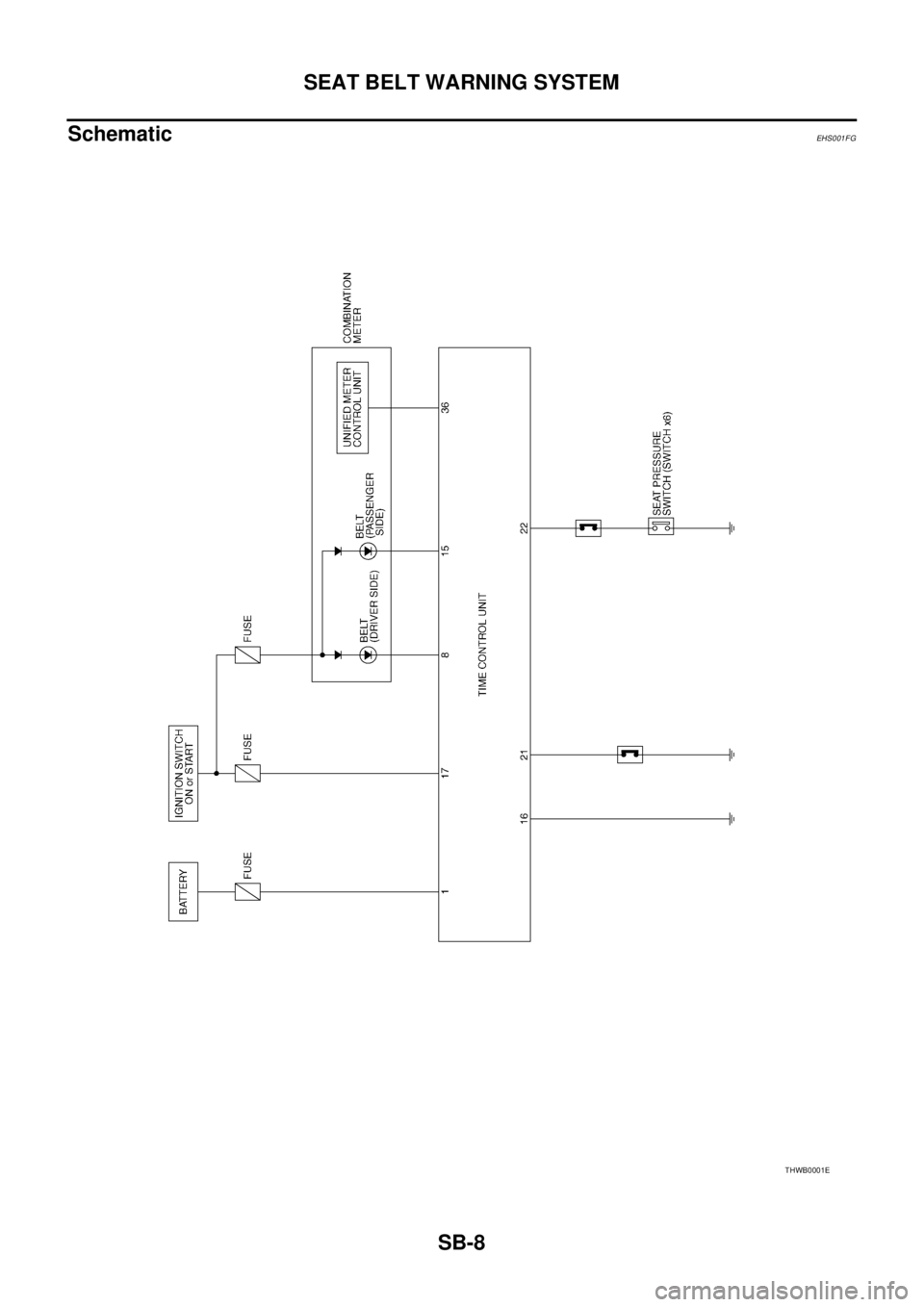

SchematicEHS001FG
THWB0001E

SEAT BELT WARNING SYSTEM
SB-9
C
D
E
F
G
I
J
K
L
MA
B
SB

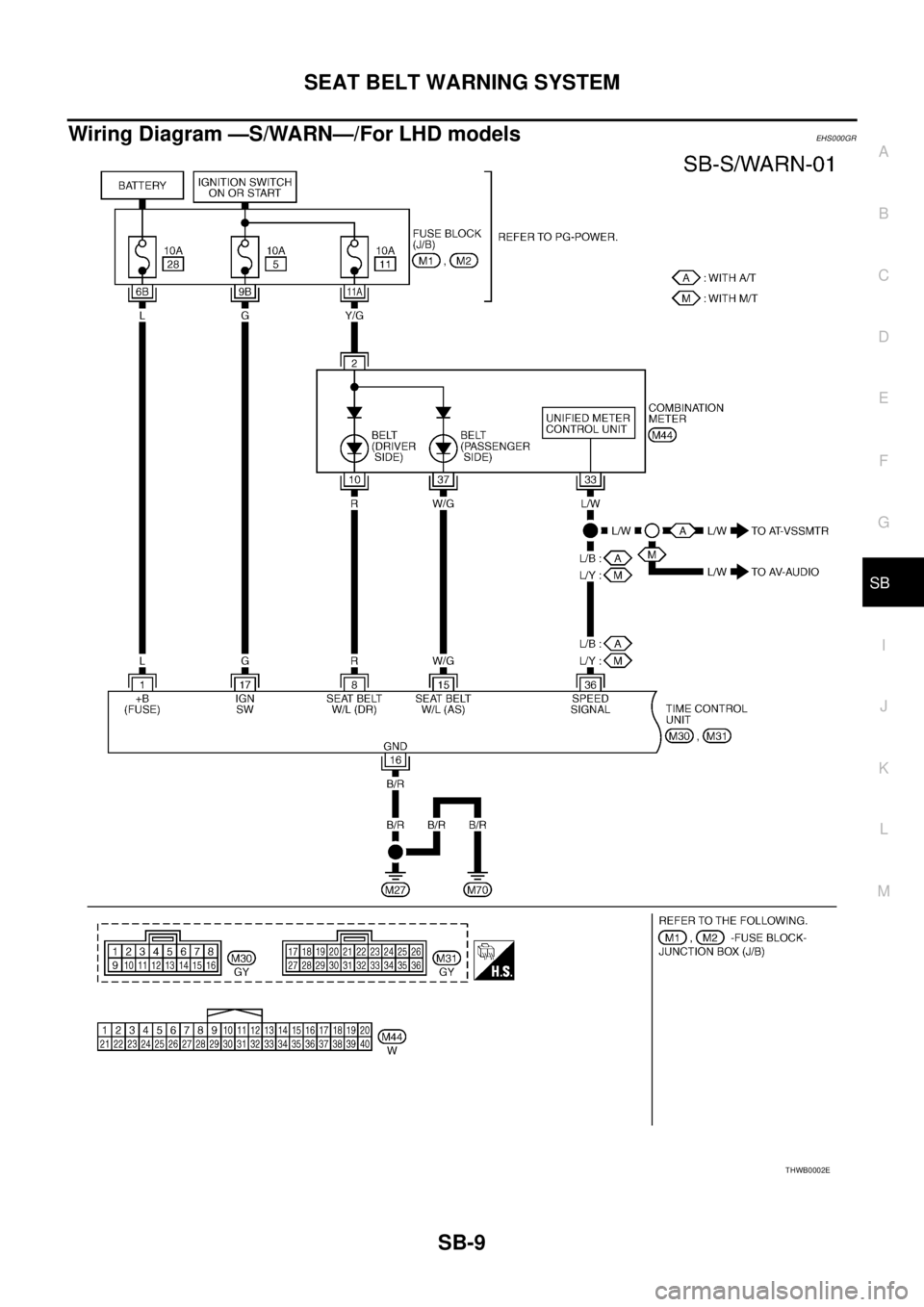

Wiring Diagram —S/WARN—/For LHD modelsEHS000GR

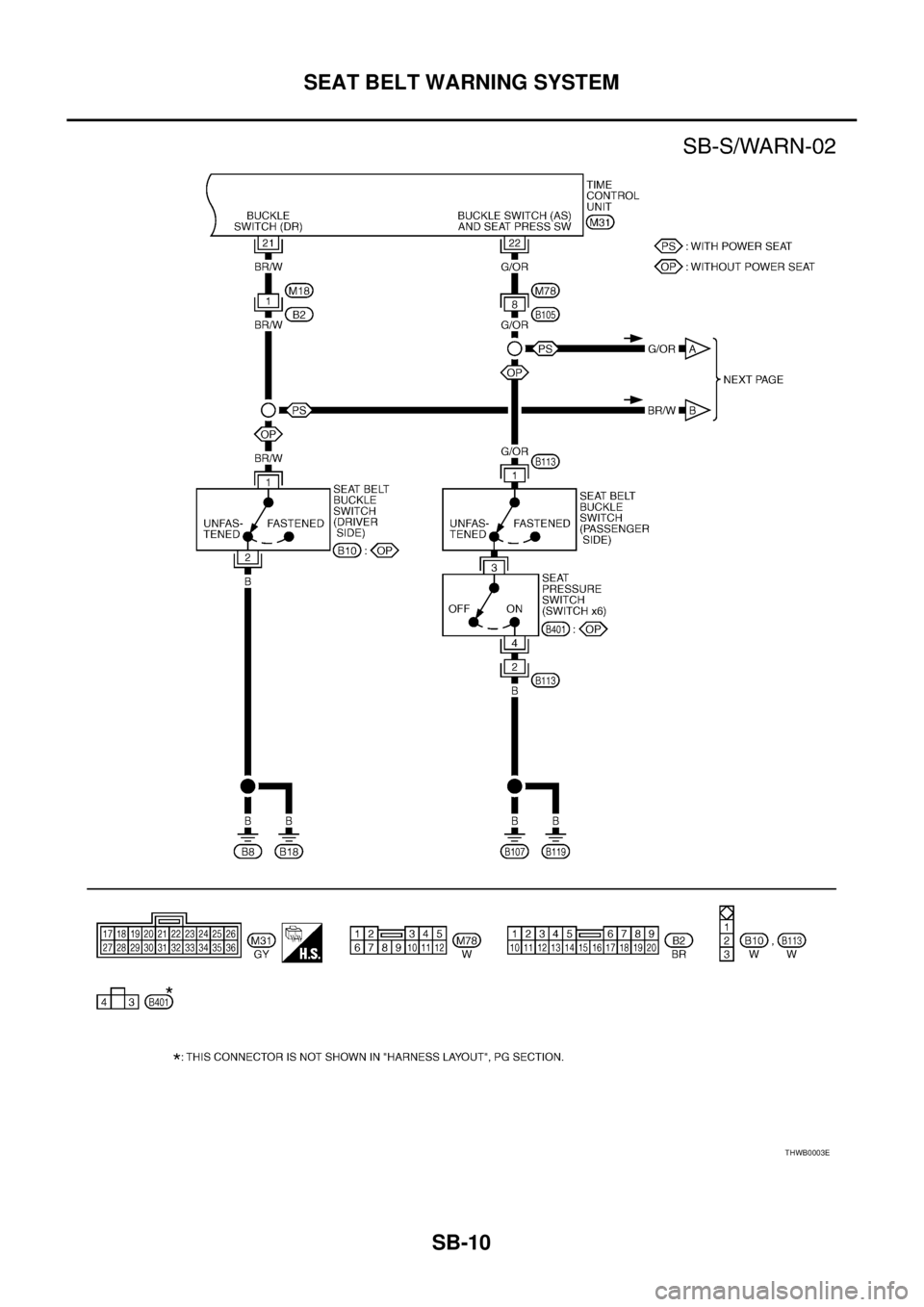

THWB0002E

SB-10
SEAT BELT WARNING SYSTEM

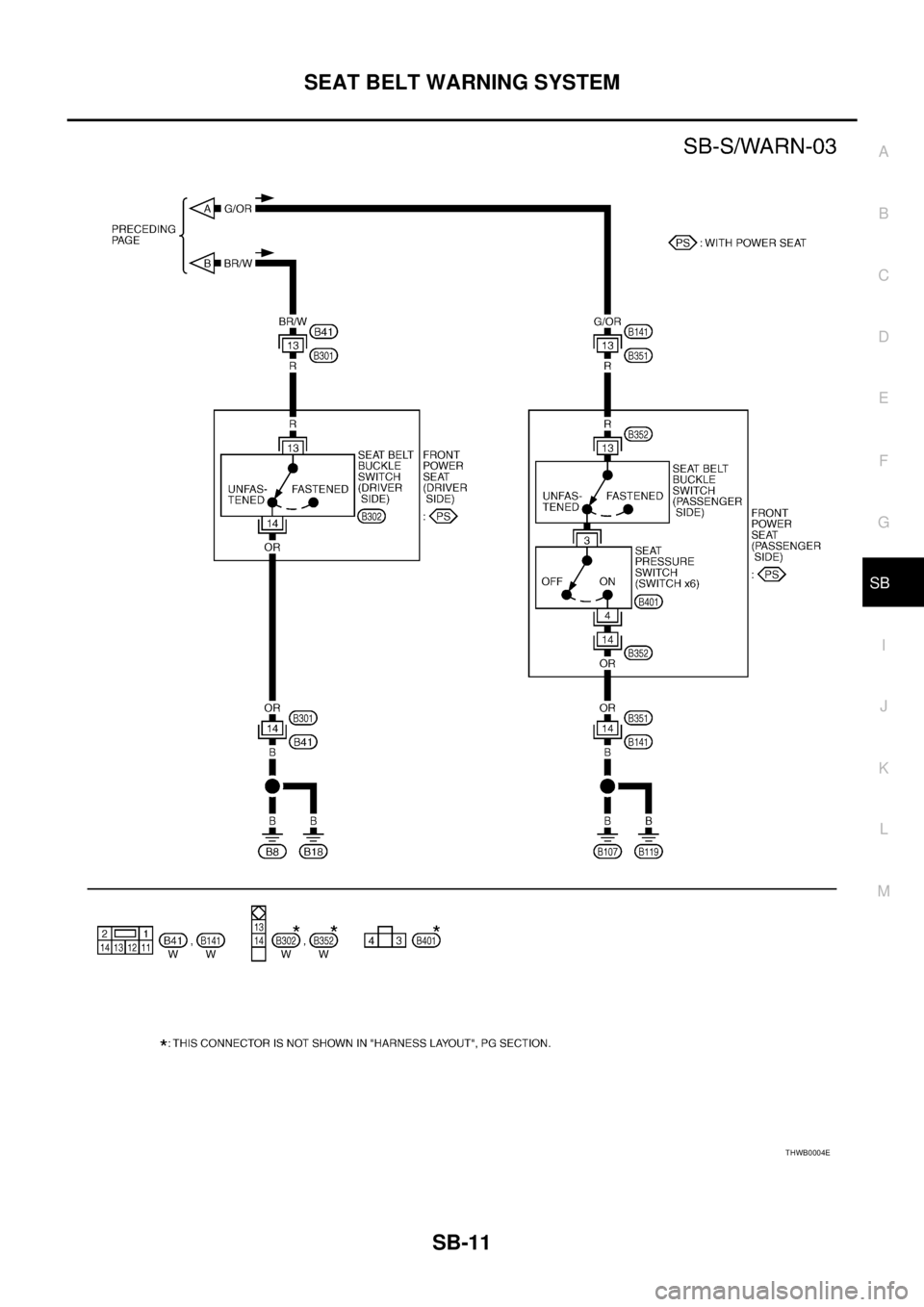

THWB0003E

SEAT BELT WARNING SYSTEM
SB-11
C
D
E
F
G
I
J
K
L
MA
B
SB

THWB0004E

SB-12
SEAT BELT WARNING SYSTEM

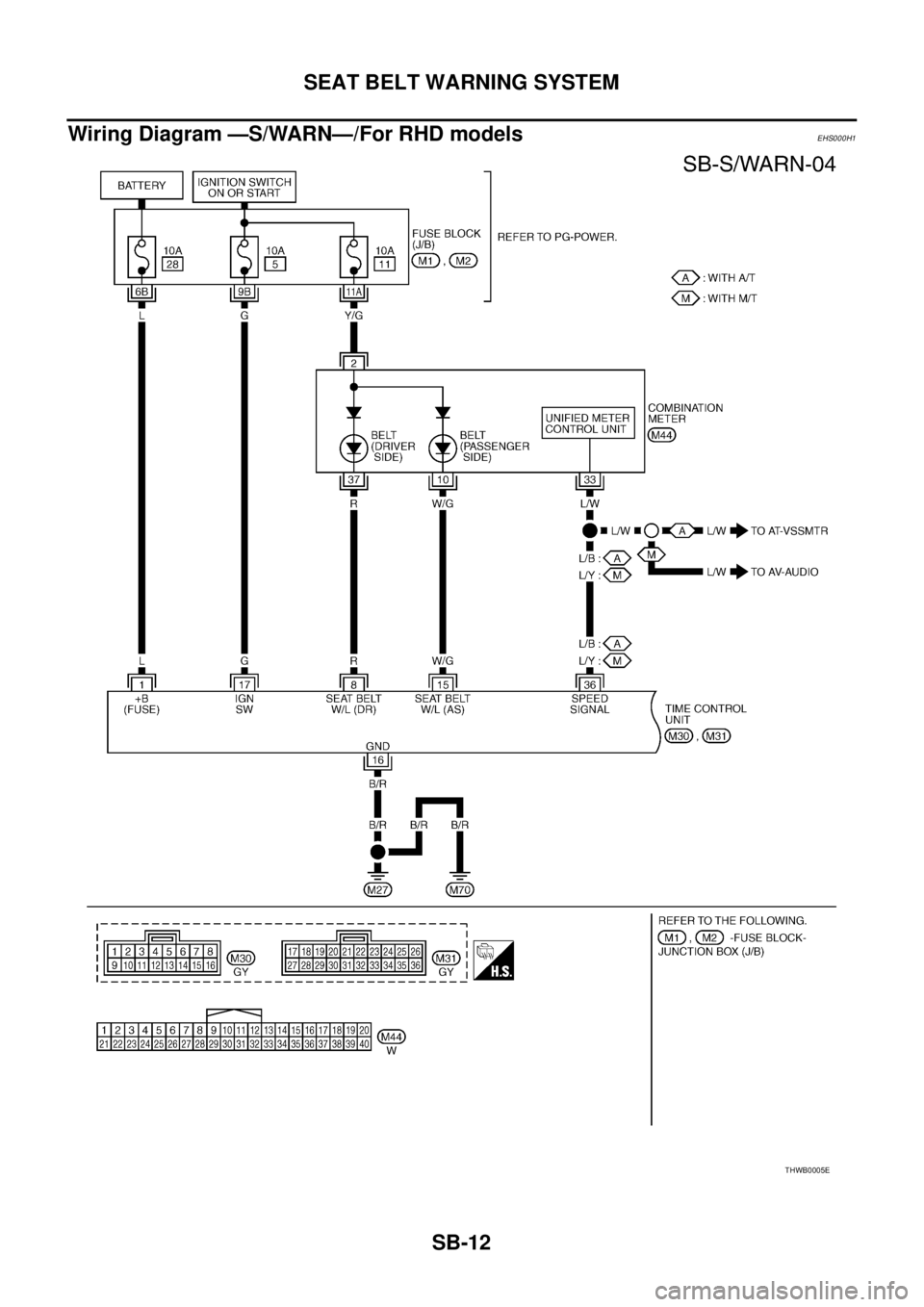

Wiring Diagram —S/WARN—/For RHD modelsEHS000H1
THWB0005E
