Removal and Installation of Front DoorEIS00A68
CAUTION:

When removing and installing the front door assembly, support the door with a jack and cloth to
protect the door and body.

When removing and installing front door assembly, be sure to carry out the fitting adjustment.

Operate with two workers, because of its heavy weight.

Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.

Check front door open/close operation after installation.
REMOVAL
1. Grommet is pulled out, and the front door harness connector is
detached.
2. Remove the mounting bolts of the check link on the vehicle.
3. Remove the door-side hinge mounting nuts, and remove the
door assembly.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of Rear DoorEIS00A69
CAUTION:

When removing and installing the rear door assembly, support the door with a jack and cloth to
protect the door and body.

When removing and installing rear door assembly, be sure to carry out the fitting adjustment.

Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.

Operate with two workers, because of its heavy weight.

Check rear door open/close operation after installation.
PIIB1369E
PIIA6020E
: 20.6 N·m (2.1 kg-m, 15 ft-lb)
PIIB1337E

BL-20
DOOR

REMOVAL
1. Grommet is pulled out, and the Rear door harness connector is
detached.
2. Remove the mounting bolts of the check link on the vehicle.
3. Remove the door-side hinge mounting nuts, and remove the
door assembly.
INSTALLATION
Install in the reverse order of removal.
PIIB1370E
PIIA6022E
: 20.6 N·m (2.1 kg-m, 15 ft-lb)
PIIB1336E

DOOR
BL-21
C
D
E
F
G
H
J
K
L
MA
B
BL

Door WeatherstripEIS00A6A
REMOVAL
1. Remove the mounting bolts of the check link on the vehicle. Refer to BL-19, "Removal and Installation of
Front Door" or BL-19, "Removal and Installation of Rear Door" .
2. Remove the weatherstrip clips and remove weatherstrip.
CAUTION:
After removal, do not pull strongly on the weatherstrip.
INSTALLATION
Install in the reverse order of removal.
SIIA0157E

BL-22
POWER DOOR LOCK SYSTEM

POWER DOOR LOCK SYSTEMPFP:24814
System DescriptionEIS001SE
OPERATION
Power door lock/unlock operation by door key cylinder

With the key inserted into driver's door key cylinder, turning it to LOCK will lock all doors.

With the key inserted into driver's door key cylinder, turning it to UNLOCK will unlock all doors.
Power door lock/unlock operation by lock/unlock switch

With lock/unlock switch setting to LOCK will lock all doors.

With lock/unlock switch setting to UNLOCK will unlock all doors.
Key reminder system

If the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
knob, key or multi-remote controller to “LOCK” locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)
Component Parts and Harness Connector LocationEIS004DC
PIIA0584E

POWER DOOR LOCK SYSTEM
BL-23
C
D
E
F
G
H
J
K
L
MA
B
BL

SchematicEIS004DD
TIWA0003E

BL-24
POWER DOOR LOCK SYSTEM

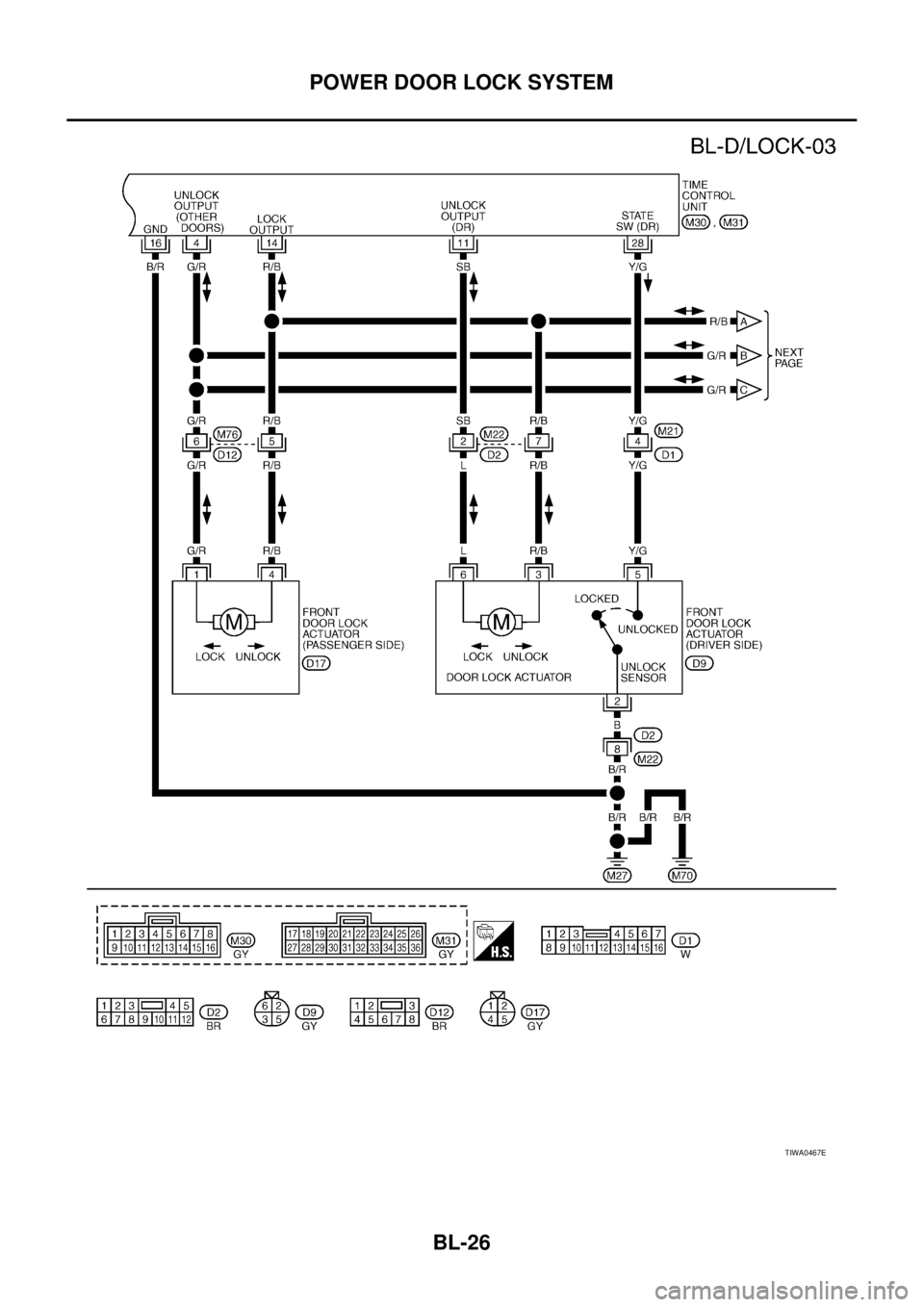

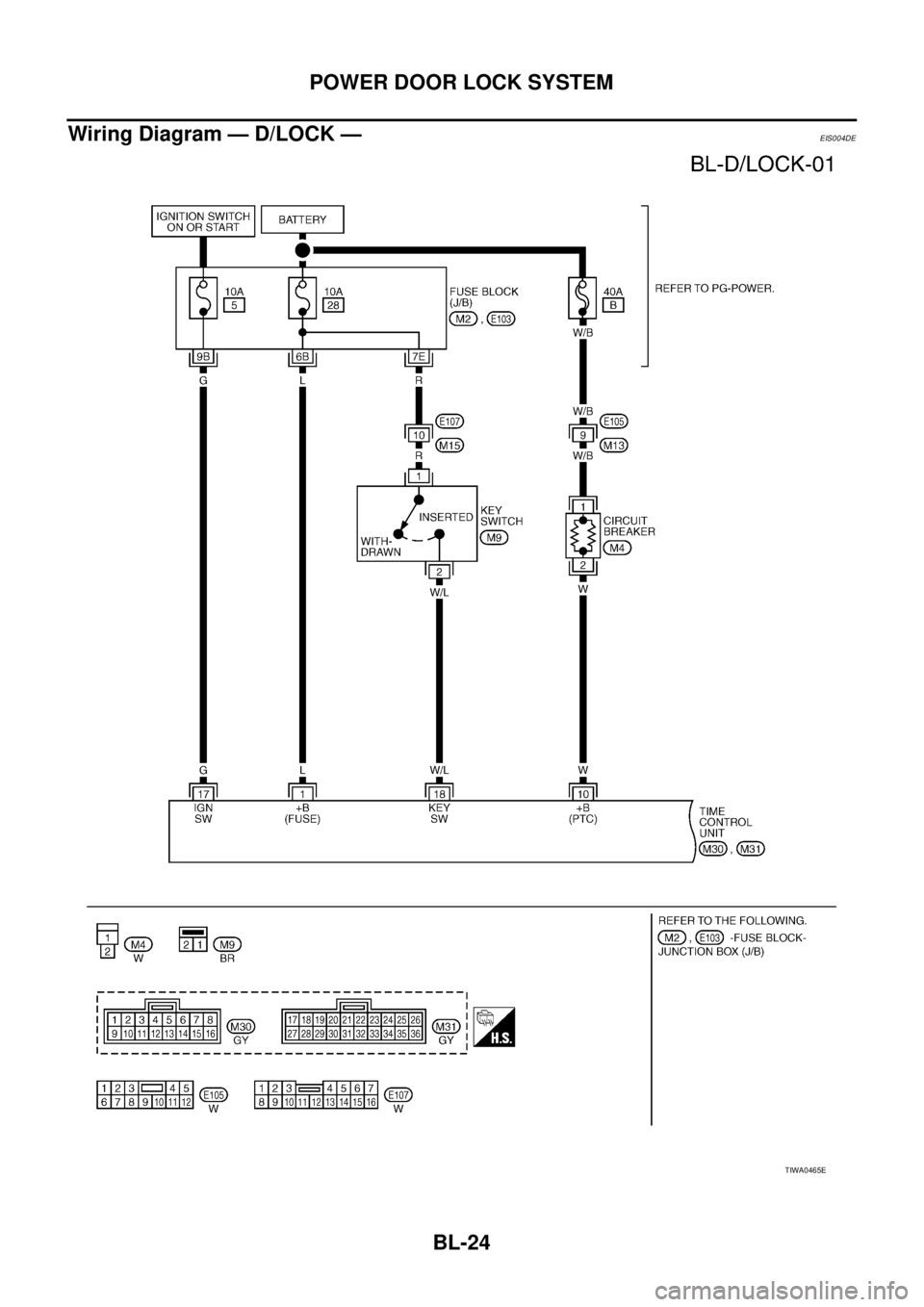

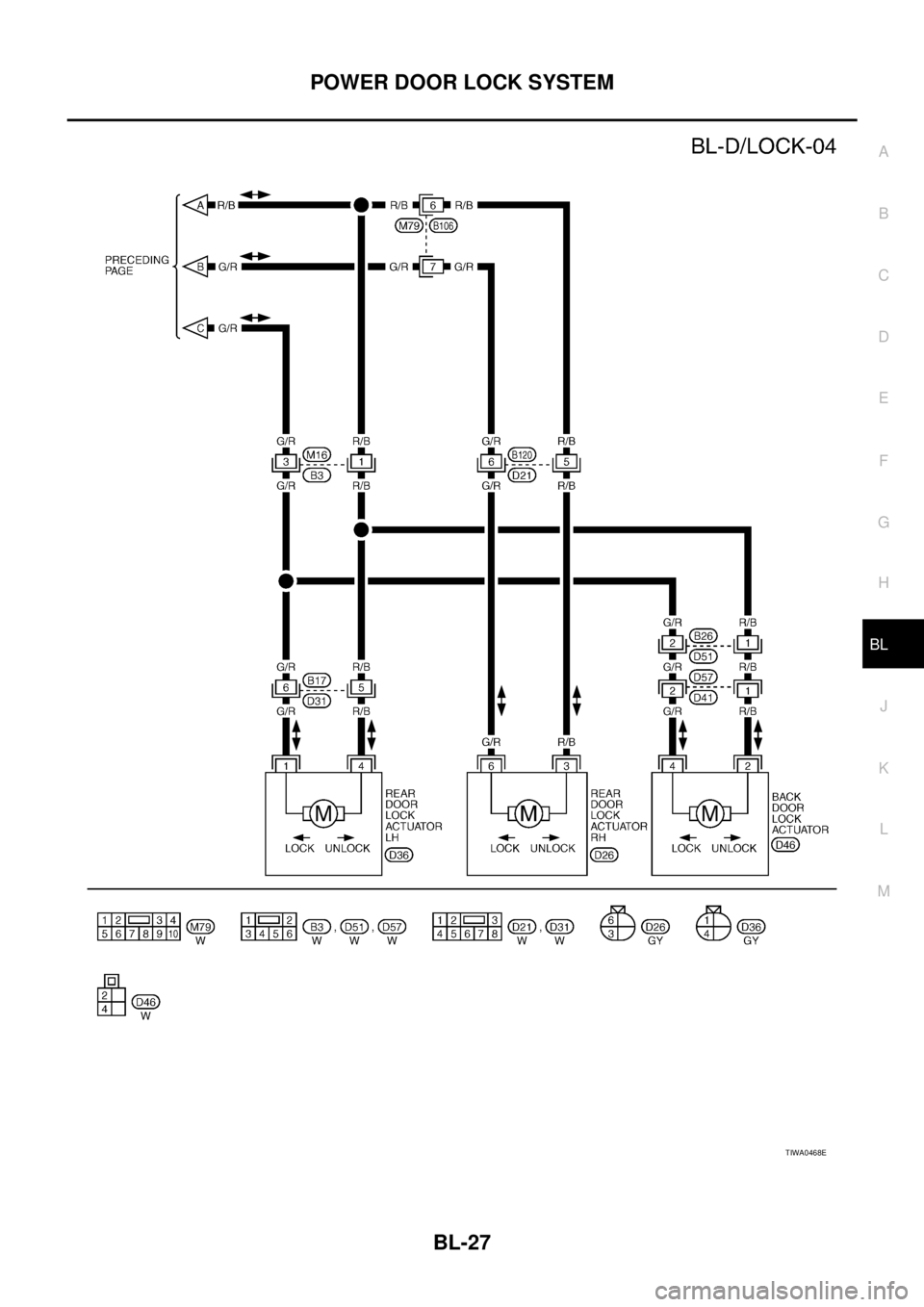

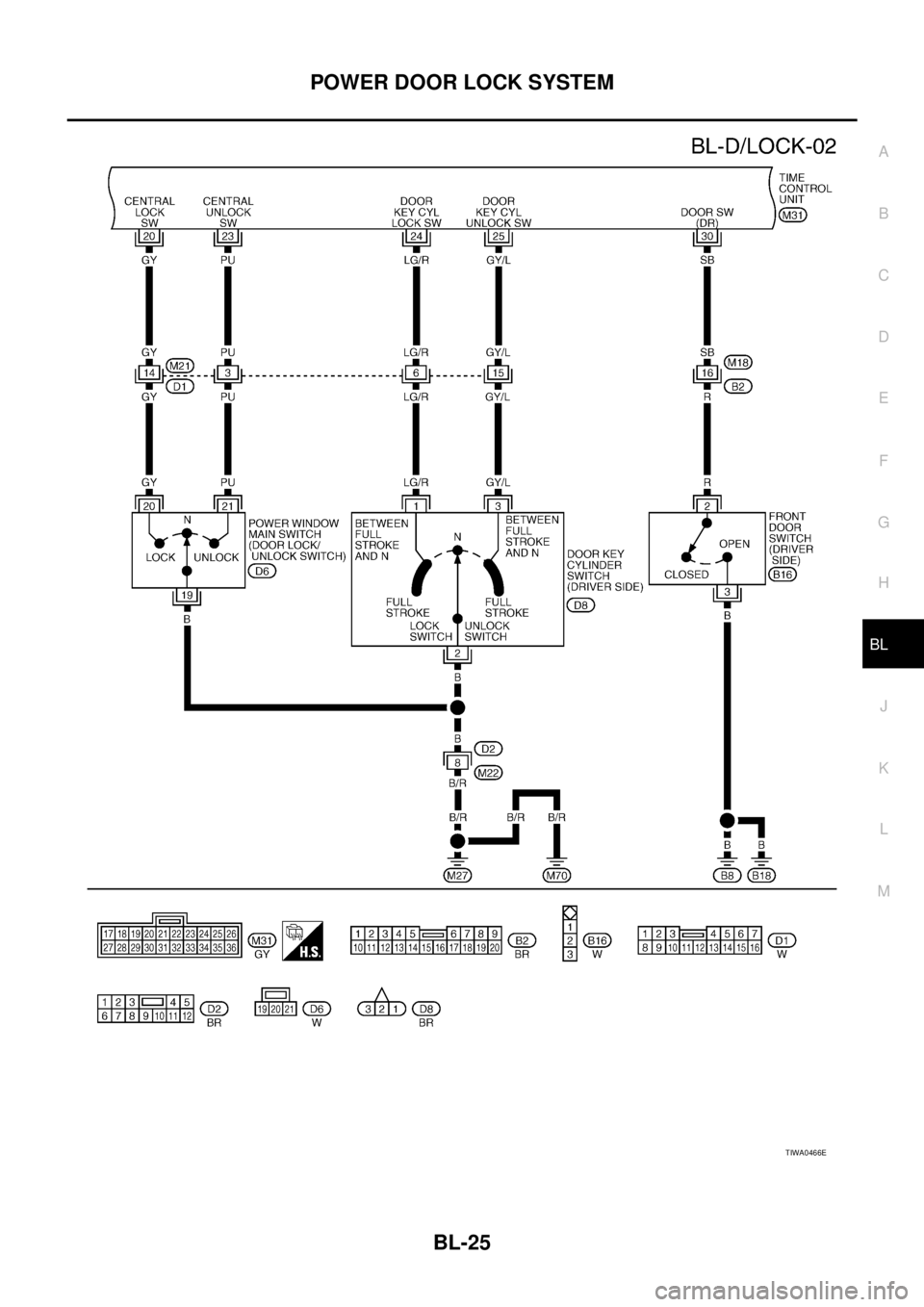

Wiring Diagram — D/LOCK —EIS004DE
TIWA0465E

POWER DOOR LOCK SYSTEM
BL-25
C
D
E
F
G
H
J
K
L
MA
B
BL

TIWA0466E

BL-26
POWER DOOR LOCK SYSTEM

TIWA0467E

POWER DOOR LOCK SYSTEM
BL-27
C
D
E
F
G
H
J
K
L
MA
B
BL

TIWA0468E

BL-28
POWER DOOR LOCK SYSTEM

Terminal and Reference Value for Time Control UnitEIS000KP
Te r -
minalWire
ColorItem ConditionVoltage [V]
(Approximate values)
1 L Power source (Fuse) — Battery voltage
4G/RPassenger and rear door lock
actuator unlockDoor lock/unlock switchFree 0
Unlock
10 W Power source (C/B) — Battery voltage
11 S BDriver door lock actuator
unlockDoor lock/unlock switchFree 0
Lock
14 R/B All door lock actuator lockDoor lock/unlock switch
Unlock operationFree 0
Lock
16 B/R Ground — 0
17 G Ignition switch (ON) — Battery voltage
18 W/L Key switchKey inserted (ON) → key removed from ignition
key cylinder (OFF)Battery voltage → 0
20 GYDoor lock/unlock switch lock
signalLock operation (ON) 0
Other than above (OFF) 5
23 PUDoor lock/unlock switch
unlock signalUnlock operation (ON) 0
Other than above (OFF) 5
24 LG/R Door key cylinder lock switch OFF (Neutral) → ON (Locked) 5 → 0
25 GY/LDoor key cylinder unlock
switchOFF (Neutral) → ON (Unlocked) 5 → 0
28 Y/GDoor unlock sensor
(driver side)Driver door: Locked → Unlocked 10 → 0
30 SBFront door switch
(driver side)Door open (ON) → close (OFF) 0 →5
SKIA9232E
SKIA9232E
