HEADLAMP - CONVENTIONAL TYPE -PFP:26010
System Description EKS00N57
DESCRIPTION
The headlamps are controlled by the lighting switch which is built in the combination switch.
Power is supplied at all times

through 15A fuse (No. 40, located in fuse and fusible link box)

to lighting switch terminal 8,

through 15A fuse (No. 41, located in fuse and fusible link box)

to lighting switch terminal 5,

through 15A fuse (No. 38, located in fuse and fusible link box)

to driving lamp relay-1 terminal 3.
LOW BEAM OPERATION
When the lighting switch is turned to the 2ND position, power is supplied

through lighting switch terminal 10

to headlamp LH terminal 3,

through lighting switch terminal 7

to headlamp RH terminal 3.
Ground is supplied

to headlamp LH and RH terminal 2

through grounds E24 and E50.
With power and ground supplied, low beam headlamps illuminate.
HIGH BEAM OPERATION/FLASH-TO-PASS OPERATION
When the lighting switch is turned to the 2ND position and placed in HIGH BEAM position or PASSING posi-
tion, power is supplied

through lighting switch terminal 9

to headlamp LH terminal 1, and

to combination meter terminal 20,

through lighting switch terminal 6

to headlamp RH terminal 1.
Ground is supplied

to headlamp LH and RH terminal 2

through grounds E24 and E50,

to combination meter terminal 19

through grounds M27 and M70.
With power and ground supplied, high beam headlamps and HIGH BEAM indicator illuminate.
DRIVING LAMP OPERATION
To illuminate the driving lamp, push the driving lamp switch when the lighting switch is turned to the 2ND posi-
tion and placed in HIGH BEAM position or PASSING position, power is supplied

through lighting switch terminal 9

to headlamp LH terminal 1

to combination meter terminal 20

to driving lamp relay-1 terminal 1

to driving lamp switch terminal 7, and

to driving lamp relay-2 terminal 5,

through driving lamp relay-2 terminal 3

to driving lamp switch terminal 6,

through driving lamp relay-1 terminal 5

to driving lamp LH and RH terminal 2,

LT-26
HEADLAMP - CONVENTIONAL TYPE -


through lighting switch terminal 6

to headlamp RH terminal 1.
Ground is supplied

to driving lamp relay-1 terminal 2

through driving lamp relay-2 terminal 7

through driving lamp relay-2 terminal 6

through grounds E24 and E50,

to driving lamp switch terminal 4

through driving lamp relay-2 terminal 1

through driving lamp relay-2 terminal 2

through grounds E24 and E50,

to driving lamp LH terminal 1

through ground R8,

to driving lamp RH terminals 1 and 3

through ground R8,

to headlamp LH and RH terminal 2

through grounds E24 and E50,

to combination meter terminal 19

through grounds M27 and M70.
With power and ground supplied, high beams headlamp, driving lamp and the HIGH BEAM indicator illumi-
nate.

HEADLAMP - CONVENTIONAL TYPE -
LT-27
C
D
E
F
G
H
I
J
L
MA
B
LT

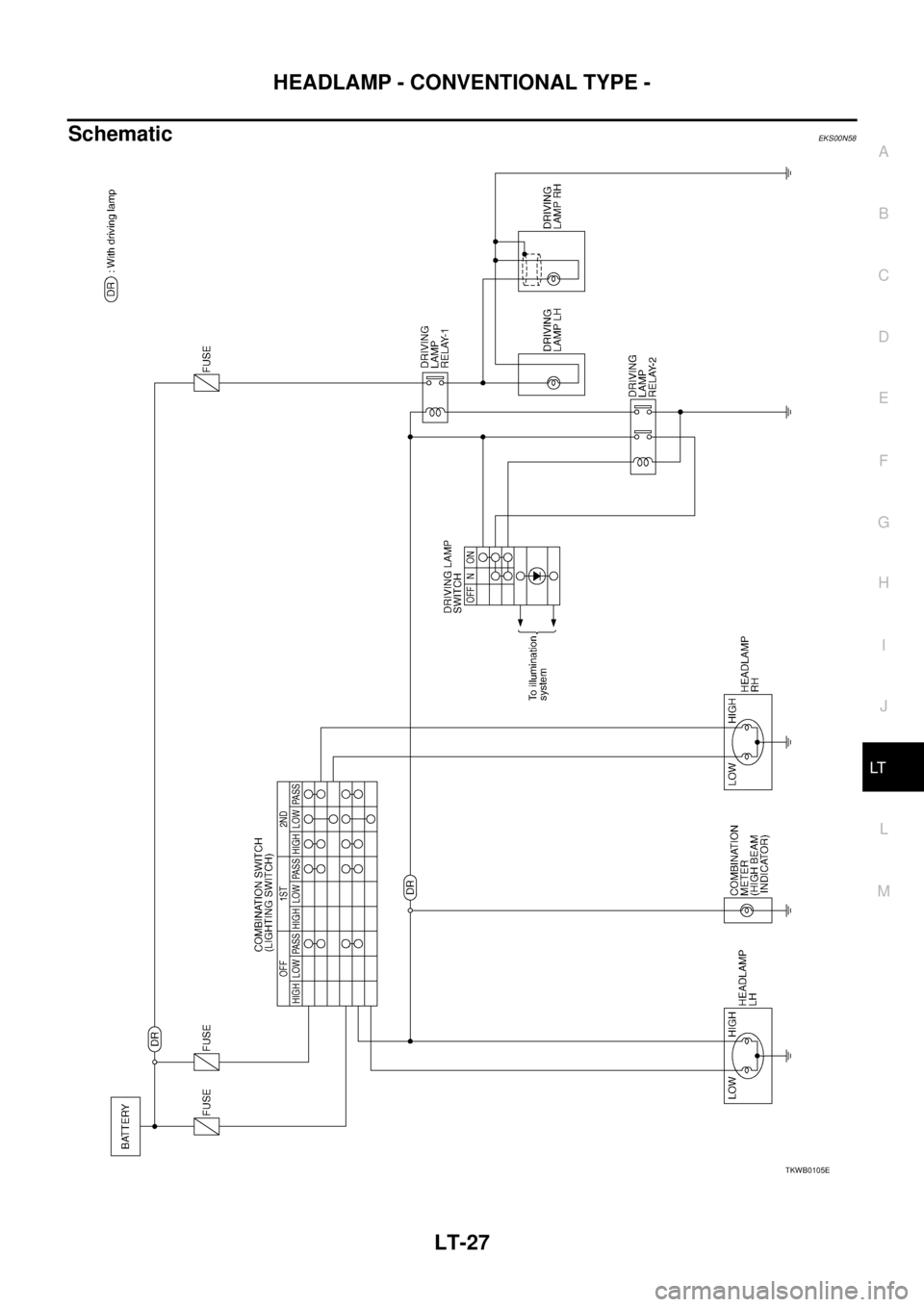

SchematicEKS00N58
TKWB0105E

LT-28
HEADLAMP - CONVENTIONAL TYPE -

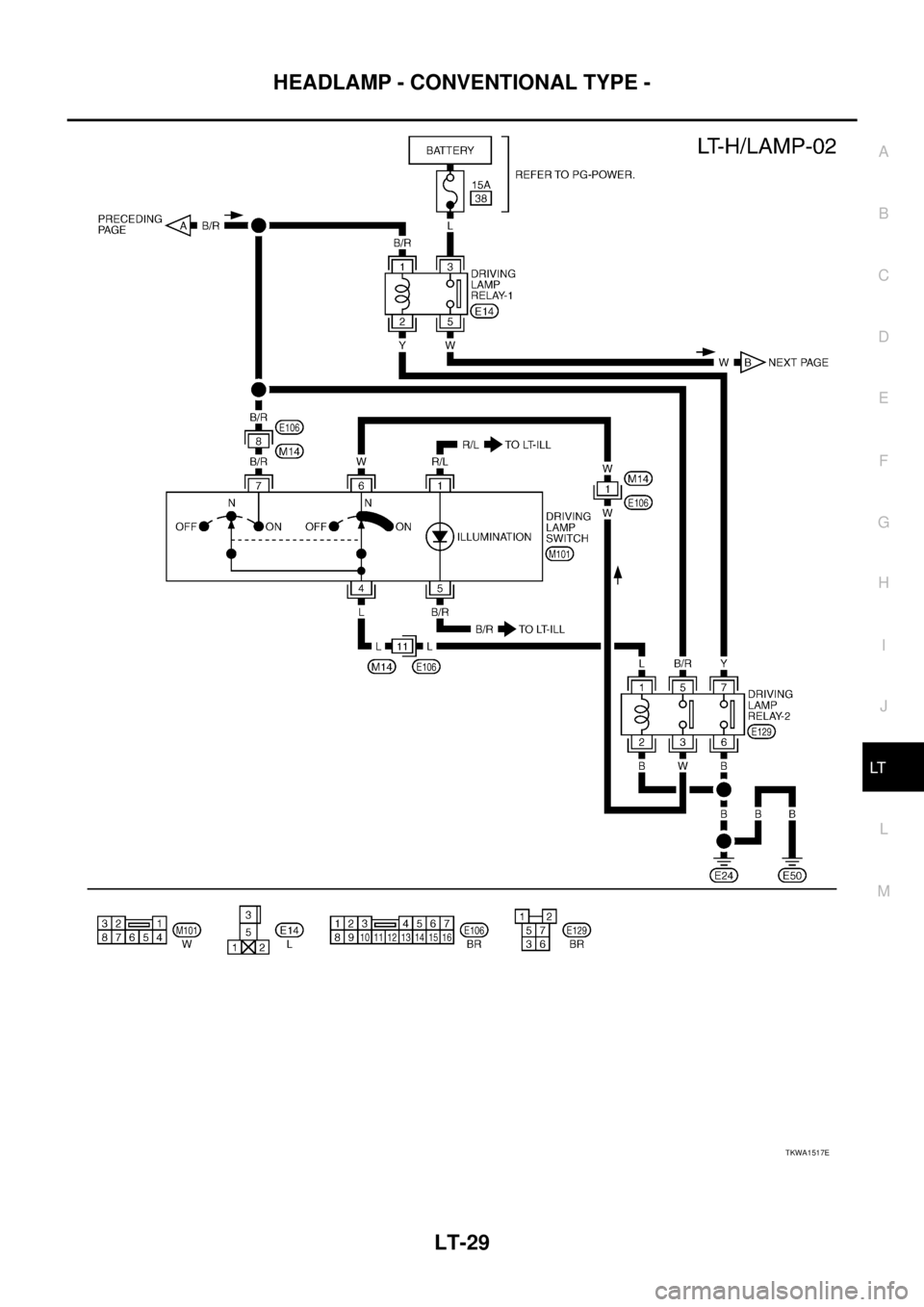

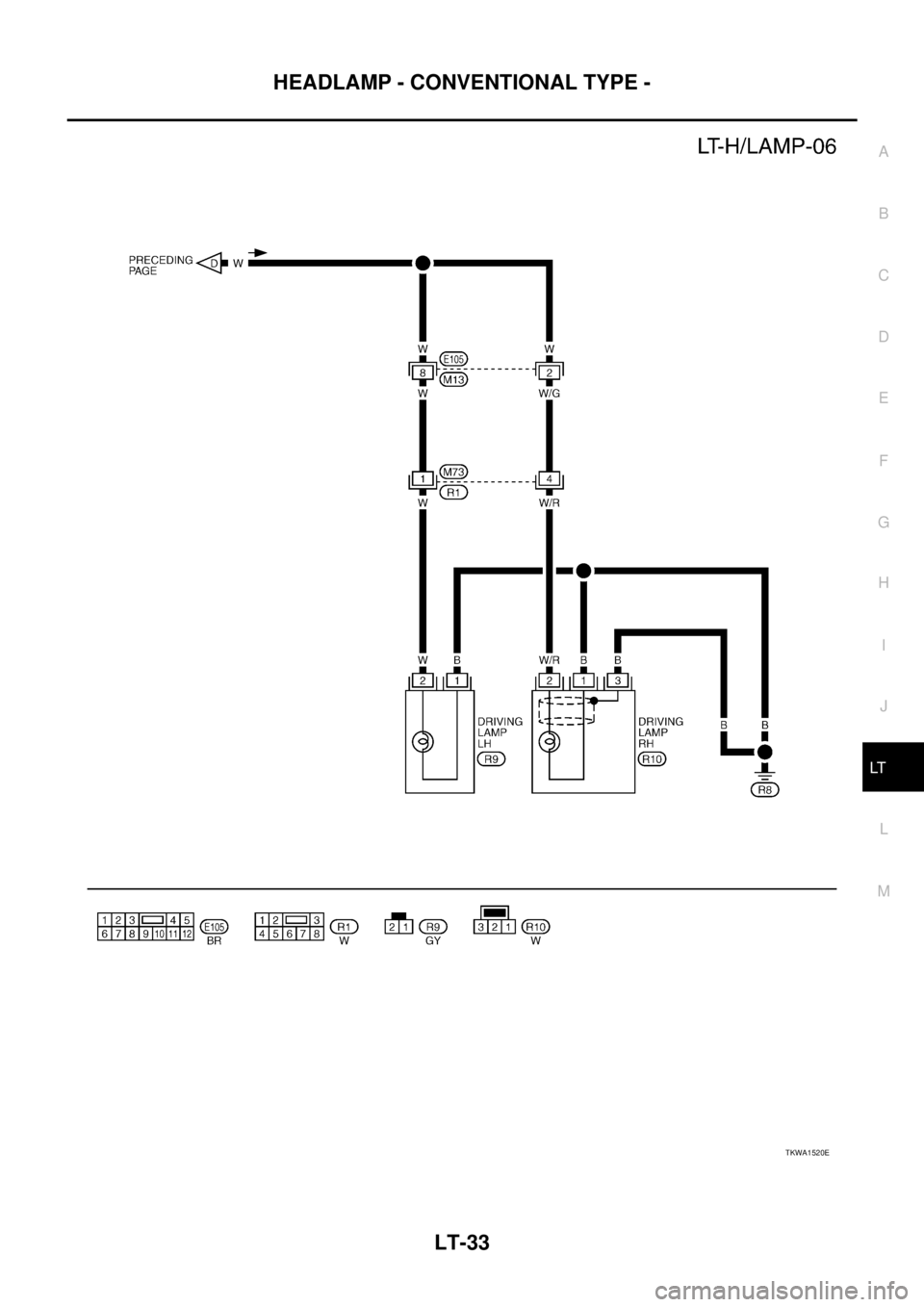

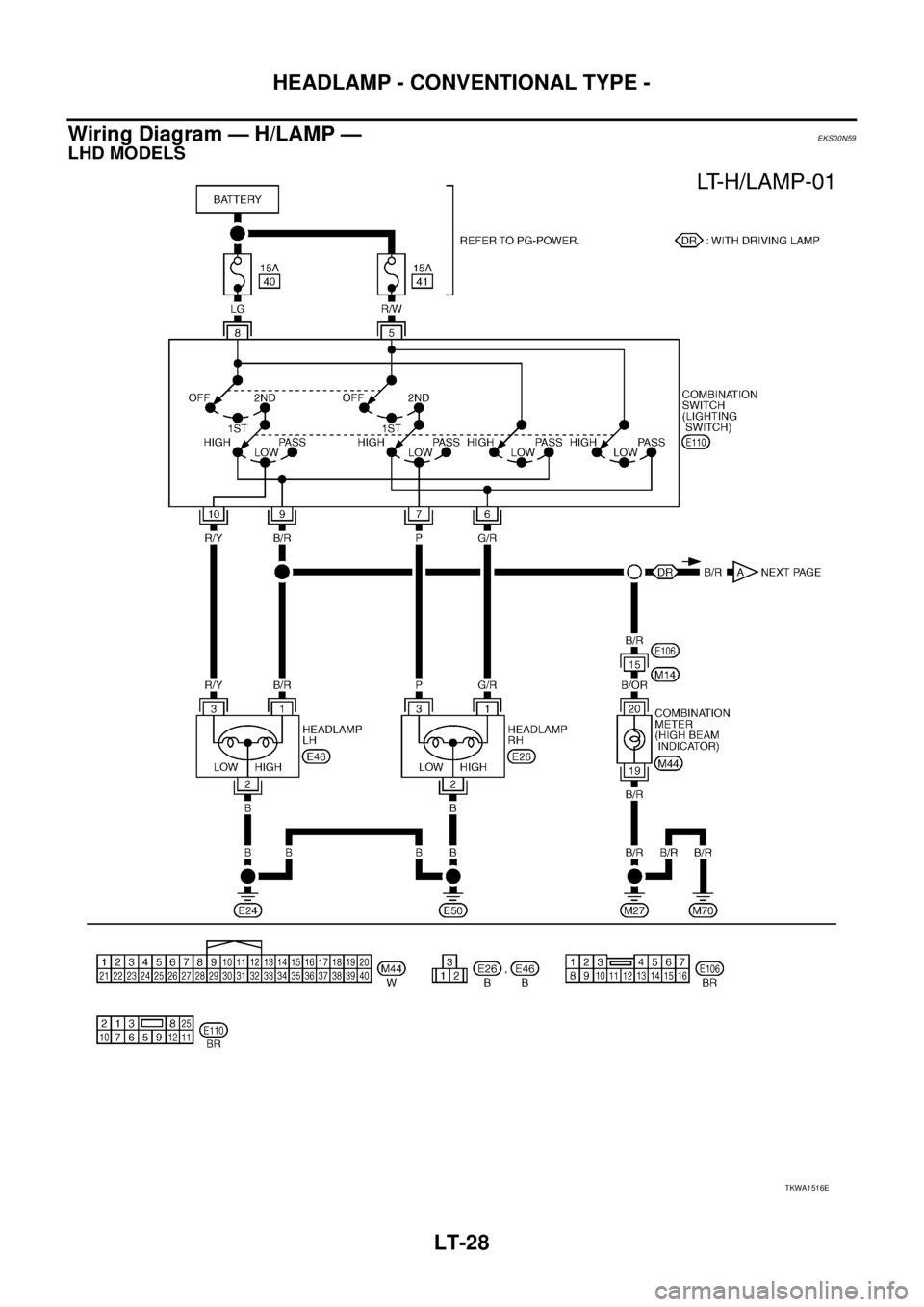

Wiring Diagram — H/LAMP — EKS00N59
LHD MODELS
TKWA1516E

HEADLAMP - CONVENTIONAL TYPE -
LT-29
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWA1517E

LT-30
HEADLAMP - CONVENTIONAL TYPE -

TKWB0080E

HEADLAMP - CONVENTIONAL TYPE -
LT-31
C
D
E
F
G
H
I
J
L
MA
B
LT

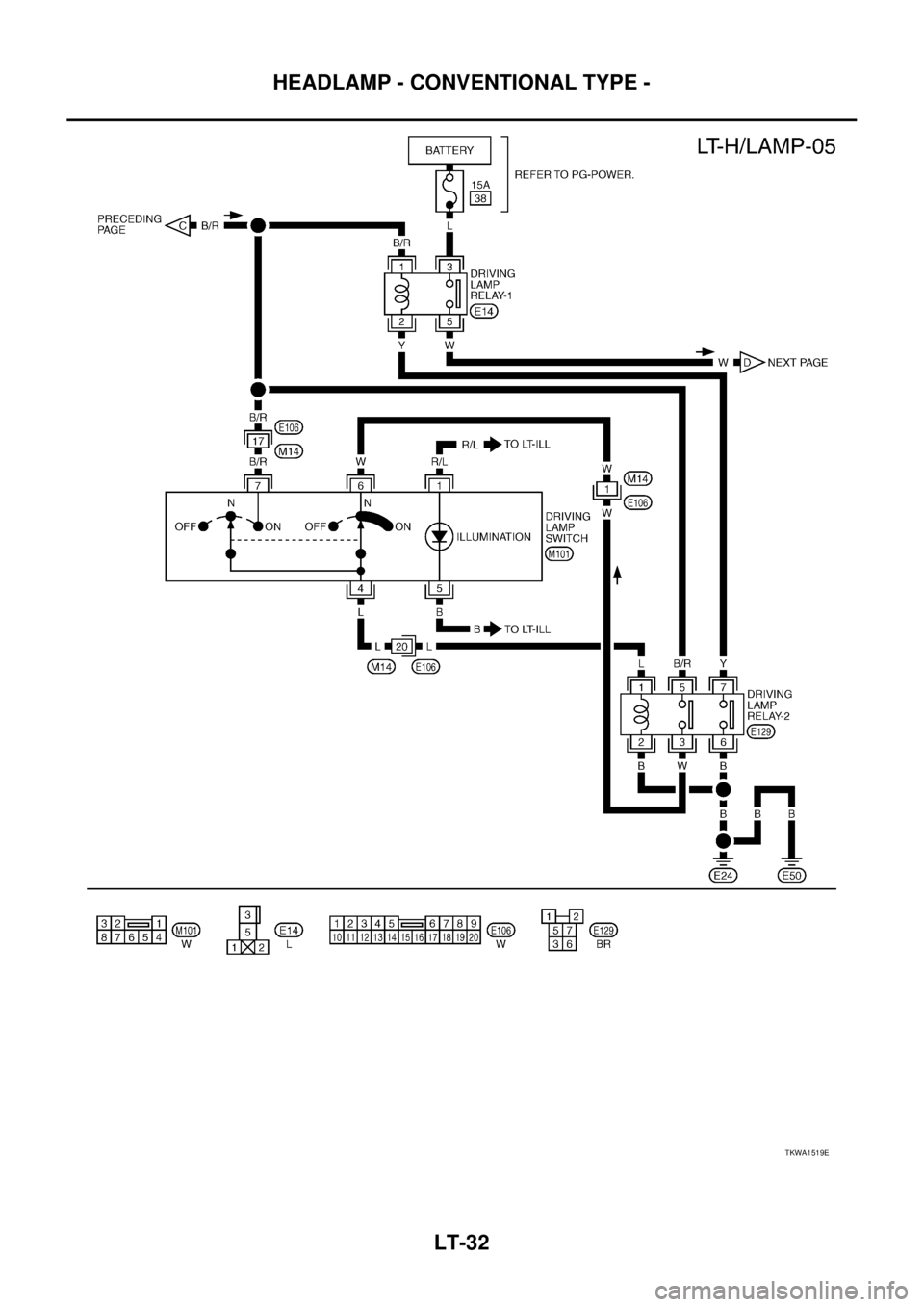

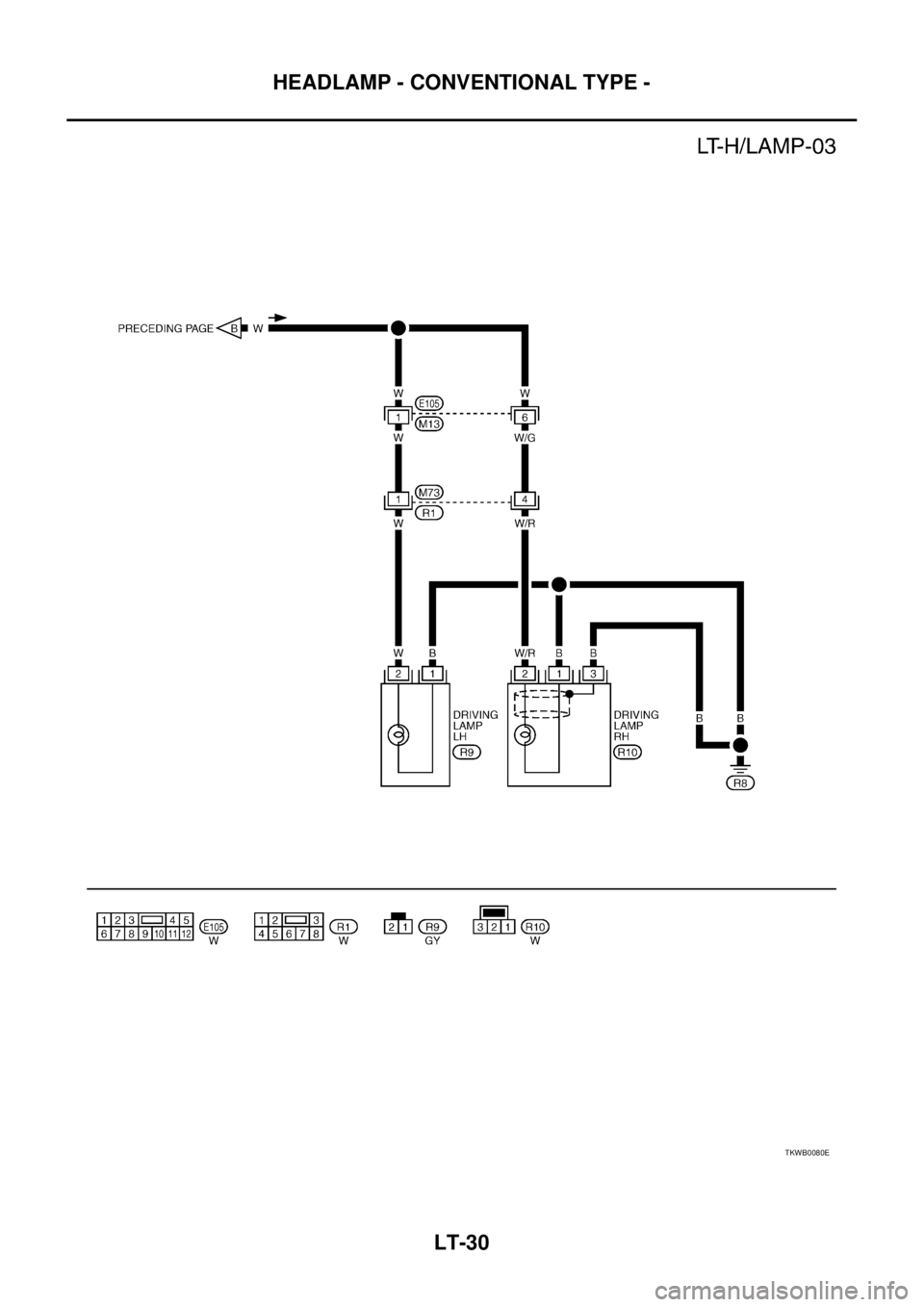

RHD MODELS
TKWA1518E

LT-32
HEADLAMP - CONVENTIONAL TYPE -

TKWA1519E

HEADLAMP - CONVENTIONAL TYPE -
LT-33
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWA1520E

LT-34
HEADLAMP - CONVENTIONAL TYPE -

Trouble Diagnoses EKS00N5A
Symptom Possible cause Repair order
Headlamp LH do not operate.1. Bulb
2. Grounds E24 and E50
3. 15A fuse
4. Lighting switch1. Check bulb.
2. Check grounds E24 and E50.
3. Check 15A fuse (No. 40, located in fuse and fusible
link box). Verify battery positive voltage is present at
terminal 8 of lighting switch.
4. Check lighting switch.
Headlamp RH do not operate.1. Bulb
2. Grounds E24 and E50
3. 15A fuse
4. Lighting switch1. Check bulb.
2. Check grounds E24 and E50.
3. Check 15A fuse (No. 41, located in fuse and fusible
link box). Verify battery positive voltage is present at
terminal 5 of lighting switch.
4. Check lighting switch.
High beam LH do not operate,
but low beam LH operates.1. Bulb
2. Open in high beam LH circuit
3. Lighting switch1. Check bulbs.
2. Check the wire between lighting switch terminal 9 and
headlamp LH terminal 1 for an open circuit.
3. Check lighting switch.
Low beam LH does not operate,
but high beam LH operates.1. Bulb
2. Open in low beam LH circuit
3. Lighting switch1. Check bulb.
2. Check the wire between lighting switch terminal 10
and headlamp LH terminal 3 for an open circuit.
3. Check lighting switch.
High beam RH do not operate,
but low beam RH operates.1. Bulb
2. Open in high beam RH circuit
3. Lighting switch1. Check bulbs.
2. Check the wire between lighting switch terminal 6 and
headlamp RH terminal 1 for an open circuit.
3. Check lighting switch.
Low beam RH does not operate,
but high beam RH operates.1. Bulb
2. Open in low beam RH circuit
3. Lighting switch1. Check bulb.
2. Check the wire between lighting switch terminal 7 and
headlamp RH terminal 3 for an open circuit.
3. Check lighting switch.
