NISSAN X-TRAIL 2005 Service Repair Manual

WARNING LAMPS
DI-43
C
D
E
F
G
H
I
J
L
MA
B
DI

TKWB0071E

DI-44
WARNING LAMPS

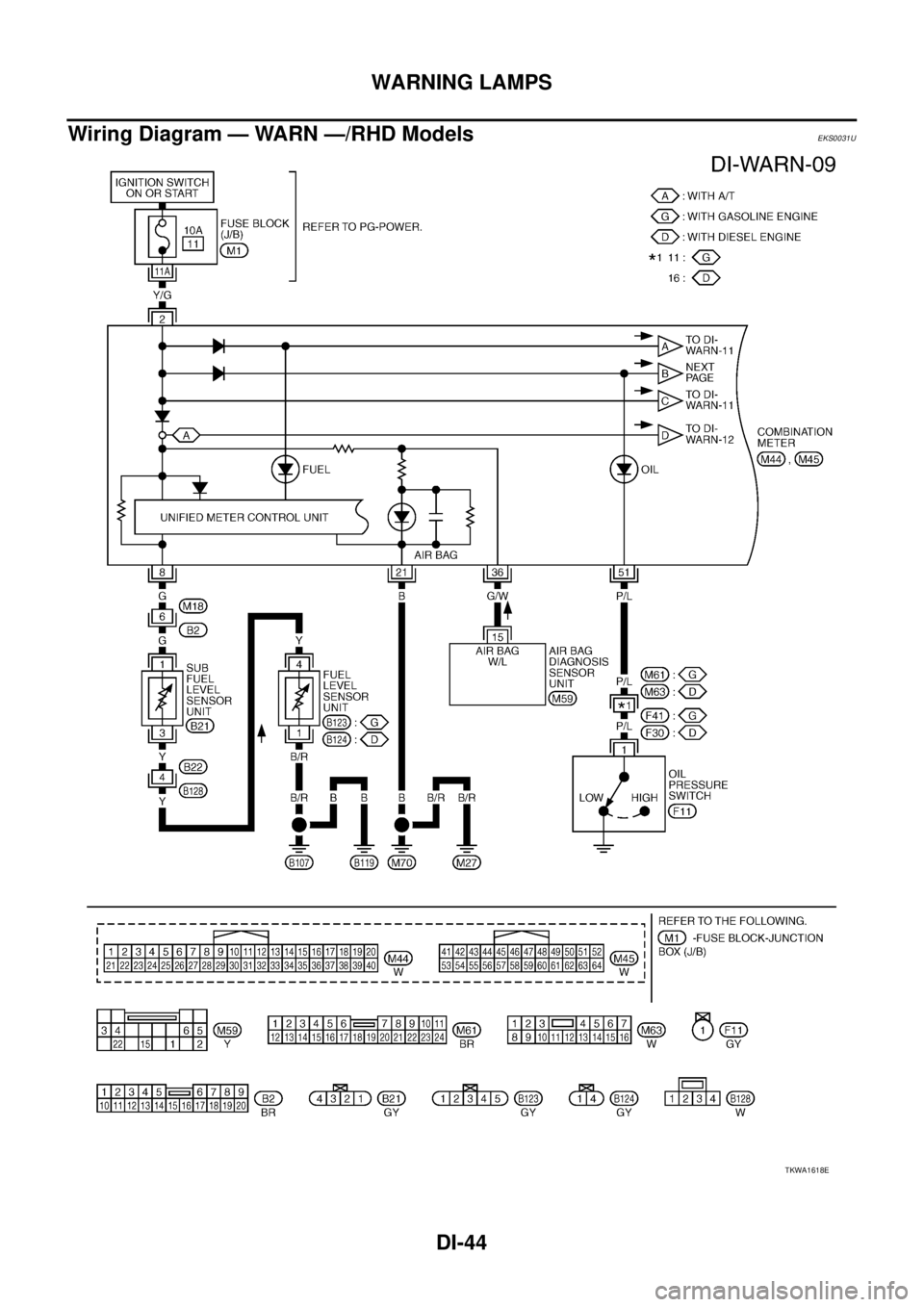

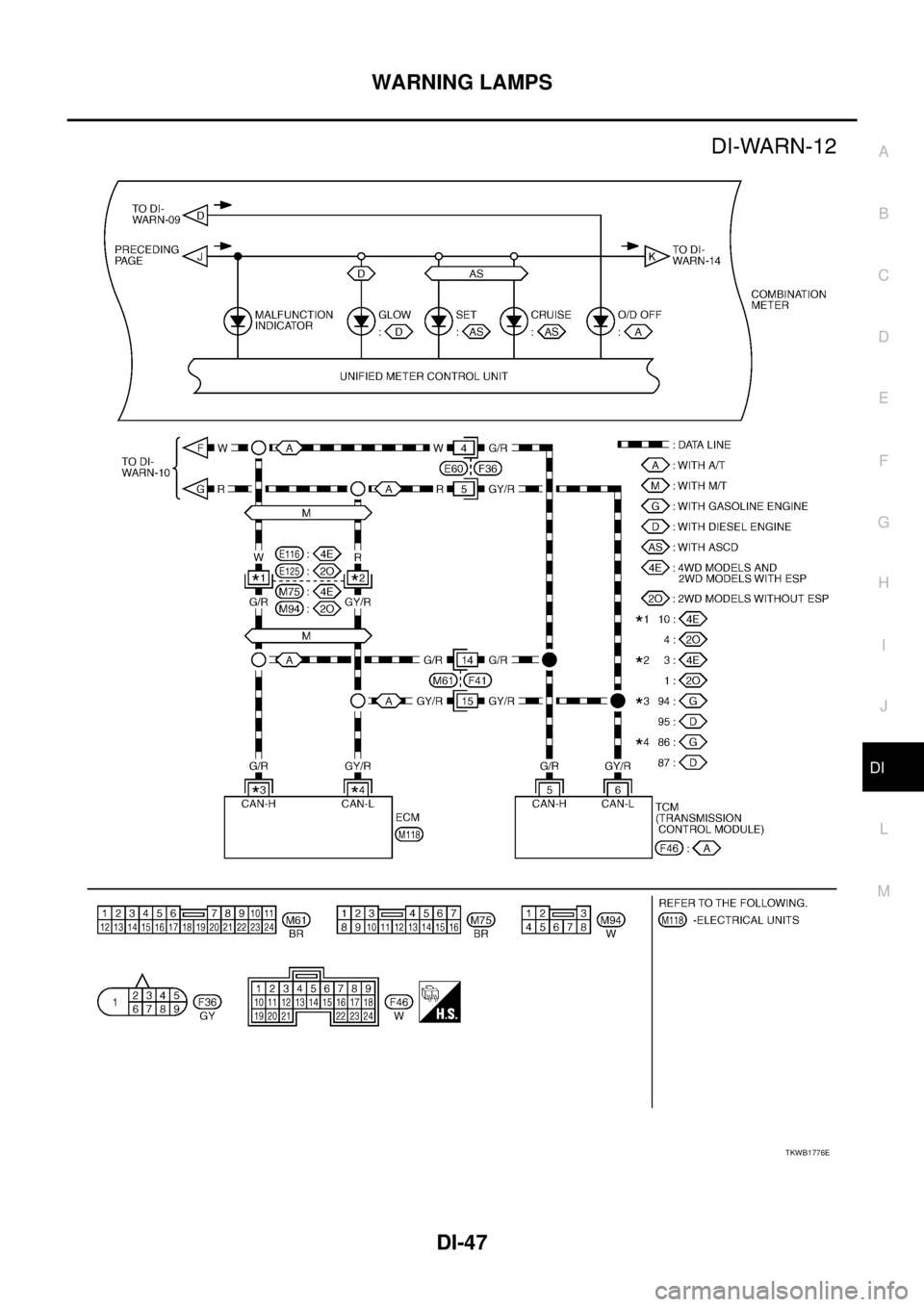

Wiring Diagram — WARN —/RHD ModelsEKS0031U
TKWA1618E

WARNING LAMPS
DI-45
C
D
E
F
G
H
I
J
L
MA
B
DI

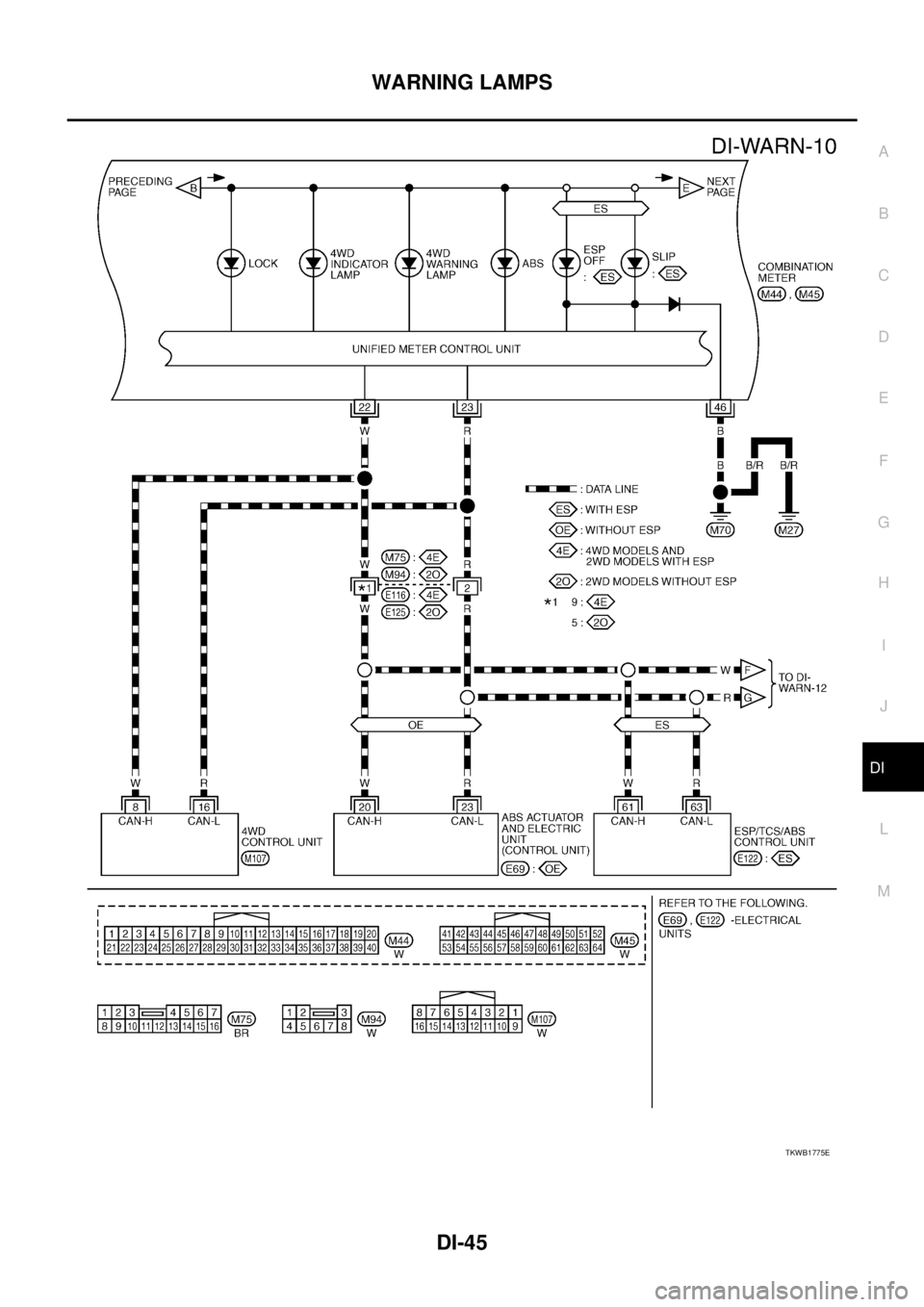

TKWB1775E

DI-46
WARNING LAMPS

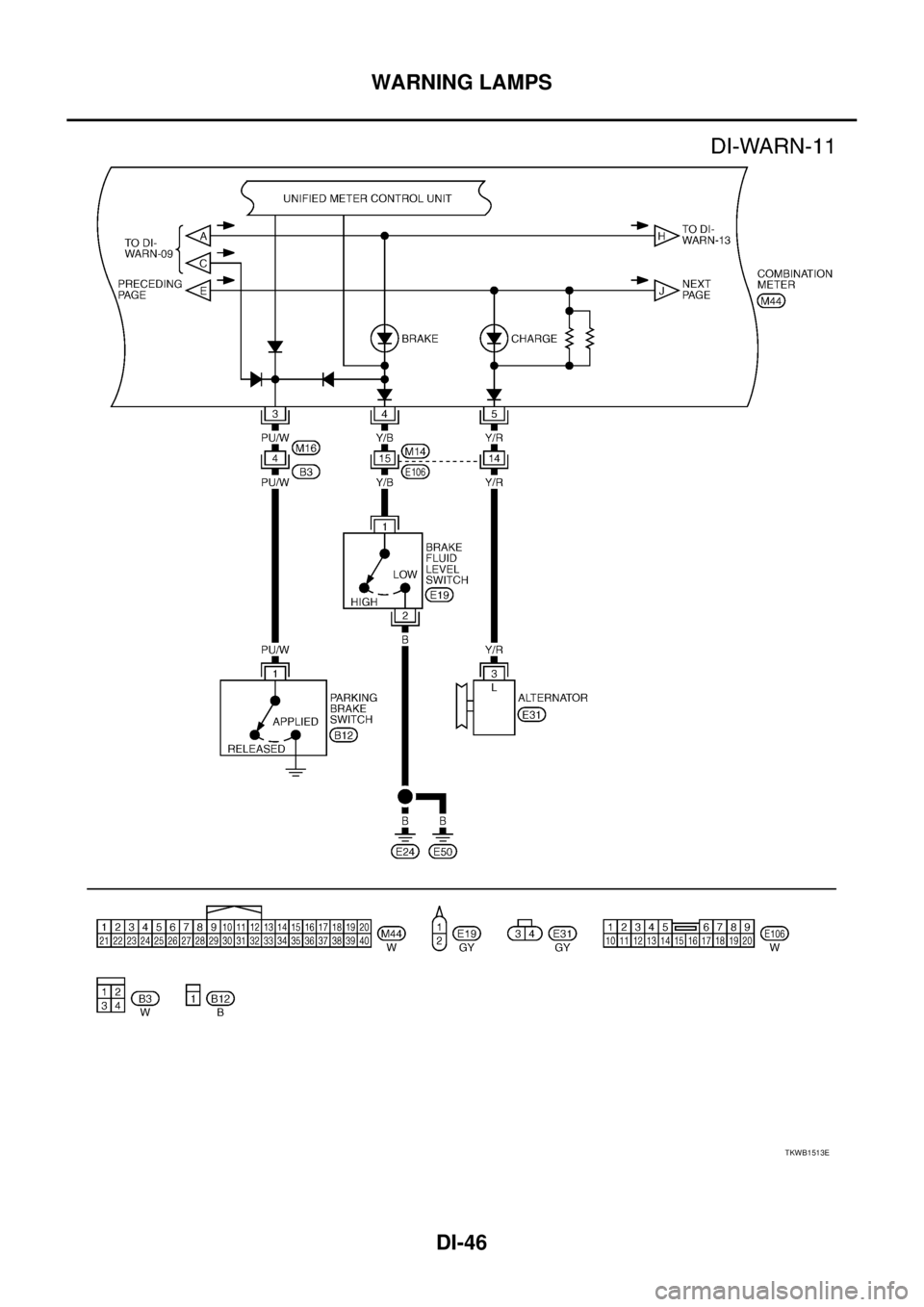

TKWB1513E

WARNING LAMPS
DI-47
C
D
E
F
G
H
I
J
L
MA
B
DI

TKWB1776E

DI-48
WARNING LAMPS

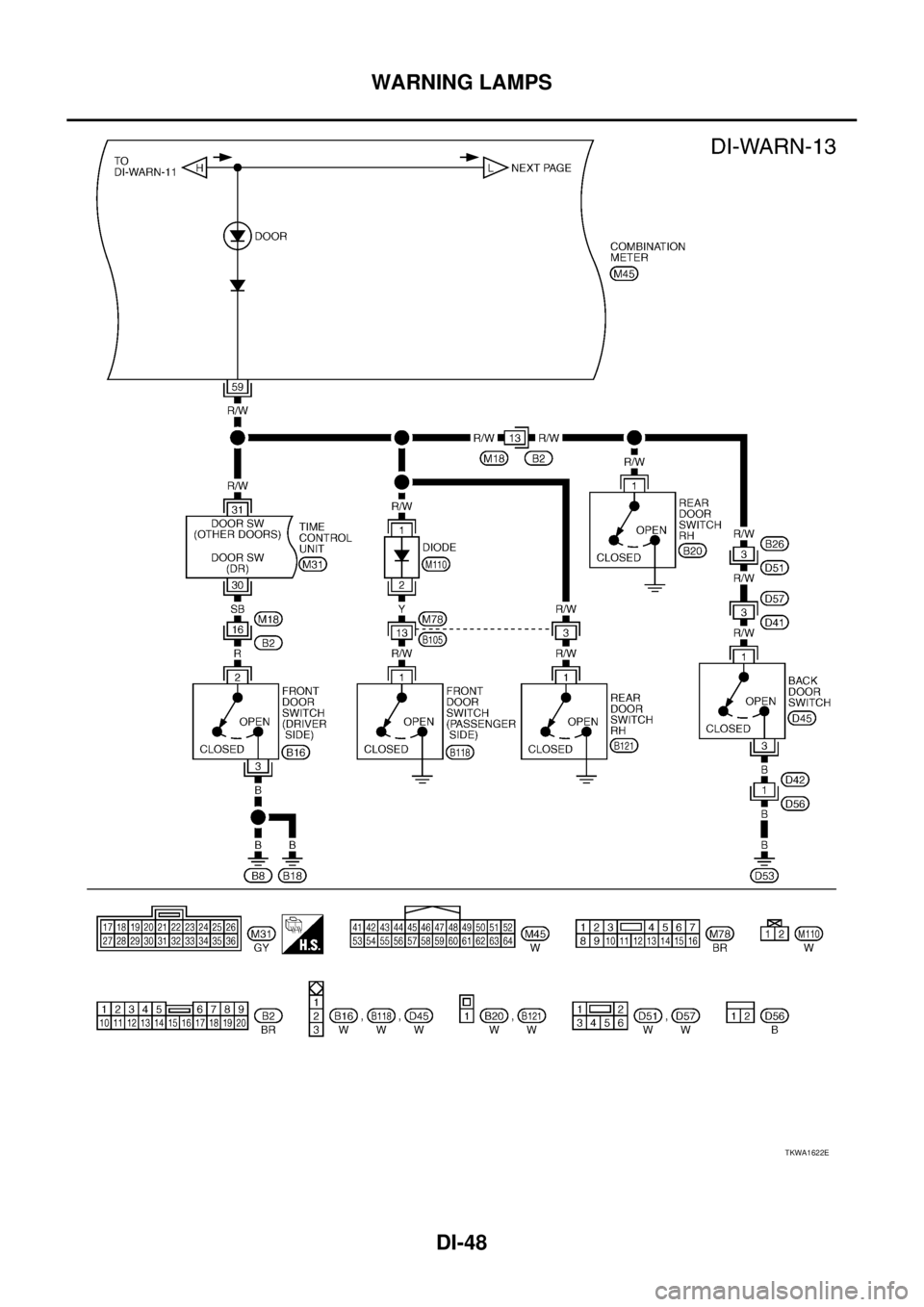

TKWA1622E

WARNING LAMPS
DI-49
C
D
E
F
G
H
I
J
L
MA
B
DI

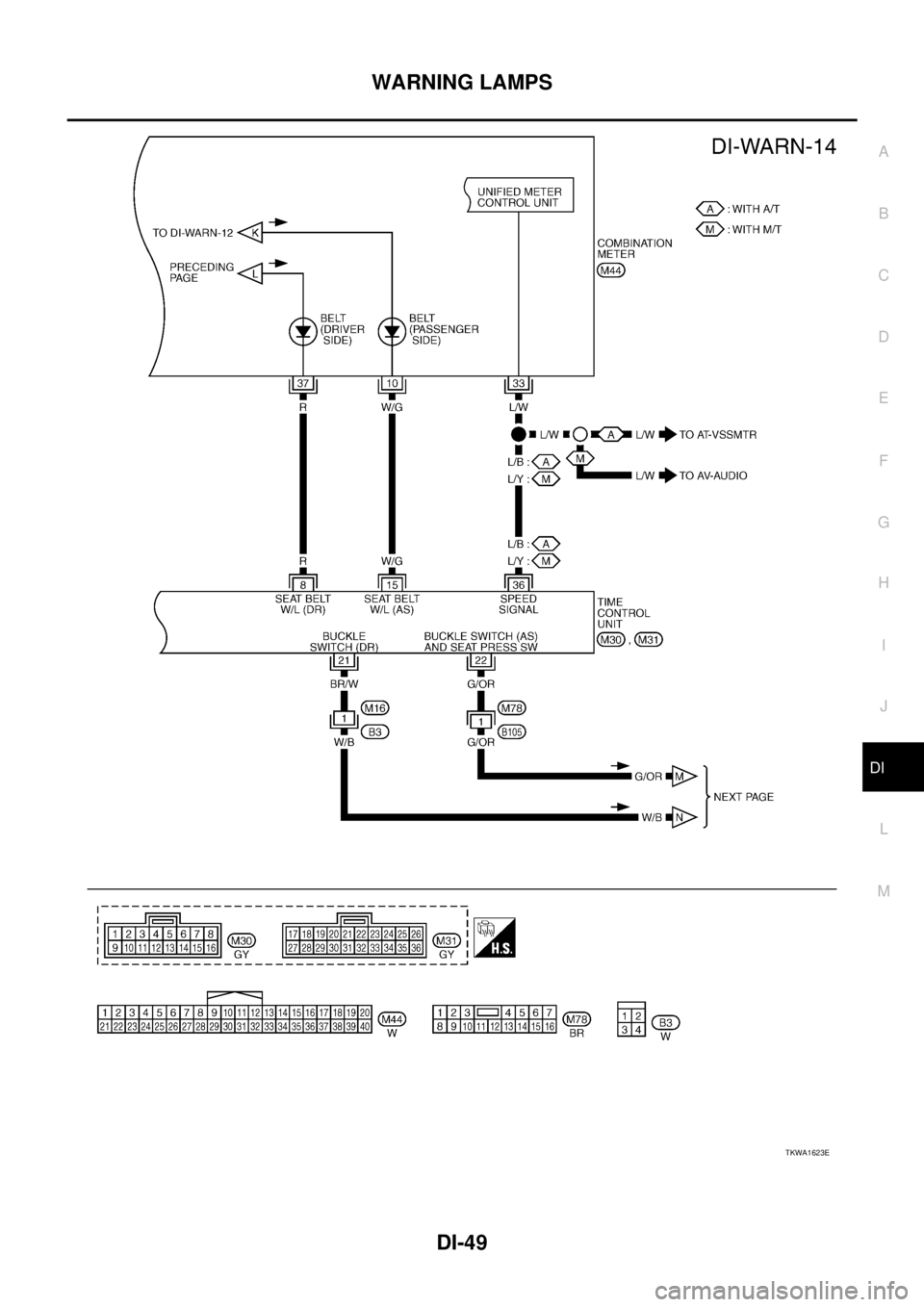

TKWA1623E

DI-50
WARNING LAMPS

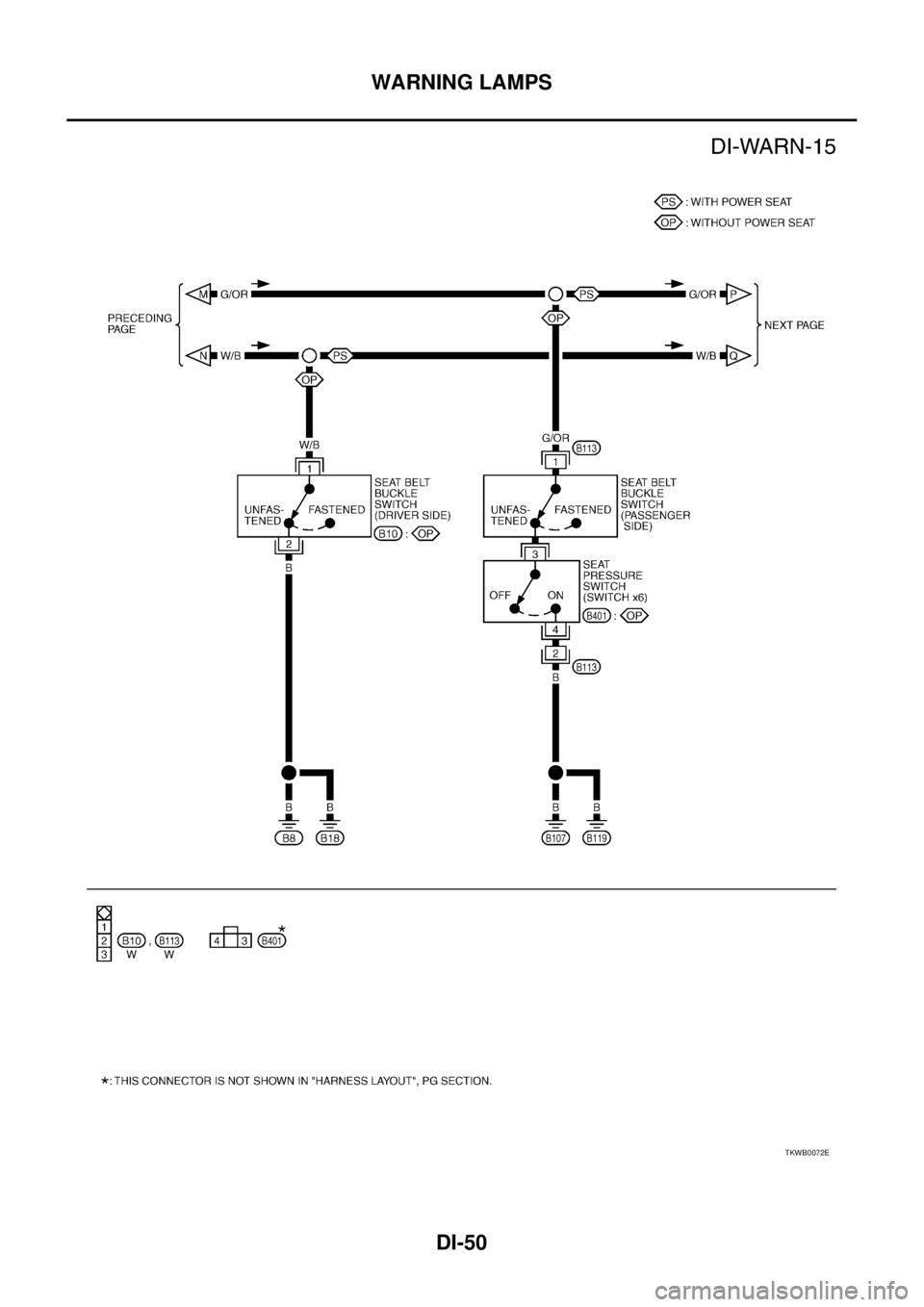

TKWB0072E

WARNING LAMPS
DI-51
C
D
E
F
G
H
I
J
L
MA
B
DI

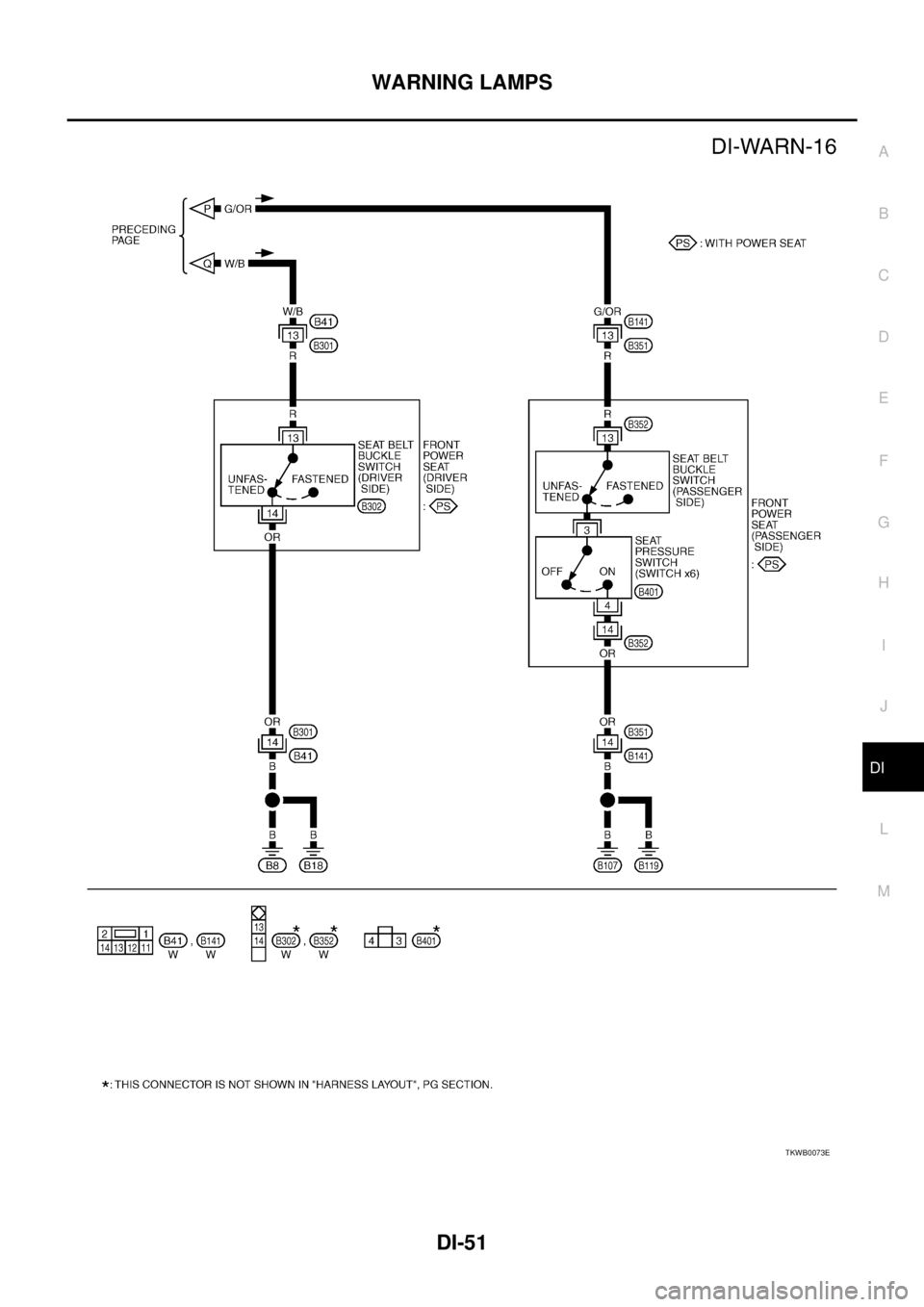

TKWB0073E

DI-52
WARNING LAMPS

Electrical Components InspectionEKS002HK
OIL PRESSURE SWITCH CHECK
Check continuity between the terminals of oil pressure switch and
ground.
DIODE CHECK

Check continuity using tester.

Diode is functioning properly if test results are as shown in the
figure.

Check diodes at the combination meter harness connector
instead of on the combination meter assembly. Refer to DI-36,
"Wiring Diagram — WARN —/LHD Models" or DI-44, "Wiring
Diagram — WARN —/RHD Models" .
NOTE:
Specification may vary depending on the type of tester. Before
performing this inspection, be sure to refer to the instruction
manual for the tester to be used.
Condition
Oil pressure [kPa (bar, kg/cm2 , psi)]Continuity
Engine running More than 29 (0.30, 0.3, 4) No
Engine stopped Less than 29 (0.30, 0.3, 4) Yes
ELF0044D
SKIB0607E
