fuel NISSAN XTERRA 2012 N50 / 2.G Quick Reference Guide

TABLe Of cOnTenTS
Ess Ential i nformation
Loose fuel cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 2
Tire Pressure Monitoring System (TPMS) ...........................2
Roof Rack (if so equipped) ....................................... 3
first DrivE fEatur Es
Remote k eyless entry System .................................... 4
Liftgate Release ................................................ 4
Seat Adjustments .............................................. 4
Outside Mirror control Switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 5
Starting/Stopping the engine ..................................... 5
Headlight control Switch ........................................ 6
Windshield Wiper/Washer Switch ................................. 6
climate controls (if so equipped) ................................. 7
f M/AM/XM
® Satellite Radio with cd changer (if so equipped) ........ 8
cruise control ................................................. 9
fuel-filler door ................................................ 10
s yst Em GuiDE
Trip computer (if so equipped) .................................. 11
Bluetooth
® Hands-free Phone System (if so equipped) ...............11
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
f or more information, refer to the “safety –– seats, seat belts and
supplemental restraint system (section 1)”, the “Heater, air
conditioner, audio and phone systems (section 4)” and the
“starting and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2012/xterra or snap this barcode with an appropriate barcode reader.

2
essential information
0201
03
01
loosE fuEl C aP
A loos E fuEl CaP warning message will appear
in the odometer

01 when the fuel-filler cap is not
tightened correctly.

To tighten, turn the cap clockwise until a single click
is heard.

The warning message will disappear when the vehicle
detects the fuel-filler cap is properly tightened and the
reset button

02 is pressed for more than 1 second.


if the cap is not properly tightened the Malfunction
indicator Light
may illuminate.f
or more information, refer to the “instruments and controls (section 2)” and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
tirE Pr Essur E monitorin G systEm (tPms)
A CHECK tir E PrEs warning message will
display in the odometer
01 and the low tire pressure

warning light 02 will illuminate when one

or more tires are low on pressure and air
is needed.
• The tire pressures should be checked
when the tires are cold. The tires are considered
cold after the vehicle has been parked for 3 hours
or more or driven less than 1 mile (1.6km) at
moderate speeds.

After tire pressures are adjusted, press the reset
button
03 for more than 1 second. drive the vehicle

at speeds above 16 MPH (25km/h). The CHECK
tirE P rEs warning message and low tire pressure warning light will disappear.

When the low tire pressure warning light flashes for approximately 1 minute and then remains on,
the TPMS is not functioning properly. Have the system checked by a NISSAN dealer.

Tire pressure rises and falls depending on the heat caused by the vehicle’s operation and the
outside temperature. Low outside temperature can lower the temperature o\
f the air inside the
tire, which can cause a lower tire inflation pressure. This may cause the low tire pressure
warning light to illuminate. If the warning light illuminates in low ambient temperature, check
the tire pressure in your tires.
• Check the tire pressures (including the spare tire) often and always prior to long distance trips.

The Tire and Loading Information label contains valuable information. Please refer to section 9,
“Technical and consumer information”, in your Owner’s Manual for the location of the Tire and
Loading Information label.
for more information, refer to the “instruments and controls (section 2)”, the “starting and driving (section 5)” and the
“maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
CHECK
TIRE
PRE S
02

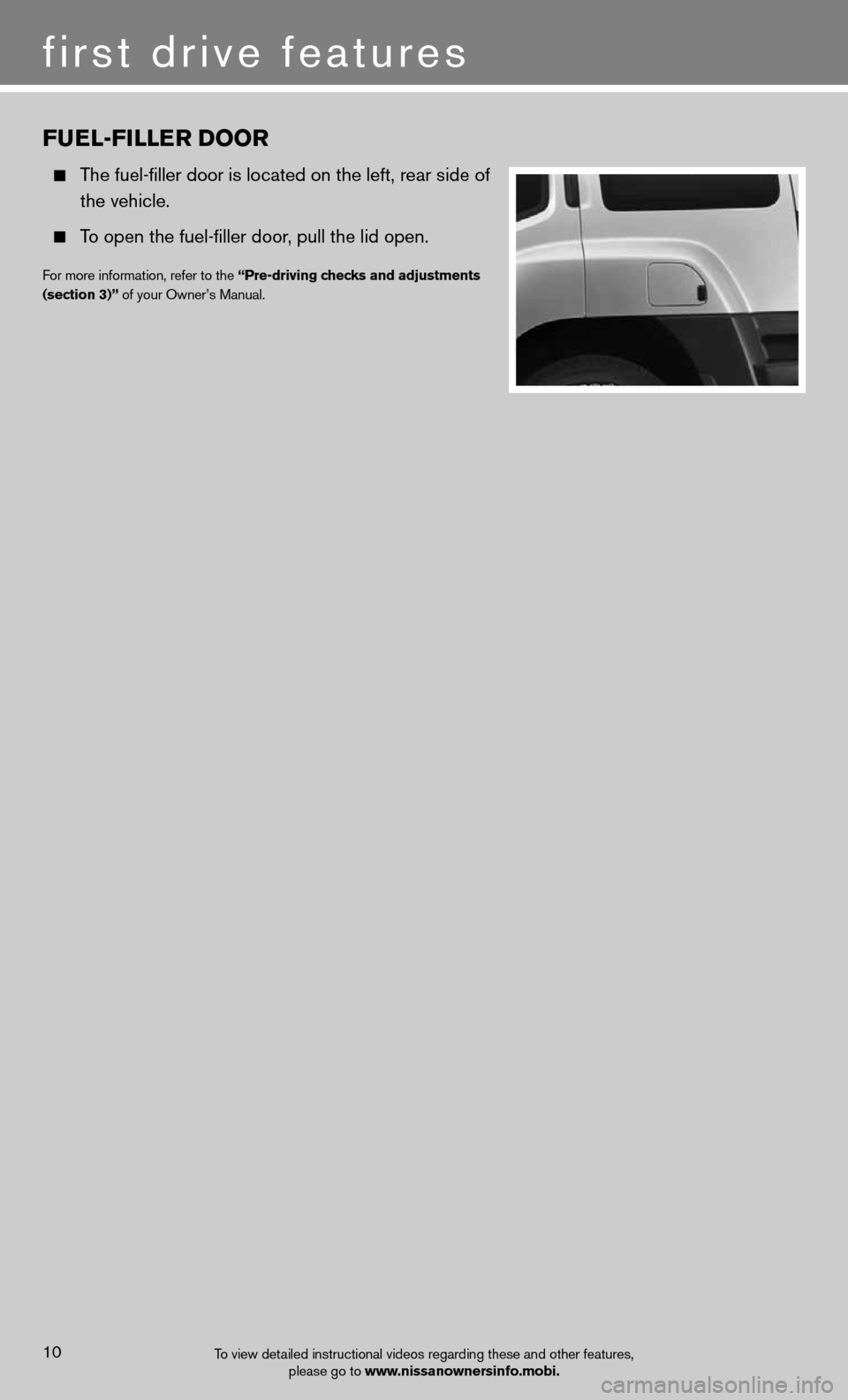

fuEl-fillE r Door
The fuel-filler door is located on the left, rear side of
the vehicle.

To open the fuel-filler door, pull the lid open.
for more information, refer to the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
first drive features
10

triP Com PutEr (if so equipped)
With the ignition switch in the on position, modes
of the trip computer

01 can be selected by pressing
the trip computer change button
02 on the
instrument panel.

The following modes can be selected in the display:
• Trip a – measures the distance of one specific trip.
• Trip B – measures the distance of a second specific trip.
• dte (distance to empty) – displays the estimated distance to empty (dte) the vehicle can
be driven before refueling.
• mph – displays the average speed since the last reset.
• mpg – displays the average fuel consumption since the last reset.
• (Journey time) – displays the elapsed time since the last reset.
for more information, refer to the “instruments and controls (section 2)” of your Owner’s Manual.
0201
Blu EtootH® Han Ds-fr EE PH onE systE m (if so equipped)
With an overhead microphone and sound
transmitted through the audio system speakers,
the Bluetooth
® Hands-free Phone System utilizes
Bluetooth wireless technology and voice recognition
to provide hands-free cellular phone communication.

A cellular telephone should not be used while driving
so full attention may be given to vehicle operation.*
SYSTe M OPeRATin G TiPS
close all windows. Surrounding noises may interfere
with system operation and performance.

Press the
button on the steering wheel to activate
voice recognition.

Wait for the tone before speaking.

Begin speaking a command within 5 seconds of the tone.

Speak in a clear and natural voice without pausing
between words.

Look straight ahead and avoid speaking too loudly or too softly.

To go back to the previous command, say “Go back” or “Correction.”

To cancel a voice recognition session, simply wait 5 seconds, say “cancel” or “Quit,” or press
the

button for 5 seconds.


To interrupt the system voice and give a command quickly, press the
button.

To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.11
*Some jurisdictions prohibit the use of cellular telephones while driving.
system guide
microphone
