Page 361 of 396

NISSAN XTERRA 2015 N50 / 2.G Owners Manual ENGINE OIL AND OIL FILTER
RECOMMENDATIONS
Selecting the correct oil
It is essential to choose the correct grade, quality
and viscosity engine oil to ensure satisfactory
engine life and performance. Re

Page 362 of 396

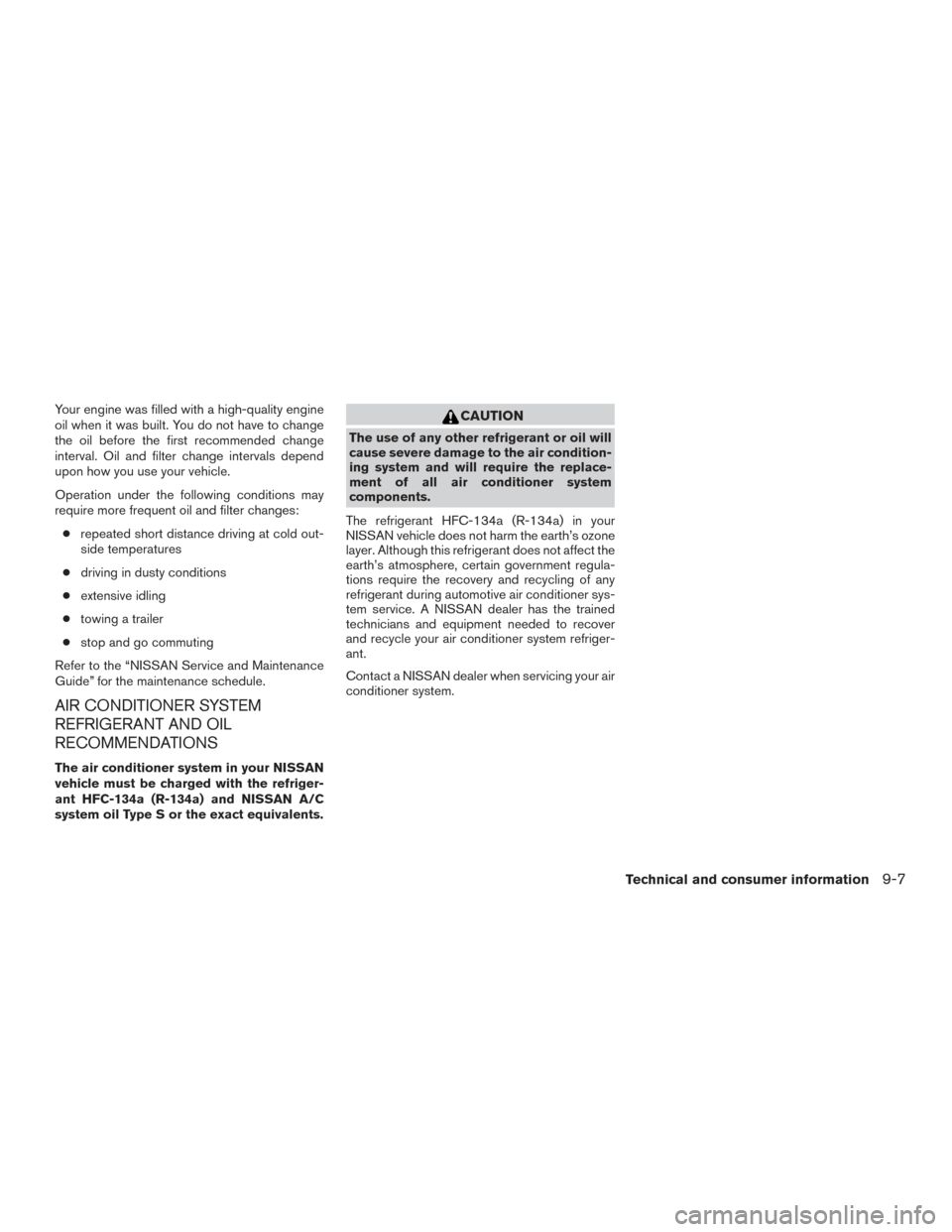

NISSAN XTERRA 2015 N50 / 2.G Owners Manual Your engine was filled with a high-quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how

Page 363 of 396

NISSAN XTERRA 2015 N50 / 2.G Owners Manual ENGINE
ModelVQ40DE
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 6-cylinder, V-block, Slanted at 60°
Bore x Stroke in (mm) 3.760 x 3.622 (95.5 x 92)
Displacement cu in (cm
3) 241.30 (3,954)
Firin

Page 364 of 396

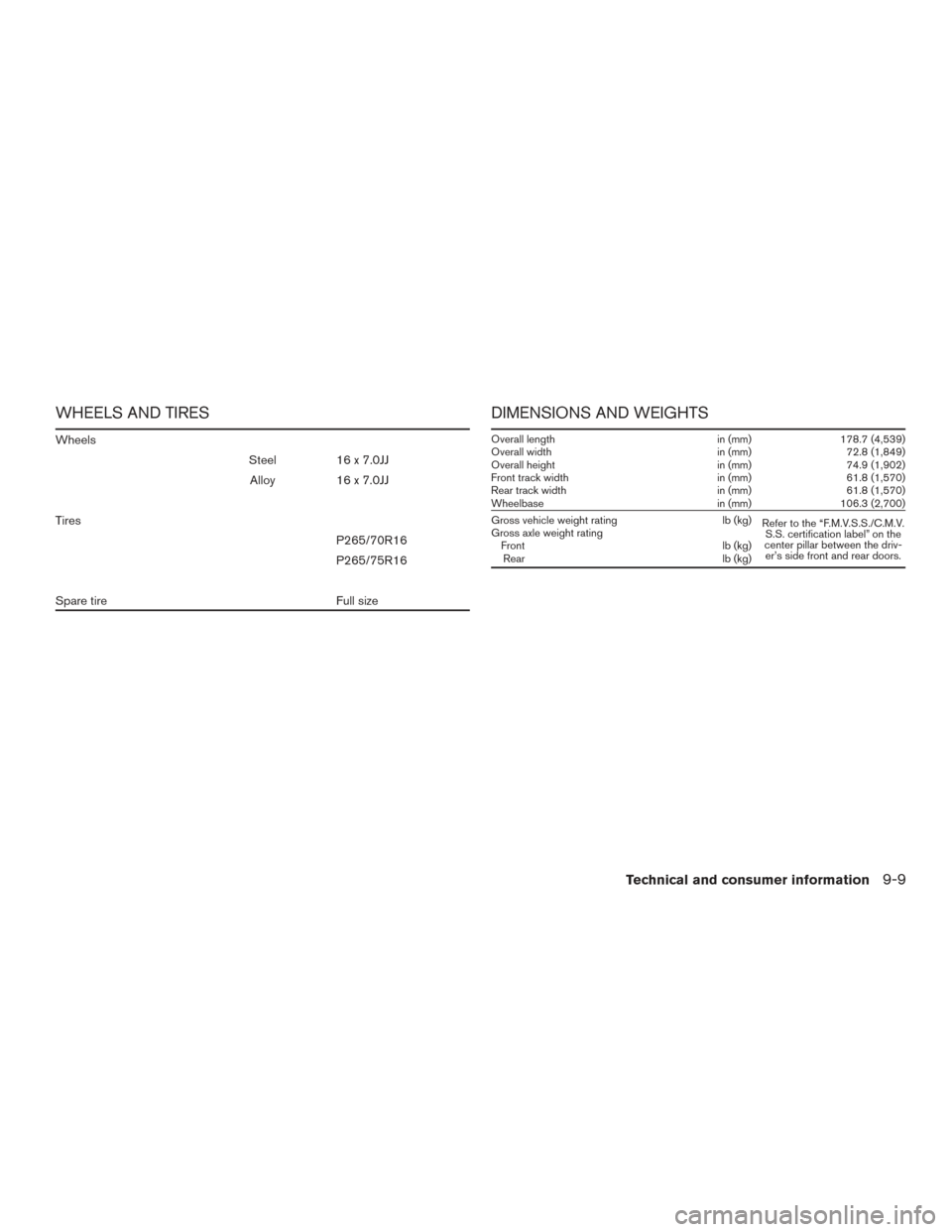

NISSAN XTERRA 2015 N50 / 2.G Owners Manual WHEELS AND TIRES
WheelsSteel 16 x 7.0JJAlloy 16 x 7.0JJ
Tires P265/70R16
P265/75R16
Spare tire Full size
DIMENSIONS AND WEIGHTS
Overall length in (mm)178.7 (4,539)
Overall width in (mm)72.8 (1,849)
Ov

Page 365 of 396

NISSAN XTERRA 2015 N50 / 2.G Owners Manual When planning to drive your NISSAN ve-
hicle in another country,you should first find
out if the fuel available is suitable for your vehi-
cle’s engine.
Using fuel with an octane rating that is too

Page 366 of 396

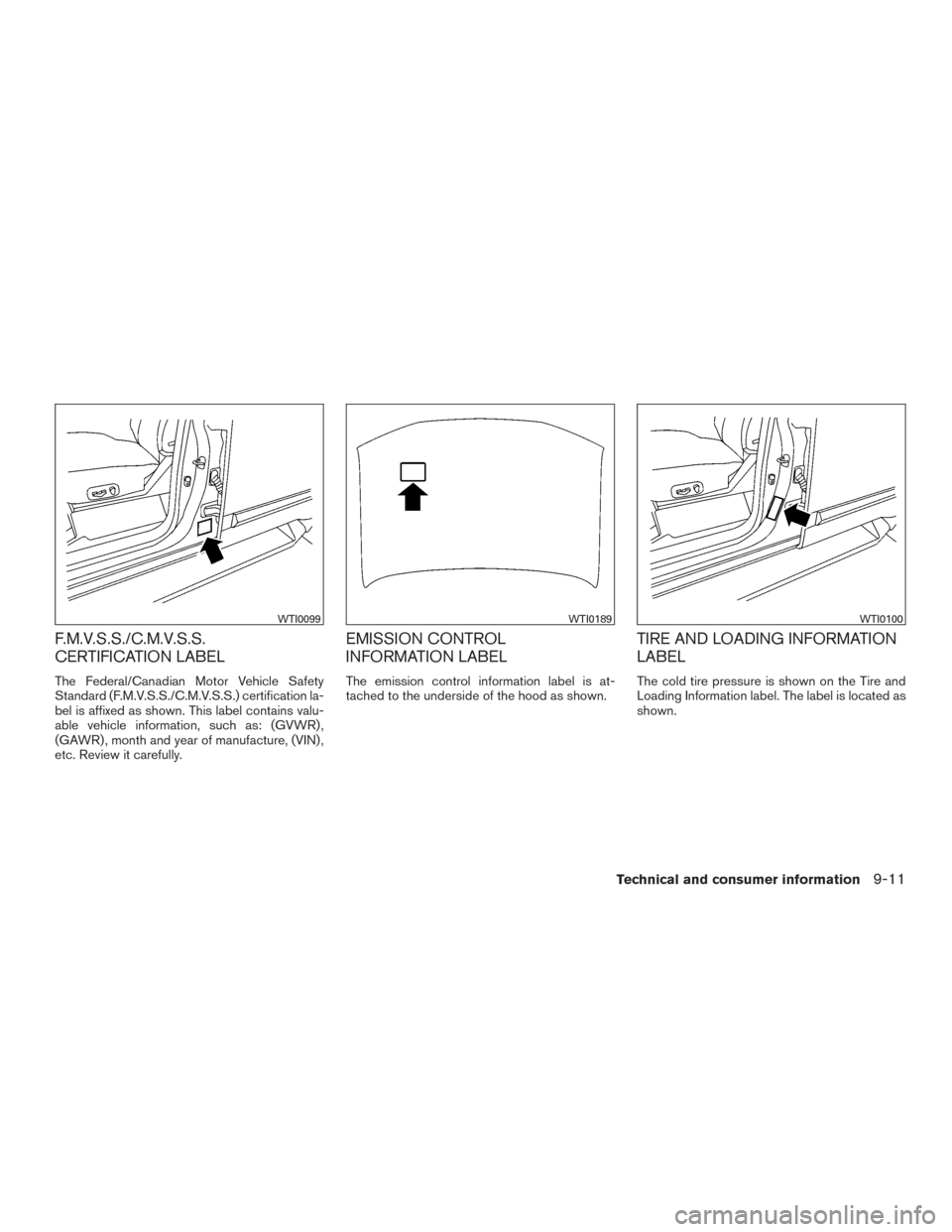

NISSAN XTERRA 2015 N50 / 2.G Owners Manual F.M.V.S.S./C.M.V.S.S.
CERTIFICATION LABEL
The Federal/Canadian Motor Vehicle Safety
Standard (F.M.V.S.S./C.M.V.S.S.) certification la-
bel is affixed as shown. This label contains valu-
able vehicle i

Page 367 of 396

NISSAN XTERRA 2015 N50 / 2.G Owners Manual AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner specification label is affixed to
the underside of the hood as shown.Use the following step to mount the front license
plate:
● Attach the lic

Page 368 of 396

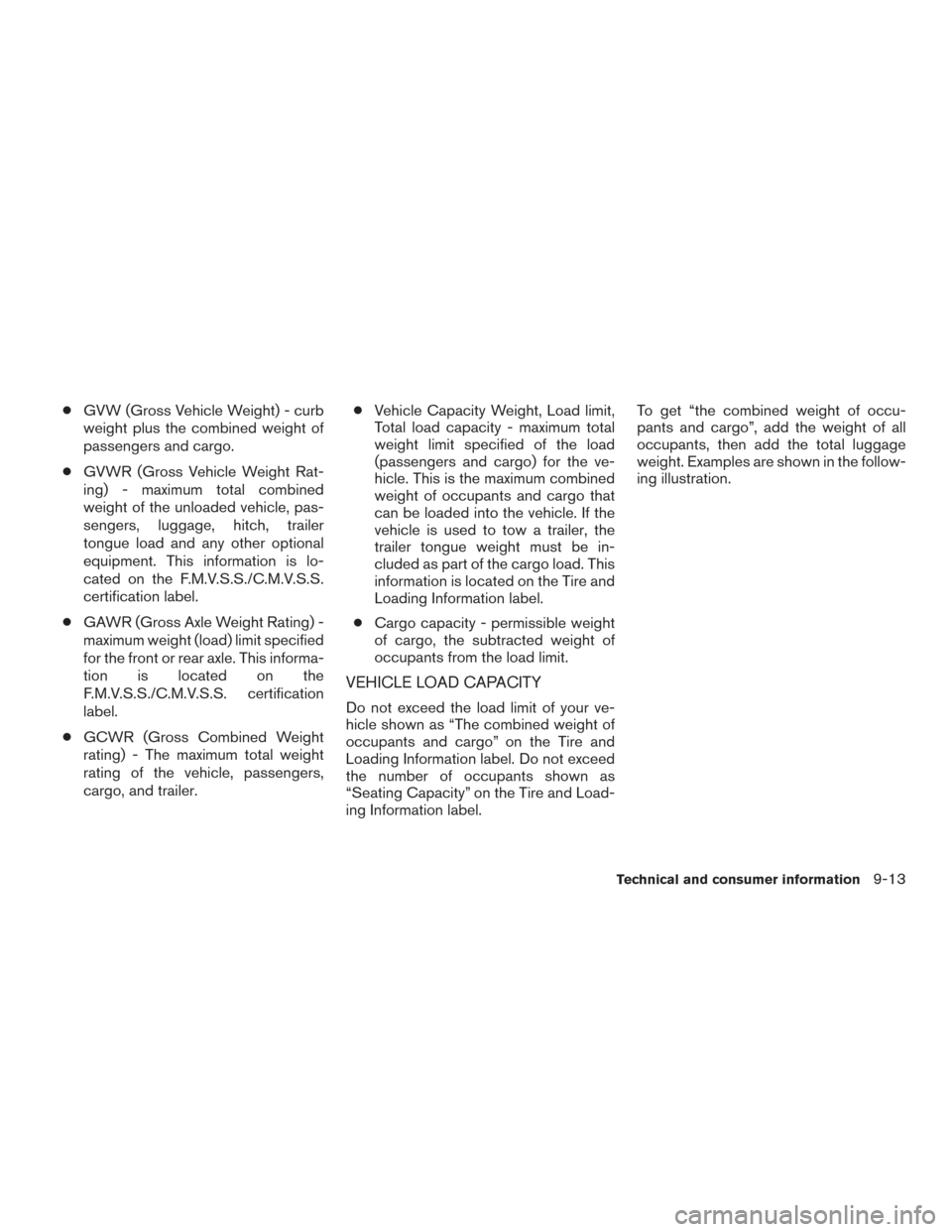

NISSAN XTERRA 2015 N50 / 2.G Owners Manual ●GVW (Gross Vehicle Weight) - curb
weight plus the combined weight of
passengers and cargo.
● GVWR (Gross Vehicle Weight Rat-
ing) - maximum total combined
weight of the unloaded vehicle, pas-
sen

Page 369 of 396

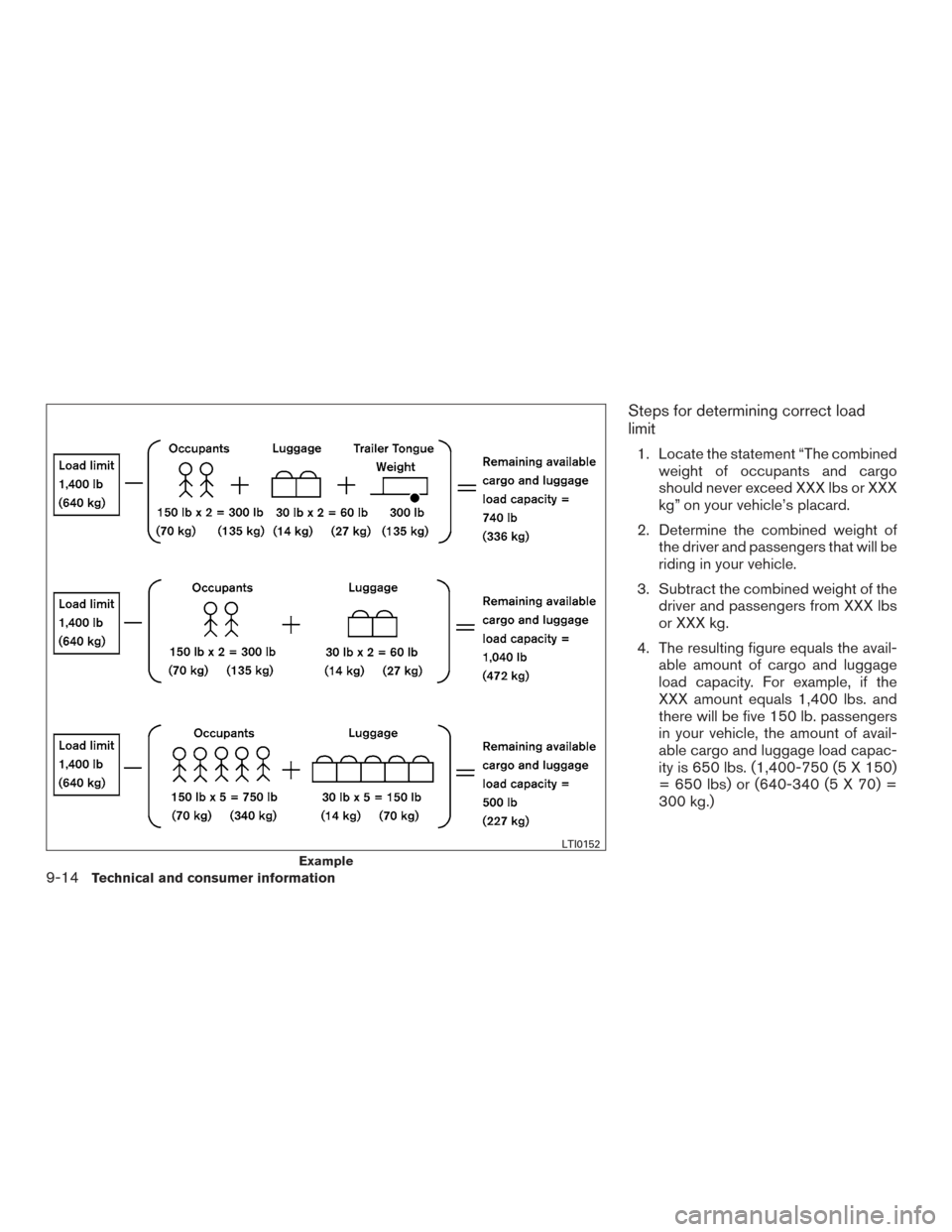

NISSAN XTERRA 2015 N50 / 2.G Owners Manual Steps for determining correct load
limit
1. Locate the statement “The combinedweight of occupants and cargo
should never exceed XXX lbs or XXX
kg” on your vehicle’s placard.
2. Determine the com

Page 370 of 396

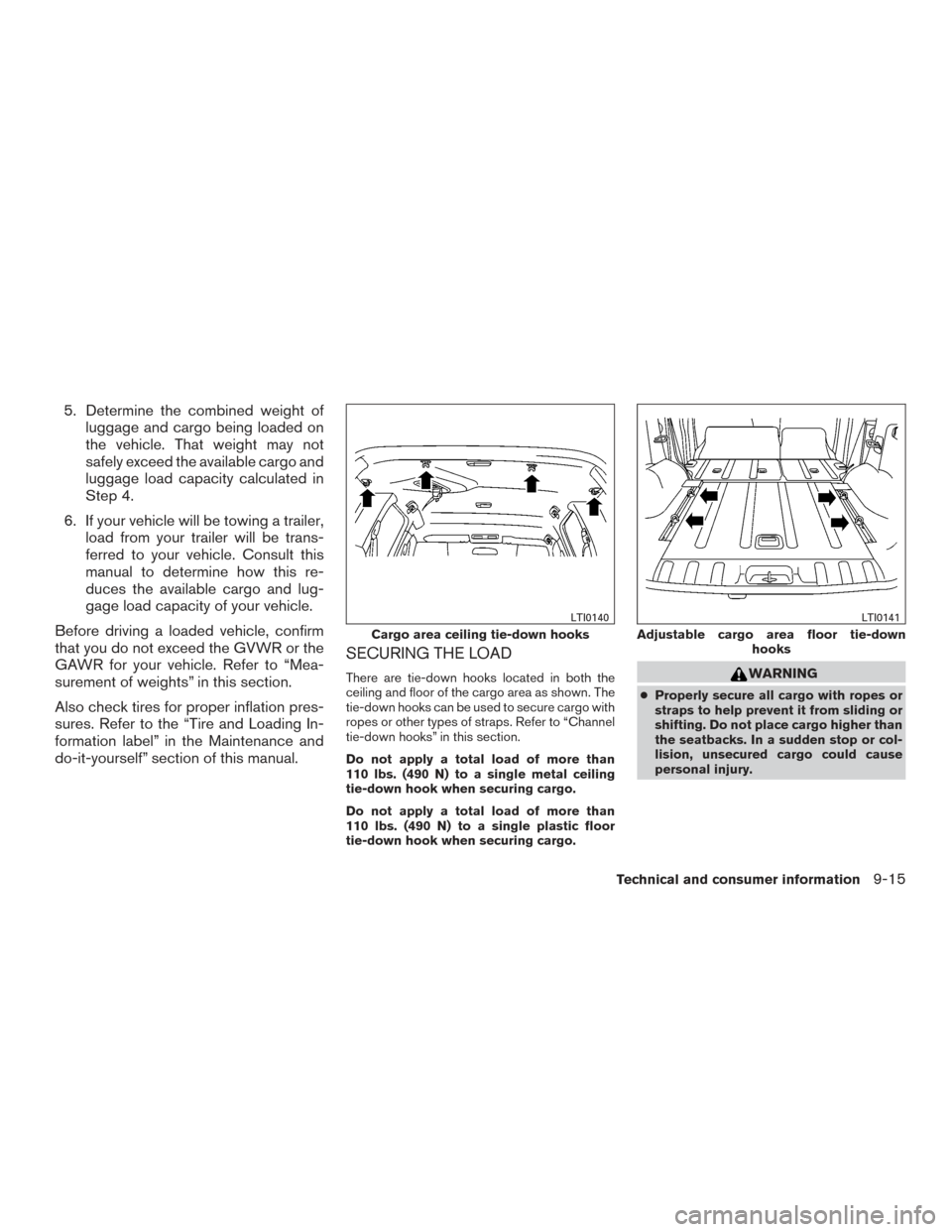

NISSAN XTERRA 2015 N50 / 2.G Owners Manual 5. Determine the combined weight ofluggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
Step 4.
6. If your vehic
