Vehicle Symbols
These are some of the symbols you may find on your vehicle.
For example,
these symbols
are used on an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT EYES BY
SHIELDING
CAUSTIC
ACID COULD BATTERY
CAUSE
BURNS
AVOID
SPARKS
OR
FLAMES
SPARK
OR ,\I/,
COULD FLAME
EXPLODE BATTERY
These symbols
are important
for you and
your passengers
whenever your
vehicle
is
driven:
DOOR LOCK
UNLOCK
FASTEN SEAT
BELTS
POWER
WINDOW
These symbols
have to do with
your lights:
SIGNALS e e
TURN
FOG LAMPS
$0
These symbols
are on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD DEFROSTER
WINDOW
DEFOGGER
VENTILATING FAN
These symbols are used on
warning and
indicator lights:
COOLANT F-
TEMP --
ENGINE
CHARGING
I-1
BATTERY SYSTEM
BRAKE
(a)
FUEL
ENGINE OIL
PRESSURE
Wd
TEMP OIL 9b
ANTI-LOCK (@)
BRAKE
Here are some
other symbols
you may see:
FUSE -%-
RELEASE
RADIO
VOLUME
CONDITIONING
A'R 43
RELEASE TRUNK e
LIGHTER n
HORN )tr
SPEAKER
b
V

i Power Door Locks Automatic Door Locks
With power door locks, you can lock
doors of your vehicle from the driver
door lock switch. or
unlock all the Just close your doors and turn on the ignition. If you
’ or front passenger have an automatic transaxle, all of the doors will lock
when you move your shift lever out of
PARK (P) or
NEUTRAL
(N). If you have a manual transaxle, all
of the doors will lock when the vehicle reaches about
8 mph (13 km/h). If someone needs to get out while
the vehicle is running, have that person use the manual
or power lock. When the door is closed again, it will
lock automatically when you move your shift lever out
of PARK (P) or NEUTRAL (N). If you have a manual
transaxle, the doors will lock when the vehicle reaches
about
8 mph (1 3 km/h). All doors will automatically
unlock when the key is turned to the
OFF position.
If you don’t want the doors to automatically unlock
when the key is turned to the
OFF position, you can
remove the Automatic Door Unlock fuse.
For fuse
location, see “Fuses and Circuit Breakers” in the Index.
Leaving Your Vehicle
If you are leaving the vehicle, open your door and set
the locks from inside, then get
out and close the door.

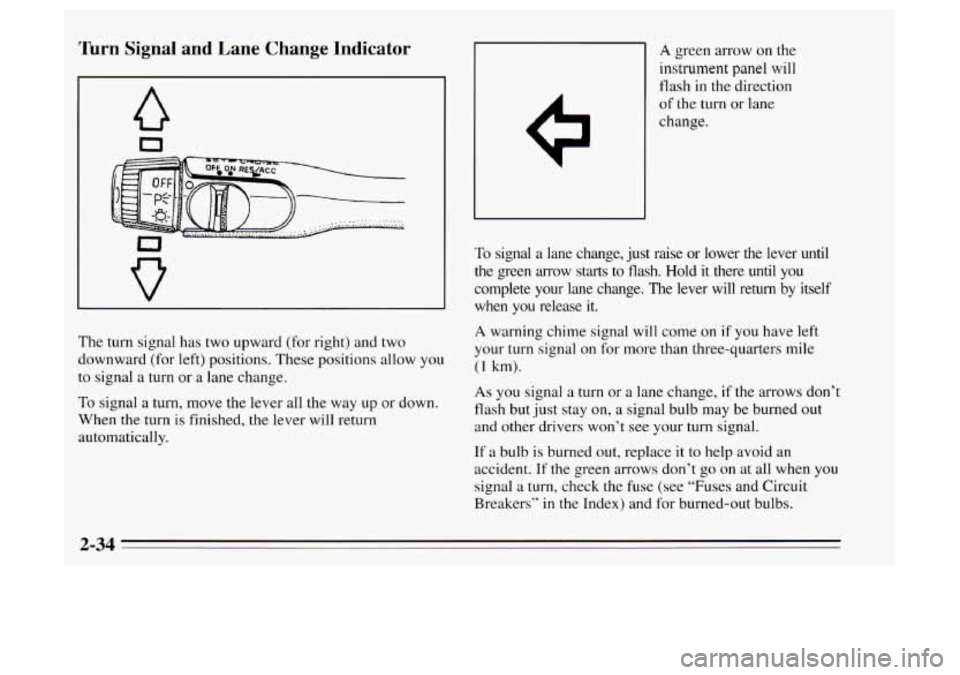

Turn Signal and Lane Change Indicator
a
0
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow
you
to signal a turn or a lane change.
To signal a turn, move the lever all the way
up or down.
When
the turn is finished, the lever will return
automatically.
A green arrow on the
instrument panel will
flash in the direction
of the turn or lane
change.
To signal
a lane change, just raise or lower the lever until
the green arrow starts to flash. Hold it there until
you
complete your lane change. The lever will return by itself
when you release it.
A warning chime signal will come on if you have left
your turn signal on for more than three-quarters mile
(1 km).
As you signal a turn or a lane change, if the arrows don I:
flash but just stay on, a signal bulb may be burned out
and other drivers won’t see your
turn signal.
If a bulb is burned out, replace it to help avoid an
accident.
If the green arrows don’t go on at all when you
signal a turn, check the fuse (see “Fuses and Circuit
Breakers’’ in the Index) and for burned-out bulbs.
2-34

The main components of your instrument panel are:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Side Vent
Instrument Panel Intensity Controlflnterior Lamps
Turn SignaVMultifunction Lever
Hazard Warning Flashers Switch
Instrument Cluster
Horn
Windshield WiperNasher Stalk
Center Vents
Climate Control System
Side Vent 11.
Glove
Box
12. Audio System
13. Lighter
14. Gear Shift Lever
15. Ashtray
16. Ignition Switch
17. Tilt Steering Wheel Lever
18. Fuse Panel (Under Instrument Panel)
19. Parking Brake Release Handle
20. Hood Release Lever
2-55

I NOTICE:
Damage to your engine from neglected oil
problems can be costly and is not covered by your
warranty.
Oil Warning Light (Standard Cluster)
If you have a low
engine
oil pressure
problem,
this light will
stay on after you start
your engine, or come on when you are driving.
This indicates that your
engine is not receiving
enough
oil. The engine
could be low on oil, or
could have some other
oil problem. Have it
fixed immediately.
The oil light could also come on in two other situations:
0
0 When the ignition is on but the engine is not running,
the light will come on as a test to show you it is
working, but the light will go out when you
turn the
ignition to START.
If it doesn’t come on with the
ignition on, you may have a problem with the fuse or
bulb. Have it fixed right away.
If you make a hard stop, the light may come on for a
moment. This is normal.
2-67

Fuses & Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces
the chance of damage
caused by electrical problems.
The main fuse panel is located to the left
of the steering
wheel under the instrument panel. To open, push
forward on the tab and pull down.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace
a bad fuse with a new one of the correct size.
When finished, replace the cover and pinch the release
levers again to unlock the panel. Press
it back up into
place.
6-51

-L- El
F/P IN.1 e,
iNST LPS GAUGES
I I
H3LP CIRCUIT BREAKER
~ CIRCUIT PWR WDO
BREAKER
PWA ACC
BREAKEI? - CIRCUIT
Fuse Usage
PRNDL
F/P INJ
STOP HAZ
AIR BAG
INST. LPS Circuitry
Electronic PRNDL display (automatic transaxle)
Fuel
Pump, Fuel Injectors
Hazard/Stop Lamps
Power Door Locks, Power Mirrors, Cigar Lighter
Supplemental Inflatable Restraint
Interior Lamps Dimming
Fuse
GAUGES
HORN
ALARM
HTR-A/C
RDO
TURN DR
LK
TAIL LPS
WDO
WIPER
ERLS DR UNLK
FTP
ACC
AIR BAG PCM CRUISE
HDLP Circuitry
Rear Window Defogger,
Gauges, Warning
Lights
Horn, Fog Lamps
Chime, Interior Lamps, Automatic Door
Locks, Remote Lock Control
Heater, Air Conditioning, Anti-Lock Brakes
(ABS), Daytime Running Lamps (DRL)
(Canada)
Radio
Turn Signals
Automatic Door Locks
Fog Lamps, Tail Lamps, Marker Lamps,
License Lamp
Power Windows, Sunroof (Circuit Breaker)
Windshield Wipersmashers
Engine Controls, Back-up Lamps
Automatic Door Unlock (Remove
to Disable)
Flash-to-Pass
(U.S.)
Rear Window Antenna, Power Seats, Rear
Window Defogger, Power Sunroof (Circuit
Breaker)
Supplemental Inflatable Restraint
Powertrain Control Module, Ignition System
Cruise Control
Headlamps (Circuit Breaker)
6-52

Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the fuse block. An electrical overload will cause the
lights to go on and off or,
in some cases, to remain off. If
this happens, have your headlamp system checked right
away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and
a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load
is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed.
