Page 91 of 372
Tilt Wheel Turn
Signal/Multifunction Lever
A tilt steering wheel allows you to adjust the steering
wheel before you drive.
You can also raise it to the highest level to give your
legs more room when you exit and enter the vehicle.
To tilt the wheel, hold the steering wheel and pull the
lever located on the left side of the steering column.
Move the steering wheel to a comfortable level, then
release the lever to lock the wheel
in place. The lever
on the left side of the steering column
includes your:
0 Turn Signal and Lane Change Indicator
0 Headlamp High/Low Beam Changer
0 Cruise Control (If Equipped)
2-35
Page 95 of 372
I I'ION: It
Cruise Control (If Equipped)
In freezing . :eather, don't use your washer until
the windshield is warmed. Otherwise the washer
fluid can form
ice on the windshield, blocking
your vision.
When you release the stalk, the washers will stop, but
the wipers will either stop or will resume the delay
speed
you were using before.
With cruise control,
you can maintain a speed of about
25 mph (40 km/h) or more without keeping your foot
on the accelerator. This can really help on long trips.
Cruise control does not work
at speeds below 25 mph
(40 km/h).
Page 96 of 372
When you apply your brake or the clutch pedal, the
cruise control shuts off.
Cruise control can be dangerous where you
can’t drive safely at
a steady speed. So,
don’t use your cruise control on winding
roads or in heavy traffic.
slippery roads.
On such roads, fast changes
in tire traction can cause needless wheel
spinning, and
you could lose control. Don’t
use cruise control on slippery roads.
Cruise control can be dangerous on Setting Vruise Contra]
If you
leave your cruise control switch on when
you’re not using cruise, you might hit
a button
and go into cruise when you don’t want to. You
could be startled and even lose control. Keep
the cruise control switch
OFF until you want to
use
it.
1. Move the cruise control switch to ON.
2. Get up to the speed you want.
Page 97 of 372
3. Press in the SET button at the end of the lever and
release it.
4. Take your foot off the accelerator pedal. Suppose
you set your cruise control at a desired speed
and then you apply the brake or clutch pedal. This, of
course, shuts off the cruise control. But you don’t need
to reset it. Once you’re going about
25 mph (40 km/h)
or more, you can move the cruise control switch from
ON to R/A (Resume/Accelerate) for about half a second.
You’ll
go right back up to your chosen speed and
stay there.
Page 98 of 372
If you hold the switch at R/A longer than half a second,
the vehicle will keep going faster until
you release the
switch or apply the brake or clutch pedal.
You could be
startled and even
lose control. So unless you want to go
faster, don’t hold the switch at
R/A.
Increasing Speed While Using Cruise Control
There are two ways to go to a higher speed:
0
0
Use the accelerator pedal to get to the higher speed.
Push the SET button at the end of the lever, then
release the button and the accelerator pedal. You’ll
now cruise at the higher speed.
Move the cruise switch from
ON to R/A. Hold it
there until
you get up to the speed you want, and
then release the switch. (To increase your speed in
very small amounts, move the switch to
R/A for
less than half a second and then release
it. Each
time you
do this, your vehicle will go about 1 mph
(1.6 km/h) faster.)
The accelerate feature will only work after you turn
on
the cruise control by pushing the SET button.
Reducing Speed While Using Cruise Control
There are two ways to reduce your speed while using
cruise control:
Push in the button at the end of the lever until you
reach the lower speed you want, then release it.
To slow down in very small amounts, push the
button for less than half
a second. Each time you do
this, you’ll go
1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot off the pedal, your vehicle will slow
down to the cruise control speed you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and
the steepness of the hills.
When going up steep hills, you may have to step on the
2-42
Page 99 of 372
accelerator pedal to maintain your speed. When going
downhill, you may have to brake or shift
to a lower gear
to keep your speed down.
Of course, applying the brake
or clutch pedal takes you out of cruise control. Many
drivers find this to be too much trouble and don’t use
cruise control on steep hills.
Ending Out of Cruise Control
There are two ways to turn off the cruise control:
0 Step lightly on the brake pedal or push the clutch
pedal, if you have a manual transaxle; OR
0 Move the cruise switch to OFF.
Erasing the Cruise Speed Memory
When you turn off the cruise control or the ignition,
your cruise control set speed memory is erased.
Exterior Lamps
Rotate the turn signal lever middle ring up one position
to turn on:
Parking Lamps
Sidemarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
2-43

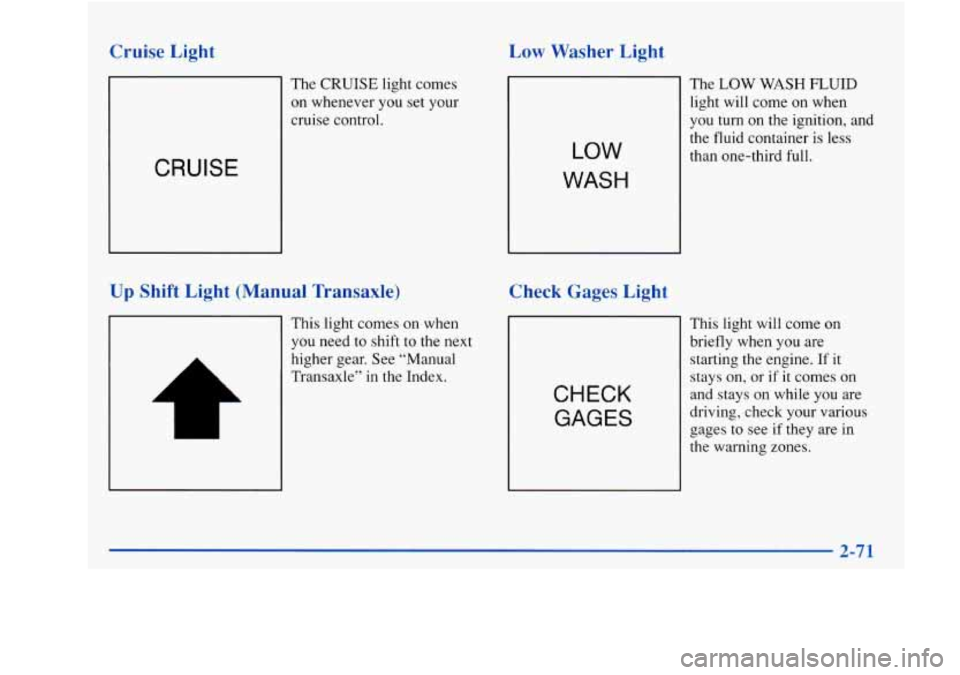

Page 127 of 372
Cruise Light
The CRUISE light comes
on whenever you set your
cruise control.
CRUISE
Up Shift Light (Manual Transaxle)
This light comes on when
you need to shift to the next
higher gear. See “Manual
Transaxle” in the Index.
Low Washer Light
LOW
WASH
Check Gages Light
CHECK
GAGES
The LOW WASH FLUID
light will come on when
you turn on the ignition, and
the fluid container is less
than one-third full.
This light will come on
briefly when you are
starting the engine.
If it
stays on, or if it comes on
and stays
on while you are
driving, check your various
gages to see
if they are in
the warning zones.
Page 289 of 372
Fuse
PWR ST
RDO IGN HTR-A/C
CRUISE
TAIL LPS
LTR
WIPER
02
DR UNLK
ALARM
Usage
Power Seat
Radio
Heater/Air Conditioning Blower,
Daytime Running Lamps, Automatic
Lamp Control
Cruise Control
Parking Lamps, Taillamps,
Sidemarker Lamps, License Lamps,
Instrument Panel Lights, Underhood
Lamp, Headlamp Warning Alarm
Cigarette Lighter, Auxiliary
Power Outlet
Windshield Wipers/Washers
Heated Oxygen Sensors
Automatic Door Unlock
Automatic Transaxle, Automatic Door
Unlock, Alarm Module (Illuminated
Entry, Warning Chimes), Traction
Telltale, Rear Window Defogger,
Remote Lock Control
Fuse
FOG/FTP
PRNDL
DR LK
2
AIR BAG
HORN
INST STOP HAZ
PCM
DR LK
1
INST LPS
RR DEF
HDLP
Usage
Fog Lamps
Instrument Cluster, Powertrain
Computer, Park-Lock Solenoid,
Electronic PRNDL
Door Locks
Air Bag-Power Horn, Service Tool Power
Instrument Cluster
Stoplamps, Hazard Lamps,
Anti-Lock Brakes
Powertrain Control Module
Door Locks, Remote Lock Control
Instrument Panel Lights, Fog Lamps
Rear Window Defogger
Headlamps, Daytime Running Lamps (Circuit Breaker)
Page 339 of 372
Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall). You should let your GM retailer’s
service department or other qualified service center do
these jobs. Make sure any necessary repairs are
completed at once.
Proper procedures to perform these services may be
found in a
GM service manual. See “Service and Owner
Publications” in the Index.
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear
or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well as open seams,
holes, loose connections or other conditions which could
cause a heat build-up in the
floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust’’ in
the Index.
Radiator and Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damage or missing parts. Replace parts as
needed. Replace any cables that have high effort
or
excessive wear. Do not lubricate accelerator and cruise
control cables.
7-45
Page 361 of 372
Clock. Setting the ................................ 3-6
Clutch Fluid. Hydraulic
.......................... 6-23
Compact Disc Care
............................. 3-23
Compact Disc Player
............................ 3-13
Compact Spare Tire
............................. 5-32
Clutch. Hydraulic
............................... 6-23
Comfort Controls
................................ 3-2
Control
of a Vehicle .............................. 4-6
Convenience Net
............................... 2-52
Convex Outside Mirror
.......................... 2-50
Coolant Heater. Engine
............................... 2- 19
SurgeTank
.................................. 5-16
Surge Tank Pressure Cap
....................... 6-28
Cooling System ................................ 5- 15
Courtesy Transportation
........................... 8-6
Cruise Control
................................. 2-39
CruiseLight
................................... 2-71
Customer Assistance for Text Telephone Users ......... 8-4
Customer Assistance Information
................... 8- 1
Customer Satisfaction Procedure .................... 8-2
Damage. Finish
............................... 6-54
Damage. Sheet Metal
............................ 6-54
Daytime Running Lamps
......................... 2-44
Defects. Reporting Safety
......................... 8-8
DeadBattery ................................... 5-3
Defensive Driving ............................... 4-2
Defogger. Rear Window
.......................... 3-5
Defogging
..................................... 3-4
Defrosting
..................................... 3-4
Dimensions. Vehicle
............................ 6-63
Dolby@
€3 Noise Reduction ....................... 3-12
DoorLocks
..................................... 2-4
Driver Position
................................. 1-13
Driving City
........................................ 4-21
Defensive
.................................... 4-2
Drunken
..................................... 4-3
Freeway .................................... 4-22
In a Blizzard
................................. 4-28
In Foreign Countries
........................... 6-4
In the Rain
.................................. 4-18
Night
...................................... 4-16
On Curves
.................................. 4-11
On Grades While Towing a Trailer
............... 4-40
On Hill and Mountain Roads
.................... 4-24
OnSnowandIce
............................. 4-27
WetRoads
.................................. 4-18
Winter
...................................... 4-26
With a Trailer
................................ 4-39
Drunken Driving
................................ 4-3
Through
Water
............................... 4-20
