Your instrument panel is designed to let you know at a glance how your vehicle is running. You’ll know how fast
you’re going, how much fuel you have used and many other things you’ll need to drive safely and economically.
The main components
of your instrument panel are:
A. Vent
B. Turn Signal/Multifunction Lever
C. Supplemental Restraint System (SRS) and Horn
D. Hazard Warning Flashers Switch
E. Instrument Cluster
E Rear Window Defogger
G. Climate Control System
H. Supplemental Restraint System (SRS)
I. Glove Box
J. Gear Shift Lever
K. Ashtray
L. Audio System
M. Windshield Wipermasher Stalk
N. Ignition Switch
0. Enhanced Traction System (ETS) Switch
(If Equipped)
P. Fog Lamps Switch (If Equipped)
Q. Hood Release Lever
R. Instrument Panel Intensity Control/Interior Lamps
S. Fuse Panel
2-57
Page 288 of 372

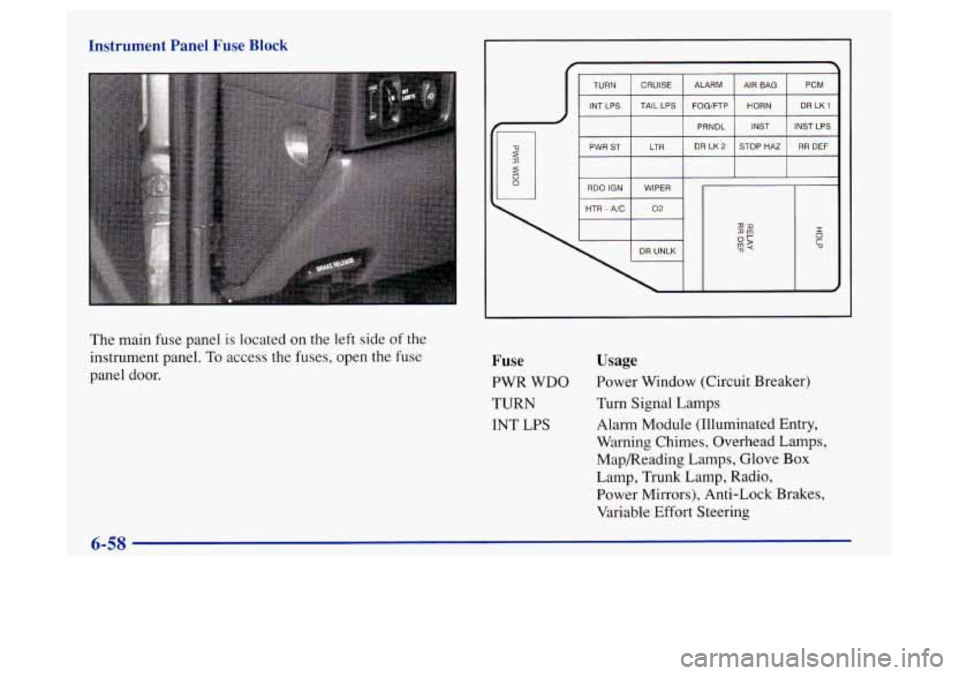

Instrument Panel Fuse Block
I
The main fuse panel is located on the left side of the
instrument panel.
To access the fuses, open the fuse
panel door. Fuse Usage
PWR WDO Power Window (Circuit Breaker)
TURN Turn Signal Lamps INT LPS Alarm Module (Illuminated Entry, Warning Chimes, Overhead Lamps,
MapReading Lamps, Glove
Box
Lamp, Trunk Lamp, Radio,
Power Mirrors), Anti-Lock Brakes,
Variable Effort Steering
