Parking Lots
If you park in a lot where someone will be watching
your vehicle, it’s best to lock it up and take your keys.
But what if you have to leave your key?
0
0
0
0
0
0
If possible, park in a busy, well lit area.
Put your valuables in a storage area, like your
trunk or glove box. Be sure to close and lock the
storage area.
Close all windows.
Slide the remote trunk release lockout switch all
the way to the right.
Lock the glove box.
Lock all the doors except the driver’s.
Passlock@
Your vehicle is equipped with the Passlock
theft-deterrent system. During normal
operation, the SECURITY light will
go
off after the engine is started.
If the engine stalls
and the SECURITY light flashes,
wait until the light stops flashing before trying to restart
the engine. Remember to release the key from the
START position as soon as the engine starts.
If you are driving and the SECURITY light comes
on, you will be able to restart the engine if you turn
the engine
off. However, your Passlock system is
not working properly and must be serviced by your
retailer. Your vehicle is not protected by Passlock at this
time. You may also want to check the fuse (see “Fuses
and Circuit Breakers” in the Index). See your retailer
for service.
If the SECURITY light comes on while the engine is
running, a problem has been detected and the system
may need service. See your retailer for service.
In an emergency, call the Oldsmobile Roadside
Assistance Center at
1-800-442-OLDS (6537).
Passlock is a passive theft-deterrent system. The system
is armed once the key is removed from the ignition.
Passlock enables fuel
if the ignition lock cylinder is
turned with a valid key. If a correct key is not used,
fuel is disabled.
2-12

Your instrument panel is designed to let you know at a glance how your vehicle is running. You’ll know how fast
you’re going, how much fuel
you have used and many other things you’ll need to drive safely and economically.
The main components
of your instrument panel are:
A. Vent
B. Turn SignaUMultifunction Lever
C. Horn
D. Hazard Warning Flashers Switch
E. Instrument Cluster
E Rear Window Defogger
G. Climate Control System
H. Glove Box
I. Gear Shift Lever
J. Ashtray
K. Audio System
L. Windshield Wipermasher Stalk
M. Ignition Switch
N. Enhanced Traction System (ETS) Switch
(If Equipped)
0. Hood Release Lever
P. Instrument Panel Intensity Controlhterior Lamps
Q. Fuse Panel
2-47

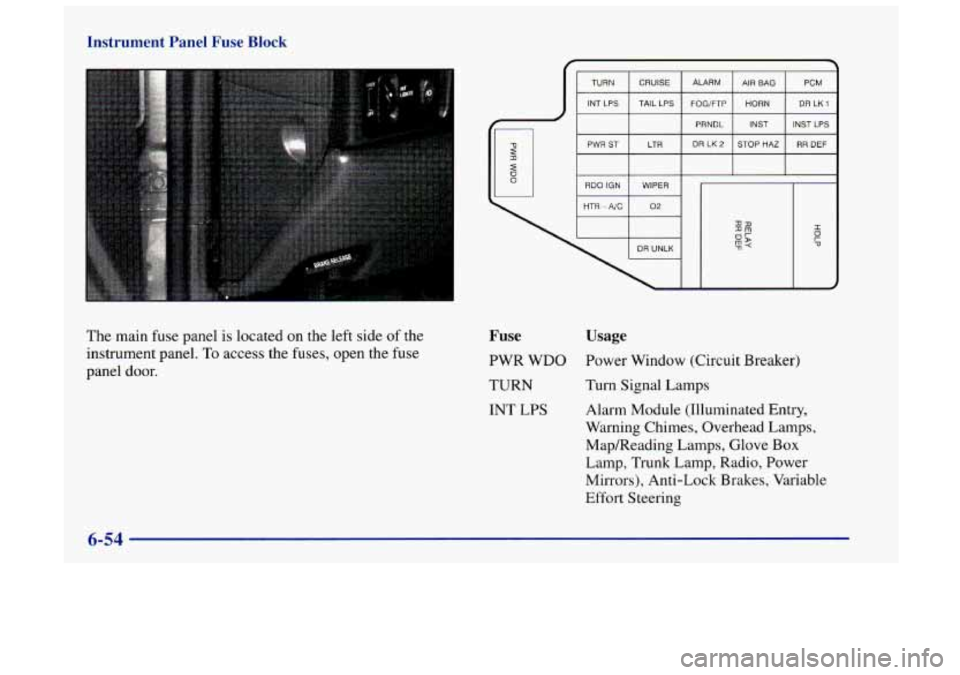

Instrument Panel Fuse Block
The main fuse panel is located on the left side of the
instrument panel. To access the fuses, open the fuse
panel door. Fuse
PWR WDO
TURN
INT LPS
Usage
Power Window (Circuit Breaker)
Turn Signal Lamps
Alarm Module (Illuminated Entry,
Warning Chimes, Overhead Lamps,
Mapmeading Lamps, Glove
Box
Lamp, Trunk Lamp, Radio, Power
Mirrors), Anti-Lock Brakes, Variable
Effort Steering
6-54

Engine .................................. 6.10. 6.11
Coolant
..................................... 6-21
Coolant Heater
............................... 2- 17
Coolant Level Check
.......................... 7-30
Coolant Temperature Gage
..................... 2-54
Exhaust
..................................... 2-27
FuseBlock
.................................. 6-56
Identification
................................ 6-52
OilLevelCheck
.............................. 7-30
Overheating
................................. 5-15
Running While Parked
......................... 2-27
Specifications
................................ 6-58
Starting Your
...................... 2.14.2.15. 2.16
Engine Coolant
................................. 5 . 15
Engineoil
.................................... 6-12
Adding
..................................... 6-13
Additives
................................... 6-16
Pressure Warning Light
........................ 2-57
Used
....................................... 6-17
Whentochange
.............................. 6-16
Enhanced Traction System
......................... 4-9
Enhanced Traction System Active Light
......... 2-54, 4-9
Enhanced Traction System Warning Light
....... 2-53, 4-9
Exhaust, Engine
................................ 2-27
Checking
................................... 6-13
Fabric Cleaning
............................... 6-45
Filling a Portable Fuel Container
.................... 6-8
FillingYourTank
................................ 6-5
Filter. Air
..................................... 6-17
Finish Care
.................................... 6-48 Finish Damage
................................. 6-50
First Gear. Automatic Transaxle
................... 2-22
Flashers. Hazard Warning
......................... 5-3
Flat Tire. Changing
............................. 5-25
Fluids and Lubricants
............................ 7-36
Foreign Countries. Fuel
........................... 6-5
Four-Way Manual Seat
........................... 1-3
Fuel
.......................................... 6-3
Filling Your Tank
.............................. 6-5
In Foreign Countries
........................... 6-5
Fuses and Circuit Breakers
....................... 6-53
FrontTowing
.................................. 5-11
Gage
....................................... 2-60
Gages Engine Coolant Temperature
.................... 2-54
Fuel
....................................... 2-60
Speedometer
................................. 2-49
Tachometer
.................................. 2-50
GarmentHook
................................. 2-45
GAWR
....................................... 4-31
Gear Positions. Automatic Transaxle
................ 2-18
GloveBox
.................................... 2-43
Gross Axle Weight Rating
........................ 4-31
Gross Vehicle Weight Rating
...................... 4-31
GVWR
....................................... 4-31
Halogen Bulbs
................................ 6-32
Hazard Warning Flashers
.......................... 5-2
Head Restraints
................................. 1-5
