6-63
Normal Maintenance
Replacement Parts
Engine Air Cleaner/Filter
2.4L L4 A
-1279C* . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3400 V6 A
-1279C* . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Oil Filter
2.4L L4 PF
-44* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3400 V6 PF
-47* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spark Plugs
2.4L L441
-942* (Platinum Plug) . . . . . . . . . . . . . . . .
Gap: 0.050 inch (1.27 mm)
3400 V641
-940* (Platinum Plug) . . . . . . . . . . . . . . .
Gap: 0.060 inch (1.52 mm)
PCV ValveCV892C* . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Blades
Type Shepherd's Hook. . . . . . . . . . . . . . . . . . . . . . . . .
Passenger's Side 17 inches (43 cm). . . . . . . . . . . . . . .
Driver's Side 22 inches (56 cm). . . . . . . . . . . . . . . . .
* ACDelco

part number.
Vehicle Dimensions
Length 186.7 inches (474.2 cm). . . . . . . . . . . . . . . . .
Width 70.1 inches (178.0 cm). . . . . . . . . . . . . . . . . . .
Height 54.5 inches (138.4 cm). . . . . . . . . . . . . . . . . . .
Wheelbase 107.0 inches (271.9 cm). . . . . . . . . . . . . .
Front Tread 59.1inches (150.0 cm). . . . . . . . . . . . . . . .
Rear Tread 59.3 inches (150.7cm). . . . . . . . . . . . . . . .

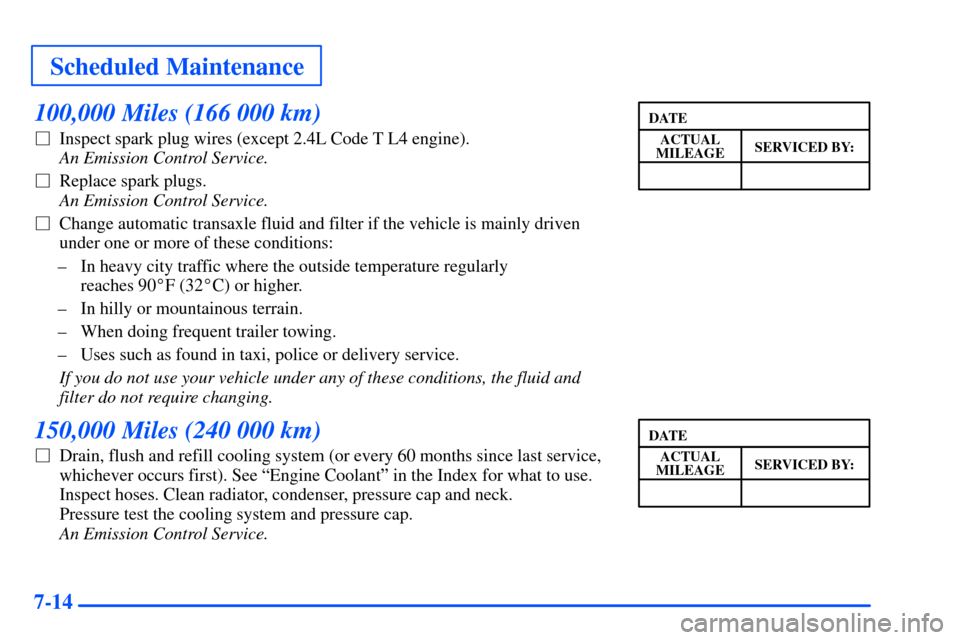

Scheduled Maintenance
7-14
100,000 Miles (166 000 km)

Inspect spark plug wires (except 2.4L Code T L4 engine).
An Emission Control Service.

Replace spark plugs.
An Emission Control Service.

Change automatic transaxle fluid and filter if the vehicle is mainly driven
under one or more of these conditions:
± In heavy city traffic where the outside temperature regularly
reaches 90
F (32
C) or higher.
± In hilly or mountainous terrain.
± When doing frequent trailer towing.
± Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these conditions, the fluid and
filter do not require changing.
150,000 Miles (240 000 km)
Drain, flush and refill cooling system (or every 60 months since last service,
whichever occurs first). See ªEngine Coolantº in the Index for what to use.
Inspect hoses. Clean radiator, condenser, pressure cap and neck.
Pressure test the cooling system and pressure cap.
An Emission Control Service.
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
