width Oldsmobile Alero 2001 Owner's Manuals

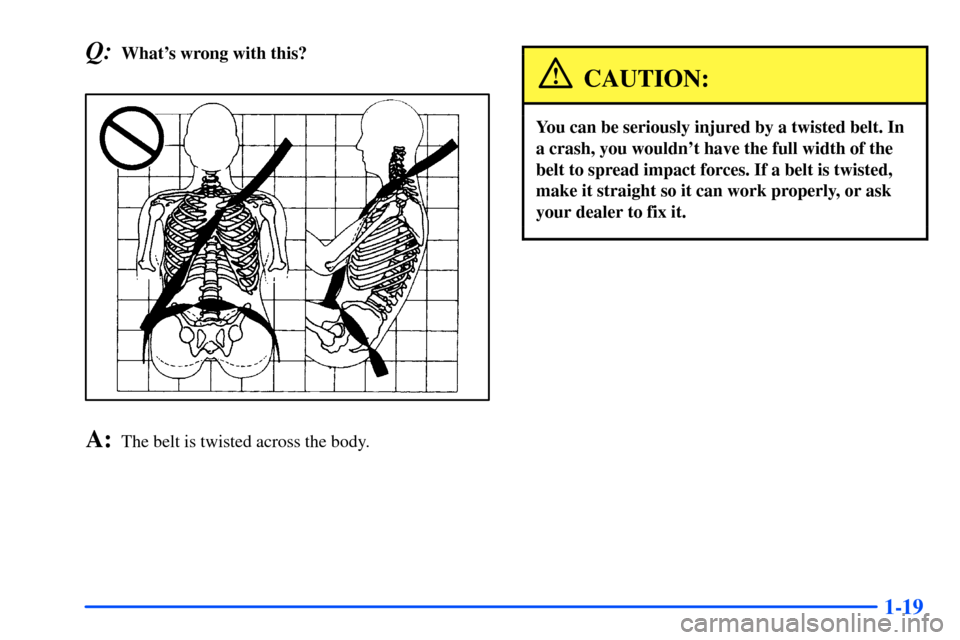

1-19
Q:What's wrong with this?
A:The belt is twisted across the body.
CAUTION:
You can be seriously injured by a twisted belt. In
a crash, you wouldn't have the full width of the
belt to spread impact forces. If a belt is twisted,
make it straight so it can work properly, or ask
your dealer to fix it.

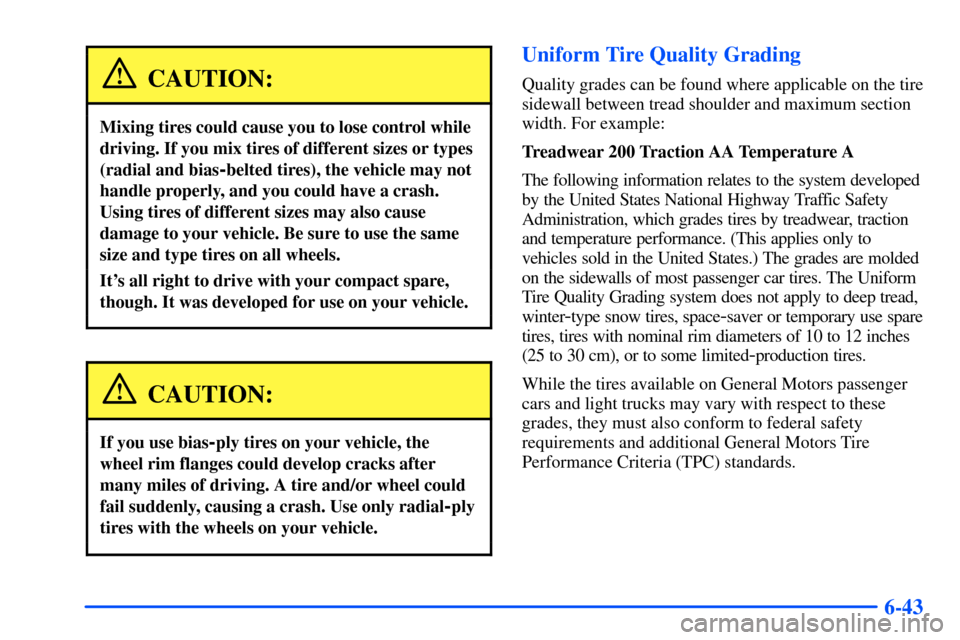

6-43
CAUTION:
Mixing tires could cause you to lose control while
driving. If you mix tires of different sizes or types
(radial and bias
-belted tires), the vehicle may not
handle properly, and you could have a crash.
Using tires of different sizes may also cause
damage to your vehicle. Be sure to use the same
size and type tires on all wheels.
It's all right to drive with your compact spare,
though. It was developed for use on your vehicle.
CAUTION:
If you use bias-ply tires on your vehicle, the
wheel rim flanges could develop cracks after
many miles of driving. A tire and/or wheel could
fail suddenly, causing a crash. Use only radial
-ply
tires with the wheels on your vehicle.
Uniform Tire Quality Grading
Quality grades can be found where applicable on the tire
sidewall between tread shoulder and maximum section
width. For example:
Treadwear 200 Traction AA Temperature A
The following information relates to the system developed
by the United States National Highway Traffic Safety
Administration, which grades tires by treadwear, traction
and temperature performance. (This applies only to
vehicles sold in the United States.) The grades are molded
on the sidewalls of most passenger car tires. The Uniform
Tire Quality Grading system does not apply to deep tread,
winter
-type snow tires, space-saver or temporary use spare
tires, tires with nominal rim diameters of 10 to 12 inches
(25 to 30 cm), or to some limited
-production tires.
While the tires available on General Motors passenger
cars and light trucks may vary with respect to these
grades, they must also conform to federal safety
requirements and additional General Motors Tire
Performance Criteria (TPC) standards.

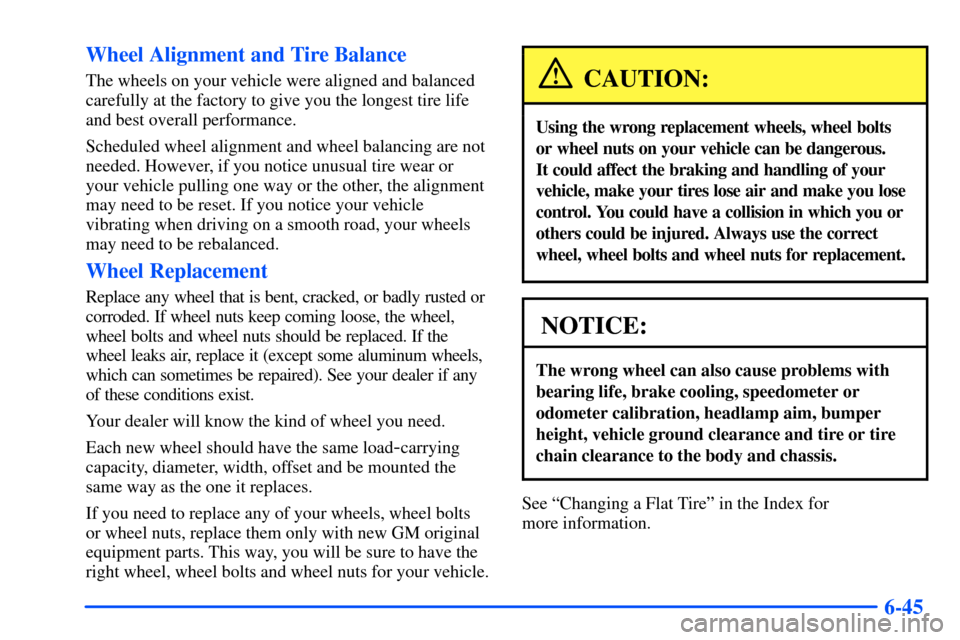

6-45 Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give you the longest tire life
and best overall performance.
Scheduled wheel alignment and wheel balancing are not
needed. However, if you notice unusual tire wear or
your vehicle pulling one way or the other, the alignment
may need to be reset. If you notice your vehicle
vibrating when driving on a smooth road, your wheels
may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted or
corroded. If wheel nuts keep coming loose, the wheel,
wheel bolts and wheel nuts should be replaced. If the
wheel leaks air, replace it (except some aluminum wheels,
which can sometimes be repaired). See your dealer if any
of these conditions exist.
Your dealer will know the kind of wheel you need.
Each new wheel should have the same load
-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your vehicle.
CAUTION:
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you lose
control. You could have a collision in which you or
others could be injured. Always use the correct
wheel, wheel bolts and wheel nuts for replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See ªChanging a Flat Tireº in the Index for
more information.

6-63
Normal Maintenance
Replacement Parts
Engine Air Cleaner/Filter
2.4L L4 A
-1279C* . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3400 V6 A
-1279C* . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Oil Filter
2.4L L4 PF
-44* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3400 V6 PF
-47* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spark Plugs
2.4L L441
-942* (Platinum Plug) . . . . . . . . . . . . . . . .
Gap: 0.050 inch (1.27 mm)
3400 V641
-940* (Platinum Plug) . . . . . . . . . . . . . . .
Gap: 0.060 inch (1.52 mm)
PCV ValveCV892C* . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Blades
Type Shepherd's Hook. . . . . . . . . . . . . . . . . . . . . . . . .
Passenger's Side 17 inches (43 cm). . . . . . . . . . . . . . .
Driver's Side 22 inches (56 cm). . . . . . . . . . . . . . . . .
* ACDelco

part number.
Vehicle Dimensions
Length 186.7 inches (474.2 cm). . . . . . . . . . . . . . . . .
Width 70.1 inches (178.0 cm). . . . . . . . . . . . . . . . . . .
Height 54.5 inches (138.4 cm). . . . . . . . . . . . . . . . . . .
Wheelbase 107.0 inches (271.9 cm). . . . . . . . . . . . . .
Front Tread 59.1inches (150.0 cm). . . . . . . . . . . . . . . .
Rear Tread 59.3 inches (150.7cm). . . . . . . . . . . . . . . .
