Page 240 of 354

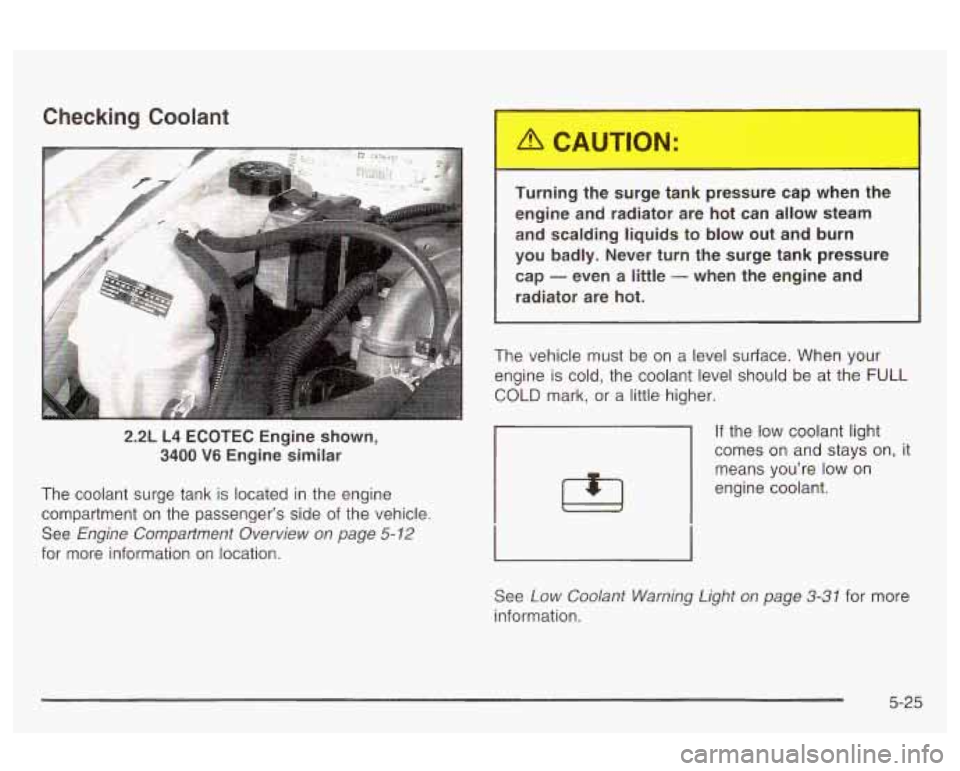

Checking Coolant
2.2L L4 ECOTEC Engine shown,
3400 V6 Engine similar
The coolant surge tank
is located in the engine
compartment on the passenger’s side of the vehicle.
See
Engine Compartment Overview on page 5-12
for more information on location. Turning
the surge tank pressure cap when the
engine and radiator are hot can allow steam
and scalding liquids to blow out and burn
you badly. Never turn the surge tank pressure
cap
- even a little - when the engine and
radiator are hot.
The vehicle must be on
a level surface. When your
mgine is cold, the coolant level should be at the
FULL
;OLD mark, or a little higher.
If the
low coolant light
comes on and stays on,
it
means you’re low on
engine coolant.
See
Low Coolant Warning Light on page 3-31 for more
nformation.
5-25
Page 251 of 354

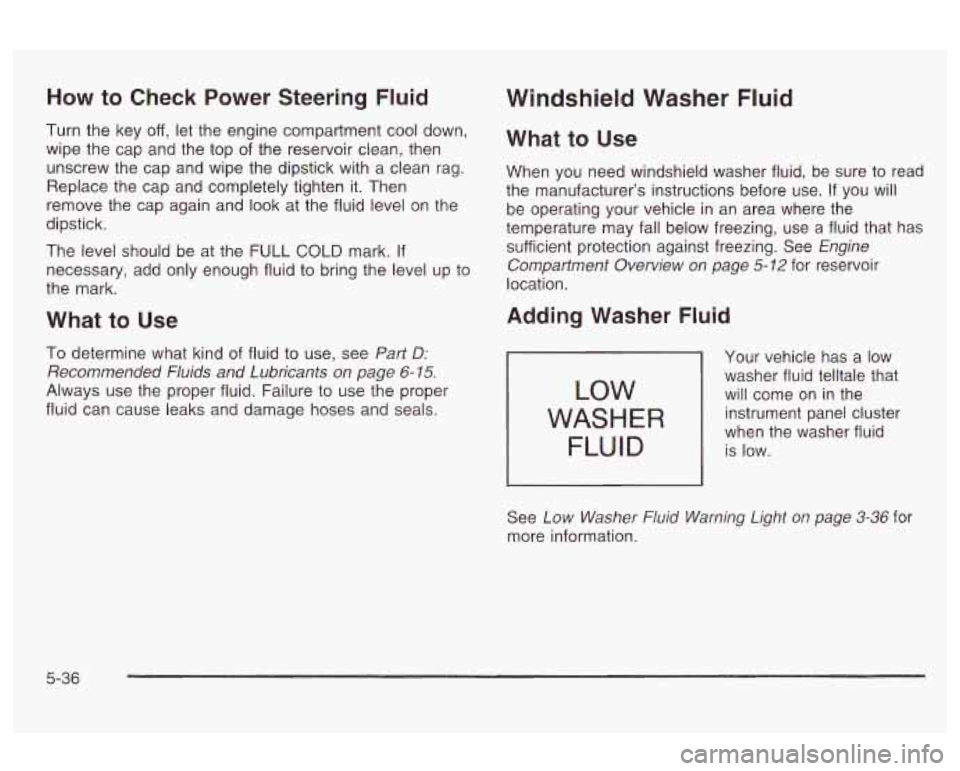

How to Check Power Steering Fluid
Turn the key off, let the engine compartment cool down,
wipe the cap and the top of the reservoir clean, then
unscrew the cap and wipe the dipstick with a clean rag.
Replace the cap and completely tighten it. Then
remove the cap again and look at the fluid level on the
dipstick.
The level should be at the
FULL COLD mark. If
necessary, add only enough fluid
to bring the level up to
the mark.
What to Use
To determine what kind of fluid to use, see Part Dr
Recommended Fluids and Lubricants on page 6- 15.
Always use the proper fluid. Failure to use the proper
fluid can cause leaks and damage hoses and seals.
Windshield Washer Fluid
What to Use
When you need windshield washer fluid, be sure to read
the manufacturer’s instructions before use.
If you will
be operating your vehicle in an area where the
temperature may fall below freezing, use
a fluid that has
sufficient protection against freezing. See
Engine
Compartment Overview on page
5-12 for reservoir
location.
Adding Washer Fluid
Your vehicle has a low
washer fluid telltale that
will come on in the
WASHER
FLU ID
instrument panel cluster
when the washer fluid
is low.
See
Low Washer Fluid Warning Light on page 3-36 for
more information.
5-36
Page 257 of 354

Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables to start your
vehicle. Be sure to follow the steps below to do it safely.
I- Ba..,ries can hi.- - you. ’_ --?y cal. Je c-.lgerous
because:
They contain acid that can burn you.
They contain gas that can explode or
They contain enough electricity to
ignite.
burn you.
If you don’t follow these steps exactly, some
or all of these things can hurt you.
Notice: Ignoring these steps could result in costly
damage to your vehicle that wouldn’t be covered
by your warranty.
Trying to start your vehicle by pushing or pulling
it
won’t work, and it could damage your vehicle.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
Notice: If the other system isn’t a 12-volt system
with a negative ground, both vehicles can be
damaged.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other.
If they are, it could cause a ground
connection you don’t want.
You wouldn’t be able to
start your vehicle, and the bad grounding could
damage the electrical systems.
To avoid the possibility of the vehicles rolling, set
the parking brake firmly on both vehicles involved in
the jump start procedure. Put an automatic
transaxle in PARK (P) or a manual transaxle in
NEUTRAL before setting the parking brake.
Notice: If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered by
your warranty.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter. Turn
off the radio and all lamps that aren’t
needed. This will avoid sparks and help save
both batteries. And it could save your radio!
4. Open the hoods and locate the batteries. Find the
positive
(+) and negative (-) terminal locations on
each vehicle. See
Engine Compartment Overview
on page
5-12 for more information on location.
5-42
Page 258 of 354

An electric fan can start up even wt.-.r the
engine
is not running and can injure you. Keep
hands, clothing and tools away from any
underhood electric fan.
m rn
Using a match near a battery can cause battery
gas to explode. People have been hurt doing
this, and some have been blinded. Use a
flashlight if you need more
light.
Be sure the battery has enough water. You
don’t need to add water tsthe ACDelco@
battery installed
in your new vehicle. But if a
battery has filler caps, be sure the right
amount of fluid
is there. If it is low, add water
to take care of that first. If you don’t, explosive
gas could be present.
CAUTION: (Continued) Battery fluid contains acid that can
burn you.
Don’t get
it on you. If you accidentally get it in
your eyes or on your skin, flush the place with
water and get medical help immediately.
I Fans or other moving el,,,ne parts can ..., ure
you badly. Keep your hands away from moving
parts once the engine
is running.
5. Check that the jumper cables don’t have loose or
missing insulation.
If they do, you could get a
SI Iucln. I I IC VCIIICIIG~ UWUIU UG UCAIIIUY~U CUW. -L--I- TI-- ..-L.:-1-,. mA,,lA Lm An-mmr.P4 tnn
Before you connect the cables, here are some
basic things you should know. Positive
(+) will go to
positive
(+) or to a remote positive (+) terminal if
the vehicle has one. Negative (-) will go to a heavy,
unpainted metal engine part or to a remote
negative
(-) terminal if the vehicle with the dead
battery has one.
5-43
Page 308 of 354

Scheduled Maintenance
The services shown in this schedule up to 100,000 miles
(1
66 000 km) should be repeated after 100,000 miles
(1
66 000 km) at the same intervals for the life of
this vehicle. The services shown at 150,000 miles
(240 000 km) should be repeated at the same interval
after 150,000 miles
(240 000 km) for the life of this
vehicle.
See
Part B: Owner Checks and Services on page 6-9
and Part C: Periodic Maintenance Inspections on
page
6- 13.
Footnotes
t The U.S. EfMrmmef%al Prdectim Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to
the completion of the vehicle's useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the
,iia;ii;eiiaiic.e be ,.ec.ui.u'eu'.
+ A good time to check your brakes is during tire
rotation. See Brake System Inspection on page
6-14.
Engine Oil Scheduled Maintenance
Change engine oil and filter as indicated by the GM
Oil Life SystemTM (or every 12 months, whichever
occurs first). Reset the system.
Your vehicle has a computer system that lets you know
when to change the engine oil and filter. This
is
based on engine revolutions and engine temperature,
and not on mileage. Based on driving conditions,
the mileage at which an oil change will be indicated can
vary considerably. For the oil life system to work
properly, you must reset the system every time the oil is
changed.
When the system has calculated that
oil life has been
diminished, it
wi!! indicate that an oil change is
necessary. A CHANGE OIL light will come on. Change
your oil as soon as possible within the next two
times you stop for fuel. It is possible that,
if you are
driving under the best conditions, the oil life system may
not indicate that an oil change is necessary for over a
year. However, your engine oil and filter must
be
must be reset. It is also important to check your oil
regularly and keep it at the proper level.
chs-mgd
!ezst s-ve 2 ye2r 2nd 2t this ?im,e the cwctam 'J -*-* ' *
6-5
Page 334 of 354

A
Accessory Power Outlets .............................. 3-17
Adding Washer Fluid
....................................... 5-36
Additional Program Information
........................... 7-8
Additives, Fuel
................................................. 5-6
Adjusting the Speakers
Air Bag
Air Bag System, Supplemental Restraint Add-On Electrical Equipment
............................ 5-81
(Balance/Fade)
............................ 3-40, 3-46, 3-56
Readiness Light
.......................................... 3-26
System (SRS)
............................................. 1-53
Air CleanedFiIter, Engine
................................. 5-21
All Overseas Locations ...................................... 7-4
Aluminum Wheels
........................................... 5-77
AM ................................................ ....... 3-65
Antenna, XMTM Satellite Radio System
................ 3-67
Anti-lock Brake System (ABS)
............................ 4-6
Anti-Lock Brake, System Warning Light
.............. 3-29
Care of Safety Belts
.................................... 5-75
Chemical Paint Spotting
............................... 5-78
Antenna, Backglass
......................................... 3-66
Appearance Care
............................................ 5-72
Cleaning the Inside of Your Vehicle
................ 5-72
Cleaning the Outside of Your Vehicle
.............. 5-75
Finish Damage
............................................ 5-77
G!.! Vehicle CarelAppearmce Materials .......... 5-78
Sheet Metal Damage ................................... 5-77
Underbody Maintenance
............................... 5-78 Appearance Care (cont.)
Weatherstrips
........... ........................ 5-75
Ashtrays
........................................................ 3-18
Audio System(s)
......................................... 3-38
Backglass Antenna
...................................... 3-66
Care of Your Cassette Tape Player
................ 3-65
Care of Your CD Player
............................... 3-66
Care of Your CDs
........................................ 3-66
Chime Level Adjustment
............................... 3-67
DAB Radio Antenna System
.......................... 3-67
Radio with Cassette and CD
......................... 3-52
Radio with CD
.................................... 3-39, 3-42
Setting the Time for Radios with Radio
Data Systems (RDS)
................................ 3-38
Setting the Time for Radios without Radio
Data Systems (RDS)
................................ 3-38
Theft-Deterrent Feature
................................ 3-64
Understanding Radio Reception
..................... 3-65
KhATM %?P!!ifP Radln Antenna . Sysf9t-p .............. 1-87
Automatic Headlamp System ............................ 3-14
Automatic Transaxle
........................................ 2-18
Fluid
.......................................................... 5-22
Operation
................................................... 2-22
Automatic Transaxle Check
.............................. 6-10
Automatic Transaxle Shift Lock Control
System Check
............................................. 6-11
Audio Systems
Page 335 of 354

Backglass Antenna .......................................... 3-66
Backing Up
.................................................... 4-40
Battery
.......................................................... 5-41
Battery Replacement
......................................... 2-6
Battery Run-Down Protection
............................ 3-1 7
Before Leaving on a Long Trip
......................... 4-22
Body Lubrication Service
.................................. 6-1 1
Brake
Parking
................................... .... 2-26
System Inspection
.................... .... 6-14
System Warning Light
................... .... 3-28
Brake Adjustment
............................................ 5-40
Brake Fluid
.................................................... 5-38
Brake Pedal Travel
......................................... 5-40
Brake Wear
................................................... 5-40
Brakes
................................ ................... 5-38
Braking
................................... ................. 4-6
Break-in, New Vehicle
..................................... 2-17
Bulb Replacement
........................................... 5-49
Center High-Mounted Stoplamp (CHMSL)
........ 5-50
Front Turn Signal and Parking Lamps ............. 5-50
Headlamp Aiming .. .......................... 5-47
Braking
in Emergencies
............. ............. 4-8
Halogen Bulbs
............................................ 5-49
Headlamps
........ .......................... 5-49 Bulb
Replacement (cont.)
Replacement Bulbs
...................................... 5-51
Taillamps, Turn Signal. and Stoplamps ............ 5-50
Buying New Tires ........................................... 5-56
C
............
California Fuel ........................ ...... 5-6
Canada
......................................... .. 7-4
Canadian Owners
...............................
Canadian Roadside Assistance ........................... 7-7
Capacities and Specifications
............................ 5-86
Carbon Monoxide
................... 4.25. 4.36. 4-1 1. 4-30
Care
of
Safety Belts ........ ................ 5-75
Care of Your
..... II
Cassette Tape Player ... ................ 3-65
CD Player
.................................................. 3-66
Cassette Deck Service
...................................... 6-9
Center Console Storage Area
........................... 2-34
Center High-Mounted Stoplamp (CHMSL)
........... 5-50
Center Rear Passenger Position, Safety Belts ..... 1-50
Chains, Tires
.................................................. 5-60
Charging System Light
.................................... 3-27
Check Engine Light
............................................... 3-31
Checking Coolant
............................................ 5-25
CDS
.......................................................... 3-66
Cassette Tape Messages
................................. 3-62
3
Page 336 of 354

Checking Engine Oil ........................................ 5-15
Checking Things Under the Hood
....................... 5-9
Checking Your Restraint Systems
...................... 1-60
Chemical Paint Spotting
................................... 5-78
Child Restraints Child Restraint Systems
............................... 1-38
Infants and Young Children
........................... 1-34
Lower Anchorages and Top Tethers for Children (LATCH System)
.......................... 1-43
Older Children
............................................. 1-32
Securing a Child Restraint Designed for the
LATCH System
........................................ 1-45
Securing a Child Restraint in a Center Rear
Seat Position
........................................... 1-48
Securing a Child Restraint in a Rear Outside
Seat
Position ........................................... 1=45
Securing a Child Restraint in the Right Front
Seat Position
........................................... 1-50
Top Strap
................................................... 1-41
Where to Put the Restraint
........................... 1-41
Chime Level Adjustment
.................................. 3-67
wyC4i t;llt; Llyr ilGl 4- IO
Cleaning Inside of Your Vehicle
........................... 5-72
Outside of Your Vehicle
................................ 5-75
Underbody Maintenance
............................... 5-78
Weatherstrips
.............................................. 5-75
Cleaning Exterior LampdLenses ....................... 5-76
Top Strap Anchor Location ............................ 1-42
P: -.--- IL- I :-.LA-- A +n .............................................
Climate Control System ................................... 3-19
Outlet Adjustment
........................................ 3-22
Compact Disc Messages
................. 3-42, 3-52, 3-64
Compact Spare Tire
........................................ 5-71
Control of a Vehicle
.......................................... 4-5
Coolant Engine Temperature Gage
............................ 3-31
Heater, Engine
............................................ 2-20
Low Warning Light
....................................... 3-31
Cooling System
.............................................. 5-28
Cruise Control
................................................ 3-10
Cruise Control Light
........................................ 3-36
Current and Past Model Order Forms
................ 7-11
Customer Assistance Information
Courtesy Transportation
.........
Customer Assistance for Text
Telephone (TTY) Users
............................... 7-3
Customer Assistance Offices
........................... 7-3
Customer Satisfaction Procedure
..................... 7-2
GM Mobility Proaram for Persons with
Disabilities
................................................ 7-5
Reporting Safety Defects to General Motors
...... 7-9
Reporting Safety Defects to the
Canadian Government
................................ 7-9
Reporting Safety Defects to the
United
States Gzvernment .... ....... 7-9
Clutch, Hydraulic ............................................. 5-22
Cupholder(s)
.................................................. 2-34
.............. 7-7
3
Page 337 of 354

Customer Assistance Information (cont.)
Roadside Assistance Program
......................... 7-5
Service Publications Ordering Information
........ 7-1 0
Customizing the Automatic Door Locks ............. 2-9
D
DAB Radio ................................................ 3-65
Daytime Running Lamps (DRL)
......................... 3-14
Defensive Driving
............................................. 4-2
Defogging and Defrosting
................................. 3-20
Delayed Headlamps
........................................ 3-1 5
Delayed Locking ............................................... 2-8
Dinghy Towing
...................... .................. 4-32
Dolly Towing
........................ .............. 4-33
Dome Lamp
......................... .................. 3-16
Door Delayed Locking
................... ................ 2-8
Power Door Locks
......................................... 2-8
Programmable Automatic Door Locks
............... 2-8
Rear Security Locks
..................................... 2-10
Position, Safety Belt
..................................... 1-15
Six-Way Power Seat
...................................... 1-3
At Night
..................................................... 4-15
City
........................................................... 4-20
Defensive
..................................................... 4-2
Doing
Your Own Service Work
............... ..... 5-4
Locks
...................................................... 2-7
Driver
Driving Driving
(cont.)
Drunken
....................................................... 4-2
Freeway
..................................................... 4-21
Hill and Mountain Roads
.............................. 4-23
In Rain and on Wet Roads
........................... 4-17
Winter
........................................................ 4-25
Driving On Grades
.......................................... 4-41
Driving on Snow or Ice
.................................... 4-26
Driving Through Deep Standing Water
............... 4-19
Driving Through Flowing Water
......................... 4-19
Driving with a Trailer
....................................... 4-40
E
Easy Entry Seat ............................................... 1-6
Electrical System
Add-on Equipment
...................................... 5-81
Fuses and Circuit Breakers
........................... 5-81
Windshield Wiper Fuses
............................... 5-81
Emergency Trunk Release Handle
..................... 2-13
Emissions Inspection and Maintenance
Programs
................................................... 3-33
Engine
Air Cleaner/Filter
......................................... 5-21
Battery
....................................................... 5-41
Change Engine Oil Light
............................... 3-35
Coolant
...................................................... 5-23
Coolant Heater
............................................ 2-20
Power Windows and Other Power Options
...... 5-81
Check and Service Engine Soon Light
............ 3-31
4
Page 338 of 354

Engine (cont.) Coolant Temperature Gage
........................... 3-31
Cooling System Inspection ............................ 6-1 4
Engine Compartment Overview ...................... 5-1 2
Exhaust ..................................................... 2-30
Oil ............................................................. 5-15
Overheating ................................................ 5-26
Starting .................................................. 2-1 8
Engine Compartment Fuse Block .................. 5-84
Engine Coolant Level Check .............................. 6-9
Engine Cooling When Trailer Towing .................. 4-42
Engine Oil Additives ........................................ 5-19
Engine Oil Scheduled Maintenance ..................... 6-5
Enhanced Traction System(ETS) ......................... 4-9
Ac'rive Light ................................................ 3-30
Warning Light ............................................. 3-29
Entry/Exit Lighting ........................................... 3-1 6
Express Down Window .................................... 2-15
Extender, Safety Belt ....................................... 1-31
Exterior Lamps ............................................... 3-13
Engine Oil Level Check ..................................... 6-9
F
FabridCarpet ...............................
Filter
Engine Air Cleaner
.....
(RDS. XMTM and DAB) .... .............. 3.46. 3-56
Finding a Station ............................ 3-39, 3-44, 3-54
Finding a PTY Station
............
5-73
5-2
1
Finish Care ................................................ 5-76
Finish Damage ............................................... 5-77
Flat Tire ........................................................ 5-61
Flat Tire, Changing ......................................... 5-62
Fluid
Automatic Transaxle
.................. ........ 5-22
Manual Transaxle .................................... 5-22
Power Steering ........................................... 5-35
Windshield Washer ...................................... 5-36
Fog Lamps .................................................... 3-15
Folding the Seatback ........................................ 1-8
Footmtes ........................................................ 6-5
Fuel ............................................................... 5-5
Additives ...................................................... 5-6
California Fuel .............................................. 5-6
Filling a Portable Fuel Container ..................... 5-8
Filling Your -rank ........................................... 5-7
Gage ......................................................... 3-37
FM Stereo ..................................................... 3-65
Following Distance .......................................... 4-40
Fge!s i~ Fnminn Pnrrntrin c. "'V'Y" v"u"L"-U J-v cr? ..............................
Gasoline Octane ........................................... 5-5
Gasoline Specifications .................................. 5-5
System Inspection ....................................... 6-14
Fuses
Fuses and Circuit Breakers
........................... 5-81
Windshield Wiper ......................................... 5-81
5
