Page 3 of 404
@ The 1997 Aurora Owner’s Manual
1-1
2-1
3-1 4-1
5-1
6- 1
7-1
8- 1
9-1
Seats and Restraint Systems
This section tells you how to use your seats and safety belts properly. It also explains the “SRS” system,
Features and Controls
This section explains how to start and operate your Aurora.
Comfort Controls and Audio Systems
This section tells you how to adjust the ventilation and comfort controls and how to operate your audio system.
Your Driving and the Road
Here you’ll find helpful information and tips about the road and how to drive under different conditions.
Problems on the Road
This section tells what to do if you have a problem while driving, such as a flat tire or overheated engine, etc.
Service and Appearance Care
Here the manual tells you how to keep your Aurora running properly and looking good.
Maintenance Schedule
This section tells you when to perform vehicle maintenance and what fluids and lubricants to use.
Customer Assistance Information
This section tells you how to contact Oldsmobile for assistance and how to get service and owner publications.
It also gives you information on “Reporting Safety Defects” on page
8-8.
Index
Here’s an alphabetical listing of almost every subject in this manual. You can use it to quickly find
something you want to read.
i
Page 9 of 404
@ Section 1 Seats and Restraint Systems
Here you’ll find information about the seats in your Aurora and how to use your safety belts properly. You can also
learn about some things you should
not do with air bags and safety belts.
1-2
1-6
1-10
1-11
1-1 1
1-18
1-19
1-19
1-25 Seats and
Seat Controls
Safety Belts: They’re for Everyone
Here Are Questions Many People Ask About
Safety Belts
-- and the Answers
How to Wear Safety Belts Properly
Driver Position Safety Belt Use During Pregnancy
Right Front Passenger Position Supplemental Restraint System
(SRS)
Rear Seat Passengers
1-29
1-31
1-33
1-35
1-43
1-46
1-46
1-47 Rear Safety Belt Comfort Guides
for Children
and Small Adults
Center Passenger Position
Children
Child Restraints
Larger Children Safety Belt Extender
Checking Your Restraint Systems
Replacing Restraint System Parts After
a Crash
1-1
Page 10 of 404
Seats and Seat Controls
This part tells you about the seats -- how to adjust them,
and also about reclining seatbacks and head restraints.
Power Seats
The power seat controls are located on the driver’s and
passenger’s door panels.
Horizontal Control (A): Raise the front of the seat by
raising
the forward edge of the button. Lower the front
of the seat by lowering the forward edge of the button.
Move the seat forward by moving the whole button
toward the front
of the vehicle.
Raise the rear
of the seat by raising the rear edge of the
button. Lower the rear
of the seat by lowering the rear
edge
of the button. Move the seat back by moving the
whole button toward the rear
of the vehicle.
Moving the whole button
up or down raises or lowers
the whole seat.
Vertical Control (B): Move the reclining front seatback
rearward by moving the button toward the rear of the
vehicle. Move the seatback forward by movine
the
button toward the front of the vehicle.
1-2
Page 12 of 404
The seat and mirror positions will be stored for the
number pressed. Repeat the procedure to store another
position with the other number if desired.
To adjust the
seat and mirrors to the stored position, press the number
corresponding to the position. The memory function will
only work with the gearshift in PARK (P).
To stop the automatic movement, move the seat switch
in any direction. For easier exiting, press the
1 and 2
buttons at the same time to move the seat completely
down and back.
Remote Lock Control Personalization
Feature
Each Remote Lock Control transmitter can be
programmed to move the driver’s seat and outside
mirrors to a set memory position when
the transmitter’s
UNLOCK button is pressed. For programming
instructions, see “Personalization Features’’ in the Index.
Heated Front Seat (Option)
This feature will quickly heat the lower cushions and
lower back
of the driver and front passenger seats for
added comfort.
Press the button once
to turn the heater on high. The HI
indicator light below the button will glow. Press it again
to turn the heater
on low. The LO indicator light below
the button will glow. Press
it a third time to turn the
heater
off. The heater will turn off automatically when
the ignition is turned off.
1-4
Page 14 of 404
Head Restraints
Slide the head restraint up or down so that the top of the
restraint
is closest to the top of your ears. This position
reduces the chance of a neck injury in a crash.
The head restraints tilt forward and rearward also.
There are four different positions. Just grasp the top of
the restraint and move it forward
the way you want it to
go until you hear a click. It will then be locked into that
position until you need to move it again. Pulling it
forward past the last position will allow the headrest to
return
to its full rear position.
Safety Belts: They’re for Everyone
This part of the manual tells you how t6 u3e safety belts
properly. It also tells you some things
you should not do
with safety belts.
And it explains the Supplemental Restraint System
(SRS), or air bag system.
A CAUTION:
Don’t let anyone ride where he or she can’t wear
a safety belt properly. If you are in a crash and
you’re not wearing
a safety belt, your injuries
can be much worse.
You can hit things inside the
vehicle or be ejected from it.
You can be seriously
injured or killed. In the same crash, you might
not be
if you are buckled up. Always fasten your
safety belt, and check that your passengers’ belts
are fastened properly too.
It
is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In
a collision,
people riding in these areas are more likely to be
seriously injured or killed. Do not allow people to
ride in
any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone
in your vehicle is in a seat and using a
safety belt properly.
1-6
Page 19 of 404
If I’m a good driver, and I never drive far from
home, why should I wear safety belts?
A: You may be an excellent driver, but if you’re in an
accident
-- even one that isn’t your fault -- you and
your passengers can be hurt. Being a good driver
doesn’t protect you from things beyond your
control, such as bad drivers.
Most accidents occur within
25 miles (40 km) of
home. And the greatest number
of serious injuries
and deaths occur at speeds of less than
40 mph
(65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts Properly
Adults
This part is only for people of adult size.
Be aware that there are special things
to know about safety
belts and children. And there are different
rules for smaller
children and babies, If a child will be riding
in your
Aurora, see the part of
this manual called “Children.”
Follow those rules for everyone’s protection. First,
you’ll want to know which restraint systems your
vehicle has.
We’ll start with the driver position.
Driver Position
This part describes the driver’s restraint system.
Lap-Shoulder Belt
The driver has a lap-shoulder belt. The shoulder portion
of the belt has an energy management loop. It is
designed
to open and help protect you in certain crashes.
If it opens, you will see a label on the safety belt that
says to replace the belt. Be sure to do
so. If you don’t,
the safety belt won’t work properly and won’t protect
you in another crash.
For more information on replacing
safety belts after a crash, see “Replacing Safety Belts’’ in
the Index.
Here’s how to wear the lap-shoulder belt properly.
1. Close and lock the door.
2. Adjust the seat (to see how, see “Seats” in the Index)
so you can sit up straight.
Page 49 of 404
Securing a Child Restraint in the Right
Front Seat Position
Your vehicle has a right front passenger air bag. Never.
put a rear-facing child restraint in this seat. Here’s why:
I /1 CAUTIOwT:
I --
A child in a rear-facing child restraint can be
seriously injured if the right front passenger’s air
bag inflates. This
is because the back of a
rear-facing child restraint would be very close to
the inflating air bag. Always secure a rear-facing
child restraint in the rear seat.
You’ll be using the lap-shoulder belt. See the earlier part
about the top strap
if the child restraint has one.
1. Because your vehicle has a right front passenger air
bag, always move the seat as far back as it will go
before securing a forward-facing child restraint. (See
“Seats” in
the Index.)
2. Put the restraint on the seat. Follow the instructions
for the child restraint.
3. Secure the child in the child restraint as the
instructions say.
4. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show
you how.
If the shoulder belt goes
in front of the child’s face or
neck, put it behind
the child restraint.
Page 152 of 404
Ventilation Tips
Keep the hood and front air inlet area between the
base
of the windshield and the hood free of ice,
snow, or any other obstruction (such as leaves). The
defroster and heater will work far better, reducing
the chance of fogging the inside of your windows
if
this area is clear.
0 Keep the air path under the front seats clear of
objects. This helps air to circulate throughout
your vehicle.
Rotate the control between the rear outlets up to direct
air through the upper outlets. Rotate the control
down to direct air through the lower outlets. Adjust the
direction
of airflow from side to side with the controls in
each outlet.
3-8
Page 207 of 404

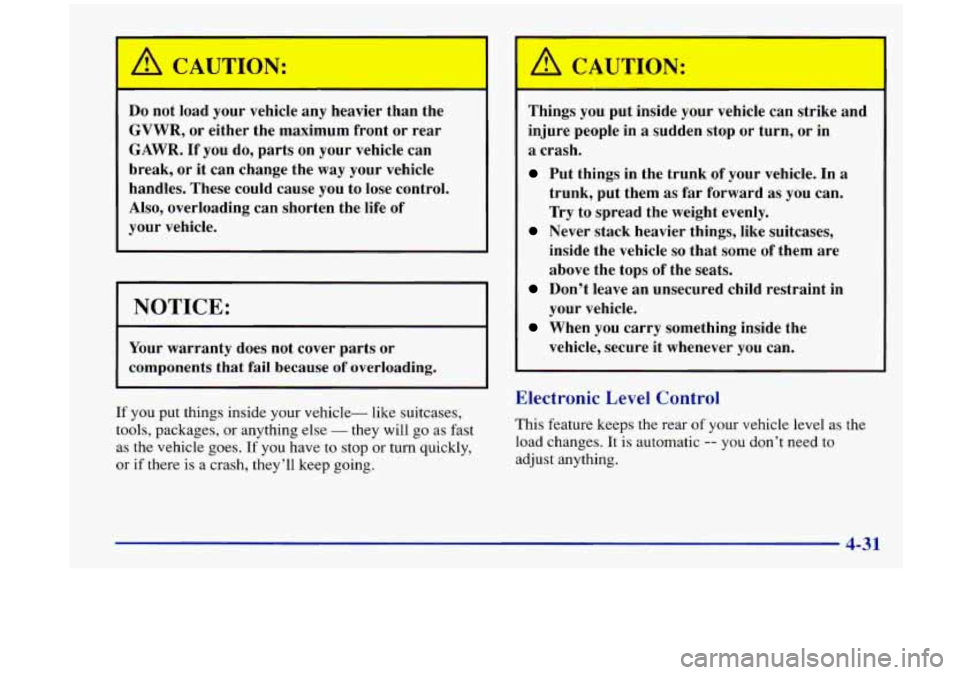

A CAUTION:
Do not load your vehicle any heavier than the
GVWR, or either the maximum front or rear
GAWR.
If you do, parts on your vehicle can
break, or it can change the way your vehicle
handles. These could cause you to lose control.
Also, overloading can shorten the life of
your vehicle.
I NOTICE:
Your warranty does not cover parts or
components that
fail because of overloading.
A CAUTION:
Things you put inside your vehicle can strike and
injure people in
a sudden stop or turn, or in
a crash.
Put things in the trunk of your vehicle. In a
trunk, put them as far forward as you can.
Try to spread the weight evenly.
Never stack heavier things, like suitcases,
inside the vehicle
so that some of them are
above the tops
of the seats.
Don’t leave an unsecured child restraint in
your vehicle.
When you carry something inside the
vehicle, secure it whenever you can.
If you put things inside your vehicle- like suitcases,
tools, packages,
or anything else ~ they will go as fast
as the vehicle goes.
If you have to stop or turn quickly,
or if there is a crash, they’ll keep going.
Electronic Level Control
This feature keeps the rear of your vehicle level as the
load changes. It
is automatic -- you don’t need to
adjust anything.
Page 322 of 404
Fuse
22
23
24
25
26
27 28
29 30
31
32
Usage
Trunk and Fuel Door Releases and
Trunk Pull Down
Electronic Level Control
Heated Seat, Instrument Panel
Exterior Lamps
Base@ Stereo (If so equipped)
Power Door Locks
Interior Lamps
Hazard Lamps, Stoplamps
Parking Lamps
Heated Outside Mirror
Open
Fuse
33
34
35
36
37
38
39
40
41 42
Usage
Fuel Door Release
Cooling Fan Relay
Battery Thermistor
Instrument Panel
-- Power Antenna,
Remote CD Changer, Radio Chassis
Instrument Panel
-- Remote
Accessory Power Module, Oil Level
Indicator, ALDL
Heated Seats
Fuel
Pump
Open
Rear Defog
2
Rear Defog 1
6-70
