Passenger compartment air filter Oldsmobile Aurora 2001 Owner's Manuals

Table of Contents (cont'd)
Maintenance Schedule Service and Appearance Care
Section
7
Section
6
Scheduled Maintenance
Owner Checks and Services
Periodic Maintenance InspectionsRecommended Fluids and Lubricants
Maintenance Records
iv
Fuel
Checking Fluids and Lubricants
GM Oil Life System™
Engine Air Cleaner/Filter
Passenger Compartment Air Filter
Brakes
Bulb ReplacementWindshield Wiper Blade Replacement
Tires and Wheels
Appearance Care
Electrical System/Fuses and Circuit Breakers
Capacities and Specifications
Normal Maintenance Replacement Parts

3-2
Comfort Controls
This section tells you how to operate your climate
control system.
Your vehicle may be equipped with a passenger
compartment air filter. For more information, see
ªPassenger Compartment Air Filterº in the Index.
Comfort Controls Personalization
(If Equipped)
This feature allows two different drivers to store and
recall their own climate control settings for temperature,
air delivery mode and fan speed. The personal choice
settings recalled are determined by the transmitter used
to enter the vehicle. After the button with the unlock
symbol on a remote keyless entry transmitter is pressed,
and the ignition is in RUN, the climate control will
adjust to the last settings of the identified driver. The
settings can also be changed by pressing one of the
memory buttons (1 or 2) located on the driver's door,
until you hear two beeps. When adjustments are made,
the new settings are automatically saved for that driver.
Automatic Electronic Climate Control
Your vehicle is equipped with either a Single Zone or
a Dual Zone Automatic Electronic Climate Control
System. You can use the automatic setting or override
the automatic setting by using the manual controls.
Your vehicle also has the flow
-through ventilation
system described later in this section.
AUTO
-PUSH Knob
By pressing the AUTO
-PUSH knob, you have
selected the electronic climate control system to be in
the automatic mode. The climate control system will
automatically control the air temperature, air inlets, air
distribution and the fan speed based on your selected
temperature setting as well as on the temperature inside
the vehicle, the outside temperature and the sun load.

6-13
A. Underhood Bussed Electrical Center
B. Windshield Washer Fluid Reservoir
C. Engine Coolant Surge Tank
D. Remote Positive (+) Terminal
E. Heavy, Unpainted Metal Engine Part
F. Passenger Compartment Air FilterG. Power Steering Fluid Reservoir
H. Engine Oil Fill Cap
I. Engine Oil Dipstick
J. Automatic Transaxle Fluid Dipstick
K. Brake Fluid Reservoir
L. Engine Air Cleaner/Filter

6-14

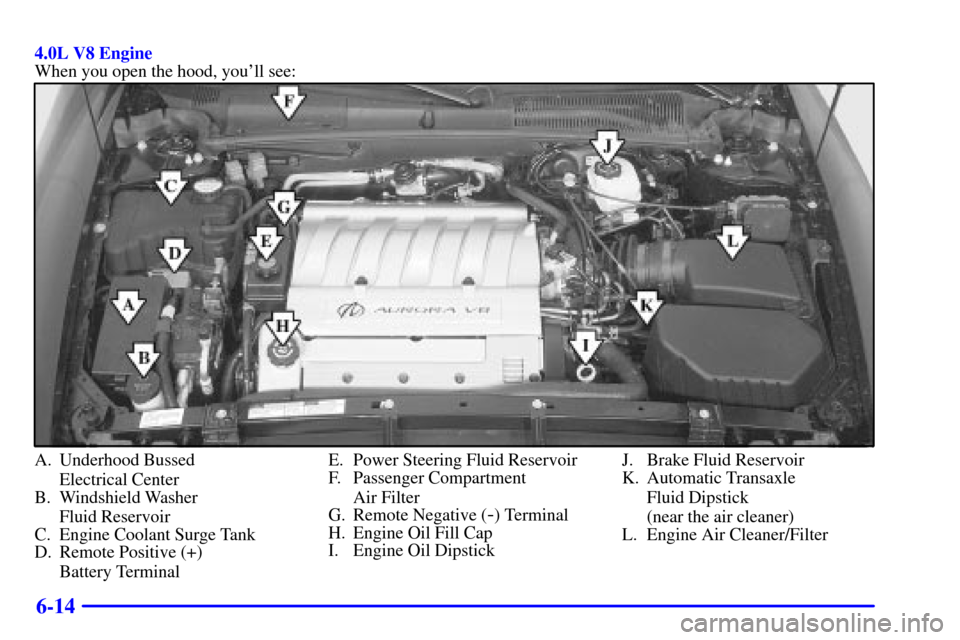

4.0L V8 Engine
When you open the hood, you'll see:
A. Underhood Bussed
Electrical Center
B. Windshield Washer
Fluid Reservoir
C. Engine Coolant Surge Tank
D. Remote Positive (+)
Battery TerminalE. Power Steering Fluid Reservoir
F. Passenger Compartment
Air Filter
G. Remote Negative (
-) Terminal
H. Engine Oil Fill Cap
I. Engine Oil DipstickJ. Brake Fluid Reservoir
K. Automatic Transaxle
Fluid Dipstick
(near the air cleaner)
L. Engine Air Cleaner/Filter

6-22
Passenger Compartment Air Filter
The passenger compartment air filter removes certain
particles from the air, including pollen and dust particles.
Reductions in airflow, which may occur more often in
dusty areas, indicate that the filter may need to be
replaced early.
The filter should be replaced as part of the routine
scheduled maintenance. See ªMaintenance Scheduleº
in the Index for more information.
The passenger compartment
air filter is located on the
passenger side at the base
of the windshield and can
be accessed through a
removable panel under the
hood of the vehicle.
See ªEngine Compartment
Overviewº in the Index
for more information
on location.To check or replace the air filter:
1. With the hood open, unlatch and remove the
access panel.
2. To remove the filter, press on the spring tab on
the side of the filter housing and pull the filter out of
the housing.
3. To install the new filter, press on the spring tab and
insert the filter into the housing. The filter should be
fully inserted into the upper and lower grooves and
locked into place by the spring tab.
4. Reinstall the air filter access panel at the base of
the windshield.

6-78
Normal Maintenance
Replacement Parts
The following replacement parts are for the
(LX5) 3.5L V6.
Air Cleaner Element AC Type A
-1096C . . . . . . . . . .
Passenger Compartment
Air Filter GM Part # 25654414. . . . . . . . . . . . . . .
Engine Oil Filter AC Type PF
-58 . . . . . . . . . . . . . . . .
Fuel Filter AC Type GF
-627 . . . . . . . . . . . . . . . . . . . .
Spark Plugs PT16EPR
-C13 . . . . . . . . . . . . . . . . . . . .
(GM Part # 12561466)
Gap: 0.050 inch (1.52 mm)
Windshield Wiper Blades
Type Shepard's Hook. . . . . . . . . . . . . . . . . . . . . . . . .
Length 22.0 inches (56.0 cm). . . . . . . . . . . . . . . . . . The following replacement parts are for the
(L47) 4.0L V8.
Air Cleaner Element AC Type A
-1096C . . . . . . . . . .
Passenger Compartment
Air Filter GM Part # 25654414. . . . . . . . . . . . . . .
Engine Oil Filter AC Type PF
-58 . . . . . . . . . . . . . . . .
Fuel Filter AC Type GF
-627 . . . . . . . . . . . . . . . . . . . .
Spark Plugs PT16EPR
-C13 . . . . . . . . . . . . . . . . . . . .
(GM Part # 12561466)
Gap: 0.050 inch (1.52 mm)
Windshield Wiper Blades
Type Shepard's Hook. . . . . . . . . . . . . . . . . . . . . . . . .
Length 22.0 inches (56.0 cm). . . . . . . . . . . . . . . . . .
Vehicle Dimensions
Length 205.4 inches (522.0 cm). . . . . . . . . . . . . . . . .
Width 74.4 inches (189.0 cm). . . . . . . . . . . . . . . . . . .
Height 55.4 inches (141.0 cm). . . . . . . . . . . . . . . . . . .
Wheelbase 113.8 inches (289.1 cm). . . . . . . . . . . . . .
Front Tread 62.5 inches (159.0 cm). . . . . . . . . . . . . . .
Rear Tread 62.5 inches (159.0 cm). . . . . . . . . . . . . . .

Scheduled Maintenance
7-9
7,500 Miles (12 500 km)

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
15,000 Miles (25 000 km)

Replace passenger compartment air filter. If you drive regularly under dusty
conditions, the filter may require replacement more often.

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
22,500 Miles (37 500 km)

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

Scheduled Maintenance
7-10
30,000 Miles (50 000 km)

Replace passenger compartment air filter. If you drive regularly under dusty
conditions, the filter may require replacement more often.

Inspect throttle body bore and valve plates for deposits, open the throttle valve
and inspect all surfaces. Clean as required.
An Emission Control Service. (See footnote
.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Replace engine air cleaner filter.
An Emission Control Service.
37,500 Miles (62 500 km)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
45,000 Miles (75 000 km)
Replace passenger compartment air filter. If you drive regularly under dusty
conditions, the filter may require replacement more often.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

Scheduled Maintenance
7-12
60,000 Miles (100 000 km)

Replace passenger compartment air filter. If you drive regularly under dusty
conditions, the filter may require replacement more often.

Inspect throttle body bore and valve plates for deposits, open the throttle valve
and inspect all surfaces. Clean as required.
An Emission Control Service. (See footnote
.)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Inspect engine accessory drive belt.
An Emission Control Service.
Replace engine air cleaner filter.
An Emission Control Service.
67,500 Miles (112 500 km)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

Scheduled Maintenance
7-13
75,000 Miles (125 000 km)

Replace passenger compartment air filter. If you drive regularly under dusty
conditions, the filter may require replacement more often.

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
82,500 Miles (137 500 km)

Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
90,000 Miles (150 000 km)

Replace passenger compartment air filter. If you drive regularly under dusty
conditions, the filter may require replacement more often.

Inspect throttle body bore and valve plates for deposits, open the throttle valve
and inspect all surfaces. Clean as required.
An Emission Control Service. (See footnote
.)
Replace engine air cleaner filter.
An Emission Control Service.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
