key Oldsmobile Aurora 2001 Owner's Manuals

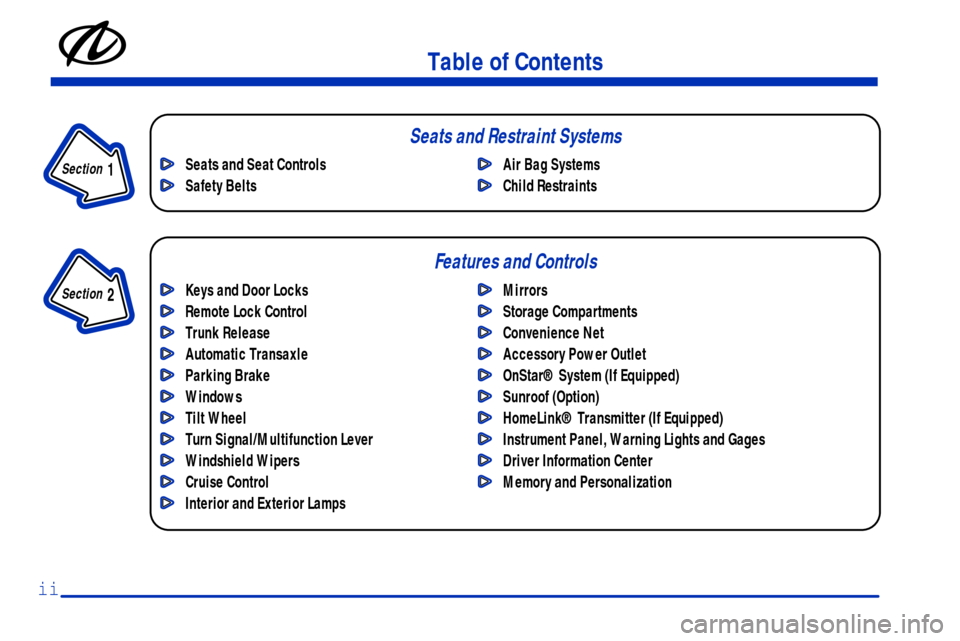

Table of Contents
Keys and Door Locks
Remote Lock Control
Trunk Release
Automatic Transaxle
Parking Brake
Windows
Tilt Wheel
Turn Signal/Multifunction Lever
Windshield Wipers
Cruise Control
Interior and Exterior LampsMirrors
Storage Compartments
Convenience Net
Accessory Power Outlet
OnStar® System (If Equipped)
Sunroof (Option)
HomeLink® Transmitter (If Equipped)
Instrument Panel, Warning Lights and Gages
Driver Information Center
Memory and Personalization Seats and Seat Controls
Safety BeltsAir Bag Systems
Child Restraints
Section
1
Section
2
Seats and Restraint Systems
Features and Controls
ii

1-21
The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it's more
likely that the fetus won't be hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
Right Front Passenger Position
To learn how to wear the right front passenger's
safety belt properly, see ªDriver Positionº earlier in
this section.
The right front passenger's safety belt works the same
way as the driver's safety belt
-- except for one thing.
If you ever pull the lap portion of the belt out all the
way, you will engage the child restraint locking feature.
If this happens, just let the belt go back all the way and
start again.
Air Bag Systems
This part explains the frontal and side impact
air bag systems.
Your vehicle has four air bags
-- a frontal air bag
for the driver, another frontal air bag for the right front
passenger, a side impact air bag for the driver, and
another side impact air bag for the right front passenger.
Frontal air bags are designed to help reduce the risk of
injury from the force of an inflating frontal air bag. But
these air bags must inflate very quickly to do their job
and comply with federal regulations.

1-29
NOTICE:
If you damage the covering for the driver's or
the right front passenger's air bag, or the air
bag covering on the driver's and right front
passenger's seatback, the bag may not work
properly. You may have to replace the air bag
module in the steering wheel, both the air bag
module and the instrument panel for the right
front passenger's air bag, or both the air bag
module and seatback for the driver's and right
front passenger's side impact air bag. Do not
open or break the air bag coverings.
Servicing Your Air Bag-Equipped Vehicle
Air bags affect how your vehicle should be serviced.
There are parts of the air bag systems in several places
around your vehicle. Your dealer and the service manual
have information about servicing your vehicle and the
air bag systems. To purchase a service manual, see
ªService and Owner Publicationsº in the Index.
CAUTION:
For up to 10 seconds after the ignition key is
turned off and the battery is disconnected, an air
bag can still inflate during improper service. You
can be injured if you are close to an air bag when
it inflates. Avoid yellow connectors. They are
probably part of the air bag systems. Be sure to
follow proper service procedures, and make sure
the person performing work for you is qualified
to do so.
The air bag systems do not need regular maintenance.

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything
is working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-9 Remote Lock Control
2
-14 Trunk
2
-16 Theft
2
-17 Universal Theft-Deterrent
2
-18 PASS-Key
III
2
-20 New Vehicle ªBreak-Inº
2
-21 Ignition Positions
2
-22 Starting Your Engine
2
-25 Engine Coolant Heater (If Equipped)
2
-26 Automatic Transaxle Operation
2
-29 Parking Brake
2
-30 Shifting Into PARK (P)
2
-32 Shifting Out of PARK (P)2
-32 Parking Over Things That Burn
2
-33 Engine Exhaust
2
-34 Tilt Wheel
2
-35 Turn Signal/Multifunction Lever
2
-44 Exterior Lamps
2
-46 Interior Lamps
2
-50 Mirrors
2
-53 Storage Compartments
2
-56 Accessory Power Outlet
2
-56 OnStar
System (If Equipped)
2
-57 Sunroof (Option)
2
-58 HomeLink
Transmitter (If Equipped)
2
-62 The Instrument Panel - Your
Information System
2
-66 Warning Lights, Gages and Indicators
2
-78 Driver Information Center (DIC)

2-4
Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
Don't leave the keys in a vehicle with children.

2-5
The master key works in
all of the lock cylinders
(doors, trunk, ignition and
glove box).
The VALET key only
operates the doors and
the ignition.Both the master and VALET key have a transponder
embedded into the key for security and vehicle theft
deterrence. The keys also come with a bar code tag.
Keep the bar code tag in a safe place. If you lose your
key, you will be able to have a new one made using the
bar code tag. The replacement key must have a vehicle
theft deterrent system transponder embedded in it.
NOTICE:
Your vehicle has a number of features that can
help prevent theft. But you can have a lot of
trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in. So be sure you
have extra keys.

2-6
Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use your key or remote lock
control transmitter.
To unlock the door from the inside, move the manual
door lock control located above the door handle
rearward. To lock the door, move the manual door
lock control forward.
Central Door Unlocking System
If the key is held in the outside key cylinder unlock
position for more than two seconds, all doors will
unlock. All doors will also unlock if the key is turned
to the unlock position twice within three seconds.

2-8
You must program this feature through the Driver
Information Center (DIC). See ªDIC Personalization
Programmingº in the Index.
Overriding Lock Delay
If you need to lock your doors before shifting out of
PARK (P), use the manual or power door lock switch
to lock the doors.
Delayed Locking
This personalization feature lets the driver delay the
actual locking of the vehicle. When the driver's power
door lock switch, or the lock symbol on the remote
lock control is pressed with the key removed from the
ignition and the driver's door open, a chime will sound
three times to signal that the lock delay mode is active.
When all doors have been closed, the doors will lock
automatically after five seconds. If any door is opened
before this, the five
-second timer will reset itself once
all the doors have been closed again.
Pressing the driver's or passenger's door lock switch or
the lock symbol on the remote lock control a second
time will override this feature.
You must program this feature through the Driver
Information Center (DIC). See ªDIC Personalization
Programmingº in the Index.
Rear Door Security Lock
Your vehicle is equipped
with rear door security
locks that help prevent
passengers from opening
the rear doors of your
vehicle from the inside.
To use one of these locks do the following:
1. Move the lever all the way up to the
ENGAGED position.
2. Close the door.
3. Repeat Steps 1 and 2 for the other rear door lock.
The rear doors of your vehicle cannot be opened from
inside when this feature is in use. If you want to open a
rear door when the security lock is on do the following:
1. Unlock the door.
2. Then open the door from the outside.

2-9
If you don't cancel the security lock feature, adults or
older children who ride in the rear won't be able to open
the rear door from the inside. You should let adults and
older children know how these security locks work, and
how to cancel the locks.
To cancel the rear door lock do the following:
1. Unlock the door and open the door from the outside.
2. Move the lever all the way down.
3. Repeat Steps 1 and 2 for the other rear door.
The rear door locks will now work normally.
Anti-Lockout Feature
The power door locks will not work if the key is in the
ignition and any door is open. You can override this
feature by holding the driver's power door lock switch
for more than three seconds.
Leaving Your Vehicle
When you leave the vehicle, open your door and set the
locks from the inside, then get out and close the door.
Remote Lock Control
You can lock and unlock your doors or unlock your
trunk from about 3 feet (1 m) up to 30 feet (9 m) away
using the remote lock control transmitter supplied with
your vehicle.
Your remote lock control operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.

2-10
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the left
or right, hold the transmitter higher, and try again.

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.Operation
The numbers on the back of your transmitter correspond
to DRIVER #1 and DRIVER #2 on the DIC. For more
information see ªDICº in the Index.
The driver's door will
unlock and the exterior
lights will flash twice
when the unlock symbol
is pressed.
If the unlock symbol is pressed again within five
seconds, all doors will unlock, the exterior lamps will
flash twice and the horn may sound. See ªSecurity
Feedbackº in the Index.
