Interior Lamps
Brightness Control
Turn the switch next t.o the headlamp switch up to make
your instrument panel lights brighter. Turn
the switch all
the way up to turn on the interior lamps.
Exit Lighting
With exit lighting, the interior lamps will come on when
you remove the key from the ignition to help you see
while exiting
the vehicle. These lights will stay on for a
short period of time and then will go out.
Illuminated Entry
Your vehicle is equipped with an illuminated
entry f-*eature.
When the doors are opened, the dome lamps
will come
on
if the DOME OVERRIDE button is out. When all the
doors are closed, or the front door handles are lifted and
released, the lamps
will stay on for a short period of
time and will then go out. When the dome lamp button
is pressed
in, the lamps will go out immediately.
Front Reading Lamps
Press the button near each lamp on the overhead console
to
turn the reading lamps on and off. The lamps can be
swiveled to point
in the desired direction.
If you have the mini console, press the lens on each
lamp to
turn it on or off.
Dome Lamps
The dome lamps will come on when you open the doors.
You can
also turn the dome lamps on by rotating the
thumb wheel. located next to the parking/headlamps
knob, all the way up to the second notch. In this
position.
the dome lamps will remain on whether the
doors are opened or closed.
You can use the DOME
OVERRIDE button, located
below the parking/heacllalnp knob, to set the
dome lamps
to come on auton1atically when the doors are opened, or to
remain
off. To turn the lamps off, press the button once.
With the button
in this position, the dome lamps will
remain off when the doors are open. To return the lamps to
automatic operation, press the button again and return
it to
the
"out" position. With the button in this position, the
donx
lamps will come on when you open the door. This
will not override the illuminated entry feature.
ProCarManuals.com

Warning Lights, Gages
and Indicators
This part describes the warning lights and gages that
may be on
your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before
it becomes serious enough to cause an
expensive repair
or replacement. Paying, attention to
your warning lights and gages could also save you or
others from injury.
Warning lights come
on when there may be or is a
problem with one of your vehicle’s functions.
As you
will see
in the details on the next few pages, some
warning lights come on briefly when you start the
engine just to let you know they’re working.
If you are
familiar with this section, you should not be alarmed
when this happens.
Gages can indicate when there may be or is a problem
with one
of your vehicle’s functions. Often gages and
warning lights work together to let you know when
there’s
a problem with your vehicle. When
one
of the warning lights comes on and stays on
when
you are driving, or when one of the gages shows
there may be a problem, check the section that tells you
what to do about it. Please follow
this manual’s advice.
Waiting
to do repairs can be costly -- and even
dangerous.
So please get to know your warning lights
and gages. They’re a big help.
Your vehicle also has
a driver information system that
works along with the warning lights and gages. See
“Driver Information System”
in the Index.
Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
come on for about eight seconds to remind people to
fasten their safety belts, unless the driver’s safety belt is
already buckled.
The safety belt light will
also come on and stay on
for about
20 seconds, then it
will flash for about 55
seconds. If the driver’s belt
is already buckled, neither
the chime nor the light will
come on.
2-53
ProCarManuals.com

Air Bag Readiness Light
There is an air bag readiness light on the instrument panel,
which shows the air bag symbol. The system checks the
air bag’s electrical system for malfunctions. The light tells
you
if there is an electrical problem. The system check
includes the air bag sensors, the air bag module, the wiring
and the diagnostic module. For more information on the
air
bag system. see “Air Bag“ in the Index.
This light
will come on
when you start your engine,
and
it will flash for a few
seconds. Then the light
should go out. This means
the system
is ready.
If the air bag readiness light stays on after you start the
engine or comes on when you are driving, your air bag
system may not work properly. Have your vehicle
serviced right away.
The air bag readiness light should flash for a few
seconds when
you turn the ignition key to RUN. If the
light doesn’t come on then, have
it fixed so it will be
ready to warn you if there is a problem.
Charging System Indicator ._ Light
1 The charging system light
will come on briefly when
you
turn on the ignition,
but the engine
is not
running, as
a check to
show you
it is working.
It should go out once the engine is running. If it stays
on. or comes
on while you are driving, you may have a
problem with the charging system. It could indicate that
you have problems
with a generator drive belt, or
another electrical problem. Have
it checked right away.
Driving while this light is on could drain your battery.
If you must drive a short distance with the light on, be
certain
to turn off’ all your accessories, such as the radio
and air conditioner.
2-54
ProCarManuals.com

Brake System Warning Light
When the ignition is on, the brake system warning light
will come on when you set your parking brake. The light
will stay on
if your parking brake doesn’t release fully.
If it stays on after your parking brake is fully released, it
means you have a brake problem.
Your vehicle‘s hydraulic brake system is divided into
two parts.
If one part isn’t working, the other part can
still work and stop you. For good braking, though. you
need both parts working well.
If the warning light comes on, there could be a brake
problem. Have your brake system inspected right away.
This light should come on
BRAKE
-
briefly when you turn the
ignition key to
RUN. If it
doesn’t come on then,
have
it fixed so it will be
re.ady to warn you
if
there’s a problem.
If the light comes on while you are driving, pull off the
road and stop carefully.
You may notice that the pedal is
harder to push. Or, the pedal may go closer to the floor.
It may take longer to stop. If the light is still on, have. the
vehicle towed for service. (See “Towing Your Vehicle“
in the Index.)
I CAUTION:
Your brake system may not be working properly
if the brake system warning light is on. Driving
1 with the brake system warning light on can lead
~ to an accident. If the light is still on after you’ve
pulled off the road and stopped carefully, have
the vehicle towed for service.
2-56
ProCarManuals.com

Anti-Lock Brake System Warning Light
~ With the anti-lock brake
system, this light will
come on when you start
your e.ngine and may stay
on
for several seconds.
That’s normal.
If the light stays on, or comes on when you’re driving,
your vehicle needs service.
If the regular brake system
warning light
isn’t on, you still have brakes, but you
don’t have anti-lock brakes.
If the regular brake system
warning light
is also on, you don’t have anti-lock brakes
and there’s
a problem with your regular brakes. See
“Brake System Warning Light“ earlier
in this section.
The anti-lock brake system warning light should come
on briefly when you
turn the ignition key to RUN. If the
light doesn’t come on
then, have it fixed so it will be
ready to warn you
if there is a problem.
Engine Coolant Temperature Gage
This gage shows the
engine coolant temperature.
If the gage pointer moves
into the red area. your
engine is too hot!
It means that your engine coolant has overheated. If you
have been operating your vehicle under normal driving
conditions, you should pull
off the road. stop your
vehicle and
turn off the engine as soon as possible.
In “Problems on the Road,“ this manuill shows you what
to do. See “Engine Overheating”
in the Index.
2-57
ProCarManuals.com

If the Light Is Flashing
The following may prevent more serious damage to
your vehicle:
0 Reducing vehicle speed.
0 Avoiding hard accelerations.
0 Avoiding steep uphill grades.
0 If you are towing a trailer, reduce the amount of
cargo being hauled
as soon as it is possible.
If the light
stops flashing and remains on steady, see "If
the Light
Is On Steady'. following.
If the light continues to flash, when it is safe to clo so,
stop the vel?icle. Find a safe place to park your vehicle.
Turn the key off, wait at least 10 seconds and restart the
engine.
If the light remains on steady, see "If the Light
Is On Steady" following. If the light is still .flashing,
follow the previous steps, and drive the vehicle to your
retailer or qualified service center for service.
If the Light Is On Steady
YOLI may be able to correct the emission system
malfunction by considering
the following:
Did you recently
put fuel into your vehicle'?
If so, reinstall the fuel cap, making sure to fully install
the cap. The diagnostic system can determine
if the fuel cap
has been left off or improperly installed.
A loose or
missing fuel cap
will allow fuel to evaporate into the
atmosphere.
A few driving trips with the cap properly
installed should turn the light off.
Did you just drive through a deep puddle
of water?
If so, your electrical system may be wet. The condition
will usually be corrected when the electrical system
dries out. A few driving trips should
turn the light off.
Have you recently changed brands
of fuel?
If so, be s~~re to file1 your vehicle with quality fuel (see
"Fuel"
in the Index). Poor fuel quality will cause your
engine not
to run as efficiently as designed. You may
notice
this as stalling after start-up, stalling when you put
the vehicle into gear, misfiring, hesitation on acceleration
or stumbling on acceleration. (These conditions may go
away once the engine is warmed up.) This
will be detected
by the system and cause the light to turn
on.
If YOLI experience one or more of these conditions,
change the fuel brand
yo^^ use. It will require at least one
full tank of the proper fuel to turn the light off.
If none of the above steps have made the light turn off,
have your retailer or qualified service center check the
vehicle. Your retailer has the proper test equipment and
diagnostic tools
to fix any mechanical or electrical
problems that may have developed.
ProCarManuals.com

Security Warning Light
This light will come on
briefly when you turn the
key toward
START. The
light will stay on
until the
engine starts.
Service 4WD Light
This light should come on
briefly when you turn on the
SERVICE
4WD
I ignition, as a check to show
If the light flashes, the Passlock system has entered a
tamper mode. If the vehicle fails to start, see "Passlock"
in the Index.
If the light comes on continuously while driving and
stays on, there may be a problem with the Passlock
system. Your vehicle
will not be protected by Passlock,
and you should see your retailer. The
SERVICE 4WD light
comes on to indicate that
there may be
a problem with the drive system and
service is required. Malfunctions can be indicated by the
system before any problem is apparent, which may
prevent serious damage to
the vehicle. This system is
also designed
to assist your service technician in
correctly diagnosing a malfunction.
ProCarManuals.com

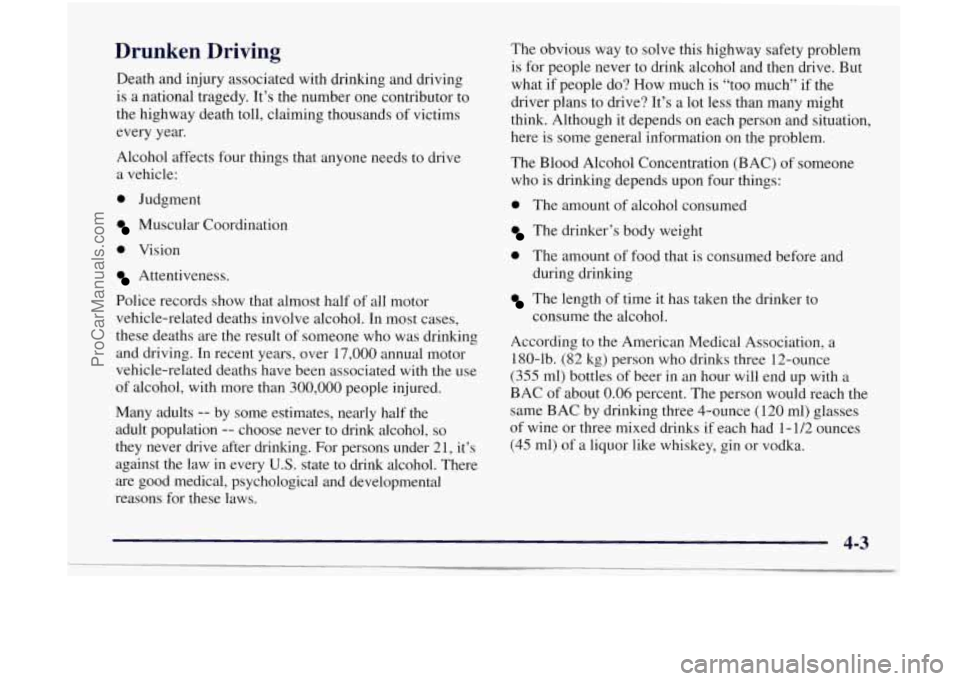

Drunken Driving
Death and injury associated with drinking and driving
is a national tragedy. It’s the number one contributor to
the highway death toll, claiming thousands of victims
every year.
Alcohol affects four things that anyone needs to drive
a vehicle:
0 Judgment
Muscular Coordination
0 Vision
Attentiveness.
Police records show that almost half of all motor
vehicle-related deaths involve alcohol. In most cases,
these deaths are the result
of someone who was drinking
and driving. In recent years, over 17,000 annual motor
vehicle-related deaths have been associated with the use
of alcohol, with more than
300,000 people injured.
Many adults
-- by some estimates, nearly half the
adult population
-- choose never to drink alcohol, so
they never drive after drinking. For persons under 2 1, it’s
against the law in every
US. state to drink alcohol. There
are good medical, psychological and developmental
reasons for these laws. The
obvious way to solve this highway safety problem
is for people never to drink alcohol and then drive. But
what if people do?
How much is “too much” if the
driver plans to drive? It’s a lot less than many might
think. Although it depends on each person and situation,
here is some general information on the problem.
The Blood Alcohol Concentration (BAC) of someone
who is drinking depends upon four things:
0 The amount of alcohol consumed
The drinker’s body weight
0 The amount of food that is consumed before and
during drinking
The length of time it has taken the drinker to
According to the American Medical Association, a
180-lb. (82 kg) person who drinks three 12-ounce
(355 ml) bottles of beer in an hour will end up with a
BAC of about
0.06 percent. The person would reach the
same BAC by drinking three 4-ounce
(120 ml) glasses
of wine or three mixed drinks if each had 1 - 1/2 ounces
(45 ml)
of a liquor like whiskey, gin or vodka.
consume
the alcohol.
4-3
ProCarManuals.com

Controlling your vehicle is the key to successful
off-road driving. One of the best ways
to control your
vehicle
is to control your speed. Here are some things to
0
0
0
0
keep in mind. At higher speeds:
-
you approach things faster and you have less time
to scan
the terrain for obstacles.
you have less time to react.
you have more vehicle bounce when you drive
over obstacles.
you’ll need more distance for braking, especially
since you’re on an unpaved surface.
’ A CAUTION:
When you’re driving off-road, bouncing and
quick changes in direction can easily throw you
out of position. This could cause you to lose
control and crash.
So, whether you’re driving on
or off the road, you and your passengers should
wear safety belts.
Scanning the Terrain
Off-road driving can take you over many different kinds
of terrain. You need to be familiar with the terrain and its
many different features. Here are some things
to consider.
Sutface Conditicm. Off-roading can take you over
hard-packed dirt, gravel, rocks, grass, sand, mud, snow or
ice. Each of these surfaces affects the steering, acceleration
and braking
of your vehicle in different ways. Depending
upon the kind of surface you are on, you may experience
slipping, sliding, wheel spinning, delayed acceleration,
poor traction and longer braking distances.
Swfc/ce Ubstcrcles. Unseen or hidden obstacles can be
hazardous.
A rock, log, hole, rut or bump can startle you if
you’re not prepared for them. Often these obstacles are
hidden by grass, bushes, snow or even the rise and fall of
the terrain itself. Here are some things
to consider:
Is the path ahead clear?
0 Will the surface texture change abruptly up ahead?
0 Does the travel take you uphill or downhill? (There’s
more discussion of these subjects later.)
0 Will you have to stop suddenly or change
direction quickly?
4-18
ProCarManuals.com

Hazard Warning Flashers
a
Your hazard warning flashers let you warn others. They
also let police know you have a problem. Your front and
rear turn signal lamps will flash on and off. Press
the button on top
of
the steering column all the
way down to make your
front and rear turn signal
lamps flash on and off.
Your hazard warning flashers work no matter what
position your key
is in, and even if the key isn't in.
To turn off the flashers, press the button until the first
click and release.
When the hazard warning flashers are on, your turn
signals won't work. The flashers will stop if you step on
the brake.
Other Warning Devices
If you carry reflective triangles, you can set one up at
the side of the road about
300 feet (100 m) behind
your vehicle.
5-2
ProCarManuals.com
