OLDSMOBILE BRAVADA 1998 Owners Manual

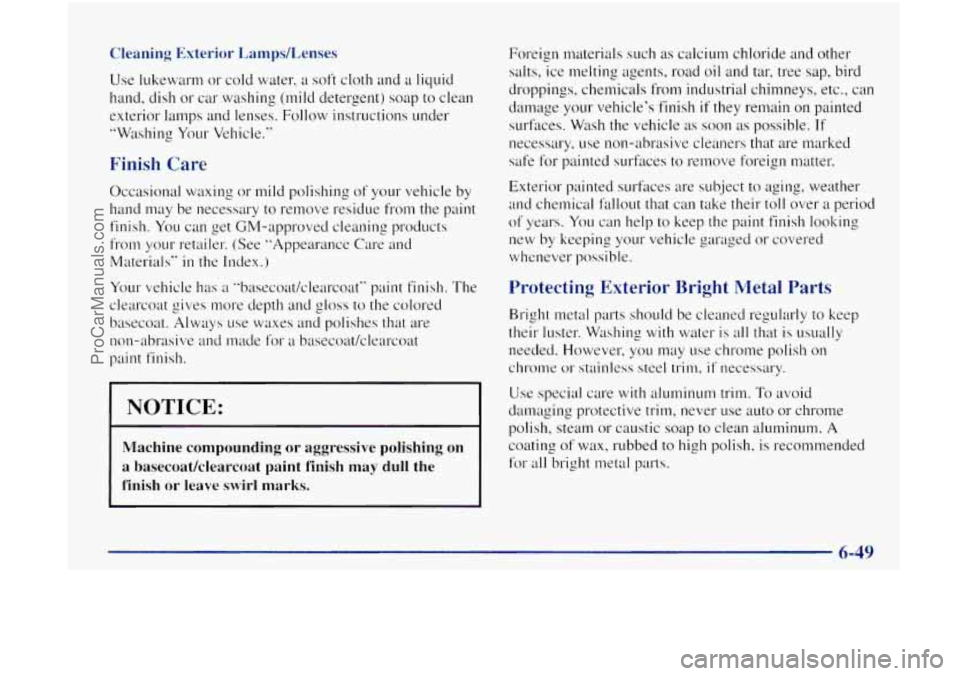

Cleaning Exterior Lamps/Lenses
Use lukewarm or cold water, a soft cloth and a liquid
hand, dish
or car washing (mild detergent) soap to clean
exterior lamps and lenses. Follow instructions under
“Wdshing Your Vehicle.”
Finish Care
Occasional waxing or mild polishing of your vehicle by
hand may be necessary to remove residue from the paint
finish. You can get GM-approved cleaning products
from your retailer. (See ”Appearance Care and
Materials”
in the Index.)
Your vehicle
has a ”basecoat/clearcoat” paint finish. The
clearcoat gives more depth and gloss to the colored
basecoat. Always use waxes and polishes that are
non-abrasive and made for
a basecoat/clearcoat
paint finish.
I NOTICE:
Machine compounding or aggressive polishing on
a basecoat/clearcoat paint finish may dull the
finish or leave
swirl marks.
Foreign materials such as calcium chloride and other
salts, ice melting agents, road oil and tar,
tree sap, bird
droppings, chemicals from industrial chimneys, etc., can
damage your vehicle’s
finish if they remain on painted
surfaces. Wash the vehicle as soon as possible. If
necessary, use non-abrasive cleaners that are marked
safe .for painted surfaces
to remove foreign matter.
Exterior painted surfaces are subject to aging, weather
and chemical fallout that can take their toll over
a period
of years. You can help to keep the paint finish looking
new by keeping your vehicle garaged
or covered
whenever possible.
Protecting Exterior Bright Metal Parts
Bright metal parts should be cleaned regularly to keep
their luster. Washing
with water is all that is usually
needed. However,
~OLI may use chrome polish on
chrome
01- stainless steel trim, if necessary.
Use special care
with aluminum trim. To avoid
damaging protective
trim, never use auto or chrome
polish, steam or caustic soap to clean aluminum. A
coating of wax, rubbed to high polish, is recommended
for
all bright metal parts.
ProCarManuals.com

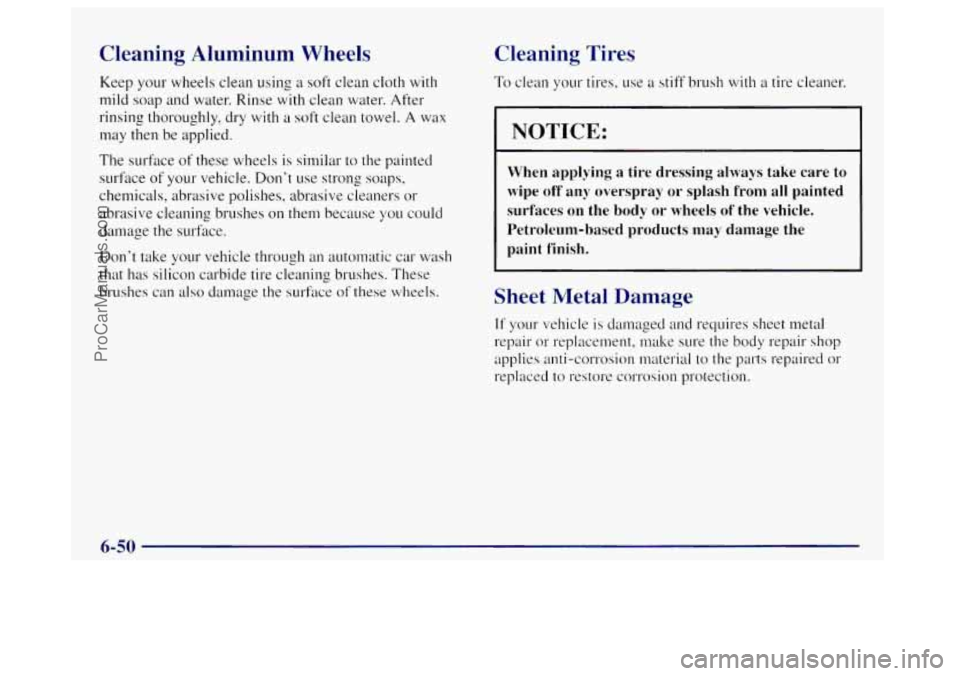

Cleaning Aluminum Wheels
Keep your wheels clean using a soft clean cloth with
mild soap and water. Rinse with clean water. After
rinsing thoroughly, dry with
a soft clean towel. A wax
may then be applied.
The surface
of these wheels is similar to the painted
surface
of your vehicle. Don’t use strong soaps,
chemicals, abrasive polishes, abrasive cleaners or
abrasive cleaning brushes on them because you
could
damage the surface.
Don’t take your vehicle through an automatic car wash
that has silicon carbide tire cleaning brushes. These
brushes can
also damage the surface of these wheels.
Cleaning Tires
To clean your tires, use a stiff brush with a tire cleaner.
NOTICE:
When applying a tire dressing always take care to
wipe off any overspray or splash from all painted
surfaces
on the body or wheels of the vehicle.
Petroleum-based
products may damage the
paint finish.
Sheet Metal Damage
If your vehicle is damaged and requires sheet metal
repair
or replacement, make sure the body repair shop
applies anti-corrosion material to the parts repaired
or
replaced to restore corrosion protection.
6-50
ProCarManuals.com

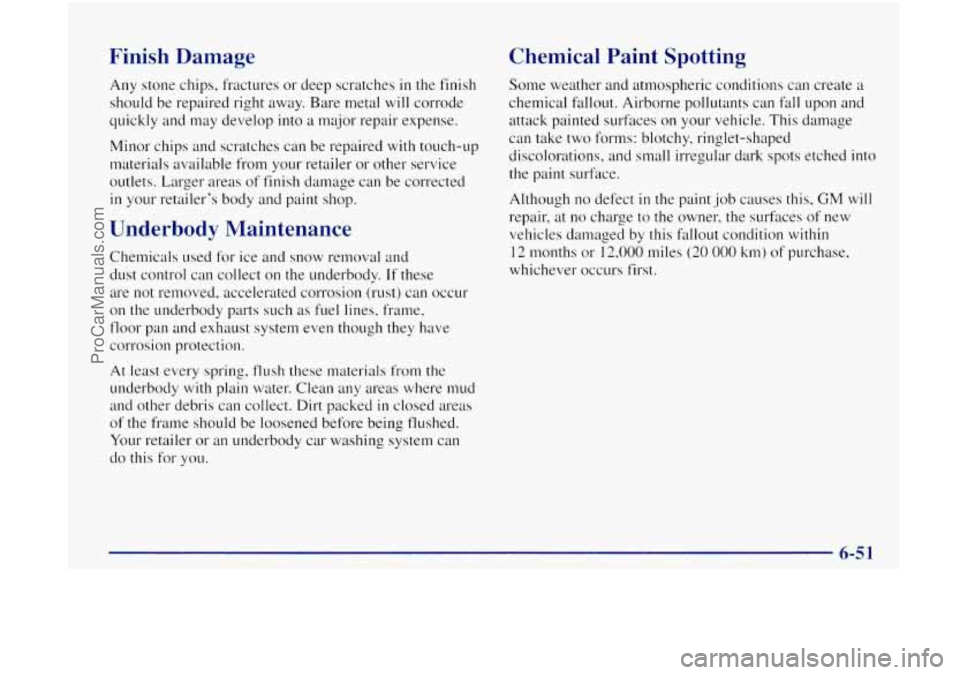

Fi nish Damage
Any stone chips, fractures or deep scratches in the finish
should be repaired right away. Bare metal
will corrode
quickly and may develop into a major repair expense.
Minor chips and scratches can be repaired
with touch-up
materials available from your retailer or other service
outlets. Larger areas of
finish damage can be col-rect.ed
in your retailer’s body and paint shop.
Underbody Maintenance
Chemicals used for ice and snow removal and
dust control can collect on the underbody.
If these
are not removed, accelerated corrosion (rust) can occur
on the underbody parts such as fuel lines, frame,
floor pan and exhaust system even though they have
corrosion protection.
At least every spring, flush these materials
from the
underbody with plain water. Clean any areas where mud
and other debris can collect. Dirt packed
in closed areas
of the frame should be loosened before being flushed.
Your retailer or an underbody car washing system can
do this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create a
chemical fallout. Airborne pollutants can
fill upon and
attack painted surfaces on your vehicle.
This damage
can take two forms: blotchy, ringlet-shaped
discolorations, and small irregular dark spots etched into
the paint surface.
Although no defect
in the paint job causes this, GM will
repair, at no charge to the owner, the surfaces of new
vehicles damaged by this fallout condition within
12 months or 12,000 miles (20 000 km) of purchase.
whichever occurs first.
ProCarManuals.com

Appearance Care Materials Chart
I2377984 16 0%. (0.473 L) Surface Cleaner Rcmoves contaminants, blemishes and swirl marks
See your General Motors Parts Department for these products. .&*-I* Not recommended for use on instrument panel vinyl.
See
“Fluids and Lubricants” in the Index.
.:. . ,
6-52
ProCarManuals.com

Vehicle Identification Number (VIN)
ENGINE A98 f ASSEMBLY
CODE A MODEL YEAR
PLANT
-
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on the
driver's side. You can see
it if YOLI look through the
windshield from outside your vehicle. The
VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates
of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code
will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You'll find this label on the inside of the glove box. It's
very helpful if you ever need to order parts. On this
label is:
YOLI~ VIN,
the model designation.
a list of all production options and
special equipment.
Be sure that this label is not removecl from the vehicle.
ProCarManuals.com

Electrical System
Add-on Electrical Equipment
I NOTICE:
~ ~~~~~~
Don’t add anything electrical to your vehicle
unless you check with your retailer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment can
keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle. see “Servicing
Your Air Bag-Equipped Vehicle”
in the Index.
Headlamps
The headlamp wiring is protected by an internal circuit
breaker.
An electrical overload will cause the lamps to
go on and off. or in some cases to remain off. If this
happens, have your headlamp wiring checked
right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker
and a fuse. If the motor overheats due to heavy
snow, etc.,
the wiper will stop until the motor cools. If
the overload is caused by some electrical problem, be
sure to get
it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When
the current load is too heavy,
the circuit breaker opens
and closes, protecting the
circuit
mtil the problem is fixed or goes away.
6-54
ProCarManuals.com

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits
by a combination of fuses and circuit
breakers. This greatly reduces the chance of fires caused
by electrical problems.
Look at the silver-colored band inside the f~~se. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don’t have a
spare fuse, you can borrow one that has the same
amperage. Just
pick some feature of your vehicle that
you can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace
it as soon as you can.
Instrument Panel Fuse Block
The fuse block is at the
driver’s end
of the
instrument panel,
Remove the cover by turning the fastener to the left.
Extra fuses and
the fuse extractor are provided in the
cover.
To reinstall the fuse panel cover, push in and turn
the fastener to the right.
ProCarManuals.com

FuseKircuit Usage
Breaker
A Not Used
B Not Used
1 Headlamp Switch, Body Control
Module, Headlamp Relay
FuseKircuit
Breaker
2
3
4
8
9
10
11
12
Usage
Cigarette Lighter, Data Link
Connector
Cruise Control Module and
Switch, Body Control Module,
Heated Seats
Gages, Body Control Module,
Instrument Panel Cluster
Interior Lights
Not Used Power Outside Mirror, Power
Lock Relay
Courtesy Lamps, Battery Run-Down Protection
HVAC Control Head (Manual)
Turn
Signal
Cluster, Engine Control Module Parking Lamps, Power Window
Switch, Body Control Module,
Ashtray Lamp
ProCarManuals.com

FuseKircuit Breaker
13
14
15
16
17
18
19
20
21
22
23
24
Usage Engine Compartment Fuse Block
Auxiliary Power
Power Locks Motor
4WD Switch, Engine Controls
(VCM, PCM, Transmission)
Supplemental Inflatable Restraint,
SDM Module
Front Wiper
Not Used
Radio Battery
Not Used
HVAC (Manual), HVAC
I
(Automatic), HVAC Sensors
(Automatic)
Anti-Lock Brakes
Rear Wiper
Radio, Ignition The fuse
block is under the hood at the driver’s side of
the engine compartment.
Remove the cover
by turning the fastener to the left. To
reinstall the fuse panel cover, push in and turn the
fastener to the right.
ProCarManuals.com

FUSE
PULLER
DL 1T
STARTER
FlPUMP
PRINTED IN USA
I Name
TRL TRN
TRR TRN
TRL BTU
VEH
B/U
RT TURN
Usage
Trailer Left Turn
Trailer Right Turn
Trailer Back-up Lamps
Vehicle Back-up Lamps
Right Turn Signal Front
4
1
1
1
Name
LT TURN
LT TRN
RT TRN
RR PRK
TRL PRK
LT HDLP
RT HDLP
FR PRK INT BAT
ENG
1
ECM B
ABS ECM
1
HORN
BTSI
Usage
Left Turn Signal Front
Left Turn Signal Rear
Right Turn Signal Rear Right Rear Parking Lamps
Trailer Parking Lamps Left Headlamp
Right Headlamp
Front Parking Lamps
I/P Fuse Block Feed
Engine Sensors/Solenoids, MAP,
CAM, PURGE, VENT
Engine Control Module, Fuel
Pump, Module, Oil Pressure
Anti-Lock Brake System
Engine Control Module Injectors
Horn
Brake-Transmission Shift
Interlock
6-58
