service OLDSMOBILE BRAVADA 1998 Manual Online

100,000 Miles (1 66 000 k1r1) (Contirzrred)
0 If you haven’t used your vehicle under severe service conditions listed
previously and, therefore, haven’t changed your automatic transmission fluid,
change both the fluid and filter.
AH Emissio~l Colltwl .Sc)r1?ic.c..
0 Inspect Positive Crankcase Ventilation (PCV) valve.
150,000 Miles (240 000 kin)
Drain, flush and refill cooling system (or every 60 months since last service.
whichever c~ccurs first). See “Engine Coolant**
in the Index for what to use.
Inspect
hoses. Clean radiator, condenser, pressure cap rund neck. Press111.e
test the cooling system and pressure cap.
An Emissiol7 Control Servic.c>.
DATE I
I ILII1,EAGE ACTUAL I SERVICEDBY: I
.I
‘ 7-38
ProCarManuals.com

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance
of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in
Part D.
At Each Fuel Fill
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil.’ in the Index for
further details.
Engine Coolant Level Check
Check the engine coolant level and add DEX-COOL@
coolant mixture if necessary. See “Engine Coolant” in
the Index for further details.
Windshield Washer Fluid 1,evel Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid
if
necessary. See “Windshield Washer Fluid’’ in the Index
for further details.
At Least Once a Month
Tire Inflation Check
Make sure tires are inflated to the cosrect pressures. See
”Tires” in the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the
Index for further details.
7-39
- ._.~
ProCarManuals.com

At Least Twice a Year At Least Once a Year
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are
working properly. Look for any other
loose or damaged
safety belt system parts.
If you see anything that might
keep
a safety belt system from doing its job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace blade
inserts that appear worn or damaged or that streak or
miss areas of the windshield. Also see “Wiper Blades,
Cleaning”
in the Index.
Automatic Transmission Check
Check the transmission fluid level; add if needed. See
“Automatic Transmission”
in the Index. A fluid loss
may indicate
a problem. Check the system and repair
if needed.
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified
in Part D.
Body Lubrication Service
Lubricate all body door and fuel door hinges, rear
compartment hinges, latches and locks including the
glove box, console doors and the body hood and any
moving seat hardware. Lubricate the hood safety lever
pivot and prop rod pivot. Part
D tells you what to use.
More frequent lubrication may be required when
exposed to
a corrosive environment.
ProCarManuals.com

Starter Switch Check
A CAU I ION:
-
When you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow
the steps below.
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle.
Firmly apply both the parking brake (see “Parking
Brake”
in the Index if necessary) and the
regular brake.
NOTE: Do not use the accelerator pedal, and be
ready to
turn off the engine immediately if it starts.
Try
to start the engine in each gear. The starter
should work only
in PARK (P) or NEUTRAL (N). If
the starter works in any other position. your vehicle
needs service.
Brake-Transmission Shift Interlock (BTSI) Check
A CAUI NN:
When you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle.
It should be parked on a
level surface.
Firmly apply the parking brake (see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately
if the vehicle begins to move.
With the engine off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake, try to move
the shift lever out of
PARK (Pj with normal effort. If the shift lever
moves
out of PARK (P), your vehicle’s BTSI
needs service.
ProCarManuals.com

Ignition Transmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition key to
LOCK in each shift lever position.
The key should turn to LOCK only when the shift
0 The key should come out only in LOCK.
lever is in PARK (P).
Parking Brake and Automatic Transmission
PARK
(P) Mechanism Check
When you are doing this check, your vehicle
could begin
to move. You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in case
it begins
to roll. Be ready to apply the regular
brake
at once should the vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
0 To check the parking brake’s holding ability:
With the engine running and transmission in
NEUTRAL (N), slowly remove foot pressure from
the regular brake pedal.
Do this until the vehicle is
held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK (P). Then
release all brakes.
Underbody Flushing Service
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
ProCarManuals.com

Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall). You should
let your retailer’s service
department or other qualified service center do these
jobs. Make sure any necessary repairs are completed
at once.
Proper procedures to perform these services may be
found in a service manual. See “Service and Owner
Publications” in the Index.
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or
lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears
or leakage. Replace
seals
if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system.
Look for broken, damaged,
missing or out-of-position parts
as well as open seams,
holes, loose connections or other conditions which could
cause
a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust”
in
the Index.
Engine Cooling System Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace
as needed. Clean the outside
of the radiator and air conditioning condenser.
To help
ensure proper operation, a pressure test of the cooling
system and pressure cap is recommended at least once
a year.
ProCarManuals.com

Throttle System Inspection
Inspect the throttle system for interference or binding,
and for damaged or missing parts. Replace parts as
needed. Replace any components that have high effort
or excessive wear.
Do not lubricate accelerator and
cruise control cables.
Drive Axle Service
Check readfront axle fluid level and add as needed.
Check constant velocity joints and axle seals for leaking.
Transfer Case (All-Wheel Drive) Inspection
Every 12 months or at oil change intervals, check
front axle and transfer case and add lubricant when
necessary. Check vent hose at transfer case for kinks and
proper installation.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Inspect other brake parts,
including calipers, parking brake, etc. Check parking
brake adjustment. You may need to have your brakes
inspected
more often if your driving habits or conditions
result in frequent braking.
7-44
ProCarManuals.com

Part E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and who performed the service
in the boxes provided after the maintenance interval.
Any additional information from "Owner Checks and
Services" or "Periodic Maintenance'' can be added on
the following record pages. Also,
you should retain all
maintenance receipts. Your owner information portfolio
is a convenient place to store them.
Maintenance Record
ODOMETER
DATE h1AINTENANCE PERFORMED SERVICED
BY READING
7-47
ProCarManuals.com

Maintenance Record
I ODOMETER 1 1
DATE MAINTENANCE PERFORMED
SERVICED BY READING
7-48
ProCarManuals.com

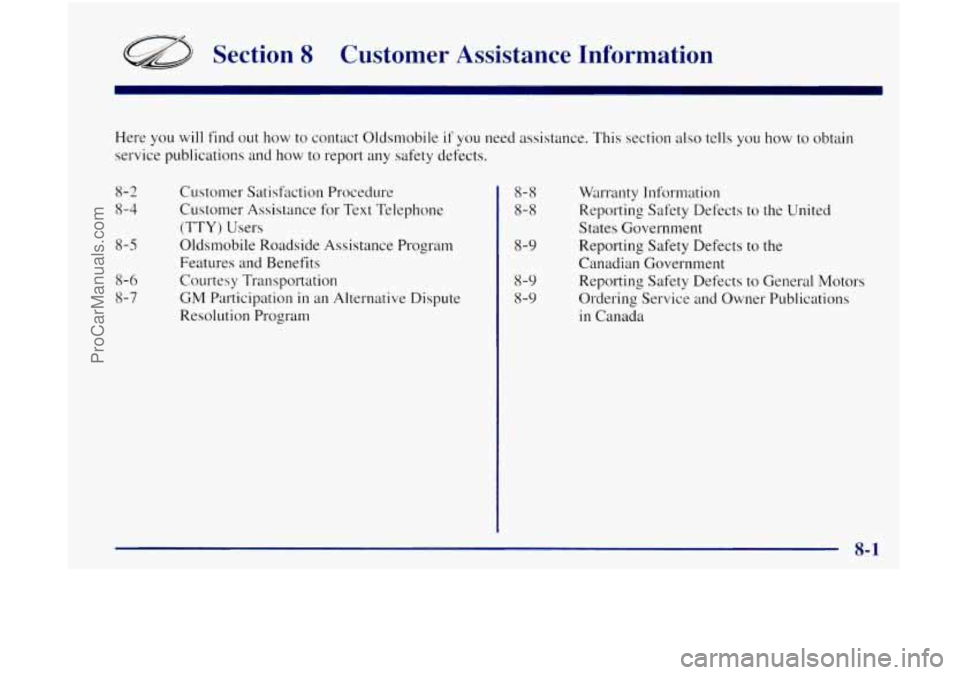

Section 8 Customer Assistance Information
Here YOLI will find out how to contact Oldsn~obile if you need assistance. This section also tells you how to obtain
service publications and how to report any safety defects.
8-2
8-4
8-5
8-6
8-7
Customer Satisfaction Procedure
Customer Assistance for Text Telephone
(TTY) Users
Oldsmobile Roadside Assistance Program
Features and Benefits
Courtesy Transportation
GM Participation in an Alternative Dispute
Resolution Program
8-8
8-8
8-9
8-9
8-9
Warranty Information
Reporting Safety Defects to the United
States Government
Reporting Safety Defects to
the
Canadian Government
Reporting Safety Defects to General Motors
Ordering Service and Owner Publications
in Canada
ProCarManuals.com
