6-55 Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of fires caused
by electrical problems.
Look at the silver
-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don't have
a spare fuse, you can borrow one that has the same
amperage. Just pick some feature of your vehicle that
you can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon as you can.

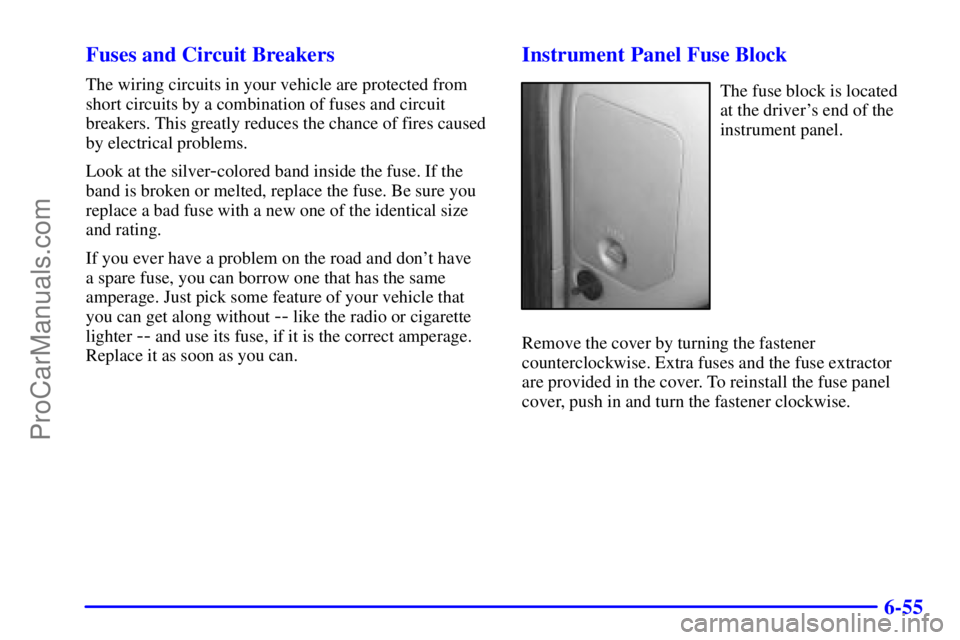

Instrument Panel Fuse Block
The fuse block is located
at the driver's end of the
instrument panel.
Remove the cover by turning the fastener
counterclockwise. Extra fuses and the fuse extractor
are provided in the cover. To reinstall the fuse panel
cover, push in and turn the fastener clockwise.
ProCarManuals.com

6-56
Fuse/Circuit
Breaker Usage
A Not Used
B Not Used
1 Not Used
2 Cigarette Lighter,
Data Link ConnectorFuse/Circuit
Breaker Usage
3 Cruise Control Module and
Switch, Body Control Module,
Heated Seats
4 Gages, Body Control Module,
Instrument Panel Cluster
5 Parking Lamps, Power Window
Switch, Body Control Module,
Ashtray Lamp
6 Steering Wheel Radio Controls
7 Headlamp Switch, Body Control
Module, Headlamp Relay
8 Courtesy Lamps, Battery
Run-Down Protection
9 Not Used
10 Turn Signal
11 Cluster, Engine Control Module
12 Interior Lights
13 Auxiliary Power
14 Power Locks Motor
ProCarManuals.com

6-57
Fuse/Circuit
Breaker Usage
15 4WD Switch, Engine Controls
(VCM, PCM, Transmission)
16 Supplemental Inflatable Restraint
17 Front Wiper
18 Steering Wheel Radio Controls
19 Radio, Battery
20 Amplifier
21 HVAC I (Automatic),
HVAC Sensors (Automatic)
22 Anti
-Lock Brakes
23 Rear Wiper
24 Radio, Ignition
Engine Compartment Fuse Block
The fuse block is located under the hood on the
driver's side of the engine compartment. See ªEngine
Compartment Overviewº in the Index for more
information on location.
Remove the cover by turning the fastener
counterclockwise. To reinstall the fuse panel cover,
push in and turn the fastener clockwise.
ProCarManuals.com

6-58
Name Usage
TRL TRN Trailer Left Turn
TRR TRN Trailer Right Turn
TRL B/U Trailer Back
-Up Lamps
VEH B/U Vehicle Back
-Up Lamps
RT TURN Right Turn Signal FrontName Usage
LT TURN Left Turn Signal Front
HDLP W/W Not Used
LT TRN Left Turn Signal Rear
RT TRN Right Turn Signal Rear
RR PRK Right Rear Parking Lamps
TRL PRK Trailer Parking Lamps
LT HDLP Left Headlamp
RT HDLP Right Headlamp
FR PRK Front Parking Lamps
INT BAT I/P Fuse Block Feed
ENG I Engine Sensors/Solenoids, MAF,
CAM, PURGE, VENT
ECM B Engine Control Module, Fuel
Pump Module, Oil Pressure
ABS Anti
-Lock Brake System
ECM I Engine Control Module Injectors
A/C Air Conditioning
W/W PMP Not Used
HORN Horn
ProCarManuals.com

6-59
Name Usage
BTSI Automatic Transmission Shift
Lock Control System
B/U LP Back
-Up Lamps
IGN B Column Feed, IGN 2, 3, 4
RAP Retained Accessory Power
LD LEV Not Used
OXYSEN Oxygen Sensor
IGN E Engine
MIR/LKS Mirrors, Door Locks
FOG LP Fog Lamps
IGN A Starting and Charging IGN 1
STUD #2 Accessory Feeds, Electric Brake
PARKLP Parking Lamps
LR PRK Left Rear Parking Lamps
IGN C Starter Solenoid,
Fuel Pump, PRNDLName Usage
HTDSEAT Heated Seat
HVAC HVAC System
TRCHMSL Trailer Center High-Mounted
Stop Light
RRDFOG Rear Defogger
TBC Truck Body Computer
CRANK Clutch Switch, NSBU Switch
HAZLP Hazard Lamps
VECHMSL Vehicle Center High
Mounted Stoplamp
HTDMIR Heated Mirror
ATC Active Transfer Case
STOPLP Stoplamps
RR W/W Rear Window Wiper
ProCarManuals.com

6-60
Replacement Bulbs
Lamps Quantity Number
Halogen Headlamps,
Composite Low Beam2 9006 HB4
or 9006 LL
Halogen Headlamps,
Composite High Beam2 9005 HB3
Tail and Stoplamps 4 3057
Front Sidemarker Lamps 2 194
Front Turn Signal Lamps 2 3457 A
Capacities and Specifications
Engine Description ªVORTECº 4300 V6. . . . . . . . .
Type V6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VIN Code W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Firing Order 1
-6-5-4-3-2 . . . . . . . . . . . . . . . . . . . . . .
Horsepower 190 at 4,400 rpm. . . . . . . . . . . . . . . . . . .
Thermostat Specification 195
F (91
C) . . . . . . . . . . .
Spark Plug Gap 0.060 inches (1.52 mm). . . . . . . . . .
Wheels and Tires
Wheel Nut Torque 100 lb-ft (140 N´m) . . . . . . . . . . .
Tire Pressure See the Certification/Tire label.. . . . . .
See ªLoading Your Vehicleº in the Index.
Capacities
Please refer to ªRecommended Fluids and Lubricantsº
in the Index for more information.
Cooling System* 11.7 quarts (11.1 L). . . . . . . . . . . . .
Crankcase with Filter* 4.5 quarts (4.3 L). . . . . . . . . .
Automatic Transmission
(Drain and Refill)* 5.0 quarts (4.7 L). . . . . . . . . . . . .
Differential Fluid (Rear) 4.0 pints (1.9 L). . . . . . . . .
Differential Fluid (Front) 2.6 pints (1.2 L). . . . . . . . .
Fuel Tank 18.0 gallons (68.0 L). . . . . . . . . . . . . . . . . .
A/C Refrigerant See refrigerant charge label. . . . . . .
under the hood.
All capacities are approximate, After refill, the level
must be checked.
ProCarManuals.com

6-61
Normal Maintenance
Replacement Parts
Replacement part numbers listed in this section are
based on the latest information available at the time of
printing, and are subject to change. If a part listed in this
manual is not the same as the part used in your vehicle
when it was built, or if you have any questions, please
contact your dealer.
Oil Filter* PF52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air Cleaner Filter* A1163C. . . . . . . . . . . . . . . . . . . . .
PCV Valve* CV769C. . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Transmission Filter Kit** 24200796. . . .
Spark Plugs* 41
-932 . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filter* GF481. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper Blade Trico 20 inches (50.8 cm). .
Backglass Wiper Blade Trico 14 inches (35.6 cm). . .
*ACDelco

Part No.
**GM Part No.
Vehicle Dimensions*
Wheelbase 107.0 inches (271.8 cm). . . . . . . . . . . . . .
Length 180.9 inches (459.5 cm). . . . . . . . . . . . . . . . .
Height 63.2 inches (160.5 cm). . . . . . . . . . . . . . . . . . .
Width 67.6 inches (171.7 cm). . . . . . . . . . . . . . . . . . .
Front Tread 57.3 inches (145.4 cm). . . . . . . . . . . . . . .
Rear Tread 55.1 inches (139.9 cm). . . . . . . . . . . . . . .
*Figures reflect base equipment only.
ProCarManuals.com

7-
7-1
Section 7 Maintenance Schedule
This section covers the maintenance required for your vehicle. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7
-2 Introduction
7
-4 Part A: Scheduled Maintenance Services
7
-8 Short Trip/City Scheduled Maintenance
7
-30 Long Trip/Highway Scheduled Maintenance7
-43 Part B: Owner Checks and Services
7
-47 Part C: Periodic Maintenance Inspections
7
-49 Part D: Recommended Fluids and Lubricants
7
-51 Part E: Maintenance Record
