Page 120 of 393

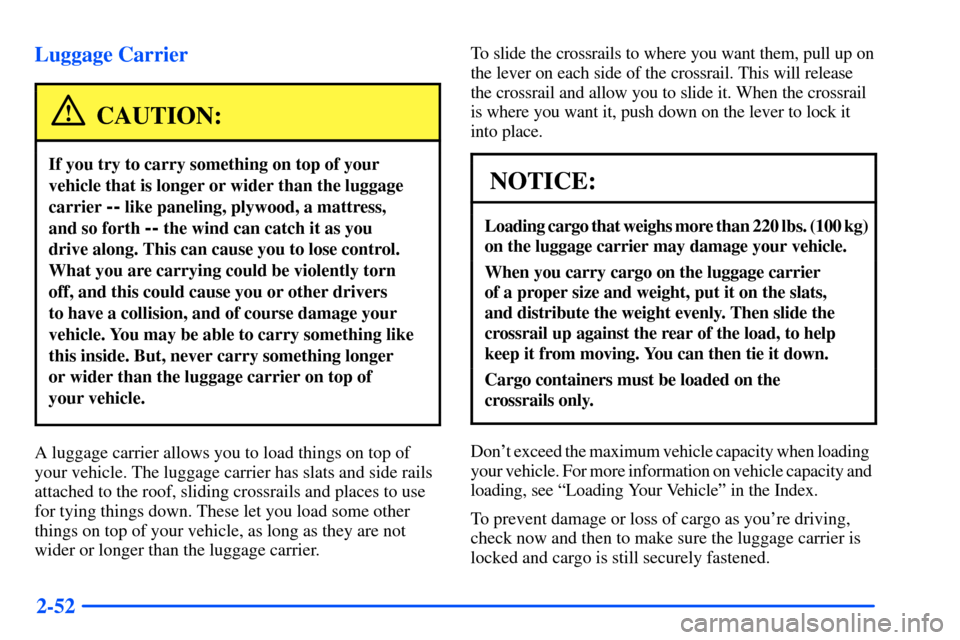

2-52 Luggage Carrier
CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier
-- like paneling, plywood, a mattress,
and so forth
-- the wind can catch it as you
drive along. This can cause you to lose control.
What you are carrying could be violently torn
off, and this could cause you or other drivers
to have a collision, and of course damage your
vehicle. You may be able to carry something like
this inside. But, never carry something longer
or wider than the luggage carrier on top of
your vehicle.
A luggage carrier allows you to load things on top of
your vehicle. The luggage carrier has slats and side rails
attached to the roof, sliding crossrails and places to use
for tying things down. These let you load some other
things on top of your vehicle, as long as they are not
wider or longer than the luggage carrier.To slide the crossrails to where you want them, pull up on
the lever on each side of the crossrail. This will release
the crossrail and allow you to slide it. When the crossrail
is where you want it, push down on the lever to lock it
into place.
NOTICE:
Loading cargo that weighs more than 220 lbs. (100 kg)
on the luggage carrier may damage your vehicle.
When you carry cargo on the luggage carrier
of a proper size and weight, put it on the slats,
and distribute the weight evenly. Then slide the
crossrail up against the rear of the load, to help
keep it from moving. You can then tie it down.
Cargo containers must be loaded on the
crossrails only.
Don't exceed the maximum vehicle capacity when loading
your vehicle. For more information on vehicle capacity and
loading, see ªLoading Your Vehicleº in the Index.
To prevent damage or loss of cargo as you're driving,
check now and then to make sure the luggage carrier is
locked and cargo is still securely fastened.
Page 245 of 393
4-44
Then, shut the engine off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this only when you feel really uncomfortable
from the cold. But do it as little as possible. Preserve the
fuel as long as you can. To help keep warm, you can get
out of the vehicle and do some fairly vigorous exercises
every half hour or so until help comes.
Recreational Vehicle Towing
Recreational vehicle towing means towing your
vehicle behind another vehicle
-- such as behind
a motorhome. The two most common types of
recreational vehicle towing are known as ªdinghy
towingº (towing your vehicle with all four wheels on
the ground) and ªdolly towingº (towing your vehicle
with two wheels on the ground and two wheels up on
a device know as a ªdollyº).
Your vehicle was not designed to be towed with any
of it's wheels on the ground. If your vehicle must be
towed, see ªTowing Your Vehicleº in the Index.
Loading Your Vehicle
The Certification/Tire label is found on the driver's door
edge, above the door latch. The label shows the size of
your original tires and the inflation pressures needed
to obtain the gross weight capacity of your vehicle.
This is called the Gross Vehicle Weight Rating (GVWR).
The GVWR includes the weight of the vehicle, all
occupants, fuel, cargo and trailer tongue weight,
if pulling a trailer.
Page 251 of 393
4-50
You can ask your dealer for our trailering information or
advice, or you can write us at:
Oldsmobile Customer Assistance Center
P. O. Box 33171
Detroit, MI 48232
-5171
In Canada, write to:
General Motors of Canada Limited
Customer Communication Centre, 163
-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because it affects the total or gross
weight of your vehicle. The Gross Vehicle Weight
(GVW) includes the curb weight of the vehicle, any
cargo you may carry in it, and the people who will be
riding in the vehicle. And if you will tow a trailer, you
must add the tongue load to the GVW because your
vehicle will be carrying that weight, too. See ªLoading
Your Vehicleº in the Index for more information about
your vehicle's maximum load capacity.
If you're using a weight-carrying or a weight-distributing
hitch, the trailer tongue weight (A) should be 10 percent
to 15 percent of the total loaded trailer weight (B).
Do not exceed the maximum allowable tongue weight
for your vehicle.
After you've loaded your trailer, weigh the trailer and
then the tongue, separately, to see if the weights are
proper. If they aren't, you may be able to get them
right simply by moving some items around in the trailer.
Page 334 of 393
6-45
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your vehicle.
CAUTION:
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
lose control. You could have a collision in which
you or others could be injured. Always use
the correct wheel, wheel bolts and wheel nuts
for replacement.
NOTICE:
The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer
or odometer calibration, headlamp aim,
bumper height, vehicle ground clearance
and tire clearance to the body and chassis.
See ªChanging a Flat Tireº in the Index for
more information.
Used Replacement Wheels
CAUTION:
Putting a used wheel on your vehicle is
dangerous. You can't know how it's been used or
how far it's been driven. It could fail suddenly
and cause an accident. If you have to replace a
wheel, use a new GM original equipment wheel.
