set Oldsmobile Bravada 2002 Owner's Manuals

Table of Contents (cont'd)
Your Driving, the Road and Your Vehicle
Defensive Driving
Drunken Driving
Control of a Vehicle
Braking
SteeringDriving Tips for Various Road Conditions
Operating Your Vehicle Off Paved Roads
Recreational Vehicle Towing
Loading Your Vehicle
Towing a Trailer Heating and Air Conditioning
Setting the Radio Clock
Radio/Cassette Player/CD PlayerRadio Theft-Deterrent Feature
Steering Wheel Controls
Hazard Warning Flashers
Jump Starting
Towing Your VehicleEngine Overheating
Changing a Flat Tire
If You're Stuck
Problems on the Road Your Driving and the Road Comfort Controls and Audio Systems
Section
3
Section
4
Section
5
iii

1-3 Memory Seat (If Equipped)
If your vehicle has this
feature the controls are
located on the driver's door
armrest, and are used to
program and recall memory
settings for the driver's
seating and outside
mirror positions.
Adjust the driver's seat (including the seatback recliner
and lumbar) and both of the outside mirrors to the desired
position. Then press and hold button 1 (for driver 1) for
three seconds. A chime will sound to let you know that
the position has been stored.A second mirror and seating position can be programmed
by repeating the procedure with a second driver and
pressing button 2 for three seconds. Each time button
1 or 2 is pressed and released while the vehicle is in
PARK (P), the memory position will be recalled, if
programmed to do so through the Driver Information
Center (DIC). Each time a memory button is pressed,
a single chime will sound.
If you use the unlock button on the remote keyless entry
transmitter to enter your vehicle, the preset driver's seat
and mirror positions will be recalled. The numbers on
the back of the transmitters, 1 or 2, correspond to the
numbers on the memory controls.
The seat and mirror positions can also be recalled by
placing the key in the ignition, if programmed to do
so through the Driver Information Center (DIC).
To stop recall movement of the memory feature at
any time, press one of the power seat controls or
memory buttons.

1-4
Two personalized exit positions can be set by first
recalling the driver's position (by pressing 1 or 2), then
positioning the seat in the desired exit position for that
driver. Then press and hold the button with the exit
symbol for three seconds. A chime will sound to let you
know that the position has been stored. With the vehicle
in PARK (P), the exit position for that driver can be
recalled by pressing the exit button. The mirrors,
power lumbar and recline positions will not be stored
or recalled for the exit positions.
Programming for automatic seat and mirror movement
can be done through the Driver Information Center
(DIC). You can choose to either select or not select
automatic seat and mirror movement by using the
remote keyless entry transmitter, by placing your
key in the ignition, or when exiting the vehicle.
For programming information, see ªVehicle
Programming and Personalization Featuresº in
the Index.Heated Front Seats (Option)
Your vehicle may have
heated front seats.
The buttons used to
control this feature are
located on the front door
armrests. The engine must
be running for the heated
seat feature to work.
The horizontal button with the heated seat symbol is used
to control the temperature settings high, medium and low.
Press the button to cycle through the temperature settings
and to turn the heated seat off. An indicator light will glow
beside the temperature selected. The low setting warms the
seatback and cushion until the seat temperature is near
body temperature. The medium and high settings heat the
seatback and seat cushion to a slightly higher temperature.
You will be able to feel heat in about two minutes.
To heat only the seatback, press the vertical button with
the heated seatback symbol. Press the vertical button to
heat the whole seat.
The feature will shut off automatically when the ignition
is turned off.

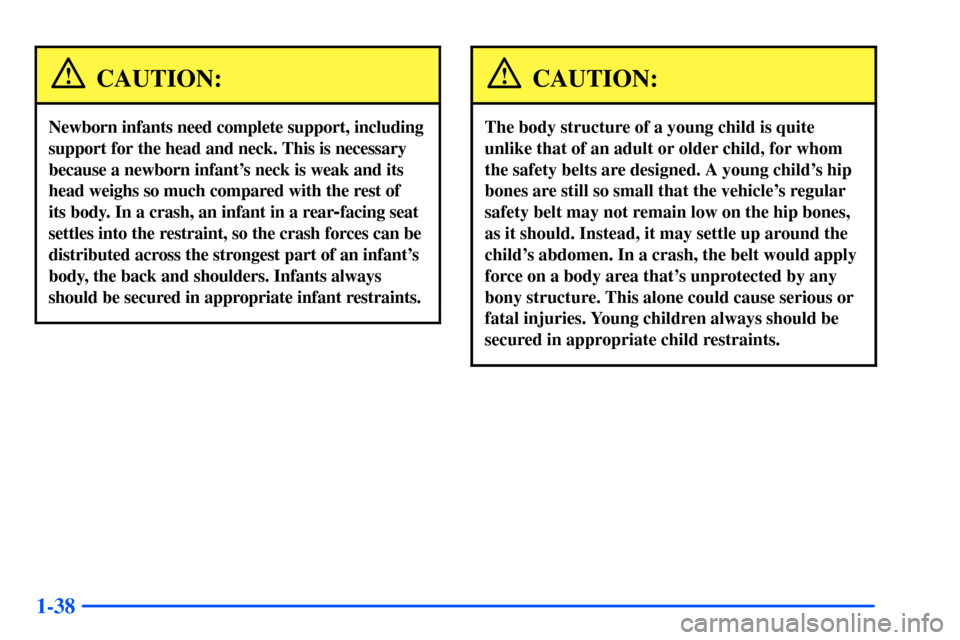

1-38
CAUTION:
Newborn infants need complete support, including
support for the head and neck. This is necessary
because a newborn infant's neck is weak and its
head weighs so much compared with the rest of
its body. In a crash, an infant in a rear
-facing seat
settles into the restraint, so the crash forces can be
distributed across the strongest part of an infant's
body, the back and shoulders. Infants always
should be secured in appropriate infant restraints.
CAUTION:
The body structure of a young child is quite
unlike that of an adult or older child, for whom
the safety belts are designed. A young child's hip
bones are still so small that the vehicle's regular
safety belt may not remain low on the hip bones,
as it should. Instead, it may settle up around the
child's abdomen. In a crash, the belt would apply
force on a body area that's unprotected by any
bony structure. This alone could cause serious or
fatal injuries. Young children always should be
secured in appropriate child restraints.

1-47
3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.

1-51
5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.6. To tighten the belt, feed the shoulder belt back into the
retractor while you push down on the child restraint.
You may find it helpful to use your knee to push
down on the child restraint as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle's
safety belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.

2-7 Power Door Locks
The power door lock
switches are located on
the driver's and front
passenger's armrests.
Remove the ignition key and press lock symbol to lock
all of the doors at once. To unlock the doors, press the
other side of the switch.
Programmable Automatic Door Locks
Your vehicle is equipped with an automatic lock/unlock
feature which enables you to program your vehicle's
power door locks. You can program this feature
through the Driver Information Center (DIC), or by
the following method.Programmable Locking Feature
The following is the list of available programming options:

Mode 1: All doors lock when the transmission is
shifted into gear.

Mode 2: All doors lock when the vehicle speed is
greater than 8 mph (13 km/h).

Mode 3: No automatic door locking.
The automatic door locks were pre
-programmed at the
factory to lock all the doors when the transmission is
shifted into gear. The following instructions detail how
to program your door locks differently than the factory
setting. Choose one of the three programming options
listed above before entering the program mode.
To enter the program mode you need to do
the following:
1. Begin with the ignition off. Then pull the turn
signal/multifunction lever toward you and hold it
there while you perform the next step.
2. Turn the key to RUN and LOCK twice. Then, with
the key in LOCK, release the turn signal/multifunction
lever. Once you do this, you will hear the lock switch
lock and unlock, the horn will chirp twice, and a
30 second program timer will begin.

2-8
3. You are now ready to program the automatic door
locks. Select one of the three programming options
listed above, and press the lock side of the power
door lock switch to cycle through the lock options.
You will have 30 seconds to begin programming.
If you exceed the 30 second limit, the locks will
automatically lock and unlock and the horn will
chirp twice to indicate that you have left the program
mode. If this occurs, repeat the procedure beginning
with Step 1 to re
-enter the programming mode.
You can exit the program mode any time by turning the
ignition to RUN (the locks will automatically lock and
unlock and the horn will chirp twice to indicate that
you are leaving the program mode). If the lock/unlock
switches are not pressed while in the programming mode,
the current auto lock/unlock setting will not be modified.
See your dealer for more information.Programmable Unlocking Feature
The following is the list of available programming options:

Mode 1: Driver's door unlocks when the
transmission is shifted into PARK (P).

Mode 2: All doors unlock when the transmission is
shifted into PARK (P)

Mode 3: All doors unlock when the key is removed
from the ignition.

Mode 4: No automatic door unlock.
The automatic door locks were pre
-programmed at the
factory to unlock the driver's door once the transmission
is shifted to PARK (P). The following instructions detail
how to program your door locks differently than the
factory setting. Choose one of the four programming
options listed above before entering the program mode.
To enter the program mode you need to do
the following:
1. Begin with the ignition off. Then pull the turn
signal/multifunction lever toward you and hold it
there while you perform the next step.

2-9
2. Turn the key to RUN and LOCK twice. Then, with
the key in LOCK, release the turn signal/multifunction
lever. Once you do this, you will hear the lock switch
lock and unlock, the horn will chirp twice, and a
30 second program timer will begin.
3. You are now ready to program the automatic door
locks. Select one of the four programming options
listed above, and press the unlock side of the power
door lock switch to cycle through the unlocking
options. You will have 30 seconds to begin
programming. If you exceed the 30 second limit,
the locks will automatically lock and unlock and
the horn will chirp twice to indicate that you have
left the program mode. If this occurs, repeat the
procedure beginning with Step 1 to re
-enter the
programming mode.
You can exit the program mode any time by turning the
ignition to RUN (the locks will automatically lock and
unlock and the horn will chirp twice to indicate that
you are leaving the program mode). If the lock/unlock
switches are not pressed while in the programming mode,
the current auto lock/unlock setting will not be modified.
See your dealer for more information.
Rear Door Security Locks
With this feature, you can lock the rear doors so they
can't be opened from the inside by passengers.
To use one of these locks do the following:
1. Open one of the rear doors.
2. You will find a security
lock lever located on the
inside edge of each rear
door. Move the lever
down to engage the
safety lock. Move the
lever up to disengage
the safety lock.
3. Close the door.
4. Do the same thing to the other rear door.
The rear doors of your vehicle cannot be opened from
the inside when this feature is in use. If you want to
open the rear door when the security lock is on, unlock
the door and open the door from the outside.

2-10 Lockout Prevention
This feature stops the power door locks from locking
when the keys are in the ignition and a door is open,
to protect you from locking your key in the vehicle.
If the power lock switch is pressed when a door is open
and the key is in the ignition, all the doors will lock and
the driver's door will unlock.
Leaving Your Vehicle
If you are leaving the vehicle, take your key, open your
door and set the locks from inside. Then get out and
close the door.
Remote Keyless Entry System
With this system you can lock and unlock your doors
from about 3 feet (1 m) up to 30 feet (9 m) away
using the remote keyless entry transmitter supplied
with your vehicle.
Your remote keyless entry system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
