2-16
If a door is opened without the key or the remote keyless
entry transmitter, the alarm will go off. The headlamps
and parking lamps will flash for two minutes, and the
horn will sound for 30 seconds, then will turn off to
save the battery power.
Remember, the theft
-deterrent system won't activate if
you lock the doors with a key or use the manual door
lock. It activates only if you use a power door lock
switch with the door open, or with the remote keyless
entry transmitter. You should also remember that you
can start your vehicle with the correct ignition key if the
alarm has been set off.
Here's how to avoid setting off the alarm by accident:

If you don't want to activate the theft
-deterrent
system, the vehicle should be locked with the door
key after the doors are closed.

Always unlock a door with a key, or use the remote
keyless entry transmitter. Unlocking a door any other
way will set off the alarm.
If you set off the alarm by accident, unlock any
door with the key. You can also turn off the alarm by
pressing unlock on the remote keyless entry transmitter.
The alarm won't stop if you try to unlock a door any
other way.
Testing the Alarm
The alarm can be tested by following these steps:
1. From inside the vehicle, lower the driver's window
and open the driver's door.
2. Activate the system by locking the doors with the
power door lock switch while the door is open, or
with the remote keyless entry transmitter.
3. Get out of the vehicle, close the door and wait for
the SECURITY light to go out.
4. Then reach in through the window, unlock the
door with the manual door lock and open the door.
This should set off the alarm.
When the alarm is set the power door unlock switch is
not operational.
If the alarm does not sound when it should but the
headlamps flash, check to see if the horn works.
The horn fuse may be blown. To replace the fuse,
see ªFuses and Circuit Breakersº in the Index.
If the alarm does not sound or the headlamps do not
flash, the vehicle should be serviced by your dealer.

2-17
Passlock

Your vehicle is equipped with the Passlock
theft
-deterrent system.
Passlock is a passive theft
-deterrent system. Passlock
enables fuel if the ignition lock cylinder is turned with
a valid key. If a correct key is not used or the ignition
lock cylinder is tampered with, fuel is disabled and the
vehicle will not start.
During normal operation, the SECURITY light will
go off approximately five seconds after the key is
turned to RUN.
If the engine stalls and the SECURITY light flashes,
wait about 10 minutes until the light stops flashing
before trying to restart the engine. Remember to release
the key from START as soon as the engine starts.If the engine does not start after three tries, the vehicle
needs service.
If the engine is running and the SECURITY light
comes on, you will be able to restart the engine if you
turn the engine off. However, your Passlock system
is not working properly and must be serviced by your
dealer. Your vehicle is not protected by Passlock at this
time. You may also want to check the fuse (see ªFuses
and Circuit Breakersº in the Index). See your dealer
for service.
In an emergency, call the GM Roadside Assistance
Center. See ªRoadside Assistanceº in the Index.

2-18
New Vehicle ªBreak-Inº
NOTICE:
Your vehicle doesn't need an elaborate
ªbreak
-in.º But it will perform better in
the long run if you follow these guidelines:

Keep your speed at 55 mph (88 km/h) or
less for the first 500 miles (805 km).

Don't drive at any one speed
-- fast or
slow
-- for the first 500 miles (805 km).
Don't make full
-throttle starts.

Avoid making hard stops for the first
200 miles (322 km) or so. During this time
your new brake linings aren't yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking
-in guideline every
time you get new brake linings.

Don't tow a trailer during break
-in.
See ªTowing a Trailerº in the Index for
more information.
Ignition Positions
Use the key to turn the ignition switch to four
different positions.
A (Lock): This position locks the ignition and
transmission. It's a theft
-deterrent feature. You will
only be able to remove the key when the ignition is
turned to LOCK.

2-19
NOTICE:
If your key seems stuck in LOCK and you can't
turn it, be sure you are using the correct key;
if so, is it all the way in? Turn the key only with
your hand. Using a tool to force it could break
the key or the ignition switch. If none of this
works, then your vehicle needs service.
B (Accessory): This position lets you use things like the
radio and the windshield wipers when the engine is off.
NOTICE:
Don't operate accessories in the ACCESSORY
position for long periods of time. Prolonged
operation of accessories in the ACCESSORY
position could drain the battery and prevent
you from starting your vehicle.
C (Run): This is the position for driving.
D (Start): This position starts the engine.
Retained Accessory Power (RAP)
Your vehicle is equipped with a Retained Accessory
Power (RAP) feature which will allow certain features
of your vehicle to continue to work up to 20 minutes
after the ignition key is turned to LOCK.
Your radio, power windows, sunroof (option) and
overhead console will work when the ignition key is
in RUN or ACCESSORY. Once the key is turned from
RUN to LOCK, these features will continue to work
for up to 20 minutes or until a door is opened.
Starting Your Engine
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine won't start in any other position
-- that's
a safety feature. To restart when you're already moving,
use NEUTRAL (N) only.
NOTICE:
Don't try to shift to PARK (P) if your vehicle
is moving. If you do, you could damage the
transmission. Shift to PARK (P) only when
your vehicle is stopped.

2-20
1. With your foot off the accelerator pedal, turn the
ignition key to START. When the engine starts,
let go of the key. The idle speed will go down as
your engine gets warm.
NOTICE:
Holding your key in START for longer than
15 seconds at a time will cause your battery to
be drained much sooner. And the excessive heat
can damage your starter motor. At 15 seconds,
the starter will automatically be disengaged.
Wait about 15 seconds between each try to
help avoid draining your battery or damaging
your starter.
2. If it doesn't start within 10 seconds, push the
accelerator pedal all the way to the floor, while you
hold the ignition key in START. When the engine
starts, let go of the key and let up on the accelerator
pedal. Wait about 15 seconds between each try.When starting your engine in very cold weather
(below 0
F or
-18
C), do this:
1. With your foot off the accelerator pedal, turn the
ignition key to START and hold it there. When the
engine starts, let go of the key.
2. If your engine still won't start (or starts but then
stops), it could be flooded with too much gasoline.
Try pushing your accelerator pedal all the way to
the floor and holding it there as you hold the key
in START for about three seconds. When the
engine starts, let go of the key and accelerator.
If the vehicle starts briefly but then stops again,
do the same thing, but this time keep the pedal down
for five or six seconds. This clears the extra gasoline
from the engine.
NOTICE:
Your engine is designed to work with the
electronics in your vehicle. If you add electrical
parts or accessories, you could change the way
the engine operates. Before adding electrical
equipment, check with your dealer. If you don't,
your engine might not perform properly.

2-22
Automatic Transmission Operation
There are several different positions for your shift lever.
PARK (P): This position locks your wheels. It's the best
position to use when you start your engine because your
vehicle can't move easily.
CAUTION:
It is dangerous to get out of your vehicle if the
shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Don't leave your vehicle when the engine is
running unless you have to. If you have left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your
vehicle won't move, even when you're on fairly
level ground, always set your parking brake
and move the shift lever to PARK (P).
See ªShifting Into PARK (P)º in the Index.
If you're pulling a trailer, see ªTowing a Trailerº
in the Index.
Ensure the shift lever is fully in PARK (P) before
starting the engine. Your vehicle has an automatic
transmission shift lock control system. You have to
fully apply your regular brakes before you can shift
from PARK (P) when the ignition key is in RUN.
If you cannot shift out of PARK (P), ease pressure on
the shift lever
-- press the button on the shift lever and
push the shift lever all the way into PARK (P) as you
maintain brake application. Then move the shift lever
into the gear you wish. See ªShifting Out of PARK (P)º
in the Index.
REVERSE (R): Use this gear to back up.
NOTICE:
Shifting to REVERSE (R) while your vehicle is
moving forward could damage your transmission.
Shift to REVERSE (R) only after your vehicle
is stopped.
To rock your vehicle back and forth to get out of
snow, ice or sand without damaging your transmission,
see ªStuck In Sand, Mud, Ice or Snowº in the Index.

2-23
NEUTRAL (N): In this position, your engine doesn't
connect with the wheels. To restart when you're already
moving, use NEUTRAL (N) only.
CAUTION:
Shifting out of PARK (P) or NEUTRAL (N) while
your engine is ªracingº (running at high speed)
is dangerous. Unless your foot is firmly on the
brake pedal, your vehicle could move very
rapidly. You could lose control and hit people
or objects. Don't shift out of PARK (P) or
NEUTRAL (N) while your engine is racing.
NOTICE:
Damage to your transmission caused by shifting
out of PARK (P) or NEUTRAL (N) with the
engine racing isn't covered by your warranty.
DRIVE (D): This position is for normal driving.
If you need more power for passing, and you're:

Going less than about 35 mph (55 km/h),
push your accelerator pedal about halfway down.

Going about 35 mph (55 km/h) or more,
push the accelerator all the way down.
You'll shift down to the next gear and have more power.
DRIVE (D) should not be used when towing a trailer,
carrying a heavy load, driving on steep hills or for
off
-road driving. Select THIRD (3) when operating the
vehicle under any of these conditions.
THIRD (3): This position is also used for normal
driving, however it offers more power but lower fuel
economy than DRIVE (D). You should use THIRD (3)
when towing a trailer, carrying a heavy load, driving on
steep hills or winding roads or for off
-road driving.
SECOND (2): This position gives you more power
but lower fuel economy than THIRD (3). You can use
SECOND (2) on hills. It can help control your speed as
you go down steep mountain roads, but then you would
also want to use your brakes off and on.
You can also use SECOND (2) for starting your vehicle
from a stop on slippery road surfaces.

2-34 Windshield Wipers
: Mist
: Off
You control the windshield wipers by turning the band
with the wiper symbol on it.
For a single wiping cycle, turn the band to mist. Hold it
there until the wipers start. Then let go. The wipers will
stop after one wipe. If you want more wipes, hold the
band on mist longer.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain
or snow. Turn the band to choose the delay time.
The closer to the top of the lever, the shorter the delay.
For steady wiping at low speed, turn the band away
from you to the first solid band past the delay settings.
For high
-speed wiping, turn the band further, to the
second solid band past the delay settings. To stop the
wipers, move the band to off.
Be sure to clear ice and snow from the wiper blades
before using them. If they're frozen to the windshield,
carefully loosen or thaw them. If your blades do become
worn or damaged, get new blades or blade inserts.
Rainsense
Wipers (If Equipped)
Your vehicle may be equipped with Rainsense windshield
wipers. When active, these wipers are able to detect
moisture on the windshield and automatically turn on
the wipers.
The moisture sensor is located next to the inside
rearview mirror and is mounted on the windshield.
To turn on the Rainsense feature, the wipers must be set
to one of the five delay settings on the multifunction
lever. Each of the five settings adjusts the sensitivity
of the rainsensor. For more wipes, select the higher
settings; for fewer wipes, select the lower settings
located closer to off on the multifunction lever.
The rainsensor will automatically control the frequency
of the wipes from off to high speed according to the
weather conditions. The wipers can be left in a rainsense
mode even when it is not raining.
NOTICE:
Turn the multifunction lever to off to avoid wiper
damage when going through an automatic car wash.

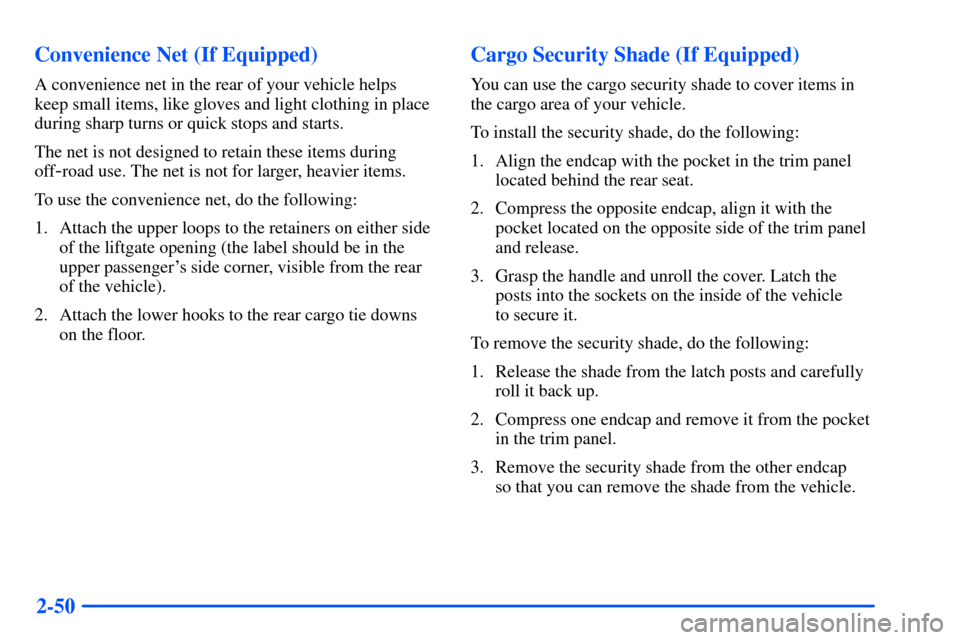

2-50 Convenience Net (If Equipped)
A convenience net in the rear of your vehicle helps
keep small items, like gloves and light clothing in place
during sharp turns or quick stops and starts.
The net is not designed to retain these items during
off
-road use. The net is not for larger, heavier items.
To use the convenience net, do the following:
1. Attach the upper loops to the retainers on either side
of the liftgate opening (the label should be in the
upper passenger's side corner, visible from the rear
of the vehicle).
2. Attach the lower hooks to the rear cargo tie downs
on the floor.
Cargo Security Shade (If Equipped)
You can use the cargo security shade to cover items in
the cargo area of your vehicle.
To install the security shade, do the following:
1. Align the endcap with the pocket in the trim panel
located behind the rear seat.
2. Compress the opposite endcap, align it with the
pocket located on the opposite side of the trim panel
and release.
3. Grasp the handle and unroll the cover. Latch the
posts into the sockets on the inside of the vehicle
to secure it.
To remove the security shade, do the following:
1. Release the shade from the latch posts and carefully
roll it back up.
2. Compress one endcap and remove it from the pocket
in the trim panel.
3. Remove the security shade from the other endcap
so that you can remove the shade from the vehicle.

2-54
Accessory Inflator
Your vehicle is equipped with an air inflator system.
You can inflate things like basketballs and bicycle tires.
Also, you can use it to bring your tire pressure up to the
proper pressure. It is not designed to inflate large objects
which will require more than five minutes to inflate,
such as an air mattress.
The air inflator is located
in the rear compartment
on the passenger's side
of the vehicle behind an
access cover.
To remove the cover, pull the two tabs on the cover and
pull it off.The air inflator kit is located in the glove compartment.
The kit includes a 22
-foot (6.7 m) hose with three
nozzle adapters.
To use the air inflator attach the appropriate nozzle
adapter to the end of the hose if required. Then attach
that end of the hose to the object you wish to inflate.
Attach the other end of the hose to the outlet.
Press and release the switch to turn the air inflator on.
The indicator light will remain on when the inflator
is running.
The system has an internal clock to prevent overheating.
The system will allow about five minutes of running
time, then the compressor will stop. The indicator light
will then begin to flash. When the indicator is off, the
inflator can be started again by pressing the switch.
If the compressor is still hot, it may only run for a
short time before shutting off again.
