If it’s bad enough, it can damage your
engine.
If you’re using fuel rated at 87 octane or
higher and you still hear heavy
laoclcing, your engine needs service.
But don’t
worry if you hear a little
pinging noise when you’re accelerating
or driving up a hill. That’s normal, and
you don’t have to buy
a higher octane
fuel to get rid
of pinging. It’s the heavy,
constant knock that means you have a
problem.
Fuel Capacity:
16.5 U.S. Gallons (62 L). Use unleaded
fuel only.
What about gasoline with blending
materials that contain oxygen, such
as
MTBE or alcohol?
MTBE is “methyl tertiary-butyl
ether.’’ Fuel that is no more than
15%
MTBE is fine for your vehicle.
Ethanol is ethyl or grain alcohol.
Properly-blended fuel that is no more
than
10% ethanol is fine for your
vehicle.
Methanol is methyl or wood alcohol.
- -1
219

Sewice & Appeurunce Care
220
Gasolines for Cleaner Air
Your use of gasoline with detergent
additives will help prevent deposits
from forming in your engine and fuel
system. That helps Beep your engine in
tune and your emission control system
working properly. It’s good for your
vehicle, and you’ll be doing your part
for cleaner air.
Many gasolines are now blended with
materials called oxygenates. General
Motors recommends that you use
gasolines with these blending materials,
such as MTBE and ethanol. By doing
so, you can help clean the air, especially
in those parts of the country that have
high carbon monoxide levels. In
addition, some gasoline suppliers are
now producing reformulated gasolines.
These gasolines are specially designed
to reduce vehicle emissions. General
Motors recommends that you use
reformulated gasoline. By doing
so, you
can help clean the air, especially in
those parts of the country that have
high ozone levels.
You should ask your service station
operators
if their gasolines contain
detergents and oxygenates, and
if they
have been reformulated to reduce
vehicle emissions.
Fuels in Foreign Countries
If you plan on driving in another
country outside the
U.S. or Canada,
unleaded fuel may be hard to find.
Do not use leaded gasoline. If you use
even one tankful, your emission
controls won’t work well or
at all. With
continuous use, spark plugs can get
fouled, the exhaust system can corrode,
and your engine oil can deteriorate
quickly. Your vehicle’s oxygen sensor
will be damaged. All of that means
costly repairs that wouldn’t be covered
by your warranty.

1
I
x.

Service & Appearance Care
222
Filling Your Tank (CONT.) 1 . Checking Things Under the
I
Hood Release

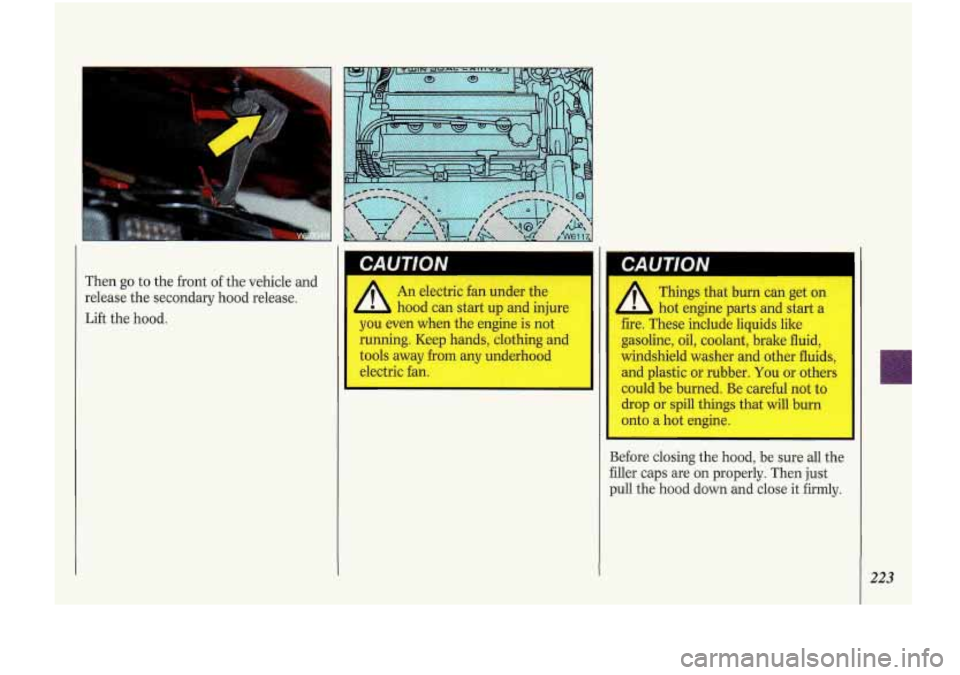

To open the hood, first pull the handle
inside the vehicle.

Then go to the front of the vehicle and
release the secondary hood release.
Lift the hood. An electric fan
under the
hood can start up and injure
you even when the engine is not
running. Keep hands, clothing and
tools away from any underhood
electric fan.
‘I f. E
F
Things that burn can get on
hot engine parts and start a
fire. These include liquids like gasoline,
oil, coolant, brake fluid,
windshield washer and other fluids,
and plastic or rubber.
You or others
nnuld be burned. Be careful not to
-,3p or spill things that will burn
onto
a hot enqine.
I
3efore closing the hood, be sure all the
iller caps are on properly. Then just
~ll the hood down and close it firmly.
223

224
P P

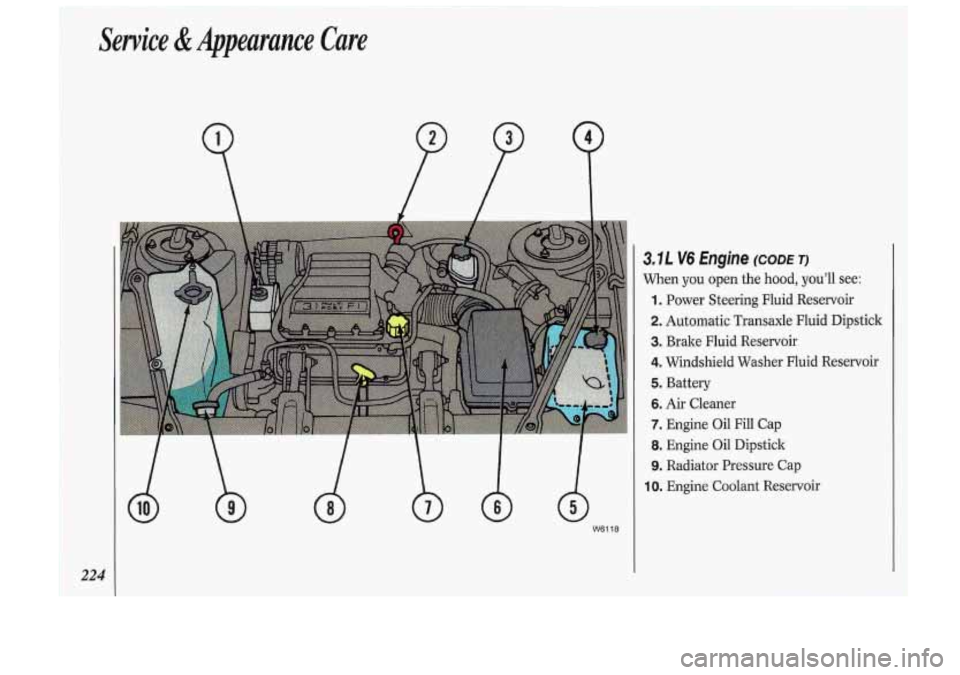

3,IL V6 Engine (CODE TI
When you open the hood, you’ll see:
1. Power Steering Fluid Reservoir
2. Automatic Transaxle Fluid Dipstick
3. Brake Fluid Reservoir
4. Windshield Washer Fluid Reservoir
5. Battery
6. Air Cleaner
7. Engine Oil Fill Cap
8. Engine Oil Dipstick
9. Radiator Pressure Cap
IO. Engine Coolant Reservoir
W6118

Twin Dual Cam (DOHC) 3.41 V6
Engine (CODE x)
When you open the hood, you'll see:
1. Power Steering Fluid Reservoir
2. Automatic Transaxle Fluid Dipstick
3. Brake Fluid Reservoir
4. Windshield Washer Fluid Reservoir
7. Engine Oil Fill Cap
8. Engine Oil Dipstick
9. Radiator Pressure Cap
. I$?. .- .. Engine . Coolant Reservoir . ,,- ,. . ~- ...%... J: L....'. Il,i ... ii I/ i.2:. ,
i

226
Sewice & Appearance Care
Retractable Underhood Light
(OPTION)
To Use:
Pull the light away from the base and
attach it to the area
of the vehicle where
you
may be working. A magnet on the
back will hold it in place.
To Retract:
1. Turn the crank clockwise.
2. Slide the light back into its base.
Engine Oil
It’s a good idea to check your engine oil
level every time you get fuel. In order to
get
an accurate reading, the oil must be
warm and the vehicle must be
on level
ground.
Turn off the engine and give the oil a
few minutes to drain back into the oil
pan. If you don’t, the oil dipstick might
not show the actual level.
To Check Engine Oil:
Pull out the dipstick and clean it with a
paper towel or cloth, then push it back
in all the way. Remove it again, keeping
the tip lower.
3.1 L V6: Checking Engine Oil
Twin
Dual Cam 3.4L V6 : Checking
Engine
Oil

When to Add Oil:
I If the oil is at or below the A OD line,
then you’ll need to add some oil. But
you must use the right
kind. This
section explains what kind
of oil to use.
For crankcase capacity, see the
Index
under Capacities and Specifications.
Just fill it enough to put the level
somewhere in the proper operating
range. Push the dipstick all the way
back
in when you’re through.
3.1 L V6: Adding Engine Oil
Twin
Dual Cam 3.4L V6: Adding Engine
Oil
What Mnd of Oil to Use
Look for Three Things:
SG
“SG” must be on the oil container,
either by itself or combined with other
quality designations, such as
“SG/CC,”
“SG/CD,” “SF, SG, CC,”
etc. These letters show American
Petroleum Institute (API) levels
of
quality.
G designation, you can cause
engine damage not covered by your
1 227

Whaf Kind of Oil to Use (CONT.)
SAE 5W-30
As shown in the viscosity chart, SAE
5W-30 is best for your vehicle.
However, you can use
SAE 1OW-30 if
it’s going to be
0°F (-18°C) or above.
These numbers on
an oil container
show its viscosity, or thickness. Do
not use other viscosity oils such as
SAE 1OW-40 or SAE 20W-50.
Energy Conserving I1
Oils with these words on the
container
will help you save fuel.
This doughnut-shaped logo (symbol) is
used on most oil containers to help you
select the correct oil.
You should look for this on the oil
container, and use
only those oils that
display the logo.
GM Goodwrench@ Oil (in Canada, GM
Engine Oil) meets all the requirements
for your vehicle.
Engine Oil Additives
Don’t add anything to your oil. Your
Oldsmobile dealer is ready to advise
if
you think something should be added.
