Oldsmobile Cutlass Supreme 1995 s Owners Manual

Interior Lamps
When any door is opened, several lamps come on. These
lamps are courtesy lamps. They make it easy fo_r you to
enter and leave your vehicle. You can also turn these
lamps on by moving the dial near the headlamp knob all
the way up to INT.
Some of the lamps have switches
so you can turn them
on, even when the doors are closed. These lamps are
reading lamps: To avoid draining your battery, be sure to
turn
off all reading lamps when leaving your vehicle.
Battery Saver
Your vehicle has a feature to help prevent you from
draining the battery, in case you accidentally leave the
courtesy lamps on.
If you leave the dial turned all the
way up to
INT, or if you leave a door open, the lamps
will automatically turn
off after 10 minutes if the
ignition is
off.
This feature will not turn off the reading lamps, only .the
lamps controlled by the dial. Be sure to
turn off ‘my reading
lamps using
the switch before you leave the vehicle.
Illuminated Entry
Your courtesy lamps will come on and stay on for a set
time whenever you:
Pull a front door handle.
Press UNLOCK on the Remote Lock Control
0 Press DOOR on the Remote Lock Control
(if equipped).
’
(if equipped).
If you open a door, the
lamps will stay on while it’s open
I and then turn off automatically about 18 seconds after 1
you close it. If you don’t open a door, the lamps will ’
turn off after about 18 seconds, unless you pressed
UNLOCK on the Remote Lock Control.
If you pressed
UNLOCK and don’t open a door, the lamps will turn off
after about
55 seconds.
Illuminated entry includes a feature called theater
dimming. With theater dimming, the lamps don’t just
turn off at the end of the delay time. Instead, they slowly
dim during the delay time until they go out. The delay
time is cancelled
if you turn the ignition key to RUN or
START,
so the lamps will go out right away.
When the ignition is on, Illuminated Entry is inactive,
which means the courtesy
lamps won’t come on.
r

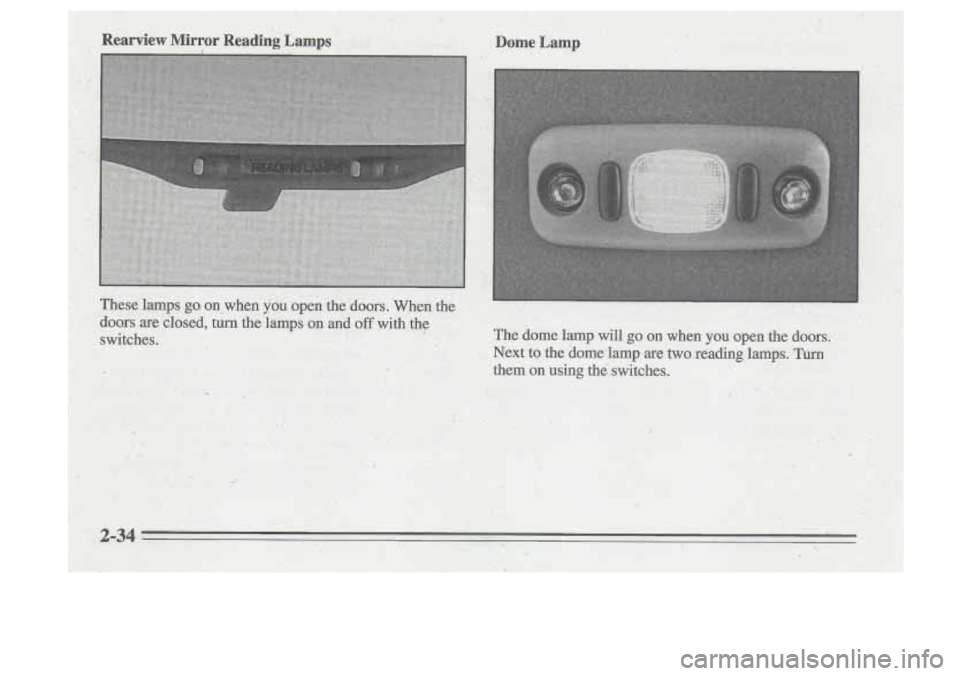

Rearview Mirror Reading Lamps DomeLamp ' '
These lamps go, on when you open the doors. When the
doors are closed,
turn the lamps on and off with the
switches.

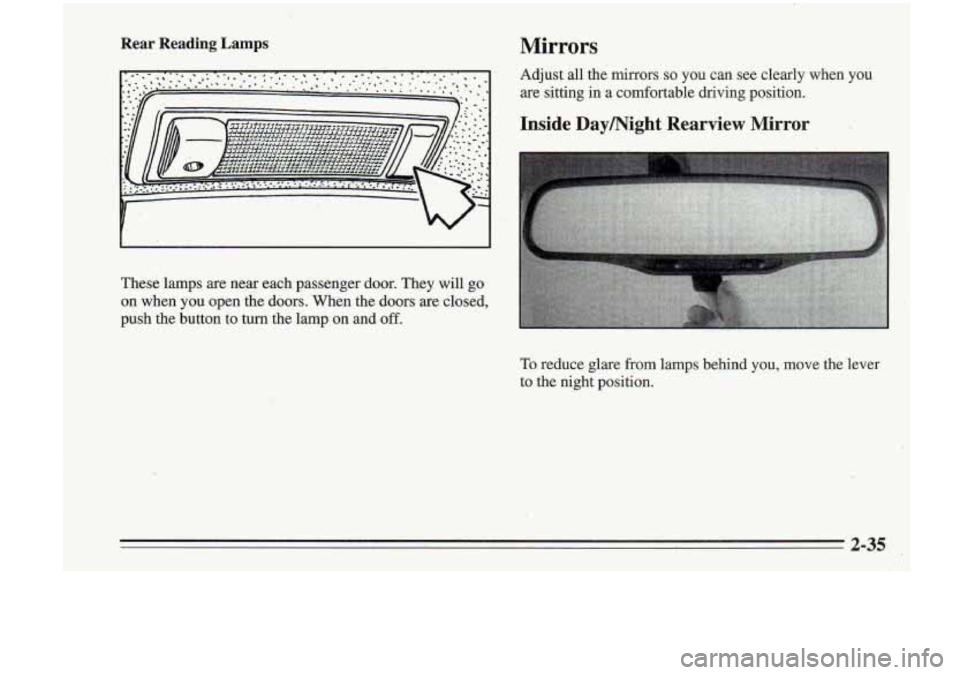

Rear Reading Lamps Mirrors
Adjust all the mirrors so you can. see clearly when you
are sitting in a comfortable driving position.
Inside Daymight Rearview Mirror
These lamps are ne,a each passenger door. They will go
on when you open the doors. When the doors are closed,
push the button to turn the lamp on and
off.
To reduce glare from lamps behind you, move the lever
to the night position.
2-35

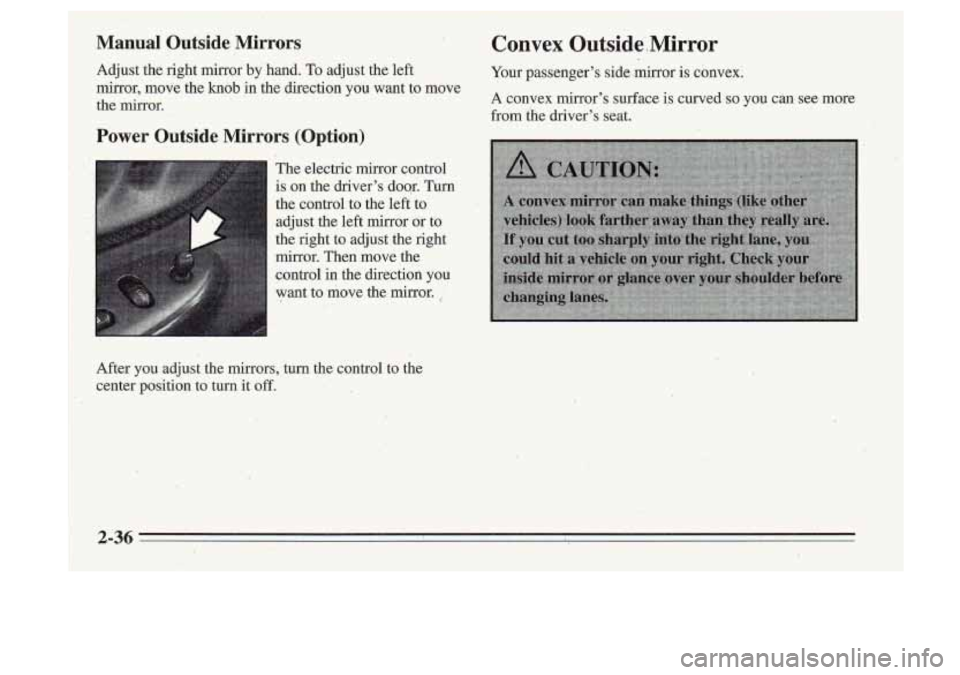

1 Manual Outside ,Mirrors
Adjust the right mirror by hand. To adjust the left
mirror, move the
knob in the direction you want to move
the mirror.
Power Outside Mirrors (Option)
The electric mirror control
is on the driver's doqr. Turn
the control
to the left to.
adjust the left
mirror or to
the'right to adjust the right
mirror. Then move the control in the dnection you
.want
to move the-mirror. ;
After you adjust the pirrors, turn the control to the
center position .to turn it
off.
Convex 0utside.Mirror
'Your passenger's side .mirror is convex.
A convex mirror's surface is curved so you can see more
from the driver's seat.
2-36 ,.

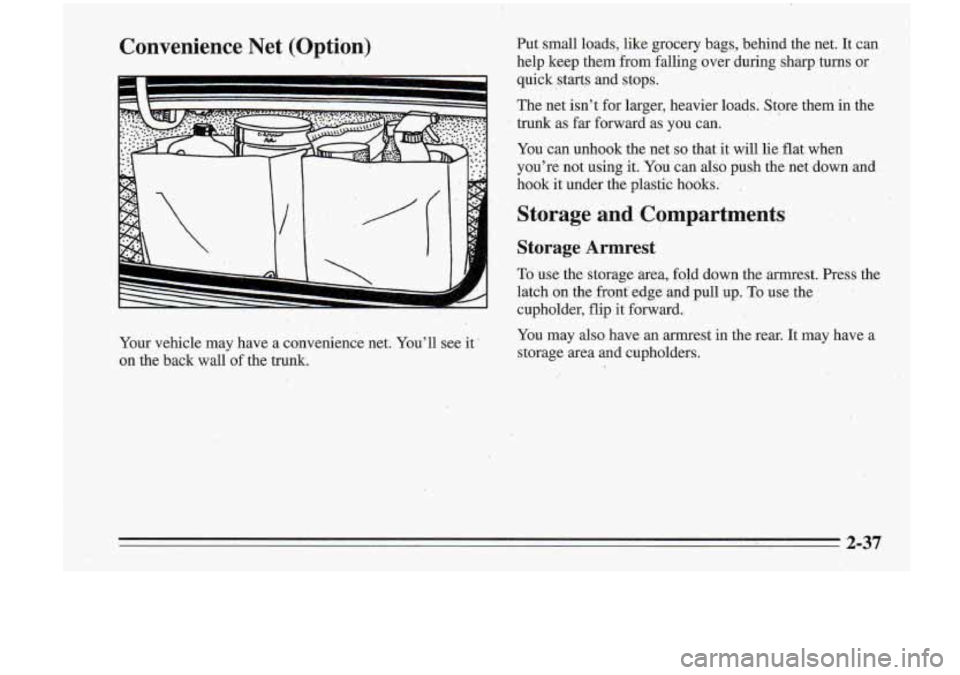

Convenience Net (Optibn) Put small loads, like grocery bags, behind the net. It can
help keep them from falling over during sharp turns or
quick starts and stops.
The net isn’t for larger, heavier loads. Store them in the
trunk as far forward as you can.
You
can unhook the net so that it will lie flat when
you’re not using it. You can
also push the net dowmand
hook it under the plastic hooks..
,.
Storage and Compartments
Storage Armrest
To use the storage area, fold down the armrest. Press the
latch- on the front’ edge and pull up.
To use the
cupholder, flip it forward.
. _.
.. ,I
Your vehicle may have a convenience net. You’ll see it-
on the back wall of the
trunk.
You may also have an armrest in the rear. It may have a
storage area and cupholders.

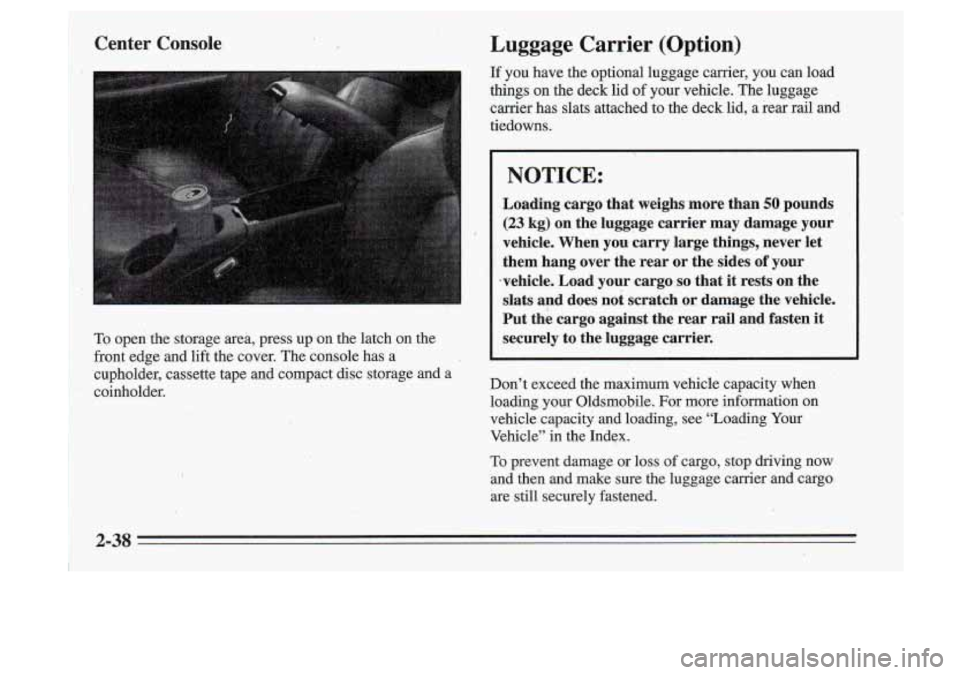

Center Console
To open the storage area, press up on the latch on the
Luggage Carrier (Option)
If you have the optional luggage carrier, you can load
things on the deck lid of your vehicle. The luggage
carrier has slats attached to the deck lid, a rear rail and
tiedowns.
I
I NOTICE:
Loading cargo that weighs more than 50 pounds
(23 kg) on the luggage carrier may damage your
vehicle. When you carry large things, never let
them hang over the rear or the sides
of your
*vehicle. Load your cargo
.so that it .rests on the
slats and does
not scratch or damage the vehicle.
Put. the cargo against the rear rail and fasten
it
securely to the luggage carrier.
front edge
and lift the cover. The console has a
cupholder, cassette tape and compact disc storage and a
coinholder. Don’t exceed the maximum vehicle capacity when
loading
your Oldsmobile.
For more information on
vehicle capacity and loading, see ‘‘Loading Your
Vehicle”
in the Index.
To prevent damage or loss of cargo, stop driving now
and then and make sure the luggage carrier and cargo
are still securely fastened.
2-38

. ...

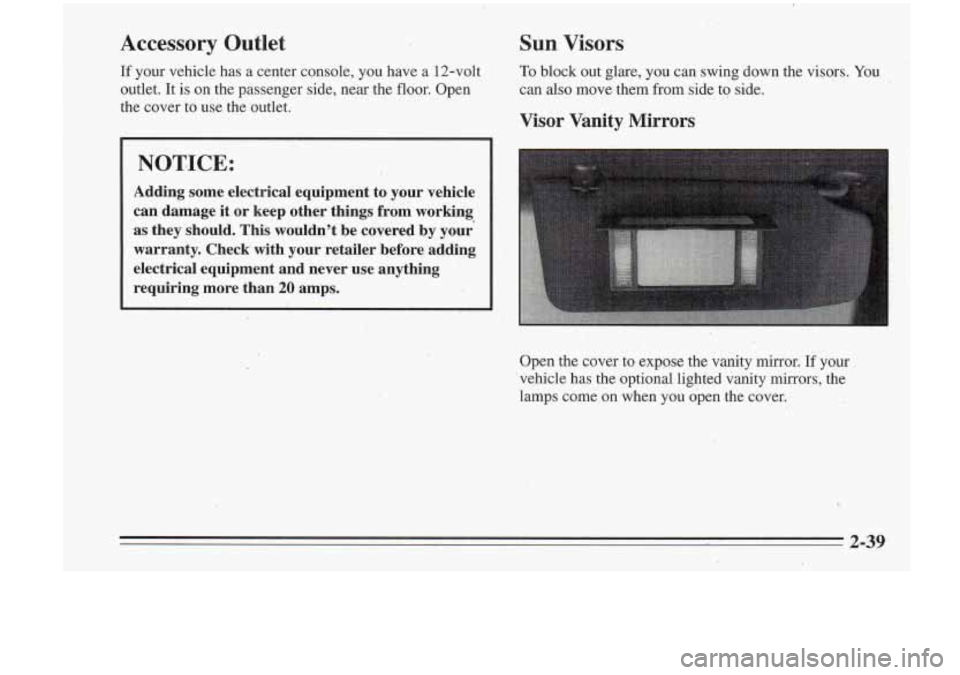

Accessory Outlet
II If your vehicle has a center console, you have a 12-volt
outlet. It is .on the passenger side, near the floor. Open
the cover to use the outlet.
Sun Visors
To block out glare, you can swing down the visors. You
can
also move them from side to side.
Visor Vanity Mirrors
NOTICE:
Adding some electrical'! equipment to your vehicle
can damage it
or keep other things from working
as they should. This wouliin't be covered by your
warranty. Check with your retailer before adding
electrical equipment and never use anything
requiring more than
20 amps.
Open the cover to expose the vanity mirror. If your
vehicle has the optional lighted vanity mirrors, the
lamps come on when you open the cover.
2-39

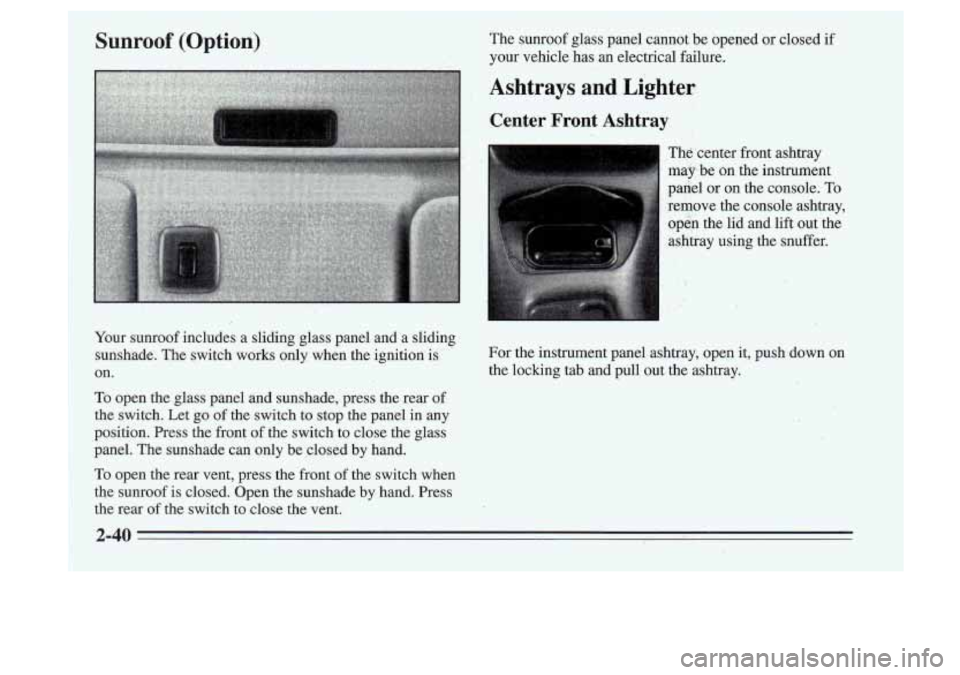

Sunroof (Option)
Your sunroof includes a sliding glass panel and a sliding sunshade. The switch works only when the ignition is
on.
To open the glass panel and sunshade, press the rear of
the switch. Let go of the switch to stop the panel in
any
position. Press the front of the switch to close the glass
panel. The sunshade can only be,closed by hand.
To open the rear vent, press the front
of the switch when
the sunroof is closed. Open the sunshade by hand. Press
the rear of the switch to close the vent.
.. ~~~ ~ ~.
The sunroof glass panel cannot be opened or closed if
your vehicle has an electrical failure.
I
Ashtrays and Lighter
Center Front Ashtray
The center front ashtray
may. be on the instrument
panel or on the console. To
'emove the console ashtray,
open the lid and lift out the
ashtray using the snuffer.
For the instrument panel ashtray, open it, push down on
the locking tab and pull out the ashtray.
2-40 . .

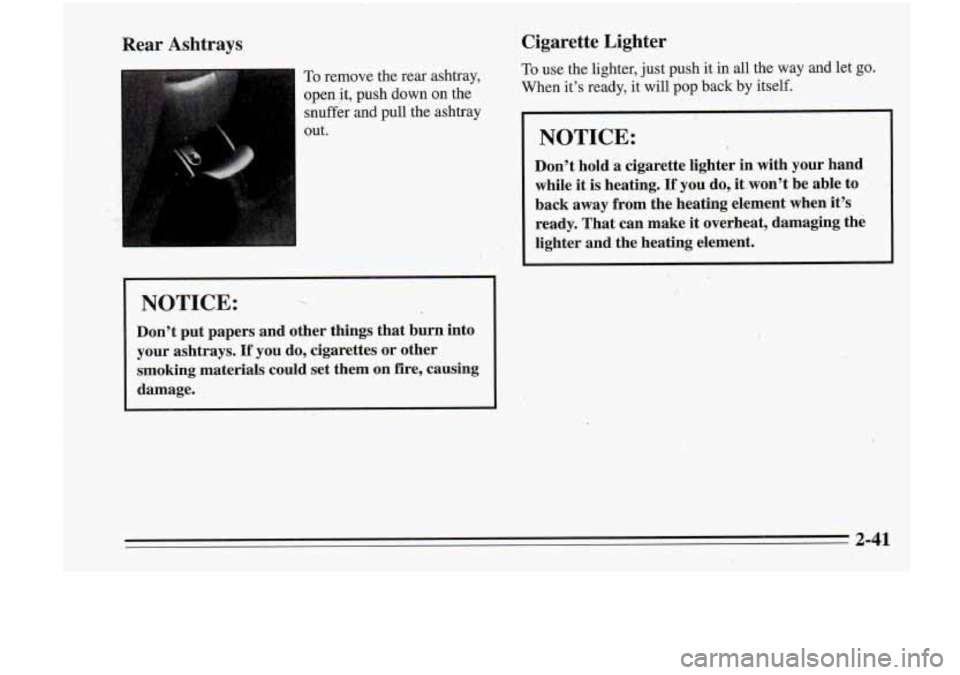

Rear Ashtrays
To remove the rear ashtray, --
I open it, push down on the
snuffer and pull the ashtray
out.
NOTICE: ~
Don’t put papers and other things that burn into
your ashtrays.
If you do, cigarettes or other
smoking materials
could set them on fire, causing
damage.
Cigarette Lighter
To use the lighter, just push it in all the way and let go.
When it’s ready, it will pop back by itself.
NOTICE:
Don’t hold a cigarette lighter in with your hand
while it is heating.
If you do, it..won’t be able to
back away from the heating element when it’s
ready. That can make it overheat, damaging the
lighter and the heating element.
. -- ~-
2-41

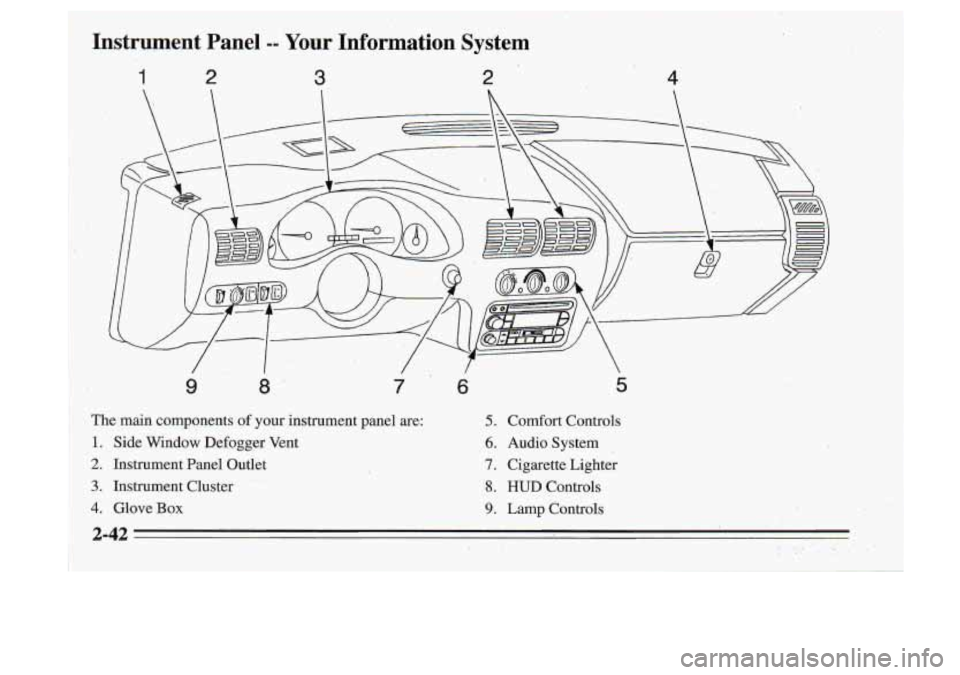

,Instrument Panel -- Your Information System
1 2 3 2
9 8’ 7 6 5
The main components of your instrument panel are: 5. comfort Controls
1. Side Window Defogger Vent 6. Audio System
2. Instrument Panel Outlet 7. Cigarette. Lighter
3. Instrument~Cluster 8. HUD Controls
4. Glove Box 9. Lamp C,ontrols
2-42 .. .’ . . , ..
