Page 175 of 340

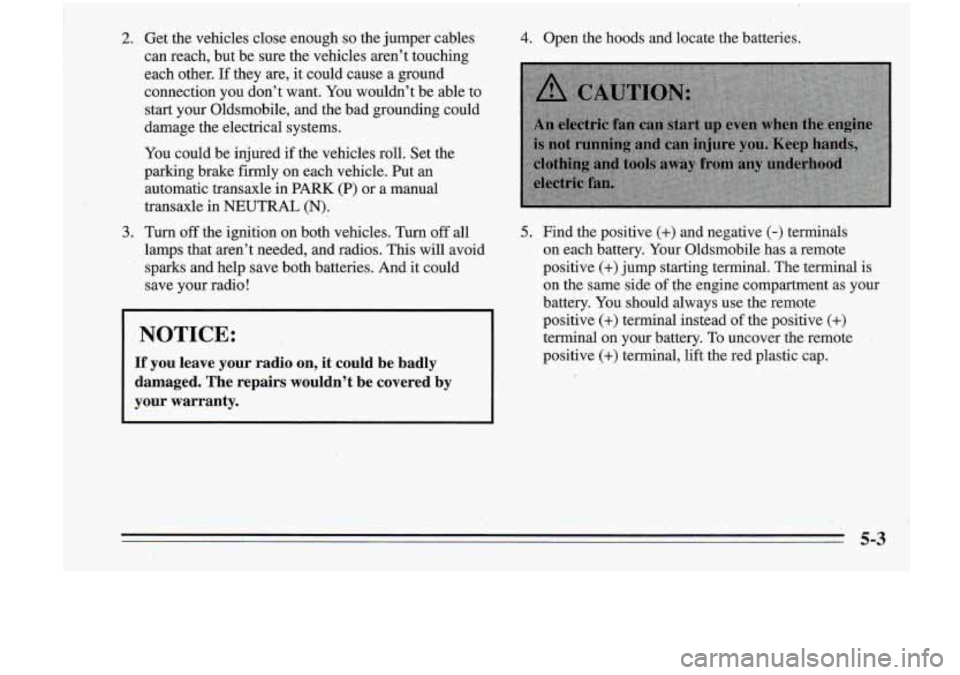

2. Get the vehicles close enougn so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other. If they are, it could cause a ground
connection you don’t want. You wouldn’t be able to
start your Oldsmobile, and the bad grounding could
damage the electrical systems.
You could be injured if the vehicles roll. Set the
parking brake firmly on each vehicle. Put
an
automatic transaxle in PARK (P) or a manual
transaxle in
NEUTRAL (N).
3. Turn off the ignition on both vehicles. Turn off all
lamps that aren’t needed, and radios.
This will avoid
sparks and help Save both batteries. And it could
save your radio!
“NOTICE:
If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered by
your warranty.
4. Open the hoods and locate the batteries.
5. Find the positive (+) and negative (-) terminals
on each battery. Your Oldsmobile has a remote
positive
(+) jump starting terminal. The terminal is
on the same side
of the engine compartment as your
battery. You should always use the remote
positive
(+) terminal instead of the positive (+)
terminal on your battery. To uncover the remote .
positive (+) termihal, lift the red plastic cap.
1
5-3
..
Page 176 of 340

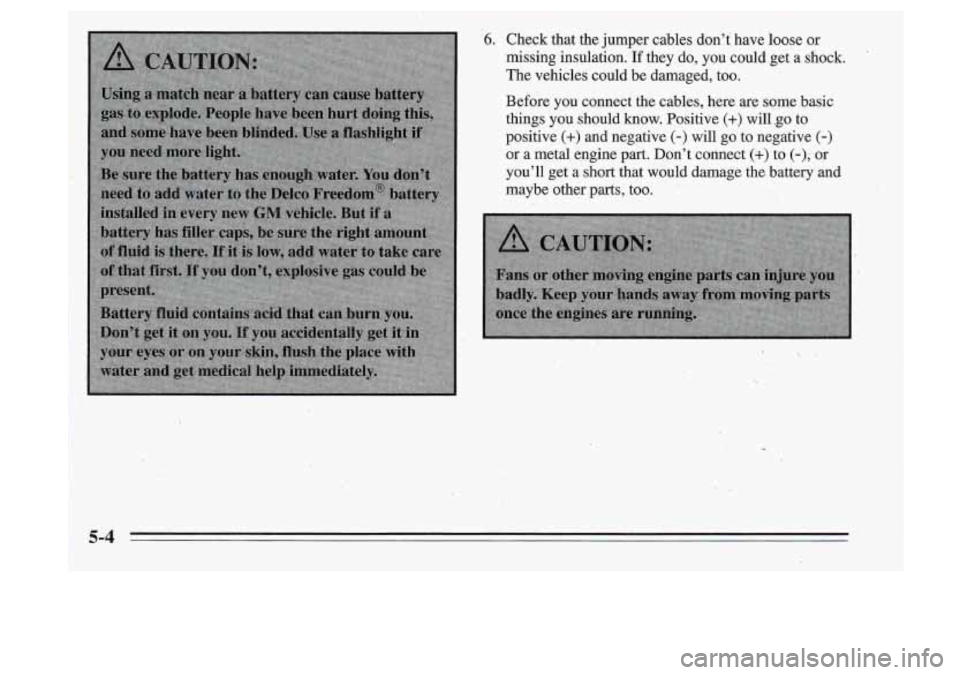

6. Check that the jumper cables don’t have loose or
missing insulation. If they do, you could get
a shock.
The vehicles could be damaged, too.
Before you connect the cables, here
are some basic
things you should know. Positive
(+) will .go to
positive
(+) and negative (-) will go to negative (-)
or a metal engine part. Don’t connect (+) to (-), or
you’ll get a short that would damage the battery and
maybe other
parts, too.
