washer fluid Oldsmobile Cutlass Supreme 1996 Owner's Manuals

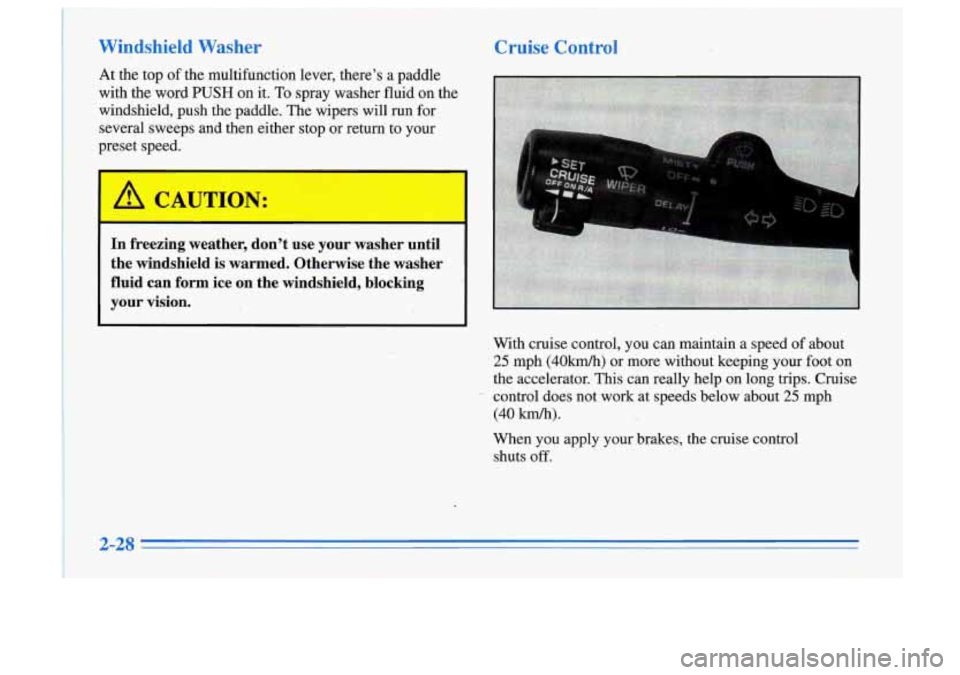

Windshield Washer
At the top of the multifunction lever, there's a paddle
with the word
PUSH on it. To spray washer fluid on the
windshield, push the paddle. The wipers will run for
several sweeps and then either stop or return to your
preset speed.
I
In freezing weather, don't use your washer until
the windshield is warmed. Otherwise the washer
fluid
can form ice on the windshield, blocking
your vision.
Cruise Control
With cruise control, you can maintain a speed of about
25 mph (40km/h) or more without keeping your foot on
the accelerator. This can really help
on long trips. Cruise
(40 km/h). %
- control does not work at speeds below about 25 mph
When you apply your brakes, the cruise control shuts
off.
2-28 ..

Just before you leave the lane, glance quickly over your
shoulder to make sure there isn’t another vehicle in your
“blind” spot.
Once you are moving on the freeway, make certain you
allow a reasonable following distance. Expect to move
slightly slower at night.
When you want to leave the freeway, move to the proper
lane well in advance.
If you miss your exit, do not,
under any circumstances, stop and back up. Drive on to
the next exit.
The exit ramp can be curved, sometimes quite sharply.
The exit speed is usually posted.
Reduce your speed according to your speedometer, not
to your sense of motion. After driving for any distance
at higher speeds, you may tend to think you
are going
slower than you actually are.
I !
Before Leaving on a Long Trip
Make sure you’re ready. Try to be well rested. If you
must start when you’re not fresh
-- such as after a day’s
work
-- don’t plan to make too many miles that first part
of the journey. Wear comfortable clothing and shoes you
can easily drive in. Is
your vehicle ready for a long trip? If you keep it
serviced and maintained, it’s ready to
go. If it needs
service, have it done before starting out. Of course,
you’ll find experienced and able service experts in Oldsmobile retail facilities all across North America.
They’ll be ready and willing to help if you need it.
Here are some things you can check before
a trip:
0 Windshield Washer Fluid: Is the reservoir full? Are
all windows clean inside and outside?
Wiper Blades: Are they in good shape?
Fuel, Engine Oil, Other Fluids: Have you checked
all levels?
0 Lamps: Are they all working? Are the lenses clean?
0 Tires: They are vitally important to a safe,
trouble-free trip.
Is the tread good enough for
long-distance driving?
Are the tires all inflated to the
recommended pressure?
along your route? Should you delay your trip a short
time to avoid a major storm system?
0 Weather Forecasts: What’s the weather outlook
Maps: Do you have up-to-date maps?
4-20

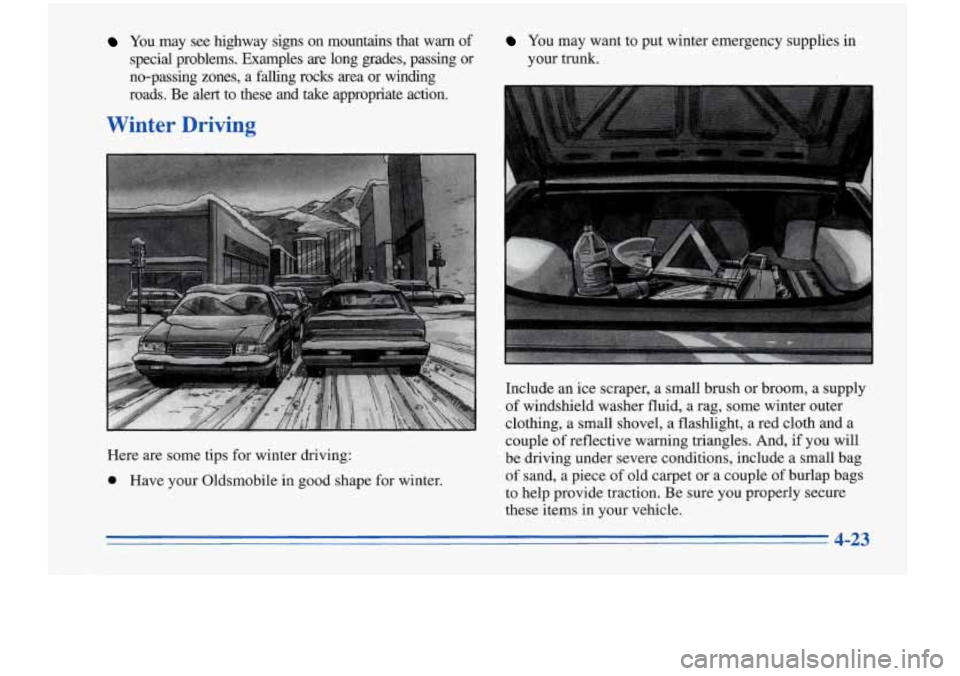

You,may see highway signs on mountains that warn of
special problems. Examples are long gmdes, passing or
no-passing zones, a falling rocks area or winding
roads. Be alert to these and take appropriate action.
Winter Driving
Here are some tips for winter driving:
0 Have your Oldsmobile in good shape for winter.
You may want to put winter emergency supplies in
your trunk.
Include an ice scraper,
a small brush or broom, a supply
of windshield washer fluid, a rag, some winter outer
clothing, a small shovel, a flashlight, a red cloth and a
couple of reflective warning triangles. And, if you will
be driving under severe conditions, include a small bag
of sand, a piece of old carpet or a couple of burlap bags
to help provide traction. Be sure you properly secure
these items in your vehicle.
4-23

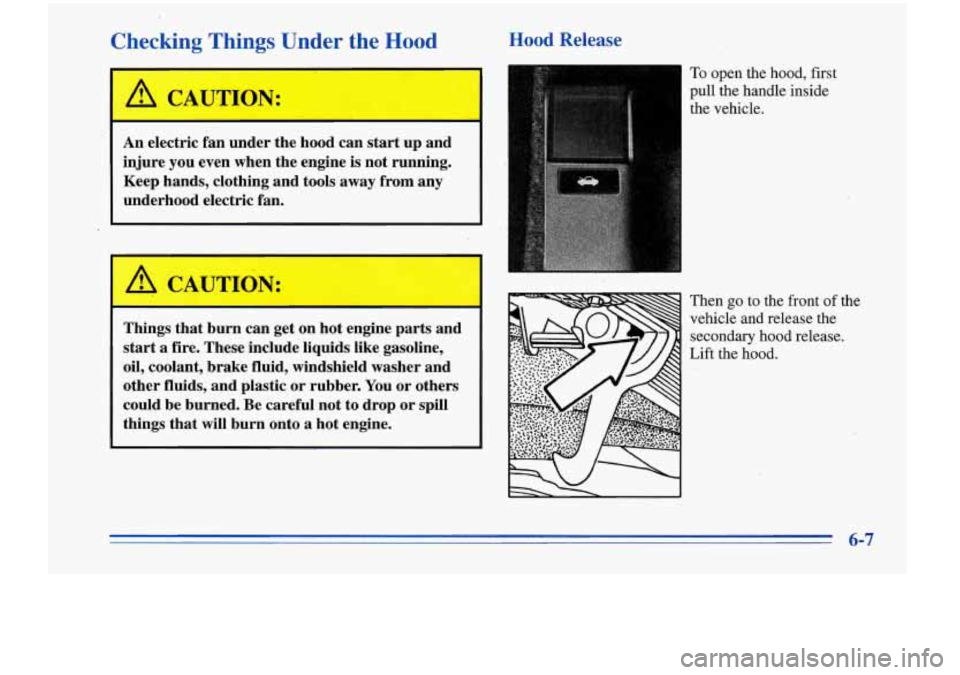

Checking Things Under the Hood Hood Release
A CAUTION:
I
I
An electric fan under the hood can start up and
injure you even when the engine
is not running.
Keep hands, clothing and tools away from any
underhood electric fan.
Things that burn can get on hot engine parts and
start
a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You or others
could be burned. Be careful not to drop
or spill
things that
will burn onto a hot engine.
To open the hood, first
pull the handle inside
the vehicle.
Then
go to the front of the
vehicle and release the
secondary hood release.
Lift the hood.
6-7

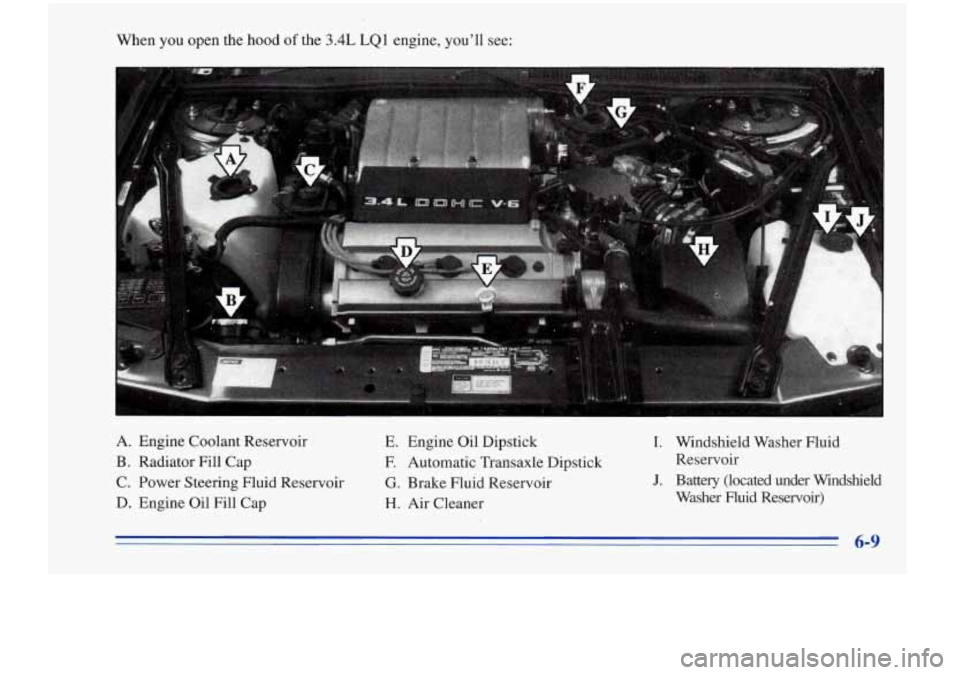

When you open the hood of the 3.4L LQ 1 engine, you'll see:
A. Engine Coolant Reservoir
B. Radiator Fill Cap
C. Power Steering Fluid Reservoir
D. Engine Oil Fill Cap
E. Engine Oil Dipstick
F. Automatic Transaxle Dipstick
G. Brake Fluid Reservoir
H. Air Cleaner
I. Windshield Washer Fluid
J. Battery (located under Windshield Reservoir
Washer Fluid Reservoir)
6-9

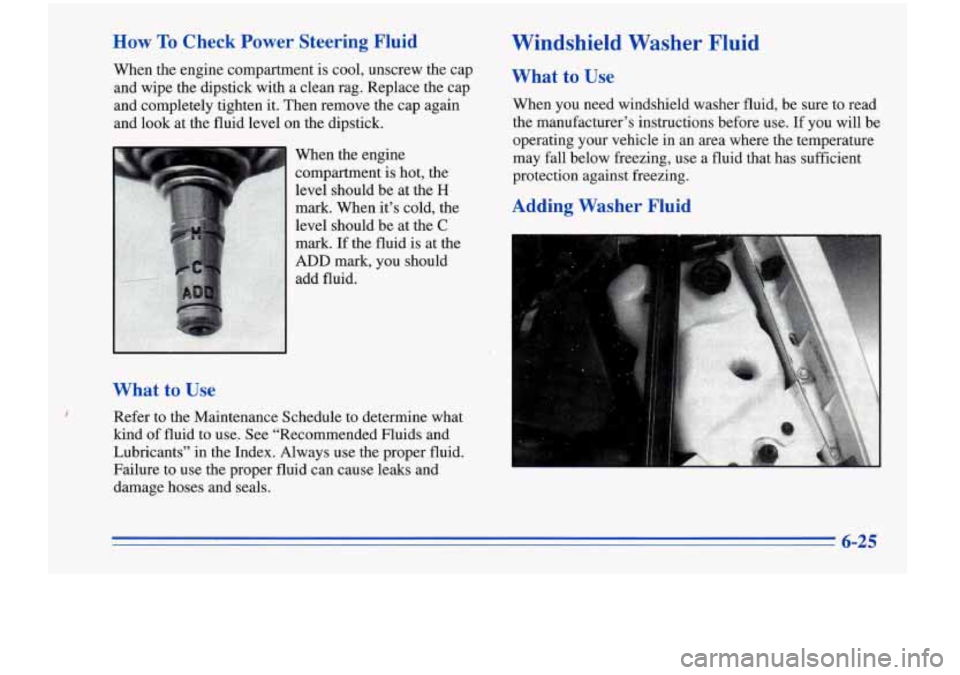

How To Check Power Steering Fluid Windshield Washer Fluid
What to Use
Refer to the Maintenance Schedule to determine what
kind of fluid to use.
See “Recommended Fluids and
Lubricants” in the Index. Always use the proper fluid.
Failure to use the proper fluid can cause leaks and
damage hoses and seals.
6-25

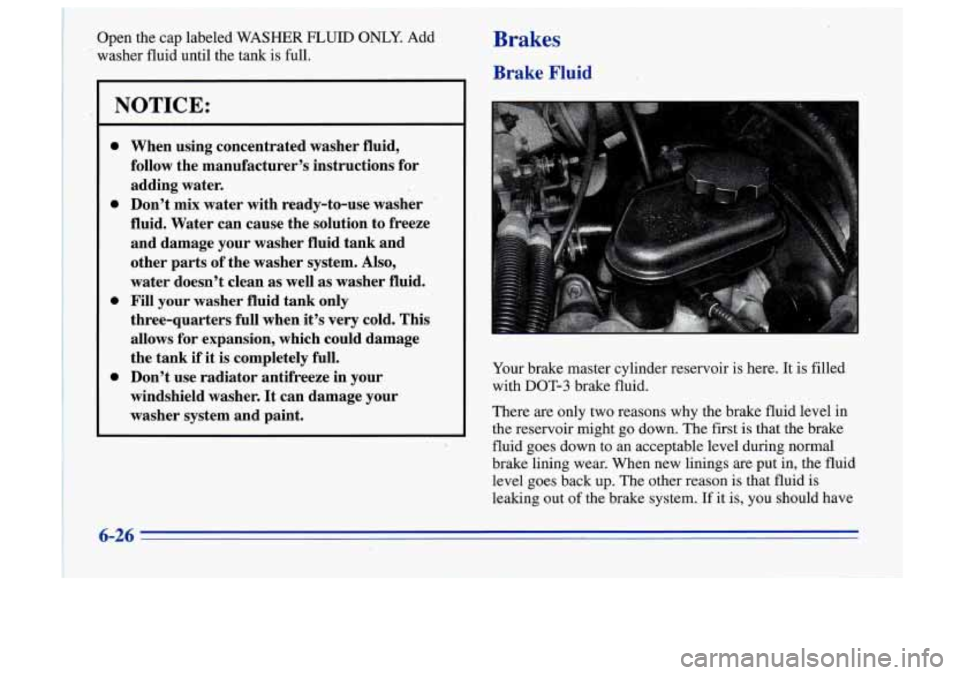

Open the cap labeled WASHER FLUID ONLY. Add
washer fluid until the tank is full. Brakes
Brake Fluid
When using concentrated washer fluid,
follow the manufacturer’s instructions for
adding water.
Don’t mix water with ready-to-use washer
fluid. Water can cause the solution to freeze
and damage your washer fluid tank and
other parts of the washer system.
Also,
water doesn’t clean as well as washer fluid.
Fill your washer fluid tank only
three-quarters full when it’s very cold. This
allows for expansion, which could damage
the tank
if it is completely full.
Don’t use radiator antifreeze in your
windshield washer.
It can damage your
washer system and paint.
Yo bur brake master cylinder resep
with DOT-3 brake fluid. fair is here. It is filled
There are only two reasons why the brake fluid level in
the reservoir might go down. The first is that the brake
fluid goes down to an acceptable level during normal
brake lining wear. When new linings are put in, the fluid
level goes back up. The other reason is that fluid
is
leaking out of the brake system. If it is, you should have

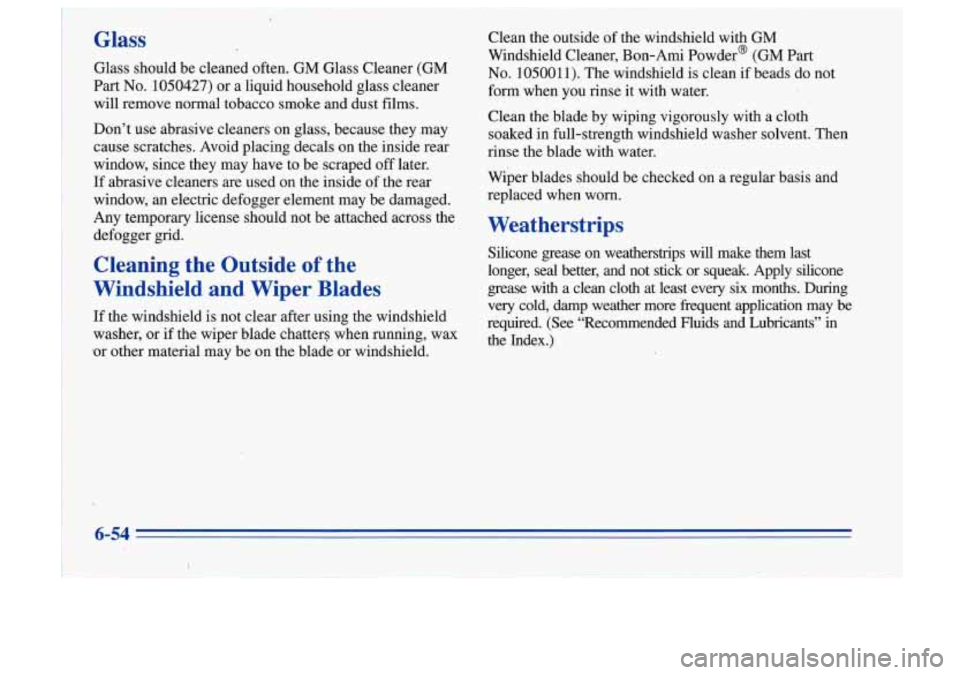

Glass
Glass should be cleaned often. GM Glass Cleaner (GM
Part
No. 1050427) or a liquid household glass cleaner
will remove normal tobacco smoke and dust films.
Don’t use abrasive cleaners on glass, because they may
cause scratches. Avoid placing decals on the inside rear
window, since they may have to be scraped off later.
If abrasive cleaners
are used on the inside of the rear
window, an electric defogger element may be damaged.
Any temporary license should not be attached across the defogger grid.
Cleaning the Outside of the
Windshield and Wiper Blades
If the windshield is not clear after using the windshield
washer, or if
the wiper blade chatter? when running, wax
‘or other material may be on the blade or windshield.
6-54
~
~
Clean the outside of the windshield with GM
Windshield Cleaner, Bon-Ami Powder@ (GM Part
No. 105001 1). The windshield is clean if beads do not
form when you rinse it with water.
Clean the blade by wiping vigorously with a cloth
soaked in full-strength windshield washer solvent. Then
rinse the blade with water.
Wiper blades should be checked
on a regular basis and
replaced when worn.
Weatherstrips
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply silicone
grease with a clean cloth at least every six months. During
very cold, damp weather more frequent application may be
required. (See “Recommended Fluids and Lubricants” in
the Index.)

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part
D.
At Each Fuel Fill
I
It is important for you or a service station attendant to
perform these underhood checks at each fuel
fill.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in the Index for
further details.
Engine Coolant Level Check
Check the engine coolant level and add the proper
coolant mix if necessary. See “Engine Coolant” in the
Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid
if
necessary. See “Windshield Washer Fiuid”,in the Index
for further details.
At Least Once a Month
Tire Inflation Check
Make sure tires are inflated to the correct pressures. See
“Tires” in the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the Index
for further details.
Power Antenna Service
Clean power antenna mast. See “Audio Systems” in the
Index for further details.
7-36

... ...

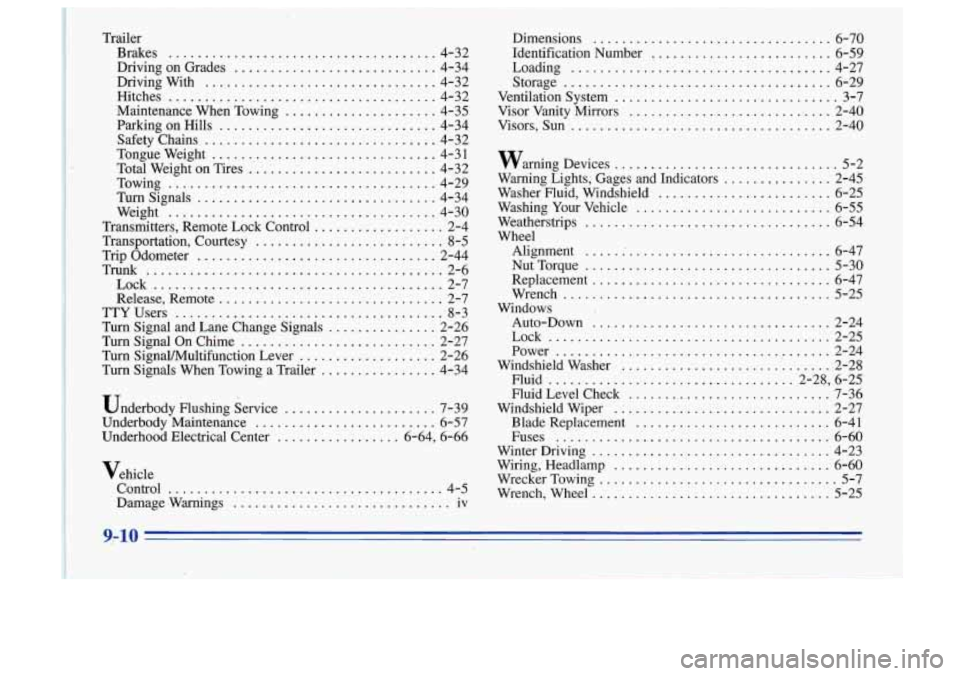

underbody Flushing &mice ..................... 7-39
'3 Underbody Maintenance 6-57
Underhood Electrical Center ................. 6-64; 6-66
.........................
Dimensions ................................. 6-70
Identification Number ......... .,. ................ 6-59
Loading .................................... 4-27
Storage
..................................... 6-29
Ventilation System ................................ 3-7
Visor Vanity Mirrors
............................. 2-40
Visors. Sun
.................................... 2-40
warning Devices ................................. 5-2
Warning Lights; Gages and Indicators ............... 2-45
Washer Fluid. Windshield
........................ 6-25
Washing Your Vehicle ............................. 6-55
Weatherstrips .................................. 6-54
Wheel
Alignment
..... ; ............................ 6-47
Nut Torque .................................. 5-30
Replacement ................................. 6-47
Wrench
..................................... 5-25
Windows
Auto-hwn
................................. 2-24
Lock
....................................... 2-25
POW^ ........................................ 2-24
Windshield Washer
...................... ! .......... 2-28
Fluid ................................... 2-28, 6-25
Fluid Level
Check ........ ': ..................... 7-36
Blade Replacement ........ i .................. 6-41
FUS~S ........................................ 6-60
Winter Driving ................................. 4-23
Wiring, Headlamp .............................. 6-60
Wrecker
Towing .................................. 5-7
Wrench, Wheel
.................................. 5-25
Windshield Wiper .............................. 2-27
Vehicle Control
...................................... 4-5
Damage Warnings ............................... iv
9-10
