OLDSMOBILE INTRIGUE 1998 Owners Manual

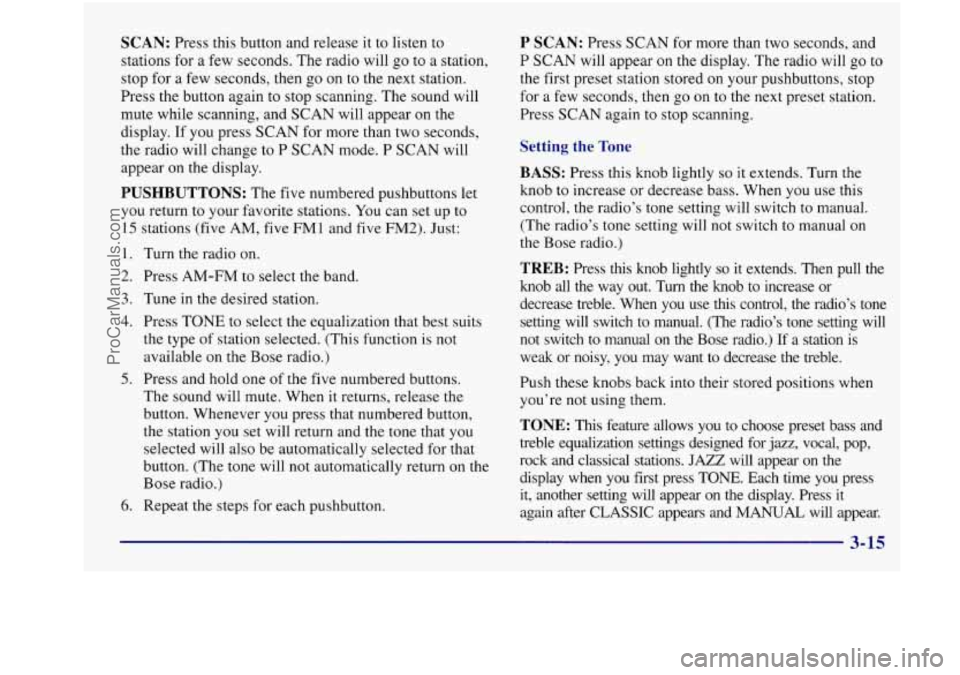

SCAN: Press this button and release it to listen to
stations for a few seconds. The radio will go to
a station,
stop for a few seconds, then go on to the next station.
Press the button again to stop scanning. The sound will
mute while scanning, and SCAN will appear on the
display. If you press SCAN for more than two seconds,
the radio will change
to P SCAN mode. P SCAN will
appear
on the display.
PUSHBUTTONS: The five numbered pushbuttons let
you return to your favorite stations. You can set up to
15 stations (five AM, five FMl and five FM2). Just:
1.
2.
3.
4.
5.
6.
Turn the radio on.
Press AM-FM to select the band.
Tune
in the desired station.
Press
TONE to select the equalization that best suits
the type of station selected. (This function is not
available on the Bose radio.)
Press and hold one of the five numbered buttons.
The sound will mute. When it returns, release the
button. Whenever you press that numbered button,
the station you set will return and the tone that you
selected will also be automatically selected for that
button. (The tone will not automatically return on the
Bose radio.)
Repeat the steps for each pushbutton.
P SCAN: Press SCAN for more than two seconds, and
P
SCAN will appear on the display. The radio will go to
the first preset station stored
on your pushbuttons, stop
for a few seconds, then go on
to the next preset station.
Press SCAN again to
stop scanning.
Setting the Tone
BASS:
Press this knob lightly so it extends. Turn the
knob to increase or decrease bass. When you use this
control, the radio’s tone setting will switch to manual.
(The radio’s tone setting will not switch to manual on
the Bose radio.)
TREB: Press this knob lightly so it extends. Then pull the
knob all the way out. Turn the knob to increase or
decrease treble. When you use this control, the radio’s tone
setting will switch to manual. (The radio’s tone setting wi\
ll
not switch to manual on the Bose radio.) If a station is
weak or noisy, you may want to decrease the treble.
Push these knobs back into their stored positions when
you’re not using them.
TONE: This feature allows you to choose preset bass and
treble equalization settings designed for
jazz, vocal, pop,
rock and classical stations.
JAZZ will appear on the
display when
you first press TONE. Each time you press
it, another setting will appear on the display. Press it
again after CLASSIC appears and
MANUAL will appear.
3-15
ProCarManuals.com

Tone control will return to the BASS and TREB knobs.
Also, if you use the BASS and
TREB knobs, control will
return to them and
MANUAL will appear. (This button is
not available on the Bose radio.)
Adjusting the Speakers
BAL: Press this knob lightly so it extends. Turn the knob
to move the sound to the left or right speakers. The middle
position balances the sound between the speakers.
FADE: Press the knob lightly so it extends. Then pull
the knob all the way out. Turn it to move the sound to
the front or rear speakers. The middle position balances
the sound between the speakers.
Push these knobs back into their stored positions when
you’re not using them.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
The longer side with the tape visible should face to the
right. If the ignition is on, but the radio is off, the tape
can be inserted and will begin playing.
If you hear
nothing but a garbled sound, the tape may not be
in
squarely. Press EJECT to remove the tape and start over. While the tape
is playing, use the
VOL, FADE, BAL,
TREB, BASS, TONE, SEEK and
SCAN controls just as
you do for the radio. (The TONE control is not available
on the Bose radio.) The display will show
TP with a box
around it and an arrow to show which side of the tape
is playing.
Your tape bias
is set automatically. When a metal or
chrome tape
is inserted, HI-BIAS appears on the
display. If
you want to insert a tape when the ignition is
off, first press EJECT or RCL.
If
E and a number appear on the radio display and the
tape won’t play because of an error, it could be that:
0 E10: The tape is tight and the player can’t turn the
tape hubs. Remove the tape. Hold
the tape with the
open end down and try to turn the right hub to the left
with a pencil. Turn the tape over and repeat. If
the
hubs do not turn easily, your tape may be damaged and
should not be used
in the player. Try a new tape to
make sure your player is working properly.
0 Ell: The tape is broken. Try a new tape.
If any error occurs repeatedly or
if an error can’t be
corrected, please contact your retailer. If your radio
displays an error number, write it down and provide
it
to your retailer when reporting the problem.
3-16
ProCarManuals.com

REV (1): Press this button to reverse the tape rapidly.
Press it again
to return to playing speed. The radio will
play the last-selected station while the tape reverses.
You may select stations during REV operation by
using TUNE.
FWD (2): Press this button to advance quickly to
another part
of the tape. Press the button again to return
to playing speed. The radio will play the last-selected
station while the tape advances. You may select stations
during FWD operation by using TUNE.
PROG (3): Press this button to play the other side of
the tape.
00 (4): Press this button to reduce background noise.
Note that
the double-D symbol will appear on the display.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
TONE: Press this button to select a tone while playing a
cassette. The tone will be automatically
set whenever
you play a cassette tape. (This button is not available on
the Bose radio.)
SEEK: Press the up or down arrow to search for the
next or previous selection on the tape. Your tape must
have at least three seconds of silence between each
selection for SEEK to work.
SCAN: Press this button to listen to each selection for a
few seconds. The tape will go to the next selection, stop
for a few seconds, then go on to the next selection. Press
this button again to stop scanning. The sound will mute
while scanning, SCAN will appear on the display and
the tape direction arrow will blink while scanning.
AM-FM: Press this button to play the radio when a tape
is in the player. The tape will stop but remain in the player.
TAPE-CD: Press this button if you have a disc loaded
in the CD player and the radio is playing, to play a
compact disc. Press AM-FM to return to
the radio when
a compact disc is playing. Press TAPE-CD to switch
between the tape and compact disc if both are loaded.
The inactive tape or
CD will remain safely inside the
radio for future listening. The display will show TP
and CD.
3-17
ProCarManuals.com

EJECT: Press this button to remove the tape. The radio
will play.
EJECT may be activated with either the
ignition or radio off. Cassettes may be loaded with the
radio and ignition off if this button
is pressed first.
CLN: If this message appears on the display, the
cassette tape player needs to be cleaned.
It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See “Care of
Your Cassette Tape Player” in the Index. After you clean
the player, press and hold EJECT for five seconds to
reset the CLN indicator. The radio will display
--- to
show the indicator was reset.
Playing a Compact Disc
With the ignition on, insert a disc partway into the slot,
label side up. The player will pull it in and the disc
should begin playing. If you want
to insert a CD when
the ignition is off, first press EJECT or RCL.
The
CD player will play either normal-size discs or the
smaller
8 cm discs with an adapter.
Note that when the disc is inserted, CD will be
displayed. When the disc is playing, a box will appear
around CD
on the display. If you select a tone setting for
your
CD, it will be activated each time you play a CD.
(The tone setting function is not available on the
Bose radio.) As
each new track starts to play, the track number will
appear in the display.
If
E (error) and a number appear on the radio display
and the disc comes out, it could be that:
E20: The road is too rough. The disc should play
when the road is smoother.
0 E20: The disc is dirty, scratched, wet or
upside down.
E20: The air is very humid. If so, wait about an hour
and try again.
If any error occurs repeatedly
or if an error can’t be
corrected, please contact your retailer. If your radio
displays an error number, write it down and provide
it to
your retailer when reporting the problem.
REV (1): Press and hold this button to quickly reverse
within a track.
You will hear sound at a reduced volume.
The display will show elapsed time.
FWD (2): Press and hold this button to quickly advance
within a track. You will hear sound at a reduced volume.
The display will show elapsed time.
RDM (5): Press this button to hear the tracks in random,
rather than sequential, order.
RDM will appear on the
display when you press this button.
3-18
ProCarManuals.com

TONE: Press this button to select a tone while playing
a compact disc. The tone will be automatically set
whenever you play a compact disc. (This button is not
available
on the Bose radio.)
SEEK: Press the down arrow to go to the start of the
current track if more than eight seconds have played.
Press the up arrow to go to the next track.
If you hold
the button or press it more than once, the player will
continue moving rearward or forward through the disc.
SCAN: Press this button to listen to each selection for a
few seconds. The disc will
go to the next selection, stop
for a few seconds, then go on to the next selection. Press
this button again to stop scanning. The sound will mute
while scanning, SCAN will appear
on the display.
RCL: Press this button to see which track is playing.
Press
it again within five seconds to see how long it has
been playing.
To change what is normally shown on the
display (track or elapsed time), press
the button until
you
see the display you want, then hold the button
until the display flashes. While elapsed time is showing,
EL TM will appear on the display.
AM-FM: Press this button to play the radio when a disc
is in the player.
TAPE-CD: Press this button to change to the tape or
disc function when the radio is on and either a tape or
CD is inserted. Press AM-FM to return to the radio
while a CD or tape is playing. The inactive tape or CD
will remain safely inside the radio for future listening.
If
you have the optional CD changer and the CD changer
is loaded, the TAPE-CD button will activate the changer
and a box will be lighted around CDC in the display.
EJECT Press this button to remove the compact disc or
cassette tape. The icon with the box around
it on the
display will eject and the radio will play. EJECT may be
activated with either the ignition or radio off. Cassettes
and compact discs may be loaded with the radio and
ignition off if this button is pressed first.
ProCarManuals.com

Trunk-Mounted CD Changer (If Equipped)
With the optional compact disc changer, you can play up
to 12 discs continuously. Normal size discs may be
played using the trays supplied in the magazine.
The small discs
(8 cm) can be played only with specially
designed trays.
You must first load the magazine with discs before you
can play a compact disc. Each of the
12 trays holds one
disc. Press the button
on the back of the magazine and
pull gently on one
of the trays. Load the trays from bottom
to top, placing a disc on the tray label side down.
If you load a disc label side up, the disc will not play
and an error will occur. Gently push the tray back into
the magazine slot. Repeat this procedure for loading up
to
12 discs in the magazine.
Once you have loaded the discs in the magazine, slide
open the door
of the compact disc (CD) changer. Push
the magazine into the changer in the direction
of the
arrow marked on top
of the magazine.
Close the door by sliding it all the way to the left.
If the
door is left partially open, the changer will
not operate
and an error will occur. When the door is closed, the
changer will begin checking for discs in the magazine.
This will continue for up to two minutes depending
on
the number of discs loaded.
To eject the magazine from the player, slide the CD
changer door all the way open. The magazine will
automatically eject. Remember to keep the door closed
whenever possible to keep dirt and dust from getting
inside the changer.
3-20
ProCarManuals.com

All of the CD functions are controlled by the radio
buttons except for ejecting the magazine. Whenever a
CD magazine with discs is loaded in the changer, the
compact disc symbol (CDC) will appear on the radio
display. If the CD changer is checking the magazine for
CDs, the (CDC) symbol will flash on the display until
the changer
is ready to play. When a CD begins playing,
a disc and track number will be displayed. The disc
numbers are listed on the front of
the magazine.
For your convenience, a storage cavity for a spare
magazine or CDs is located below the CD changer. To
retain stored items, the attached elastic cord may be
pulled downward and secured along the bottom edge
of
the opening near the center.
Compact Disc Errors
If E and a number appear on the display, an error has
occurred and the compact disc temporarily cannot play.
The CD changer will send an error message to the
receiver to indicate:
0 E30: Disc Label Side Up
If the error occurred while trying to play a CD in the
compact disc player or changer, the following conditions
may have caused the error:
The road is too rough. The disc should play when the
road is smoother.
The disc is dirty, scratched or wet.
The disc is label side up. If so, load the disc label
side down.
The air is very humid. If so, wait about an hour and
try again.
The CD changer door is open. Completely close the
door to restore normal operation.
An empty magazine is inserted in the CD changer.
Try the magazine again with a disc loaded on one
of
the trays.
If any error occurs repeatedly or if an error cannot be
corrected, please contact your retailer. If your radio
displays an error number, write it down and provide it to
your retailer when reporting the problem.
0 E34: CD Changer Door Open
0 E35: CD Changer Cartridge Empty
3-21
ProCarManuals.com

Playing a Compact Disc
REV Press and hold this button to quickly reverse
within a track. As the
CD reverses, elapsed time will be
displayed to help
you find the correct passage.
FWD: Press and hold this button to quickly advance
within a track. As the CD advances, elapsed time will be
displayed to help you find the correct passage.
PROG: Press this button to select the next disc in the
magazine. Each time you press PROG, the disc number
on the radio display will go to that of the next available
CD. If a CD cannot be played, its number will be
skipped when selecting discs while using the
PROG button.
RDM: Press this button to enter the random play mode.
RDM will appear on the display. While in this mode, the
tracks on the discs will be played in random order.
If
you press PROG or SEEK while in the random mode,
discs and tracks will be scanned randomly. Press this
button again to turn
off the random feature and return to
normal operation.
RCL: Press this button to see what track is currently
playing. Press RCL again within five seconds to see how
long the track has been playing. EL TM will appear
on
the display when in elapsed time mode. When a new
track starts to play, the track number will
also appear. Press RCL
a third time and the time
of day will
be displayed.
SEEK: Press the SEEK down arrow while playing a CD
to go back to the start of the current track
if more than
eight seconds have played. If you press it again, the
changer will go to previous tracks. Press the SEEK up
arrow and
it will go to the next higher track on the disc.
SCAN: Press this button and release to listen to each
selection for a few seconds. The first few seconds
of
each selection on the current disc will be played. The
sound will mute while scanning and SCAN will appear
on the display. Press this button again to stop scanning.
P SCAN: Press and hold the SCAN button for two
seconds to hear the first selection
of each loaded disc for
a few seconds. The sound will mute while scanning and
P
SCAN will appear on the display. Press SCAN again
to stop scanning.
TAPE/AUX, CD/AUX, OR TAPE/CD: Press one of
these buttons depending on which radio you have to
play a CD if you have a magazine loaded in the changer
and the radio is playing. To return to the radio while a
CD
is playing, press AM-FM. You can also press this
button to switch between a cassette tape, CD or the CD
changer if all three are loaded and your radio is
equipped with these options.
3-22
ProCarManuals.com

Theft-Deterrent Feature
THEFTLOCK@ is designed to discourage theft of your
radio. It works by using a secret code to disable all radio
functions whenever battery power is removed.
The THEFTLOCK feature for the radio may be used or
ignored. If ignored, the system plays normally and the
radio is not protected by the feature. If THEFTLOCK is
activated, your radio will not operate
if stolen.
When THEFTLOCK is activated, the radio will display
LOC to indicate a locked condition anytime battery
power is removed. If your battery loses power for any
reason,
you must unlock the radio with the secret code
before it will operate.
Activating the Theft-Deterrent Feature
The instructions which follow explain how to enter your
secret code to activate the THEFTLOCK system. It is
recommended that you read through all nine steps
before starting the procedure.
NOTE:
If you allow more than 15 seconds to elapse
between any steps, the radio automatically reverts to
time and you must start the procedure over at Step
4.
1. Write down any three or four-digit number from
000 to 1999 and keep it in a safe place separate from
the vehicle.
2. Turn the ignition to ACCESSORY or ON.
3. Turn the radio off.
4. Press the 1 and 4 buttons together. Hold them down
until
--- shows on the display. Next you will use the
secret code number which you have written down.
5. Press MN and 000 will appear on the display.
6. Press MN again to make the last two digits agree
with your code.
7. Press HR to make the first one or two digits agree
8. Press AM-FM after you have confirmed that the
with your code.
code
matches the secret code you have written down
The display will show REP
to let you know that you
need to repeat Steps
5 through 7 to confirm your
secret code.
9. Press AM-FM and this time the display will show
SEC to let you know that your radio
is secure.
ProCarManuals.com

Unlocking the Theft-Deterrent Feature After a
Power Loss
Enter your secret code as follows; pause no more than
15 seconds between steps:
1.
LOC appears when the ignition is on.
2. Press MN and 000 will appear on the display.
3. Press MN again to make the last two digits agree
with your code.
4. Press HR to make the first one or two digits agree
5. Press AM-FM after you have confirmed that the
with your
code.
code matches the secret code you have written down.
The display will show
SEC, indicating the radio is
now operable and secure.
If you enter the wrong code eight times, INOP will
appear on the display. You will have to wait an hour
with the ignition on before you can try again. When you
try again,
you will only have three chances to enter the
correct code before INOP appears.
If you lose or forget your code, contact your retailer.
Disabling the Theft-Deterrent Feature
Enter your secret code as follows; pause no more than
15 seconds between steps:
1.
2.
3.
4.
5.
6.
7.
Turn the ignition to ACCESSORY or ON.
Turn the radio
off.
Press the 1 and 4 buttons together. Hold them down
until
SEC shows on the display.
Press MN and
000 will appear on the display.
Press MN again to make the last two digits agree
with your code.
Press
HR to make the first one or two digits agree
with your code.
Press
AM-FM after you have confirmed that the
code matches the secret code you have written down.
The display will show
---, indicating that the radio is
no longer secured.
If the code entered is incorrect, SEC will appear on the
display. The radio will remain secured until the correct
code is entered.
When battery power is removed and later applied to a
secured radio, the radio won’t turn on and
LOC will
appear on the display.
To unlock a secured radio, see “Unlocking the
Theft-Deterrent Feature After a Power
Loss” earlier in
this section.
3-24
ProCarManuals.com
