trunk Oldsmobile Intrigue 2001 s Owner's Guide

6-8
Filling a Portable Fuel Container
CAUTION:
Never fill a portable fuel container while it is in
your vehicle. Static electricity discharge from the
container can ignite the gasoline vapor. You can
be badly burned and your vehicle damaged if this
occurs. To help avoid injury to you and others:

Dispense gasoline only into
approved containers.

Do not fill a container while it is inside a
vehicle, in a vehicle's trunk, pickup bed or
on any surface other than the ground.

Bring the fill nozzle in contact with the
inside of the fill opening before operating
the nozzle. Contact should be maintained
until the filling is complete.

Don't smoke while pumping gasoline.
Checking Things Under the Hood
CAUTION:
An electric fan under the hood can start up and
injure you even when the engine is not running.
Keep hands, clothing and tools away from any
underhood electric fan.
CAUTION:
Things that burn can get on hot engine parts and
start a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You or others
could be burned. Be careful not to drop or spill
things that will burn onto a hot engine.

6-39 Center High-Mounted Stoplamp (CHMSL)
1. Open the trunk.
2. Reach through the access opening in the trunk.
3. Remove the old bulb from the socket by turning it
one quarter turn counterclockwise.
4. Place the new bulb into the socket.
5. Turn the bulb one quarter turn clockwise to install.
6. Close the trunk.

6-40 Tail/Stop/Turn Signal Lamps
1. Unscrew the wing nut inside of the trunk (B)
behind the taillamp to be changed. If equipped with
a convenience net, unhook the net.
2. Pull back the carpeting.
3. Remove the other two plastic wing nuts (A).
Pliers may be required to remove the wing nuts.
4. Pull the taillamp housing away from the body
of the vehicle (C).
5. Squeeze the tab on the bulb socket and turn the
socket counterclockwise.
6. Pull out the bulb socket.
7. Pull the old bulb out of the socket. (There are
four bulbs on each taillamp.)
8. Push in a new bulb.
9. Reinstall the bulb socket into the housing and
turn it clockwise.
10. Reinstall the taillamp housing to the body
of the vehicle.
11. Reinstall all three wing nuts.
12. Tighten the plastic wing nuts.

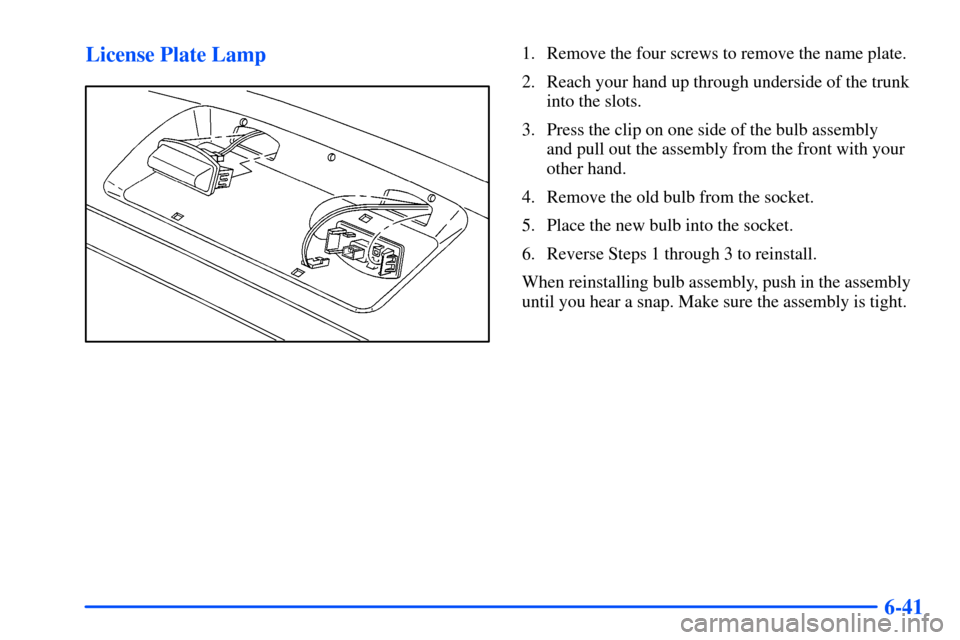

6-41 License Plate Lamp
1. Remove the four screws to remove the name plate.
2. Reach your hand up through underside of the trunk
into the slots.
3. Press the clip on one side of the bulb assembly
and pull out the assembly from the front with your
other hand.
4. Remove the old bulb from the socket.
5. Place the new bulb into the socket.
6. Reverse Steps 1 through 3 to reinstall.
When reinstalling bulb assembly, push in the assembly
until you hear a snap. Make sure the assembly is tight.

6-44 Inflation -- Tire Pressure
The Tire-Loading Information label, which is located on
the inside of the trunk lid, shows the correct inflation
pressures for your tires when they're cold. ªColdº
means your vehicle has been sitting for at least
three hours or driven no more than 1 mile (1.6 km).
NOTICE:
Don't let anyone tell you that underinflation or
overinflation is all right. It's not. If your tires
don't have enough air (underinflation), you can
get the following:

Too much flexing

Too much heat

Tire overloading

Bad wear

Bad handling

Bad fuel economy.
NOTICE: (Continued)
NOTICE: (Continued)
If your tires have too much air (overinflation),
you can get the following:

Unusual wear

Bad handling

Rough ride

Needless damage from road hazards.
When to Check
Check your tires once a month or more.
Don't forget your compact spare tire. It should be
at 60 psi (420 kPa).
How to Check
Use a good quality pocket
-type gage to check tire
pressure. You can't tell if your tires are properly inflated
simply by looking at them. Radial tires may look
properly inflated even when they're underinflated.
Be sure to put the valve caps back on the valve
stems. They help prevent leaks by keeping out
dirt and moisture.

6-59
Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on the
driver's side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code.
This code will help you identify your engine,
specifications and replacement parts.
Service Parts Identification Label
You'll find this label on the inside of your trunk lid.
It's very helpful if you ever need to order parts. On this
label is:

your VIN,

the model designation,

paint information and

a list of all production options and
special equipment.
Be sure that this label is not removed from the vehicle.

6-62
Fuse Description
IGN 0:
CLUSTER
PCM, & BCMInstrument Panel Cluster,
Powertrain Control Module,
Body Control
NOT USED Not Used
LOW BLOWER HVAC Control Assembly,
Blower Motor
HVAC Air Temperature Valve Motor,
HVAC Control Assembly,
Solenoid Box, Compass Mirror
CRUISE Cruise Control Module
NOT USED Not Used
NOT USED Not Used
NOT USED Not Used
BTSI Automatic Transaxle Shift Lock
Control System
NOT USED Not Used
NOT USED Not Used
NOT USED Not Used
TURN
SIGNALS,
CORN LPSTurn Signals, Cornering LampsFuse Description
AIR BAG Air Bag System
CLUSTER Instrument Panel Cluster
NOT USED Not Used
PCM, BCM,
U/H RELAYPowertrain Control Module, Body
Control Module, Underhood
Ignition/Relay
RADIO, HVAC,
RFA CLUSTER,
DATA LINKRadio, HVAC Control Assembly,
Instrument Panel Cluster, Remote
Keyless Entry Module, Data Link
Connector, Bose Amplifier
BCM Body Control Module
CIGAR LTR,
AUX POWERAuxiliary Power, Cigarette
Lighter, Power Drop
INADV
POWER BUSVanity Mirrors, Instrument Panel
Courtesy Lamps, Instrument Panel
Compartment Lamps, Trunk
Courtesy Lamp, Header Courtesy
and Reading Lamps, I/S Lighted
Rearview Mirror
NOT USED Not Used
HIGH BLOWER High Blower Relay
HAZARD Hazard Switch

6-65
The main underhood fuse block (B) contains the
following fuses:
Maxi Fuses Description
1 Cooling Fans
2 Crank
3 Power Seats, Rear Defog,
Trunk Release
4 HVAC Controls, Hazard Flasher,
CHMSL, Body Control Module,
Stoplamps, Power MirrorsMaxi Fuses Description
5 HVAC Controls, Compass
Mirror, Cruise Control,
PRNDL Lamp, Powertrain
Control Module (PCM)
6 Cooling Fans
7 Body Control Module, Cigar
Lighter, Accessory Power
Outlet, Audio Systems, Keyless
Entry System, I/P Cluster,
HVAC Controls
8 Turn Signals, Air Bag System, I/P
Cluster, Body Control Module,
Windshield Wipers
Mini Relays Description
9 Cooling Fans
10 Cooling Fans
11 Crank
12 Cooling Fans
13 Ignition Main
14 Blank

6-66
Micro Relays Description
15 Air Conditioning Compressor
16 Horn
17 Fog Lamps
18 Blank
19 Fuel Pump
Mini Fuses Description
20 Blank
21 Generator
22 Powertrain Control Module
23 Air Conditioning Compressor
24 Blank
25 Fuel Injectors, Electronic Ignition
26 Transmission Solenoid
27 Horn
28 Fuel Injector, Electronic Ignition
29 Oxygen Sensor
30 PCM Devices/Engine
Emissions SensorsMini Fuses Description
31 Fog Lamps
32 Headlamp (Passenger's Side)
33 Trunk Release
34 Parking Lamp
35 Fuel Pump
36 Headlamp (Driver's Side)
37 ABS
38 Spare
39 Spare
40 Spare
41 Spare
42 Spare
43 Spare
Diodes Description

Air Conditioning
Compressor Diode
44 Fuse Puller
