2-20
Ignition Positions
Your ignition switch is located on the instrument panel.
With the ignition key in the switch, you can turn the
switch to four positions.
OFF (A): This position locks your ignition and
transaxle. It's a theft
-deterrent feature. It's also the
only position from which you can remove your key.
NOTICE:
If your key seems stuck in OFF and you can't
turn it, be sure you are using the correct key;
if so, is it all the way in? Turn the key only with
your hand. Using a tool to force it could break
the key or the ignition switch. If none of this
works, then your vehicle needs service.
ACC (B): This position lets you turn off the ignition.
It also lets you use things like the radio and windshield
wipers when the engine is off. Your steering wheel will
unlock. Use ACC if you must have your vehicle pushed
or towed.
ON (C): This position is where the key returns to after
you start the vehicle. With the engine off, you can use
ON to display some of your warning and indicator lights.
START (D): This position starts your engine.

2-47
The mirror includes two map lamps, an automatic
dimming function and an eight
-point compass display in
the upper corner of the mirror face. When the compass
display is turned on, the compass automatically calibrates
as the vehicle is driven.
The automatic dimming feature is turned on or off
by pressing the IO button located on the lower part
of the mirror. Press and hold the IO button for up
to three seconds to turn this feature on or off.The compass display feature is turned on or off by
pressing the IO button for three seconds or more.
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror housing.
The compass may need to be calibrated. See ªCompass
Calibrationº in the Index.
Electrochromic Day/Night Rearview Mirror
with Compass Display and OnStar

(If Equipped)
Your vehicle may have an automatic electrochromic
day/night rearview mirror with a compass display and
the OnStar system.
When turned on, this mirror functions exactly like
the electrochromic mirror described previously. See
ªMirrors, Electrochromic Rearview with Compassº
in the Index for more information.

2-48
The mirror has an eight-point compass display in the
upper right corner of the mirror face and a three
-button
OnStar system. There are also two map lamps located on
the bottom of the mirror. Each lamp is turned on or off
with a switch located next to the lamp.
The automatic dimming feature is turned on or off by
pressing the far left button, located on the lower part of
the mirror face, for up to three seconds. If the button is
pressed and held for five to seven seconds, the compass
display will go blank.
There are three buttons for the OnStar system. See your
dealer for more information on the system and how to
subscribe to OnStar. See ªOnStar

Systemº in the Index
for more information on the services OnStar provides.Compass Calibration
Press the on/off button for eight seconds to activate
the compass calibration mode. The letter ªCº will be
displayed in the compass window of the mirror.
The mirror can be calibrated in one of two ways:

Drive the vehicle in circles at 5 mph (8 km/h) or less
until the display indicates a direction, or

drive the vehicle on your everyday routine.
Compass Variance
The mirror is set in zone eight upon leaving the factory.
It will be necessary to adjust the compass to compensate
for compass variance if you live outside zone eight.
Under certain circumstances, such as during a long
distance cross
-country trip, it will be necessary to
adjust for compass variance. Compass variance is
the difference between earth's magnetic north and
true geographic north. If not adjusted to account
for compass variance, your compass could give
false readings.

2-49
To adjust for compass variance do the following:
1. Find your current location and variance zone number
on the following zone map.2. Make sure the compass is in calibration mode.
See ªCompass Calibrationº in the Index.
Press the on/off button to display the zone number.
3. Scroll through the zone numbers that appear in
the compass window of the mirror. Once you find
your zone number in the window, release the on/off
button. After about four seconds, the mirror will
return to the compass display, and the new zone
number will be set. (Compass calibration may be
necessary. See ªCompass Calibrationº in the Index).

2-61 Speedometer/Odometer
Your speedometer lets you see your speed in both
miles per hour (mph) and kilometers per hour (km/h).
Your odometer shows how far your vehicle has been
driven in either miles (used in the United States) or in
kilometers (used in Canada).
Your vehicle has a tamper
-resistant odometer.
If your odometer fails and needs to be replaced, the
entire cluster needs to be replaced. Take your vehicle
to the dealer to have this done. The dealer will have the
new cluster odometer set to the mileage of the old
odometer/cluster if at all possible. But if it can't, then
it's set at zero and a label must be put on the driver's
door to show the old mileage reading when the new
odometer was installed.Season/Trip Mode
Press this button to display
the total vehicle mileage
(season mode).
It is also pressed to display the trip mileage (trip mode).
The mode switch is located on the left side of the
instrument panel, next to the TRIP RESET button
for the trip odometer.

2-62
Trip Odometer
Your trip odometer (trip mode) tells you how far you
have driven since you last reset it. To set it to zero, press
and hold the TRIP RESET button on the left side of the
instrument panel for two to three seconds.
Tachometer
The tachometer displays the engine speed in thousands
of revolutions per minute (rpm).
NOTICE:
Do not operate the engine with the tachometer in
the shaded area, or engine damage may occur.

3-5 Air Conditioning with Automatic
and Auxiliary Temperature Control
(If Equipped)
With this system, you can control the temperature inside
your vehicle. The temperature and fan speed can be
adjusted manually or you can let the system make the
adjustments for you. The system works best if you keep
your windows closed while using it.
Driver Temperature Knob
The DRIVER knob regulates the temperature for the
entire system when the PASS knob is in the center or
neutral position. Turn the DRIVER knob clockwise
(toward red) to raise the temperature. Turn it counterclockwise (toward blue) to lower the
temperature. The display will show your selection for a
few seconds, then it will show the outside temperature.
If you push the knob the set temperature will again be
displayed for a few seconds, then the outside
temperature will be displayed.
Passenger Temperature Knob
The PASS knob adjusts
the air temperature on the
passenger's side so it is
warmer or cooler than
the temperature set by
the driver.
Turn the PASS knob clockwise (toward red) to raise the
temperature. Turn it counterclockwise (toward blue) to
lower the temperature. The passenger temperature will
not be shown in the display.

3-6
Auto Button
For the most efficient operation you should press
the AUTO button and set the system temperature.
The system will select the best fan speed and airflow
settings to keep you comfortable. The air conditioning
compressor will run if the outside temperature is above
38
F (3.3
C). You may notice a delay of three to
four minutes before the fan comes on. For the automatic
system to function, the temperature must be set between
61
F (16
C) and 89
F (31
C).
Hot Weather Example: When you start the vehicle in
hot weather, 80
F (27
C) or after being parked during
the day in full sun, if your Driver Set Temperature is
73
F (23
C) and you are in full automatic mode, the
system will automatically move the temperature doors to
full cold. The fan will be at low speed momentarily and
then go to high speed. The air intake will be recirculated
for maximum cooling performance. As the interior of
the vehicle cools down to the desired comfort point, the
fan speed will decrease and the temperature door will
move to a warmer position to maintain the desired
comfort level. As the cabin cools down or the sun load
decreases, the system could switch to air delivered to
A/C vents and the floor (Bi
-level mode).Cold Weather Example: When you start the vehicle in
cold weather, (below freezing), or after being parked
overnight, if your Driver Set Temperature is 73
F
(23
C) and you are in full automatic mode, the system
will automatically move the temperature doors to full
hot. The fan will start out at a low speed and the fan
speed will increase as the engine warms up. The air will
be delivered to the floor. As the interior of the vehicle
warms up to the desired comfort level, the fan speed will
decrease and the temperature door will move to a cooler
position to maintain the desired comfort level. As the
cabin warms up or the sun load increases, the system
could switch to air delivered to the windshield and the
floor (DEFOG mode).
Off Button
Push the OFF button to turn the system off. The display
will show OFF and outside temperature.

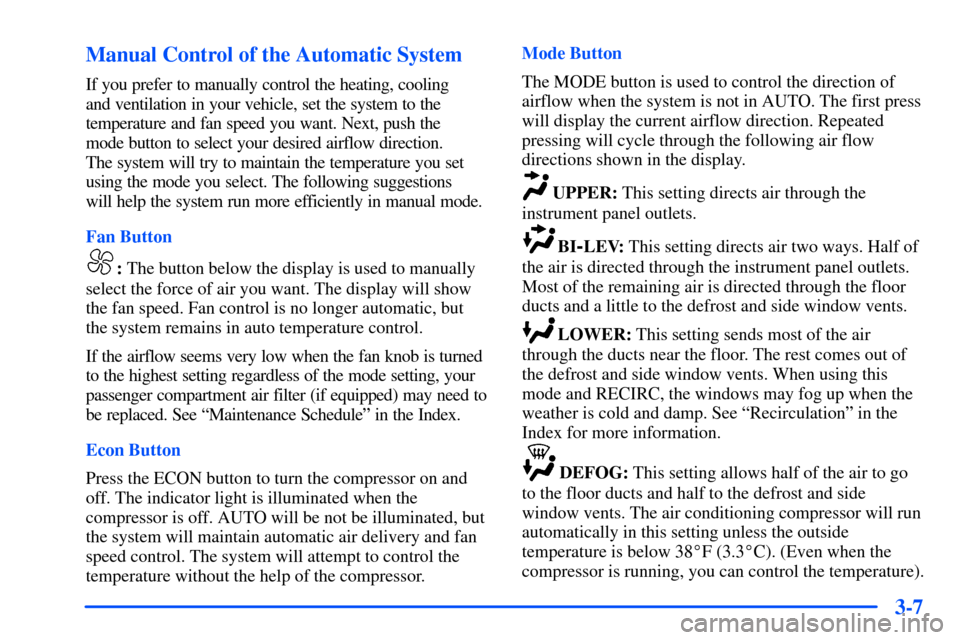

3-7 Manual Control of the Automatic System
If you prefer to manually control the heating, cooling
and ventilation in your vehicle, set the system to the
temperature and fan speed you want. Next, push the
mode button to select your desired airflow direction.
The system will try to maintain the temperature you set
using the mode you select. The following suggestions
will help the system run more efficiently in manual mode.
Fan Button
: The button below the display is used to manually
select the force of air you want. The display will show
the fan speed. Fan control is no longer automatic, but
the system remains in auto temperature control.
If the airflow seems very low when the fan knob is turned
to the highest setting regardless of the mode setting, your
passenger compartment air filter (if equipped) may need to
be replaced. See ªMaintenance Scheduleº in the Index.
Econ Button
Press the ECON button to turn the compressor on and
off. The indicator light is illuminated when the
compressor is off. AUTO will be not be illuminated, but
the system will maintain automatic air delivery and fan
speed control. The system will attempt to control the
temperature without the help of the compressor.Mode Button
The MODE button is used to control the direction of
airflow when the system is not in AUTO. The first press
will display the current airflow direction. Repeated
pressing will cycle through the following air flow
directions shown in the display.
UPPER: This setting directs air through the
instrument panel outlets.
BI-LEV: This setting directs air two ways. Half of
the air is directed through the instrument panel outlets.
Most of the remaining air is directed through the floor
ducts and a little to the defrost and side window vents.
LOWER: This setting sends most of the air
through the ducts near the floor. The rest comes out of
the defrost and side window vents. When using this
mode and RECIRC, the windows may fog up when the
weather is cold and damp. See ªRecirculationº in the
Index for more information.
DEFOG: This setting allows half of the air to go
to the floor ducts and half to the defrost and side
window vents. The air conditioning compressor will run
automatically in this setting unless the outside
temperature is below 38
F (3.3
C). (Even when the
compressor is running, you can control the temperature).

3-11
Audio Systems
Your audio system has been designed to operate easily
and give years of listening pleasure. You will get the
most enjoyment out of it if you acquaint yourself with it
first. Find out what your audio system can do and how
to operate all its controls, to be sure you're getting the
most out of the advanced engineering that went into it.
Setting the Clock
Press and hold HR until the correct hour appears.
The letter A or P may appear on the display for AM
or PM. Then, press and hold MN until the correct
minute appears. The clock may be set with the
ignition on or off.
AM-FM Stereo with Cassette Tape Player
and Automatic Tone Control
Playing the Radio
PWR VOL: Press this knob to turn the system on and
off. To increase volume, turn the knob clockwise. Turn
it counterclockwise to decrease volume.
