2-43
Interior Lamps
Instrument Panel Brightness Control
You can brighten or dim
the instrument panel lights
by turning the interior
lamps thumbwheel.
Turn the thumbwheel upward to increase the brightness
of the instrument panel lights. Turn the thumbwheel
downward to decrease the brightness.Parade Mode
The instrument panel brightness control has an added
feature called parade mode to assist you in seeing
certain instrument panel controls if your headlamps are
on in the daylight. Without turning the courtesy lamps
on, turn the instrument panel brightness thumbwheel
all the way to the top. The radio, season/trip odometer,
gearshift selection indicator on the instrument panel
cluster and the heating and air conditioning controls
will come on at their maximum brightness. This will
occur only with the parking lamps or headlamps on.
Courtesy Lamps
When any door is opened, several lamps come on.
These lamps are courtesy lamps. They make it easy
for you to enter and leave your vehicle. You can also
turn these lamps on by turning the interior lamps
thumbwheel all the way up or by turning on each
individual lamp.

2-46 Battery Saver
Your vehicle has a feature to help prevent you from
draining the battery in case you accidentally leave an
interior or trunk lamp on. If you leave any of these
lamps on while the ignition is in ACC or OFF, they
will automatically turn off after 20 minutes. The lamps
won't come back on until you do one of the following:

Turn the ignition to ON,

turn the interior lamp thumbwheel all the way up or

open (or close and reopen) a door that is closed.
If the vehicle has less than 15 miles (25 km) on the
odometer, the battery saver will turn off the lamps
after only three minutes.
Mirrors
Adjust all mirrors so you can see clearly when you are
sitting in a comfortable position.
Inside Day/Night Rearview Mirror
To reduce glare from lamps behind you, push the lever
located on the bottom center of the mirror away from
you to the night position. To return the mirror back to
the day position, pull the lever toward you.
Electrochromic Day/Night Rearview Mirror
with Compass and Map Lamps (If Equipped)
Your vehicle may have an automatic electrochromic
day/night rearview mirror with a compass and
map lamps.
This mirror automatically changes to reduce glare from
headlamps behind you. A time delay feature prevents
rapid changing from the day to night positions while
driving under lights and through traffic.

2-59
Your instrument panel is designed to let you know at a glance how your vehicle is running. You'll know how fast
you're going, about how much fuel is in your tank and many other things you need to drive safely and economically.
The main components of your instrument panel are listed below:
A. Side Window Defogger Vents
B. Instrument Panel Outlets
C. Turn Signal/Multifunction Lever
D. Instrument Panel Cluster
E. Windshield Wipers/Washer Fluid Lever
F. Cruise Control (CRUISE) Button
G. Hazard Button
H. Instrument Panel Fuse Block
I. Instrument Panel Dimmer Thumbwheel
J. Fog Lamp Button (If Equipped)
K. Trunk Lid Release Button
L. Storage BinM. Trip Odometer
N. Tilt Wheel Lever (behind the steering wheel)
O. Audio Steering Wheel Controls (If Equipped)
P. Horn
Q. Cruise Control Switches (RES ACCEL, CLEAR,
COAST SET)
R. Ignition Switch
S. Accessory Power Outlets
T. Comfort Controls
U. Audio System
V. Glove Box

2-61 Speedometer/Odometer
Your speedometer lets you see your speed in both
miles per hour (mph) and kilometers per hour (km/h).
Your odometer shows how far your vehicle has been
driven in either miles (used in the United States) or in
kilometers (used in Canada).
Your vehicle has a tamper
-resistant odometer.
If your odometer fails and needs to be replaced, the
entire cluster needs to be replaced. Take your vehicle
to the dealer to have this done. The dealer will have the
new cluster odometer set to the mileage of the old
odometer/cluster if at all possible. But if it can't, then
it's set at zero and a label must be put on the driver's
door to show the old mileage reading when the new
odometer was installed.Season/Trip Mode
Press this button to display
the total vehicle mileage
(season mode).
It is also pressed to display the trip mileage (trip mode).
The mode switch is located on the left side of the
instrument panel, next to the TRIP RESET button
for the trip odometer.

2-62
Trip Odometer
Your trip odometer (trip mode) tells you how far you
have driven since you last reset it. To set it to zero, press
and hold the TRIP RESET button on the left side of the
instrument panel for two to three seconds.
Tachometer
The tachometer displays the engine speed in thousands
of revolutions per minute (rpm).
NOTICE:
Do not operate the engine with the tachometer in
the shaded area, or engine damage may occur.

6-50
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain tire clearance to the body and chassis.
See ªChanging a Flat Tireº in the Index for
more information.
Used Replacement Wheels
CAUTION:
Putting a used wheel on your vehicle is
dangerous. You can't know how it's been used or
how far it's been driven. It could fail suddenly
and cause an accident. If you have to replace a
wheel, use a new GM original equipment wheel.
Tire Chains
NOTICE:
Use tire chains only where legal and only when
you must. Use only SAE Class ªSº type chains
that are the proper size for your tires. Install
them on the front tires and tighten them as
tightly as possible with the ends securely
fastened. Drive slowly and follow the chain
manufacturer's instructions. If you can hear the
chains contacting your vehicle, stop and retighten
them. If the contact continues, slow down until it
stops. Driving too fast or spinning the wheels
with chains on will damage your vehicle.

7-22
Part E: Maintenance Record
After the scheduled services are performed, record the date, odometer reading and who performed the service in the
boxes provided after the maintenance interval. Any additional information from ªOwner Checks and Servicesº or
ªPeriodic Maintenanceº can be added on the following record pages. Also, you should retain all maintenance receipts.
Your owner information portfolio is a convenient place to store them.
Maintenance Record
DATEODOMETER
READINGSERVICED BYMAINTENANCE PERFORMED

7-23

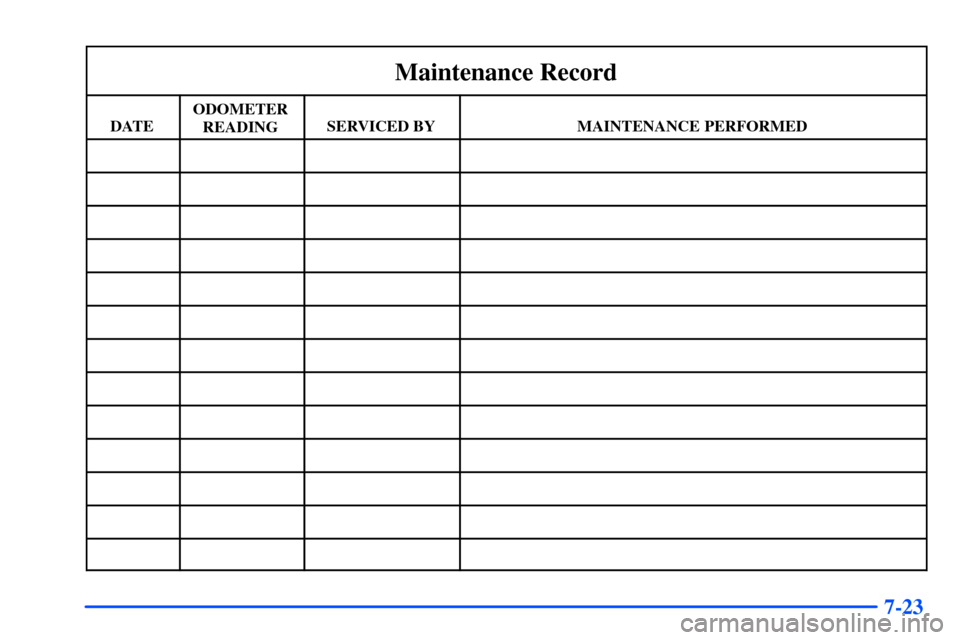

Maintenance Record
DATEODOMETER
READINGSERVICED BYMAINTENANCE PERFORMED

7-24
Maintenance Record
DATEODOMETER
READINGSERVICED BYMAINTENANCE PERFORMED
