Here you can learn about the many
standard and optional features on
your Oldsmobile. and information on starting. shifting and braking
. Also
explained are the instrument panel and the warning systems that tell you
if everything is working properly-
and what
to do if you have a problem .
Part 2
Features & Controls
Keys 46
FrontDoors
...................................................... 47
Remote Keyless Entry
.............................................. 49
Sliding Door 53
Liftgate
......................................................... 59
Ignition
......................................................... 60
Starting Your Engine
............................................... 61
Shifting the Transaxle
.............................................. 65
..........................................................
Locks ........................................................... 47
.....................................................
EngineBlockHeater ............................................... 63
ParkingBrake
.................................................... 68
Shiftingintopark
.................................................. 69
Horn ........................................................... 72
Windows
........................................................ 73
TiltSteeringWheel
................................................ 73
Turn Signal
and Lane Change Indicator ................................ 74
CruiseControl .................................................... 75
Headlights
....................................................... 79
Windshield Wipers
................................................ 82
Windshield Washer
................................................ 83
Mirrors
......................................................... 92
Glove
Box and Storage Compartments ............................. .93, 95
Luggagecarrier
....................................................
Instrument Panel .................................................. 101
Warning Lights, Gages and Indicators
................................. 104
InteriorLights
.................................................... 81
I'
45
L
ProCarManuals.com

1
When the liftgate has been unlocked
with the power door locks, you won’t
need the key to open it. Simply turn
the
lock clockwise until the latch releases.
This is also true if you use the optional
remote keyless entry transmitter. See
Remote Keyless Entry later in this section.
To lock the liftgate, use either the power
door lock switch or the optional remote
keyless entry transmitter, or lock
it
manually by turning the lock
counterclockwise.
Leaving Your Vehicle
If you are leaving the vehicle, open your
door and set the locks from inside. Then
get out and close the door.
Remote Keyless Enfry (OPTION)
If your Oldsmobile has this option, you
can lock and unlock your doors and
liftgate from up to
30 feet (9 m) away
using
the key chain transmitter supplied
with your vehicle.
Operation
The driver’s door will unlock and the
interior lights will
go on when a is
pressed (see Illuminated Entry System
later in this section). If pressed again
within five seconds, all doors and the
liftgate will unlock. All doors and the
liftgate will lock when
fl is pressed.
If the driver’s door
is open and your key
is
in the ignition in the Off position, you
won’t be able to set the door lock
with
the power door lock switch or the remote transmitter.
This security feature
is designed to help keep you from
locking your keys
in your vehicle.
Lock Delay
The lock delay feature can be operated
using either the remote key chain
transmitter or the power door locks
switch (see
Power Door Lucks earlier in
this section).
For the lock delay feature to work, the
ignition and the interior lights control to
the left of the instrument panel cluster
must be off. If you wish to lock the
doors
with the interior lights on,
press
B or the rear of either power
door lock switch twice.
49
ProCarManuals.com

Features & Controls
52
Battery Replacement (CONT)
If the back of your transmitter has a slot
instead
of a screw, follow these battery
replacement instructions:
1. Insert a coin into the slot in the back
of the transmitter, and turn
counterclockwise to open the cover.
2. Remove the cover.
3. Remove and replace the two 3-volt
batteries
(DL 2016).
Illuminated Entry System (OPTION)
This option comes with the optional
remote keyless entry system.
When you open the driver’s door, by
itself or
in combination with any
passenger door or the liftgate, the
interior lights will come on and then
gradually dim
to off 10 seconds after the
last door is closed.
(If the driver’s door
has not been opened, the interior lights
will immediately dim to
off.)
When you press a on your remote
transmitter, the lights inside your vehicle
will go on, then gradually dim to
off
after about 40 seconds, unless a door or
the liftgate is opened.
When you
turn on the ignition, the
interior lights will immediately dim to
off.
4. Reassemble the transmitter.
5. Check the transmitter operation.
ProCarManuals.com

Litigate Lock
To unlock, insert the door key and turn
the lock clockwise. The liftgate will
automatically lock when you close it.
If you have the optional power door
locks or the remote keyless entry
system, the liftgate will lock and unlock
differently. See the
Index under Power
Door Locks.
F J217
Raising the Litigate
Open the liftgate using the handle
recessed above the license plate. Then,
step back and the liftgate will rise by
itself. Lights in the liftgate will come
on, illuminating the rear cargo area (set
the
Index under Rear Interior Lights).
Be sure thereare no overhead
obstructions,
such as a garage
door, before you open the liftgate.
You could slam the liftgate into
something and break the
glass.
To close the liftgate, pull down on the
strap, then firmly shut the liftgate. Don’t
drive with the liftgate open, even
slightly. See the
Index under Ejchaust.
SLIDING DOOR
QATE AJAR
sr
I U2166-
r
Litigate Ajar Warning Light
The GATE AJAR light on your
instrument panel will come on
if your
liftgate
is not completely closed.
59
ProCarManuals.com

Fog Lights
Slide the lower control up to turn on the
fog lights, down to turn
them off.
Your parking lights or headlights must
be on for
the fog lights to go on.
When you turn on your high beams, the
fog lights will go off. The fog lights will
come back on when you switch from
high beams to low beams.
High beams are not recommended for
driving in fog. See the
Index under
Driving in Fog, Mist and Haze.
Instrument Panel htensity
Control
Slide the upper control up to increase
the brightness of the instrument panel
lights, down to decrease
the brightness.
Slide the control all the way down to
turn them off.
Interior Lights Control
Slide the upper control all the way up to
turn on the interior lights.
ProCarManuals.com

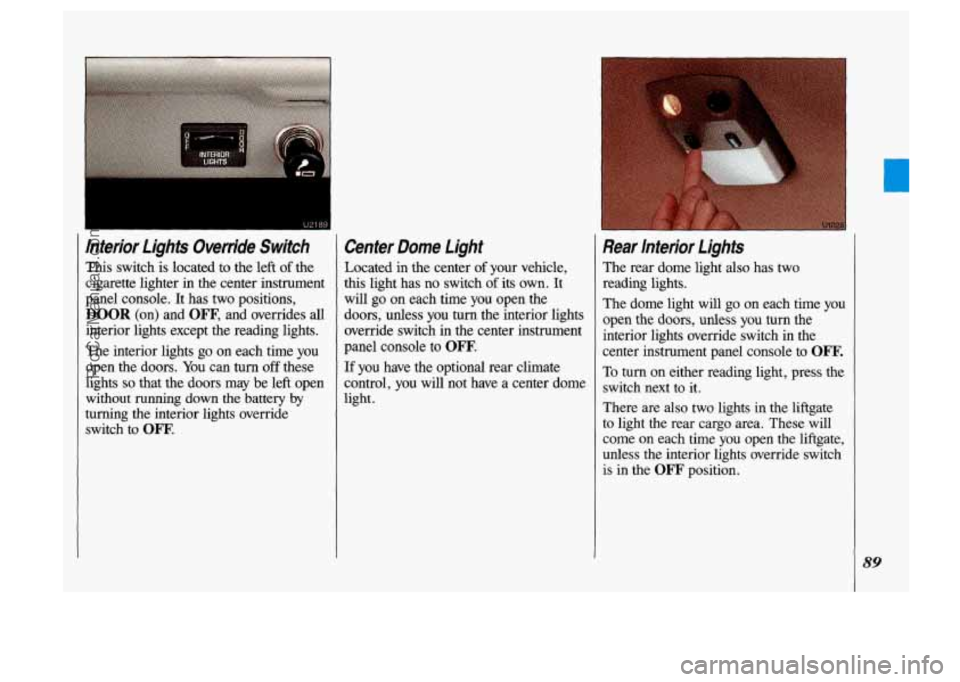

lnterior Lights Override Switch
This switch is located to the left of the
cigarette lighter in the center instrument
panel console. It has two positions,
DOOR (on) and OW, and overrides all
interior lights except the reading lights.
The interior lights
go on each time you
open the doors.
You can turn off these
lights
so that the doors may be left open
without
running down the battery by
turning the interior lights override
switch to
OW.
Center Dome Light
Located in the center of your vehicle,
this light has no switch
of its own. It
will
go on each time you open the
doors, unless you
turn the interior lights
override switch in the center instrument
panel console to
OFF.
If you have the optional rear climate
control, you
will not have a center dome
light.
Rear lnterior Lights
The rear dome light also has two
reading lights.
The dome light will
go on each time you
open the doors, unless
you turn the
interior lights override switch in the
center instrument panel console to
Om.
To turn. on either reading light, press the
switch next
to it.
There are
also two lights in the liftgate
to light the rear cargo area. These will
come
on each time you open the liftgate,
unless
the interior lights override switch
is in the
OFF' position.
89
ProCarManuals.com

The Instrument Panel- Your Information System
Your instrument panel is designed to let
you know at a glance how your vehicle
is running. You’ll know how fast you’re
going, how much fuel you’re using, and
many other things you’ll need to drive
safely and economically.
Refer to the accompanying diagram of
your instrument panel
to locate the
components listed below.
1. Side Vents
2. Light Controls
3. Turn SignaVHeadlight Beam Lever
4. Tilt Steering Wheel Lever
5. Instrument Cluster
6. Gearshift Lever
7. WiperIWasher Controls
8. Center Vents
9. Storage Compartment
10. Side Vents
11. Circuit Breaker/Relay Panel
12. Glove Box/Fuse Panel
13. Audio System
14. Rear Fan Controls
15. Cup HolderdAshtray
1 6. Locking Storage Bin
17. Lighter
18. Interior Lights Override Switch
19. Climate Controls
20. Ignition Switch
21. Hazard Warning Flashers Switch
22. Horn
23. Parking Brake Release
24. Hood Release
101
ProCarManuals.com

Identification Number. Vehicle .... 262
Idling Your Engine
........... .70. 72
If You’re Stuck: In Sand. Mud.
Ice or Snow .................. 213
Ignition
Key
......................... 46
Positions
..................... 60
Illuminated Entry System .......... 52
Indicator Lights (see
Warning Lights)
Infant Restraint (see Child Restraints)
Inflation. Tire ............ .212. 248
Inflator. Air
.................... 90
Inside Rearview Mirror .......... 92
Instrument Panel
............... 101
Instrument
Panel Cluster ......... 102
Instrument Panel Warning Lights
. . 104
Instrument Panel Intensity Control
. . 81
Interior Lights
.............. .81. 89
Override Switch
............... 89
.................... J ack. Tire 205
Jumn Starting
.................. 187
Keyless Entry. Remote
........... 49
Keys
.......................... 46
.
Lane Change Indicator ........... 74
Lap-Shoulder Belt
............... 26
Front
.................... 26. 30
Rear
........................ 30
Use by Children
........... .34. 40
Level Control. Electronic
.... .99. 245
Liftgate
................... .59. 110
Lighter
........................ 94
Lights Dome
....................... 89
Fog
......................... 81
Headlights
................... 79
Interior Lights Control .......... 81
“On” Reminder
............... 80
Reading .................. 85. 89
Rear Interior Lights ............ 89
Removing & Replacing
Bulbs
................ .243. 244
Replacement Bulbs
............ 273
Taillights
.................... 244
Turn Signal
................... 74
Underhood
.................. 225
Warning Lights
............... 104
Lights On Reminder
............. 80
Loading Your Vehicle ....... .99. 245
Interior
Lights Override Switch
... 89
Locks
Manual
.................. .47. 54
Power
....................... 48
Sliding
Door .................. 54
Long Distance Driving
........... 168
Low Battery
................... 187
Low Fuel Warning
.............. 105
Low Oil Pressure Warning
........ 106
Lubricants and Fluids
........... 272
Luggage Carrier
................. 97
Maintenance Record
........... 294
Maintenance Schedule
........... 275
Malfunction Indicator Lamp
....... 110
Manual Front Seat
............... 14
Manual Lap-Shoulder Safety Belt
... 26
Methanol in Gasoline
............ 217
Mileage Indicator (see
Odometer &
Mirrors
Speedometer)
Inside Manual Day/Night ........ 92
Outside Convex
............... 92
Power Remote Control
.......... 92
Visor Vanity
.................. 93
Mountain Driving
............... 170
..
ProCarManuals.com

316
New Vehicle “Break-In”
Requirements
............ .60. 178
Night Driving
.................. 159
Night Vision
................... 160
octane Requirements
(see
Fuel Requirements)
Odometer and Speedometer ....... 103
Oil. Engine ................... 225
Pressure Gage
................ 106
Pressure Indicator
............. 106
Quality
..................... 227
Thickness
................... 227
UsedOil
.................... 230
When to Change .............. 229
Oil Warning
................... 106
Operation
of Lights .............. 80
Outside Rearview Mirrors
......... 92
Overhead Console
............... 85
Overheated Engine .............. 195
Warnings
........... .195, 236, 238
Owner Checks
& Services ........ 287 park.
Shifting Into
.............. 69
Parking On
Hills ................ .171. 183
Parking Brake
.................. 68
Parking on
Hills ........... .171. 183
Passing
....................... 156
Payload ...................... 245
Over Things That
Burn.
......... 71
With the Engine Running
.... .70. 72
Passenger Belts (see
Safety Belts)
Periodic Maintenance Inspections ... 290
Polishing and Waxing
(see
Appearance Care)
Power (Anti-Lock) Brakes ........ 149
Power Door Locks
.............. 48
Power Mirrors
.................. 92
Power Outlet. Accessory
.......... 90
Power Seat Controls ............. 15
Power Sliding
Door .............. 54
Power Steering
................. 153
Power Steering Fluid
... .238. 270, 272
Power Windows
........... .74. 268
Pregnancy. Use of Safety Belts During
...................... 29
Problems on the Road
........... 185
Publications
.................. 304 Radiator
Overheating
(see Overheated Engine)
Radiator Pressure Cap ........... 238
Radio (see
Audio Systems)
Reading Lights .................. 85
Rear Climate Control
............ 117
Rear Interior Lights
.............. 89
Rear Seats
...................... 17
Adjusting
.................... 19
Removing
.................... 18
Replacing
.................... 20
Third Row Entry
............... 17
Rear Window Defogger
........... 119
Rear Window Wiper and Washer
.... 84
Rearview Mirror
................ 92
Reclining Seatbacks
.............. 15
Reminder Light ................. 25
Remote Keyless Entry
............ 49
Replacement Bulbs
.............. 273
Replacement Fuses
............. 265
Replacement
Parts .............. 271
Remote Fuel Door Release
........ 219
Removing Rear Bucket Seats
...... -18
Replacing Brake System
Parts ..... 242
Replacing Bulbs
........... .243, 244
Replacing Rear Bucket Seats
....... 20
ProCarManuals.com
