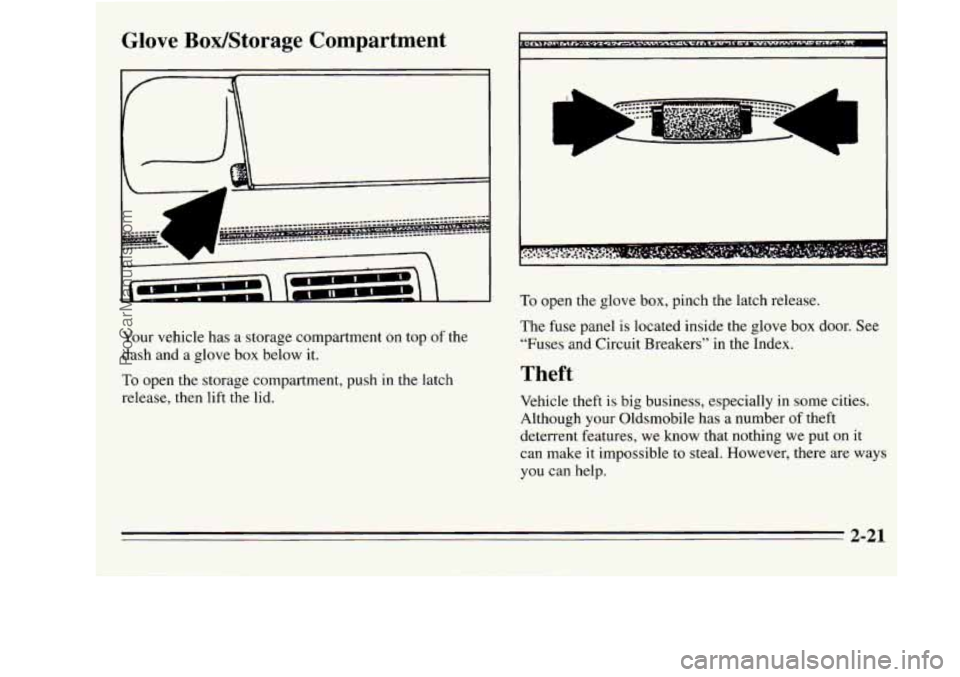

Glove Bodstorage Compartment
Your vehicle has a storage compartment on top of the
dash and a glove box below it.
To open the storage compartment, push in the latch
release, then
lift the lid.
r
To open the glove box, pinch the latch release.
The fuse panel
is located inside the glove box door. See
“Fuses and Circuit Breakers” in the Index.
Theft
Vehicle theft is big business, especially in some cities.
Although your Oldsmobile has a number of theft
deterrent features, we know that nothing we put on it
can make
it impossible to steal. However, there are ways
you can help.
2-21
ProCarManuals.com

The air inflator kit is stored in a pouch in the glove box.
It includes a 20-foot
(6 m) hose with an air pressure
gage, nozzle adapters and instructions.
To use your air inflator system, attach the appropriate
nozzle adapter, if required, to the end of the hose that
has the pressure gage. Then attach that end of the hose
to the object you wish to inflate. Attach the other end of
the hose to the outlet. Press the
ON switch. The ON
switch will work even with the ignition off. If the air
inflator does not operate, a fuse may be blown or
installed incorrectly. See your retailer for service. Your air
inflator will automatically shut
off after about
10 minutes. To reset it, press the ON switch again.
Don’t run your air inflator for longer than
30 minutes at
one time. If you do, you may damage the system. After
30 minutes, wait at least 10 minutes before restarting the
air inflator.
To turn off the inflator, press OFF and detach the hose,
first from the inflated object, then from the outlet. Place
the inflator kit tools in the pouch and store it in the
glove box.
2-64
ProCarManuals.com

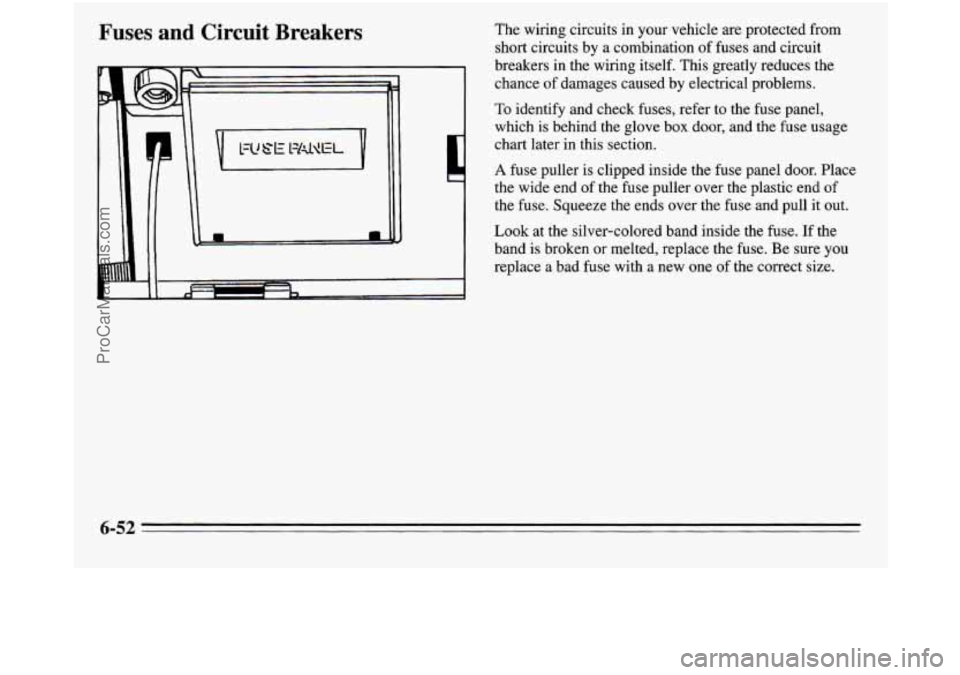

Fuses and Circuit Breakers
L
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers in the wiring itself. This greatly reduces the
chance of damages caused by electrical problems.
To identify and check fuses, refer to the fuse panel,
which is behind the glove box door, and the fuse usage
chart later in this section.
A fuse puller is clipped inside the fuse panel door. Place
the wide end
of the fuse puller over the plastic end of
the fuse. Squeeze the ends over the fuse and pull it out.
Look at the silver-colored band inside the fuse. If the
band
is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the correct size.
6-52
ProCarManuals.com

e
E5
c3
€3
ELC
HORN
E3 RDOllAUX
TAIL
El
c3
n
c3
ECM
TURN B/U
GAUGES LPS
ABS
E3 R WIPER
€5 HTRA/C
F WIPER
p-4 R BLW
Fuse Panel (3.1L V6 Engine)
Position Circuitry
CTSY Dome Lamps, Courtesy Lamps, Power Door
Lock Switches, Glove Box Lamp, Power
Mirrors, Power Sliding Delay Lock Module
ELC
HORN
STOP
HAZ Auto
Level Control, Underhood Lamp
Horns, Horn Relay, Safety Belt Buzzer
Front/Rear Turn Lamps, Front Sidemarker
Lamps, Rear Stop Lamps, Instrument Cluster
Turn Indicator Lamps, Cruise Brake Switch
F PUMP Fuel Pump,
Oil Pressure SenderIFuel Pump Switch
Position
RDO 1/
AUX
TAIL
ECM
TURN
B/U
GAUGES
LPS
ABS
RD02
R WIPER
F WIPER
IGN
HTR-A/C
R BLW
Circuitry
Radio, Front Cigar Lighter, Accessory Power
Outlet
Front Park Lamps, Rear Taillamps, Front
Sidemarker Lamps, License Plate Lamp, Radio,
HeatNentlAC Control Head, Power Sliding Door
Throttle Body Fuel Injection, Fuel Pump Relay,
Elec. Vac. Reg. Valve, Elec. Control Module,
Elec. Spark Control Module
Front/Rear Turn Lamps, Front Sidemarker Lamps, Cluster Turn Telltale, Back-up Lamps,
Fog Lamps
Cluster, Anti-Lock Brake System Lamp
Module, Elec. Level Control Sensor
Cluster, Radio, Wiper Switch, Headlamp
Switch, Rear Blower Switch, Heat/Vent/AC
Control Head, Door Switch Illumination,
FrontIRear Ashtray Illumination Bulbs
Anti-Lock Brake System
Radio
Rear Wiperwasher Motors; Overhead Console
Compass
Front Wipermasher Motor
A/C Compressor, A/C Solenoid Box, Compressor
Relay, Temp. Door Motor,
Low Blower Relay;
HeatNentlAC Control Head; Cruise Module; Cooling Fan Relay; Rear Defogger Relay;
Key
Chime; Vehicle Speed Sensor Buffer and Generator
Charge Discrete, Transaxle Converter Clutch Switch
FrondRear Blower Motors, High Blower Relay
Rear Blower, Rear Heat/Vent/AC
6-53
ProCarManuals.com

Fuse Panel (3800 V6 Engine)
cCTSYI, ,fD023
eeC3
R WIPER
HORN TURN BIU F WIPER
r"4
STOP HA2
E5 TAIL
Position
CTSY
ELC
HORN
STOP
HAZ
Circuitry
Dome Lamps, Courtesy Lamps, Power Door
Lock Switches, Glove Box Lamp, Power
Mirrors, Power Sliding Delay Lock Module
Auto Level Control, Underhood Lamp
Horns,
Horn Relay, Safety Belt Buzzer
Front/Rear Turn Lamps, Front Sidemarker
Lamps, Rear Stop Lamps, Instrument Cluster
Turn Indicator Lamps
Position Circuitry
RDOl/ Radio, Front Cigar Lighter, Accessory Power
AUX Outlet
TAIL Front Park Lamps, Rear Taillamps, Front Sidemarker Lamps, License Plate Lamp, Radio,
HeatNentlAC Control Head, Power Sliding Door
ABS
ECM Anti-Lock
Brakemraction Control System
Mass Air How Sensor, Electronic Control Module
TURN Front/Rear Turn Lamps, Front Sidemarker
B/U Lamps, Cluster Turn Telltale, Back-up Lamps,
Fog Lamps
Module, Elec. Level Control Sensor
GAUGES Cluster, Anti-Lock
Brake System Lamp
INJ 3365D Remote Location (see page
6-56)
LPS Cluster, Radio, Wiper Switch, Headlamp
Switch, Rear Blower Switch, HeatNentlAC
Control Head, Door Switch Illumination,
Front/Rear Ashtray Illumination Bulbs
RD02 Radio
R WIPER Rear Wipermasher Motors; Overhead Console
F WIPER Front WiperNasher Motor
Compass
IGN A/C
Solenoid Box, Temp. Door Motor, Low
Blower Relay; HeatNentlAC Control Head;
Cooling Fan Relay; Rear Defogger Relay; Key
Chime; Transaxle Converter Clutch Solenoid
and Generator Charge Discrete
HTR-A/C Front/Rear Blower Motors, High Blower Relay
R BLW Rear Blower,
Rear HeatNentlAC
6-54
ProCarManuals.com

Engineoil .................................... 6-11
adding
..................... : .............. 6-12
Additives
................................... 6-16
Checking
................................... 6-11
What Kind to Use
............................ 6- 13
What to do with Used Oil
...................... 6-16
. Whentochange ............................. 6-16
Ethanol
(In Fuel) ................................ 6-3
Expectarit Mothers, Use
of Safety Belts ............. 1-31
Extender, Safety Belt
....................... : .... 1-57
Fabric: Cleaning
.......................... : .... 6-42
Filling Your Tank
................................ 6-4
Filter Aircleaner
................................. 6- 17
Engine
Oil .................................. 6-16
Finishcare
.................................... 6-47
Fihish Damage
............................ : .... 6-48
First
Gear (1) Position ............ ; .............. 2-32
Flashers, Hazard Warning
......................... 5-1
Flat Tire, Changing
............................. 5-24
FogLamps
.................................... 2-50
Foreign Countries, Fuel
........ : .................. 6-4
ForwardGears
................................. 2-30
FrontDoors
.................................... 2-3
Front Towing Ifbokups
.......................... 5- 11
Fuel
.......................... i............... 6-2
FillingYourTank
............................. 6-4
Gage
...................................... 2-86
In Foreign Countries ........................... 6-4 Fuse
Paiiel(3.lL V6 Engine)
............ ......... 6-53
Fuse Panel (3800 V6 Engine) ..................... 6-54
Fuses and Circuit Breakers
....................... 6-52
Gag&. Engine Coolant Temperature
............... 2-80
Garage
Door Opener Compartment.
Overhead Console
.............................. 2-5 1.
Gasolines for Cleaner Air .......................... 6-3
GAWR (Gross Axle Weight Rating)
................ 4-29
Gear Positions
................................. 2-28
Glass. Cleaning
................................ 6-46
GloveBox .................................... 2-21
GVWR (Gross Vehicle Weight Rating)
.............. 4-29
Halogen Bulbs
................................ 6-31
Hazqd Warning Flashers
.......................... 5-1
Head Restraints ................................. 1-4
Headlamp High-Low Beam Changer
............... 2-50
Headlamp. Wiring
.............................. 6-57
Headlamps
.................................... 2-49
Headlamps. Bulb Replacement
.................... 6-31
Hearing or Speech Impaired. Customer Assistance
...... 8-2
High Beam
Lamps. How to Change ................ 2-50
Highway Hypnosis
........................ ; ..... 4-22
HillandMountainRoads
......................... 4-23
Hitches. Trailer
i ................................ 4-34
HoodProp
..................................... 6-7
HoodRelease
................................... 6-6
9-5
