instrument cluster OLDSMOBILE SILHOUETTE 1995 Owners Manual

For the lock delay feature to work, the ignition and
the interior lamps control (located to the left of the
instrument panel cluster) must
be off. If you wish to
lock the doors with the interior lamps on, press the
lock symbol or the rear of either power door lock
switch twice.
If any door
is open when you press the lock symbol or
the rear
of either power door lock switch, a chime will
sound three times. This indicates that all doors and the
liftgate will lock about five seconds after the last door
has been closed.
To override the lock delay feature, press the lock symbol
or the rear of either power door lock switch again, and
the doors and liftgate will lock immediately. If the
sliding door
is open, it will lock automatically within
five seconds after
it is closed, and the doors and liftgate
will lock again.
To cancel the lock delay feature, press the unlock
symbol
or the front of either power door lock switch.
Remote Operation of the Power Sliding Door
If you have the optional power sliding door (see “Power
Sliding Door” later in this section), your remote
transmitter will have a third button that has
a van
symbol on it. Press it to open or close the sliding door.
If the sliding door is locked, first press
the unlock
symbol twice to unlock all doors, then press the van
symbol to open the sliding door.
You can operate the power sliding door with the remote
transmitter only when the power sliding door enable
switch on the overhead console is in the
ON position.
2-9
ProCarManuals.com

Windshield Wipers
The windshield wiper and washer controls are located to
the right of the instrument cluster.
For a single wiper cycle: Press the switch marked
MIST and release. For more cycles, press and hold the
switch.
For pulse delay wiper cycles: The pulse delay cycle
system allows you to set the wiper speed as slow as
20 seconds between cycles, or faster. Pulse delay cycles
are very useful in light rain
or snow. Slide the upper
control to the
DELAY area. The lower the position,
the slower the cycle; the higher the position, the faster
the cycle.
For steady wiper cycles: Slide the upper control either
to the
LO or HI position, depending on the wiper speed
you want.
To turn the wipers off: Slide the upper control to the
OFF position.
Remember that damaged wiper blades may prevent you
from seeing well enough to drive safely. To avoid
damage, be sure to clear ice and snow from the wiper
blades before using them. If they’re frozen to the
windshield, carefully loosen or thaw them. If your
blades do become damaged, get new blades or blade
inserts.
Heavy snow or ice can overload your wipers.
A circuit
breaker will stop them until the motor cools. Clear away
snow
or ice to prevent an overload.
2-42
ProCarManuals.com

Headlamp High-Low Beam Changer
To change the headlamps from high to low beam, or low
to high, simply pull the turn signal lever all the way
toward you. Then release it.
When the high beams are on, a blue light on the
instrument cluster will
also be on.
Fog Lamps
Slide the lower lever on the lights control panel up to
turn
on the fog lamps, down to turn them off. An
indicator light next to the control will glow when the fog
lamps are on.
Your headlamps must be on for your fog lamps to go on.
Although your fog lamps will go off when your high
beams are on, high beams are not recommended for
driving in fog.
~
2-50
ProCarManuals.com

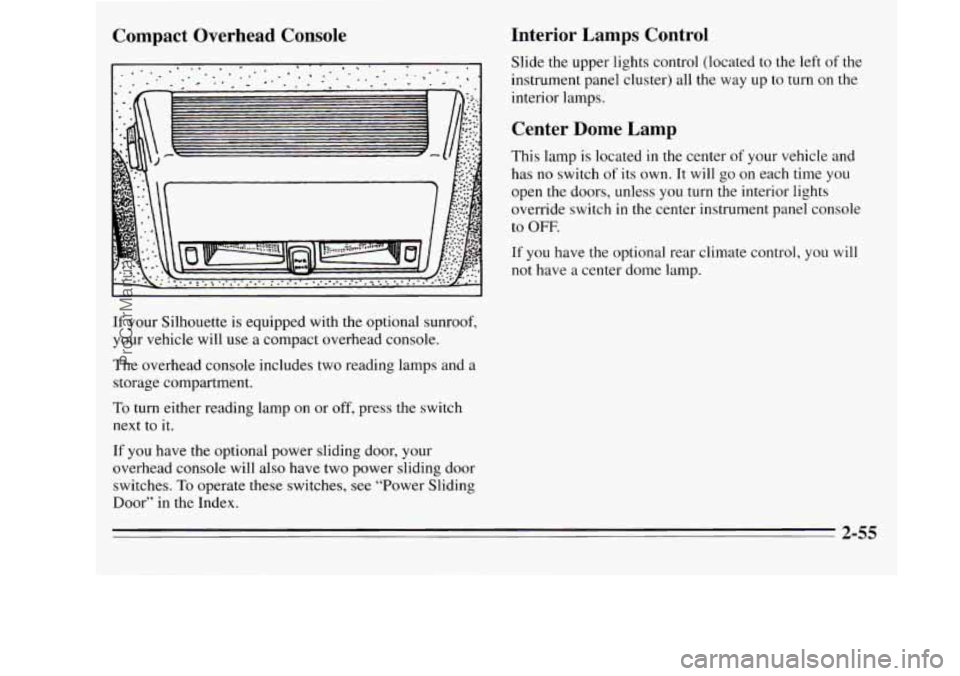

Compact Overhead Console
If your Silhouette is equipped with the optional sunroof,
your vehicle will
use a compact overhead console.
The overhead console includes two reading lamps and a
storage compartment.
To turn either reading lamp on or off, press the switch
next to
it.
If you have the optional power sliding door, your
overhead console will also have two power sliding door
switches.
To operate these switches, see “Power Sliding
Door” in the Index.
Interior Lamps Control
Slide the upper lights control (located to the left of the
instrument panel cluster) all the way up to turn on the
interior lamps.
Center Dome Lamp
This lamp is located in the center of your vehicle and
has no switch
of its own. It will go on each time you
open the doors, unless you turn the interior lights
override switch
in the center instrument panel console
to OFF.
If you have the optional rear climate control, you will
not have a center dome lamp.
2-55
ProCarManuals.com

The Instrument Panel -- Your Information System
Your instrument panel is designed to let you know at a glance how your vehicle is running. You’ll know how fast
you’re going, how much fuel you’re using, and many other things you’ll need to drive safely and economically.
Refer to the accompanying diagram
of your instrument panel to locate the components listed below.
1. Side Vents 13. Audio System
2. Lamp Controls
14. Rear Fan Controls
3. Turn Signal/Multifunction Lever 15. CupholderdAshtray
4. Tilt Steering Wheel Lever 16. Locking
Storage Bin
5. Instrument Cluster 17. Lighter
6. Gearshift Lever
18. Interior Lights Override Switch
7. Wiper/Washer Controls 19. Traction Control Switch (Option: 3800 Engine)
8. Center Vents
20. Climate Controls
9. Storage Compartment 21. Hazard Warning Flashers Switch
10. Side Vents
22. Ignition Switch
1 1. Circuit BreakedRelay Panel 23. Horn
12. Glove BoxRuse Panel
24. Steering Wheel Touch Controls (Option)
-
2-71
ProCarManuals.com

Instrument Panel Cluster (3800 V6 Shown, 3.1L V6 Similar)
Your cluster includes indicator warning lights and gages that are explained on the following pages.
2-72
ProCarManuals.com

e
E5
c3
€3
ELC
HORN
E3 RDOllAUX
TAIL
El
c3
n
c3
ECM
TURN B/U
GAUGES LPS
ABS
E3 R WIPER
€5 HTRA/C
F WIPER
p-4 R BLW
Fuse Panel (3.1L V6 Engine)
Position Circuitry
CTSY Dome Lamps, Courtesy Lamps, Power Door
Lock Switches, Glove Box Lamp, Power
Mirrors, Power Sliding Delay Lock Module
ELC
HORN
STOP
HAZ Auto
Level Control, Underhood Lamp
Horns, Horn Relay, Safety Belt Buzzer
Front/Rear Turn Lamps, Front Sidemarker
Lamps, Rear Stop Lamps, Instrument Cluster
Turn Indicator Lamps, Cruise Brake Switch
F PUMP Fuel Pump,
Oil Pressure SenderIFuel Pump Switch
Position
RDO 1/
AUX
TAIL
ECM
TURN
B/U
GAUGES
LPS
ABS
RD02
R WIPER
F WIPER
IGN
HTR-A/C
R BLW
Circuitry
Radio, Front Cigar Lighter, Accessory Power
Outlet
Front Park Lamps, Rear Taillamps, Front
Sidemarker Lamps, License Plate Lamp, Radio,
HeatNentlAC Control Head, Power Sliding Door
Throttle Body Fuel Injection, Fuel Pump Relay,
Elec. Vac. Reg. Valve, Elec. Control Module,
Elec. Spark Control Module
Front/Rear Turn Lamps, Front Sidemarker Lamps, Cluster Turn Telltale, Back-up Lamps,
Fog Lamps
Cluster, Anti-Lock Brake System Lamp
Module, Elec. Level Control Sensor
Cluster, Radio, Wiper Switch, Headlamp
Switch, Rear Blower Switch, Heat/Vent/AC
Control Head, Door Switch Illumination,
FrontIRear Ashtray Illumination Bulbs
Anti-Lock Brake System
Radio
Rear Wiperwasher Motors; Overhead Console
Compass
Front Wipermasher Motor
A/C Compressor, A/C Solenoid Box, Compressor
Relay, Temp. Door Motor,
Low Blower Relay;
HeatNentlAC Control Head; Cruise Module; Cooling Fan Relay; Rear Defogger Relay;
Key
Chime; Vehicle Speed Sensor Buffer and Generator
Charge Discrete, Transaxle Converter Clutch Switch
FrondRear Blower Motors, High Blower Relay
Rear Blower, Rear Heat/Vent/AC
6-53
ProCarManuals.com

Fuse Panel (3800 V6 Engine)
cCTSYI, ,fD023
eeC3
R WIPER
HORN TURN BIU F WIPER
r"4
STOP HA2
E5 TAIL
Position
CTSY
ELC
HORN
STOP
HAZ
Circuitry
Dome Lamps, Courtesy Lamps, Power Door
Lock Switches, Glove Box Lamp, Power
Mirrors, Power Sliding Delay Lock Module
Auto Level Control, Underhood Lamp
Horns,
Horn Relay, Safety Belt Buzzer
Front/Rear Turn Lamps, Front Sidemarker
Lamps, Rear Stop Lamps, Instrument Cluster
Turn Indicator Lamps
Position Circuitry
RDOl/ Radio, Front Cigar Lighter, Accessory Power
AUX Outlet
TAIL Front Park Lamps, Rear Taillamps, Front Sidemarker Lamps, License Plate Lamp, Radio,
HeatNentlAC Control Head, Power Sliding Door
ABS
ECM Anti-Lock
Brakemraction Control System
Mass Air How Sensor, Electronic Control Module
TURN Front/Rear Turn Lamps, Front Sidemarker
B/U Lamps, Cluster Turn Telltale, Back-up Lamps,
Fog Lamps
Module, Elec. Level Control Sensor
GAUGES Cluster, Anti-Lock
Brake System Lamp
INJ 3365D Remote Location (see page
6-56)
LPS Cluster, Radio, Wiper Switch, Headlamp
Switch, Rear Blower Switch, HeatNentlAC
Control Head, Door Switch Illumination,
Front/Rear Ashtray Illumination Bulbs
RD02 Radio
R WIPER Rear Wipermasher Motors; Overhead Console
F WIPER Front WiperNasher Motor
Compass
IGN A/C
Solenoid Box, Temp. Door Motor, Low
Blower Relay; HeatNentlAC Control Head;
Cooling Fan Relay; Rear Defogger Relay; Key
Chime; Transaxle Converter Clutch Solenoid
and Generator Charge Discrete
HTR-A/C Front/Rear Blower Motors, High Blower Relay
R BLW Rear Blower,
Rear HeatNentlAC
6-54
ProCarManuals.com

......................................... Horn 2-39
Hydroplaning .................................. 4- 18 Key
Lock Cylinders
............................ 7-37
Key Reminder Warning
.......................... 2-23
Keys
.......................................... 2-1
&You’re Stuck
In Sand. Mud. Ice or Snow ......... 5-35
Ignition Key Positions
........................... 2-23
Ignition Switch
................................. 2-23
Illuminated Entry System
......................... 2-11
Inflator.
Air ................................... 2-63
Injector 3365 Fuse
.............................. 6-56
Inside Daymight Rearview
Mirror ................. 2-58
Brake System
............................... 7-39
Restraint Systems
............................ 7-39
Axle Boot and Sed ......................... 7-39
Throttle Linkage
............................. 7-39
Instrument Panel Cluster
......................... 2-72
Instrument Panel Intensity Control
................. 2-49
Instrument Panel. Cleaning
....................... 6-45
Integrated
Roof Antenna ......................... 3-23
Interior Lamps Control
........................... 2-55
Interior Lights Override Switch
.................... 2-56
Inspections
Exhaust Systems
............................. 7-39
Steering. Suspension and Front-Wheel-Drive
Instrumentpanel
............................... 2-70
Jack.
Tie .................................... 5-25
Jumpstarting
................................... 5-2 Lamps
...................................... 2-49
Lamps Control. Interior
.......................... 2-55
Lamps On Reminder
............................ 2-49
Lane Change Indicator
........................... 2-41
Larger Children. Safety Belt Use
................... 1-54
Latches. Side Window
........................... 2-39
Leaving
Your Vehicle ............................. 2-7
Leaving
Your Vehicle With the Engine Running ....... 2-35
Level Control. Electronic
......................... 2-68
Liftgate Ajar Warning Light
....................... 2-84
Liftgate Lock
.................................. 2-19
Liftgate. Raising
................................ 2-19
Lights Air Bag: Readiness
................. .... 1.27, 2.76 ......
Anti-LGck Brake System Warning ........... 2.78. 4.7
Brake System Warning ........................ 2-77
Liftgate Ajar Warning
......................... 2-84
Low Fuel Warning
........................... 2-85
Low Traction
............................ 2-80, 4-9
Power Sliding Door Warning
................... 2-84
Safety Belt Reminder
.................... 1-13, 2-76
Service Engine Soon
.......................... 2-81
TCS Warning ........................... 2.79, 4-9
Traction Control System Warning
........... 2-79, 4-9
9-6
ProCarManuals.com
