jump start OLDSMOBILE SILHOUETTE 1995 Owners Manual

When you start your vehicle, or when you begin to drive
away, you may hear
a momentary motor or clicking
noise. And
you may even notice that your brake pedal I
moves a little while this is going on. This is the ABS
system testing itself. (You may also hear a clicking noise
if you leave the ignition in the
RUN position for about
four seconds before starting the vehicle.) If there’s
a
problem with the anti-lock brake system, the anti-lock
brake system warning light will stay on or flash.
See “Anti-Lock Brake System Warning Light’’ in the
Index. Here’s
how anti-lock works. Let’s say the road
is wet.
You’re driving safely. Suddenly an animal jumps out
in
front of you.
You slam on the brakes. Here’s what happens with
ABS.
4-7
ProCarManuals.com

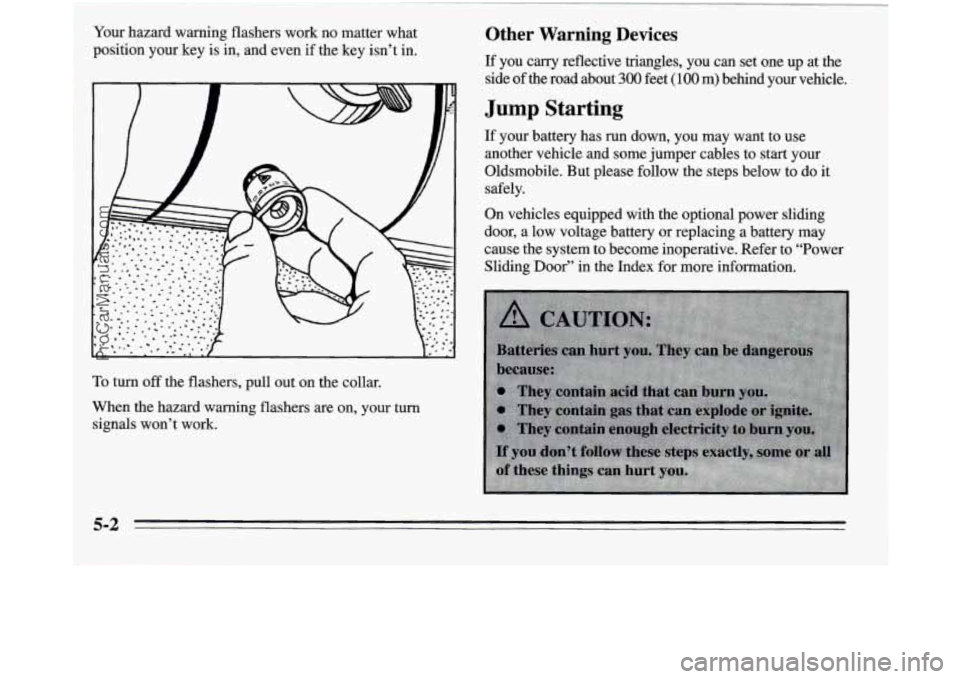

Your hazard warning flashers work no matter what
position your key is in, and even if the key isn’t in.
To turn off the flashers, pull out on the collar.
When the hazard warning flashers are on, your turn
signals won’t work.
Other Warning Devices
If you carry reflective triangles, you can set one up at the
side of
the road about 300 feet (100 m) behind your vehicle.
Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables to start your
Oldsmobile. But please follow the steps below to do it
safely.
On vehicles equipped with the optional power sliding
door, a low voltage battery or replacing a battery may
cause the system to become inoperative. Refer to “Power
Sliding Door” in the Index for more information.
5-2
ProCarManuals.com

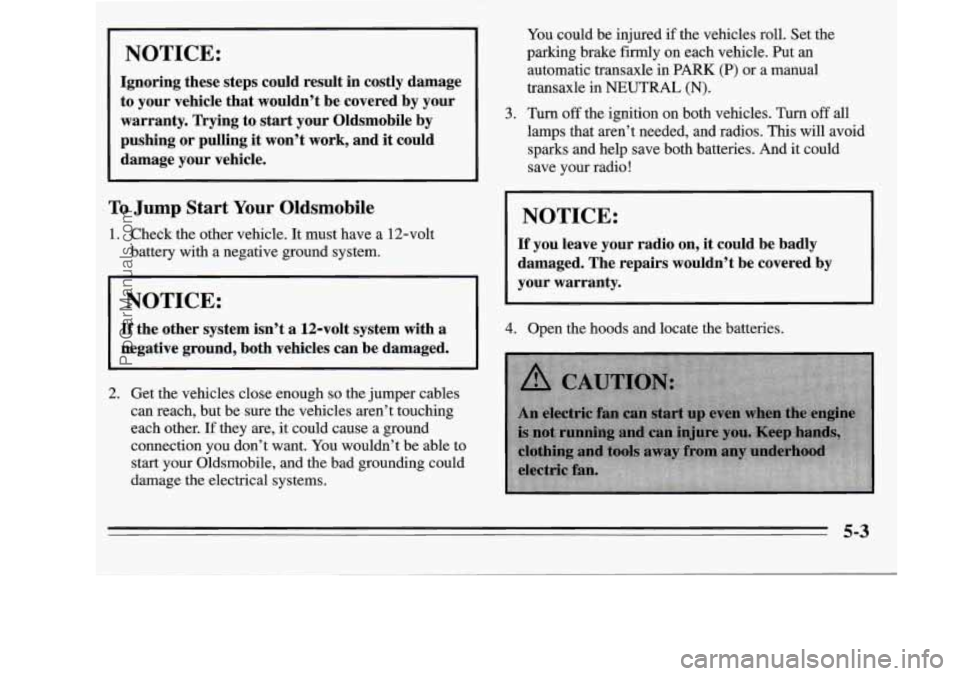

NOTICE:
Ignoring these steps could result in costly damage
to your vehicle that wouldn’t be covered by your
warranty. Trying to start your Oldsmobile by
pushing or pulling
it won’t work, and it could
damage your vehicle.
To Jump Start Your Oldsmobile
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
NOTICE:
If the other system isn’t a 12-volt system with a
negative ground, both vehicles can be damaged.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other. If they are, it could cause a ground
connection you don’t want. You wouldn’t be able to
start your Oldsmobile, and the bad grounding could
damage the electrical systems. You
could be injured if the vehicles roll. Set the
parking brake firrnly on each vehicle. Put an
automatic transaxle in
PARK (P) or a manual
transaxle in
NEUTRAL (N).
3. Turn off the ignition on both vehicles. Turn off all
lamps that aren’t needed, and radios. This will avoid
sparks and help save both batteries. And it could
save your radio!
L
NOTICE:
If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered by
your warranty.
4. Open the hoods and locate the batteries.
5-3
ProCarManuals.com

5. Find the positive (+) and negative (-) terminals on
each battery.
Your Oldsmobile has a remote positive
(+) jump
starting terminal. The terminal is
in the red box on the
same side
of the engine compartment as your battery.
You should always use the remote positive (+) terminal
instead
of the positive (+) terminal on your battery.
To open the remote positive (+) terminal box, pull
the tab and open the cover.
5-4
ProCarManuals.com

Replacing Brake System Parts
The braking system on a modern vehicle is complex. Its
many parts have to
be of top quality and work well
together
if the vehicle is to have really good braking.
Vehicles we design and test have top-quality
GM brake
parts
in them, as your Oldsmobile does when it is new.
When you replace parts of your braking system
-’- for
example, when your brake linings wear down and you
have to have new ones put
in -- be sure you get new
genuine
GM replacement parts. If you don‘t, your
brakes may no longer work properly. For example.
if
someone puts in brake linings that are wrong for your
vehicle, the balance between your front and rear brakes
can change
-- for the worse. The braking performance
you’ve
come to expect can change in many other ways if
someone puts in the wrong replacement brake parts.
Battery
Every new Oldsmobile has a Delco Freedom@ battery.
You never have to add water to one of these. When
it’s time
for a new battery, we recommend a Delco
Freedom@ battery. Get one that has
the replacement
number shown on the original battery’s label. The
battery is located in the front, driver’s side corner
of the
engine compartment, just below
the windshield washer
fluid reservoir.
Vehicle Storage
If you’re not going to drive your vehicle for 25 days or
more, take off the black, negative (-) cable from the
battery. This will help keep your battery from running
down.
Contact your retailer to learn how to prepare your
vehicle for longer storage periods.
Jump Starting
For jump starting instructions, see “Jump Starting” in
the Index.
6-30
ProCarManuals.com

Anti-Lock Brake System (ABS) Junction
Block
Fuse
Injector 3365 Fuse (3800 V6 Engine Only)
You’ll find this fuse under the hood in the ABS junction
block, located next to the remote positive jump starting
terminal.
To open the junction block, press in on both sides of the
cover. This fuse
is located under the hood, on
a bracket just
behind the passenger’s side headlamp.
It is mounted on
the face
of the bracket in the position closest to the
passenger’s side of the vehicle. The fuse services the
injectors, fuel pump, oil pressure sender and fuel pump
switch.
6-56
ProCarManuals.com

......................................... Horn 2-39
Hydroplaning .................................. 4- 18 Key
Lock Cylinders
............................ 7-37
Key Reminder Warning
.......................... 2-23
Keys
.......................................... 2-1
&You’re Stuck
In Sand. Mud. Ice or Snow ......... 5-35
Ignition Key Positions
........................... 2-23
Ignition Switch
................................. 2-23
Illuminated Entry System
......................... 2-11
Inflator.
Air ................................... 2-63
Injector 3365 Fuse
.............................. 6-56
Inside Daymight Rearview
Mirror ................. 2-58
Brake System
............................... 7-39
Restraint Systems
............................ 7-39
Axle Boot and Sed ......................... 7-39
Throttle Linkage
............................. 7-39
Instrument Panel Cluster
......................... 2-72
Instrument Panel Intensity Control
................. 2-49
Instrument Panel. Cleaning
....................... 6-45
Integrated
Roof Antenna ......................... 3-23
Interior Lamps Control
........................... 2-55
Interior Lights Override Switch
.................... 2-56
Inspections
Exhaust Systems
............................. 7-39
Steering. Suspension and Front-Wheel-Drive
Instrumentpanel
............................... 2-70
Jack.
Tie .................................... 5-25
Jumpstarting
................................... 5-2 Lamps
...................................... 2-49
Lamps Control. Interior
.......................... 2-55
Lamps On Reminder
............................ 2-49
Lane Change Indicator
........................... 2-41
Larger Children. Safety Belt Use
................... 1-54
Latches. Side Window
........................... 2-39
Leaving
Your Vehicle ............................. 2-7
Leaving
Your Vehicle With the Engine Running ....... 2-35
Level Control. Electronic
......................... 2-68
Liftgate Ajar Warning Light
....................... 2-84
Liftgate Lock
.................................. 2-19
Liftgate. Raising
................................ 2-19
Lights Air Bag: Readiness
................. .... 1.27, 2.76 ......
Anti-LGck Brake System Warning ........... 2.78. 4.7
Brake System Warning ........................ 2-77
Liftgate Ajar Warning
......................... 2-84
Low Fuel Warning
........................... 2-85
Low Traction
............................ 2-80, 4-9
Power Sliding Door Warning
................... 2-84
Safety Belt Reminder
.................... 1-13, 2-76
Service Engine Soon
.......................... 2-81
TCS Warning ........................... 2.79, 4-9
Traction Control System Warning
........... 2-79, 4-9
9-6
