fuel filter OLDSMOBILE SILHOUETTE 1996 Owners Manual

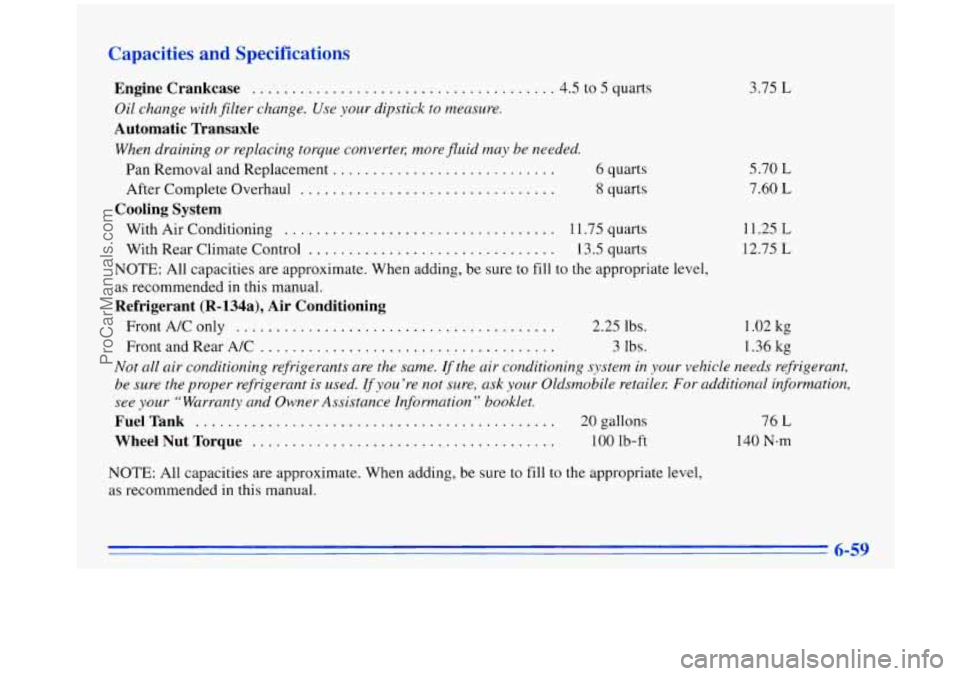

Capacities and Specifications
Engine Crankcase ...................................... 4.5 to 5 quarts
Oil change with filter change. Use your dipstick to measure.
Automatic Transaxle
When draining or replacing torque convertel; more fluid may be needed.
Pan Removal and Replacement ............................ 6 quarts
After Complete Overhaul
................................ 8 quarts
With Air Conditioning
.................................. 11.75 quarts
With Rear Climate Control
............................... 13.5 quarts
Cooling System
NOTE: All capacities are approximate. When adding, be sure to fill to the appropriate level,
as recommended in this manual.
Refrigerant (R-l34a), Air Conditioning
FrontA/Conly ........................................ 2.25 lbs. 1.02 kg
Front and Rear A/C ..................................... 3 lbs. 1.36 kg
Not all air conditioning refrigerants are the same. rfthe air conditioning system in your vehicle needs refrigerant,
be sure the proper refrigerant is used.
lfyou ’re not sure, ask your Oldsmobile retailez For additional information,
see
your “Warranty and Owner Assistance Information ” booklet.
FuelTank ............................................. 20gallons 76 L
WheelNutTorque ...................................... 100 lb-ft 140 N-m
NOTE: All capacities are approximate. When adding, be sure to fill to the appropriate level,
as recommended
in this manual. 3.75
L
5.70 L
7.60 L
11.25 L
12.75 L
6-59
ProCarManuals.com

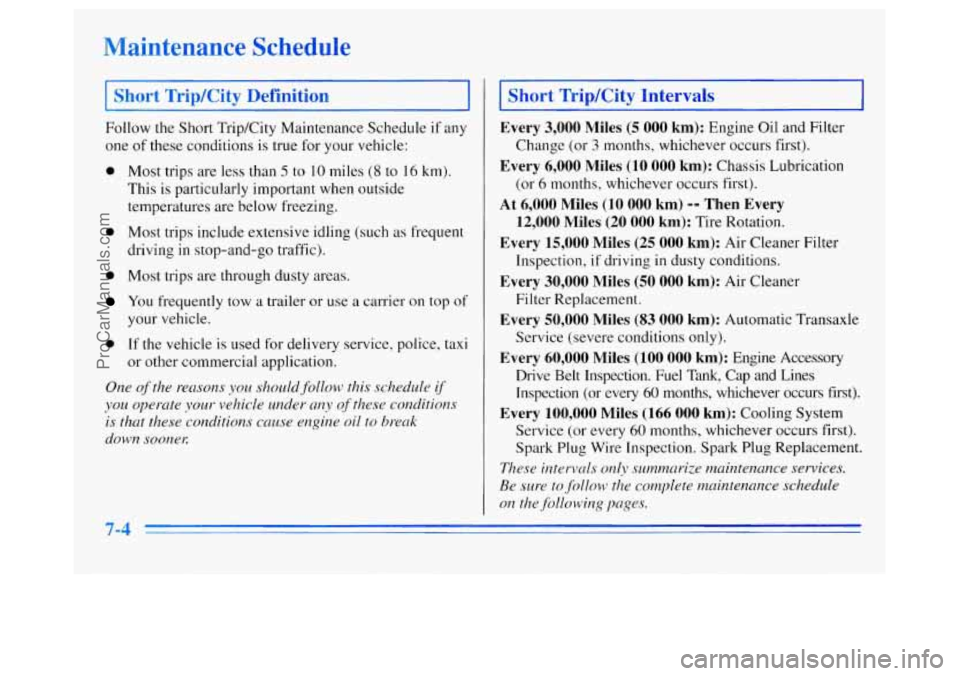

Maintenance Schedule
I Short Trip/City Definition I
Follow the Short Trip/City Maintenance Schedule if any
one of these conditions is true for your vehicle:
0 Most trips are less than 5 to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
driving in stop-and-go traffic).
0 Most trips include extensive idling (such as frequent
0 Most trips are through dusty areas.
You frequently tow a trailer or use a carrier on top of
your vehicle.
0 If the vehicle is used for delivery service, police, taxi
or other commercial application.
One of the reasons you should follow this schedule if
you operate your vehicle under any of these conditions
is that these conditions cause engine oil to break
down sooner:
Short Trip/City Intervals
Every 3,000 Miles (5 000 km): Engine Oil and Filter
Change (or
3 months, whichever occurs first).
Every 6,000 Miles (10 000 km): Chassis Lubrication
(or
6 months, whichever occurs first).
At 6,000 Miles (10 000 km) -- Then Every
12,000 Miles (20 000 km): Tire Rotation.
Every 15,000 Miles (25 000 km): Air Cleaner Filter
Inspection,
if driving in dusty conditions.
Every 30,000 Miles (50 000 km): Air Cleaner
Filter Replacement.
Every 50,000 Miles (83 000 km): Automatic Transaxle
Service (severe conditions only).
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection. Fuel Tank, Cap and Lines
Inspection (or every
60 months, whichever occurs first).
Service (or every
60 months, whichever occurs first).
Spark Plug Wire Inspection. Spark Plug Replacement.
Every 100,000 Miles (166 000 km): Cooling System
These intervals only sunzmnrize maintenmxe services.
Be sure
to follow the complete maintenance schedule
on the following pages.
7-4
ProCarManuals.com

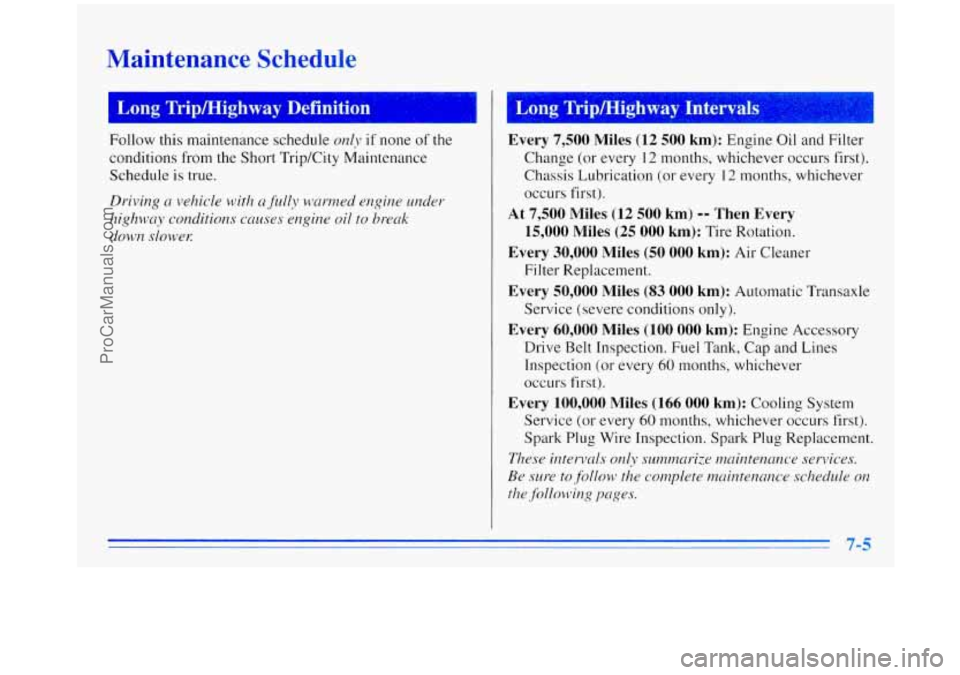

Maintenance Schedule
I Long Tripmighway Definition
Follow this maintenance schedule only if none of the
conditions from the Short Trip/City Maintenance
Schedule is true.
Driving n vehicle with n fidly wnrnzed engine under
lziglzwny conditions causes engine oil to brecrk
down slowe~
Im Long Tripmighway Intervals
Every 7,500 Miles (12 500 km): Engine Oil and Filter
Change (or every 12 months, whichever occurs first).
Chassis Lubrication (or every
I2 months, whichever
occurs first).
At 7,500 Miles (12 500 km) -- Then Every
15,000 Miles
(25 000 km): Tire Rotation.
Every 30,000 Miles (50 000 km): Air Cleaner
Filter Replacement.
Every 50,000 Miles (83 000 km): Automatic Transaxle
Service (severe conditions only).
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection.
Fuel Tank, Cap and Lines
Inspection (or every
60 months, whichever
occurs first).
Service (or every
60 months, whichever occurs first).
Spark Plug Wire Inspection. Spark Plug Replacement.
Tlwse intervals only surntnnrize maintenance services.
Be sure to follow the complete maintenarzce sch,edule on
the jollowing pages.
Every 100,000 Miles (166 000 km): Cooling System
ProCarManuals.com

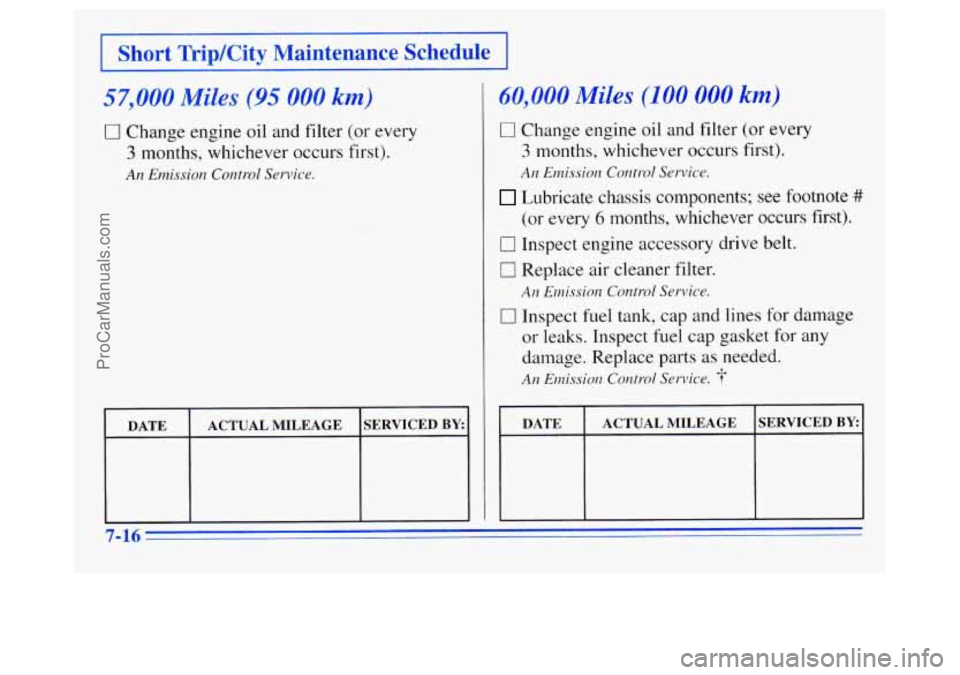

r Short TripfCity Maintenance Schedule I
57,000 Miles (95 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
60,000 Miles (100 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
AII Elnissior.7 Control Service.
Lubricate chassis components; see footnote #
(or every 6 months, whichever occ
0 Inspect engine accessory drive be
0 Replace air cleaner filter.
An EInission Control Service.
:urs first).
It.
0 Inspect fuel tank, cap and lines for damage or leaks. Inspect fuel
cap gasket for any
damage. Replace parts
as needed.
An Emission Corltrol Service.
DATE SERVICED BY: . ACTUAL MILEAGE
7-16
ProCarManuals.com

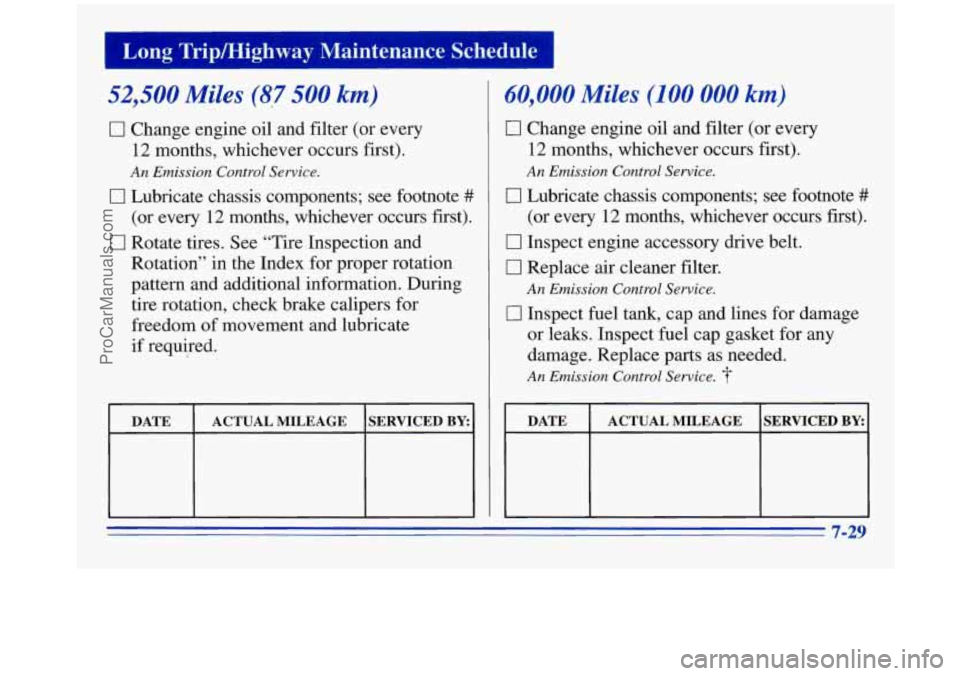

Long Tripmighway Maintenance Schedule
52,500 Miles (87 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. During
tire rotation, check brake calipers for
freedom of movement and lubricate
if required.
DATE ACTUAL MILEAGE SERVICED BY:
60,000 Miles (100 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs fiist).
0 Inspect engine accessory drive belt.
0 Replace air cleaner filter.
An Emission Control Service.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for any
damage. Replace parts as needed.
An Emission Control Service. 3-
7-29
ProCarManuals.com

USAGE
Chassis
Lubrication
Windshield
Washer Solvent
Hood Latch
Assembly, Pivots, Spring Anchor
and Release Pawl
FLUIDLUBRICANT
Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
GM Optikleen@ Washer Solvent
(GM Part
No. 1051515)
or equivalent.
Lubriplate lubricant aerosol (GM
Part No. 12346293 or equivalent)
or lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
~
USAGE
Hood and Door
Hinges, Rear
Folding Seat,
Fuel Door
Hinge, Rear Compartment
Lid Hinges
Sliding Door
Track
Weatherstrip Conditioning:
FLUIDLUBRICANT
Multi-purpose lubricant, Superlube@
(GM Part No. 12346241
or equivalent).
Lubriplate lubricant aerosol
(GM
Part No. 12346293 or equivalent)
or lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
Dielectric Silicone Grease
(GM
Part No. 12345579 or equivalent).
See “Replacement Parts”
in the Index for recommended
replacement filters and spark plugs.
7-40
